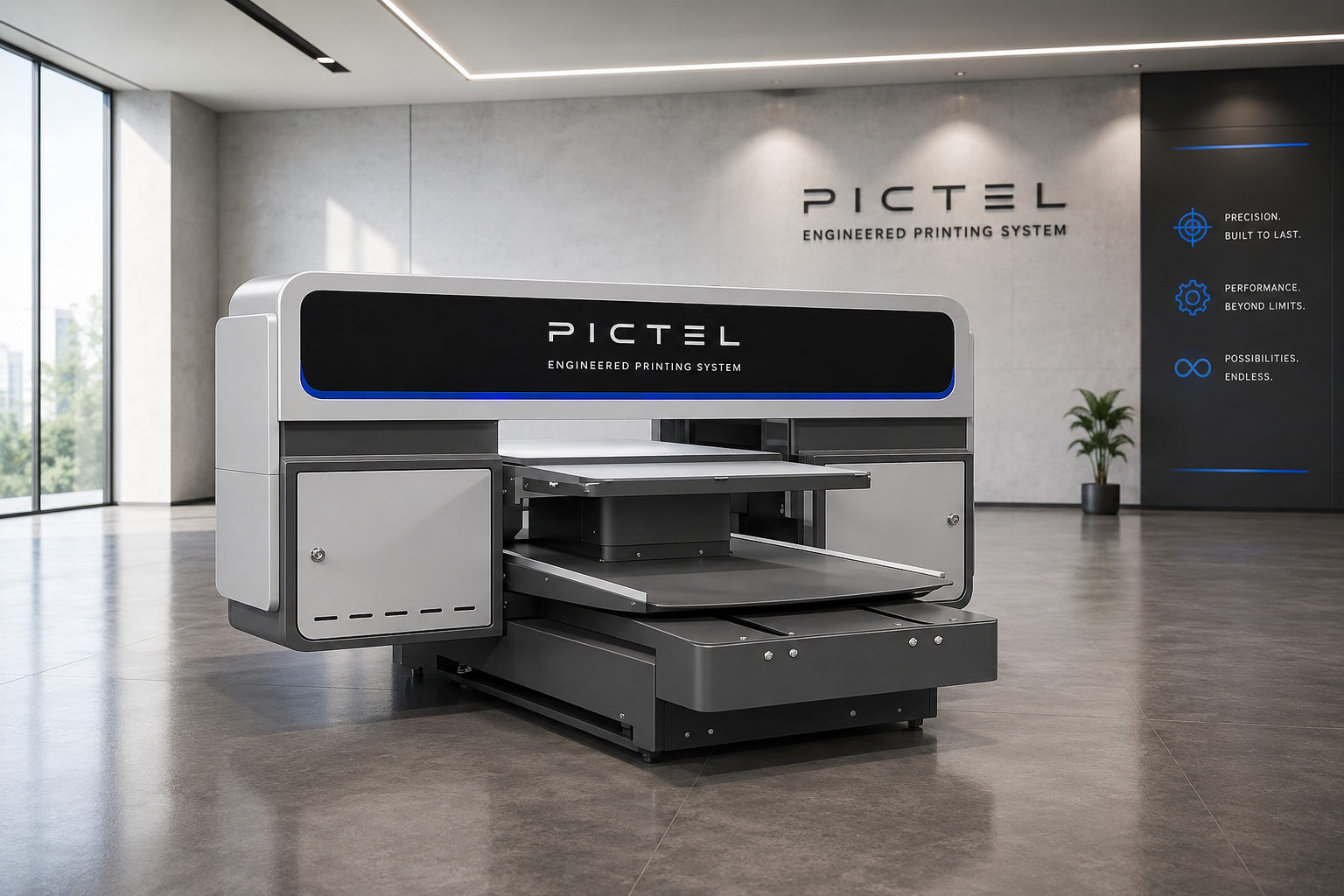

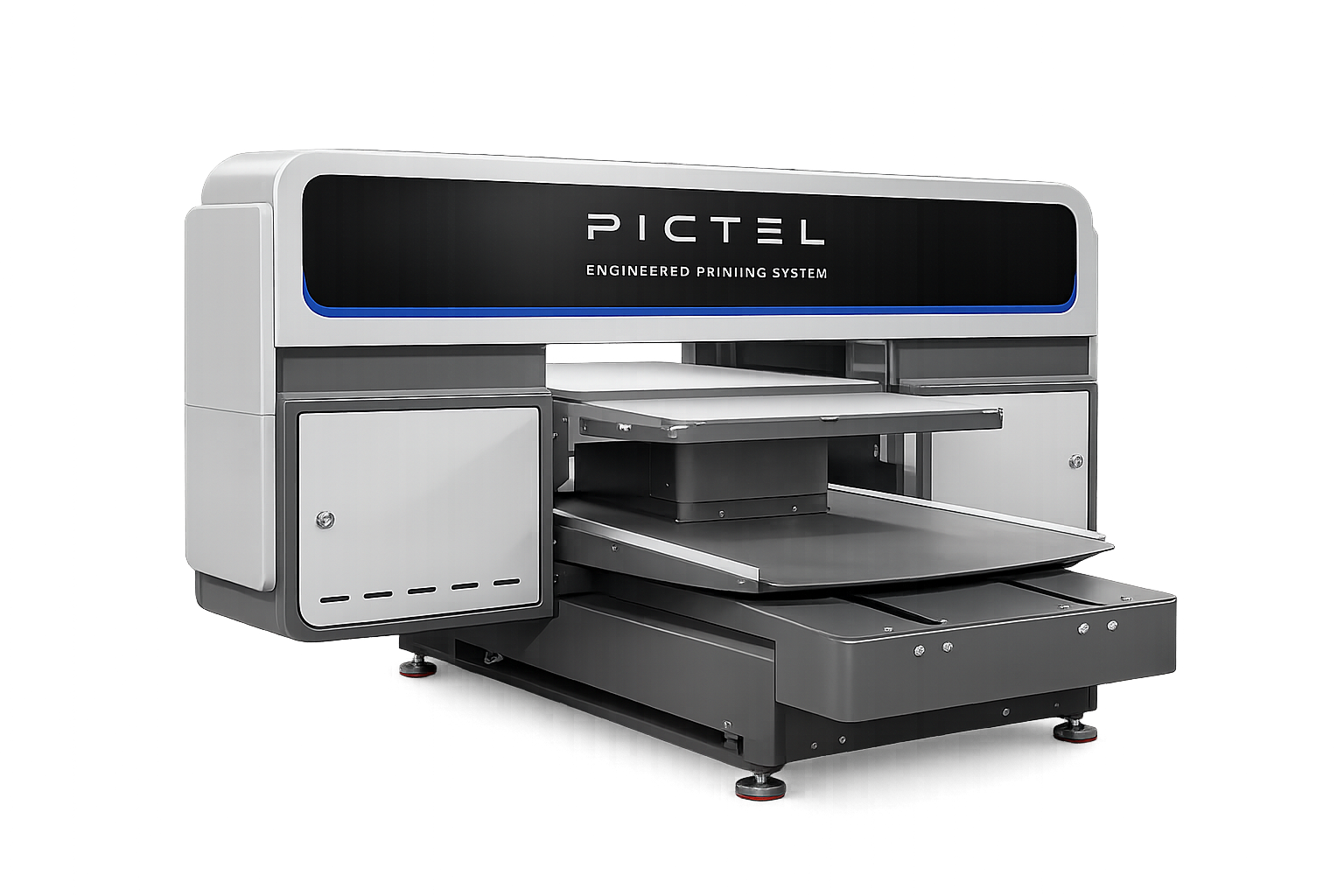

DIRECT TO GARMENT EMBROIDERY MACHINE
This powerful all-in-one machine supports one-touch switching between DTG & embroidery modes, giving you maximum flexibility. Dual functions and platforms mean double the efficiency, while features such as visual positioning and automatic calibration ensure that every print is clear, vibrant, and cost-effective.
In addition, the direct-to-garment embroidery machine combines traditional embroidery with modern digital printing technology, significantly enhancing the visual effect and tactile quality of embroidered products and offering unlimited creativity and high personalization in textile design.
Main Features:
- 380x480mm printing width.
- 2 * EPSON I3200 (HD) – A1 Heads.
- DTG and embroidery all-in-one machine, combining direct-to-garment printing and embroidery methods, innovative printing.
- Visual positioning function for precise embroidery.
- 9-color printing, perfect embroidery of complex patterns, gradient patterns, and multi-color patterns.
- High-end embroidery patterns to increase the added value of garments.
Technical Specifications:
- Printhead: 2*EPSON I3200 (HD) – A1
- A3 Size Shirt Printing Speed: 40 pieces/hour
- Embroidered Product Printing Speed: 100 pieces/hour
- Max Print Width: 380*480mm
- Color: C, M, Y, K, W, R, G, B, O
- RIP Software: RIIN, Caldera (optional)
Direct to Garment Embroidery Machine. DTG Precision. Embroidery Excellence. Unlimited Creativity.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
DTE direct-to-garment embroidery machine Features
Strong color expression
9-color embroidery and printing combination, strong three-dimensional sense, the perfect solution to multi-color or gradient color printing needs.

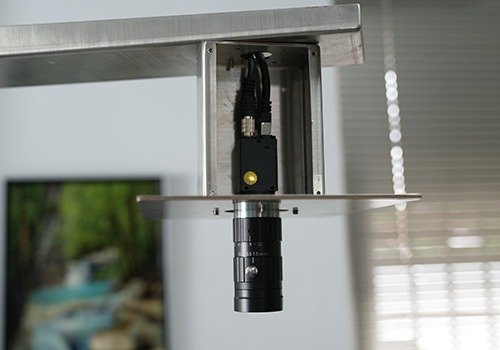

Visual positioning system
Supports the installation of visual positioning system printing, printing is more accurate.

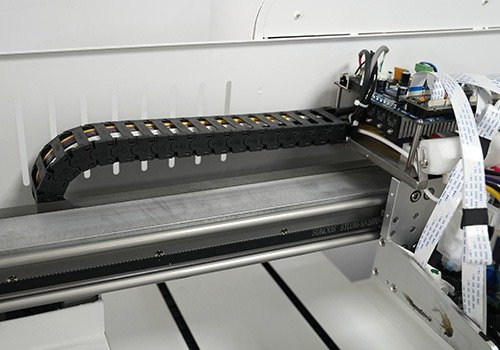

High-precision printing
Adopting imported drag chain, the machine printing is more stable and the operation accuracy is high.

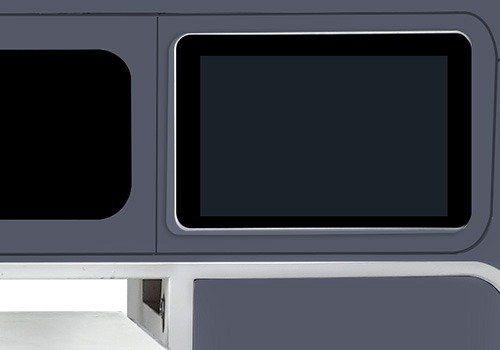

Integrated touch panel
Equipped with an integrated touch computer panel, the operation is more intuitive and simple and convenient.

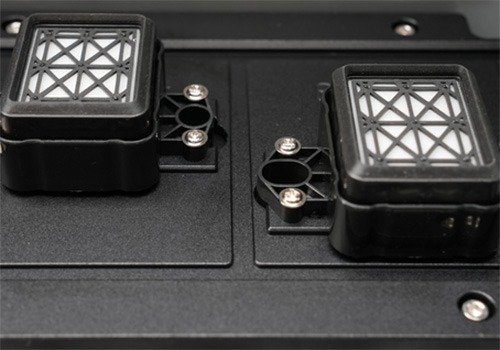

Automatic nozzle cleaning
The nozzle automatically cleans and moisturizes to avoid clogging and extend its service life.

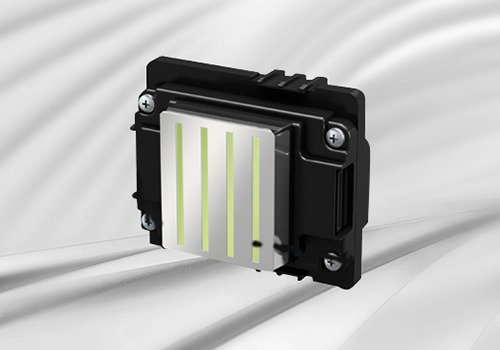

EPSON original printhead
2*EPSON I3200 original print heads, fast printing speed, and high precision.
Product Specification
| Product | Direct-To-Garment Embroidery Machine |
|---|---|
| Model | PI-360 DTE |
| Printhead | 2 × EPSON I3200 (HD) – A1 |
| Printing Speed | Pieces / Hour |
| A3 Size Shirt : 40 | |
| Embroidered Product : 100 | |
| Max Print Width | 380 × 480 mm |
| Ink Type | Textile Pigment Ink |
| Color | C, M, Y, K, W, R, G, B, O |
| Ink Supply System | Negative Pressure Intelligent Circulation Mixing System |
| Media Type | Various kinds of cotton, linen, wool, silk, and man-made fibers |
| Media Thickness | 20 mm |
| Smart Printhead Maintenance | Automatic Intelligent Nozzle Cleaning System |
| Visual Positioning System | Optional |
| RIP Software | RIIN, Caldera (Optional) |
| Input Power | AC 200–240V, 50Hz / 60Hz |
| Working Environment | Temperature: 20–30°C | Humidity: 60–70% |
| Machine Size | 1130 × 1260 × 1270 mm, 280 kg |
| Packing Size | 1450 × 1350 × 930 mm, 305 kg, 1.820 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Direct-to-garment embroidery machine Applications
All-in-one Direct-to-garment embroidery machine has the function of directly printing T-shirts of DTG, and can also realize embroidery printing, adding exquisite patterns and details, and enhancing the artistic value and unique personalized style of clothing. It can print corporate logos, names, badges, patterns, etc. on T-shirts and sportswear.
FAQ
Yes, combining DTG with embroidery technology makes T-shirt printing more innovative and improves the visual effect of the pattern.
Yes, adding embroidery will make the DTG prints more unique, the garments more durable, and the quality of the patterns better.
All-in-one Direct-to-garment embroidery machine is a new type of hybrid embroidery technology that can be used in fashion clothing, home decoration, personalized gifts, and other fields, such as embroidering company names, corporate logos, badges, patterns on work clothes, jerseys, sportswear, etc.
1. Better visual effect of patterns
The pattern printed by direct-to-garment will be single, while the all-in-one direct-to-garment embroidery machine will be printed by DTG with vibrant patterns, embroidery embellishes important details and textures, making the product more innovative and having a better visual effect.
2、More durable
The patterns printed by direct-to-garment (DTG) technology will inevitably fall off after long-term washing, and the addition of embroidery technology will make the patterns more durable and friction-resistant.
3、Enhance market competitiveness
Embroidery added to the direct-to-garment technology can be personalized with various patterns, logos, and details, which is more unique, has a sense of quality, and improves market competitiveness.
