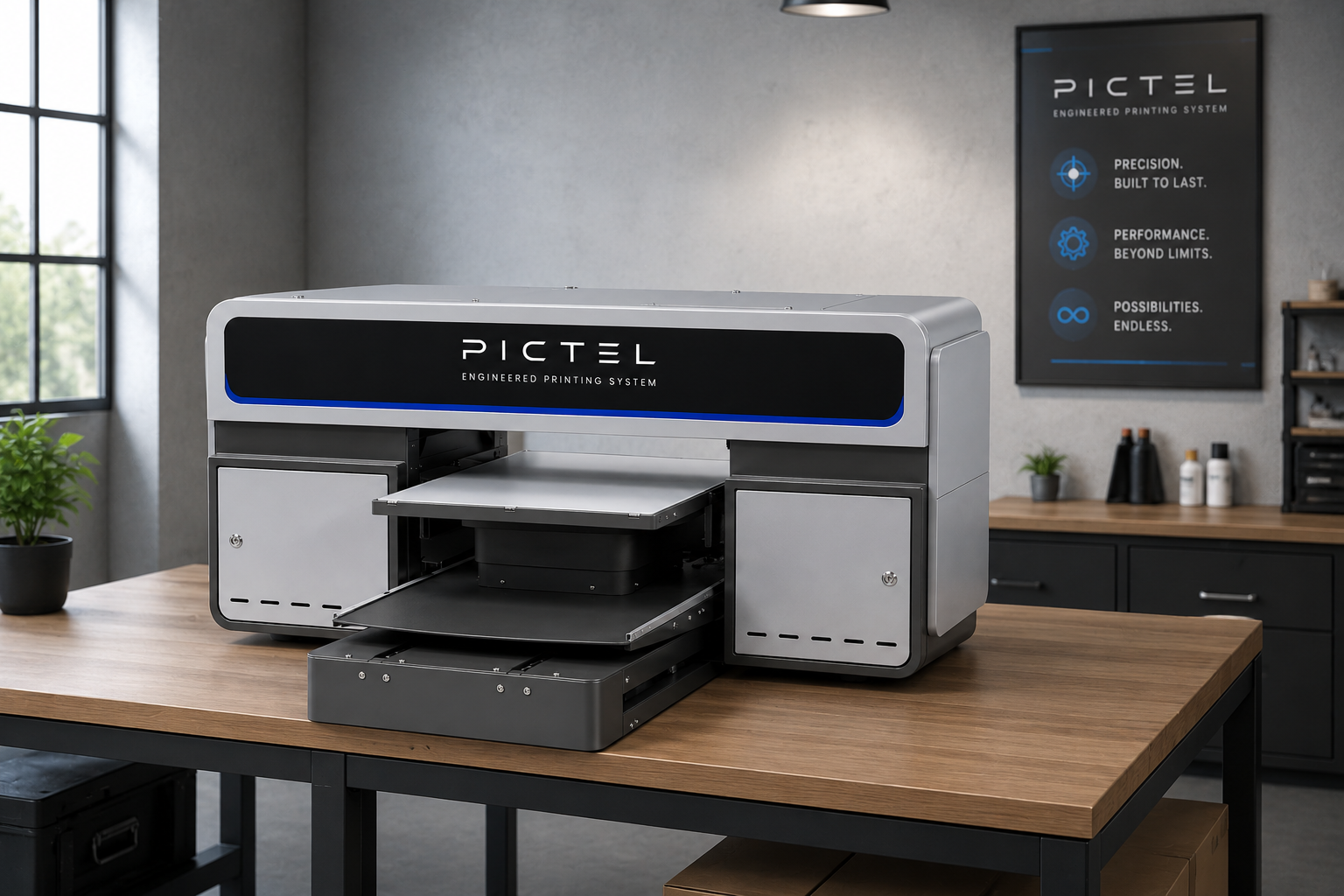

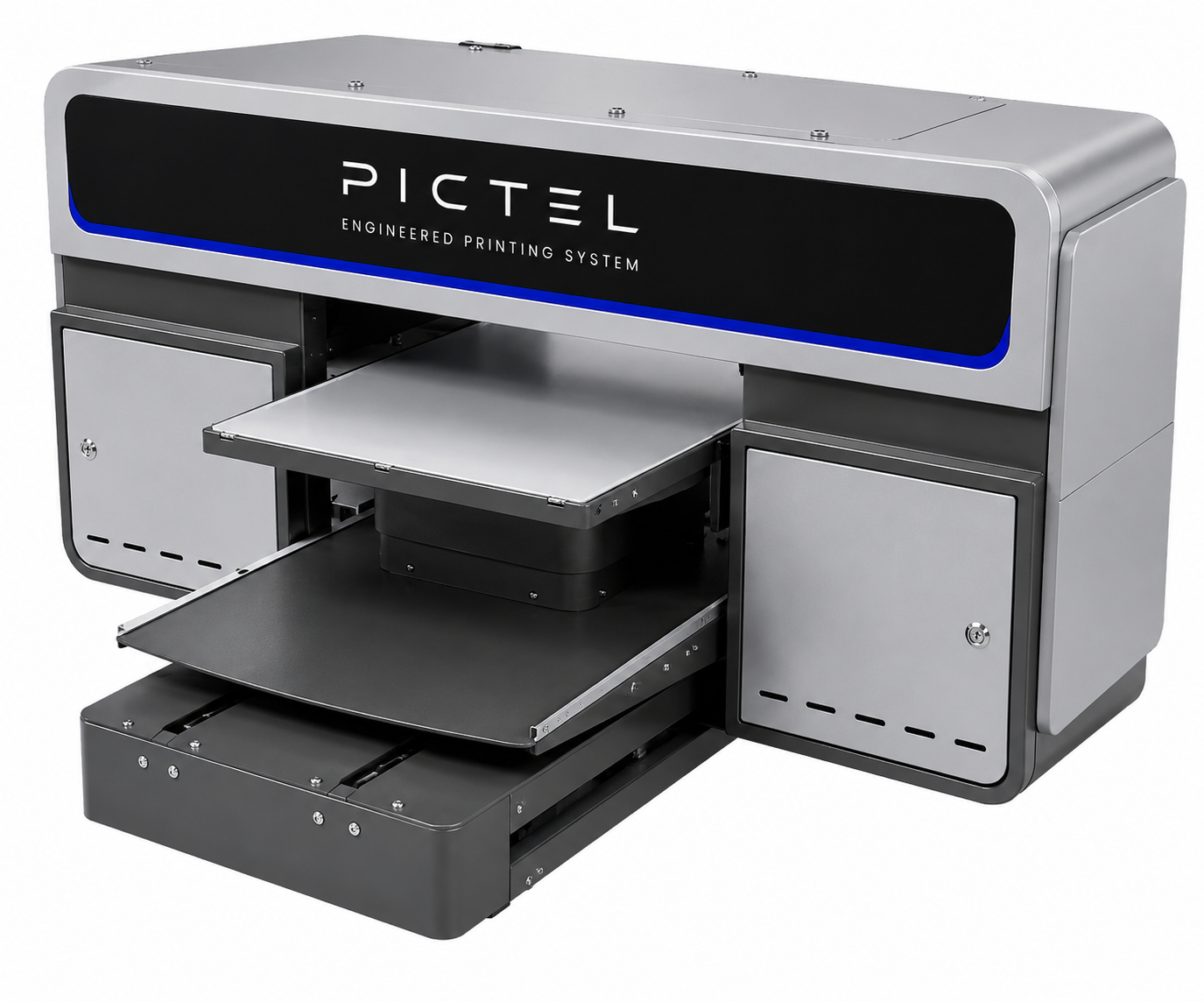

SINGLE STATION DTG PRINTER
The single-station DTG printer is the most popular T-shirt garment printing machine, with 9 colors of high color expression, and an optional imitation embroidery function, realizing one machine for multiple uses, bringing strong competitiveness to your business.
Main Features:
- 380×480mm printing width.
- 2 × EPSON i3200 (HD) – A1 Heads.
- Optional embroidery function; one machine can realize two printing methods of DTG and embroidery, reducing labor and cost, and enhancing the visual appeal of garments.
- Ultra-quiet printing, suitable for shopping malls and home DIY personalized garments.
- 9 colors are more expressive than traditional 5 colors, and the color gamut of printing is wider, meeting the high-end market printing needs.
- Small footprint, easy to operate, beginner-friendly, suitable for small-batch production of pure cotton T-shirts.
Technical Specifications:
- Printhead: 2*EPSON I3200 (HD) – A1
- A3 Size Shirt Printing Speed: 40 pieces/hour
- Embroidered Product Printing Speed: 100 pieces/hour
- Max Print Width: 380*480mm
- Color: C, M, Y, K, W, R, G, B, O
- RIP Software: RIIN, Caldera (optional)
Professional DTG Printing. Embroidery Effects. Built for Creative Businesses.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Single-station DTG printer Features
Double-head 9-color solution
9 colors are more colorful than the traditional 5 colors, and the printed color gamut range and color expression are richer, which can meet the high-end market printing needs.

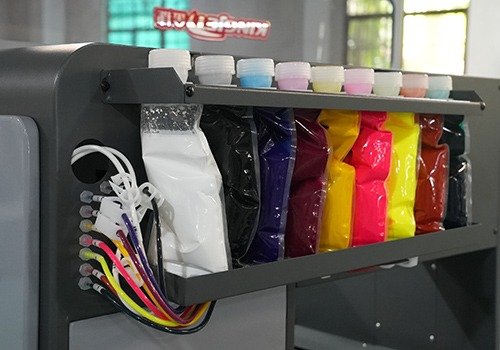

Imported refillable ink bags
Replaces traditional cartridges with a 30% improvement in air tightness, greatly reducing the possibility of air entering the ink path and improving ink performance.

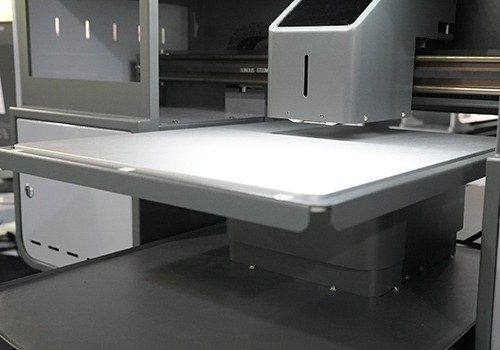

Self-developed table lifting system
One-button adjustment of the printing table height is simple, fast, and accurate, solving the problem of difficult adjustment and positioning of traditional printers, and can be operated without experience.

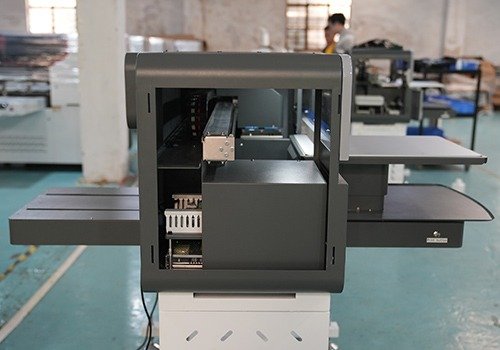

Integrated motion structure
Greatly improves the overall mechanical performance, ensures printing accuracy, and prints smoothly without jamming.

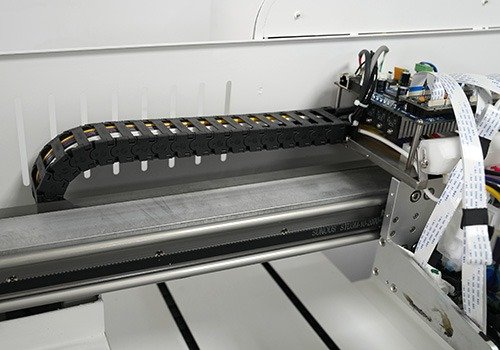

High-precision silent guide rail
Imported IGUS drag chain ensures smooth printing without jamming, meeting the needs of continuous production.

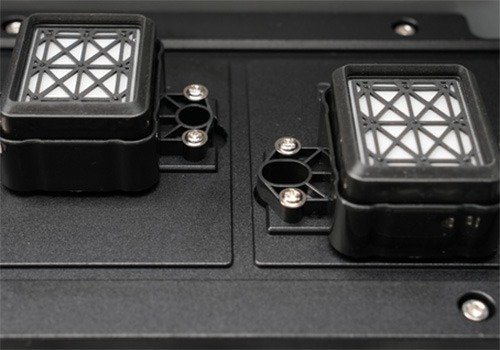

Intelligent nozzle cleaning
Fully automatic intelligent nozzle cleaning, more convenient daily maintenance, and reduces nozzle wear.
Product Specification
| Product | Single-Station DTG Printer |
|---|---|
| Model | PI-360 |
| Printhead | 2 × EPSON I3200 (HD) - A1 |
| Printing Speed | Output (Pieces / Hour) |
|
A3 Size Shirt
40
|
|
|
Embroidered Product
100
|
|
| Max Print Width | 380 × 480 mm |
| Ink Type | Textile Pigment Ink |
| Color | C, M, Y, K, W, R, G, B, O |
| Ink Supply System | Negative Pressure Intelligent Circulation Mixing System |
| Media Type | Various Kinds of Cotton, Linen, Wool, Silk & Man-Made Fibers |
| Media Thickness | 20 mm |
| Smart Printhead Maintenance | Automatic Intelligent Nozzle Cleaning System |
| Visual Positioning System | Optional |
| RIP Software | RIIN, Caldera (Optional) |
| Input Power | AC200–240V, 50Hz / 60Hz |
| Working Environment | Temperature: 20–30°C | Humidity: 60–70% |
| Machine Size | 1130 × 1260 × 1270 mm, 280 kg |
| Packing Size | 1450 × 1350 × 930 mm, 305 kg, 1.820 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Direct to Garment T-Shirt Printing Machine Applications
DTG printer, also known as direct-to-garment printing, is a popular garment printing technology. The 9-color pigment ink blends well with the fibers of the garment, especially pure cotton fabrics. It is typically used to print t-shirts and other garments such as sweatshirts, skirts, hats, and shoes, making it ideal for textile personalization by startups, growing companies, and other apparel designers. after adding the CCD configuration, imitation embroidery printing can also be performed.
DTG 9-color printing
DTG printer for T-shirts
DTE imitation embroidery
Sweatshirts
T-shirt
DTG printer for t-shirt printing
FAQ
DTG printer, or direct-to-garment printer, is a sustainable and environmentally friendly garment printing technology that works similarly to an inkjet printer in an office, but the main difference is that the printed medium is fabric instead of paper, and pigment inks designed for fabrics are required.

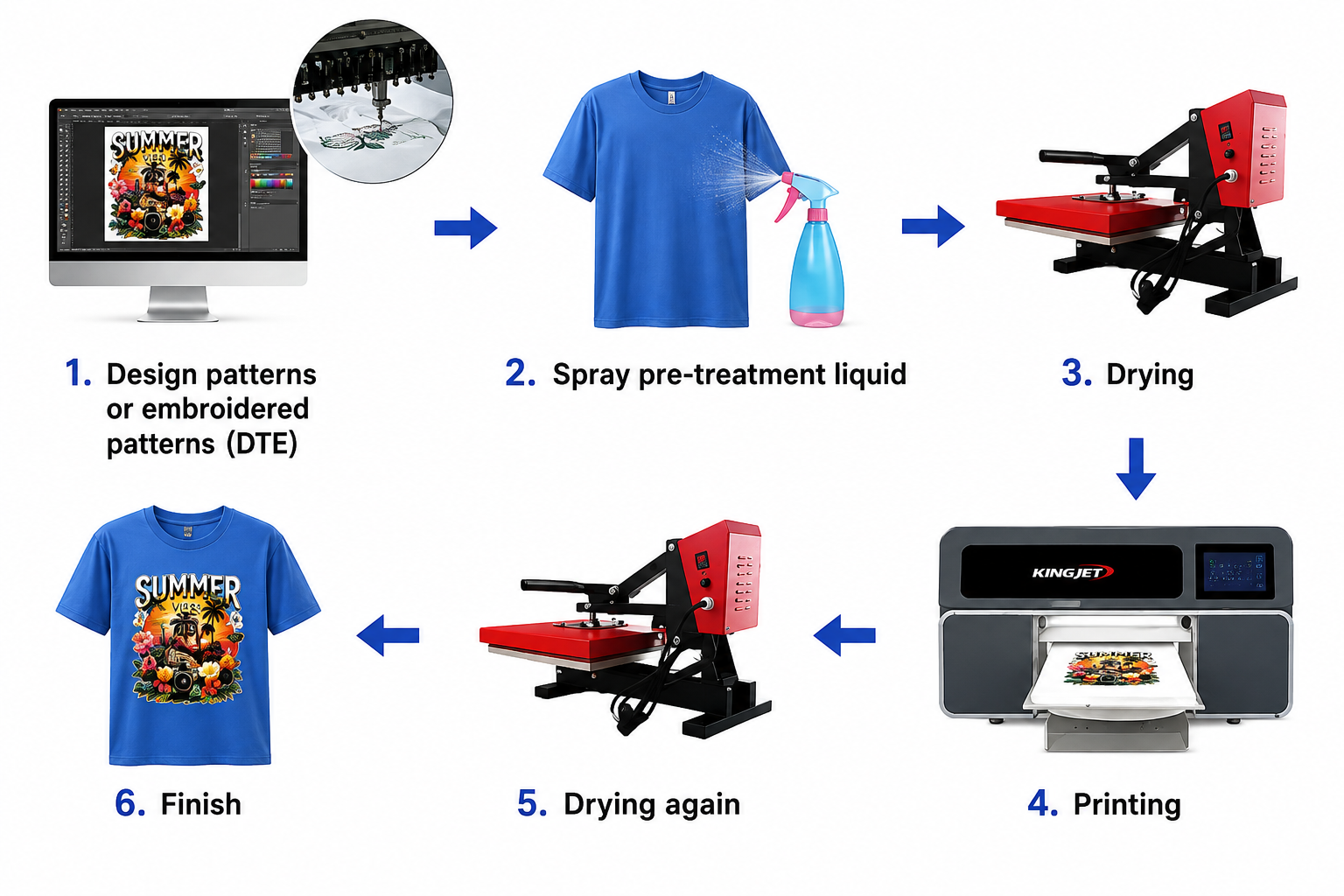

DTG printers are more suitable for pure cotton and cotton blended fabrics (white and light-colored fabrics) because DTG ink can be well absorbed and bonded by cotton fibers, making the printed patterns vivid and colorful. For dark fabrics, pretreatment operations are required before printing.
The standard for washing printed garments is 50-100 times, but in fact, the life of DTG printed T-shirts will be longer. The specific life depends on your usage scenario.
DTG technology is more suitable for multi-color and small order printing, with extremely high cost-effectiveness, while screen printing is suitable for large-volume orders, but the initial equipment investment cost is relatively high and requires a certain amount of storage space.
