PI-R001E COMPACT 360 UV PRINTER FOR BOTTLES
This 360° rotary UV printer enables seamless printing on cylindrical and conical surfaces. Equipped with UV-curable ink and precision rotating machinery, it delivers optimal printing results for cylindrical objects of various materials and shapes, producing vibrant, durable designs. Such as glass cups, thermoses, wine bottles, sports bottles, lipstick tubes, and cosmetic bottles.
Main Features:
- 1 × EPSON I3200 U1-HD print head
- Print Diameter: ?4–18cm
- Print Length: 1–300mm
- Color: CMYKWV
- Print Speed: 60s/pc
- 360° seamless splicing effect, stunning effect.
- Compact and economical, easy to operate, and user-friendly.
- Widely applicable, scratch-resistant, and supports multiple printing materials.
Technical Specifications:
- Print head: 1*Epson i3200U1-HD
- Print Accuracy: 720*1800 dpi
- Print Diameter Range: Φ40-180mm (custom sizes supported)
- Print Length Range: 1-300mm
- Printing Height Difference: 3mm
- Print Speed: CMYKWV, 6-pass printing, approx. 60s per bottle (depending on image complexity)
- Color: CMYK+W+V
- Supported Shapes: Cylindrical, conical

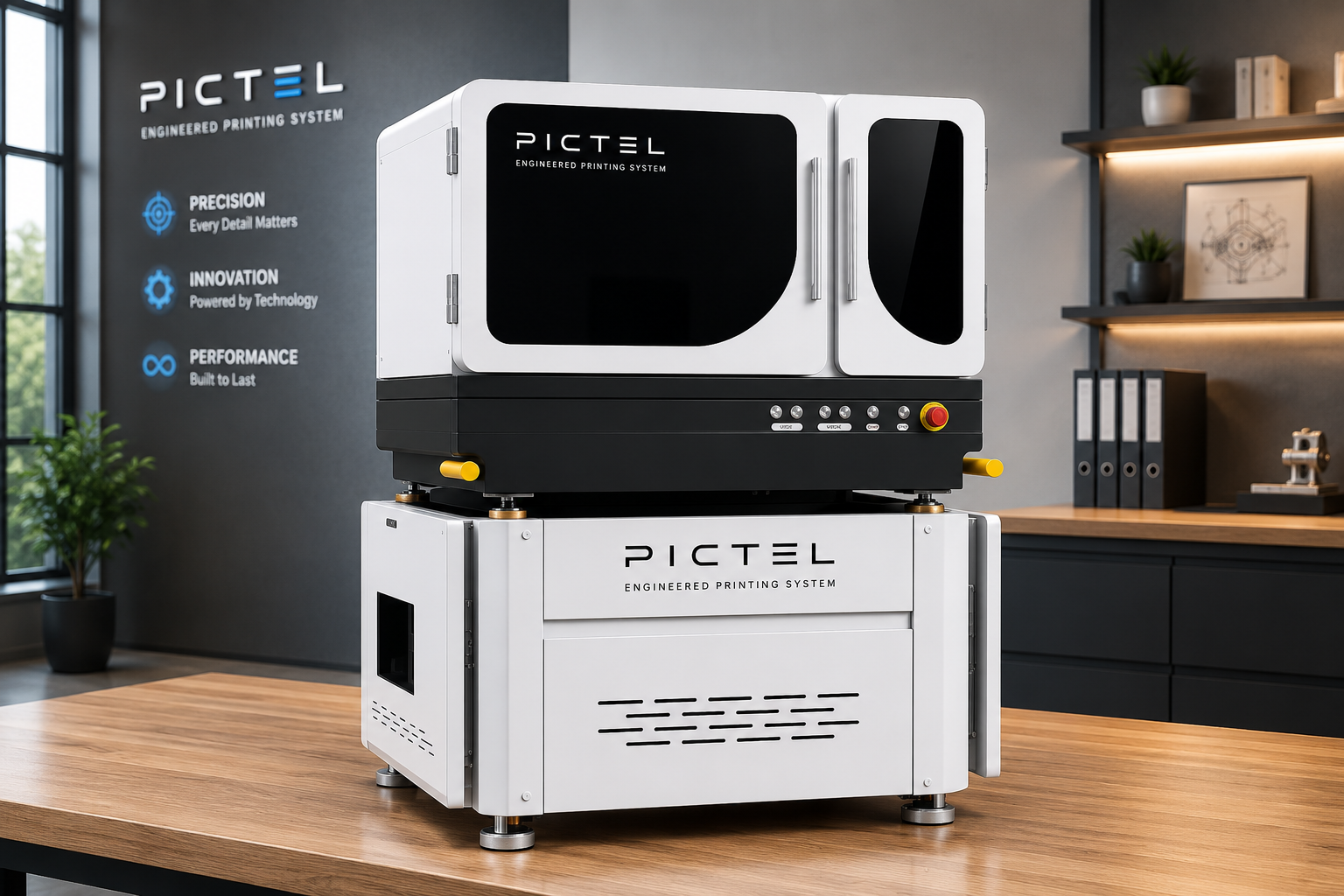

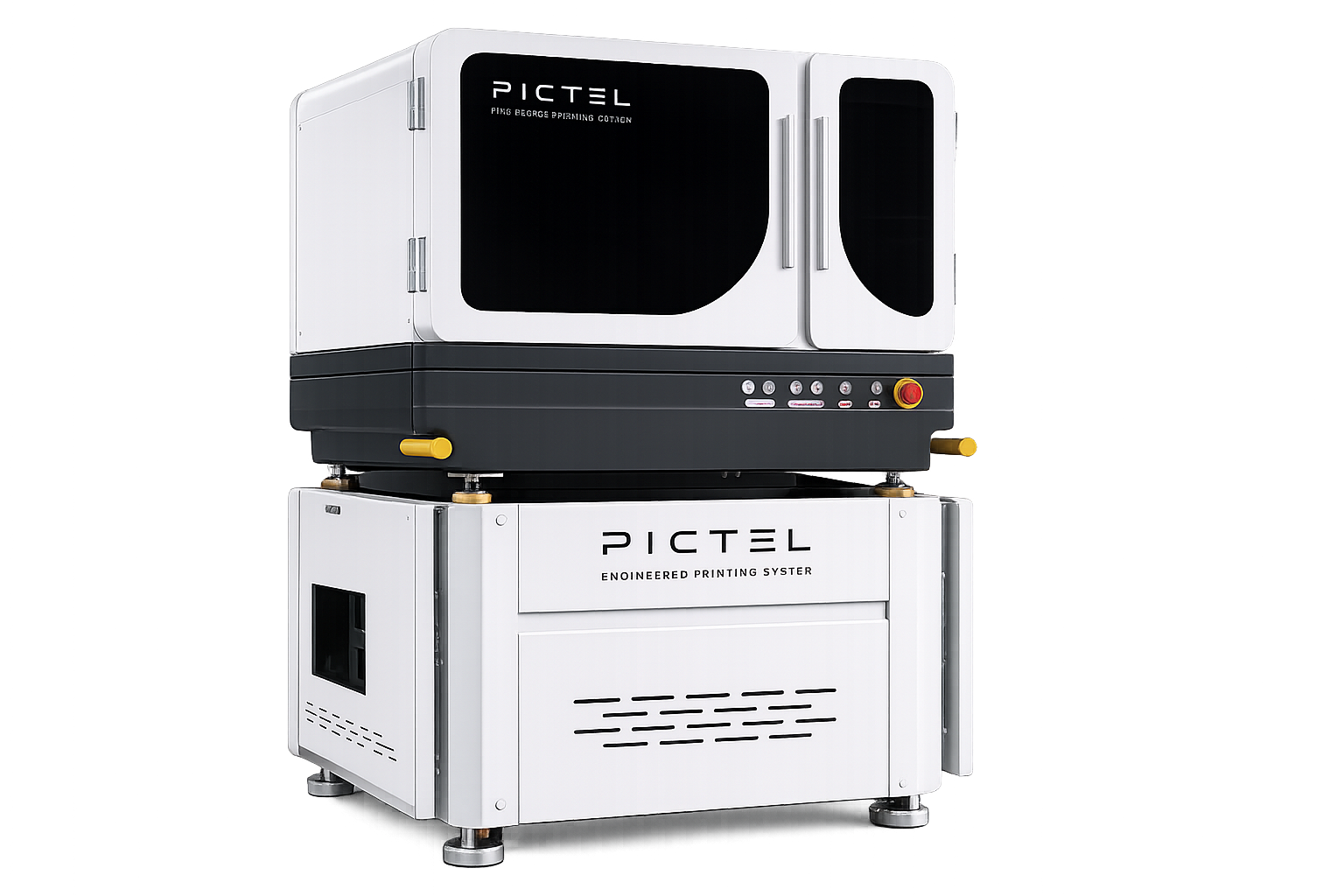

PI-R001E Compact 360° UV Bottle Printer. Seamless 360° Printing. Brilliant Colors. Endless Customization.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
360 Rotary UV Printer features
Seamless 360° Printing
Utilizing a high-precision rotary control system enables seamless 360° printing on cylindrical surfaces, with no overlaps or gaps, and natural color transitions.
Excellent Embossed Effects
High-gloss embossed printing technology ensures rich textures, distinct three-dimensional layers, enhanced tactile feel, and scratch resistance.
Compact Body
Compact size with comprehensive performance, balancing printing stability with space efficiency, particularly suitable for startups.

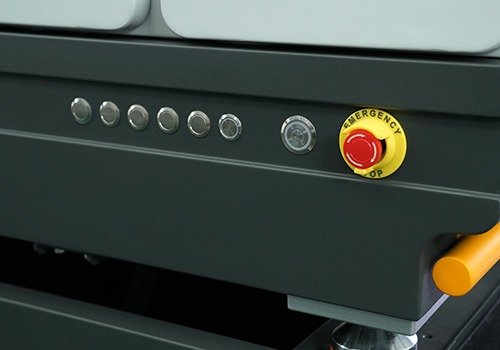

User-Friendly Control Panel
Intuitive operation process with one-button start/stop, no complex procedures required, making it ideal for beginners, and easy to master quickly.

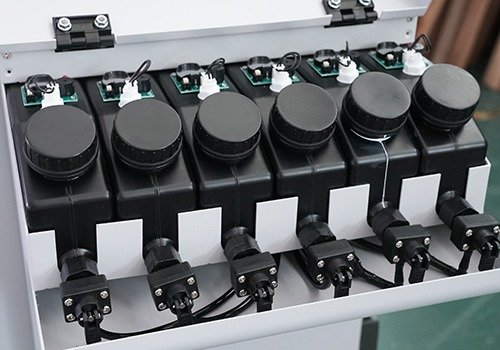

Ink Supply System
Utilizes a positive pressure ink supply system with strong ink supply power and high pressure controllability to prevent nozzle ink blockages.

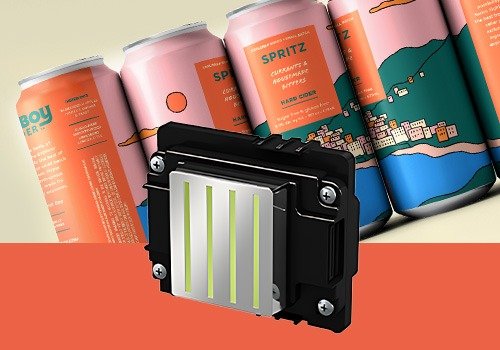

EPSON Single Head
The single-head design simplifies mechanical complexity, enabling ultra-high-precision printing of complex patterns and easy calibration.
Product Specification
| Product | 360 Rotary UV Printer |
|---|---|
| Model | PI-R001E |
| Printhead Type | 1 × Epson i3200U1-HD |
| Print Accuracy | 720 × 1800 dpi |
| Print Speed | CMYKWV, 6-pass printing, approximately 60 seconds per bottle (depending on image complexity) |
| Ink Configuration | CMYKWV |
| Ink Supply System | Positive Pressure Ink Supply |
| UV Curing System | UV-LED Water-Cooled Light Source |
| Print Diameter Range | ?40–180 mm (Custom Sizes Supported) |
| Print Length Range | 1–300 mm |
| Supported Shapes | Cylindrical, Conical |
| Supported Materials | Plastic, Metal, and Glass Bottles |
| Applicable Scenarios | Brand Stores, Digital Print Shops, Printing Companies, Customized Gift Production, DIY Creators |
| Transport Interface | Cat.6A Ethernet |
| Image Formats | TIFF, JPEG, PNG, PDF, EPS |
| Computer System | Windows 7 / 8 / 10 |
| Input Voltage | AC 220V (±10%), 50/60Hz ?16A |
| Operating Power | <1000W |

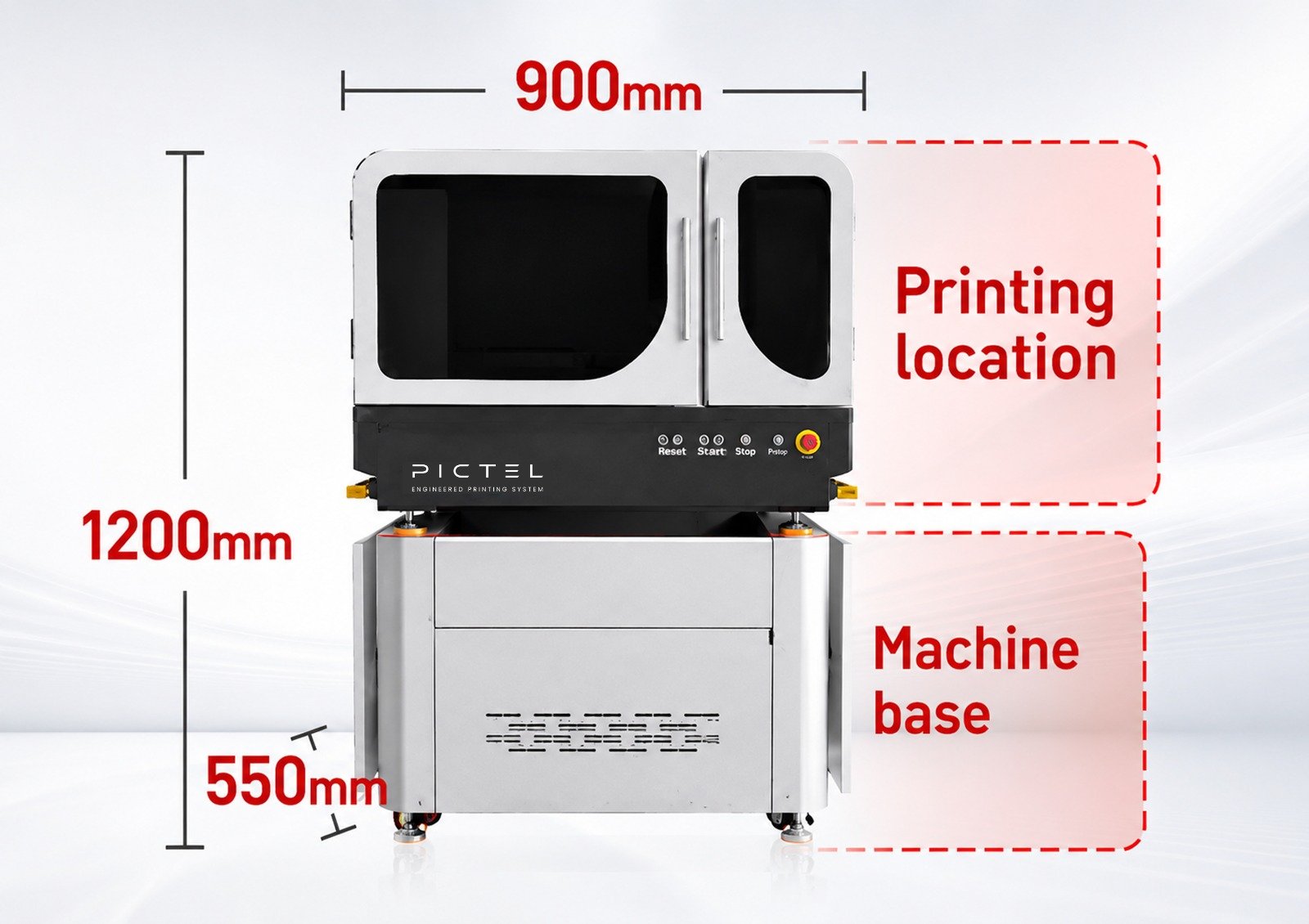

| Machine Size | 900 × 550 × 1200 mm, 139 kg |
| Machine Packing Size | 1500 × 960 × 1000 mm, 220 kg |
| Operating Environment | Clean, dust-free, well-ventilated area with no direct sunlight. Optimum temperature: 15–30°C, Relative Humidity: 30–70%. |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Unleash Your Cylinder Printing Creativity with Rotary UV Printer
The 360° rotary UV printer utilizes an intelligent control system and high-performance UV curing ink to achieve precise positioning and efficient curing of full-color printing on the surface of the cylinder, resulting in bright colors and a smooth hand feel. Whether printing on glass, plastic, or metal, it can achieve excellent printing results, and images are durable and do not fade. It supports seamless printing around the entire bottle in one go, without any splicing marks, creating a high visual packaging design and enhancing your brand appeal.

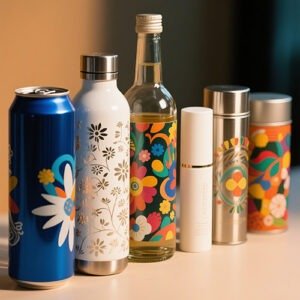

UV printing on various bottles

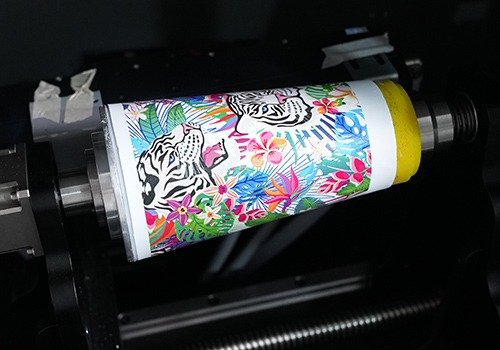

Rotary UV printer for beverage bottles

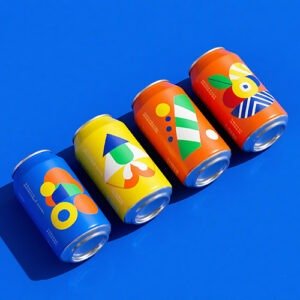

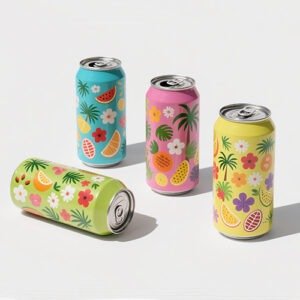

UV printing on cans

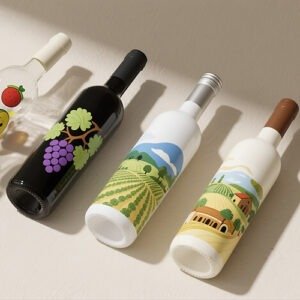

UV printing on wine bottles

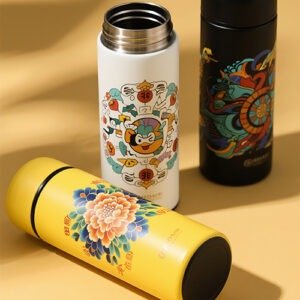

UV printing on thermos cups
UV printing on cosmetic bottles
FAQ
A 360 rotary UV printer is an industrial device that integrates a high-precision rotating platform with UV curing technology. It enables 360° seamless, full-color printing on cylindrical, conical, and other irregular surfaces. The printed curved surfaces are naturally seamless and maintain distortion-free appearance. It also uses UV-curable ink, which dries instantly on a variety of materials, creating durable, vibrant images.
UV cylinder printer offers a wide range of material compatibility and excellent adhesion, and can print on the following cylindrical objects:
Glass: wine bottles, cosmetic containers, beverage bottles, etc.
Plastics: PET bottles, ABS cups, plastic sports bottles, etc.
Metals: stainless steel thermoses, aluminum cans, metal commemorative cans, etc.
Ceramics: mugs, ceramic bottles, decorative ceramics, etc.
The high-resolution output of 360 rotary UV printer is particularly suitable for manufacturing fields that require customization, high flexibility, and high-value-added products.
Packaging Industry
Used for personalized customization and small-batch production of bottles for alcohol, cosmetics, beverages, and high-end gift packaging.
Promotional Gift Industry
Producing metal, ceramic, and commemorative cups with custom company logos to meet marketing and gift customization needs.
Home and Decoration Industry
Printing highly designed home containers, decorative bottles and jars, and personalized household items.
Consumer Goods Industry
Applicable to printing on metal or plastic casings, such as thermoses and sports bottles, for exterior decoration.
