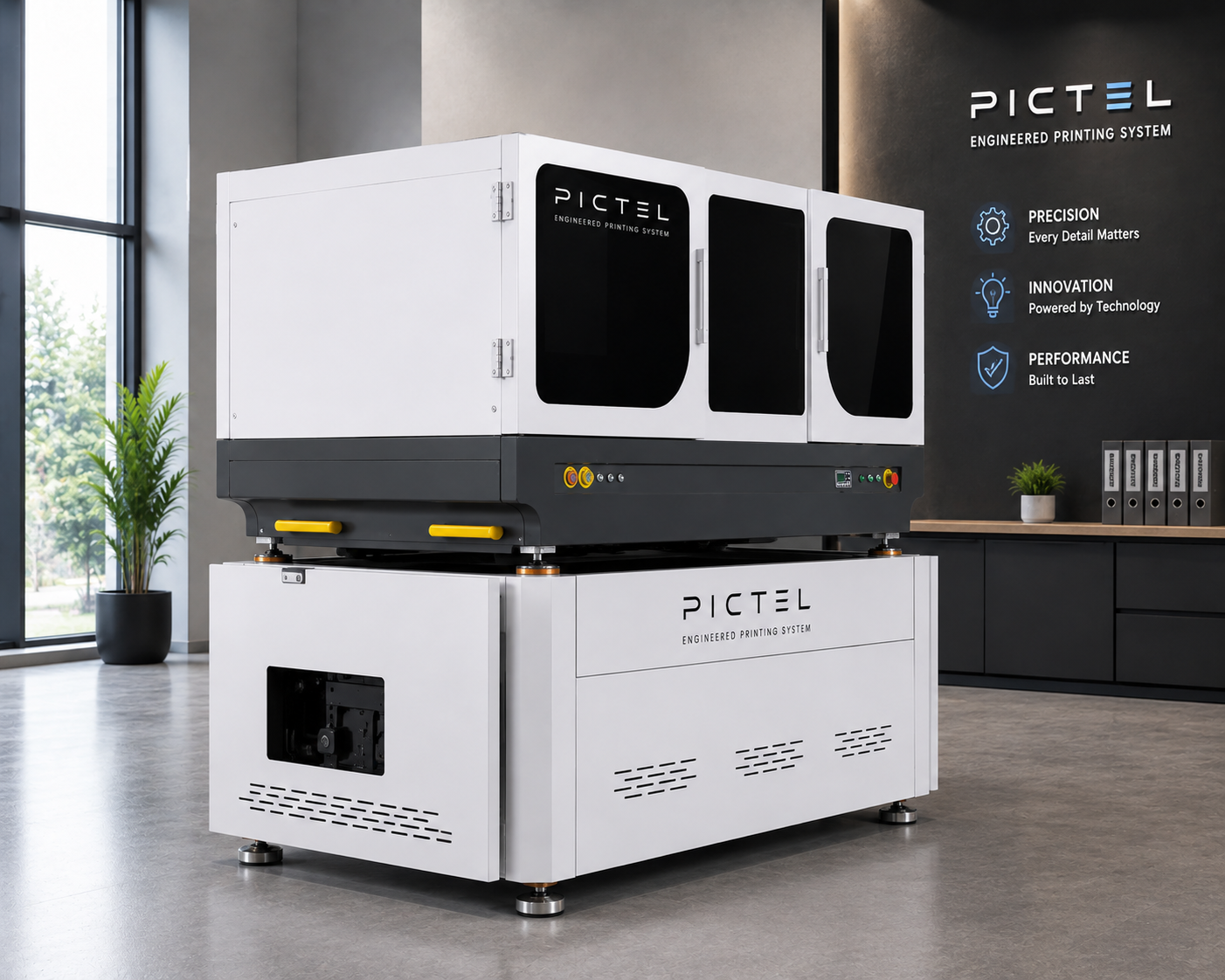

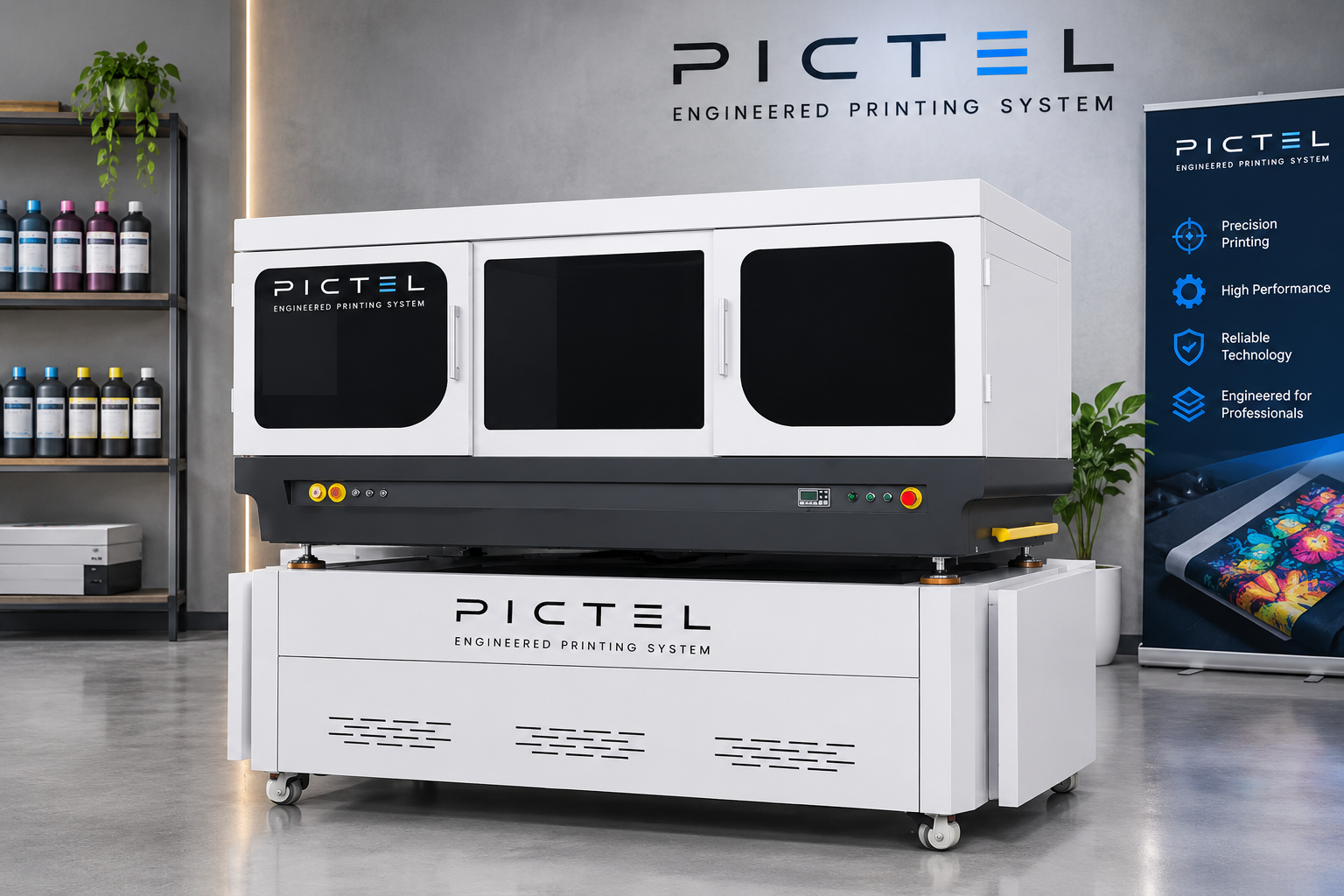

PI-R001FC INDUSTRIAL HIGH DROP UV CYLINDER PRINTER FOR TUMBLERS
The industrial-grade UV cylinder printer is designed specifically for high drop and irregularly curved surfaces, achieving high precision and high speed while equipped with an intelligent modeling scanning system for perfect pattern stitching. This meets the high-standard printing needs of cups, wine bottles, cosmetics, and more.
Main Features:
- 5 × Toshiba CF3 printheads
- Print Diameter: ?4–20cm, print length: 1–300mm
- Color: CMYKLcLmWV
- High-Speed Print Mode: 37s/pc
- High-precision irregular bottle printing with smooth pattern transitions.
- Modeling and scanning functions to achieve industrial-grade stable production.
- Multi-color high-precision output, easy printing of full-color, gradient, and 3D relief effects.
Technical Specifications:
- Print Head: Toshiba CF3 industrial internal circulation printhead
- Print Head QTY: Maximum 5pcs
- High Drop Printing: 0-2cm, maximum 3cm
- Print Accuracy: 600*900 dpi – 6pass
- Print Range: Diameter Φ40-200mm; Length 40-300mm
- High-speed Print Mode: 37s/pc
- Color: CMYKLcLmWV
- Supported Shapes: Cylindrical, conical, and irregular round bottles with high drop
High-Drop UV Technology. Intelligent Positioning. Production-Ready Performance.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
High Drop UV Cylinder Printer features
360° Seamless UV Printing
360° rotating UV technology achieves perfect splicing on cylindrical surfaces of various materials and shapes, providing a natural and smooth feel.

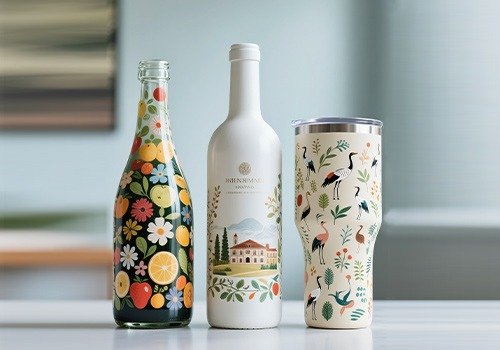

High-Drop Cylindrical Printing
The printing height difference can reach up to 20mm; it automatically detects height changes of various irregular bottles, and adjusts printing positions to ensure precise ink adhesion and uniform curing.

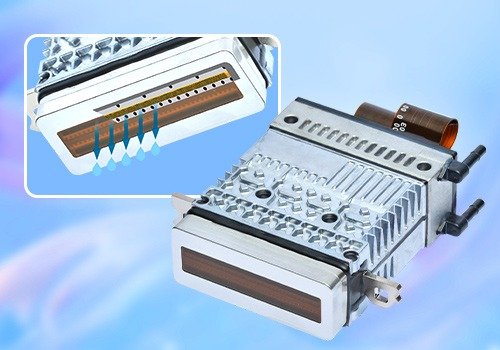

Toshiba CF3 Print Head
Adopting 3.5pl fine inkjet technology, combined with internal circulation design, effectively extends the nozzle life and maintains high precision, fast, and stable output.

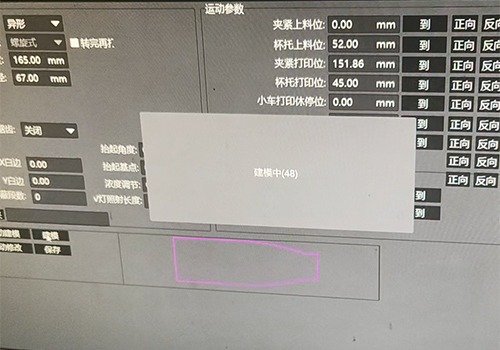

Modelling and Scanning function
The built-in model scanning system enables automated modeling and layout through software. The pattern precisely matches the bottle body, achieving seamless overlap and improving production efficiency.

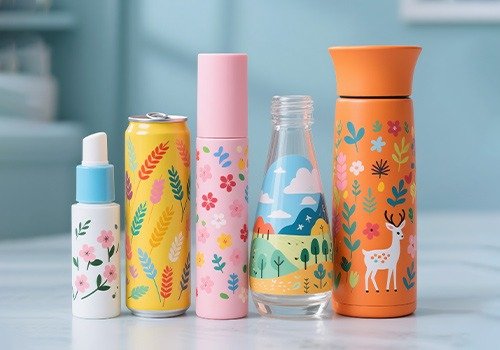

Supports Multiple Print Sizes
Highly flexible, compatible with diverse materials and bottle shapes, it can print various cylindrical objects with diameters ranging from Φ4-20cm and lengths from 1-300mm.

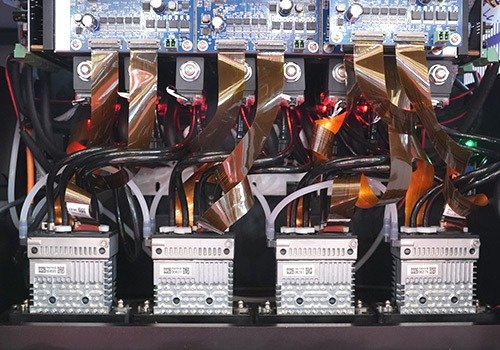

Innovative Ink Path Design
Ensures smooth ink transfer, significantly reducing bubble generation for more precise pattern effects, and can be turned on and off at any time.
Product Specification
| Product | High Drop UV Cylinder Printer |
|---|---|
| Model | PI-R001FC |
| Printhead Type | Toshiba CF3 Industrial Internal Circulation Printhead |
| Number of Printheads | Maximum 5 pcs |
| Print Accuracy | 600 × 900 dpi (6 Pass) |
| Print Speed |
Print Size: 235 × 314 mm (WCV) High-Speed Mode: 37 sec/pc Production Mode: 50 sec/pc High-Quality Mode: 1 min 26 sec/pc |
| Ink Configuration | CMYKLcLmWV |
| Ink Supply System | Negative Pressure Ink Supply |
| UV Curing System | UV-LED Water-Cooled Light Source |
| Print Range | Diameter: ?40–200 mm Length: 40–300 mm |
| High Drop Printing | 0–20 mm (Maximum 30 mm) |
| Supported Shapes | Cylindrical, Conical, and Irregular Round Bottles with High Drop |
| Supported Materials | Plastic, Metal, and Glass Bottles |
| Applicable Scenarios | Printing Factories, Cup Manufacturers, Online Gift Customization Companies, and More |
| Transport Interface | Cat.6A Ethernet |
| Image Formats | TIFF, JPEG, PNG, PDF, EPS |
| Computer System | Windows 7 / 8 / 10 |
| Input Voltage | AC 220V (±10%), 50/60Hz ?16A |
| Operating Power | 1150W (Full Operation) |
| Operating Environment | Clean, dust-free, well-ventilated area with no direct sunlight. Optimum Temperature: 15–30°C, Relative Humidity: 30–70%. |
| Machine Size | 1700 × 700 × 1630 mm, 300 kg |
| Packing Size | 1850 × 1650 × 1250 mm, 430 kg, 3.816 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Start Your Personalized UV Bottle Printing Business

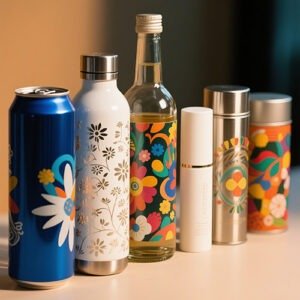

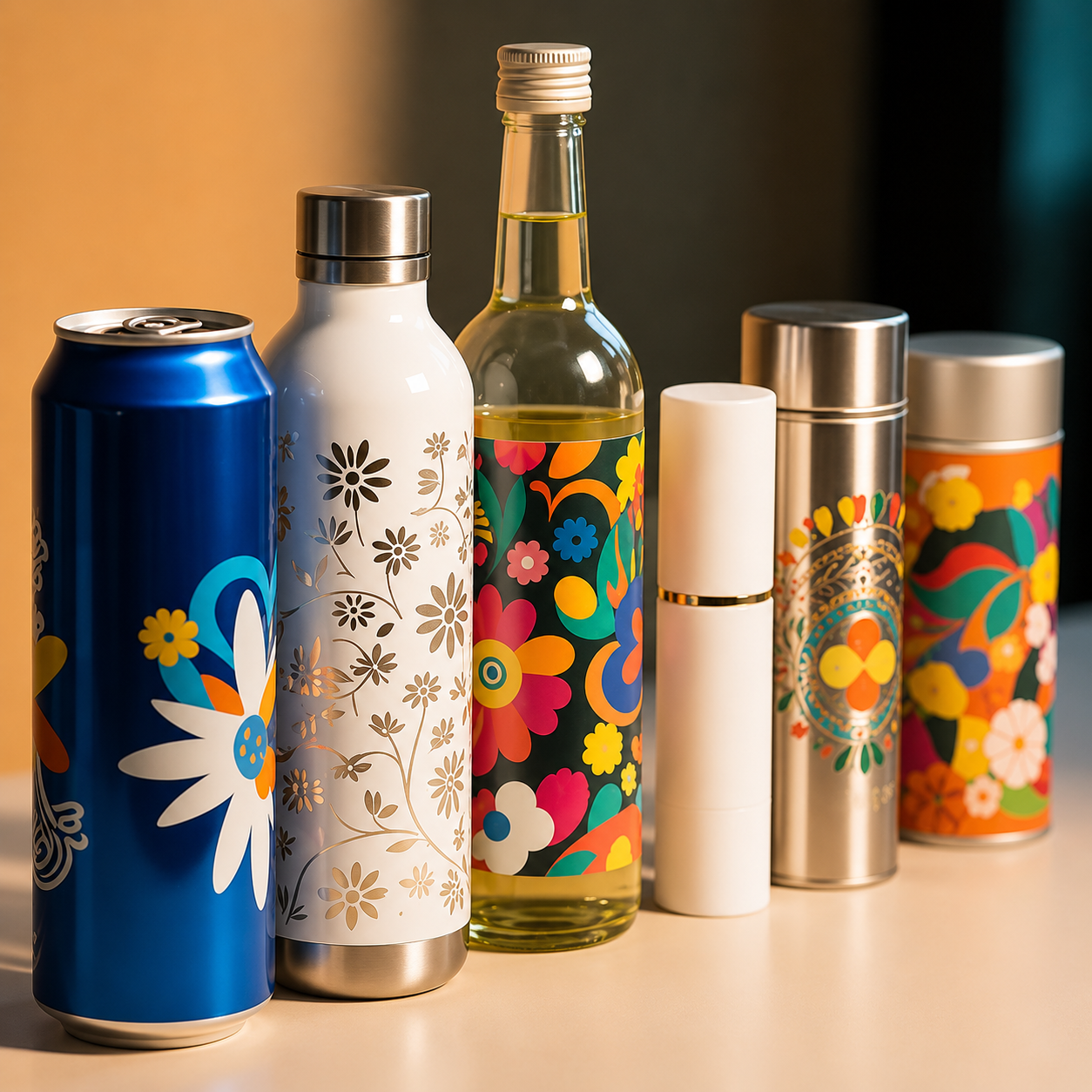

Industrial-grade high-speed UV cylindrical printer is different from a traditional UV bottle printer. It features fast printing speeds of up to 37 seconds per piece and supports 360° rotation printing. It supports various printing forms such as seamless, 3D relief, and high drop. It has strong adhesion and scratch resistance and is widely suitable for various glass, ceramic, metal, and plastic products, including thermos bottles, wine bottles, glasses, sports bottles, vases, travel mugs, aluminum bottles, cans, etc.

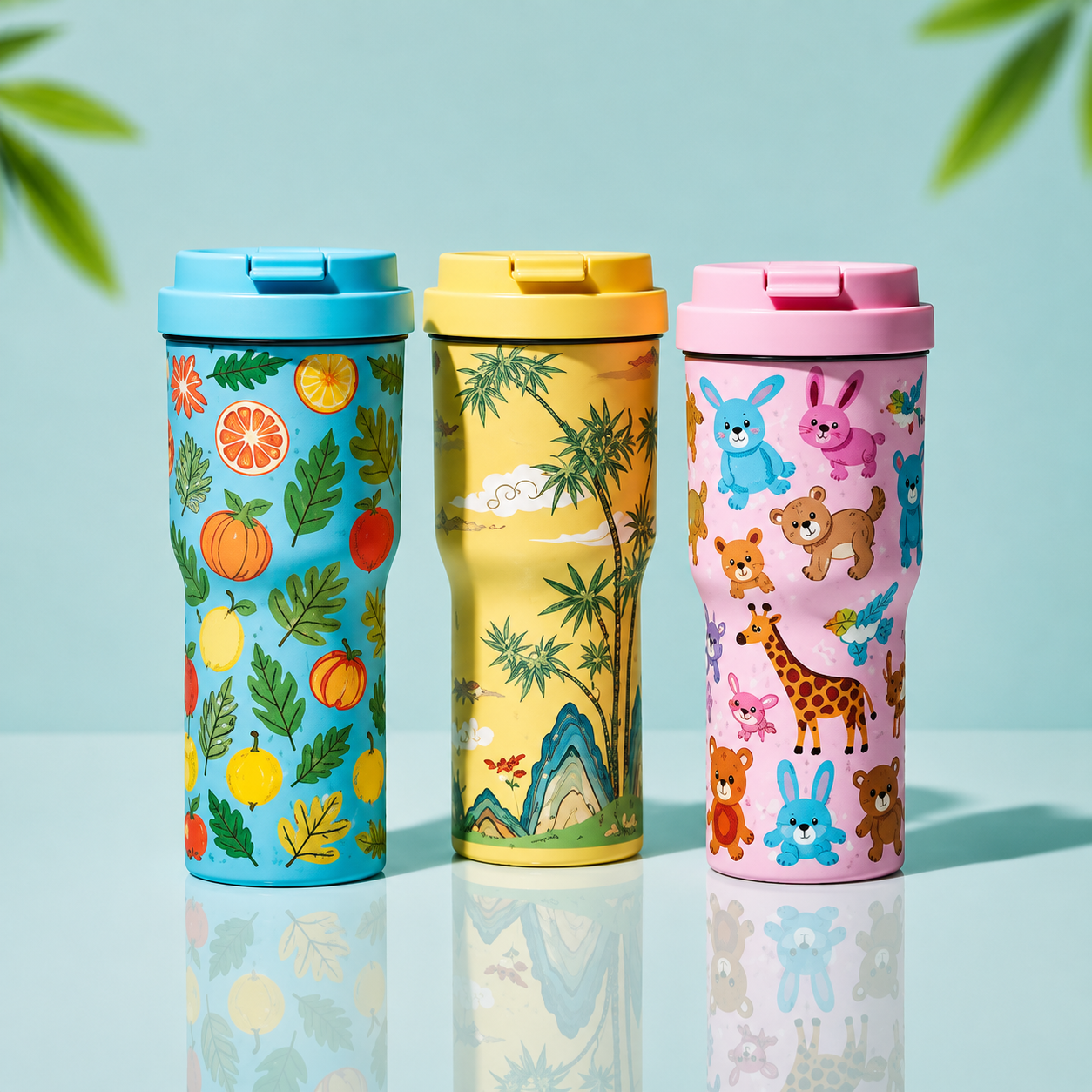

Cylinder UV printer for tumbler
UV cylinder printer for wine bottles
UV cylinder printer for cans
Rotary UV printer for various bottles

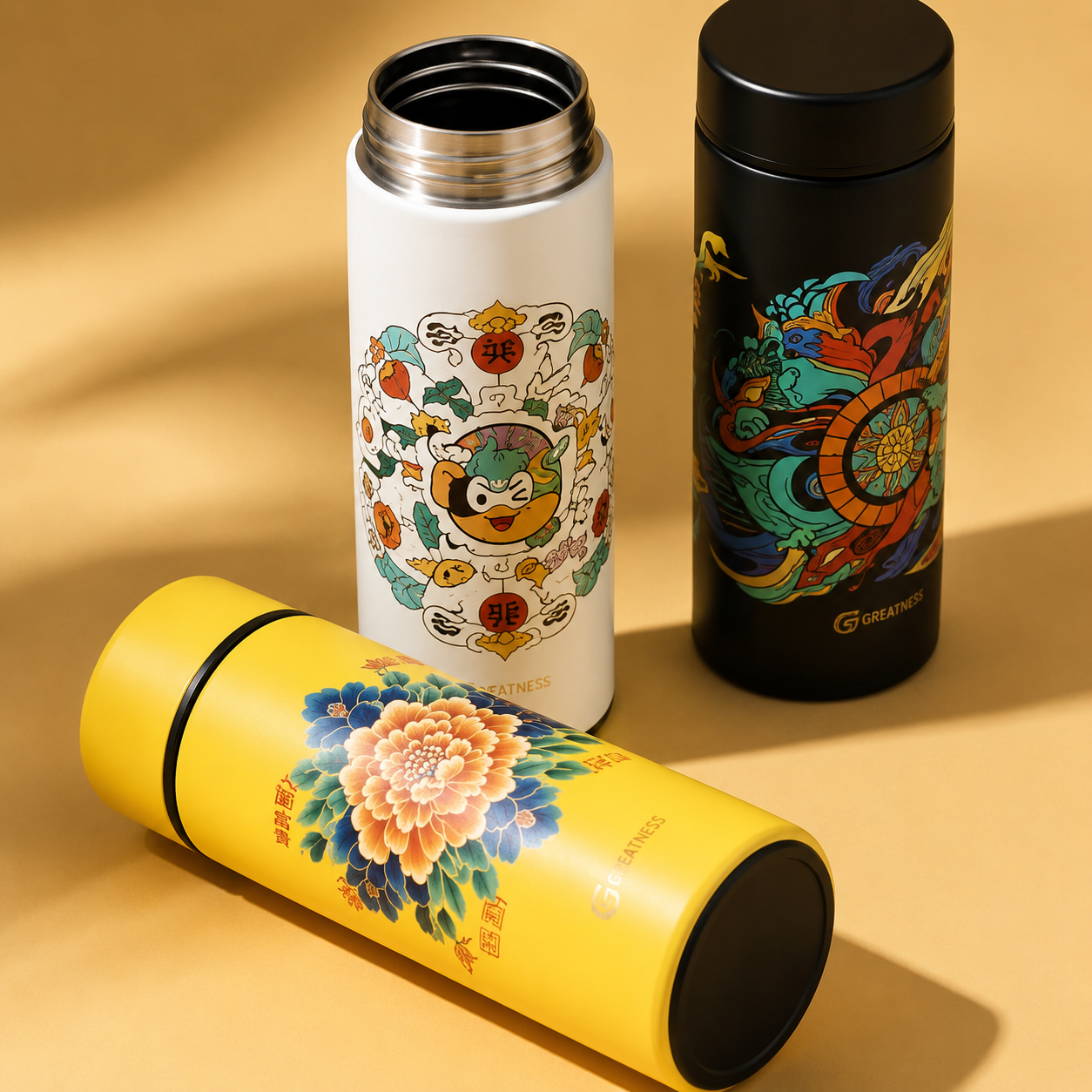

UV cylinder printer for thermos cups

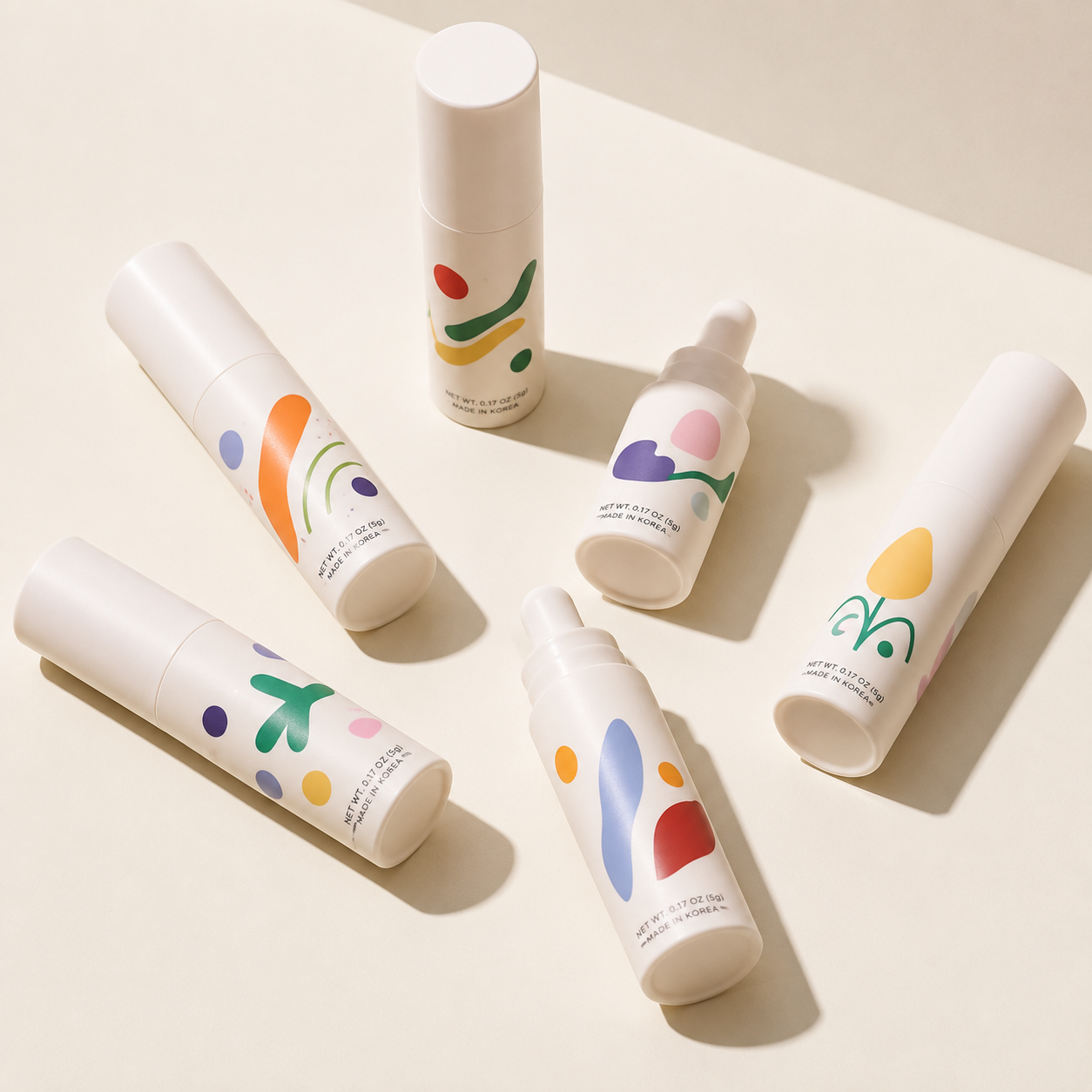

UV rotary printer for cosmetic bottles
FAQ
Suitable for various materials such as glass, metal, plastic, ceramics, etc., It’s especially designed for cylindrical, conical, and irregularly curved surfaces, supporting high-drop printing to meet the specialized printing needs of special-shaped products.
What is the accuracy and durability of high drop UV cylindrical printing?
The core advantages of the Toshiba CF3 industrial-grade piezoelectric printhead lie in its high precision, high speed, and high stability. Ultra-fine 3.5pl ink droplets ensure smooth, detailed images. Its built-in intelligent circulation system effectively prevents ink settling and reduces the risk of nozzle clogging, making it ideal for industrial environments with frequent starts and stops or long-running production. This means lower malfunction rates, less maintenance, and consistent output quality.
Very suitable. It adopts digital UV printing technology, which does not require complex processes such as plate making and color matching in traditional printing. Combining intelligent fixtures and modeling scanning functions, when switching between different bottle shapes, simply replace the fixture and perform a quick scan to start printing, achieving flexible and efficient production. It is the preferred choice for personalized, multi batch, and multi material cylindrical printing.
