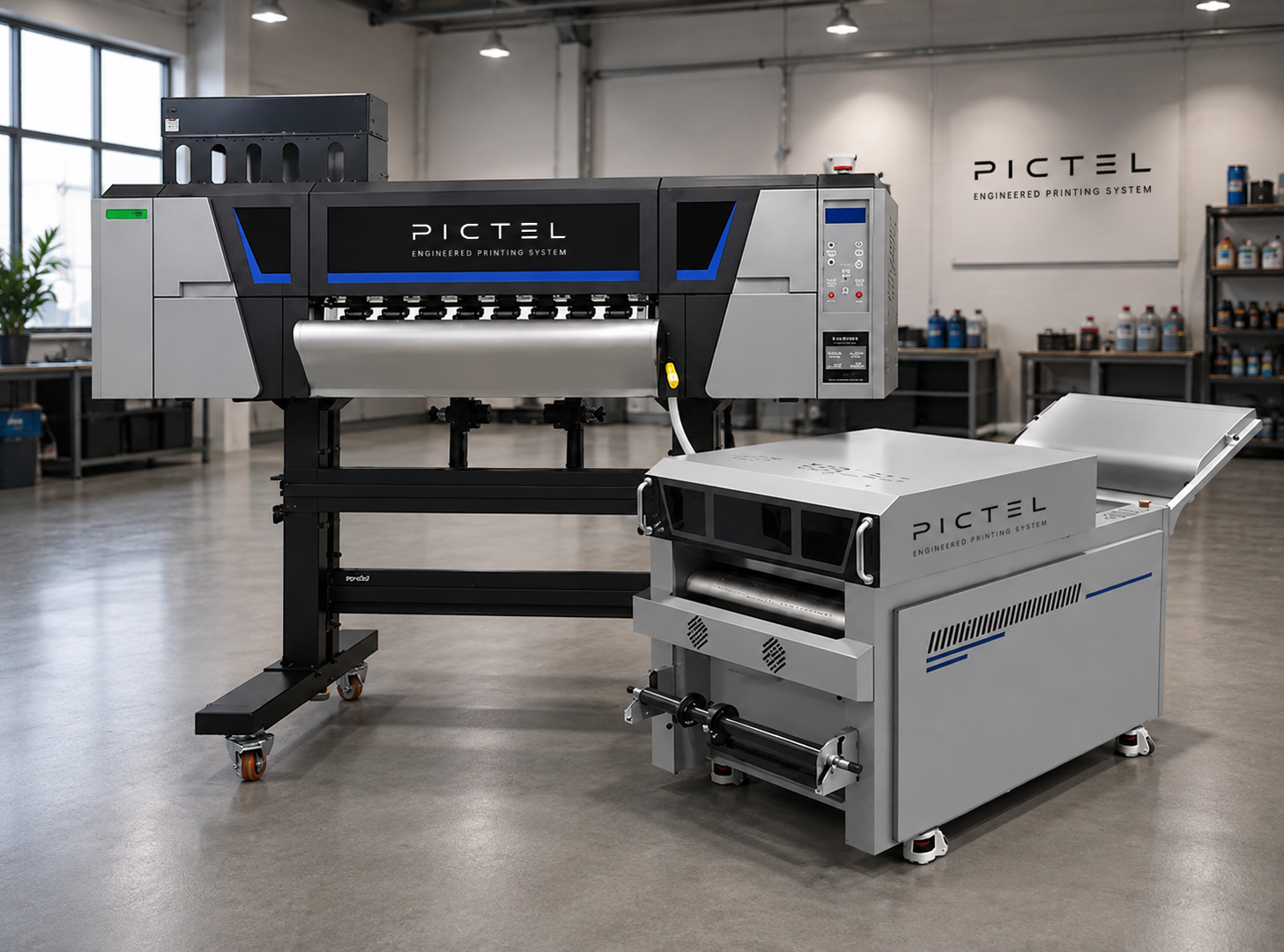

PI 602 2 HEAD DTF PRINTER WITH LOW POWDER SHAKER MACHINE
Intelligent and high-quality PI-602 DTF printer with integrated printing processes and eco-friendly smoke purifier, providing you with comprehensive and professional T-shirt printing solutions.
Main Features:
- Equipped with an all-in-one air purifier, safer and more environmentally friendly.
- Bright color pattern, soft handfeel, and stretches well.
- The transfer effect is as long-lasting as screen printing, and the cost is lower.
- Automatic nozzle cleaning and moisturizing function ensures stable printing.
- Prints on almost all fabrics and is suitable for both dark and light colored garments.
Technical Specifications:
- Print Head: 2*EPSON I3200-A1
- Printing Speed: 4pass: 15sqm/h , 6pass: 10sqm/h, 8pass: 8sqm/h
- Max Print Width: 68cm
- Color: C, M, Y, K, W
- RIP Software: maintop, photoprint, CADlink, caldera (optional)
PI-602 2-Head DTF Printer. High-Speed Production. Low Energy. Professional Apparel Printing.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-602 24-inch 2-head DTF Printer Features

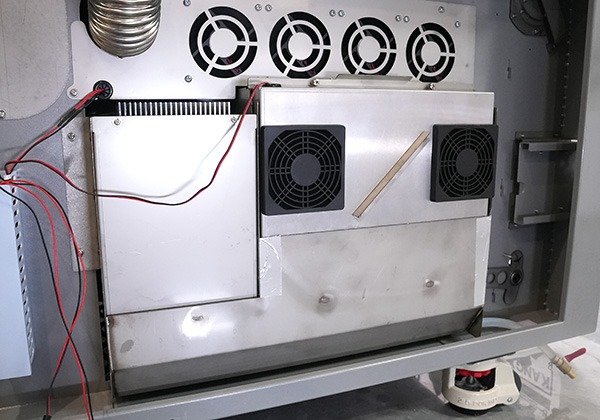

Hidden smoke purifier
A customized smoke purification solution for indoor scenarios that saves space and is eco-friendly.

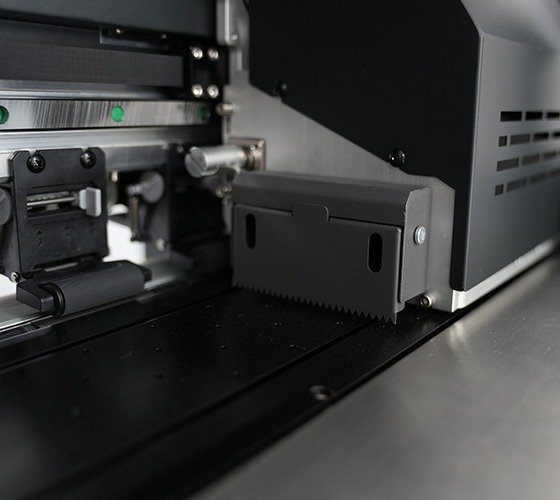

Low failure rate
Advanced anti-collision device, scientific and effective machine operation, longer service life.

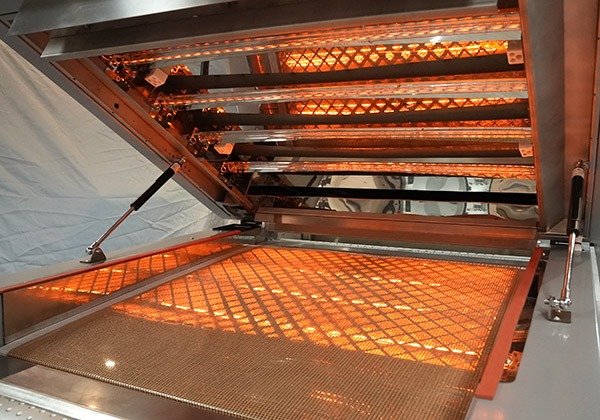

High-efficiency heating lamp
Double-row intelligent heating lamp, even baking and low power, low electricity cost.

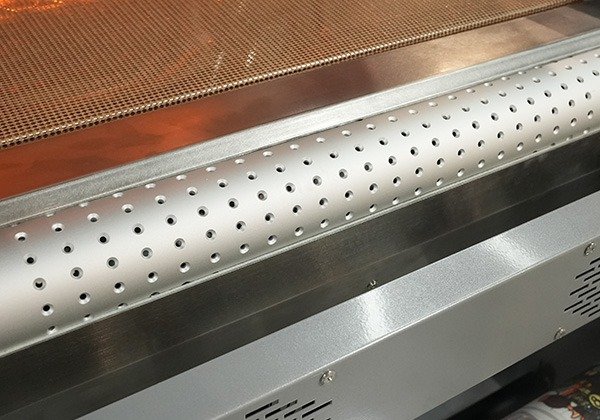

Patented suction roller
Greatly enhanced film adsorption, ensuring smooth film transportation and good temperature control.

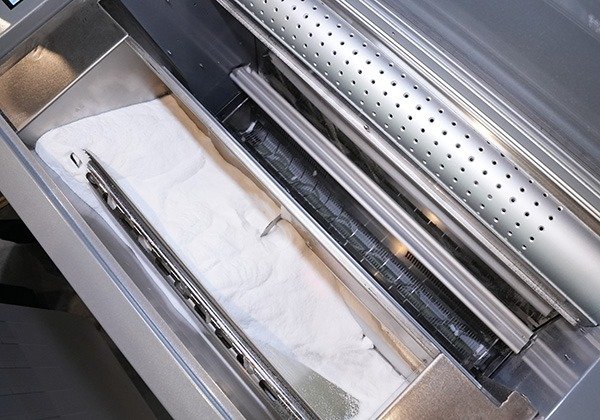

High-frequency powder shaking device
Good powder shaking effect, no white edges on the pattern and very low noise.

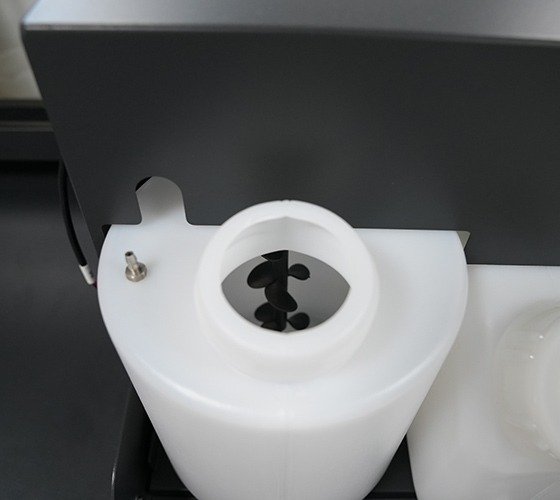

White Ink Circulation System
Round cartridges ensure that the white ink mixes more evenly and circulates more smoothly to avoid clogging.

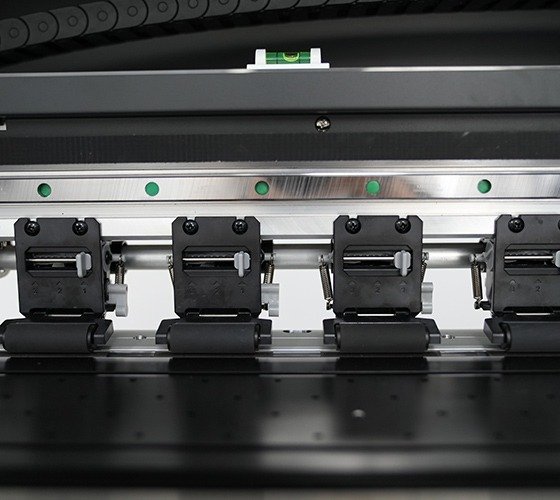

Adjustable pinch roller
Adapt to printing materials of different thicknesses to meet a variety of printing needs.
Environmentally DTF ink
DTF ink is green and environmentally friendly, and can be used in children's clothing.
PI-602 24-inch 2-head DTF Printer Video
Product Specification
| Product | PI-602 DTF Printer |
|---|---|
| Model | PI-602 |
| Printhead | 2 × EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 15 sqm/h |
| 6 Pass | 10 sqm/h |
| 8 Pass | 8 sqm/h |
| Max Media Width | 730 mm |
| Max Print Width | 680 mm |
| Ink Type | Water-Based Pigment Ink |
| Color | C, M, Y, K, W |
| Ink Supply System | Continuous Ink Supply System |
| White Ink Cycle | Equipped |
| Media Type | PET Film |
| Heating System | Intelligent Embedded Heating System & Powder Melt Machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint, CADlink, Caldera (Optional) |
| Input Power | AC110V / 220V, 50Hz / 60Hz, 350W–4000W |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size |
Printer: 1750 × 750 × 1450 mm, 135 kg Shaker: 1885 × 870 × 930 mm, 229 kg |
| Packing Size |
Printer: 1950 × 820 × 700 mm, 182 kg, 1.160 CBM Shaker: 1480 × 1030 × 1220 mm, 274 kg, 2.320 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
24-inch Dual-Head DTF Printer Boosts Your T-Shirt and Textile Production
The 24-inch I3200 head DTF printer is designed for medium-sized apparel companies that pursue large-scale mass production, high-quality output and diversified material applications. It has a perfect balance of high precision and speed. With high efficiency, 5-color printing and strong stability output, it redefines the production capacity of clothing printing and expands the new boundaries of textile printing!
DTF printer for sweatshirts
DTF printer for T-shirts
Denim
Shoes
Hat
Canvas bag
FAQ
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml；white:15-30ml；powder:10-20g

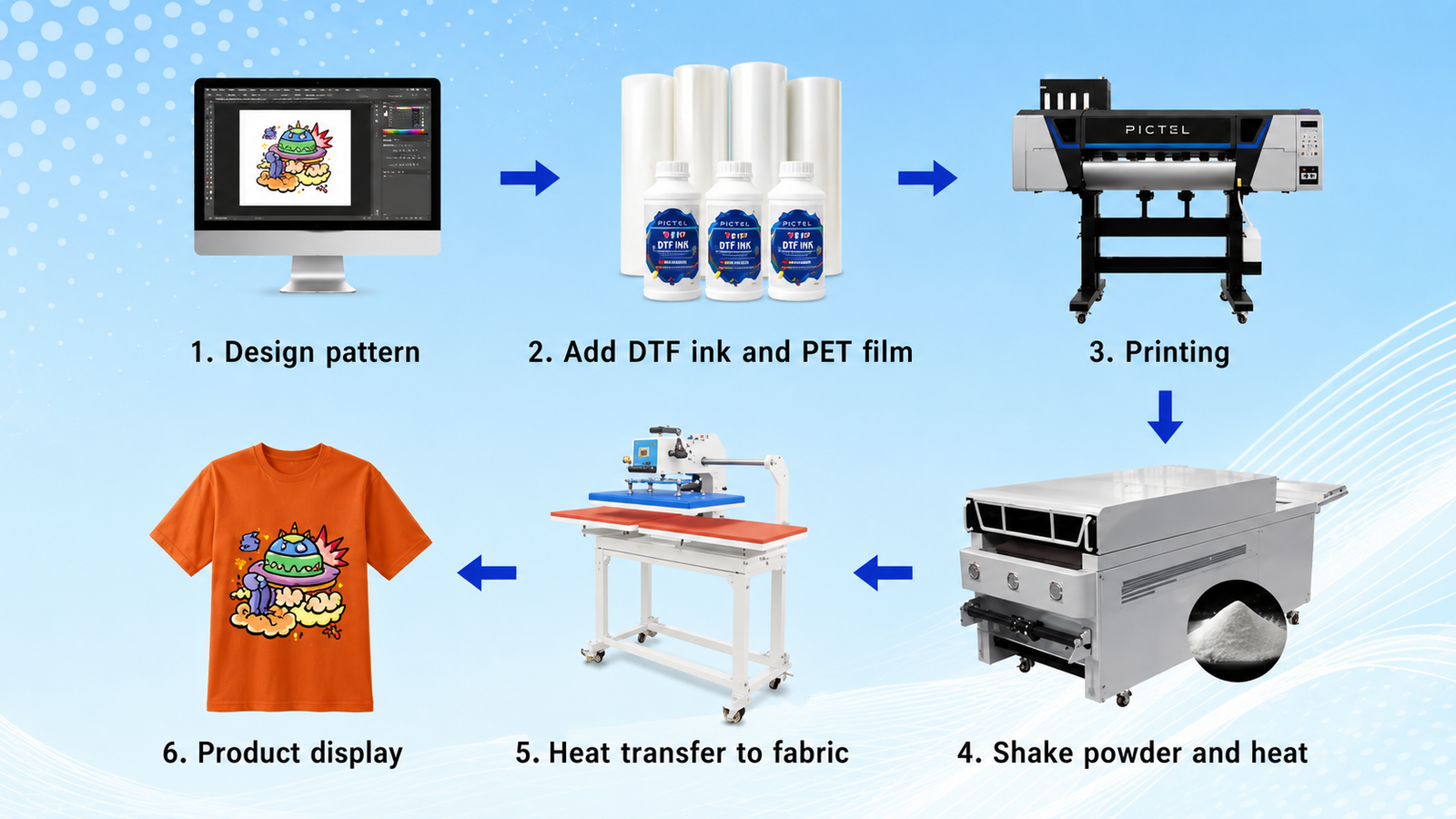

Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Regarding the problem of white ink clogging the printhead, our DTF printer is equipped with an automatic white ink circulation stirring system.
White ink clogging the print head is the most difficult maintenance and problem for DTF printers. Our system can effectively prevent this situation. When the machine is not working during holidays, you can turn on the white ink circulation system with a button to keep the white ink in a moist and non-caking state.
Moreover, our ink bottle is a cylindrical design instead of a rectangular parallelepiped design, which can effectively avoid ink deposition and greatly prevent print head clogging.
Lastly, as regards the printhead cleaning, our machine has a unique ink stack automatic cleaning system. Just press the cleaning button, and the printhead will return to the ink stack position for automatic cleaning. The operation is simple and efficient.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
