PI 604 4 HEAD 9 COLOR DTF TEXTILE PRINTER
Supports 9-color printing with fluorescent colors, meeting the needs of personalized, batch printing, and multi-color printing of T-shirts and other textile printing.
Main Features:
- Built-in low power consumption smoke purifier, more economical and environmentally friendly.
- Multi-language digital control panel, smarter and more efficient.
- 9-color wider color gamut and gradient color, clothing printing is more vivid and eye-catching.
- EPSON I3200 heads achieve high speed, mass production, and excellent printing quality.
- Versatile printing on cotton, denim, polyester, nylon, and other fabrics to meet the needs of customized T-shirts, shoes, bags, and accessories.
Technical Specifications:
- Printhead: 4*EPSON I3200-A1
- Printing Speed: 4pass: 30sqm/h ; 6pass: 20sqm/h ; 8pass: 16sqm/h
- Max Print Width: 68cm
- Color: C, M, Y, K, W (RGBO and fluorescence colors available)
- RIP Software: maintop, photoprint, CADlink, caldera (optional)
PI-604 4-Head 9 Color DTF Textile Printer. 9-Color Brilliance. Industrial Speed. Unlimited Creativity.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.

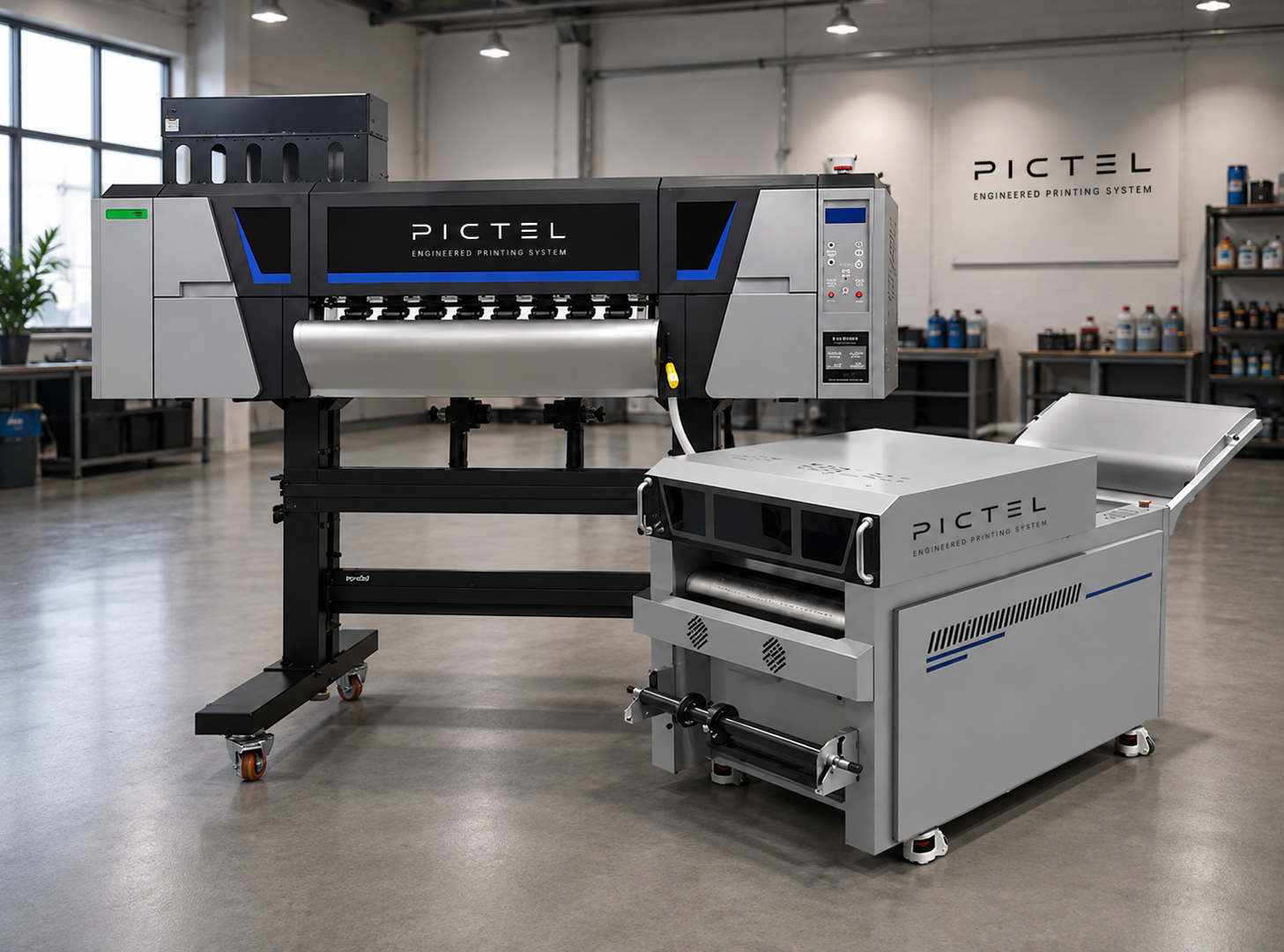

PI-604 4-Head DTF Machine with Shaker Features

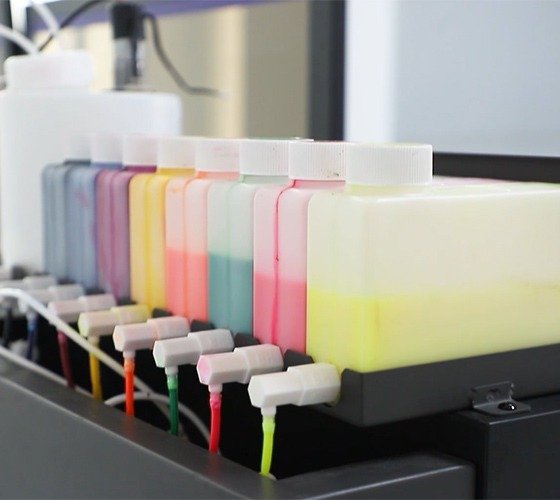

Multi-color options
In addition to C, M, Y, K and W colors, you can also choose RGBO and neon colors to meet the printing needs of different colors.

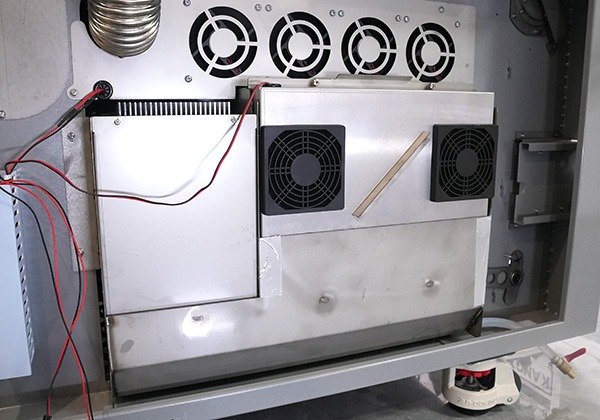

Integrated smoke purifier
Built-in smoke purification system, effectively filter harmful gases, safe to use indoors.

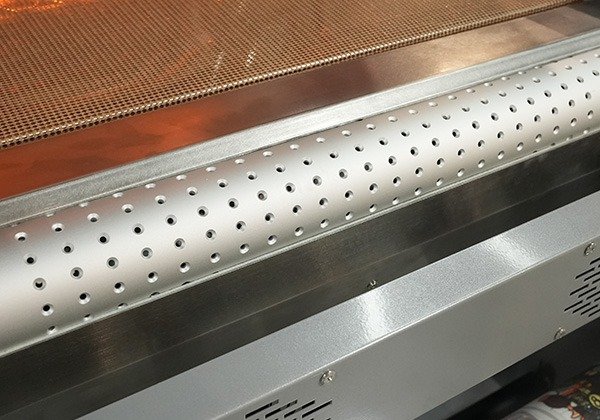

Unique suction roller
Innovative suction structure to enhance film adsorption and make paper feeding smoother.

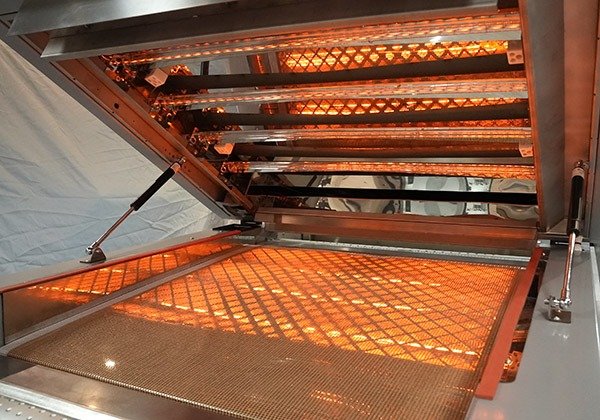

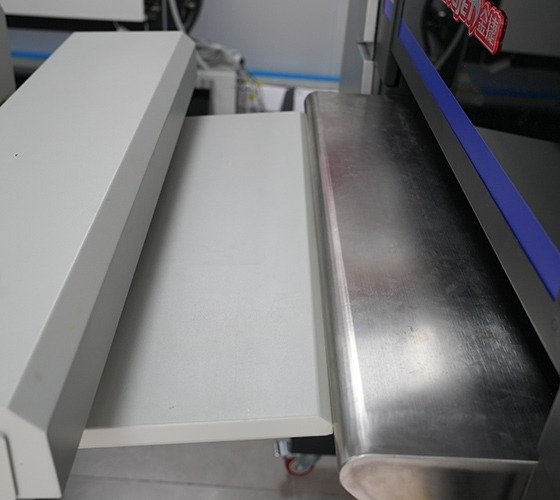

Upper and lower row heating lamps
Achieve precise heating in different zones, low energy consumption, and high film utilization rate.
More exquisite workmanship
The machine has been upgraded with higher printing accuracy, faster drying and better printing quality.

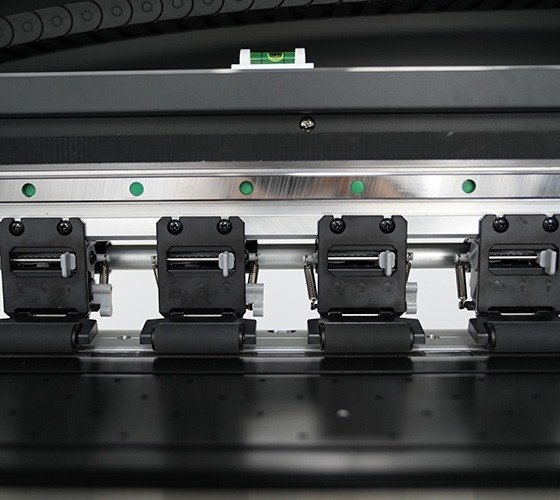

Silent guide rail
Low noise and reduced friction between various parts of the machine make printing more stable and long-lasting.

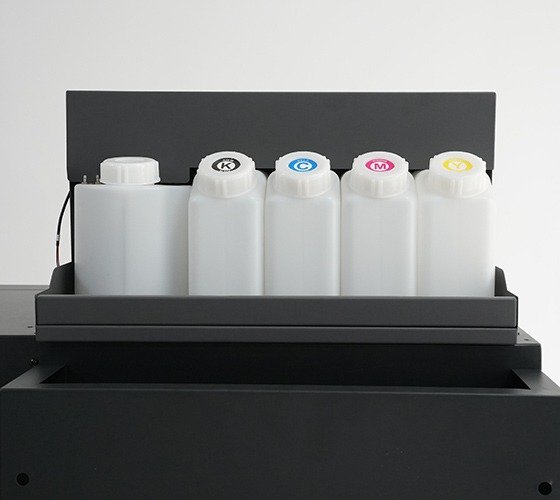

White Ink circulation
White ink circulation system ensures smooth delivery of ink to the print head and prevents clogging of the print head.

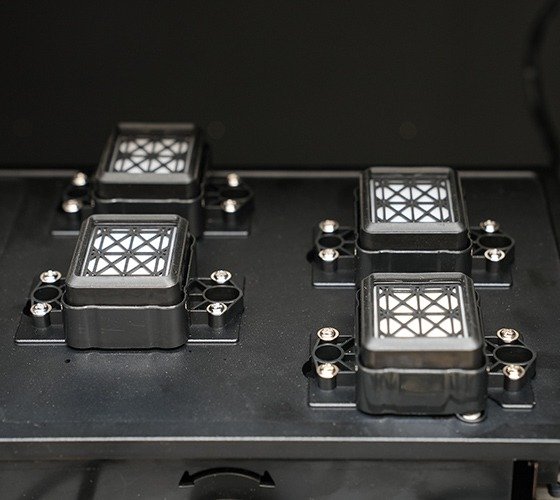

Automatic nozzle cleaning system
Realize automatic system cleaning, anti-clogging flash spray and moisturizing functions.

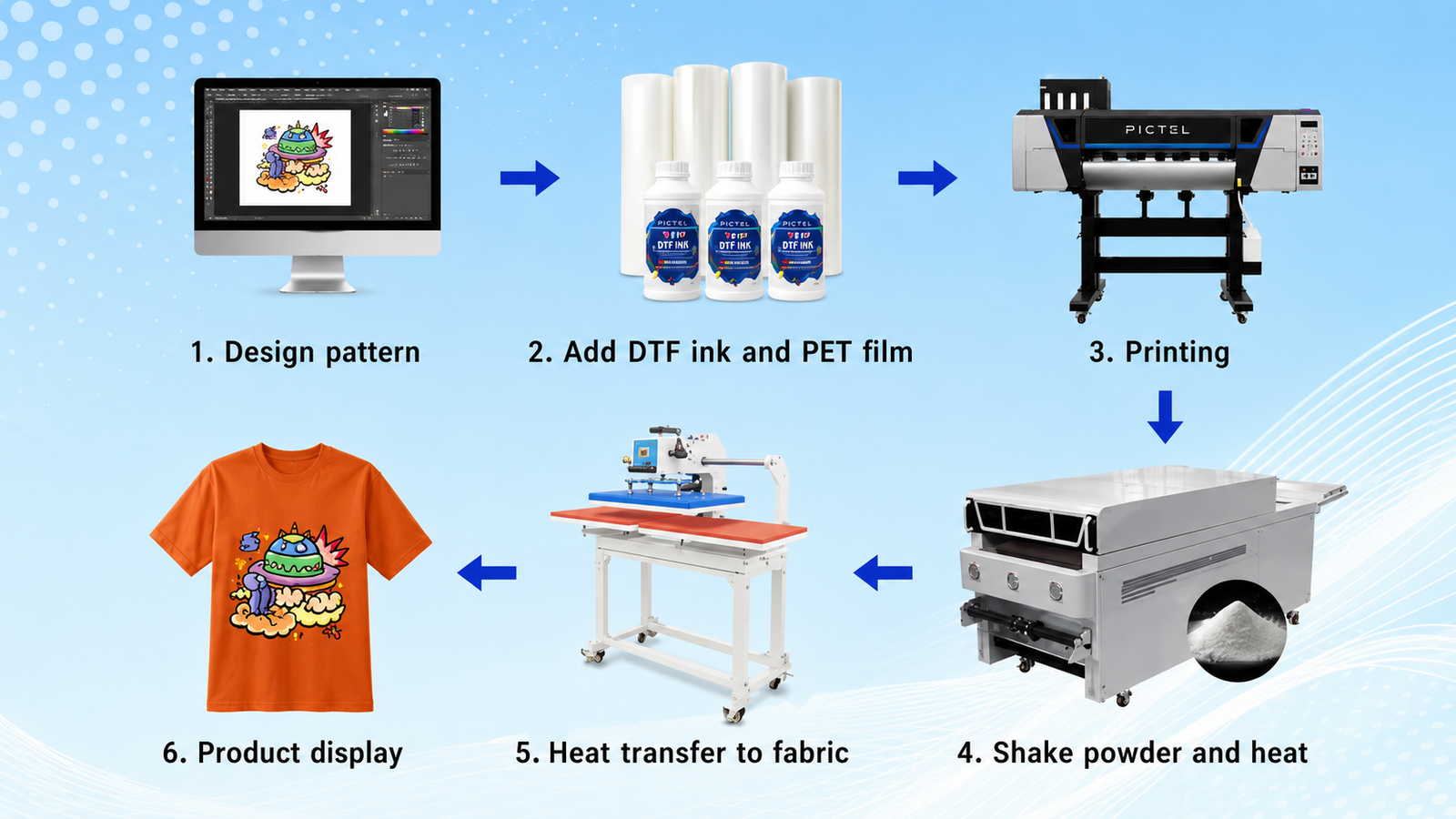

PI-604 4-Head 9-Color DTF Machine Printing Process
Product Specification
| Product | PI-604 DTF Printer |
|---|---|
| Model | PI-604 |
| Printhead | 4 × EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass: 30 sqm/h | |
| 6 Pass: 20 sqm/h | |
| 8 Pass: 16 sqm/h | |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Waterbased pigment ink |
| Color | C, M, Y, K, W (RGBO and fluorescence colors available) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, Photoprint, CADlink, Caldera (optional) |
| Input Power | AC110V/220V, 50Hz/60Hz, 350W–4000W |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size |
Printer: 1850 × 795 × 1600mm, 172kg Shaker: 2250 × 1000 × 1000mm, 270kg |
| Packing Size |
Printer: 2060 × 890 × 790mm, 217kg, 1.448cbm Shaker: 2290 × 980 × 1210mm, 392kg, 2.830cbm |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
4-Head 9-Color DTF Printer Enhances Your Textile Printing Competitiveness
Compared with the traditional 5-color printing method, the 9-color DTF printer has richer colors and a wider range of personalized customization, which enhances the added value and competitiveness of your T-shirts, sweatshirts, and high-end fashion. In addition, the 4 pcs I3200 print heads double the efficiency of dual-head printing, which is an all-round solution for the apparel industry from design to mass production.
T-shirts
Hoodies
Denim
Shooes
Hat
Canvas bag
FAQ
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
KingJet KJ-604 DTF Printer has more color options, supports printing of 9 colors, and can choose from RGBO and neon. It has a wider color selection scheme for clothing printing.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml; white:15-30ml; powder:10-20g
Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
