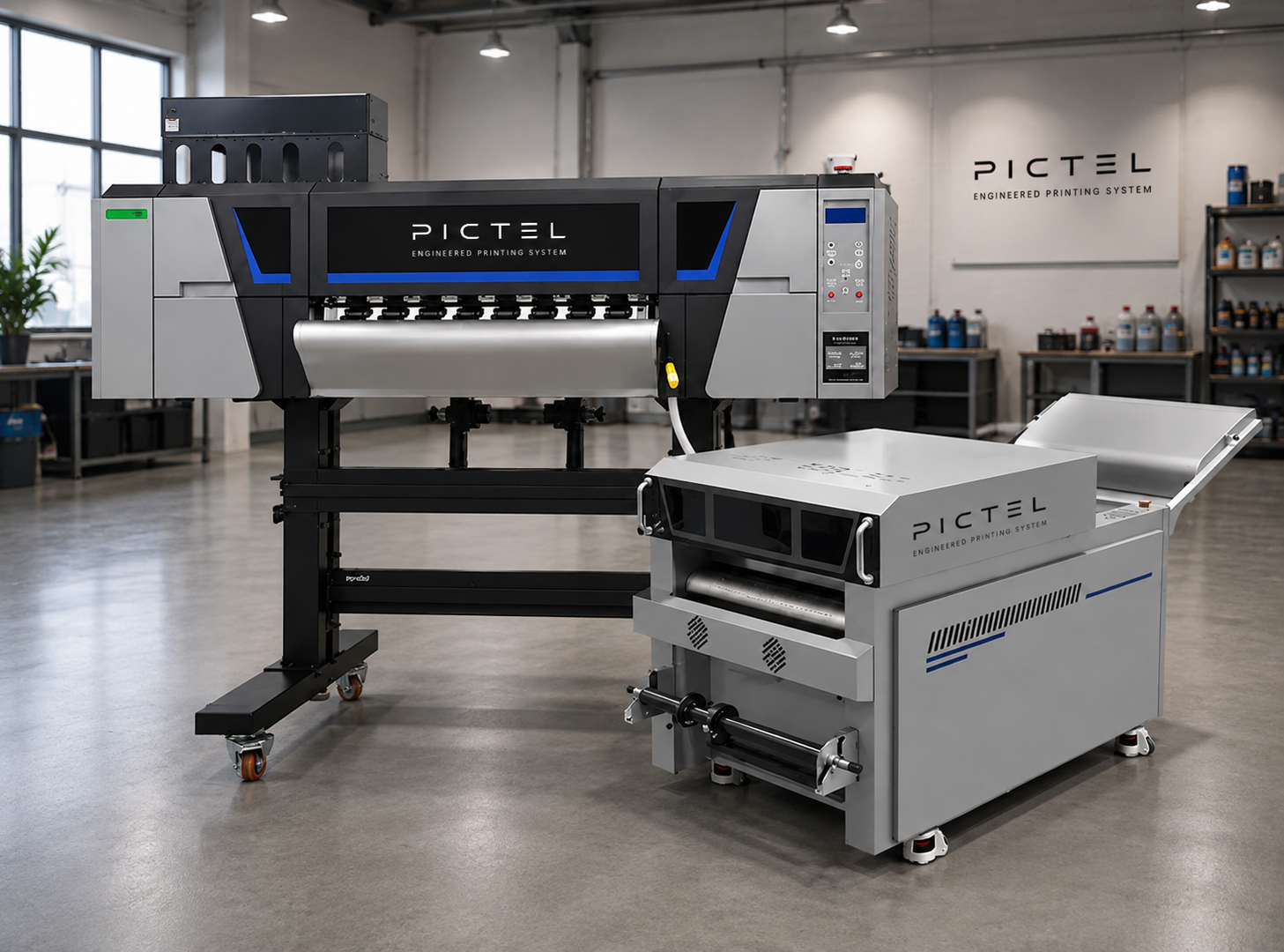

PI 606 6 HEAD 9 COLOR DTF GARMENT PRINTER
The 6-head DTF machine achieves unprecedented printing speed and accuracy, and the 9-color printing enhances color expression, meeting your dual pursuit of high efficiency and high quality in T-shirt printing.
Main Features:
- Excellent multicolor solubility: more vibrant printing effects.
- Advanced software: Caldera and Fiery enhance color and precision.
- Speed, quality, and color all at one: meeting diverse needs.
- Easy calibration: special head arrangement simplifies the process.
Technical Specifications:
- Printhead: 6*EPSON I3200-A1
- Printing Speed: 4pass: 30sqm/h ; 6pass: 20sqm/h ; 8pass: 16sqm/h
- Max Print Width: 680mm
- Color: 9 colors (C, M, Y, K, W, FM, FY, O, G)
- RIP Software: Maintop, photoprint, fiery, caldera
9-Color DTF Technology. Vibrant Prints. High-Speed Performance.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-606 6-head DTF Machine features

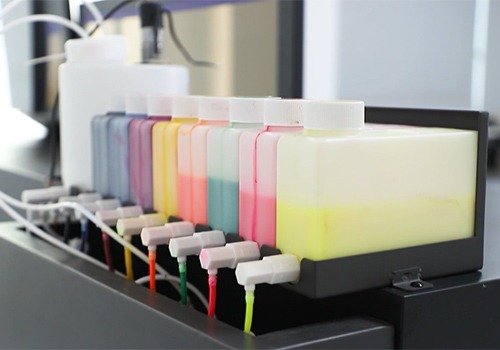

Fluorescent 9-color printing
Breaking the limitations of 5-color printing, 9 colors can achieve more delicate color transitions and wider color gamut coverage.

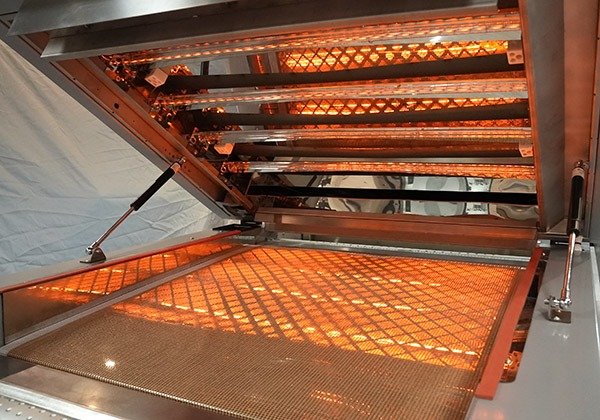

Double-row heating lamps
Upper and lower row heating technology, combined with intelligent adjustment of the printing heating and drying process, enables ultra-low power consumption and reduced electricity costs.

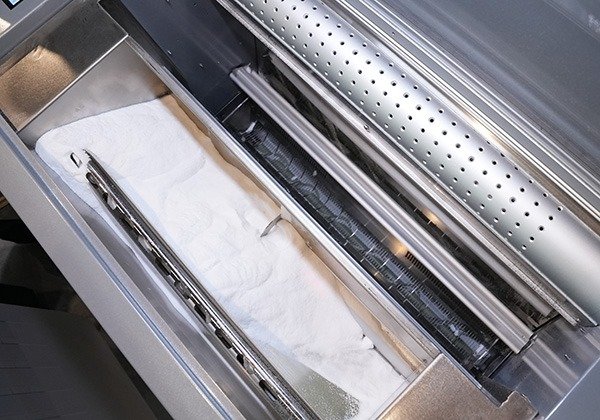

Vibration powder removal device
Innovative high-frequency shaking powder structure makes the powder distribution uniform, and the pattern will not have white edges.
Extended powder shaking
The printing area is larger, the powder is shaken more evenly, the drying speed is faster, and the efficiency and mass production are high.

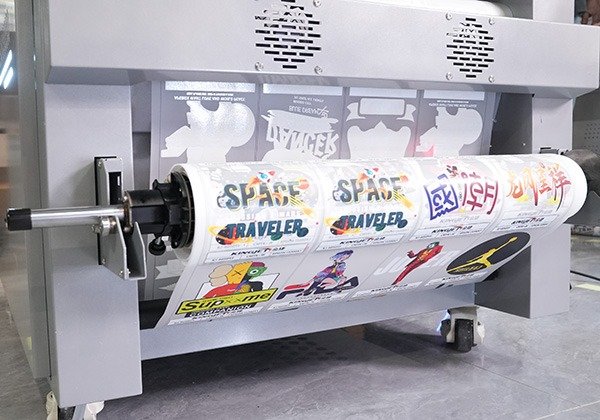

Tension take-up device
Automated take-up program allows film printing to be completed without human intervention, ensuring neat and orderly take-ups

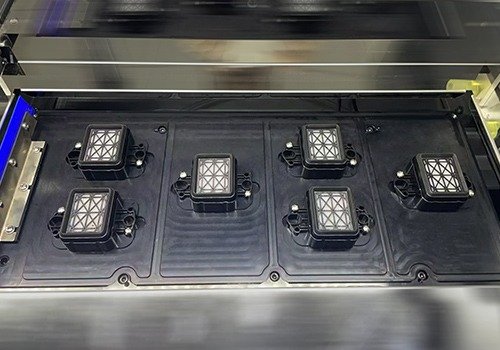

Lifting ink stack
Automatically clean and moisturize the nozzle, extend the service life of the nozzle, and reduce maintenance costs.

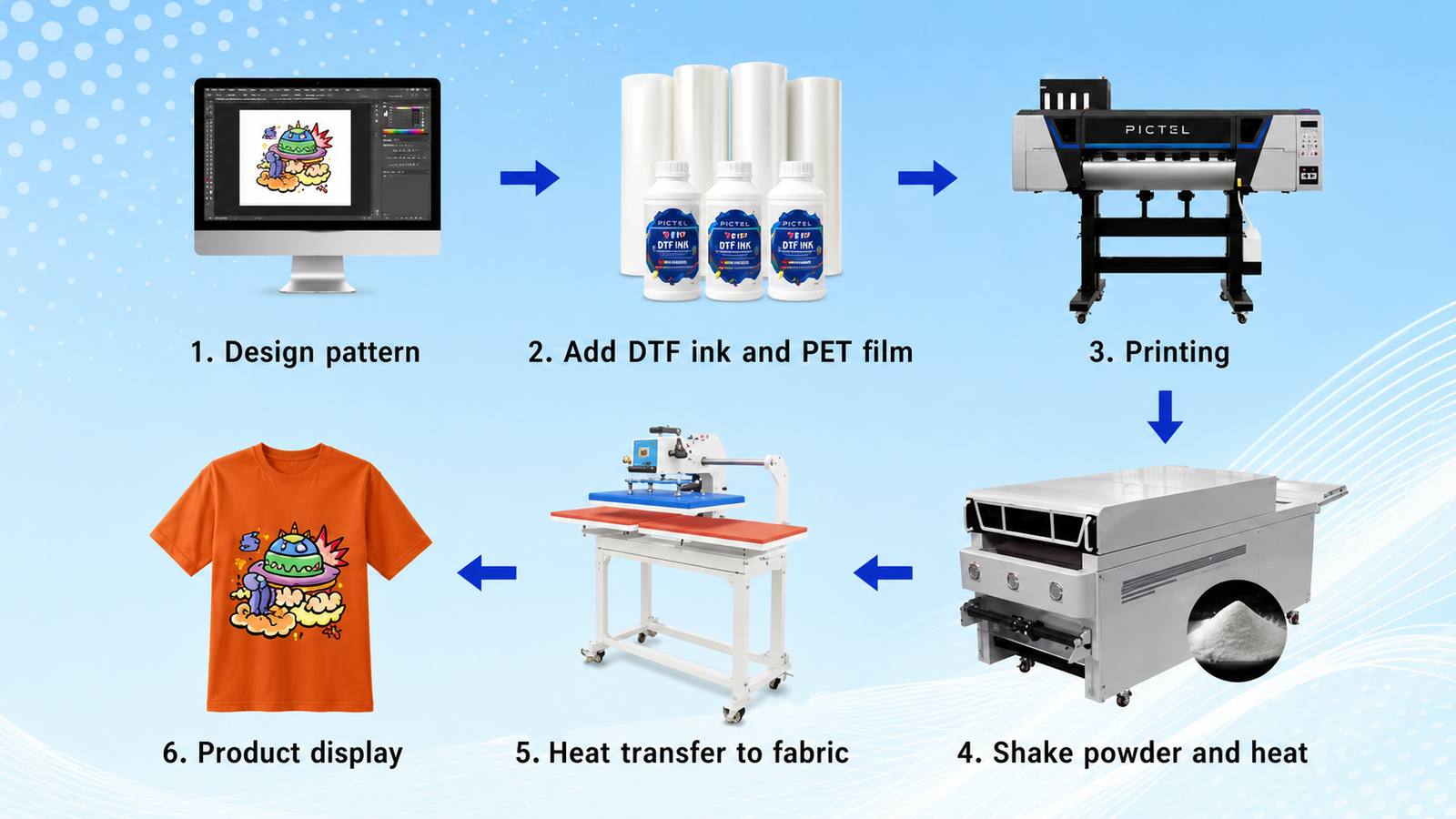

PI-606 6-Head DTF Machine printing Process
Product Specification
| Product | PI-606 DTF Printer |
|---|---|
| Model | PI-606 |
| Printhead | 6 × EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 30 sqm/h |
| 6 Pass | 20 sqm/h |
| 8 Pass | 16 sqm/h |
| Max Media Width | 730 mm |
| Max Print Width | 680 mm |
| Ink Type | Water-based pigment ink |
| Color | 9 Colors (C, M, Y, K, W, FM, FY, O, G) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET Film |
| Heating System | Intelligent embedded heating system & powder melt system |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, Photoprint, Fiery, Caldera |
| Input Power | AC110V/220V, 50Hz/60Hz, 350W–3400W |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size | 2162 × 850 × 935 mm |
| Packing Size | 2290 × 980 × 1210 mm, 2.715 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
6-Head 9 colors DTF Machine Applications
PI 6-head DTF machine breaks the limitations of traditional 6-color printing and uses 9 professional-grade DTF ink colors, with a wider color gamut and brighter colors. Whether it is gradient color textile printing or high-precision art patterns, all can be printed perfectly. In addition, it supports large-scale production and flexible response to diverse market needs, making your DTF T-shirt printing boundless.
T-shirts
Hoodie
Denim
Shoes
Umbrella
Canvas bag
FAQ
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml; white:15-30ml; powder:10-20g
Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
