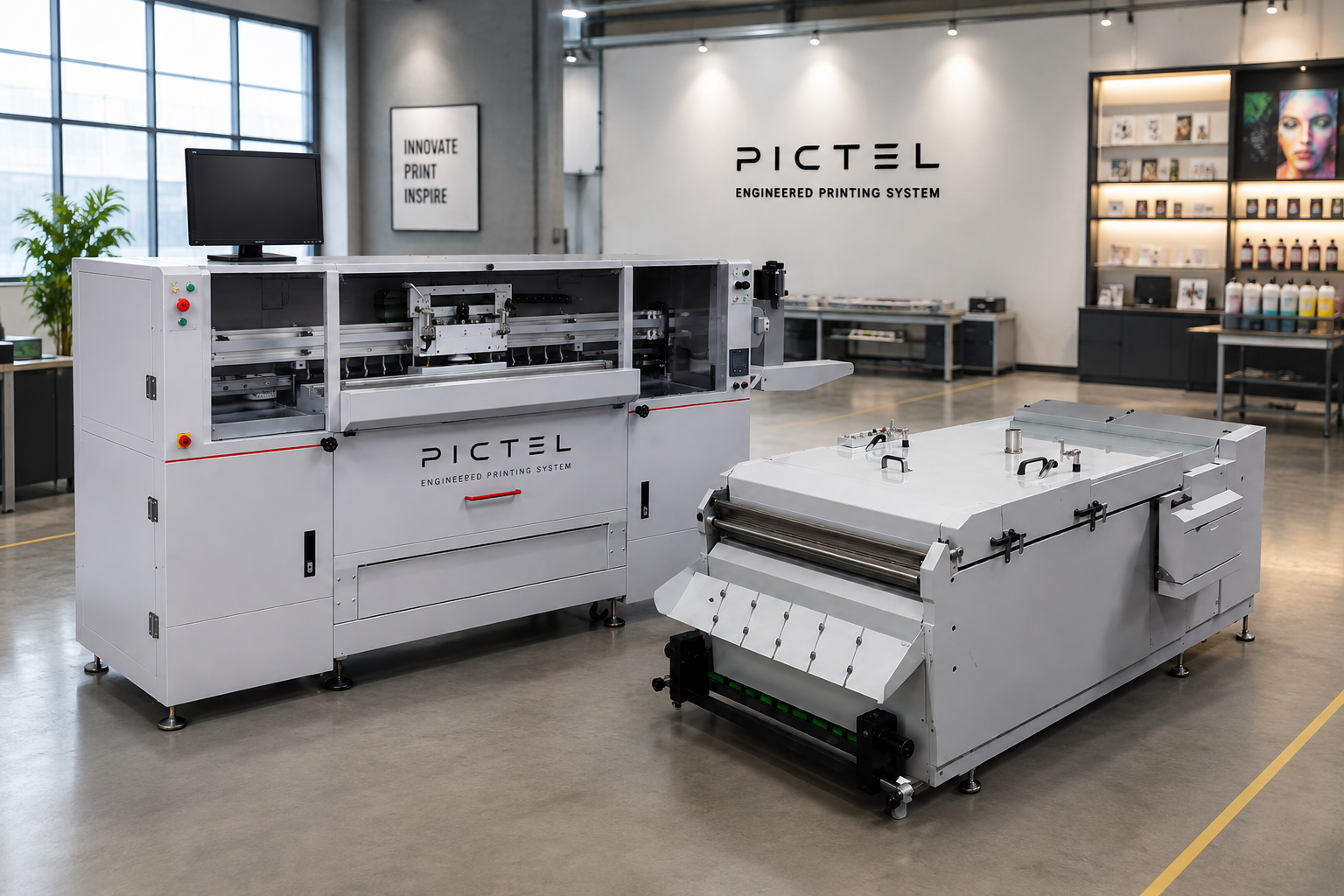

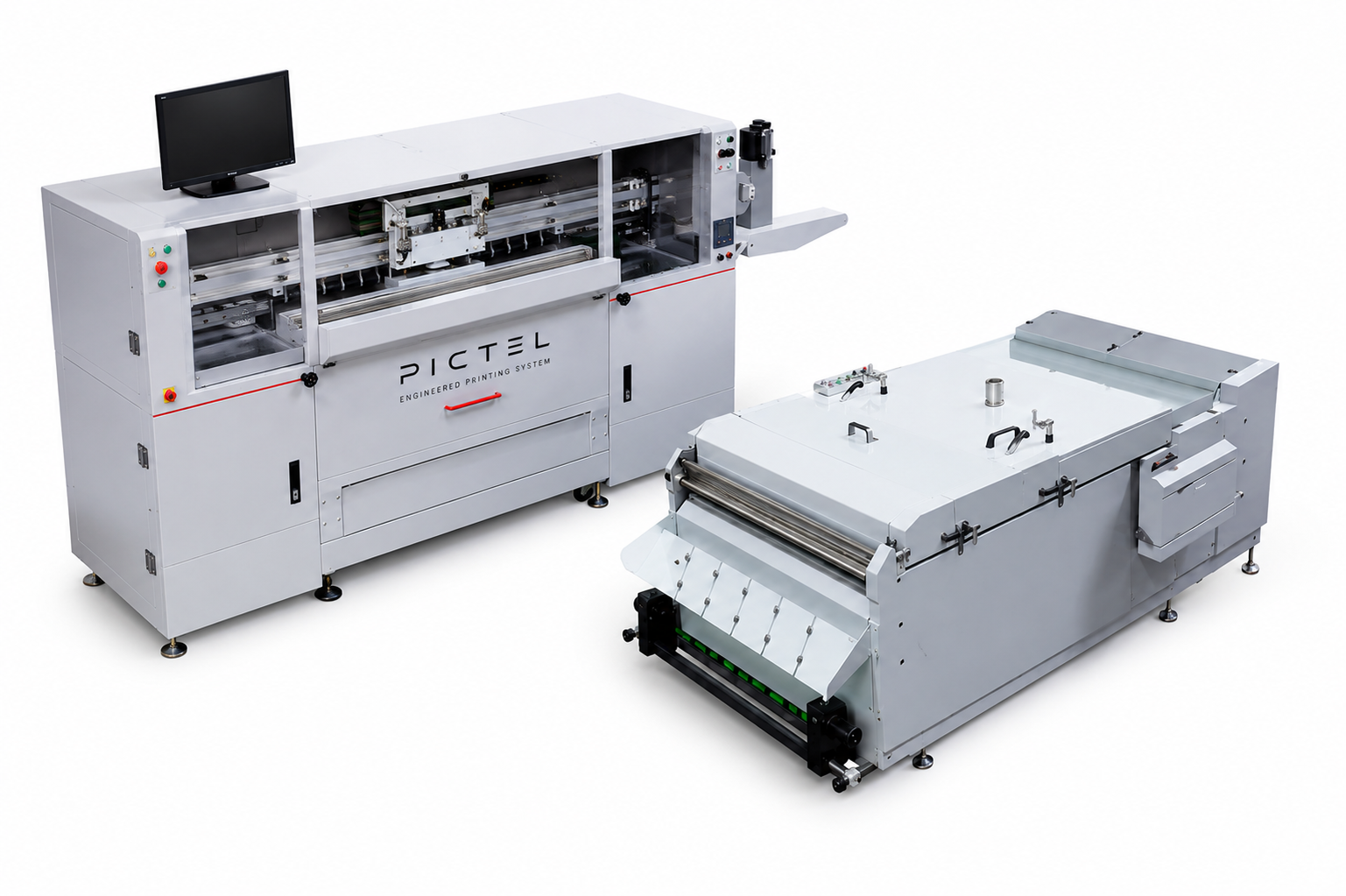

PI-1208 INDUSTRIAL 1.2m LARGE FORMAT DTF TRANSFER PRINTER
Designed for industrialized production of clothing, it meets the needs of large-scale and high-speed printing tasks while maintaining excellent print quality, and transferring to various clothing fabrics, providing you with a comprehensive T-shirt and clothing printing solution.
Main Features:
- 1.2m/47" printing width
- 8 × EPSON I3200 Printheads
- 5 Colors (CMYK+W)
- Silent dual rail for smoother printing.
- The extended arc-shaped front heating platform has a better heat conduction effect.
- Suitable for industrial-grade professional garment manufacturers to print clothing and textiles.
Technical Specifications:
- Print Head: 8 * EPSON I3200-A1
- Printing Speed: 2pass: 71sqm/h ; 3pass: 47sqm/h ; 4pass: 35sqm/h
- Max Print Width: 1.25m
- Color: 5 colors (C, M, Y, K, W)
- RIP Software: maintop, photoprint, CADlink (optional)
1.2m Wide DTF Printing. Maximum Productivity. Professional Textile Printing.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
1.2m T-Shirt Printing Machine Features
High performance

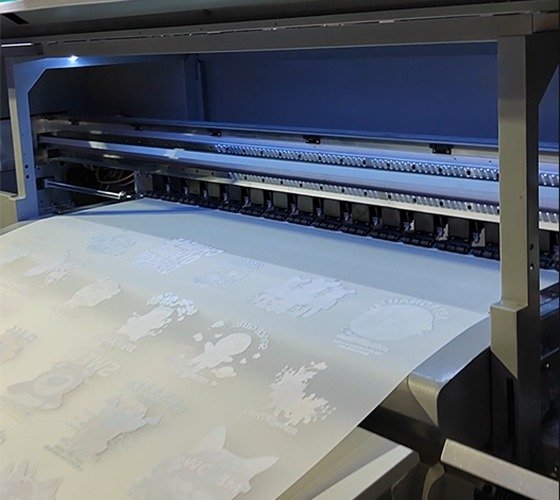

High-precision silent guide rails reduce noise during the printing process and provide a good printing environment.
Integrated operation
Freely adjust the powder shaking speed and operating temperature through the powder shaker function button.

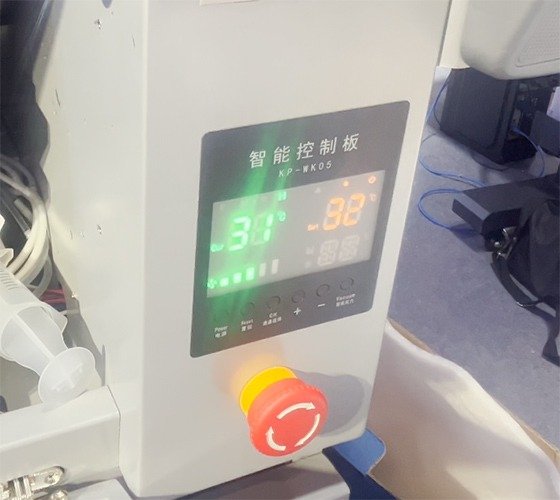

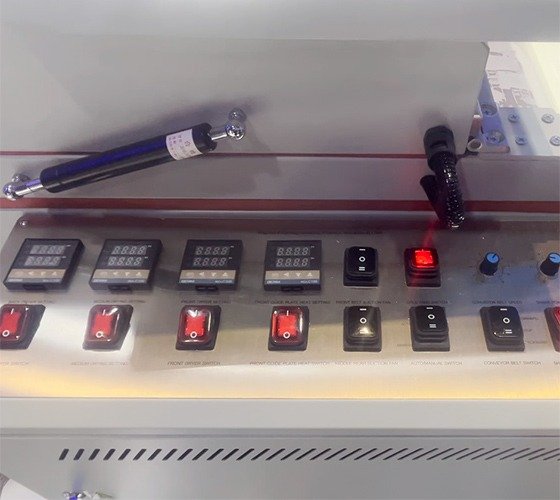

Intelligent control panel
The temperature and humidity are clearly visible to better control the working environment during the printing process.
.jpg)

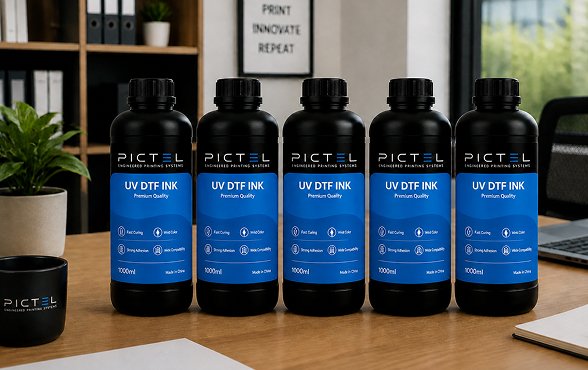

Environmentally friendly ink
DTF ink is environmentally friendly, no pollution to the environment, can be used in children's clothing.

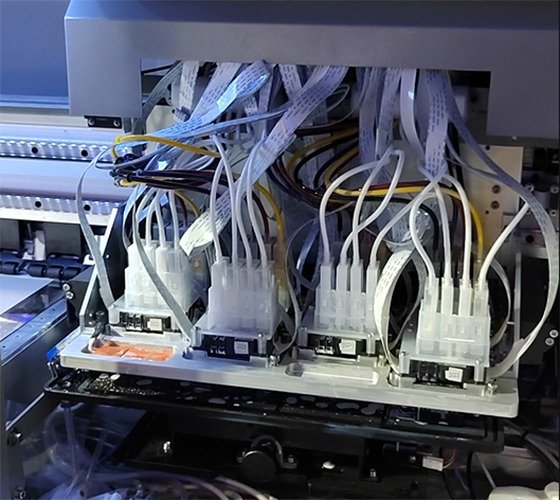

White ink circulation system
Continuous circulation of ink reduces print head clogging and avoids accumulation.

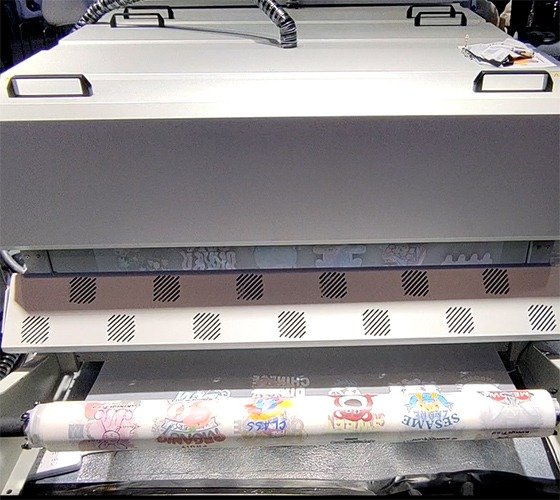

Automatic take-up
Fully automated operation enables automatic loading and take-up of printed materials, saving time and effort.

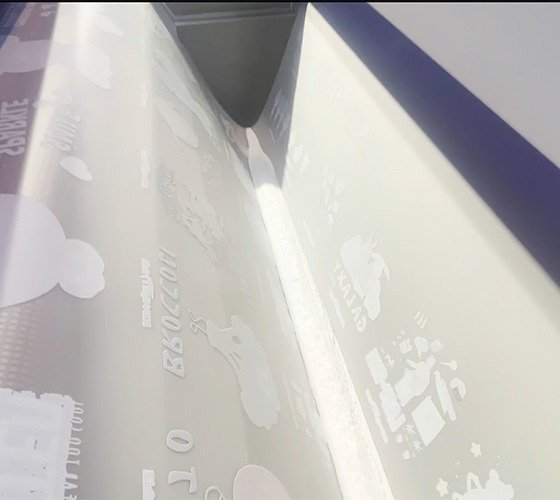

Automatically shake powder
Automatically shake powder during the printing process, no manual operation is required.

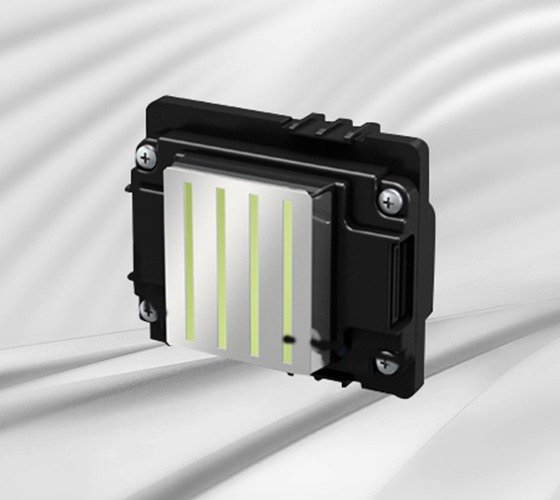

EPSON original print head
It has higher precision, faster speed and better printing quality than the XP600 print head.

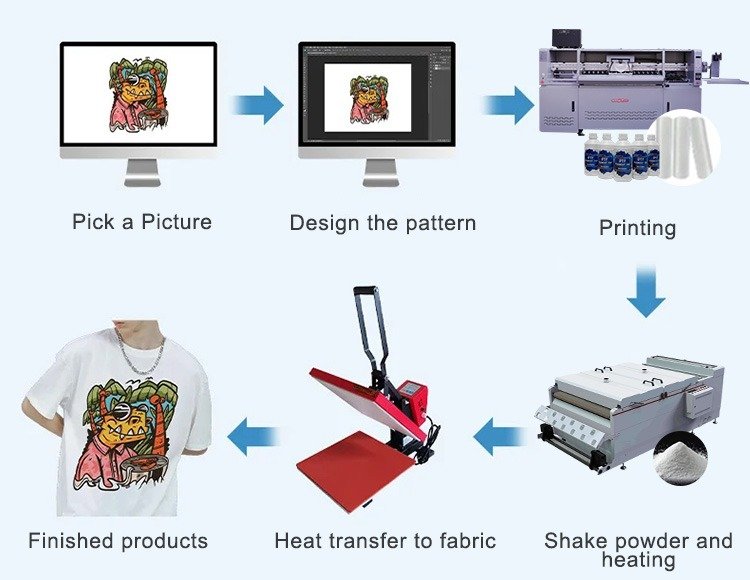

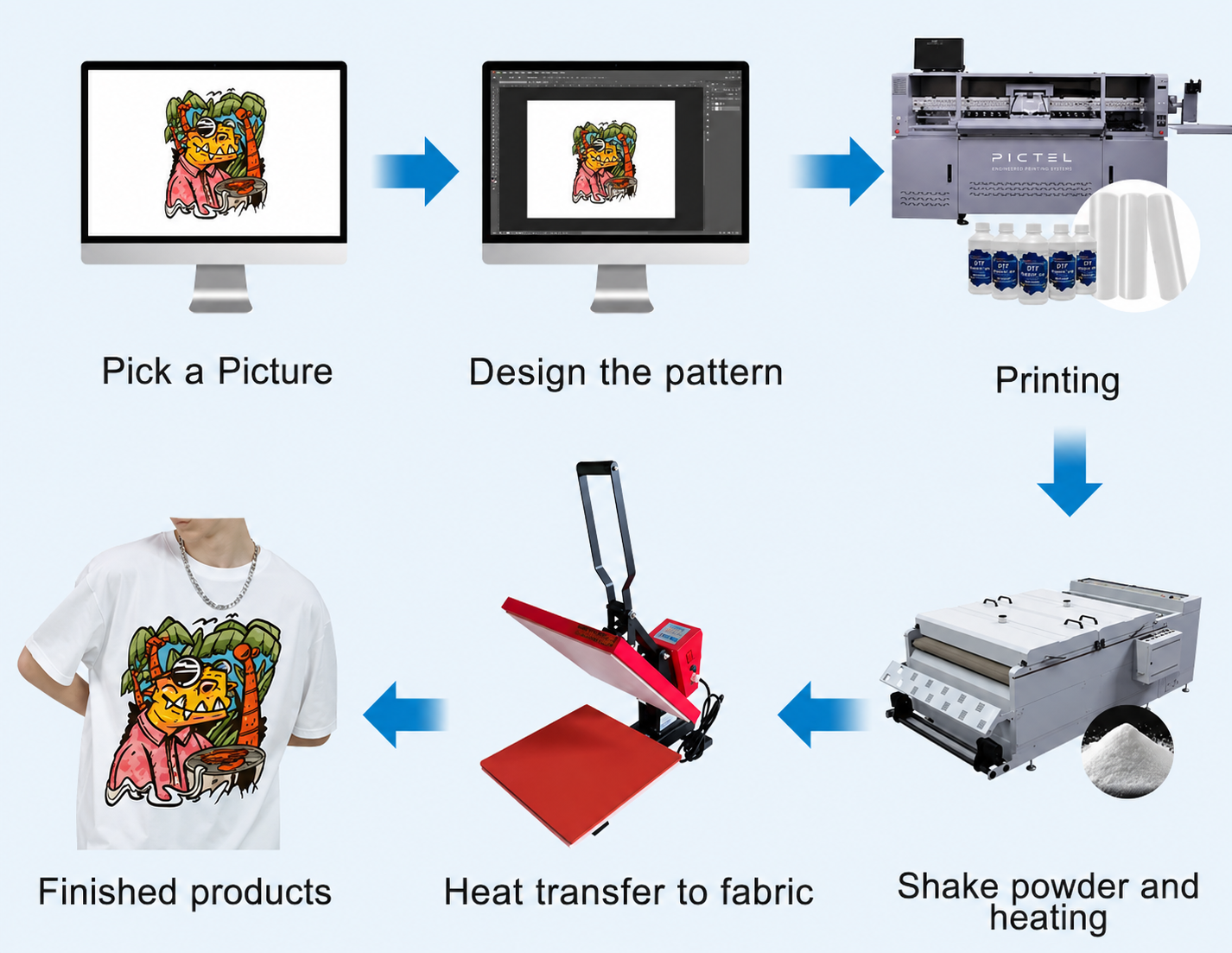

PI-1208 DTF T-Shirt Machine printing Process
Product Specification
| Product | PI-1208 DTF Printer |
|---|---|
| Model | PI-1208 |
| Printhead | 8 × EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 2 Pass | 71 sqm/h |
| 3 Pass | 47 sqm/h |
| 4 Pass | 35 sqm/h |
| Max Media Width | 1300 mm |
| Max Print Width | 1250 mm |
| Ink Type | Waterbased pigment ink |
| Color | 5 Colors (C, M, Y, K, W) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET Film |
| Media Thickness | 1 mm |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, Photoprint, CADlink (optional) |
| Input Power | AC110V/220V, 50Hz/60Hz, 350W–11.3KW |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size |
Printer: 2650 × 930 × 1800 mm, 240 kg; Shaker: 4370 × 1858 × 1075 mm, 700 kg |
| Packing Size |
Printer: 2750 × 1020 × 1650 mm, 300 kg; Shaker: 3790 × 1730 × 1241 mm, 800 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
PI-1208 1.2m Large Format DTF Printer Applications
With the advantages of high precision, high efficiency and high output, the 1.2-meter ultra-wide format DTF printer can print exquisite, and colorful images and text on T-shirts, sweatshirts, hats, jeans, shoes, canvas and other fabrics, and accurately meets the market’s requirements for high-quality and long-term stable printing with its excellent printing precision, large-scale production capacity and fabric compatibility.
Hoodies
T-shirts
Denim
Shoes
Hat
Canvas bag
FAQ
DTF: Direct to Film;
HTV: Heat transfer Vinyl;
DTF is different with HTV and screen printing.
Compared with screen printing:
1、DTF has much higher resolution 3200dpi;
2、DTF does not need to make template sample like screen printing; meanwhile DTF can do much more complicated pattern printing work, which screen printing cannot.
3、DTF can save labor. Even just one person can do all the printing. And Compared with HTV, DTF has much more wide application: any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc. Meanwhile DTF don’t need to cut like HTV, which is very convenient for transfer and save time.
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml; white:15-30ml; powder:10-20g
Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
