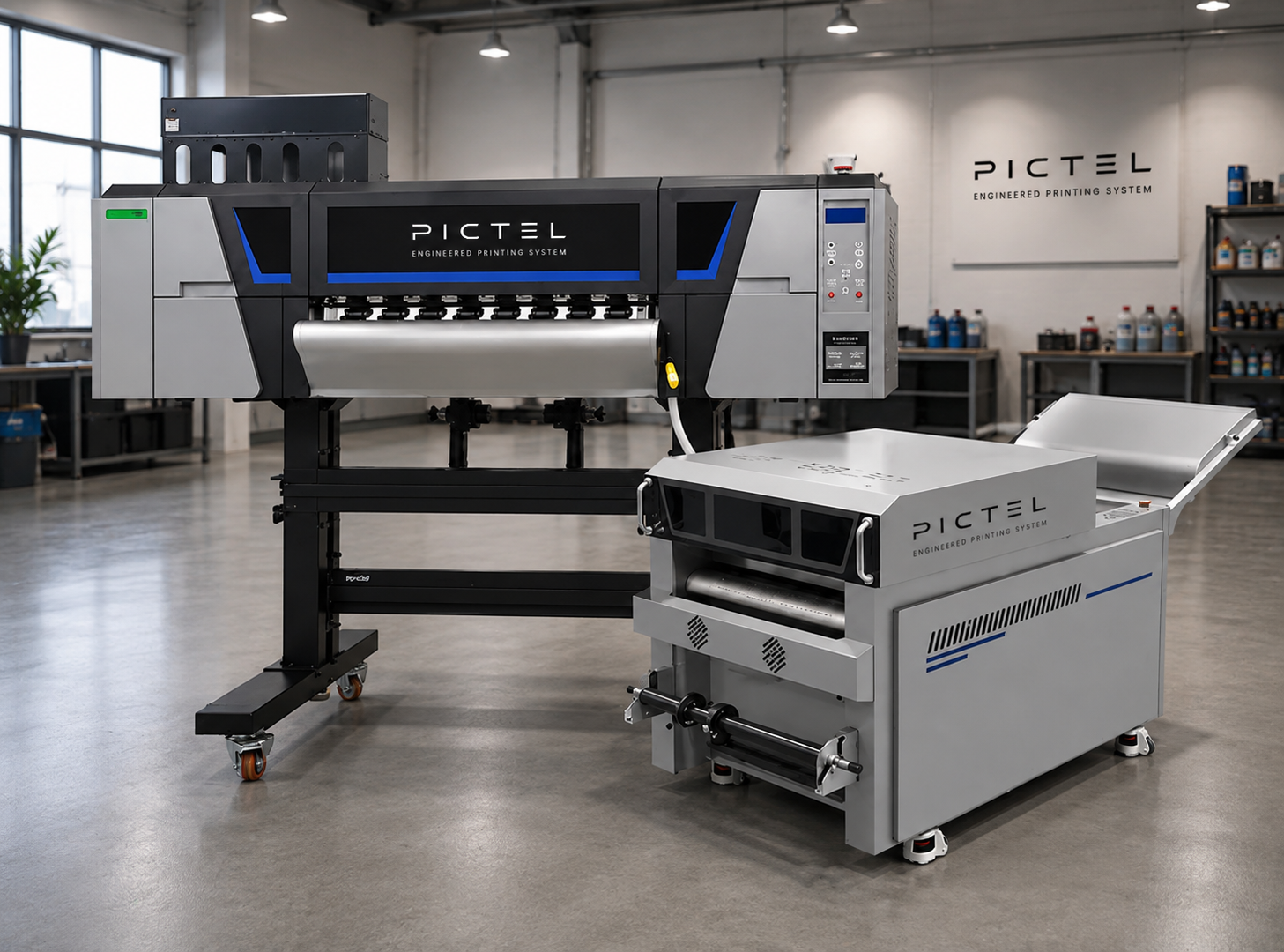

PI-604 PRO HIGH-END 4-HEAD DTF PRINTER
The high-end 24-inch DTF printer integrates advanced technology and user-friendly design. With its excellent performance and thoughtful details, make your T-shirt printing process more intelligent, efficient, and stable.
Main Features:
- 60cm / 24-inch printing width
- 4 × EPSON I3200 printheads
- Multiple printing solutions are available, including 9-color, 13-color, and powderless glue options.
- Multiple humanized and convenient settings, easy to use.
- Meets the professional needs of high-end brands for full-color customization and industrial-scale apparel production.
Technical Specifications:
- Printhead: 4*EPSON I3200-A1
- Printing Speed: 4pass: 30sqm/h; 6pass: 20sqm/h; 8pass: 16sqm/h
- Max Print Width: 680mm
- Color: C, M, Y, K, W (RGBO and fluorescence colors available)
- RIP Software: Maintop, Photoprint, CADlink, caldera (optional)
Professional DTF Printing. High-Speed Production. Exceptional Color Accuracy.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-604Pro DTF Printer Features

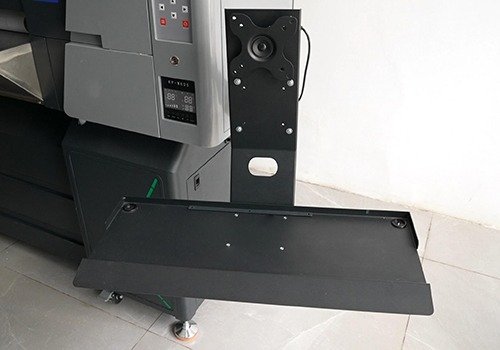

Computer stand
Add a computer stand device on the side of the machine for free movement and easy operation.

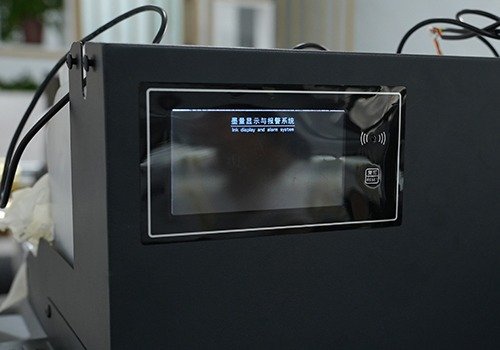

Ink level display screen
More intuitive visibility of ink usage, allowing for timely addition of ink to prevent printing interruptions.

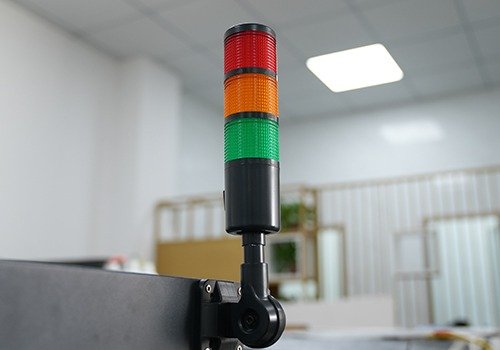

Three color light alarm device
The three-color light can better check the operation of the machine, and it will display red when there is a fault, board error, or paper shortage.

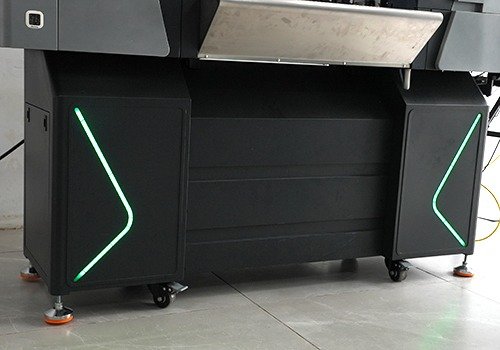

Integrated container
Adopting an integrated cabinet as support, the frame is thicker and more stable, without shaking during printing.

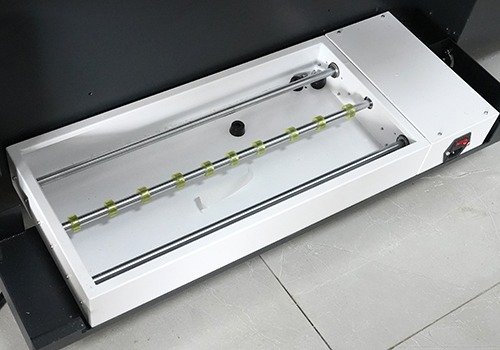

Ink Pre-Shaking Device
Adding an ink pre-shake device can prevent ink sedimentation and make printing smoother.

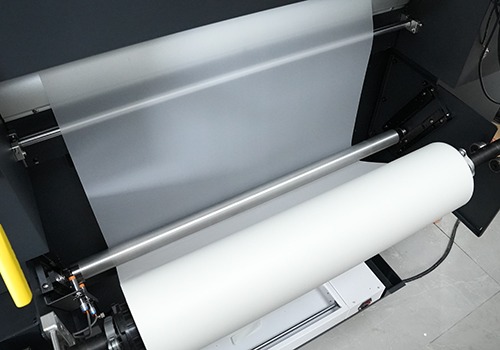

Enhanced feed up traction
Adding a swing lever to the material feeding position can increase the material feeding traction and make printing smoother.

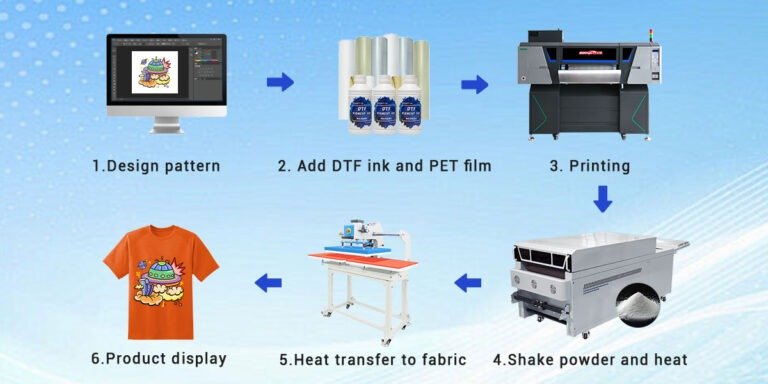

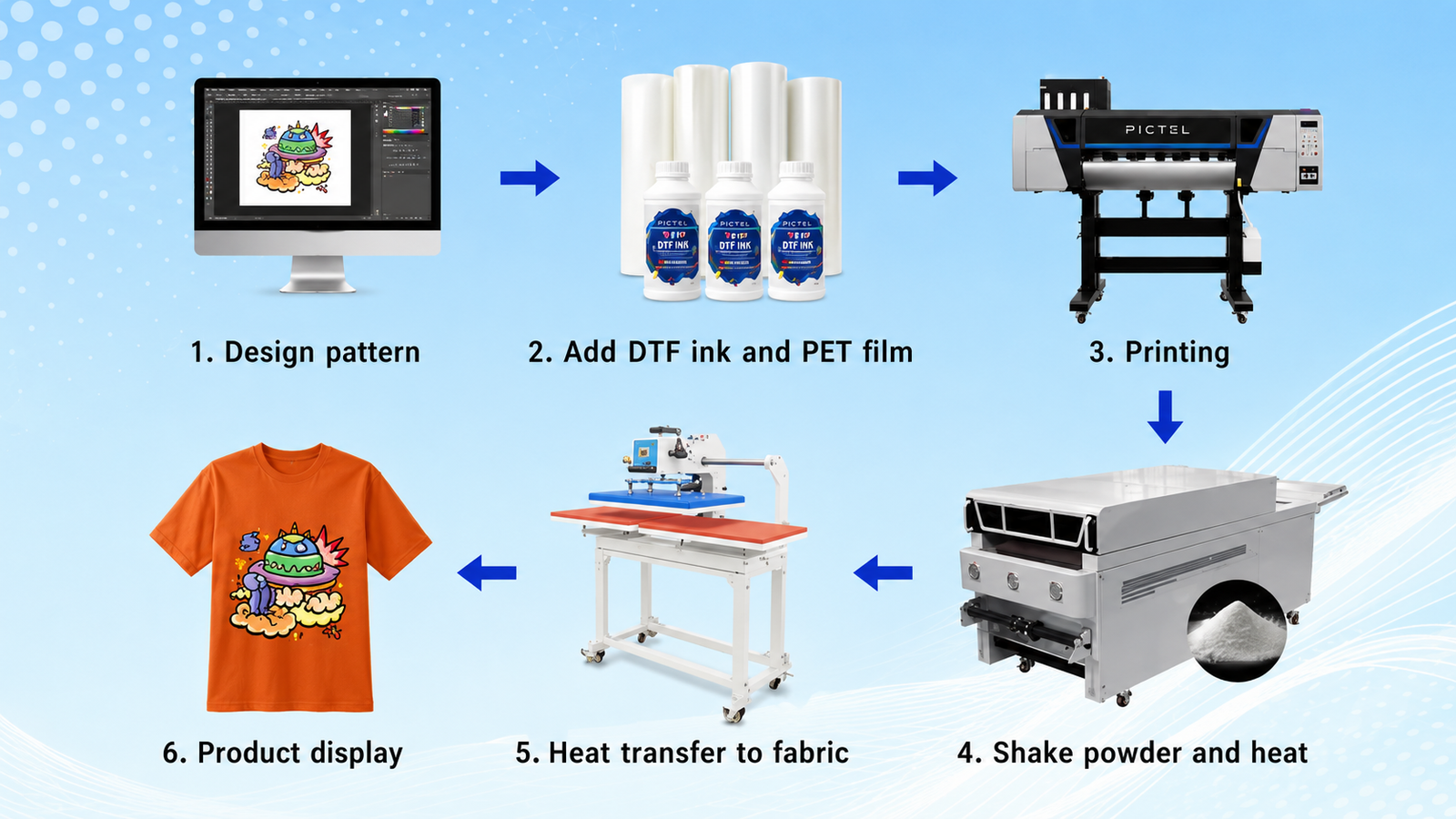

PI-604Pro 24-inch DTF T-Shirt Machine Printing Process
Product Specification
| Product | PI-604Pro 24-inch DTF Printer |
|---|---|
| Model | PI-604Pro |
| Printhead | 4 × EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass: 30 sqm/h | |
| 6 Pass: 20 sqm/h | |
| 8 Pass: 16 sqm/h | |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Waterbased pigment ink |
| Color | C, M, Y, K, W (RGBO and fluorescence colors available) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, Photoprint, CADlink, Caldera (optional) |
| Input Power | AC110V/220V, 50Hz/60Hz, 350W–4000W |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size |
Printer: 1890 × 870 × 1330mm, 230kg Shaker: 2250 × 1000 × 1000mm, 270kg |
| Packing Size |
Printer: 2124 × 1010 × 1620mm, 280kg Shaker: 2290 × 980 × 1210mm, 392kg, 2.830cbm |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
24-inch DTF printer Applications
commercial dtf printer is a powerful tool in the field of clothing printing. It can be applied to various clothing fabrics, such as pure cotton, polyester, nylon, treated leather, polyester fabrics, 50/50 blended fabrics, and light and dark fabrics. It can also be applied to non-clothing fields, such as shoes, hats, canvas bags, umbrellas, pillows, curtains, tablecloths, etc.
Hoodies
T-Shirt
Denim
Shoes
Umbrella
Canvas Bag
FAQ
Currently, our KingJet DTF printer uses a single-phase power source. You only need to tell us your local single-phase voltage and plug standard, and we will customize the machine according to your needs. 110V and 220V voltage are available.
The DTF printer print cost for a 1 sqm transfer fabric pattern is about 1-2 USD and about 0.07- 0.1 USD for A4 size printing.
DTF printing does not need to make template samples like screen printing; meanwhile, DTF can do much more complicated pattern printing work, which screen printing cannot.
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles following the international washing standard.
