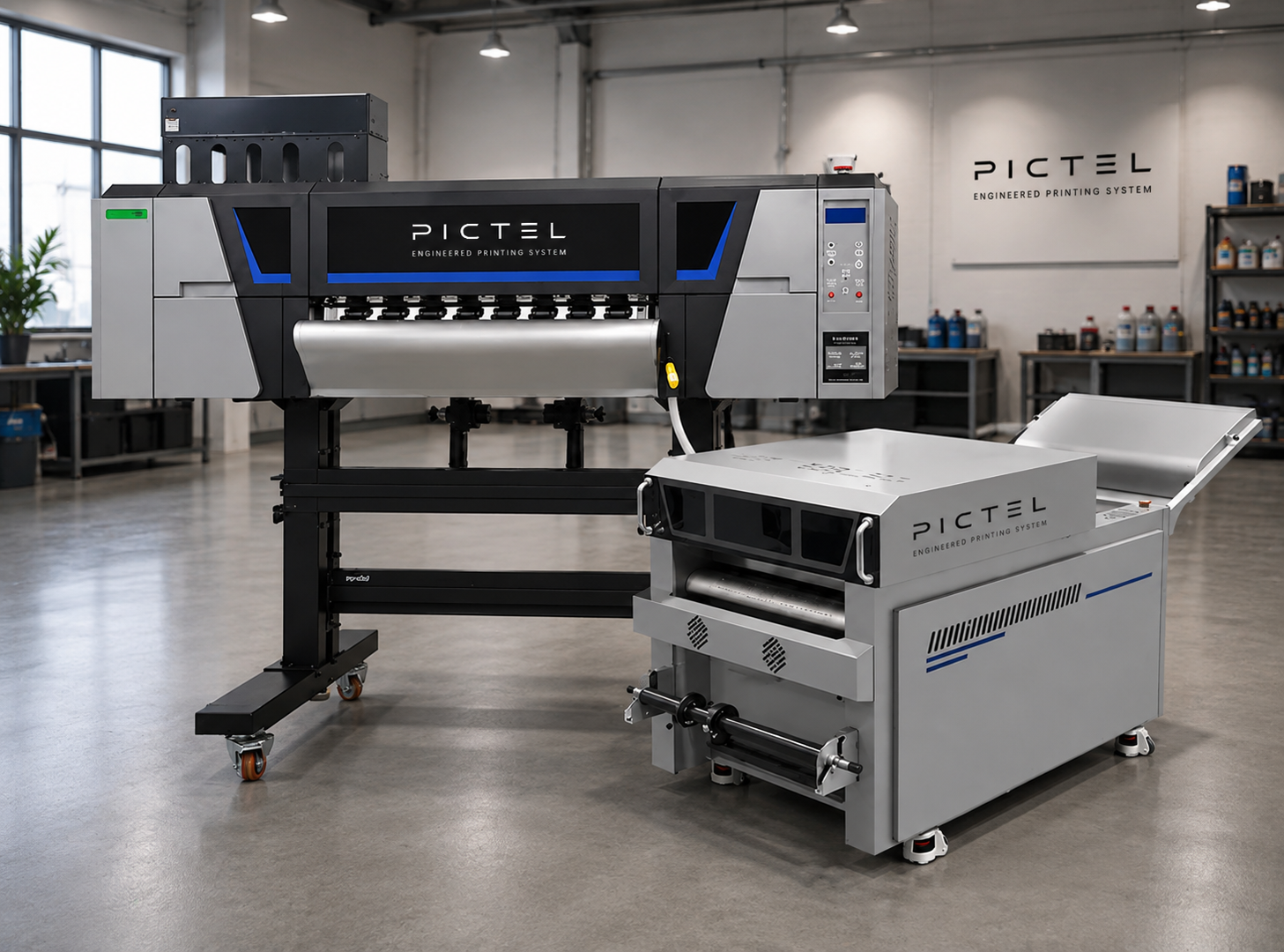

PI-605 5-HEAD DTF T-SHIRT PRINTING MACHINE
5 pcs EPSON I3200 printhead prints more efficiently, with faster speed and better quality. It is a mainstream and more comprehensive T-shirt DTF printer.
Main Features:
- 60cm / 24-inch printing width
- 5 × EPSON I3200 printheads
- 5 Colors (CMYK+W)
- Eco-friendly integrated smoke purifier, suitable for indoor use.
- Extremely fast printing speed and high printing accuracy.
- Suitable for large-scale T-shirt printing, especially for urgent orders.
Technical Specifications:
- Print Head: 5*EPSON I3200-A1
- Printing Speed: 4pass: 40sqm/h ; 6pass: 30sqm/h ; 8pass: 20sqm/h
- Max Print Width: 680mm
- Color: C, M, Y, K, W (RGBO and fluorescence colors available)
- RIP Software: maintop, photoprint, CADlink, caldera (optional)
5-Head DTF Printing. Ultra-Fast Performance. Professional Apparel Production.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-605 5-Head DTF Printer Features

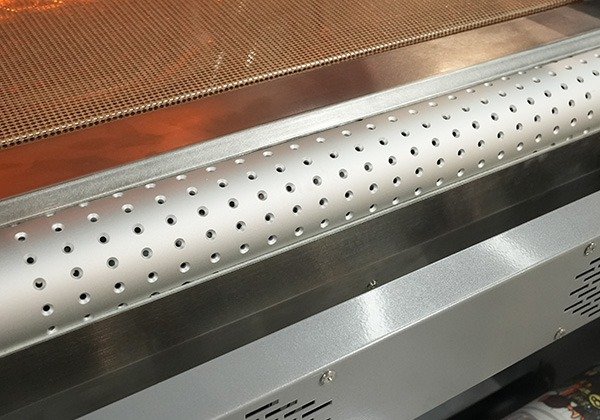

Suction roller
Patented design significantly improves adsorption force, and the paper feeding speed is consistent with the drying speed.

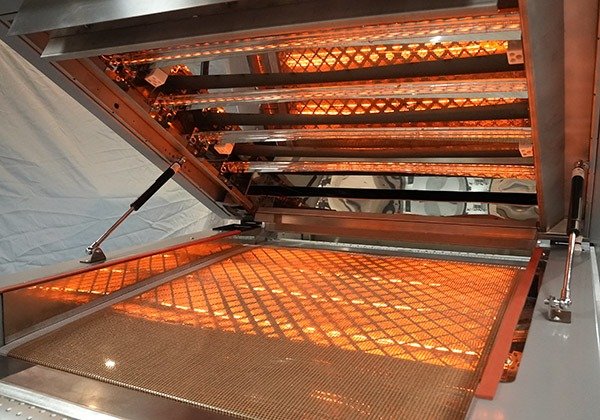

Upper and lower row heating lamps
Achieve precise heating in different zones, low energy consumption, and high film utilization rate.

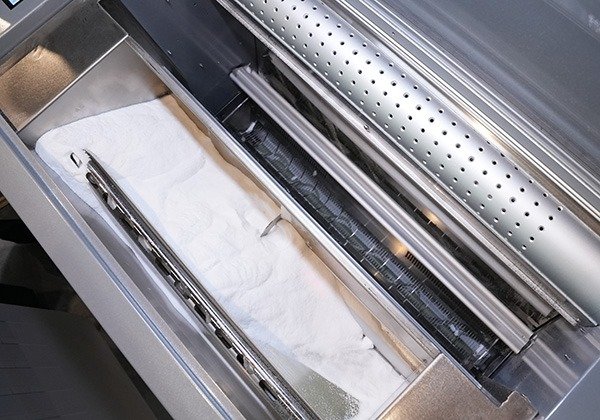

Powder shaking device
Innovative vibration, shaking powder evenly, good pattern printing, no white edges.

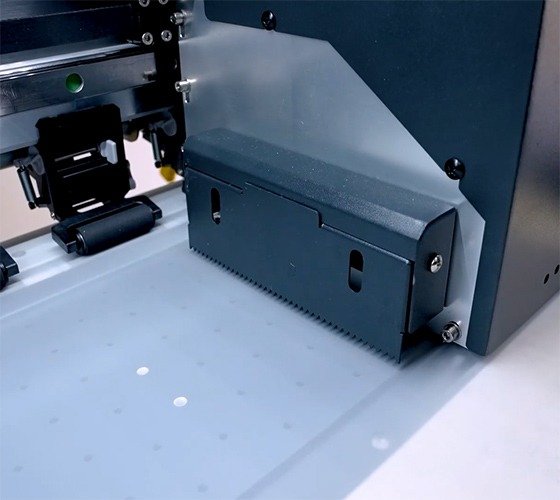

Anti-Collision Device
Prevents damage to printheads and equipment by detecting obstacles, ensuring safe, reliable, continuous printing.
High-precision printing
The machine is upgraded with higher printing accuracy, faster drying and better printing quality.

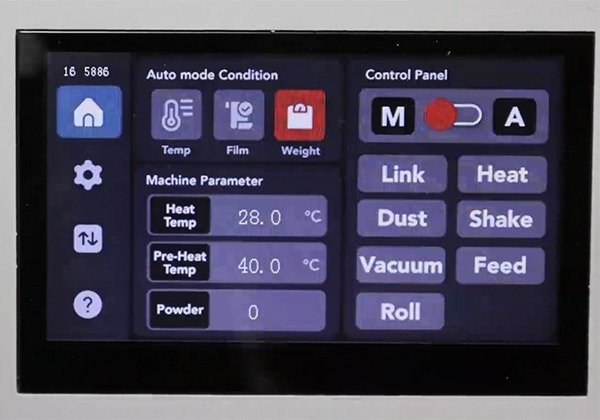

Intelligent touch screen
Automatic mode completely frees hands, one person can efficiently operate three machines at the same time, saving labor.

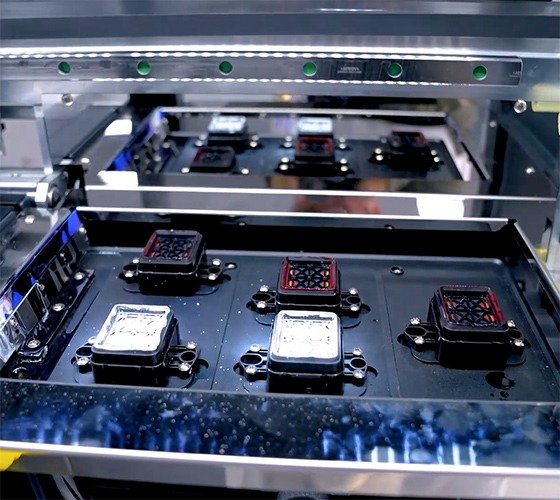

Automatic printhead cleaning
Achieve regular automatic cleaning of printheads to prevent clogging and reduce manual maintenance time.

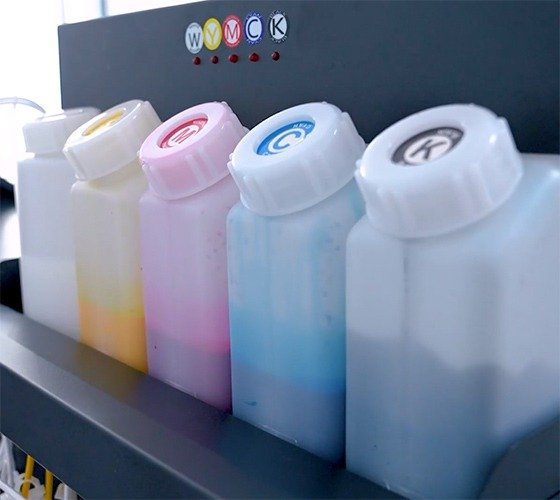

White ink circulation system
The continuous circulation of ink prevents clogging of the print head and improves printing efficiency.

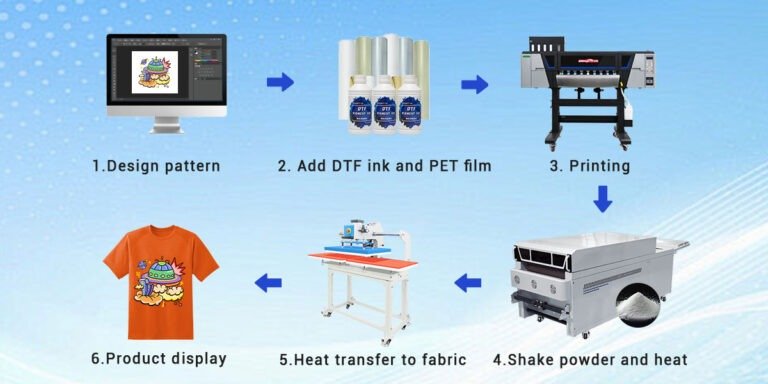

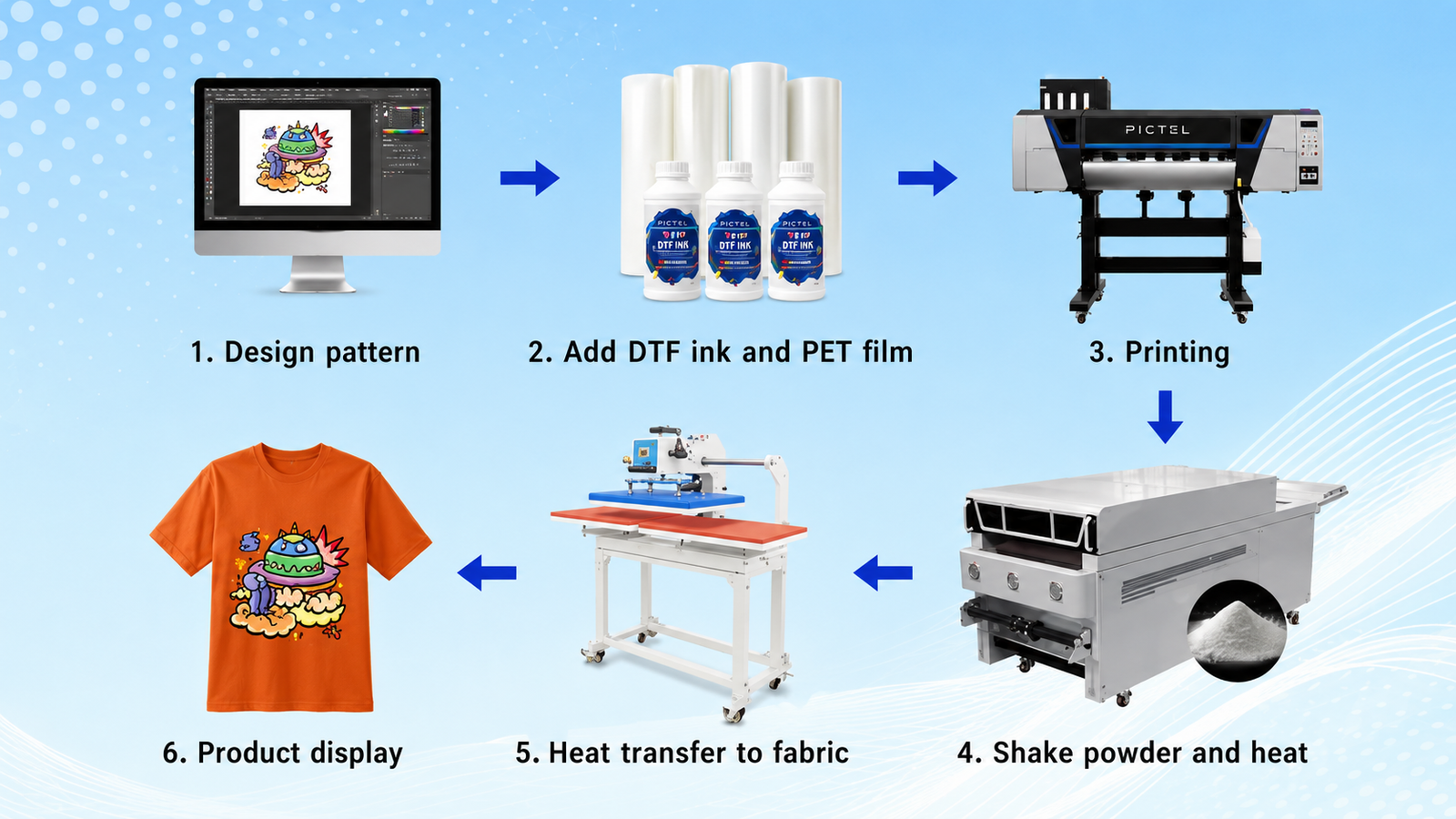

PI-605 High-Speed 5-Head DTF Printer Printing Process
Product Specification
| Product | PI-605 DTF Printer 60cm |
|---|---|
| Model | PI-605 |
| Printhead | 5 × EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass: 40 sqm/h | |
| 6 Pass: 30 sqm/h | |
| 8 Pass: 20 sqm/h | |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Waterbased pigment ink |
| Color | 5 Colors (C, M, Y, K, W) (RGBO and fluorescence colors available) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Media Thickness | 1mm |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, Photoprint, CADlink, Caldera (optional) |
| Input Power | AC110V/220V, 50Hz/60Hz, 350W–10KW |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size |
Printer: 1930 × 835 × 1355mm, 185kg Shaker: 2860 × 1022 × 1076mm, 335kg |
| Packing Size |
Printer: 2110 × 930 × 790mm, 245kg, 1.550CBM Shaker: 2850 × 1180 × 1213mm, 400kg, 2.210CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
High-Speed 5-head DTF printer machine Applications
5-head 24? DTF printer is designed for small and medium-sized enterprises and clothing customization studios, focusing on speed and efficiency. 5 pcs EPSON i3200 printheads and 5 colors of ink work together to achieve highly efficient and stable output, while balancing color saturation and cost. Whether small batch T-shirt customization, personalized shoe and hat printing, or canvas bags and other peripheral products, it can flexibly respond to fast and detailed printing needs.
DTF machine for T-shirts
Denim
Shirts
Hat
Canvas bag
Hoodies
FAQ
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml; white:15-30ml; powder:10-20g
Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
Firstly, we provide customers with 1 year one-to-one technical support and one-to-one after-sales service. such as, If you don’t know how to install the machine, or if you encounter some problems when printing, we will set up a WhatsApp group or WeChat group, then invite our professional technicians to the group, and they will guide you how to install the machine and give professional solutions to your problems in time.
