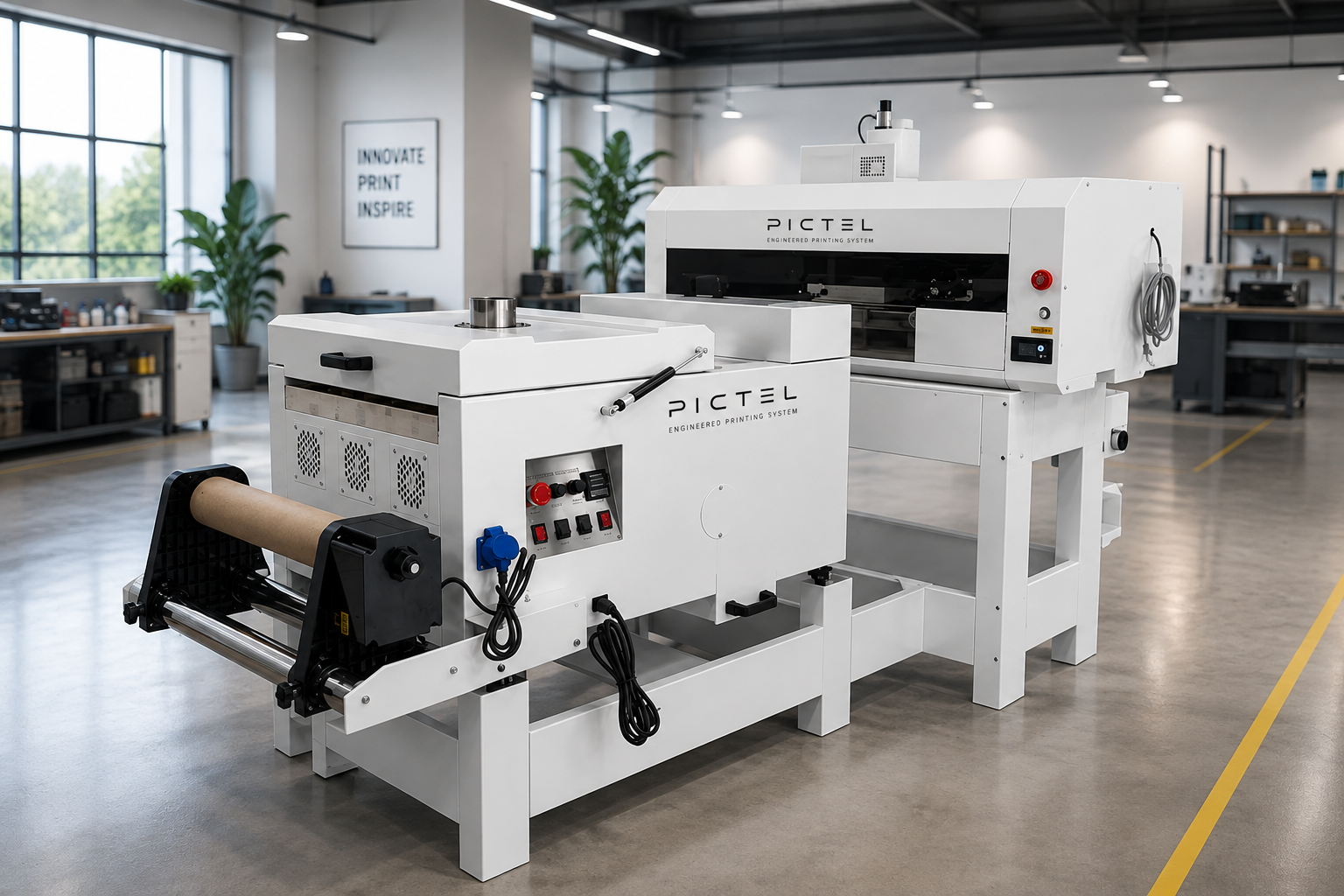

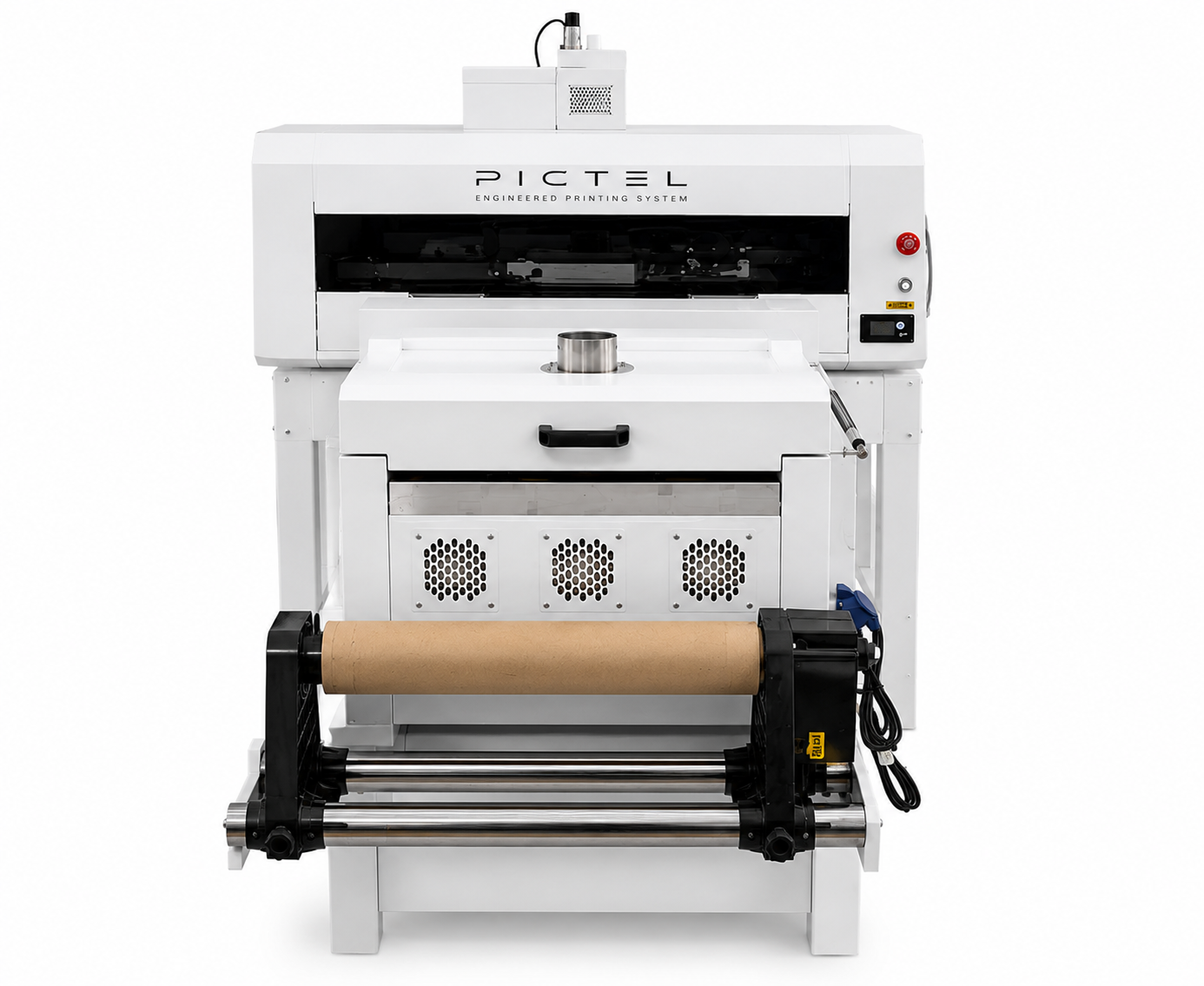

PI-302A DTF PRINTING MACHINE AND SHAKER
The direct-to-film printer has good economic and stable performance. The optional EPSON XP600 printhead, which is lower in cost than the I3200 A1 print head, greatly reduces the printing start-up cost.
Main Features:
- 12-inch/42cm printing width
- 2 × EPSON XP600/I1600/I3200 printheads optional.
- 5 Colors (CMYK+W)
- White ink circulation stirring system.
- Shaking powder intelligent heating system.
- Industrial-grade high-precision platform 0–0.5 mm to guarantee flat printing.
- Suitable for those who are looking for cost-effective and small to medium-width printing.
Technical Specifications:
- Printhead: 2*EPSON xp600 / i1600-A1 / i3200-A1 optional
- 2*I3200 Printing Speed: 4pass: 12sqm/h, 6pass: 9sqm/h
- 2*I1600 Printing Speed: 4pass: 6sqm/h, 6pass: 5sqm/h
- 2*XP600 Printing Speed: 4pass: 5sqm/h, 6pass: 4sqm/h
- Max Print Width: 42cm/A2
- Color: 5 colors (C, M, Y, K, W)
- RIP Software: maintop, photoprint, CADlink
Industrial Precision. Cost-Effective Performance. Built for Everyday Production.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-302A Direct to Film Printer Features

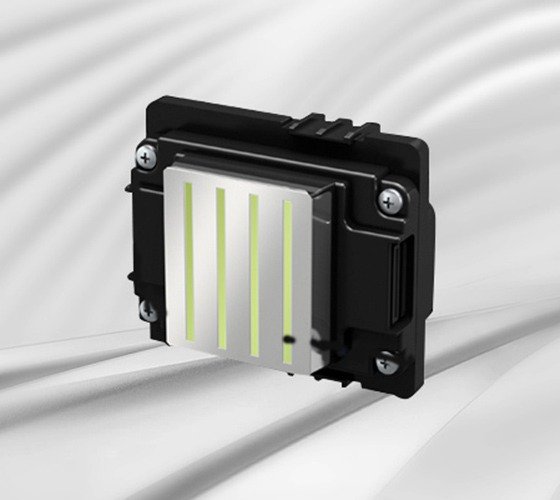

High cost performance
Equipped with Epson XP600 Head,it greatly reduces starting costsis since it's lower cost than I3200 A1 heads.

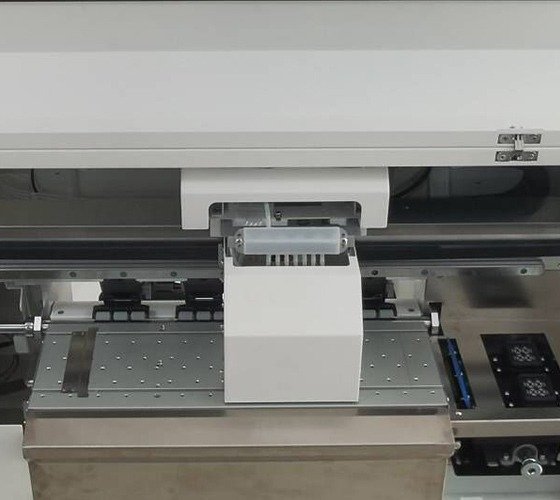

Precise printing
The machine is equipped with a 42cm printing width, which perfectly adapts to A2 size printing needs and meets personalized customization requirements.

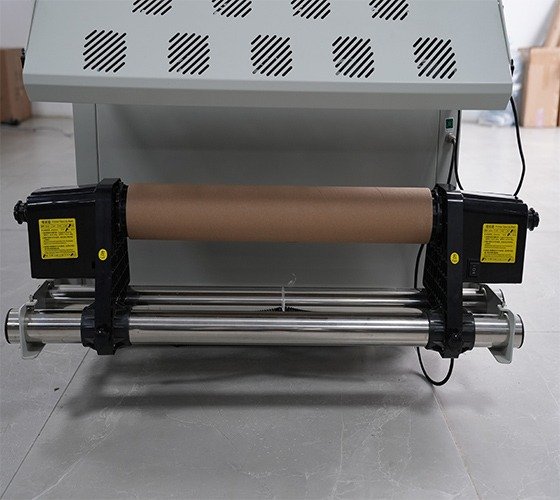

Convenient
The automatic take-up system saves the time and energy of manually adjusting printing materials, making it more convenient and efficient.
.jpg)
Environmentally friendly ink
The DTF ink used is green and environmentally friendly, making printing more sustainable.

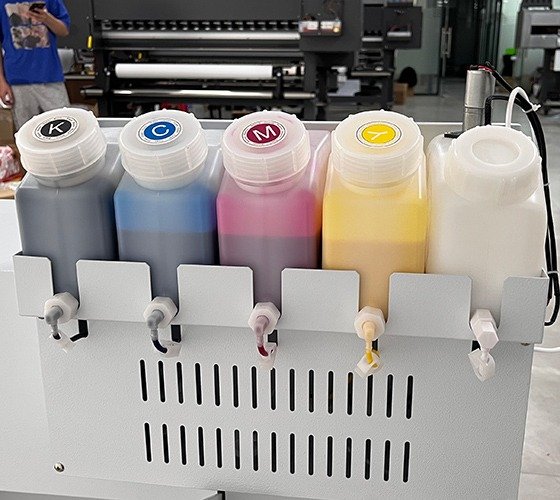

White ink circulation system
Maintain the continuous flow of ink and prevent nozzle clogging to achieve uninterrupted production.

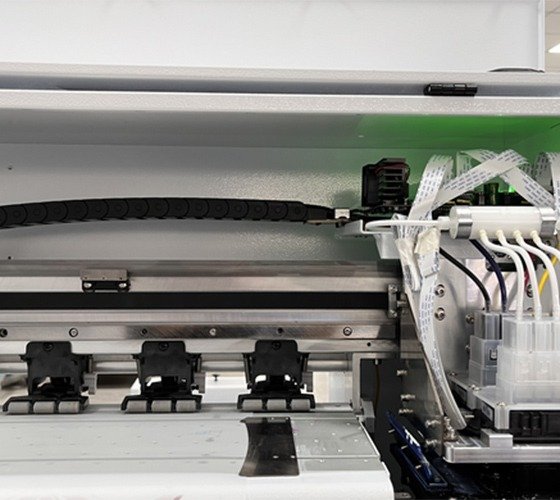

Industrial grade precision platform
Keep the printing flatness at 0-0.5mm, making the printing surface flatter and printing accuracy higher.

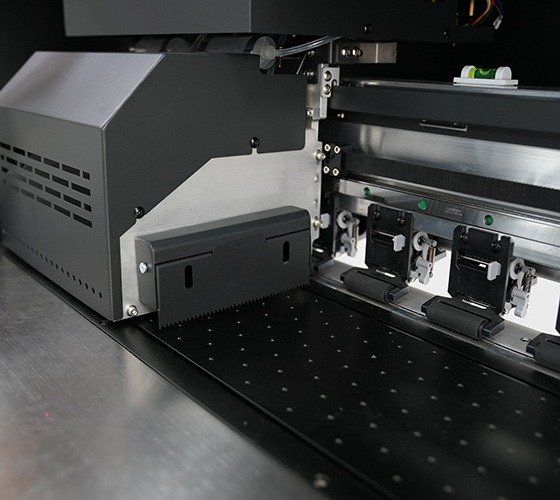

Anti-Collision Device
Prevents damage to printheads and equipment by detecting obstacles, ensuring safe, reliable, continuous printing.

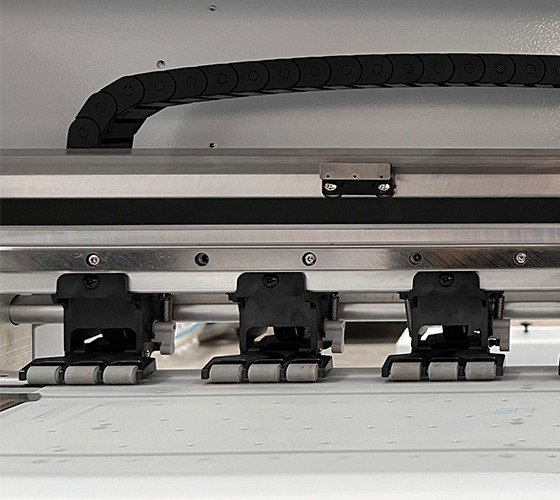

Three-stage pinch rollers
Apply even pressure to eliminate wrinkles on the material surface and make the printing surface smoother.

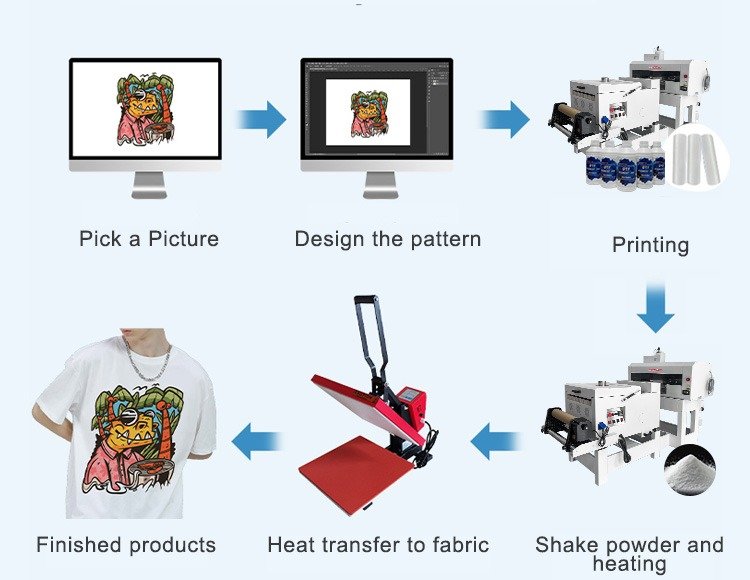

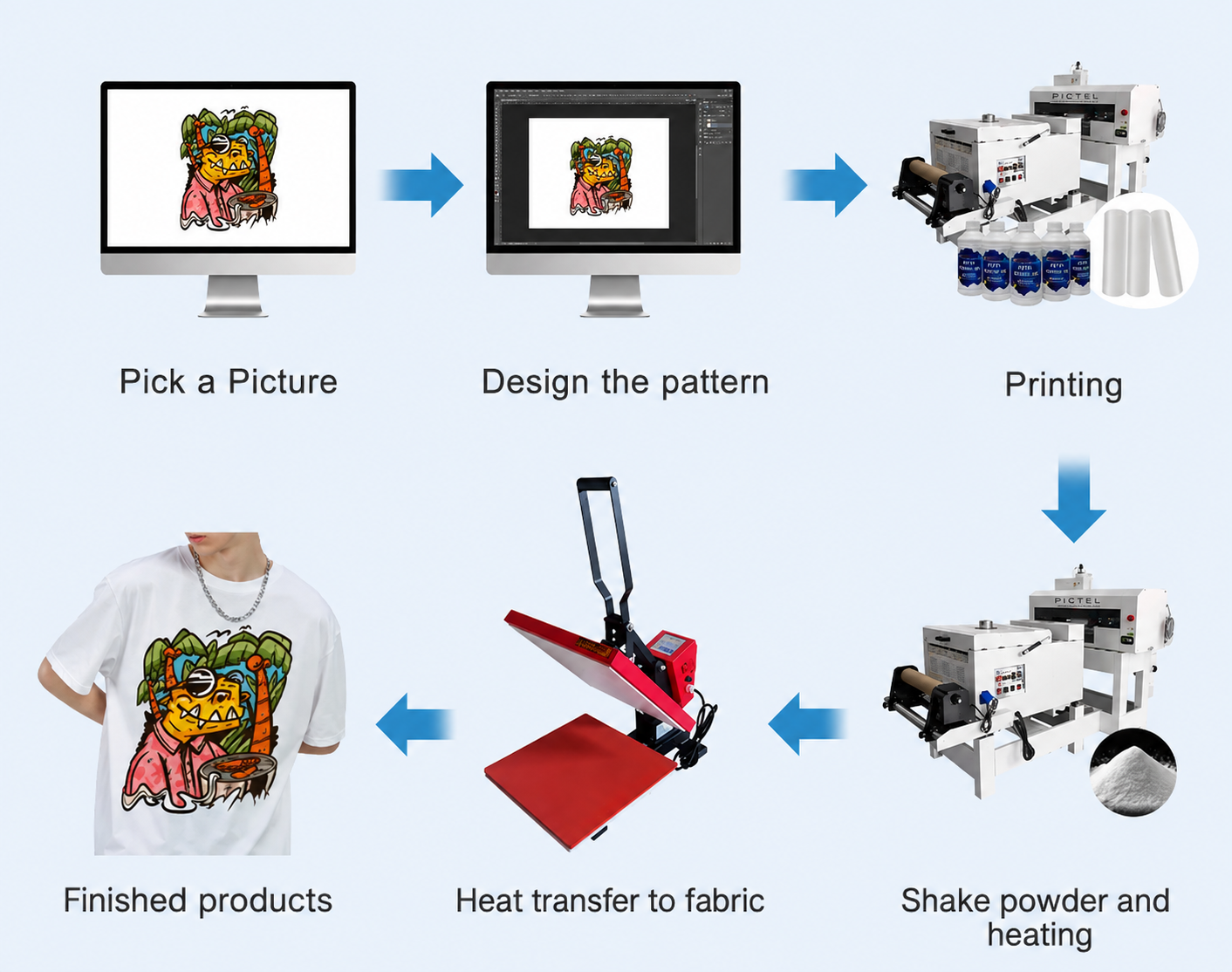

PI-302A DTF Direct to Film Printer printing Process
Product Specification
| Product | PI-302A DTF Printer |
|---|---|
| Model | PI-302A |
| Printhead | 2 × EPSON I3200-A1 / I1600-A1 / XP600 |
| I3200 Head Printing Speed |
4 Pass: 12 m²/h 6 Pass: 9 m²/h |
| I1600 Head Printing Speed |
4 Pass: 6 m²/h 6 Pass: 5 m²/h |
| XP600 Head Printing Speed |
4 Pass: 5 m²/h 6 Pass: 4 m²/h |
| Color | 5 Colors (C, M, Y, K, W) |
| Max Media Width | 430 mm |
| Max Print Width | 420 mm |
| Ink Type | Water-Based Pigment Ink |
| Media Type | PET Film |
| Heating System | Intelligent Embedded Heating System & Powder Melt Machine |
| Feed & Take-up System | Equipped |
| Ink System | Automatic Ink Supply, White Ink Circulating & Stirring |
| Clamp | Combined Anti-Warping Clamps |
| Power Electric Supply | 110V / 220V, 50–60Hz |
| Power | 350W–3400W |
| RIP Software | Maintop, Photoprint, CADlink (Optional) |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Printer Size | 1100 × 510 × 625 mm, 70 kg |
| Shaker Size | 800 × 510 × 510 mm, 50 kg |
| Packing Size |
Printer: 1320 × 730 × 850 mm, 106 kg, 0.82 CBM Shaker: 880 × 610 × 730 mm, 70 kg, 0.40 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Direct to Film Printer Applications
The dual-head DTF printing machine is specially designed for the small-batch customization needs of small garment companies and creative studios. saving time and cost compared to traditional screen printing and with a 5-color DTF ink system. It is compatible with various fabrics (such as cotton, polyester, blended, light-colored fabrics, dark-colored fabrics, etc.). The printed patterns have clear detailing, are stretch-resistant, and are not easy to fade.
T-shirts
Sweatshirts
Denim
DTF machine for T-shirts
Hat
Shoes
FAQ
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
The printhead used in our Kingjet DTF printer are EPSON I3200A1/I1600A1/XP600 and all of our printhead is original and brand new.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml；white:15-30ml；powder:10-20g
Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Equipped with a peristaltic pump with imported medical BRT tubes, XY-axis laser servo integrated motor, intelligent multi-function temperature controller, front platform heating width of 12cm, round bottle large-capacity white ink mixing ink cartridge, etc., the printing quality is better than other DTF printers.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
