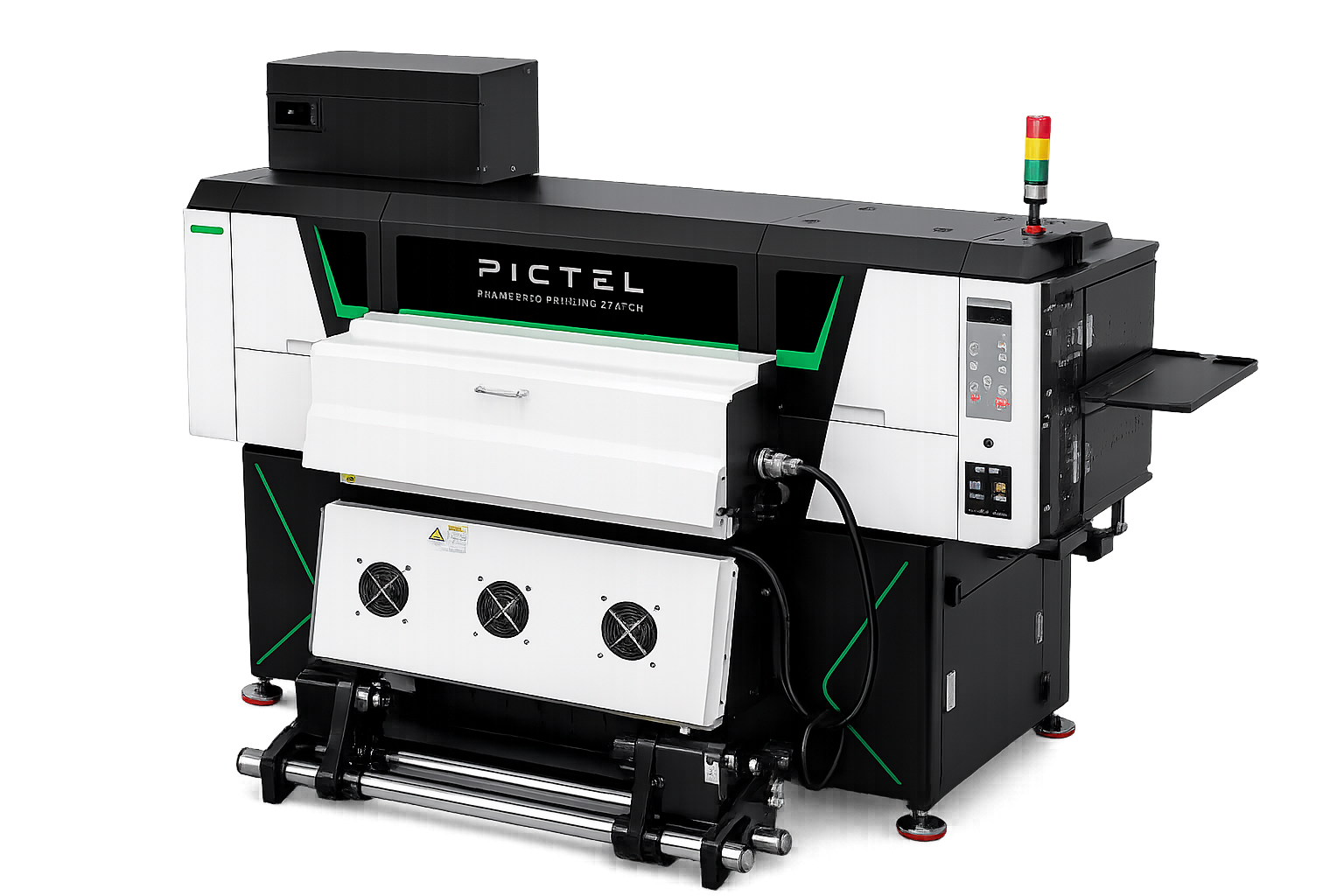

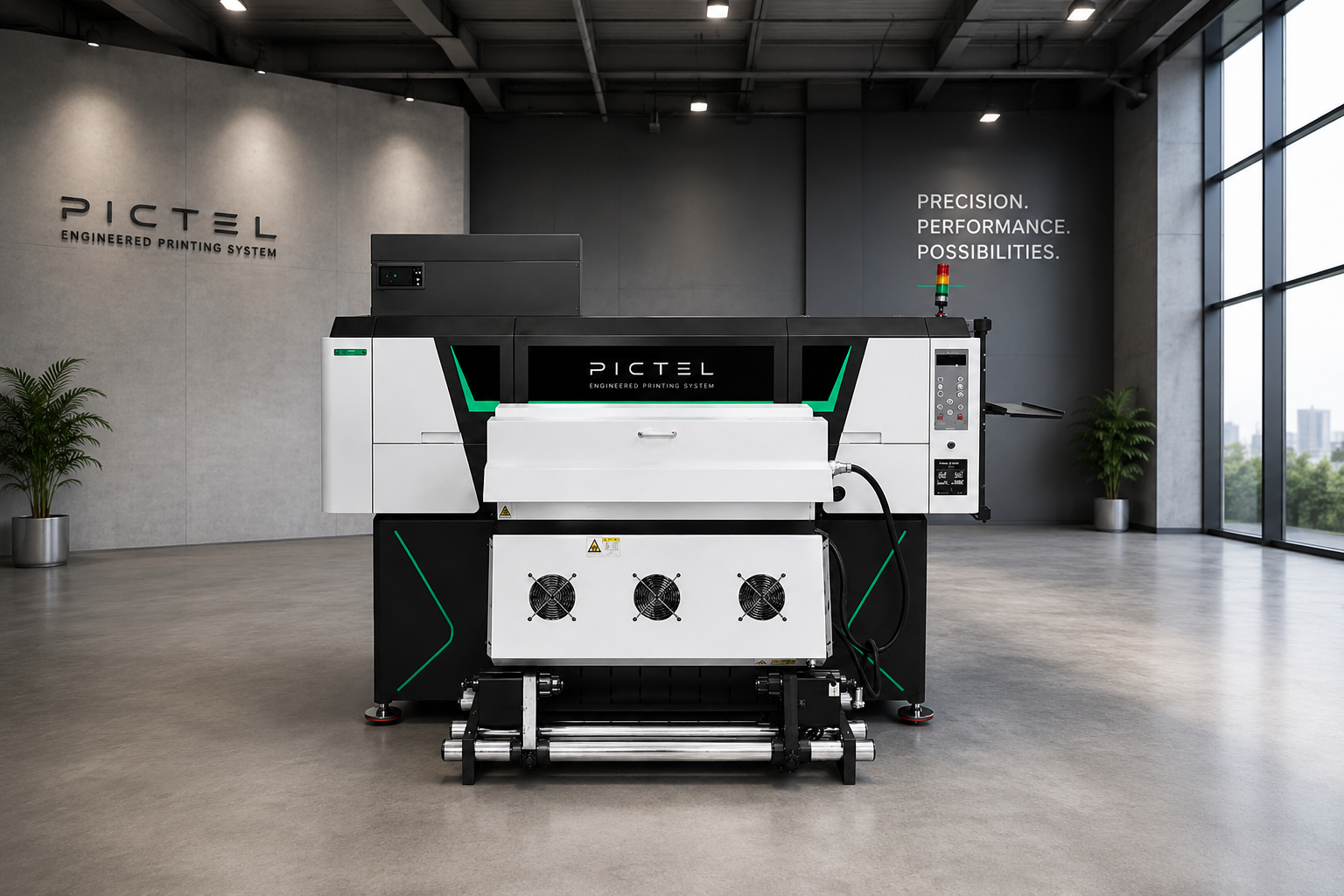

POWDERLESS DTF PRINTER (NO POWDER DTF)
With its minimalist process and environmentally friendly zero-powder feature, powder-free DTF printer brings a more efficient, eco-friendly, and high-quality DTF printing experience to the textile industry. It is a good choice for exploring new markets and enhancing competitiveness.
Main Features:
- Print Head: 4 × I3200 / 2 × I1600 / 1 × XP600
- Printing Width: A1 / A2 / A3 optional
- Color: CMYKW
- Eco-friendly, no DTF powder used, integrated printing and drying.
- Saves 2/3 of the floor space compared to traditional DTF.
- Energy consumption is 1/2 that of the traditional DTF powder shaking process.
- T-shirts feature a soft handfeel and excellent breathability.
- More user-friendly and lower operating costs.
Technical Specifications:
- Print Head: 4*I3200 / 2*I1600 / 1*XP600
- Printing Width: A1/A2/A3
- A1 Size Printing Speed: 6 sqm/hr
- A2 Size Printing Speed: 2 sqm/hr
- A3 Size Printing Speed: 1 sqm/hr
- Color: CMYKW
- RIP Software: Maintop, photoprint, CADLink (optional)
Powderless DTF Printer. Cleaner Process. Lower Costs. Next-Generation Apparel Printing.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Features of Powder-Free DTF Printer

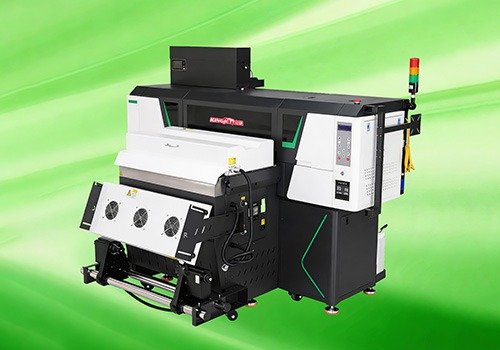

Integrated Printing
Printing and curing completed in one step—no powder dust or melting required. Simplified operation with consistent quality.
Cleaner Workspace
The entire process is dust-free, making it safer and more environmentally friendly, creating a better production environment for operators.

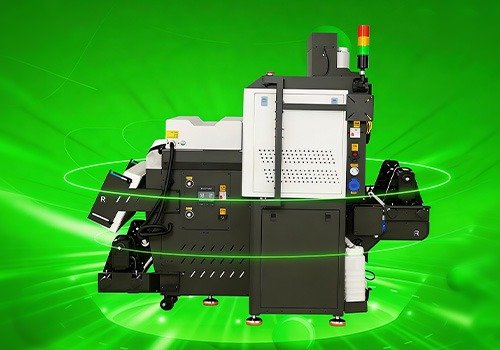

Space-Saving
Highly integrated design saves 2/3 of the space compared to traditional DTF, enabling high productivity in compact spaces.
Low Energy Consumption
Uses only half the energy of traditional DTF powder-shaking processes, while requiring less equipment, maintenance, and labor.
Premium Touch
Breaking through the limitations of traditional DTF film feel, providing unparalleled softness and excellent breathability.

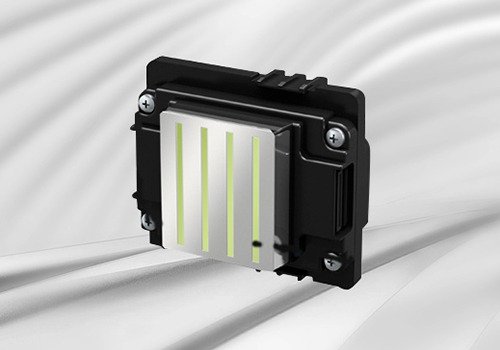

EPSON Printhead
4*I3200 / 2*I1600 / 1*XP600 printheads are optional, meeting various needs for home use, entry-level, and mass production.

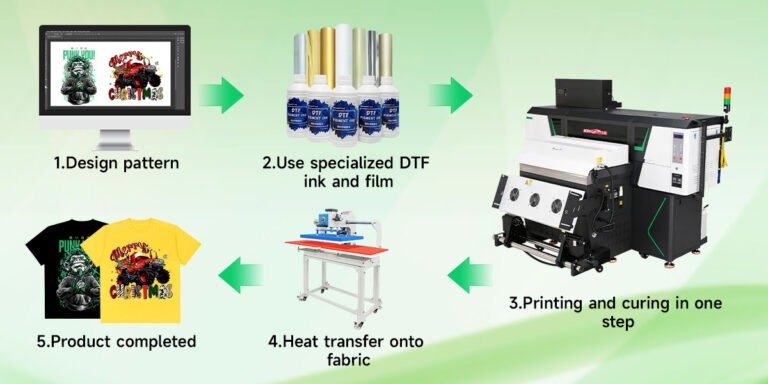

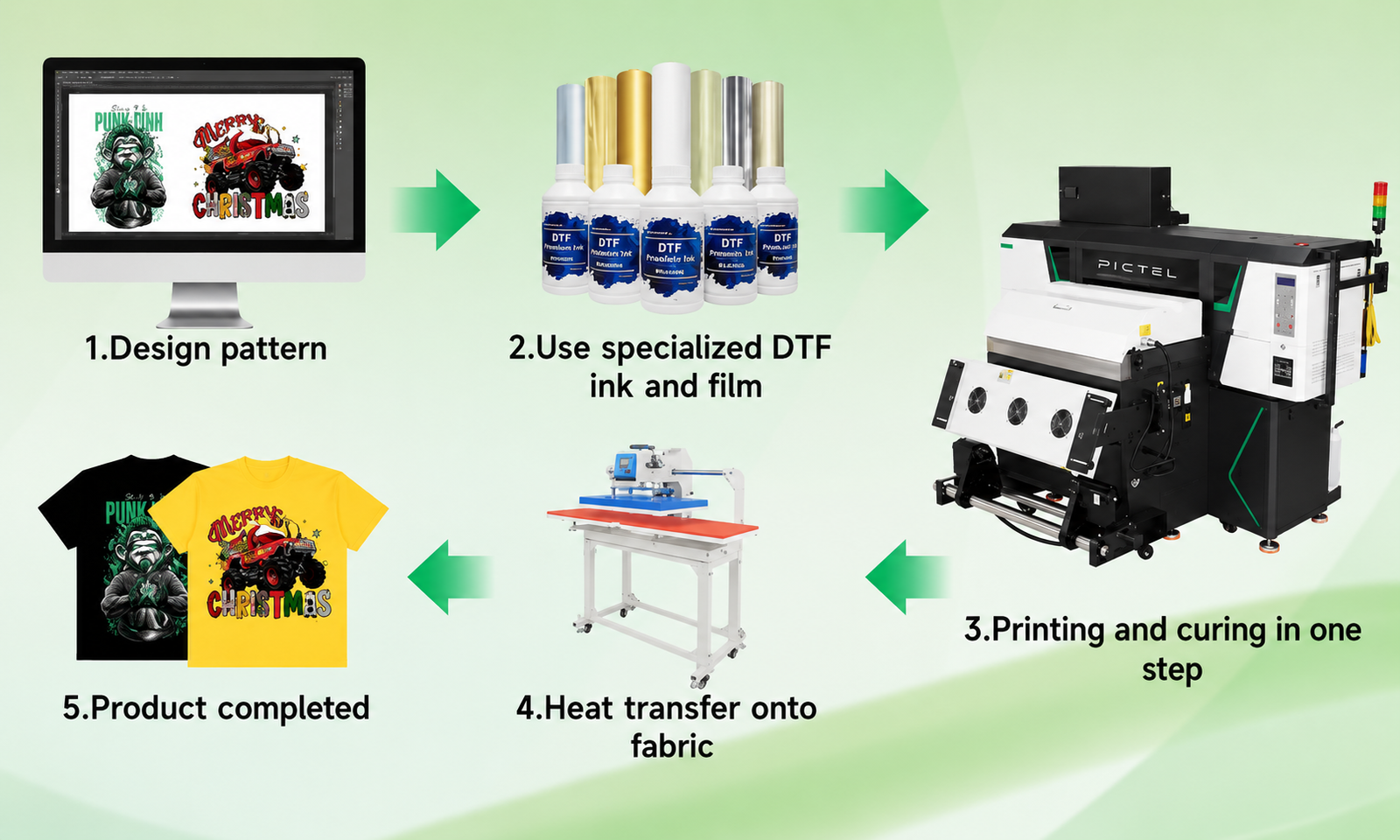

Process Flow of Powder-Free DTF Printer
Product Specification
| Specification | PI-NPF-A1X4 | PI-NPF-A2X2 | PI-NPF-A3X1 |
|---|---|---|---|
| Product | No Powder DTF Printer | ||
| Model | PI-NPF-A1X4 | PI-NPF-A2X2 | PI-NPF-A3X1 |
| Printhead | I3200 | I1600 | XP600 |
| Printhead Number | 4 pcs | 2 pcs | 1 pc |
| Printing Width | A1 | A2 | A3 |
| Printing Speed | 6 sqm/hr | 2 sqm/hr | 1 sqm/hr |
| Ink Color | CMYKW | ||
| Ink Circulation System | White Ink Circulation and Stirring | ||
| Ink Supply | Positive Pressure Ink Supply | ||
| Media Type | Powder-Free Film | ||
| Feed & Take-up System | Equipped | ||
| Capping & Moisturizing | Auto Capping System & Moisturizing System | ||
| RIP Software | Maintop, Photoprint, CADlink (Optional) | ||
| Working Environment | Temperature: 18–32?, Humidity: 46–65% | ||
| Power | 4600W | 3200W | 1500W |
| Machine Size | 2004 × 1656 × 1459 mm | 1050 × 950 × 1255 mm | 703 × 355 × 260 mm |
| Net Weight | 230 kg | 185 kg | 135 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Applications of Powderless DTF Printer
Powder-free DTF printer provides a short printing process, high-quality, and sustainable printing solutions for various applications of textiles. It not only solves the long-term pain points of traditional powder processes, such as hard feel, dust pollution, and complex processes, but is also suitable for printing on a variety of materials, including printing on common textiles such as cotton, polyester, and blends, as well as pattern transfer on materials such as leather and canvas.
T-shirts
Hoodies
Leather
Shoes
Umbrella
Canvas bag
FAQ
Powderless DTF printer use specialized ink to directly print designs onto powder-free PET film, and simultaneously completes drying the ink during printing process, eliminating the need for powder application, powder shaking, or secondary baking.
Compared to traditional DTF printing, powder-free DTF printing offers the following five advantages:
Simplified process: Only three steps required: printing – drying – transfer.
Environmentally friendly: No traditional hot melt powder is used, eliminating harmful fumes and reducing environmental impact.
Soft feel of the finished product: High-quality printing with a soft touch
Easy maintenance: No powder-shaking equipment, less manual labor, more user-friendly.
Space-saving: Compact design, reducing the footprint by two-thirds compared to traditional DTF machines.
Yes.
