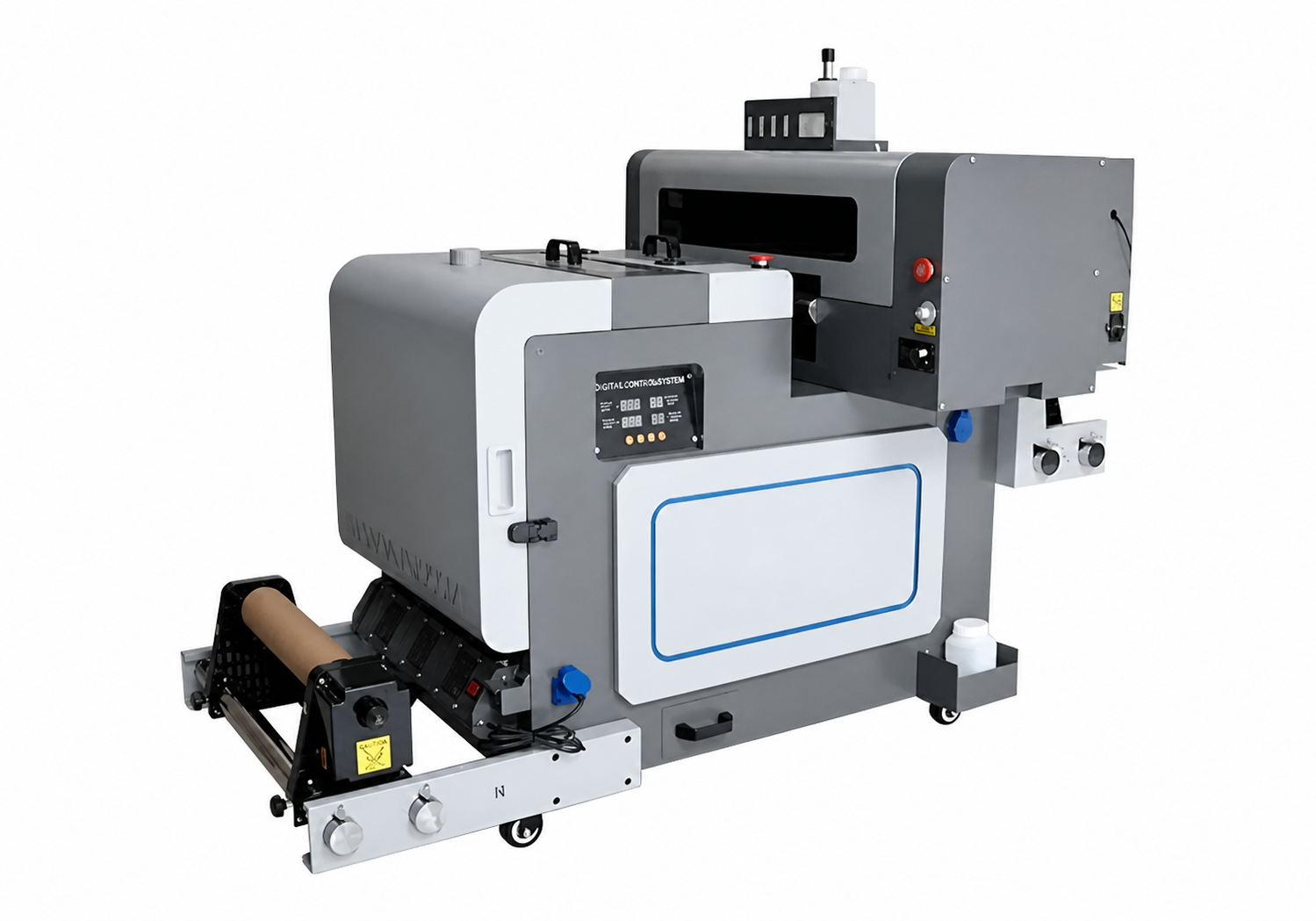

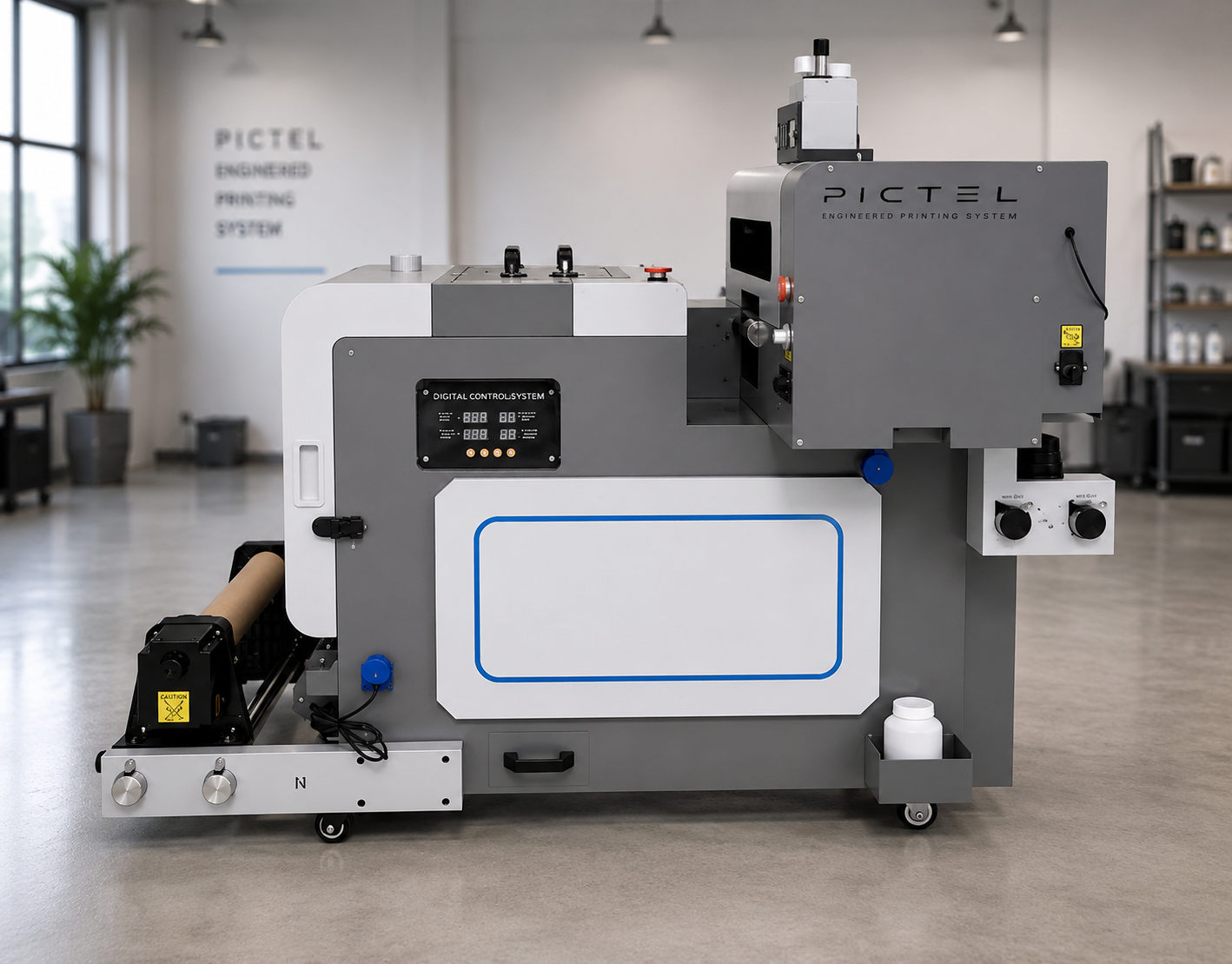

PI-302B COMPACT ALL-IN-ONE DTF PRINTER
PI-302B DTF printing machine adopts an integrated design, 42cm printing width, compact and flexible, stable output, especially suitable for small business printing T-shirts.
Main Features:
- 30cm/A2 printing width
- 2 × EPSON XP600/I1600/I3200 printheads optional.
- 5 Colors (CMYK+W)

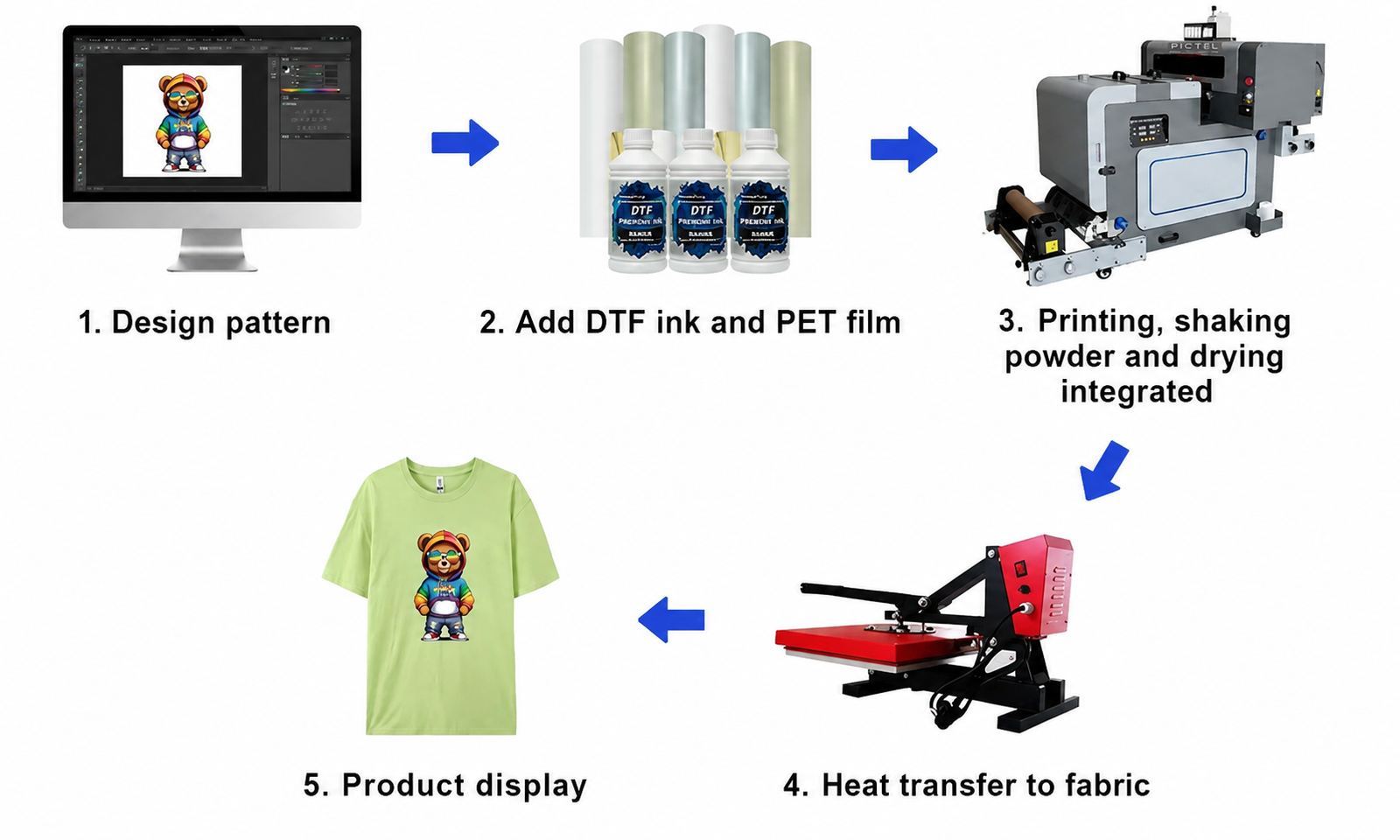

- Integrated design, printing – powder shaking – drying in one, flexible and efficient.
- Small footprint, full functions, stable printing.
- Round white ink circulation stirring system.
- Suitable for small businesses and entry-level customers to DIY print T-shirts.
Technical Specifications:
- Printhead: 2*EPSON XP600 / I1600-A1 / I3200-A1 heads optional.
- 2*EPSON XP600 Printing Speed: 4pass: 5sqm/h, 6pass: 4sqm/h
- 2*EPSON I1600 Printing Speed: 4pass: 6sqm/h, 6pass: 5sqm/h
- 2*EPSON I3200 Printing Speed: 4pass: 12sqm/h, 6pass: 9sqm/h
- Max Print Width: 420mm
- Color: 5 Colors (C, M, Y, K, W)
- RIP Software: Maintop, Photoprint, CADlink, Caldera (optional)
PI-302B Compact All-in-One DTF Printer. Compact Design. Professional Apparel Printing. Business-Ready Performance.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-302B All In One DTF Printer Features
Integrated powder shaking machine
Small footprint, space-saving, more flexible and efficient printing.

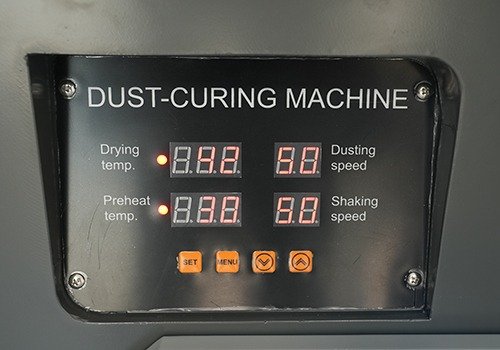

Temperature and speed display
During the printing process, the drying temperature and shaking speed are intuitively displayed, more convenient.
A2 printing width
42cm printing width, perfectly adapted to A2 size printing needs.

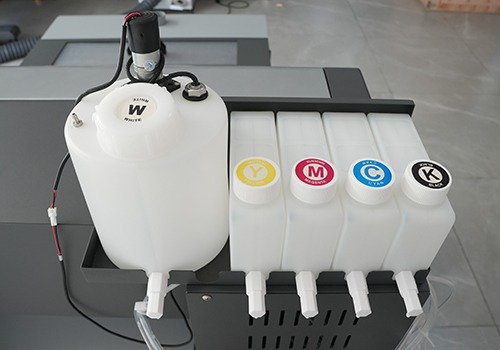

White ink circulation system
Round white ink cartridges stir more evenly than square cartridges, preventing printhead clogging.

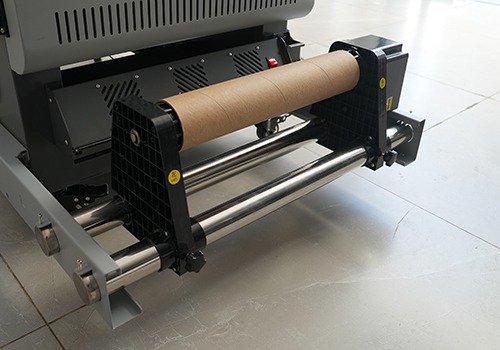

Automatic take-up device
Automatic take-up after printing, no need for manual operation, more efficient.
EPSON original printhead
Original EPSON I3200 A1 print head, high precision, and fast speed.
Product Specification
| Product | PI-302B DTF Printer |
|---|---|
| Model | PI-302B |
| Printhead | 2 × EPSON XP600 / I1600 A1 / I3200-A1 |
| Printing Speed | Output (m²/h) |
| 2 × EPSON XP600 |
4 Pass: 5 m²/h 6 Pass: 4 m²/h |
| 2 × EPSON I1600 A1 |
4 Pass: 6 m²/h 6 Pass: 5 m²/h |
| 2 × EPSON I3200-A1 |
4 Pass: 12 m²/h 6 Pass: 9 m²/h |
| Max Media Width | 430 mm |
| Max Print Width | 420 mm |
| Ink Type | Water-Based Pigment Ink |
| Color | 5 Colors (C, M, Y, K, W) |
| Ink Supply System | Continuous Ink Supply System |
| White Ink Cycle | Equipped |
| Media Type | PET Film |
| Media Thickness | 1 mm |
| Heating System | Intelligent Embedded Heating System |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint, CADlink, Caldera (Optional) |
| Input Power | AC 110V / 220V, 50Hz / 60Hz, 350W–4000W |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size | 1600 × 1050 × 1300 mm, 90 kg, 0.917 CBM |
| Packing Size |
Printer: 1230 × 630 × 620 mm, 105.5 kg, 0.480 CBM Shaker: 1180 × 790 × 1120 mm, 115 kg, 1.04 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
All-in-one DTF garment printer Applications
DTF printing machines are widely used in the clothing industry, with high precision and bright colors, and the patterns will not fade or break easily and have long durability. It can be applied to cotton, polyester, denim, silk, leather, nylon, etc.
Hoodies
T-Shirt
Denim
Shoes
Umbrella
Canvas Bag
FAQ
Currently, our KingJet DTF printer uses a single-phase power source. You only need to tell us your local single-phase voltage and plug standard, and we will customize the machine according to your needs. 110V and 220V voltage are available.
The DTF printing machine print cost for a 1 sqm transfer fabric pattern is about 1-2 USD and about 0.07- 0.1 USD for A4 size printing.
DTF printing does not need to make template samples like screen printing; meanwhile, DTF can do much more complicated pattern printing work, which screen printing cannot.
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles following the international washing standard.
