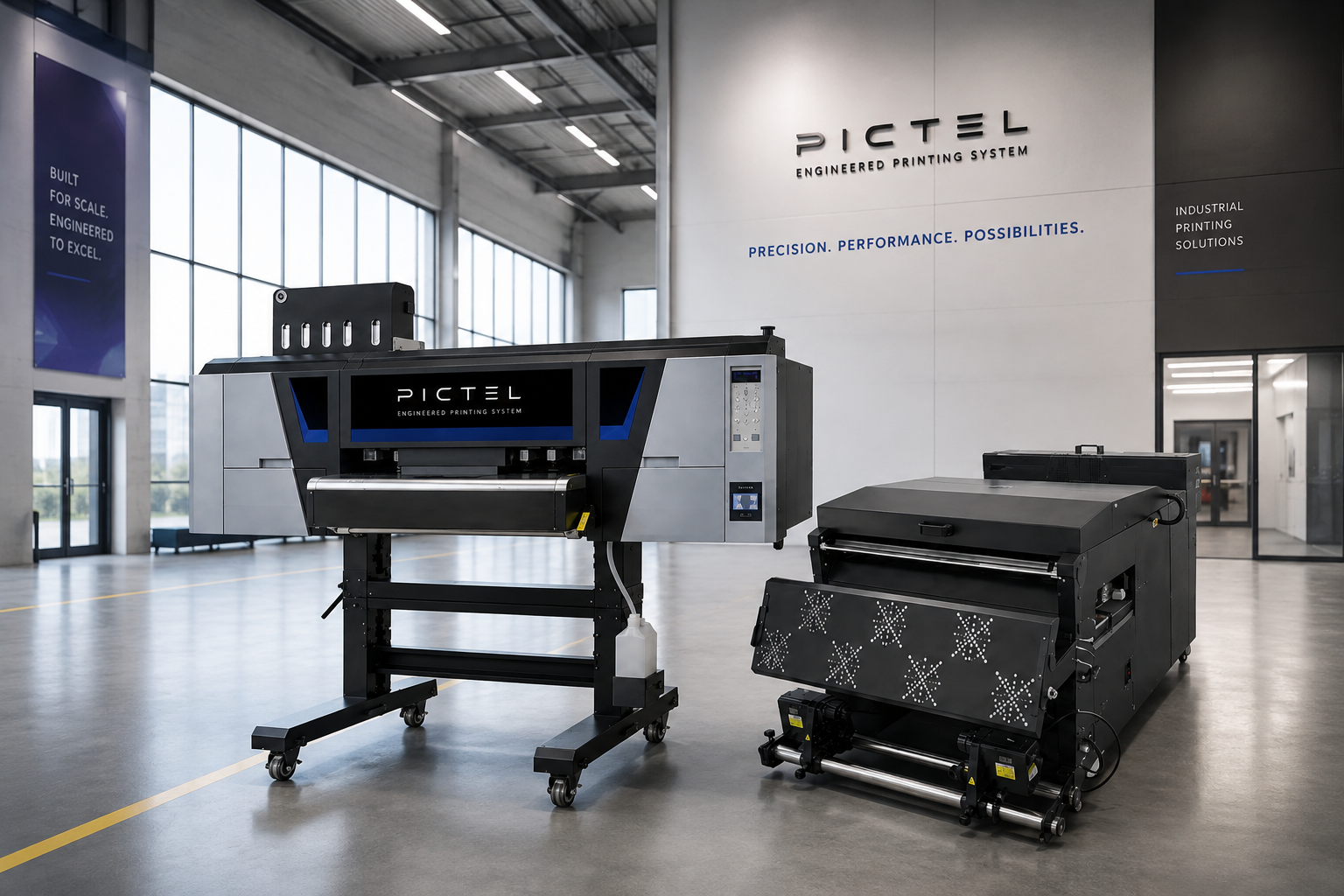

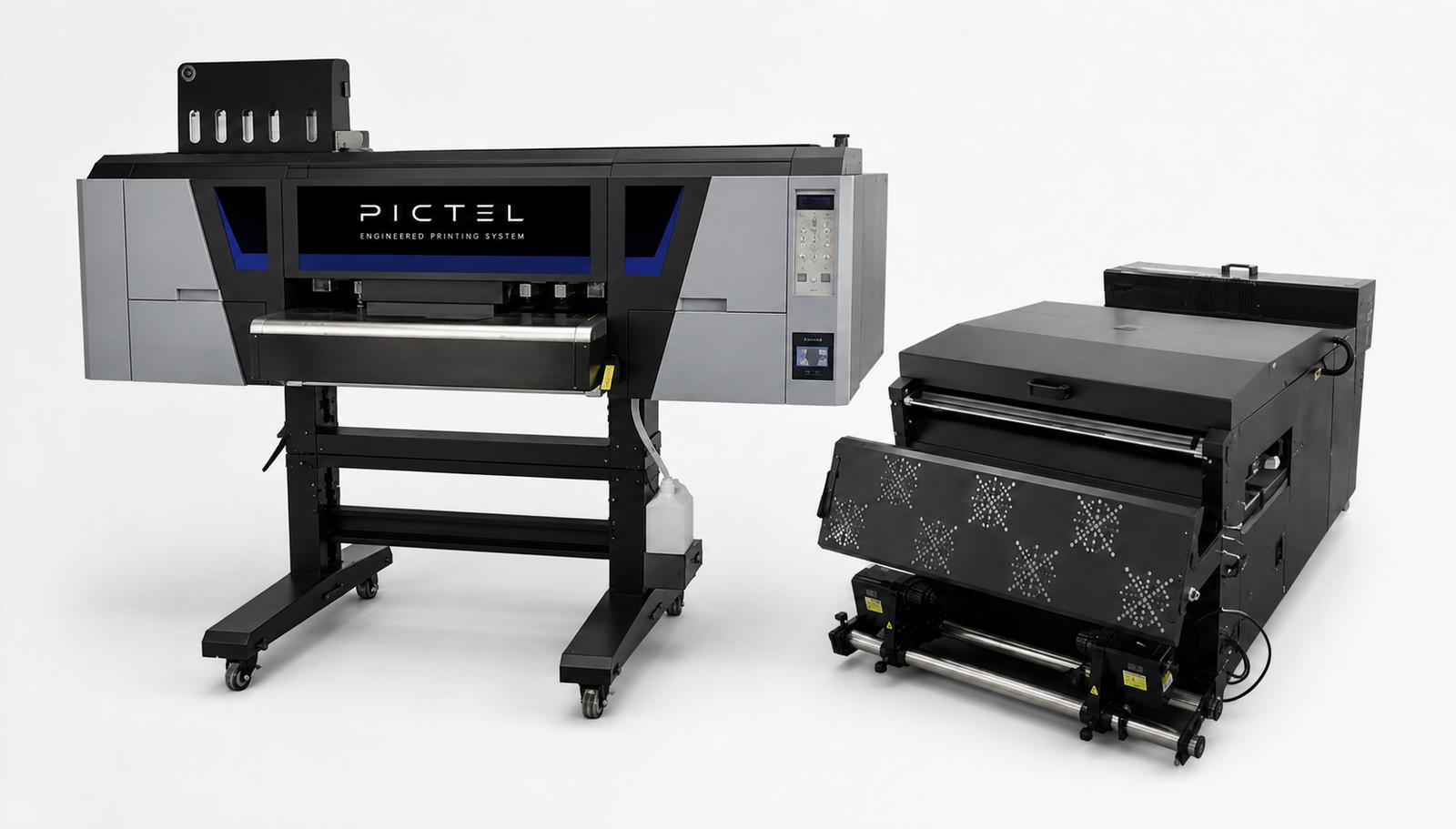

PI-804 COMMERCIAL DTF PRINTER FOR T-SHIRTS
9 colors with fluorescent color, 80cm printing width, extended powder shaker, fast curing, meeting the needs of personalized and mass production of garment enterprises.
Main Features:
- 80cm/31" printing width
- 4 × EPSON I3200 Printheads
- 9 Colors (CMYK+W, RGBO and neon colors available)
- Larger width, high-quality printing.
- Shake powder heating circulation system.
- Suitable for large-scale production of T-shirts and hoodies.
Technical Specifications:
- Printhead: 4*EPSON I3200-A1
- Printing Speed: 4pass: 30sqm/h ; 6pass: 20sqm/h ; 8pass: 16sqm/h
- Max Print Width: 830mm/32.68″
- Color: C, M, Y, K, W (RGBO and fluorescence colors available)
- RIP Software: maintop, photoprint, CADlink (optional)
80cm Wide DTF Printing. Vibrant Colors. High-Speed Apparel Production.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-804 4-head direct to film printer Features

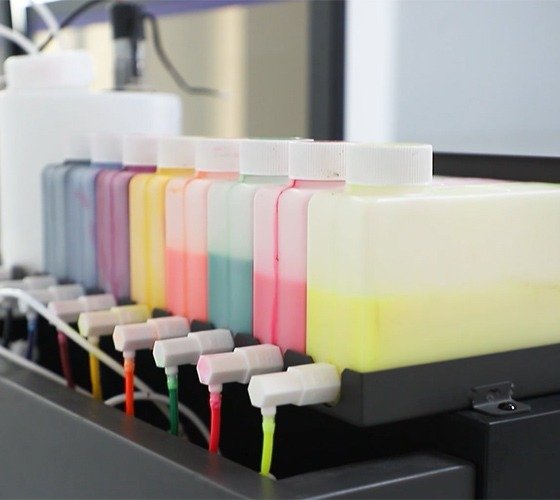

Multi-color options
In addition to C, M, Y, W, and k colors, you can also choose RGBO and neon colors to meet the printing needs of different colors.

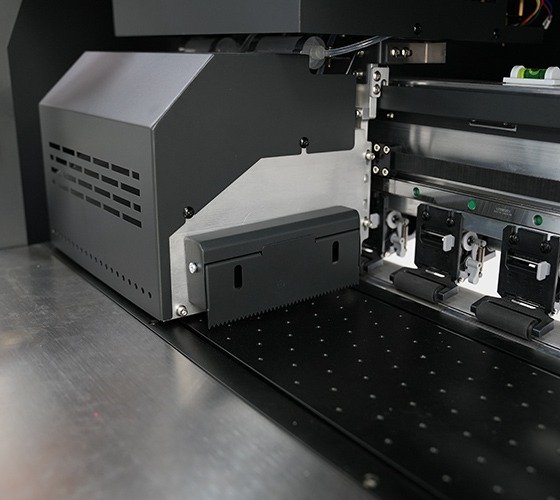

Anti-Collision Device
Prevents damage to printheads and equipment by detecting obstacles, ensuring safe, reliable, continuous printing.

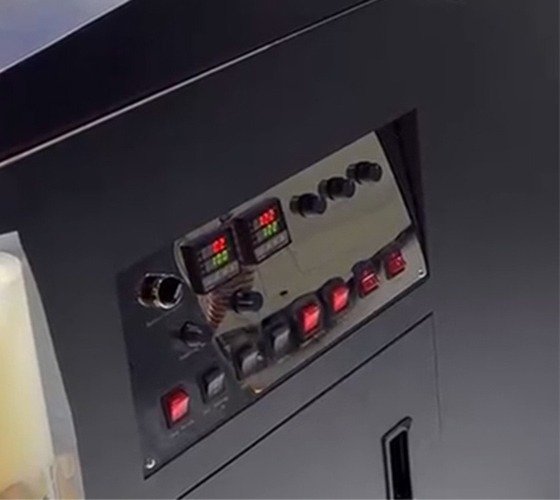

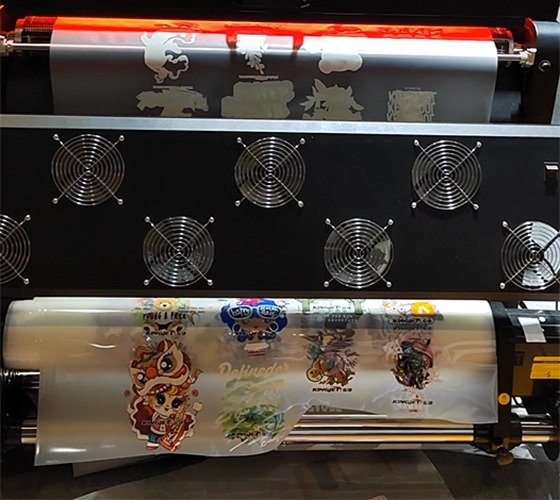

Integrated operation
Intuitive powder shaking function operation page, freely adjust the powder shaking speed and temperature.
.jpg)

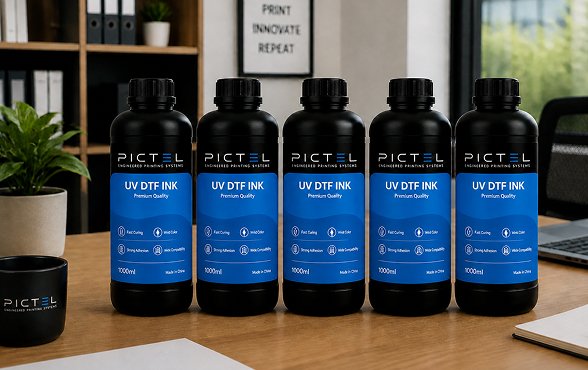

Environmentally friendly ink
DTF ink is environmentally friendly and can print children's clothing.
.jpg)

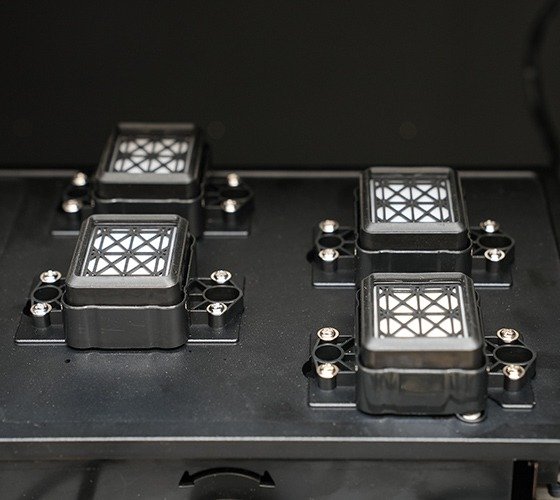

Elevating aluminum capping system
Protect the nozzle from external damage, as well as automatically clean and moisturize the nozzle.

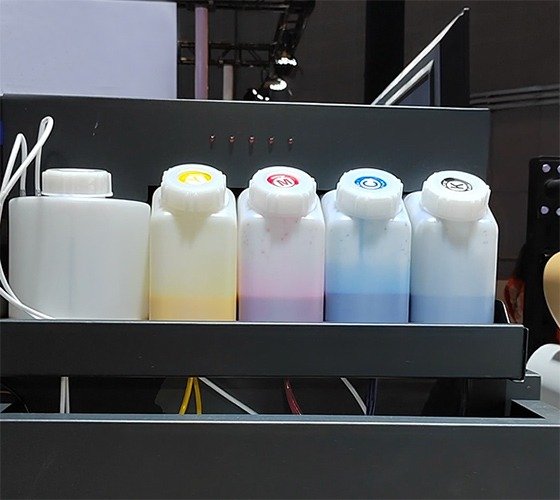

White ink circulation system
White ink is circulated and stirred to effectively avoid nozzle clogging and prevent malfunctions.
Automatic take-up system
No manual operation required, automatic loading and take-up of printed materials.

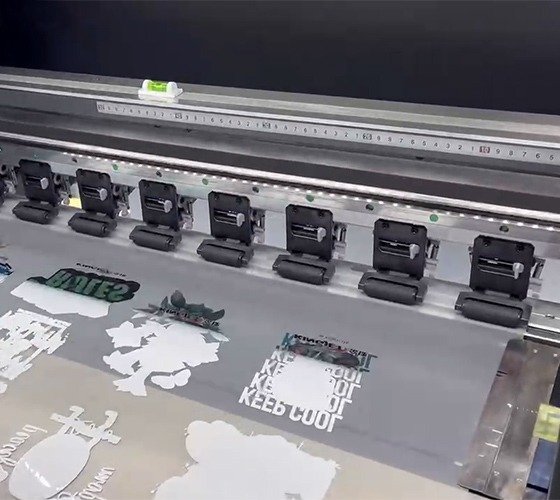

Pinch rollers
Ensure that the PET film does not shift during the printing process and achieve precise printing.

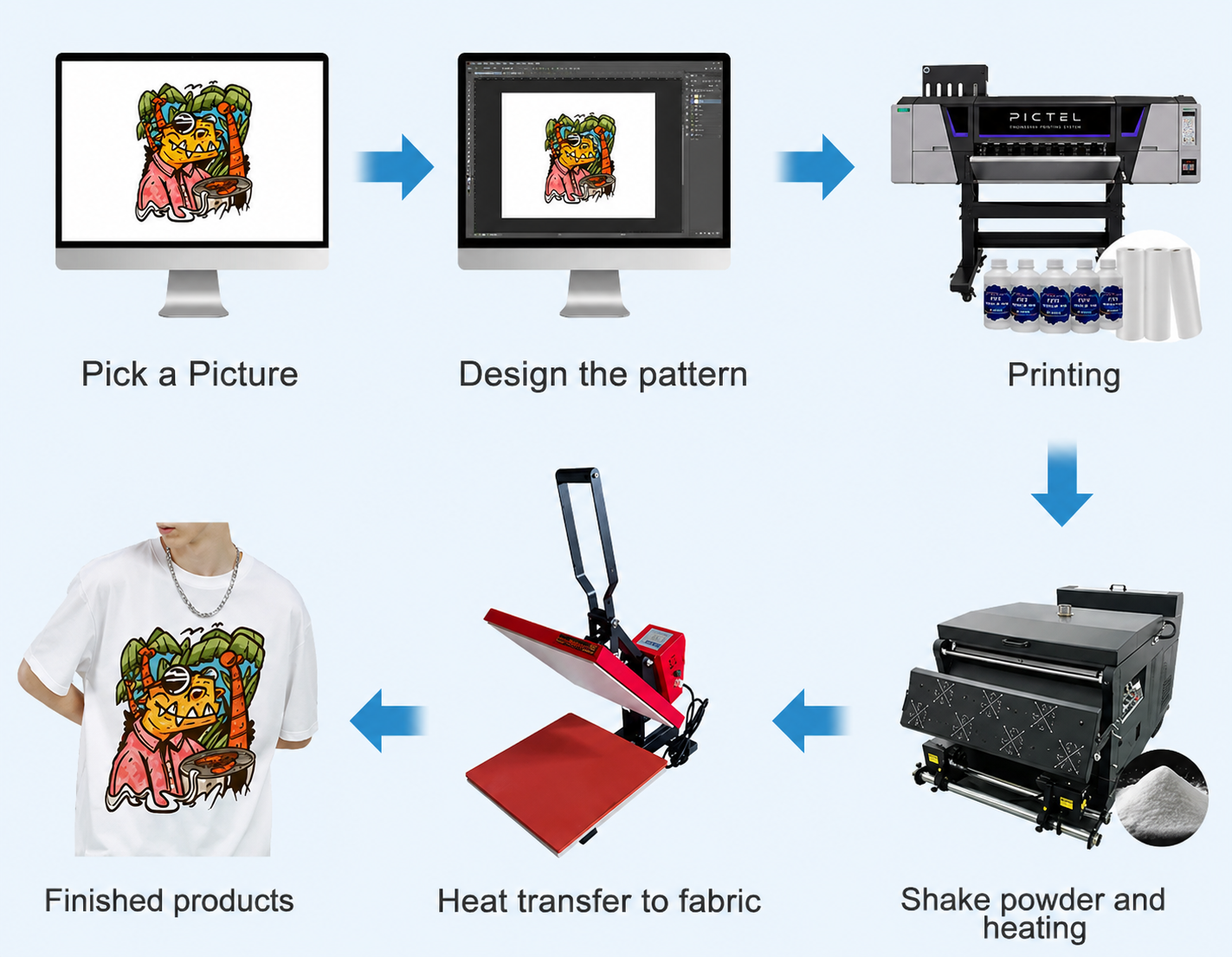

PI-804 direct to film printer printing Process
Product Specification
| Product | PI-804 DTF Printer |
|---|---|
| Model | PI-804 |
| Printhead | 4 × EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 30 sqm/h |
| 6 Pass | 20 sqm/h |
| 8 Pass | 16 sqm/h |
| Max Media Width | 900 mm / 35.43" |
| Max Print Width | 830 mm / 32.68" |
| Ink Type | Waterbased pigment ink |
| Color | 5 Colors (C, M, Y, K, W) (RGBO and neon colors available) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET Film |
| Media Thickness | 1 mm |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, Photoprint, CADlink (optional) |
| Input Power | AC110V/220V, 50Hz/60Hz, 350W–8KW |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size |
Printer: 2010 × 795 × 1600 mm, 180 kg; Shaker: 1950 × 1060 × 1080 mm, 220 kg |
| Packing Size |
Printer: 2720 × 890 × 790 mm, 240 kg, 1.91 CBM; Shaker: 1780 × 1130 × 1100 mm, 240 kg, 2.21 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Wide format direct to film printer Applications
80cm printing width with fluorescent 9-color high-precision ink system, to ensure the speed and batch printing at the same time, can easily in cotton, polyester, denim, nylon, canvas, and other kinds of fabrics to present a delicate gradient transition and realistic color reproduction, at the same time breathable and washable. It is especially suitable for high-end clothing brands, printing manufacturers pursuing ultimate quality, design studios, or high-end customized customers.
Hoodies
T-shirts
Denim
Shoes
Hat
Canvas bag
FAQ
DTF: Direct to Film;
HTV: Heat transfer Vinyl;
DTF is different with HTV and screen printing.
Compared with screen printing:
1、DTF has much higher resolution 3200dpi;
2、DTF does not need to make template sample like screen printing; meanwhile DTF can do much more complicated pattern printing work, which screen printing cannot.
3、DTF can save labor. Even just one person can do all the printing. And Compared with HTV, DTF has much more wide application: any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc. Meanwhile DTF don’t need to cut like HTV, which is very convenient for transfer and save time.
Requires DTF printer, DTF ink, PET film, and DTF hot-melt powder to be used together.
Any fabric which can stand 170℃ heat press temperature can be transferred by DTF, like cotton, T-shirts, jeans, canvas, sweatshirts, polyester, etc.
Print cost for 1 sqm transfer fabric pattern is about 1-2 USD, and about 0.07-0.1usd for A4 size Printing.
If print 1 sqm pet film pattern, it needs the following consumables: CMYK(total 4 color): 10-15ml; white:15-30ml; powder:10-20g
Print the designed pattern on the PET film, then evenly sprinkle hot melt powder on the pattern, melt it at high temperature and then dry it, cut the PET film, and heat-press the pattern onto various types of clothing through heat press, and then you can complete the clothing printing!
The printhead used in our Kingjet DTF printer is EPSON I3200A1 and all of our printhead is original and brand new.
Under normal wear and standard washing operations, DTF print can usually withstand approximately 50 to 100 washing cycles in accordance with the international washing standard.
Currently, we use single-phase power for KingJet DTF printer. you only need to tell us your local single-phase voltage and plug standard, and we will customize machine according to your needs. 110V and 220V voltage are available.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
