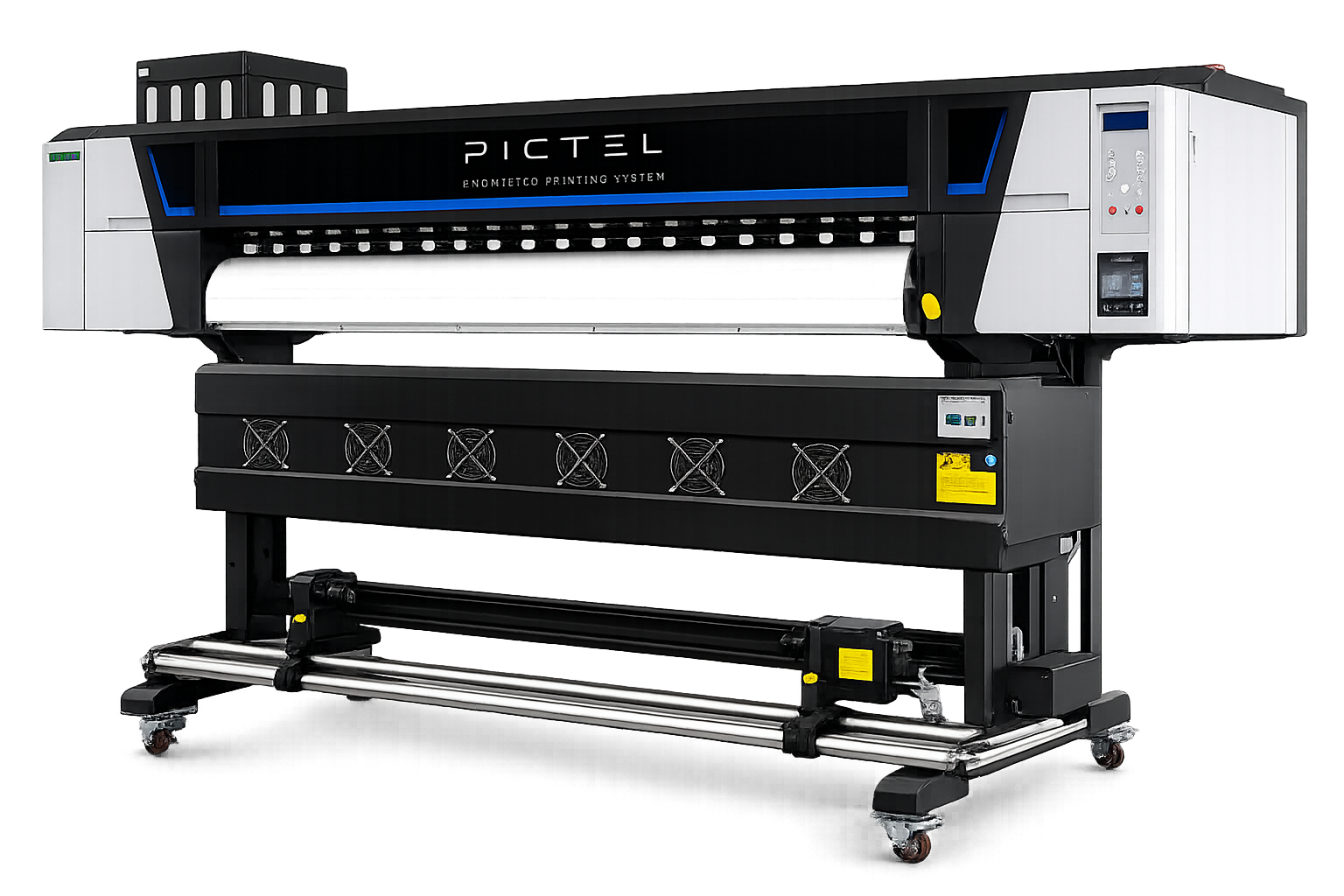

1.8 m SUBLIMATION PRINTER
1.8m high-quality, colorful sublimation printer for you to print personalized, fashionable, and eye-catching items, including fashion clothing, home decorations, flags, soft signs, gift customization, etc.
Main Features:
- 1.8m printing width
- 1–4 EPSON I3200 heads optional
- Printing speed: 4Pass: 42sqm/h; 6Pass: 28sqm/h
- Industrial-grade precision platform with flatness of 0–0.5mm, ensuring a perfectly flat printing surface.
- THK silent double guide rails for stable trolley movement and consistent printing.
- Suitable for printing garments, home decorations, commercial advertisements, etc.
Technical Specifications:
- Printhead: Epson I3200
- Printhead QTY: 1/2/3/4
- 2 Heads Printing Speed: 4pass: 42sqm/h, 6pass: 28sqm/h
- Max Print Width: 1.8m
- Color: 4 colors (C, M, Y, K)
- RIP Software: maintop, photoprint(optional)
1.8m Sublimation Printer. Brilliant Colors. Precision Printing. Unlimited Textile Creativity.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Sublimation printer Features
Intelligent heating
Three-stage intelligent heating in front, middle and rear, fast printing and drying, improving the adhesion of ink.

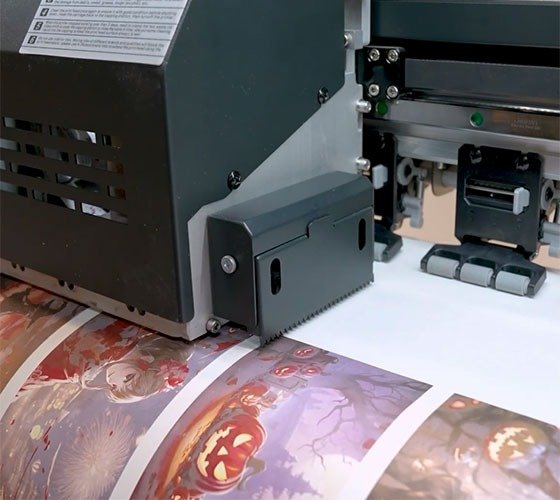

Anti-collision device
Dual-track lifting trolley frame prevents damage to the print head and extends its service life.

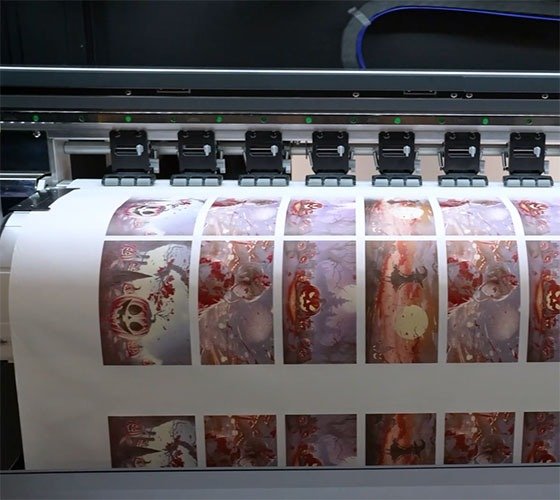

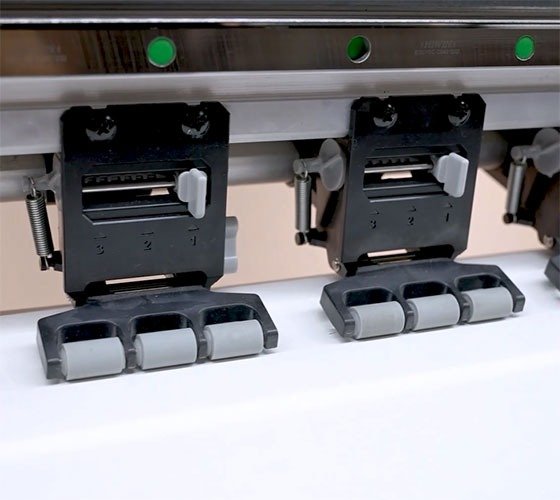

Three-level pinch roller
Adapts to the thickness of different printing materials and meets various printing needs.

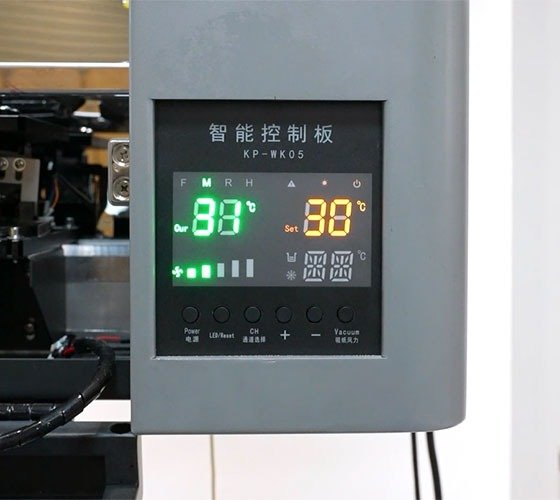

Intelligent control panel
Printing temperature and humidity are clearly visible, and the entire printing process is better controlled.

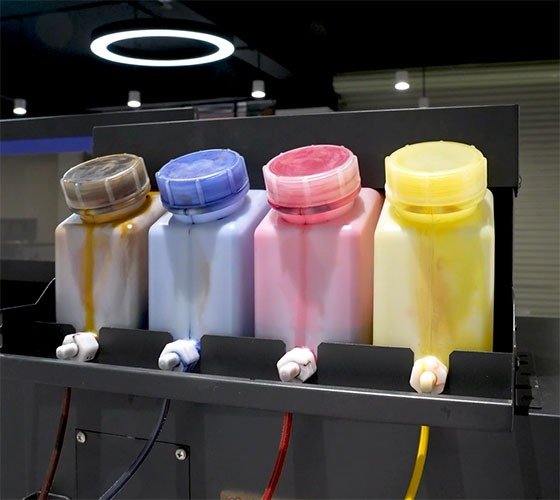

Intelligent ink supply system
Continuous and stable ink supply and precise control of ink volume to ensure printing quality.

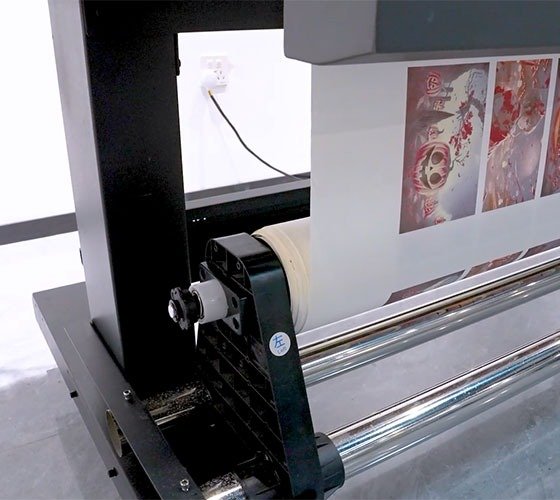

Automatic take-up device
Print and take up at the same time, reducing manual operation and improving production efficiency.

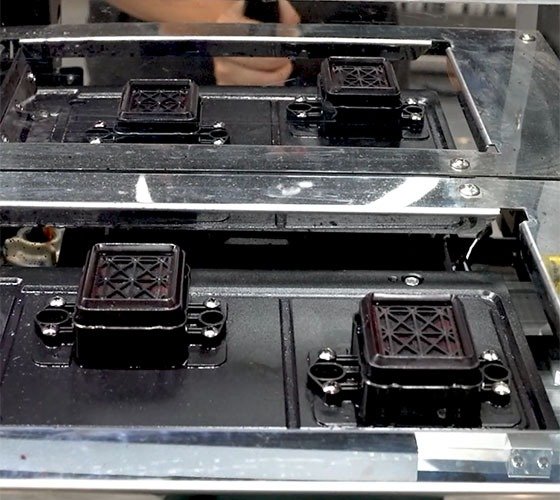

Aluminum capping system
Automatically clean and moisturize the print head, and protect the print head to avoid damage.

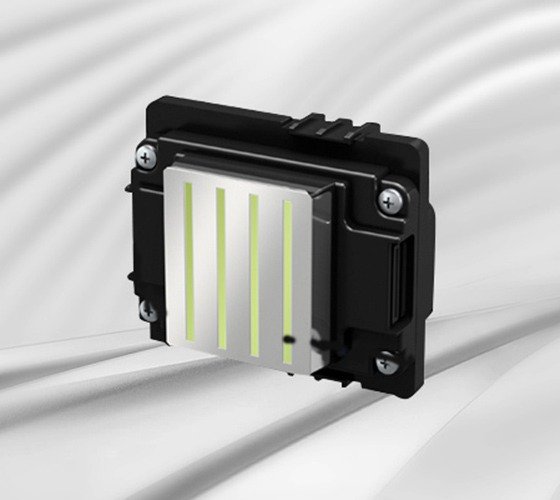

EPSON print head
EPSON original l3200 print head, with fine nozzles and advanced inkjet technology, achieves high-resolution printing.
Product Specification
| Product | Dye-Sublimation Printer |
|---|---|
| Model | PI-1800 Sublimation Printer (1.8m) |
| Printhead | EPSON I3200 |
| Printhead Quantity | 1 / 2 / 3 / 4 Heads |
| Printing Speed (2 Printheads Output) |
4 Pass: 42 m²/h |
| 6 Pass: 28 m²/h | |
| Output: Square Metres per Hour (sqm/h) | |
| Max Media Width | 1850 mm |
| Max Print Width | 1800 mm |
| Ink Type | Sublimation Ink |
| Color | 4 Colors (C, M, Y, K) |
| Ink Supply System | Continuous Ink Supply System |
| Media Type | Sublimation Paper |
| Heating System | Front, Middle & Rear Three-Stage Heating Platform |
| Drying System | Triple Drying System (Hot Air + Infrared + Cold Air) |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint (Optional) |
| Working Environment | Temperature: 18–32°C | Humidity: 46–65% |
| Machine Size | 2925 × 890 × 1510 mm, 210 kg |
| Packing Size | 3070 × 280 × 210 mm, 280 kg, 1.96 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Sublimation printer Applications
Relying on its wide-format printing capability and the color expression of dye-sublimation technology, the 1.8-meter sublimation printer can mass-produce clothing, fabrics, canvas, soft signs, sportswear, flags, tents, blankets, curtains, home decorations and other decorative products, while maintaining unparalleled quality and the lowest production cost, helping you stand out from the competition in the industry.
Curtain
Dress
Tablecloth
Pillow
Sweatshirt
Flag
FAQ
Sublimation printing is a digital printing technology, also known as thermal transfer printing. The working principle is to use heat energy and pressure to transfer dyes to different materials.
Sublimation printer produce prints that are more durable and less prone to fading than inkjet printer.
Sublimation printing transfers the dye into the substrate rather than depositing it on the surface, so the resulting image is more permanent.
Sublimation printing works by converting solid dyes directly into a gas when exposed to high temperatures, and then ejecting the gas onto the print medium.
So when the fabric is heated, the dye sublimates, turns into a gas, and fuses directly into the fabric. When the dye is embedded in the actual fibers, it creates a permanent print that won’t crack or peel over time.
Generally speaking, images printed with sublimation last longer and are less likely to fade, peel or crack. But in reality, there are many factors that affect the duration of images on fabrics, so the lifespan of DTF images may exceed that of sublimation.
Yes, roller heat press is required for sublimation printing, and the image output is better and more durable after being processed by the roller heat press.
