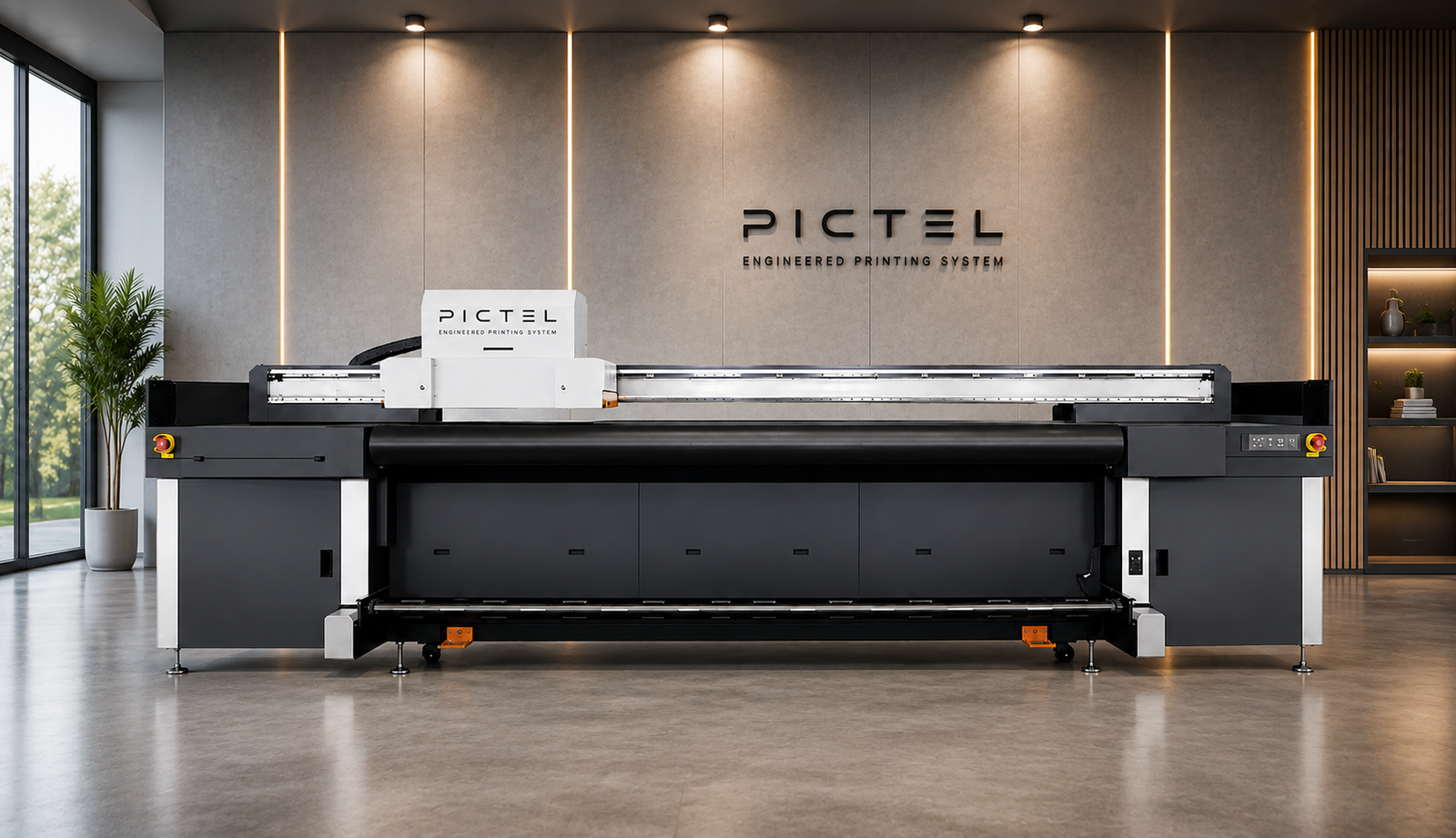

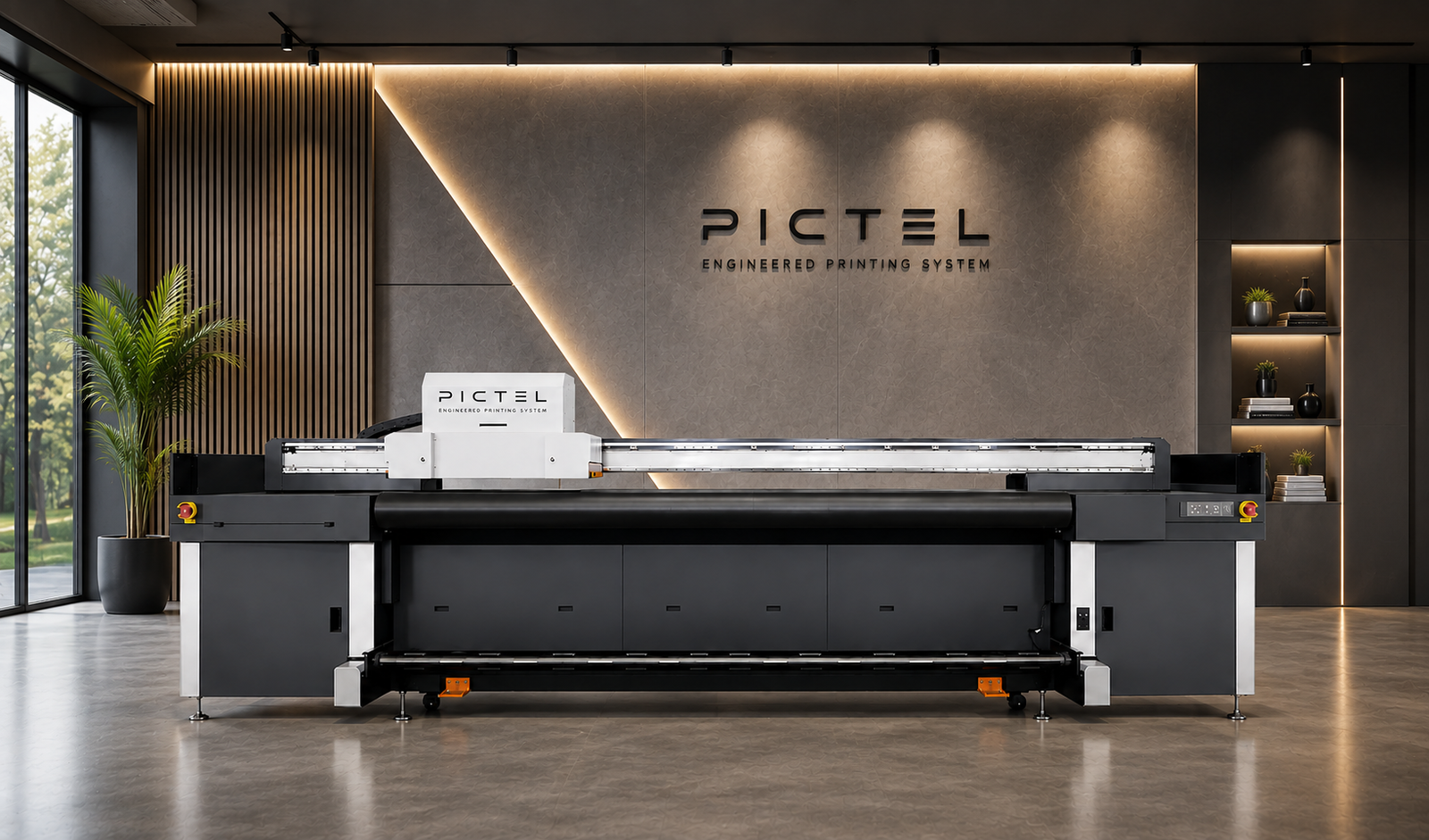

PI-3208DUV TEXTURE PAINTING UV PRINTER
The multi-layer texture painting UV hybrid printer is designed to pursue the ultimate texture. By stacking white ink layer by layer, the colored ink realistically restores the texture of oil paintings and the three-dimensional touch of the canvas fibres, making your art within reach.
Main Features:
- 3.2m printing width
- 8 × EPSON I3200 printheads
- 9 colors
- Unique 3D texture painting with excellent visual effects.
- Diversified demand solutions: one machine prints different textures and thicknesses at different speed modes.
Technical Specifications:
- Printhead: 8*EPSON I3200-U1
- Max Print Width: 3.2m
- Max Print Height: ≤5mm
- Color: C, M, Y, K, W, V, Lc, Lm, Lk, Llk
- RIP Software: photoprint, ONYX, Caldera
PI-3208DUV Texture Painting UV Printer. Realistic 3D Texture. Fine Art Precision. Unlimited Creativity.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Texture painting UV Hybrid printer features

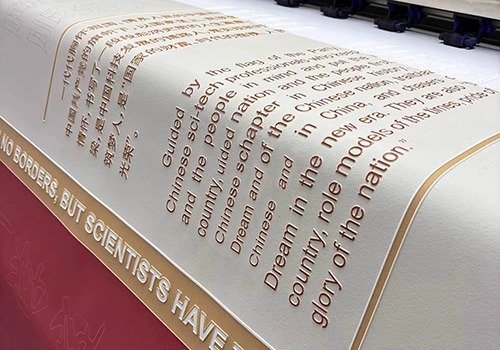

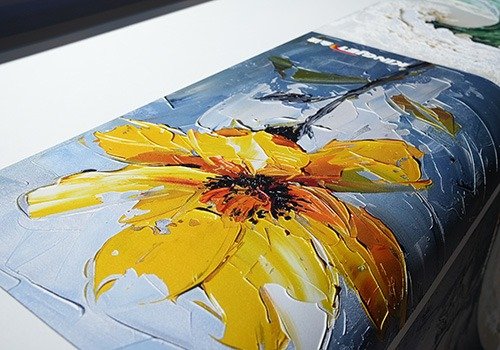

3D Texture Painting
Unique “white + color” printing, by stacking the white ink layer by layer, the colour ink brings vitality to the image, and the visual effect is outstanding.

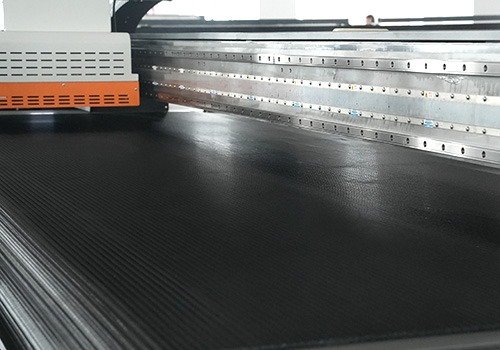

Full-area adsorption platform
Ensure that the material is stably adsorbed on the printing plane, prevent the nozzle from scratching the material during movement, and improve the stability of printing.

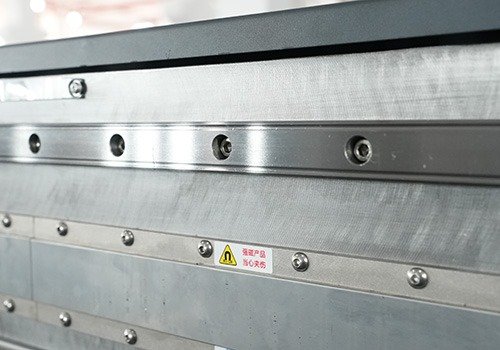

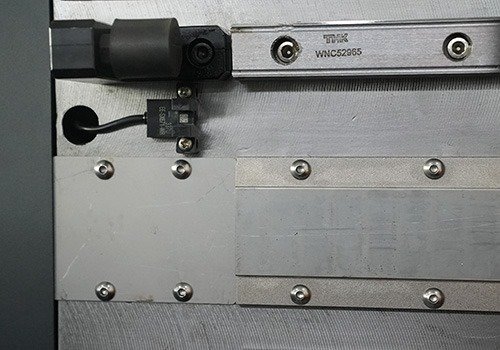

Japan THK mute guide rails
Effectively reduce noise and vibration, ensure print stability and high quality printouts, as well as improve equipment reliability and durability.

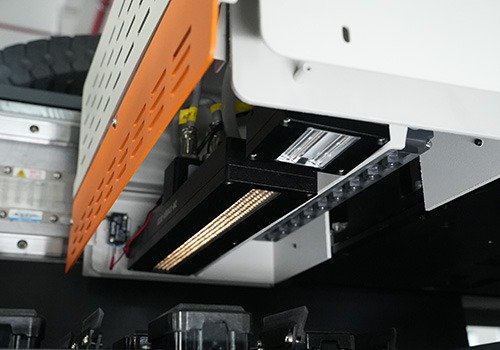

UV-LED Technology
LED lamps enable efficient curing, reducing long drying times and enhancing color accuracy for more exquisite patterns.
Magnetic Levitation Linear Motor
Significantly improves print accuracy and stability, as well as reduces friction and wear in the mechanical drive, reducing the failure rate.

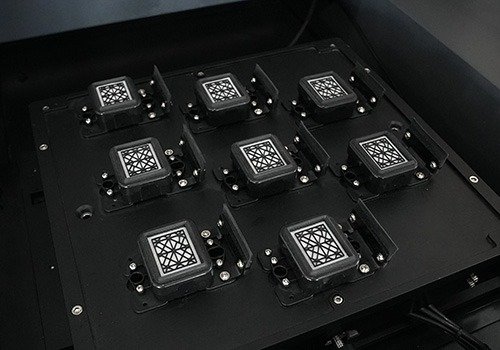

8 EPSON I3200 Printheads
Staggered arrangement of printheads, better feathering effect between printheads, more stable ink extraction effect, and better printing.
Product Specification
| Product | UV Hybrid Printer |
|---|---|
| Model | PI-3208DUV |
| Printhead | 8 × EPSON I3200-U1 |
| Printing Speed (Stack 1–2 mm Production) |
6W + CMYK + V: 10 m²/h |
| 6W + CMYK + LCLMLKLlK: 10 m²/h | |
| 5W + CMYK + LCLMLKLlK + V: 10 m²/h | |
| Printing Speed (Stack 3 mm Production) |
6W + CMYK + V: 5 m²/h |
| 6W + CMYK + LCLMLKLlK: 5 m²/h | |
| 5W + CMYK + LCLMLKLlK + V: 5 m²/h | |
| Max Print Width | 3200 mm |
| Max Print Height | Z ? 5 mm |
| Color | CMYK, White (W), Varnish (V), LC, LM, LK, LlK |
| Ink Type | UV Texture Ink |
| Ink Supply System | Independent Intelligent Ink Supply & Circulation Mixing System |
| Media Type | Oil Painting Cloth, Leather, Semi-Transparent Yarn, Linen, Lint Cloth, Coated Banner (?5 mm), Light Pieces, Super-Clear Glass Stickers, Car Stickers, Transparent Films, and More. |
| Smart Printhead Maintenance | Automatic Intelligent Nozzle Cleaning System |
| Image Format | TIFF, PSD, PDF |
| RIP Software | Photoprint, ONYX, Caldera |
| Input Power | AC 200–240V, 50Hz/60Hz, 4200W |
| Working Environment | Temperature: 18–35°C | Humidity: 50–80% |
| Machine Size | 5420 × 1400 × 1600 mm (L × W × H) |
| Packing Size | 5800 × 1550 × 1800 mm (L × W × H), 2000 kg, 16.182 CBM |
| Other Applications | When equipped with a laminating machine, it can also produce gold foil texture paintings. |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Texture painting UV hybrid printer Applications
When traditional oil painting techniques meet revolutionary UV printing technology, each work is no longer limited by time and technique. Multi-layer texture painting UV hybrid printers are different from flat decorative paintings, creating textures with a strong sense of three-dimensionality and rich expressiveness, which are widely used in hotel art walls, relief murals, customized screens, high-end light box advertisements, relief texture handbags, texture paintings, exquisite decorations, light-transmitting roller blinds, customized book gifts, etc.
Background wall
Texture art photos
Texture oil paintings
Decorative wall paintings
Wall paintings
Texture advertising signs
FAQ
By printing and stacking white ink layer by layer to achieve the desired relief effect, the colored ink then brings the image to life, highlighting the texture and rich details.
No pre-processing is required, you can print on flexible materials such as oil canvas, sheer linen, leather, super clear stickers, transparencies, flexible film and canvas.
Due to the durability of UV ink, it can be stored longer than traditional oil painting and is less likely to fade.
