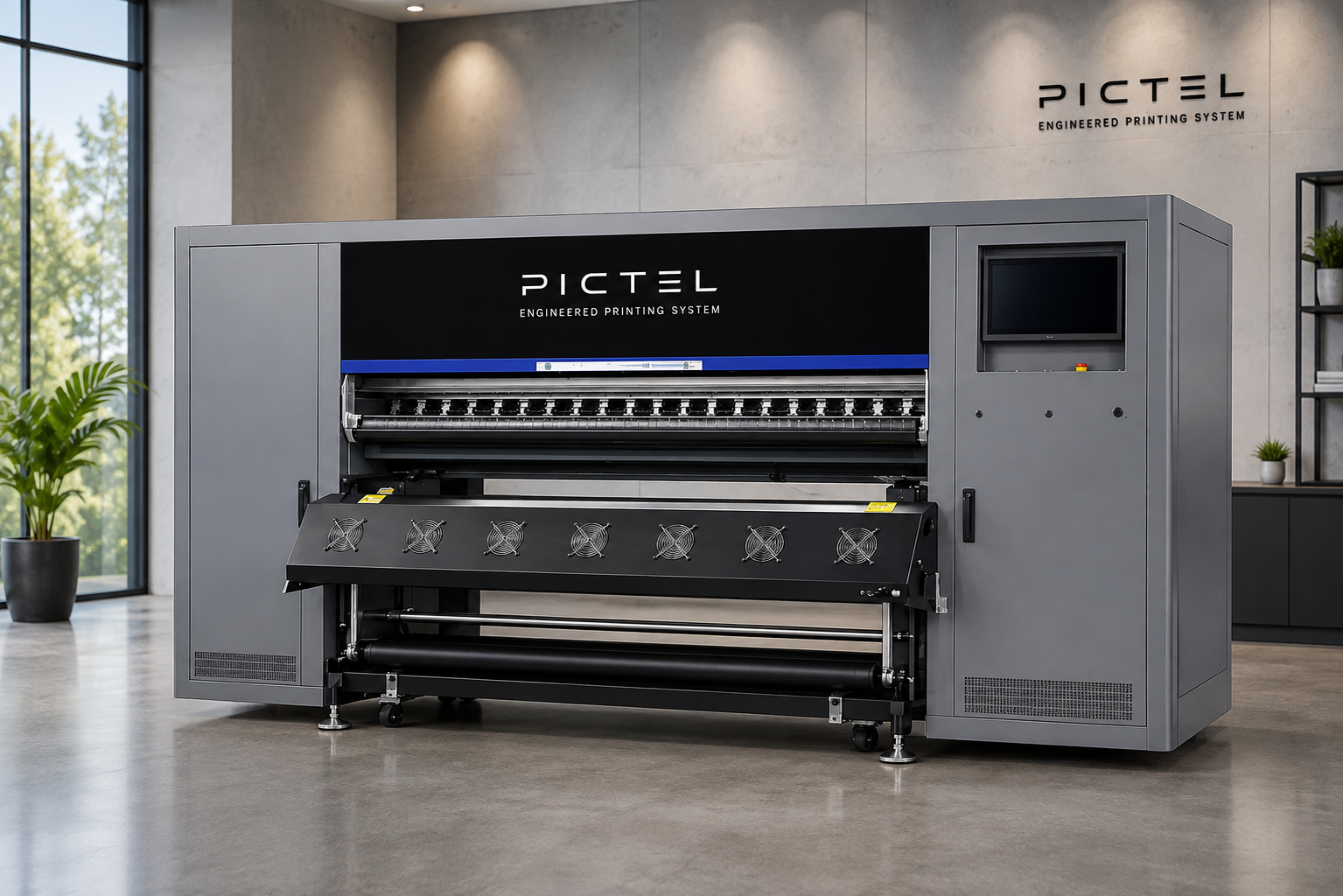

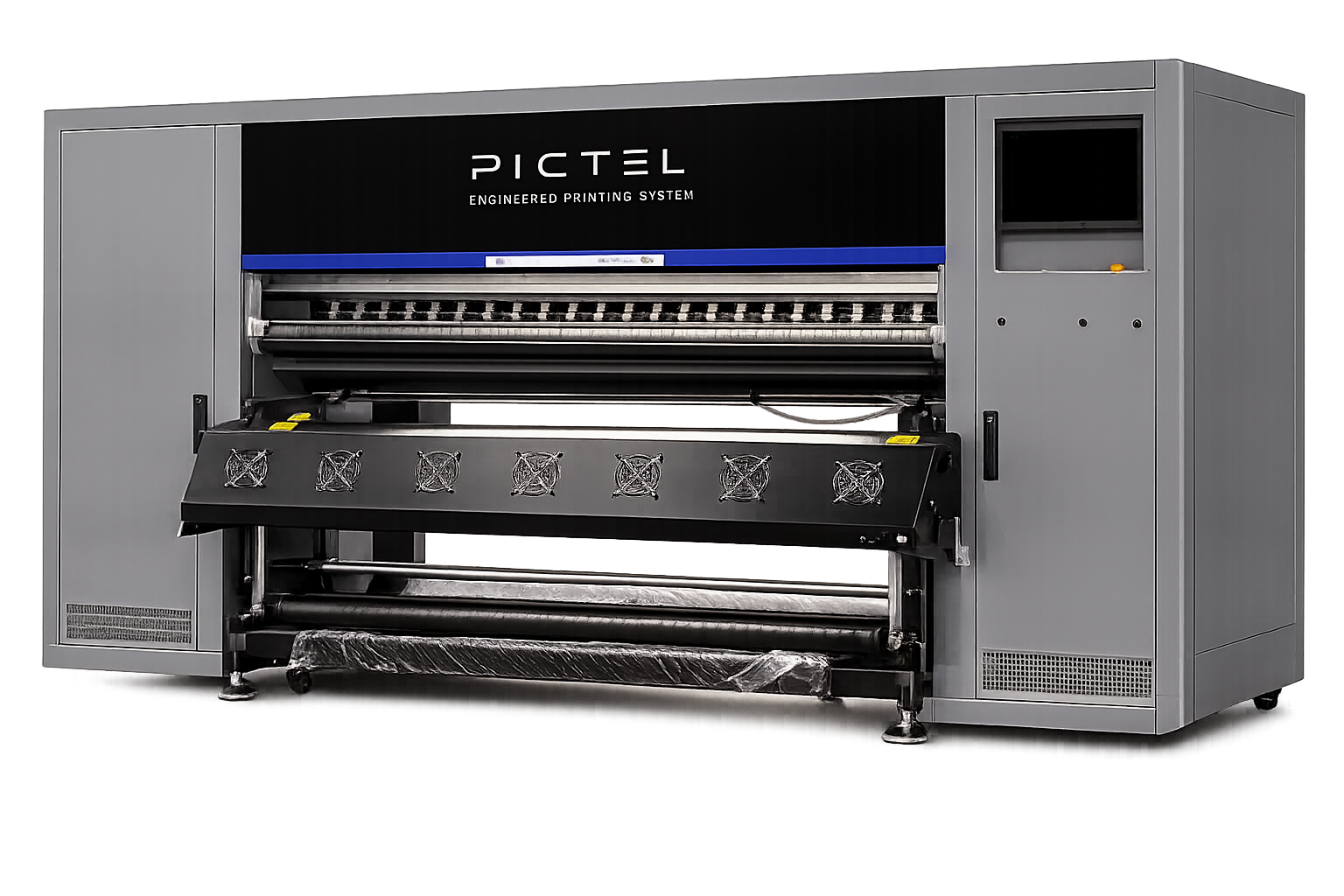

INDUSTRIAL 8-HEAD SUBLIMATION PRINTER
Professional large-format industrial sublimation printer with excellent performance and vivid colors, providing unlimited printing creativity for sportswear, garments, curtains, flags, tents, carpets, and other fabrics.
Main Features:
- 1.9m printing width
- 8 × EPSON I3200 A1 Heads
- Printing speed: 1Pass: 300m²/hr; 2Pass: 160m²/hr
- The circulation oven + intelligent control system has real-time and effective monitoring of temperature changes, providing better drying performance and greater energy efficiency.
- Professional-grade sublimation printing machine with high speed, quality, and stability.
- Suitable for printing sportswear, curtains, tablecloths, skirts, blankets, etc.
Technical Specifications:
- Printhead: 8*EPSON I3200-A1
- Printing Mode: 1pass: 300m²/hr; 2pass: 160m²/hr
- Max Printing Width: 1900mm
- Max Material Weight: 400KG
- Color: 4 Colors (C, M, Y, K) (optional: FY, FM, LC, LM)
Industrial 8-Head Sublimation Printer. Ultra-High Speed. Brilliant Colors. Built for Mass Production.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.

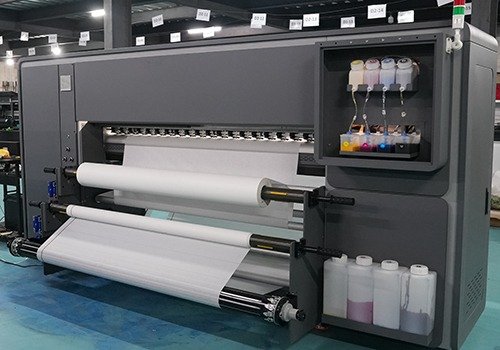

PI-1908 Industrial Sublimation Printer Features

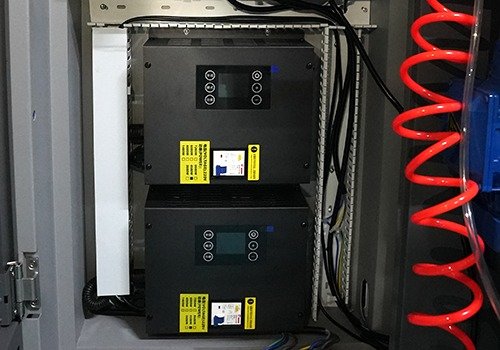

Front and rear circulation oven
The front and rear two-stage internal circulation oven with intelligent temperature control system for better drying and more powder saving.

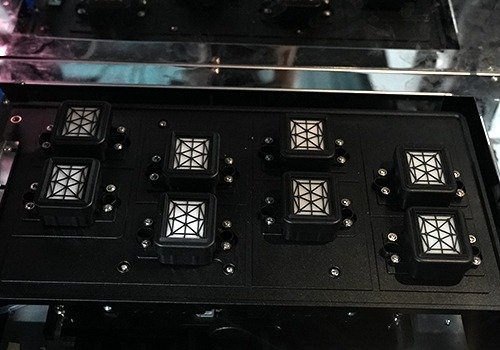

Good printing feathering effect
2*4 staggered arrangement, better feathering effect between nozzles, perfectly eliminating splicing marks.
Magnetic levitated linear motor
Ensures more stable movement of the trolley frame and higher printing accuracy.

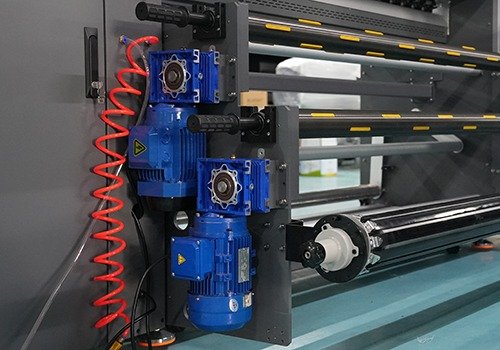

Intelligent variable speed control system
The printing speed can be freely controlled to ensure smoother paper collection and release.

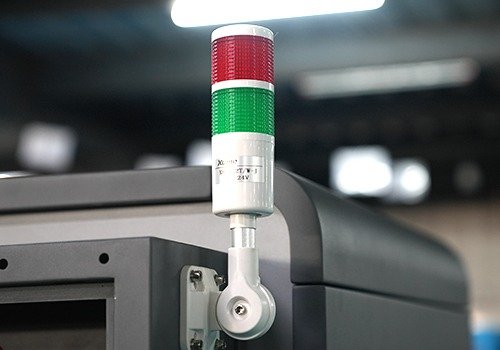

Three-color fault light
When the machine fails, runs out of ink or runs out of paper, it will automatically alarm, making it more user-friendly.

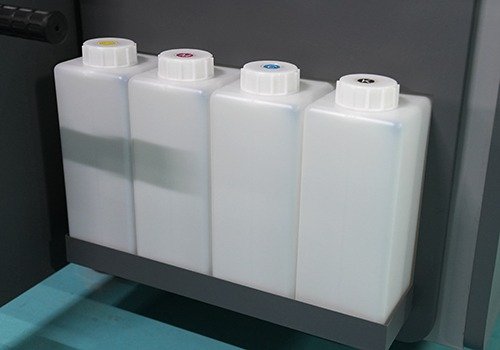

Large-capacity ink supply system
The 15L large-capacity ink bottle can supply ink for long-term large-volume printing needs.

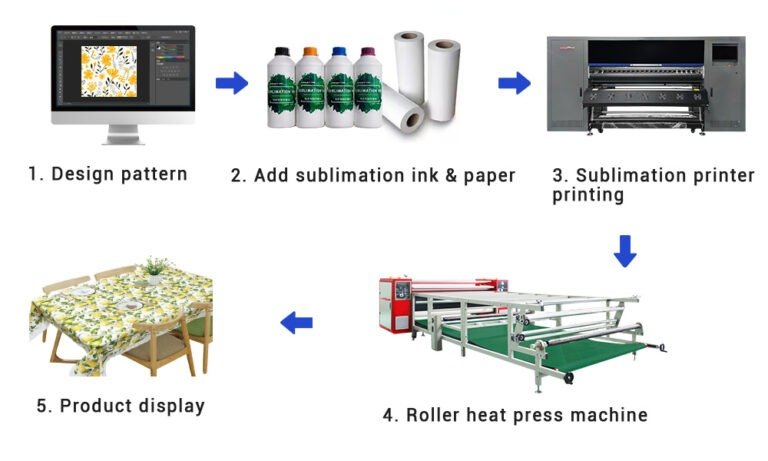

Large Format Industrial Sublimation Printer Printing process
.jpg)
Product Specification
| Product | UV Hybrid Printer |
|---|---|
| Model | PI-3208DUV |
| Printhead | 8 × EPSON I3200-U1 |
| Printing Speed (Stack 1–2 mm Production) |
6W + CMYK + V: 10 m²/h |
| 6W + CMYK + LCLMLKLlK: 10 m²/h | |
| 5W + CMYK + LCLMLKLlK + V: 10 m²/h | |
| Printing Speed (Stack 3 mm Production) |
6W + CMYK + V: 5 m²/h |
| 6W + CMYK + LCLMLKLlK: 5 m²/h | |
| 5W + CMYK + LCLMLKLlK + V: 5 m²/h | |
| Max Print Width | 3200 mm |
| Max Print Height | Z ? 5 mm |
| Color | CMYK, White (W), Varnish (V), LC, LM, LK, LlK |
| Ink Type | UV Texture Ink |
| Ink Supply System | Independent Intelligent Ink Supply & Circulation Mixing System |
| Media Type | Oil Painting Cloth, Leather, Semi-Transparent Yarn, Linen, Lint Cloth, Coated Banner (?5 mm), Light Pieces, Super-Clear Glass Stickers, Car Stickers, Transparent Films, and More. |
| Smart Printhead Maintenance | Automatic Intelligent Nozzle Cleaning System |
| Image Format | TIFF, PSD, PDF |
| RIP Software | Photoprint, ONYX, Caldera |
| Input Power | AC 200–240V, 50Hz/60Hz, 4200W |
| Working Environment | Temperature: 18–35°C | Humidity: 50–80% |
| Machine Size | 5420 × 1400 × 1600 mm (L × W × H) |
| Packing Size | 5800 × 1550 × 1800 mm (L × W × H), 2000 kg, 16.182 CBM |
| Other Applications | When equipped with a laminating machine, it can also produce gold foil texture paintings. |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Large Format Industrial Sublimation Printer Applications
With its unique printing technology and excellent printing effect, industrial sublimation printer can be used in interior decoration, personalized home furnishing, textile and clothing manufacturing, advertising, and exhibition, such as sportswear, printed carpets, curtains, pillowcases, umbrellas, canvas, etc.
Sweatshirt
Dress
Flag
Pillow
Tablecloth
Curtain
FAQ
Sublimation printing is a digital printing technology, also known as thermal transfer printing. The working principle is to use heat energy and pressure to transfer dyes to different materials.
For sublimation printing, you will need a sublimation printer, sublimation ink, paper designed for sublimation, and roller heat press machine.
Sublimation printers produce prints that are more durable and less prone to fading than inkjet printers.
Sublimation printing transfers the dye into the substrate rather than depositing it on the surface, so the resulting image is more permanent.
Sublimation printing works by converting solid dyes directly into a gas when exposed to high temperatures, and then ejecting the gas onto the print medium.
So when the fabric is heated, the dye sublimates turns into a gas, and fuses directly into the fabric. When the dye is embedded in the actual fibers, it creates a permanent print that won’t crack or peel over time.
1. Material Application Range
The dye sublimation printing technology is mainly suitable for light-colored or white polyester fabrics. The more polyester content, the brighter the color printing effect.
DTF printing technology can print on almost all types of fabrics, including natural and synthetic fiber materials such as cotton, polyester, nylon, etc.
2. Print Quality
Sublimation printing technology directly penetrates the dye into the fabric fiber through high temperature and pressure, and the printed image has high durability and is not easy to fade or peel off.
DTF (direct-to-film) printing technology prints the image on a PET film and then transfers the image to the fabric by heat pressing. The print quality may be slightly inferior to sublimation technology, but the color of DTF-printed images will be more vivid.
3. Printing Efficiency
The sublimation printing process requires precise temperature and time control, so the printing speed may be slow.
The process of DTF printing is relatively simple, supports fast printing and batch printing, and is very suitable for large-scale production.
4. Touch
The pattern printed by the dye sublimation printer is integrated with the clothing, and it is almost imperceptible that an image is attached to the surface. It feels soft and breathable.
Although the DTF printer printed area feels relatively soft, its breathability may be slightly worse than thermal sublimation printing.
5. Applicable Market
Dye sublimation printers are particularly suitable for occasions that require high-quality image printing, such as sportswear, swimsuits, yoga clothes, and other clothing with good breathability requirements, as well as banners, flags, jerseys, and home textiles.
DTF printers are more suitable for the clothing printing market, especially on occasions that require fast, efficient, and high-quality printing.
Yes, a roller heat press machine is required for sublimation printing, and the image output is better and more durable after being processed by the roller heat press.
