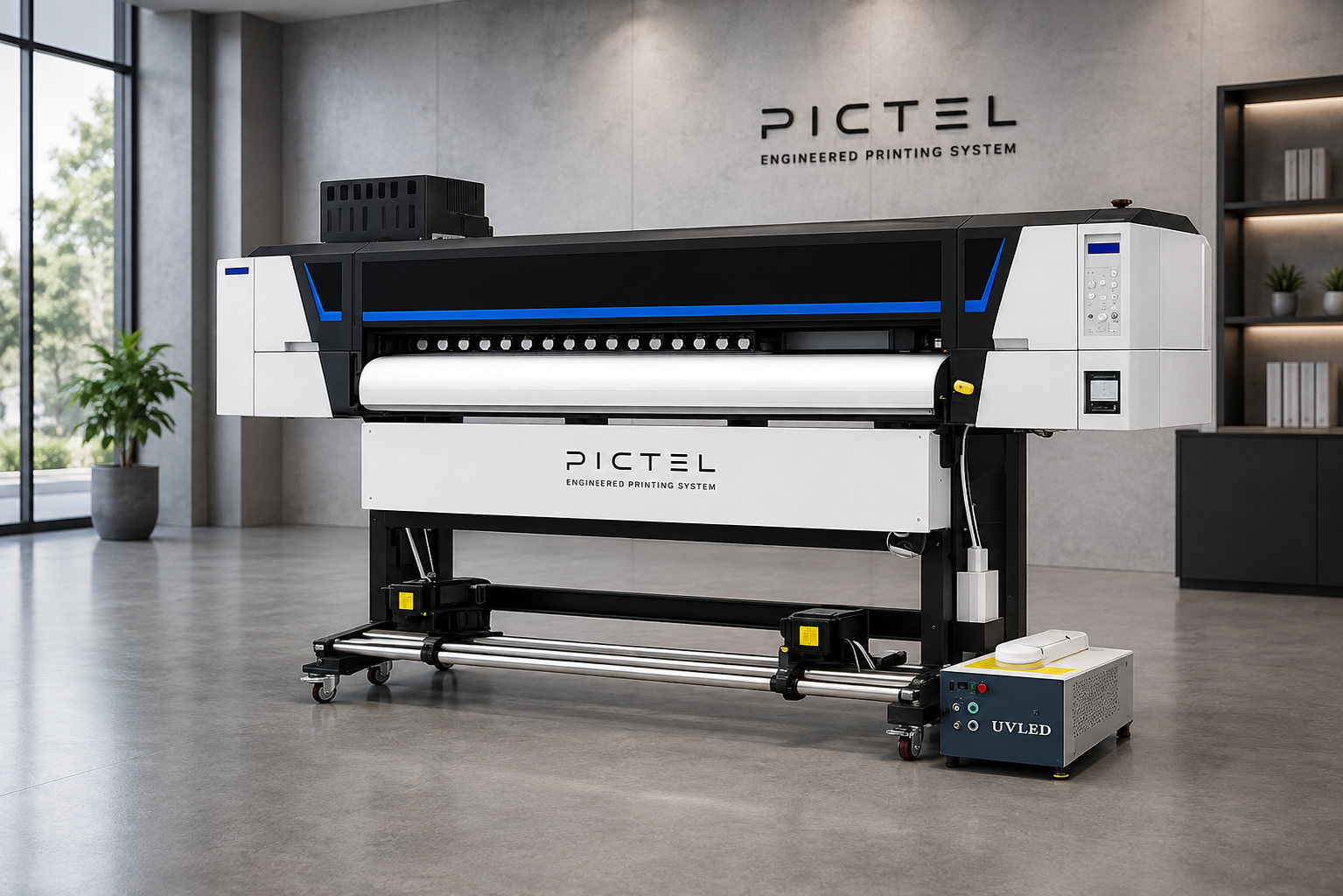

PI-1803 UV ROLL TO ROLL SIGNAGE VINYL PRINTER
1.8m UV roll-to-roll printer with high efficiency UV ink supply, dual UV LED lamps with water cooling system, faster curing speed, and strong adhesion. It is a good helper for printing roll materials.
Main Features:
- 1.8m printing width
- 3 × EPSON I3200 heads
- Colors: CMYK, CMYK+W, CMYK+W+V, CMYK+W+CMYK+V
- Bright colors & long outdoor weather resistance.
- Printing soft film materials: car stickers, light box cloth, canvas, PP, etc.
Technical Specifications:
- Printhead: 3*EPSON I3200-U1
- Printing Speed: 5-15 sqm/hr
- Max Print Width: 1.8m
- Color: CMYK+W+V
- RIP Software: Maintop, Photoprint, ONYX (optional)
PI-1803 UV Roll-to-Roll Signage Printer. Wide Format. Brilliant Colors. Built for Outdoor Performance.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
UV Roll to Roll Printer Features

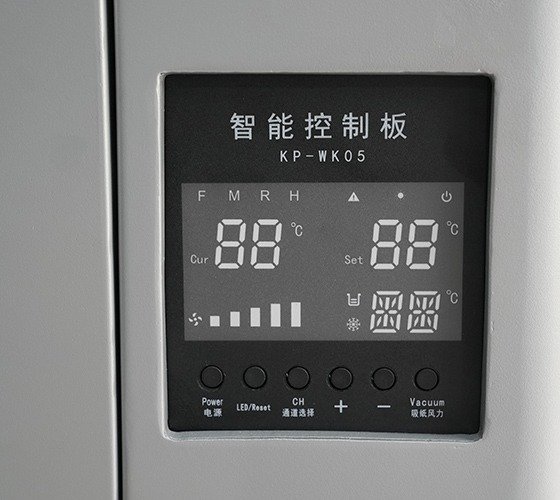

Intelligent
Front, middle and rear three-stage intelligent temperature control system detects the temperature in different areas in real time to achieve the best printing effect.

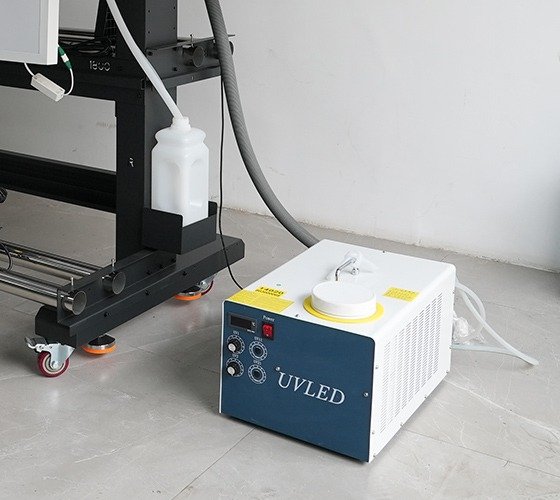

Solidification upgrade
Dual UV LED lamps with water-cool system enables faster pattern curing, stronger adhesion and finer printing patterns.

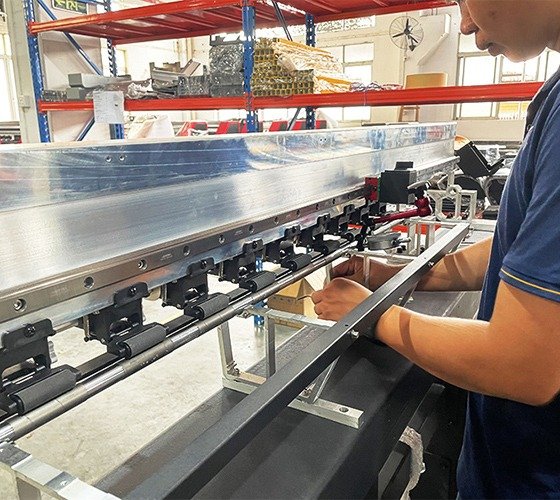

High performance
Excellent industrial-grade high-precision platform controls the flatness between 0-0.5mm to ensure a smooth printing surface.
.jpg)
Environmentally friendly UV ink
The ink is environmentally friendly and has less impact on the environment, making printing more sustainable.

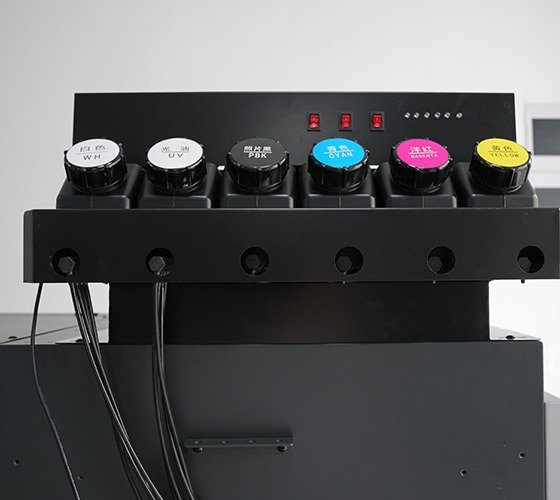

Ink supply system
The white ink is circulated and stirred to prevent clogging of the nozzle and ensure continuous printing for a long time.

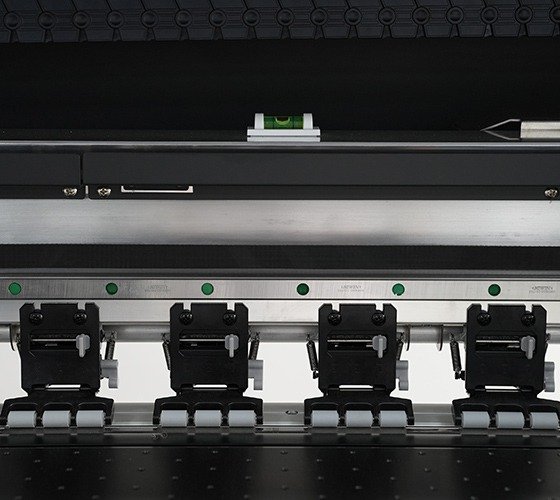

Three-stage pinch rollers
Three-stage pinch rollers prevents printing materials from warping and ensures smooth printing.

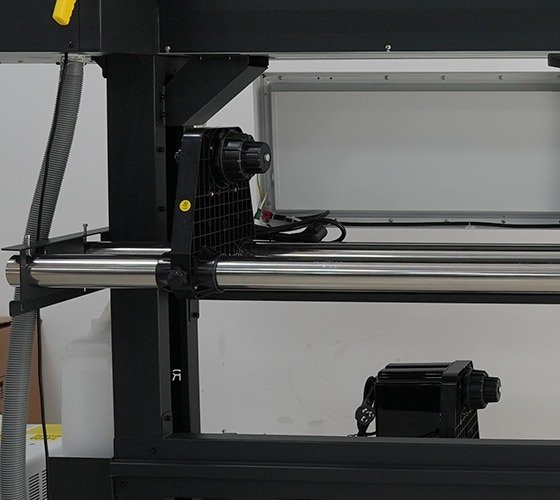

Automatic take-up device
It has excellent take-up speed and can handle a large amount of fabric, greatly improving production efficiency.

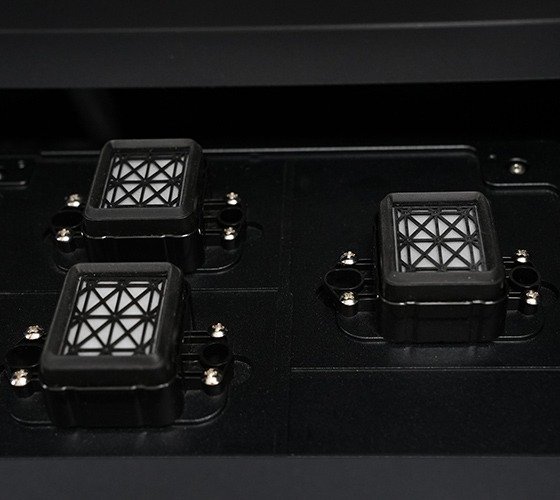

Automatic nozzle cleaning system
Automatic cleaning and moisturizing prevent nozzle clogging, ensure printing quality, and extends nozzle life.

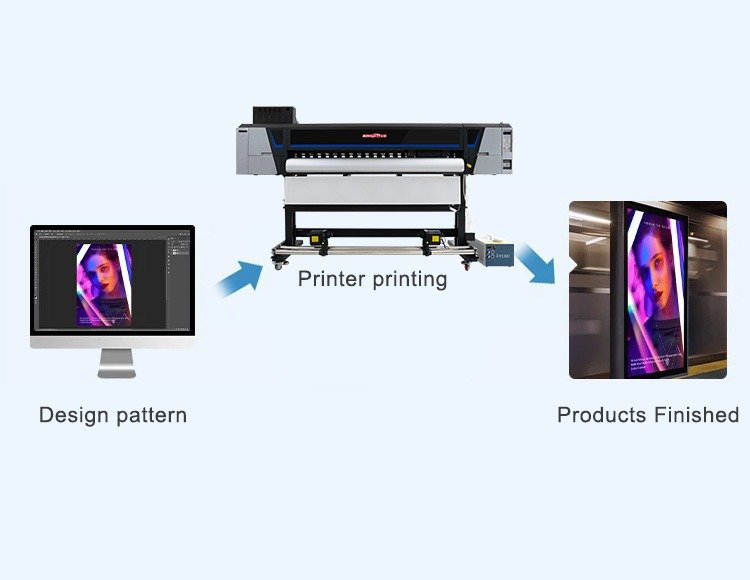

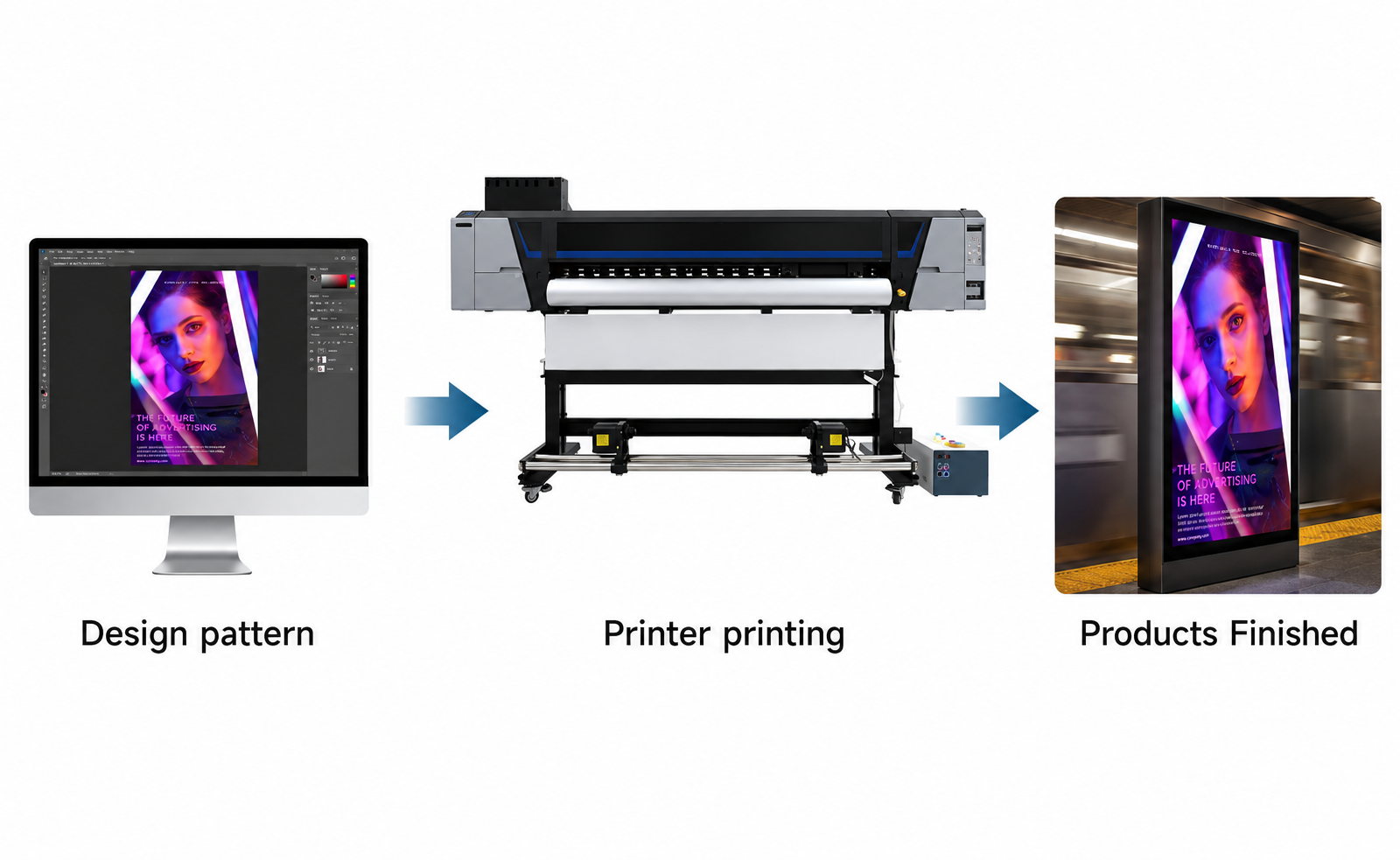

UV Roll to Roll Printer printing Process
Product Specification
| Product | UV Roll to Roll Printer |
|---|---|
| Model | PI-1803UV |
| Printhead | 3 × EPSON I3200-U1 |
| Printing Speed | 5–15 m²/h |
| Max Media Width | 1850 mm |
| Max Print Width | 1800 mm |
| Ink Type | Environmental Protective UV Ink |
| Color | CMYK + White + Varnish (CMYK + W + V) |
| Ink Curing Unit | Dual UV LED Lamps with Water Cooling |
| Ink Supply System | Continuous Ink Supply System |
| Media Type | PP, Vinyl, Light Box Cloth, Flex, Canvas, Leather, Reflective Material, etc. |
| Heating System | Front, Middle & Rear Three-Stage Heating Platform |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| Clamp | Combined Anti-Warping Clamps |
| Take-up & Feed System | Equipped |
| RIP Software | Maintop, Photoprint, ONYX (Optional) |
| Operating System | Windows XP, Windows 7, Windows 10 |
| Working Environment | Temperature: 18–32°C | Humidity: 46–65% |
| Machine Size | 2970 × 860 × 1840 mm, 380 kg |
| Packing Size |
Printer: 3130 × 960 × 780 mm, 480 kg, 2.345 CBM Water Tank: 585 × 385 × 450 mm, 40 kg, 0.105 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
UV Roll to Roll Printer Applications
The roll-to-roll printer is specially designed for soft film materials, supporting continuous printing of long roll media such as vinyl, car stickers, leather, advertising banner, wallpaper, exhibition graphics, tradeshow graphics, bus shelters, wall graphics, signage, indoor banner, outdoor banner, PP, canvas, etc., reducing the frequency of manual material changes and improving the efficiency of batch order processing. White + color + varnish printing truly restores design details, with high color saturation and waterproof and scratch resistance, meeting the high-quality printing needs of outdoor advertising, soft decoration customization, and commercial display.
Ceiling soft film
Oil painting
Mall advertising
Car sticker
Subway advertisement
Wallpaper
FAQ
The printhead used is EPSON I3200U1 and all of our printhead is original and brand new.
The computer supports winXP, win7, and win10 systems.
No, it does not harmful to human. It uses uv ink, which is friendly to the environment.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
Mainly prints soft film materials, such as: car stickers, advertisements, light box cloth, wallpaper, canvas, ceiling soft film, etc.
The maximum printing width is 1800mm, and the printing speed is 5-15sqm/hr.
Yes, our technicians provide professionally and patiently online or on-site technical training, and one-on-one technical guidance.
It is recommended to use the machine for printing every day. Regarding the maintenance of the machine, we will provide a detailed maintenance manual, and there will also be specialized technology to assist you. The maintenance of the machine is very simple and convenient. If you need it, we can send maintenance manual before you buy it for your advance reference.
