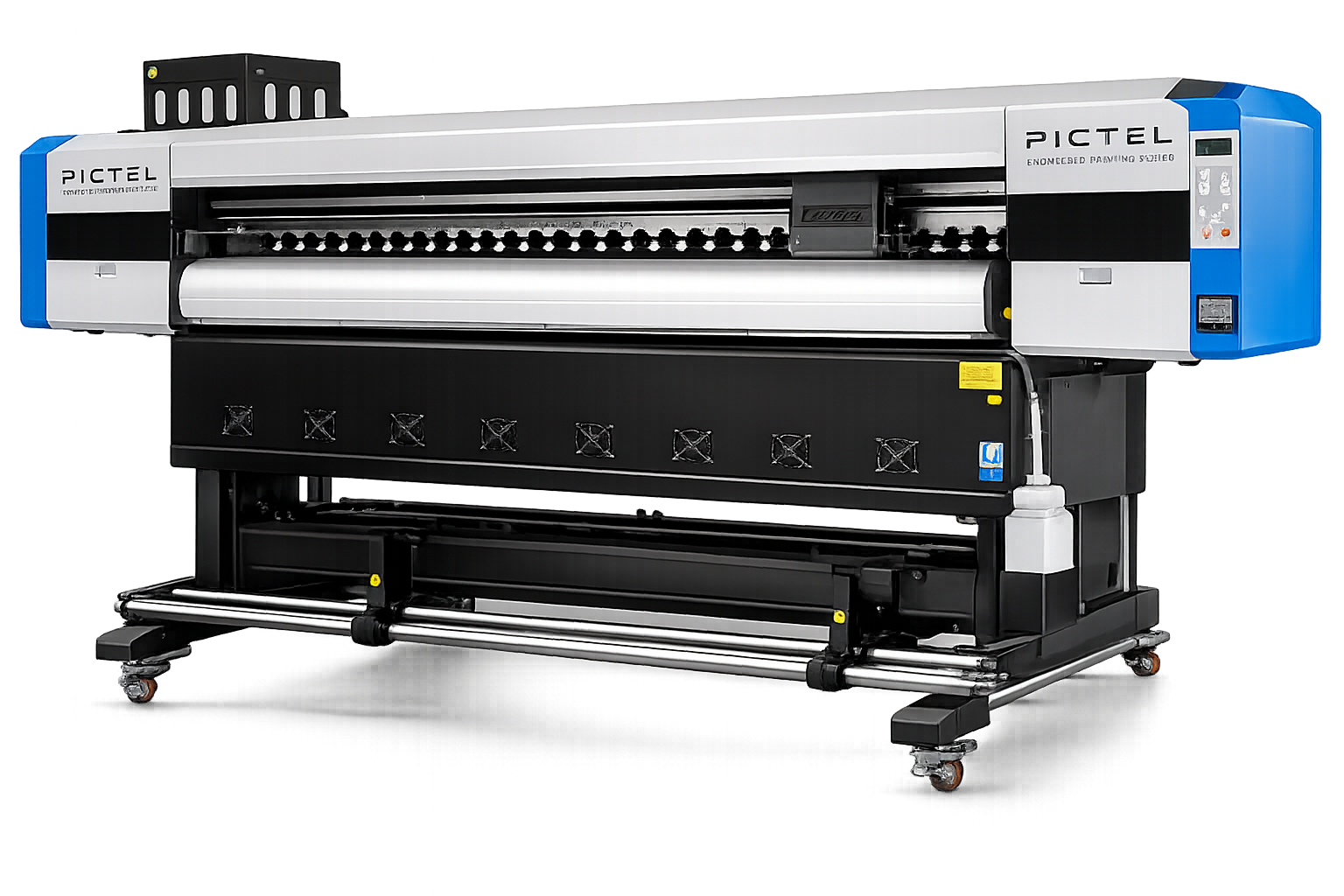

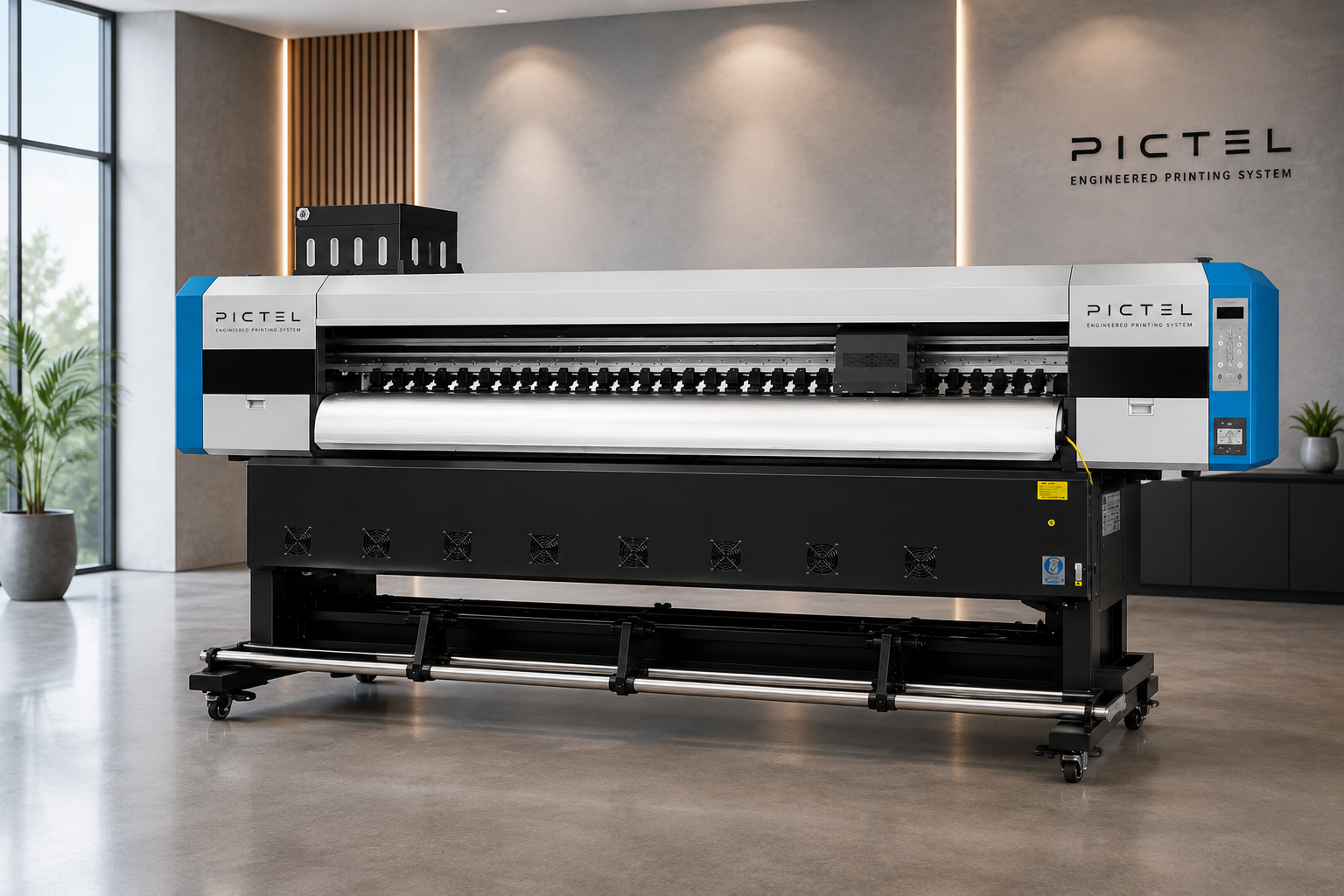

ECO-SOLVENT PRINTER
Excellent quality 1.6m/1.8m large format vinyl printer with intelligent temperature control and triple drying, especially suitable for printing outdoor advertising, signs, car stickers, etc.
Main Features:
- 1.8m printing width
- 4 × EPSON I3200 Printheads
- 4 Colors (CMYK+W)
- Higher precision and faster printing.
- Suitable for high-quality printing of car stickers, light boxes, etc.
Technical Specifications:
- Print Head: 1 * EPSON I3200 E1
- PI-1601 Printing Speed: 4pass: 22sqm/h, 6pass: 15sqm/h
- PI-1801 Printing Speed: 4pass: 25sqm/h, 6pass: 17sqm/h
- PI-1601 Max Print Width: 1.55m
- PI-1801 Max Print Width: 1.8m
- Color: 4 colors (C, M, Y, K)
- RIP Software: maintop, photoprint (optional)
Eco-Solvent Printer. Vibrant Outdoor Graphics. Precision Printing. Long-Lasting Performance.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Large format vinyl printer Features

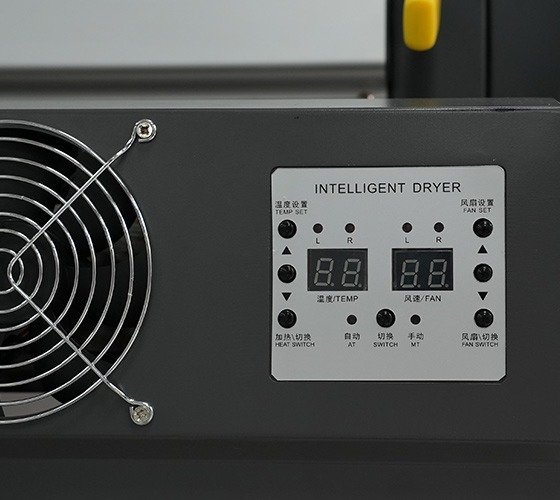

High performance
Triple drying system(hot air + infrared + cold air) dries quickly, making it possible to print and take up immediately.

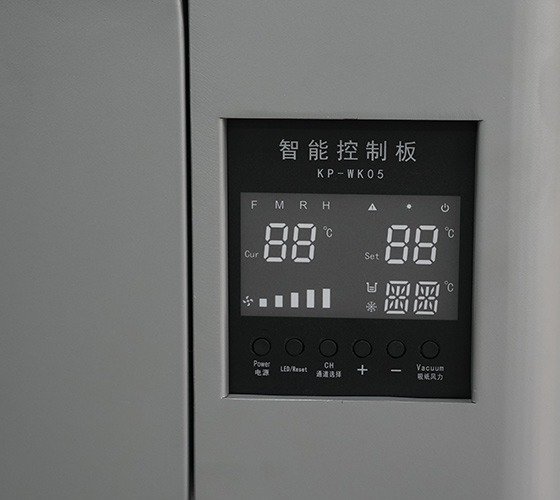

Intelligent
Front, middle and rear three-stage intelligent heating system ensures temperature stability and achieves the best printing effect.

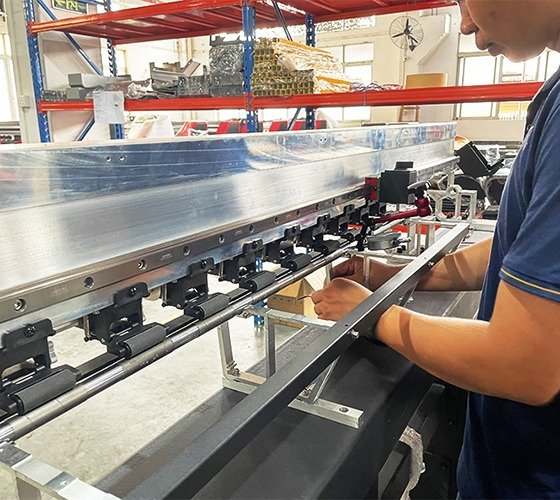

High stability
Industrial-grade high-precision platform accurately controls the printing flatness between 0-0.5mm and ensures stable printing.
Wide applicability
1.6m/1.8m printing width, especially suitable for printing billboards, signs, wallpapers, car stickers, canvas, etc.

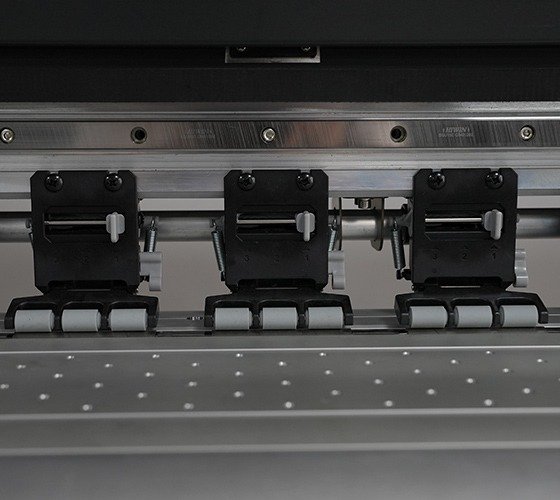

Three-stage pinch rollers
The three-stage pinch roller ensures a smooth surface of the printing material, ensuring smooth printing.

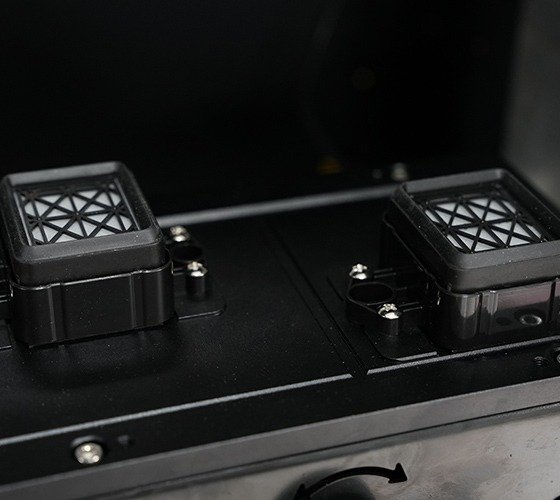

Automatic cleaning system
The nozzle automatically cleans and moisturizes to remove residue or impurities and maintain the best printing condition.

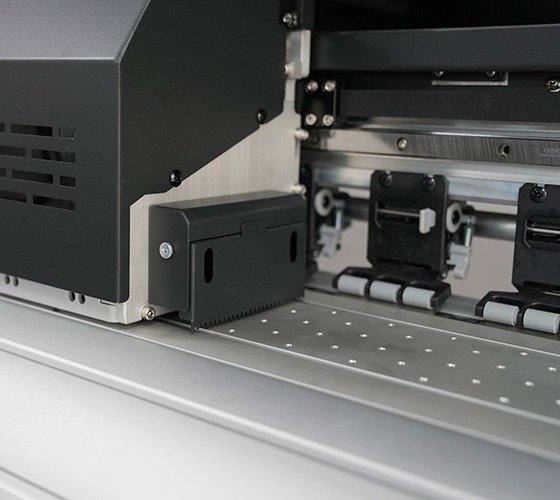

Anti-Collision Device
Prevents damage to printheads and equipment by detecting obstacles, ensuring safe, reliable, continuous printing.

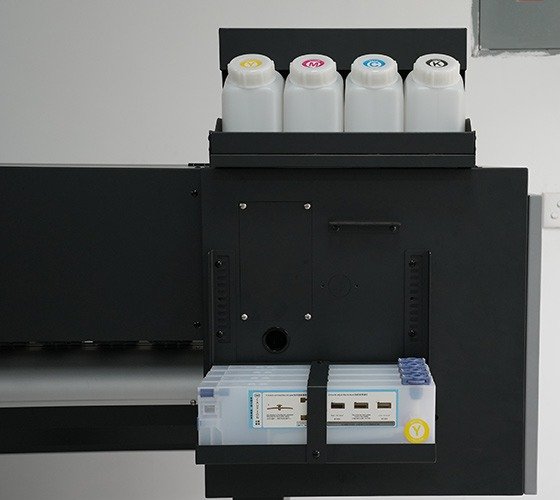

Automatic ink supply system
Stable and efficient ink supply to ensure high-speed printing and print quality.

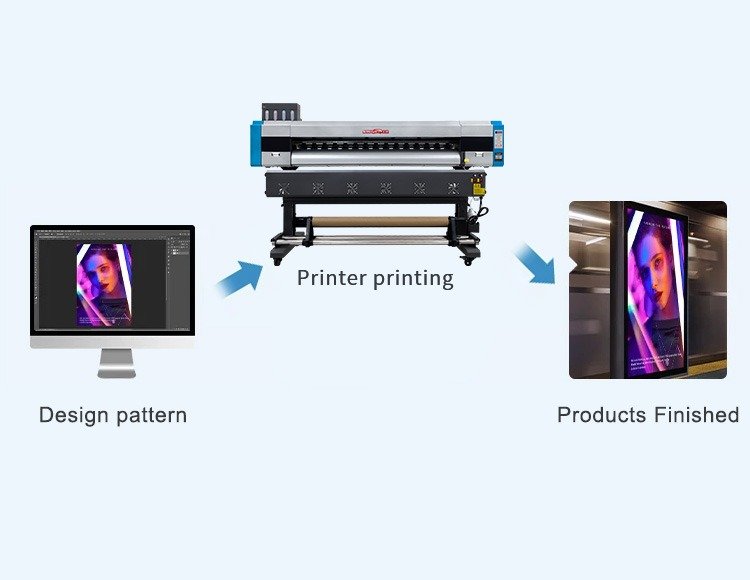

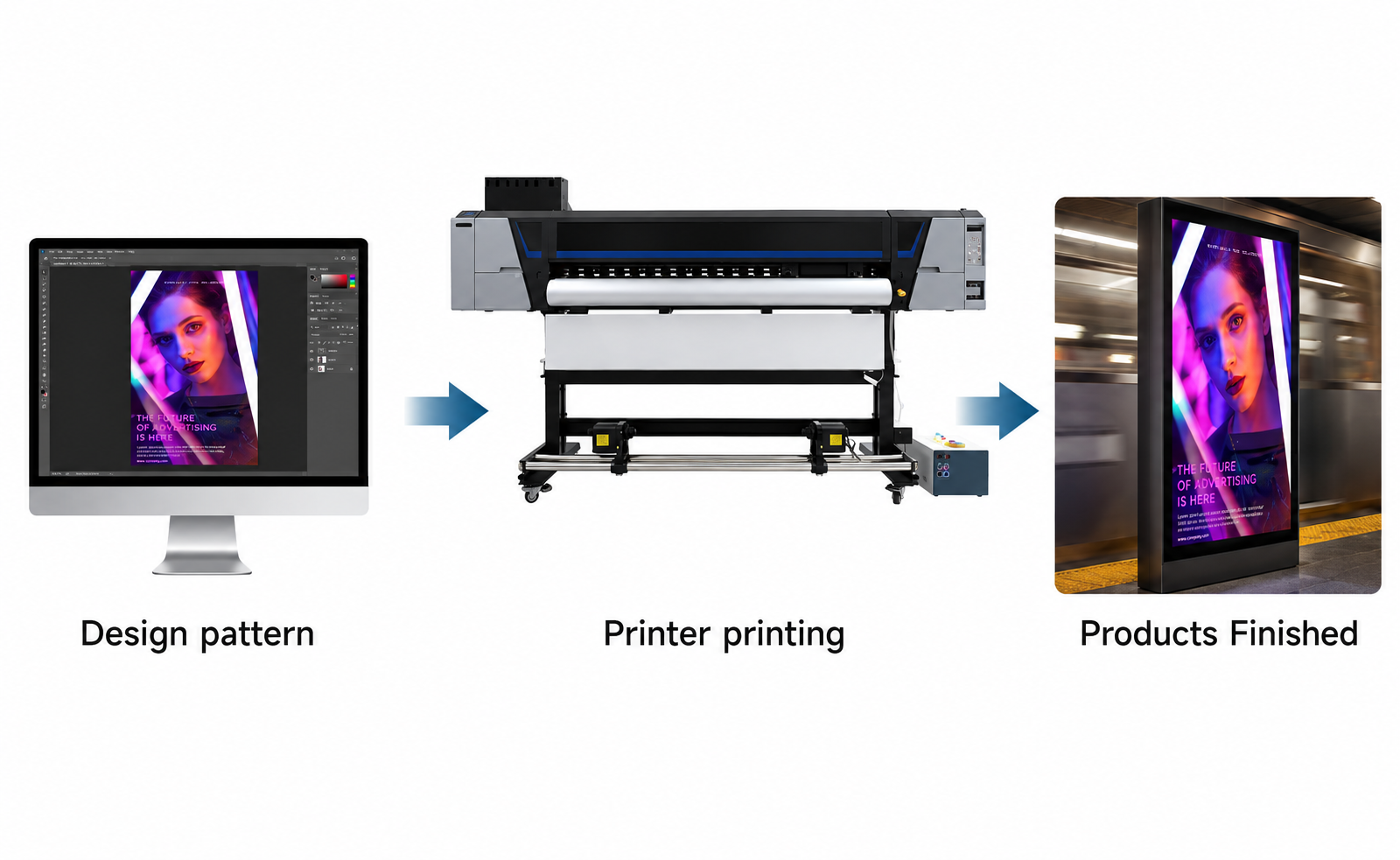

Eco Solvent Printer printing Process
Product Specification
| Product | Eco Solvent Printer | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | PI-1601 / PI-1801 | |||||||||
| Printhead | 1 × EPSON I3200-E1 | |||||||||
| Printing Speed |
|
|||||||||
| Max Media Width |
PI-1601: 1600 mm PI-1801: 1850 mm |
|||||||||
| Max Print Width |
PI-1601: 1550 mm PI-1801: 1800 mm |
|||||||||
| Ink Type | Eco Solvent Ink | |||||||||
| Color | 4 Colors (C, M, Y, K) | |||||||||
| Ink Supply System | Continuous Ink Supply System | |||||||||
| Media Type | PP, Vinyl, Light Box Cloth, Flex, Canvas, Leather, Reflective Material, and Other Roll Media. | |||||||||
| Heating System | Front, Middle & Rear Three-Stage Heating Platform | |||||||||
| Drying System | Triple Drying System (Hot Air + Infrared + Cold Air) | |||||||||
| Capping & Moisturizing | Auto Capping System & Moisturizing System | |||||||||
| Clamp | Combined Anti-Warping Clamps | |||||||||
| RIP Software | Maintop, Photoprint (Optional) | |||||||||
| Working Environment | Temperature: 18–32°C | Humidity: 46–65% | |||||||||
| Machine Size |
PI-1601: 2390 × 750 × 1510 mm, 173 kg PI-1801: 2680 × 750 × 1320 mm, 203 kg |
|||||||||
| Packing Size |
PI-1601: 2490 × 770 × 650 mm, 210 kg, 1.227 CBM PI-1801: 2800 × 750 × 650 mm, 260 kg, 1.360 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Large format vinyl printer Applications
Eco-solvent printers have become core equipment in the fields of outdoor advertising, commercial signs, and industrial printing due to their environmental friendliness, weather resistance, and high cost-effectiveness. The eco-solvent ink they use strikes a perfect balance between volatile organic compound (VOC) content, adhesion, and drying speed, and is particularly suitable for printed products that need to be exposed to complex environments for a long time.
Advertisement
Light box
Billboard
Car sticker
Light box
Decorative paintings
FAQ
Requires eco solvent printer, printing materials and eco-solvent ink to be used together.
The printhead used is EPSON I3200E1, all our printheads are original and brand new.
PP, billboards, car stickers, wallpapers, light boxes, background walls, canvas, leather, reflective materials, etc.
Yes, the machine can stop working for a long time, but the printhead needs to be moisturized and cleaned according to the machine maintenance manual to prevent ink from clogging the printhead.
Design pattern – typesetting and printing – transfer pattern to printing material- complete printing
The maximum printing width of Pictel PI-1601 is 1550mm, and the maximum printing width of KingJet PI-1801 is 1800mm.
Yes, our technicians provide professionally and patiently online or on-site technical training, and one-on-one technical guidance.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
