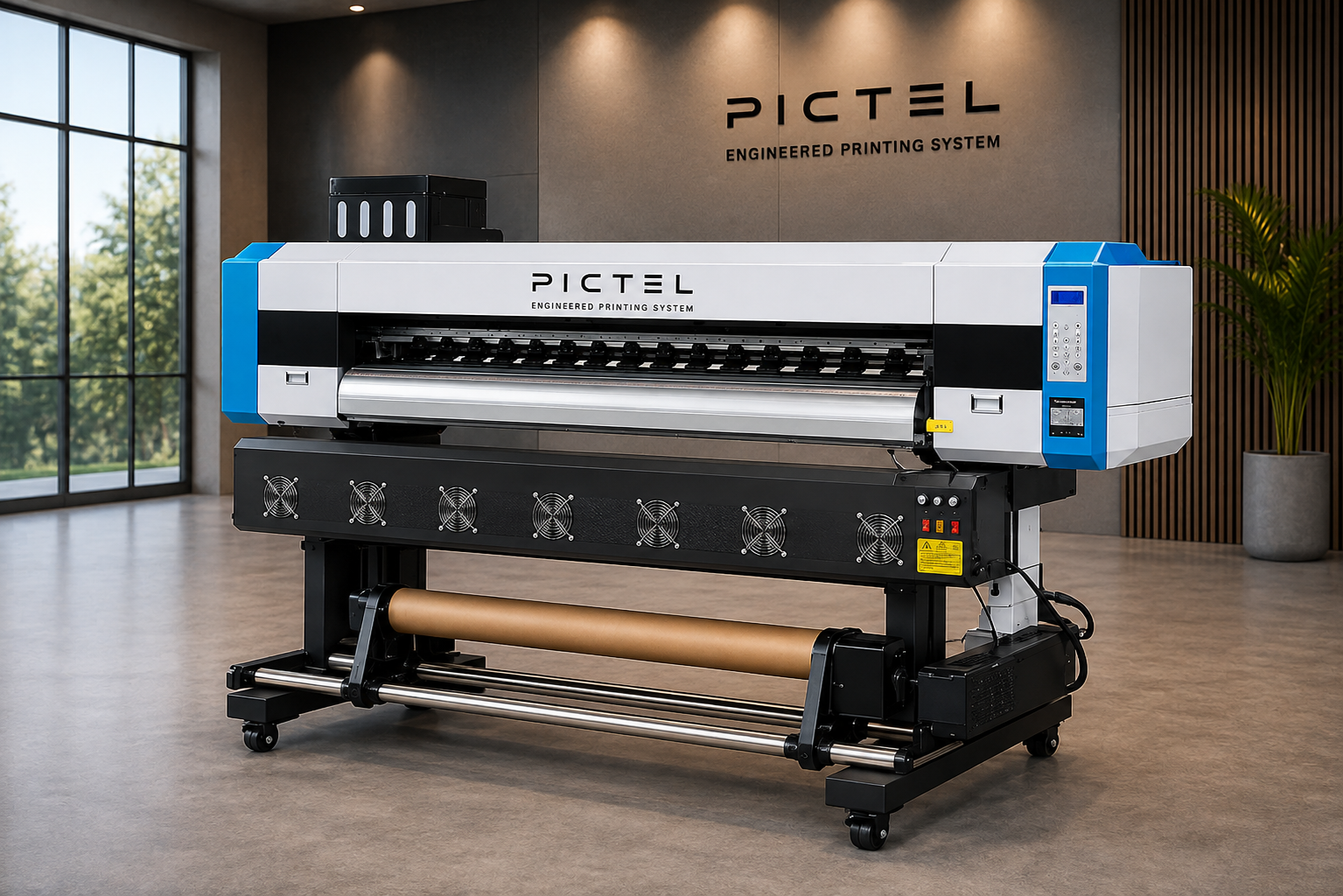

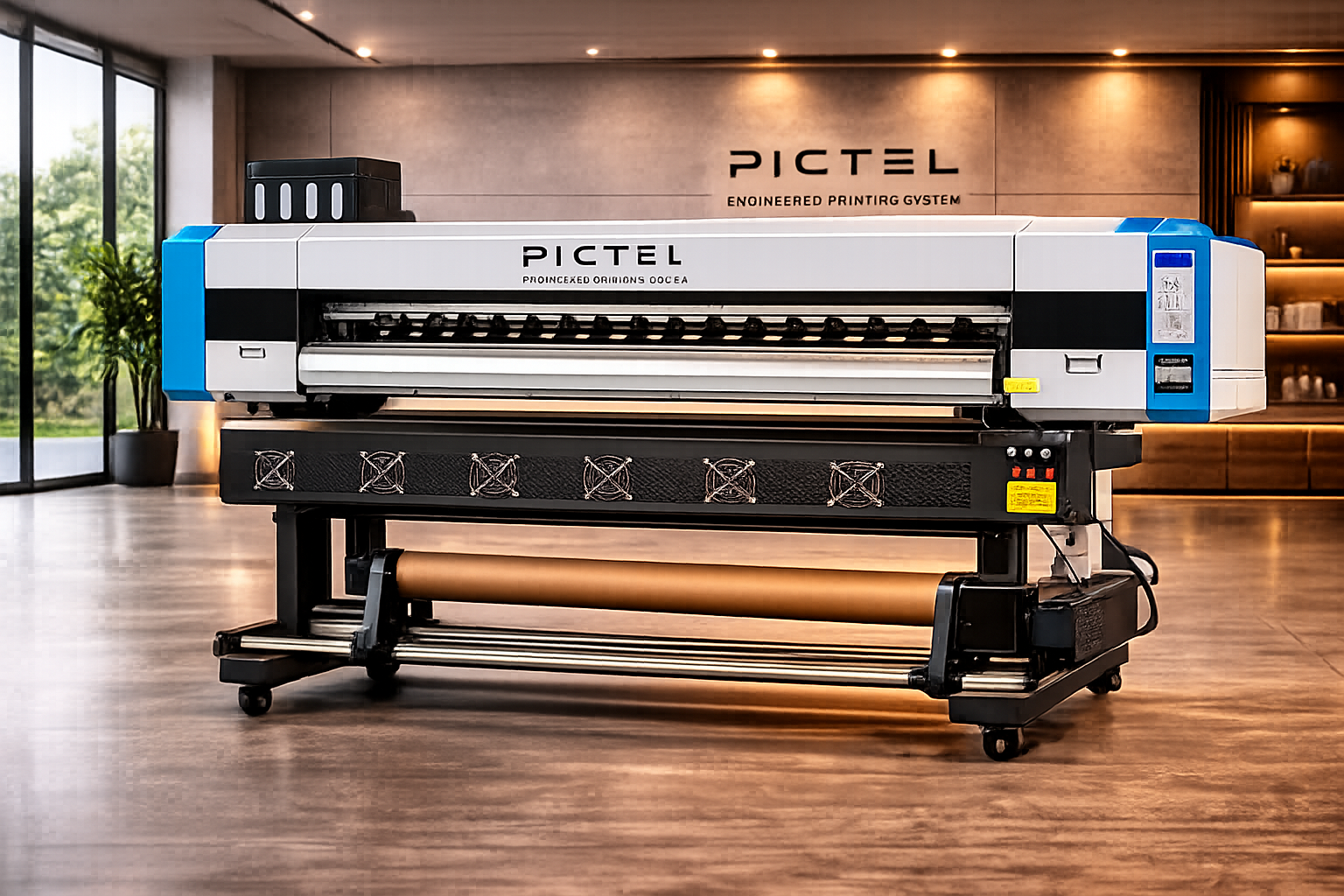

WATER-BASED LABEL PRINTER
This water-based label printer is versatile, excellent, waterproof, durable, and has unparalleled printing quality, bringing high-end and delicate texture to your product labels or brand packaging.
Main Features:
- 1550mm printing width
- 1 × EPSON I3200-A1HD print head
- 8 colors
- High resolution, waterproof, and strong color expression.
- No pre-treatment required, simple maintenance, and high cost-effectiveness.
- Wide material compatibility, flexible response to various label printing needs.
Technical Specifications:
- Printhead: 1*EPSON I3200-A1HD
- Printing Speed: 4pass: 15sqm/h ; 6pass: 10sqm/h
- Max Print Width: 1550mm
- Color: 8 colors (C, M, Y, K, LC, LM, LK, LLK)
- RIP Software: Photoprint, Fiery
Water-Based Label Printer. Premium Labels. Brilliant Colors. Professional Brand Packaging.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Water-based Label Printer features
8-color output
Based on CMYKW, increase the light color, create a more natural color transition, and a wider color gamut.

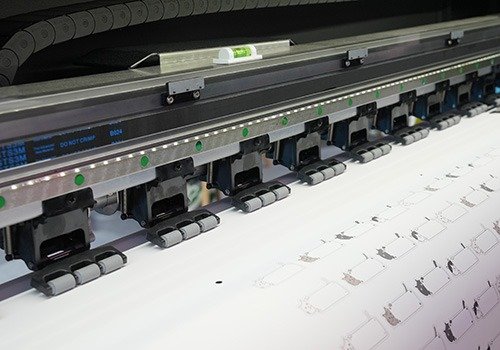

Adjustable pinch roller
Ensure the material printing flat and high-precision output, and apply to different thickness of material printing.

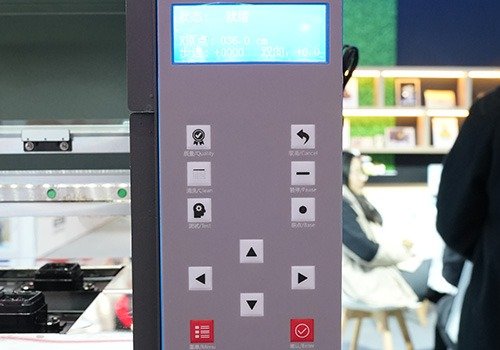

Intelligent operation panel
Intuitive button interface, one-key operation, simple and easy to use, friendly to novices.

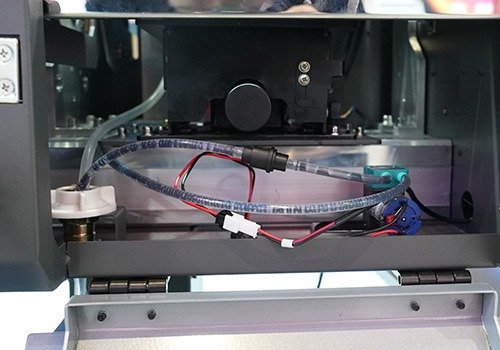

Automatic In-Line Moisturizing
Automatically spray moisturizing liquid to slow down the drying of ink in the nozzle and prevent the print head from clogging.

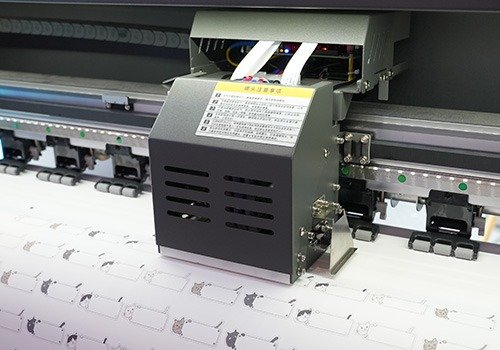

Lifting trolley anti-collision device
Prevent print head collision, protect equipment, and extend service life.

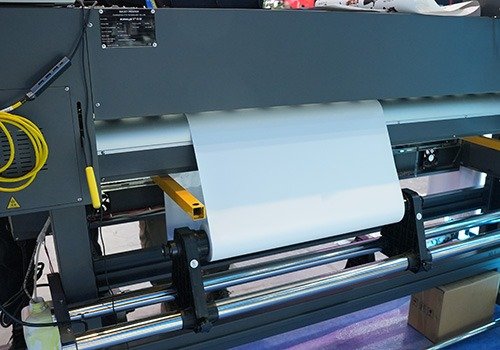

Tension feed & take-up reel
Automatic feed and take-up functions to achieve unattended operation and improve production efficiency.
Product Specification
| Product | Water-Based Label Printer |
|---|---|
| Model | PI-1601BQ |
| Printhead | 1 × EPSON I3200(8)-A1 HD |
| Printing Speed | Output (sqm/h) |
| 4 Pass: 15 m²/h | |
| 6 Pass: 10 m²/h | |
| Max Media Width | 1600 mm |
| Max Print Width | 1550 mm |
| Ink Type | Water-Based Pigment Ink |
| Color | 8 Colors (C, M, Y, K, LC, LM, LK, LLK) |

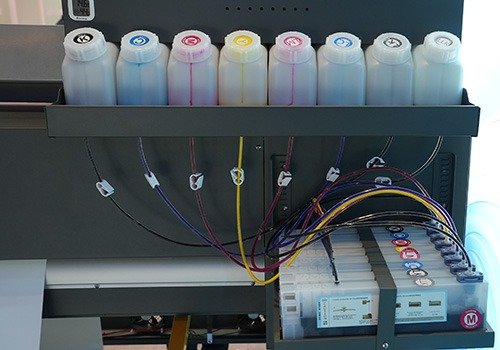

| Ink Supply System | Continuous Ink Supply System |
| Media Type | Self-Adhesive Sticker, Coated Paper, Synthetic Paper, Pearlescent Film, PE, PET, and Other Water-Based Media. |
| Media Thickness | 1 mm |
| Drying System | Intelligent Embedded Drying System |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Photoprint, Fiery |
| Input Power | AC110V / 220V, 50Hz / 60Hz, 350W–3400W |
| Working Environment | Temperature: 18–32°C | Humidity: 46–65% |
| Machine Size | 2390 × 750 × 1510 mm, 173 kg |
| Packing Size | 2475 × 750 × 640 mm, 230 kg, 1.227 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Water-based Label Printer Applications
The new water-based label printer redefines short-term label and packaging printing with multi-material compatibility, environmental friendliness, and industrial-grade precision at its core. Whether it’s food-grade self-adhesive stickers, high-end coated stickers, or glossy photo paper and product covers, it outputs vibrant colors and outstanding details to help you seize the first opportunity for sustainable business.
Bottle label
Stickers
Photo paper
Brochure
Product packaging

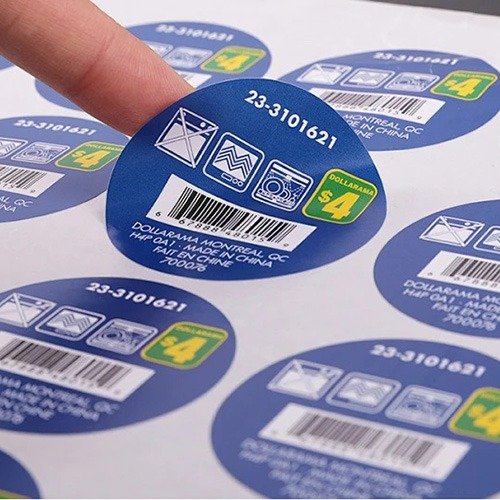

Self-adhesive stickers
FAQ
1、label waterproof, more durable and long-lasting.
2、the ink is environmentally friendly and odourless.
You need a water-based label printer, special ink, and a laser engraving machine to cut the pattern.
Breaking through the limitation of traditional 5 colors, the addition of light-colored ink makes the gradient color of the pattern more delicate and realistic.
Compatible with a variety of materials, including self-adhesive, coated paper, synthetic paper, pearl film, PET and other water-based coating materials.
