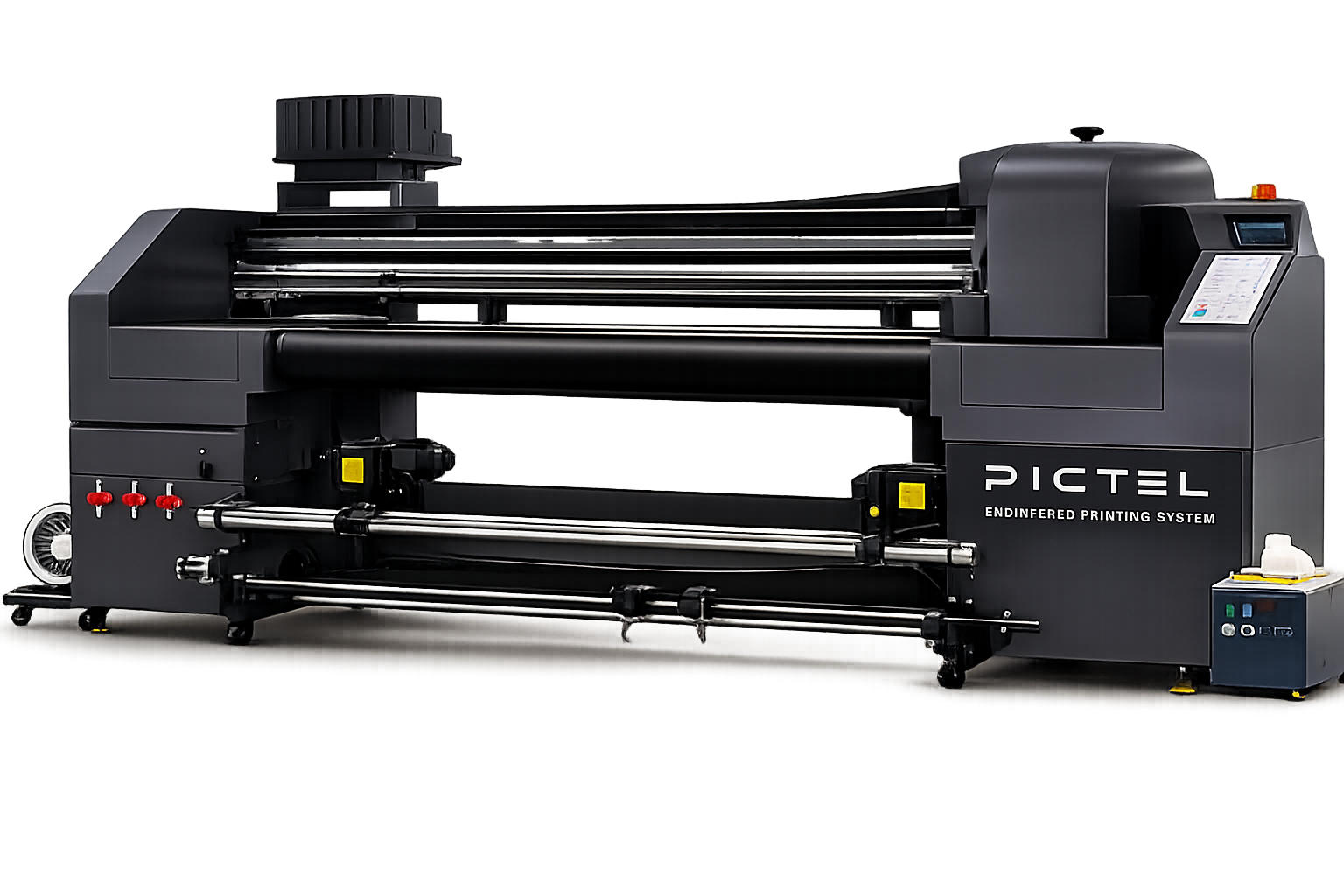

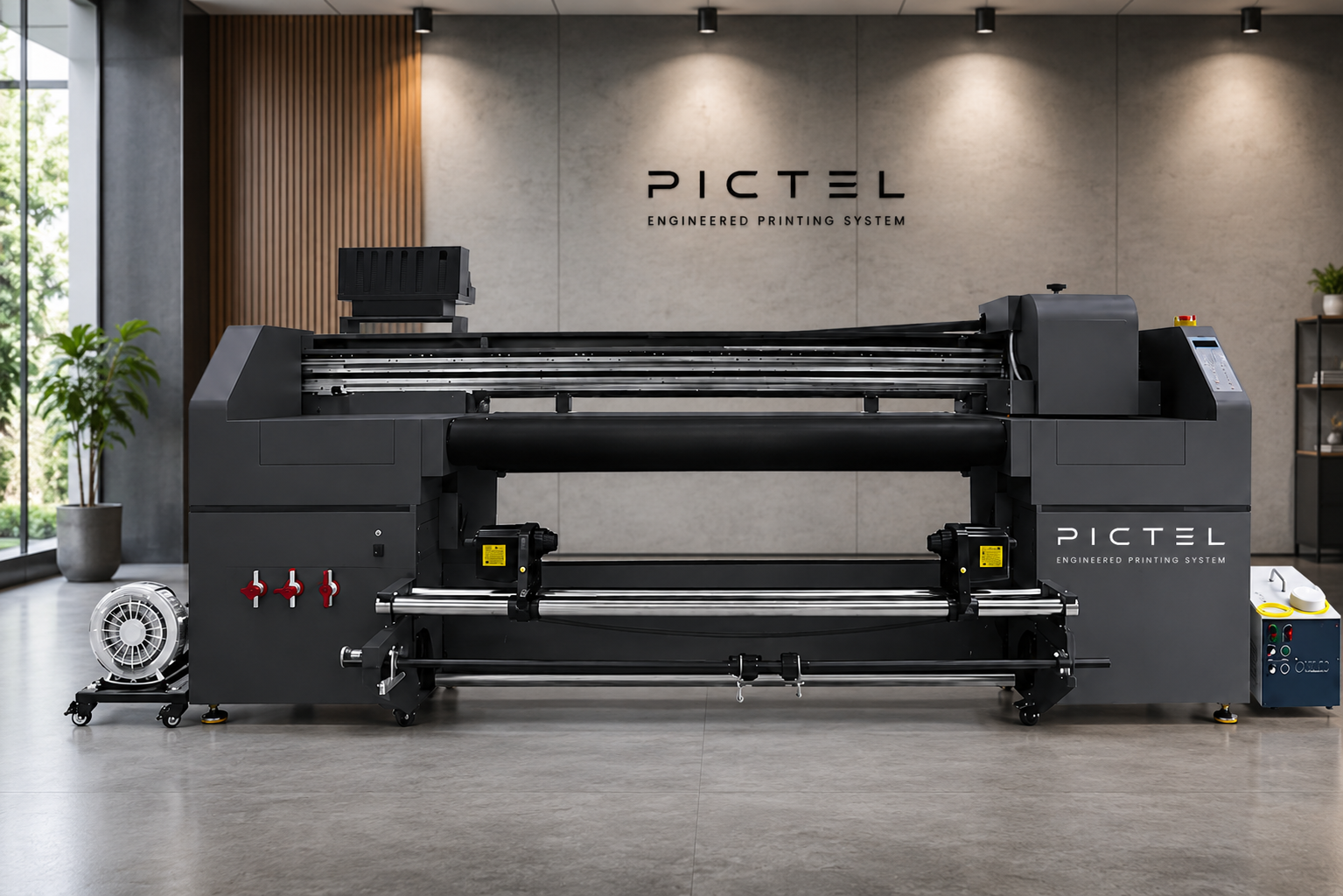

PI-1800D UV MULTIFUNCTIONAL UV HYBRID PRINTER
Highly flexible, the UV hybrid printer perfectly meets the printing needs of roll-to-roll, flexible sheets, and rigid materials, enabling cost-effective production.
Main Features:
- 1.8m printing width
- 4 × EPSON I3200 heads
- Colors: CMYK, CMYK+W, CMYK+W+V
- Wide material application.
- Flexible production and high cost-effectiveness.
- Suitable for small and medium-sized enterprises & start-ups.
Technical Specifications:
- PI-1800D Printhead: 4*EPSON I3200-E1
- PI-1800D Printing Speed: 20-40 sqm/h
- PI-1800D Color: 4 colors (C, M, Y, K)
- PI-1800DUV Printhead: 4*EPSON I3200-U1
- PI-1800DUV Printing Speed: 9-36 sqm/h
- PI-1800DUV: CMYK, CMYK+W, CMYK+W+V
- Max Print Width: 1.8m
- RIP Software: maintop, photoprint, ONYX (optional)
PI-1800D UV Hybrid Printer. Roll-to-Roll. Rigid Media. One Machine. Endless Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
UV hybrid printer Features
Configuration upgrade
High-strength mesh belt transmission ensures smooth printing without deviation or wrinkles.
Wide applicability
It can be used for both sheet and roll materials, such as printing leather, KT board, wallpaper, soft film, car stickers, etc.

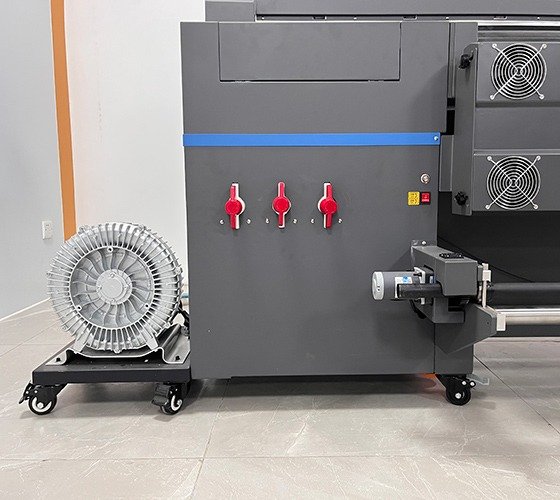

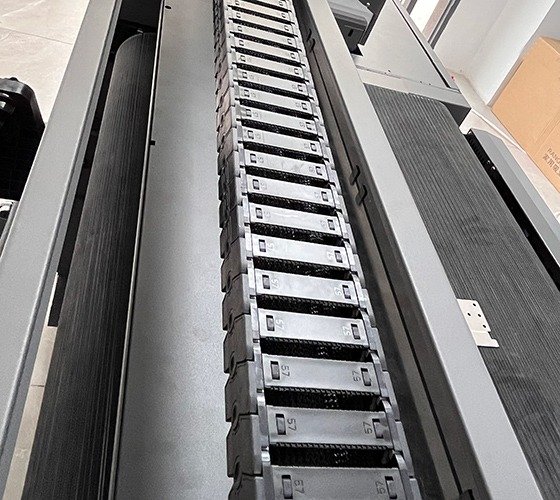

Low loss
Imported drag chain device reduces wire loss and production noise. The machine operates more stably and has a longer life.
Multiple systems

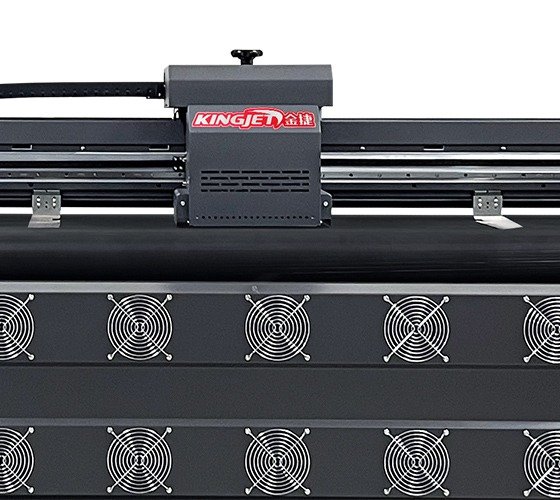

LED UV water-cooling curing system and lnfrared ray+fan drying drying system to achieve instant printing and drying.

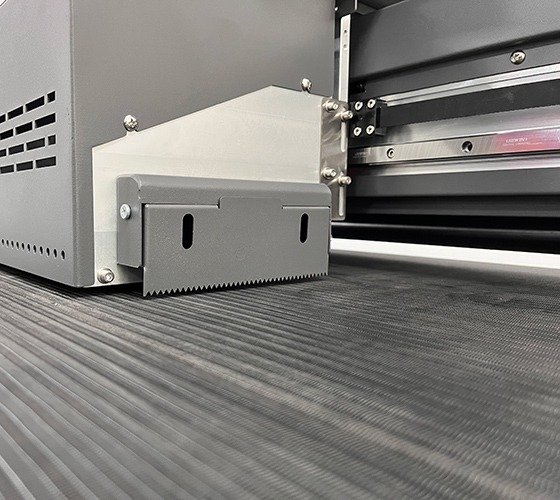

Anti-Collision Device
Prevents damage to printheads and equipment by detecting obstacles, ensuring safe, reliable, continuous printing.

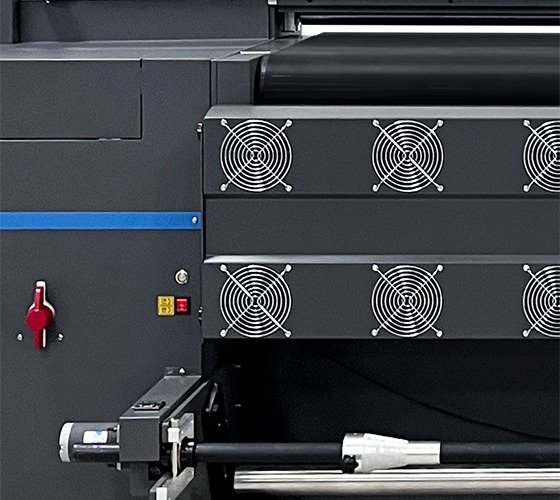

Take up and feed up system
Equipped with an industrial grade strong take up and feed up system to meets the needs of mass production.
Automatic nozzle cleaning system
The nozzle is automatically cleaned and moisturized to prevent nozzle clogging and extend its life.

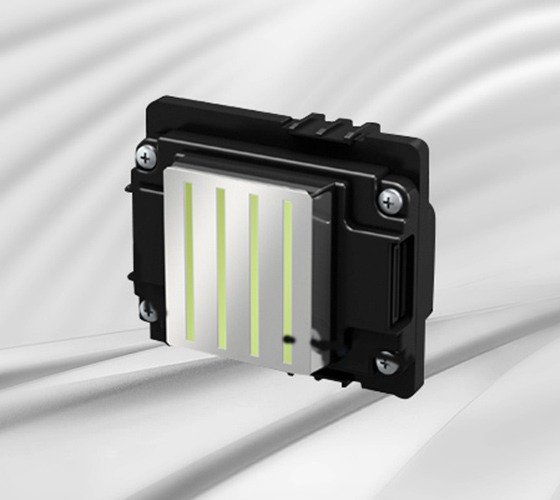

EPS0N original nozzle
4 EPSON original I3200 printheads, with high-precision and fast printing capabilities, achieving high-volume printing.

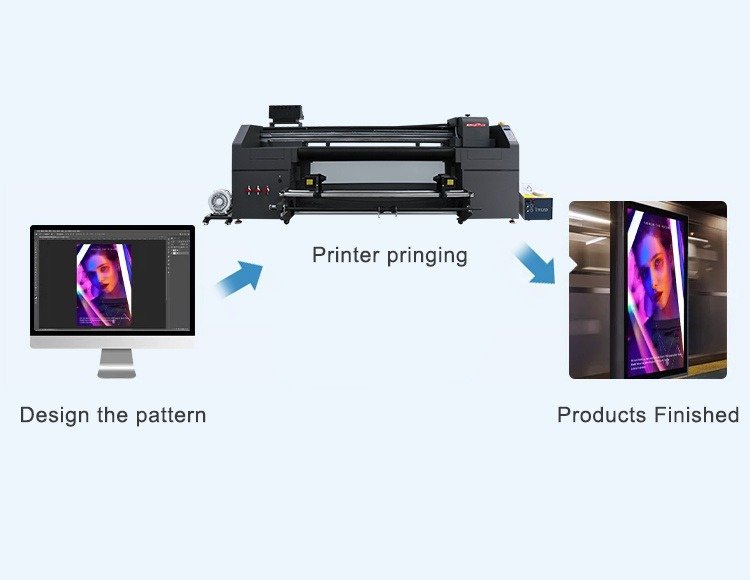

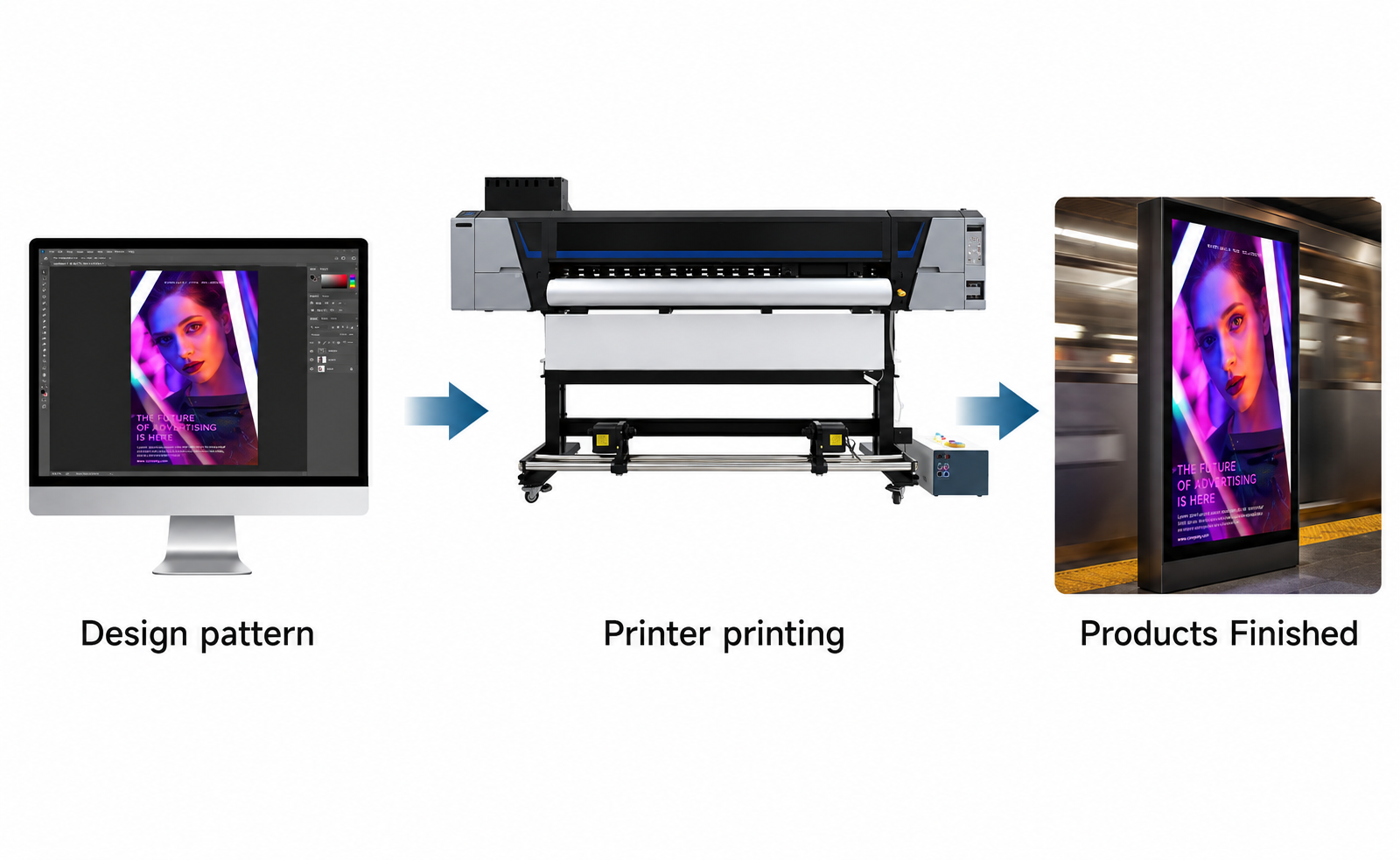

UV hybrid printer printing Process
Product Specification
| Product | Eco Solvent & UV Hybrid Printer |
|---|---|
| Model | PI-1800D / PI-1800DUV |
| Printhead |
PI-1800D: 4 × EPSON I3200-E1 PI-1800DUV: 4 × EPSON I3200-U1 |
| Printing Speed |
PI-1800D: 20–40 m²/h PI-1800DUV: 9–36 m²/h |
| Color |
PI-1800D: 4 Colors (C, M, Y, K) PI-1800DUV: CMYK / CMYK+W / CMYK+W+V |
| Platform Width | 430 mm |
| Max Media Width | 1850 mm |
| Max Print Width | 1800 mm |
| Ink Type | Eco Solvent Ink / UV Ink |
| Media Type | Roll and sheet materials, leather industry, home decoration industry, advertising industry. Suitable materials include leather, KT board, wallpaper, soft film, car stickers, PVC film, and more. |
| Printhead Height | Adjustable from 2–30 mm above media |
| Heating System | LED UV Water-Cooling Curing System |
| Media Adsorption | Adjustable Suction Air |
| Drying System | Infrared Ray + Fan Drying |
| Take-up & Feed System | Industrial-Grade Heavy-Duty Take-up & Feed System |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint, ONYX (Optional) |
| Operating System | Windows XP / Windows 7 / Windows 10 |
| Working Environment | Temperature: 18–32°C | Humidity: 46–65% |
| Machine Size |
PI-1800D: 3330 × 1455 × 1530 mm, 650 kg PI-1800DUV: 3330 × 1320 × 1615 mm, 700 kg |
| Packing Size |
PI-1800D: 3400 × 1100 × 1500 mm, 780 kg PI-1800DUV: 3900 × 1000 × 1450 mm, 780 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
UV hybrid printer Applications
UV hybrid printers have become all-rounders in the field of industrial printing due to their wide material adaptability. Supports printing hard substrates such as wood, glass, and metal, as well as flexible materials such as leather, soft film, wallpaper, and PVC. In addition, UV curing technology ensures fast adhesion of UV ink, accurate color reproduction, and stable printing, meeting the printing needs of advertising signs, packaging customization, home decoration, and other scenarios, helping enterprises improve production flexibility and reduce multi material processing costs.
Glass
Ceramic tiles
Wood
Car sticker
Light box
Billboard
FAQ
The printhead used is EPSON I3200U1/E1 and all of our printhead is original and brand new.
The computer supports winXP, win7, and win10 systems.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
Firstly, we provide customers with 1 year one-to-one technical support and one-to-one after-sales service. such as, If you don’t know how to install the machine, or if you encounter some problems when printing, we will set up a WhatsApp group or WeChat group, then invite our professional technicians to the group, and they will guide you how to install the machine and give professional solutions to your problems in time.
Pictel PI-1800D/1800DUV multi-purpose mesh belt machine is a combination of roll-to-roll advertising machine and UV flatbed machine. It can be used for both rolling and printing of leather, KT board, car stickers, PVC soft film, etc.
The maximum printing width is 1800mm.
Yes, the machine can stop working for a long time, but the printhead needs to be moisturized and cleaned according to the machine maintenance manual to prevent ink from clogging the printhead.
1 Year
