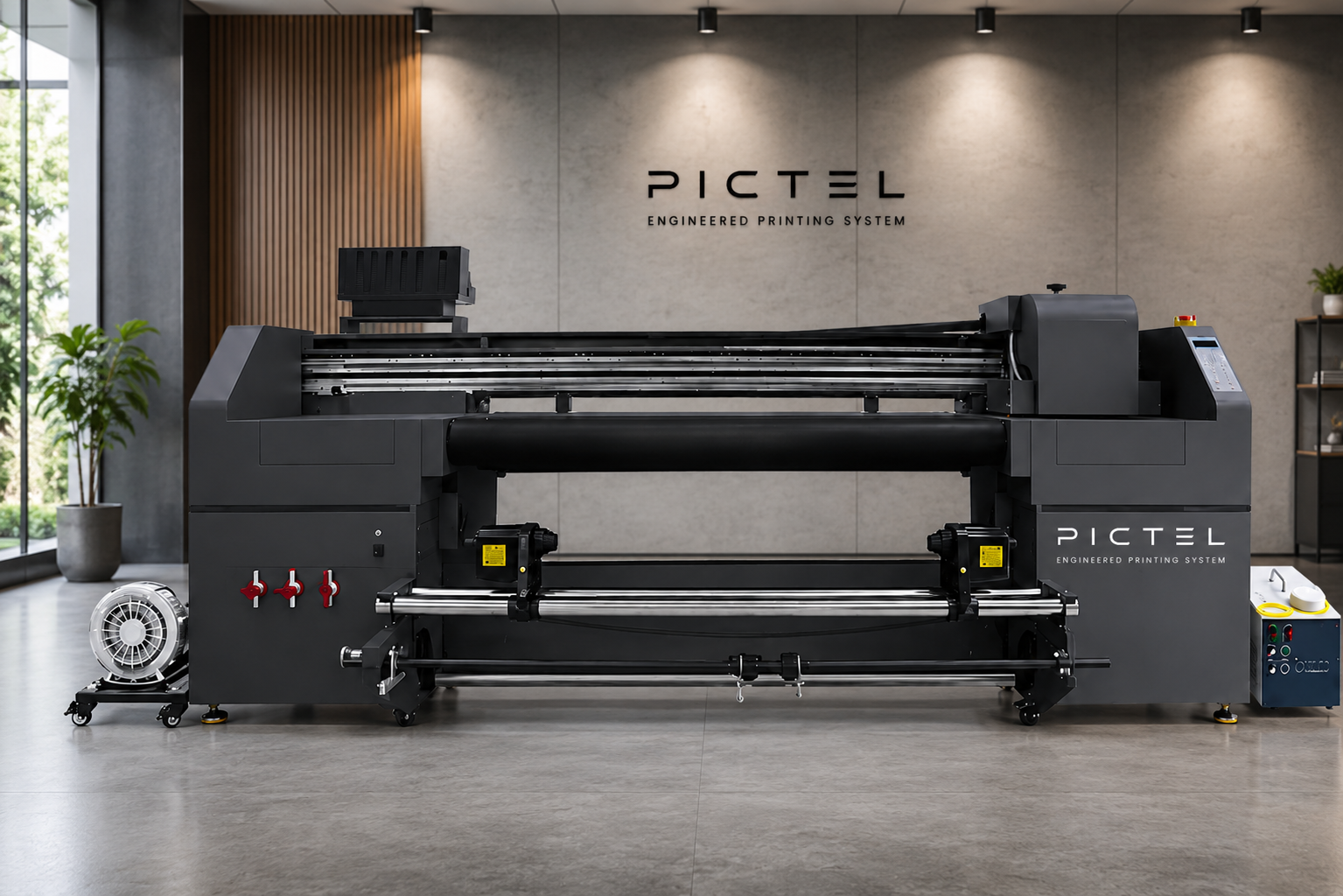

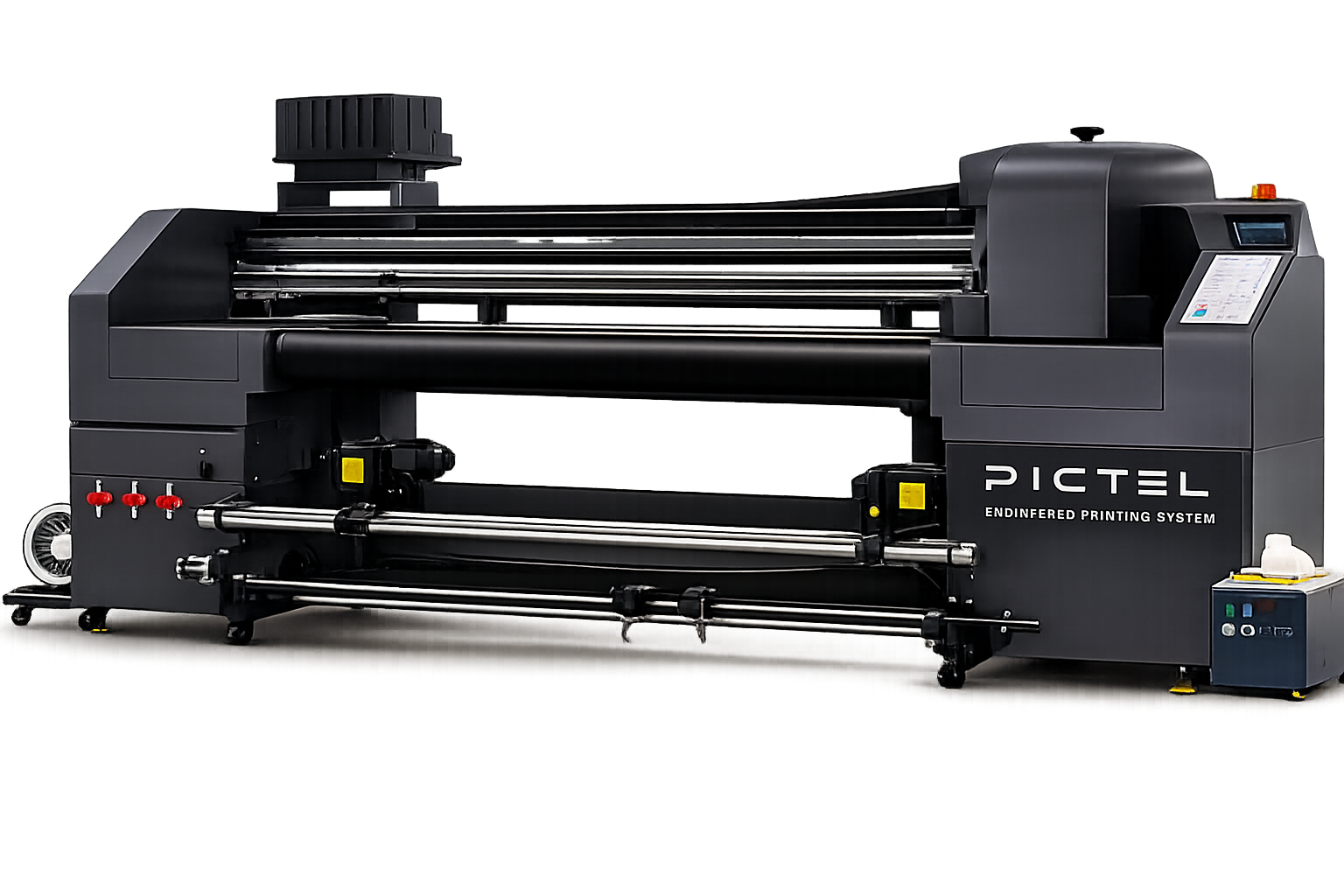

PI-1806DUV 6-HEAD HYBRID UV PRINTER
PI-1806D UV hybrid printer with 1.8m printing width and 6 EPSON i3200 print heads has a wide range of applications. It can easily print on flat and roll-to-roll materials and is suitable for leather, home decoration, and advertising industries.
Main Features:
- 1.8m printing width
- 6 × EPSON I3200 heads
- Colors: CMYK, CMYK+W, CMYK+W+V
- Both rigid and soft material printing.
- High precision and efficient production.
- Suitable for pursuing ultimate quality and high-end users.
Technical Specifications:
- Printhead: 6*EPSON I3200-U1
- Printing Speed: 15-54 sqm/h
- Max Print Width: 1800mm
- Color: CMYK, CMYK+W, CMYK+W+V
- RIP Software: maintop, photoprint, ONYX (optional)
PI-1806DUV 6-Head Hybrid UV Printer. Hybrid Flexibility. Industrial Precision. Premium Performance.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-1806D UV hybrid printer Features
High stability

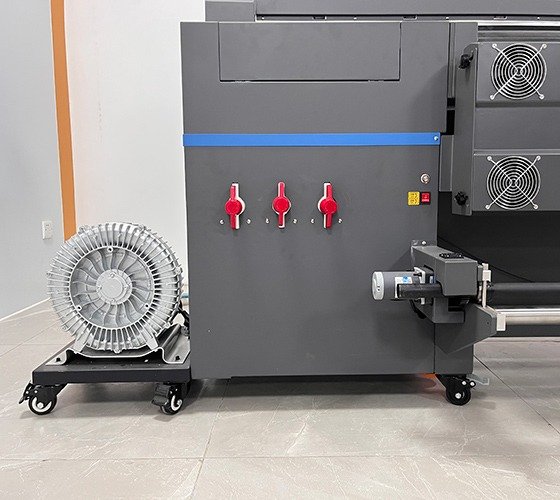

High-strength mesh belt transmission and strong vacuum adsorption ensure accurate printing.

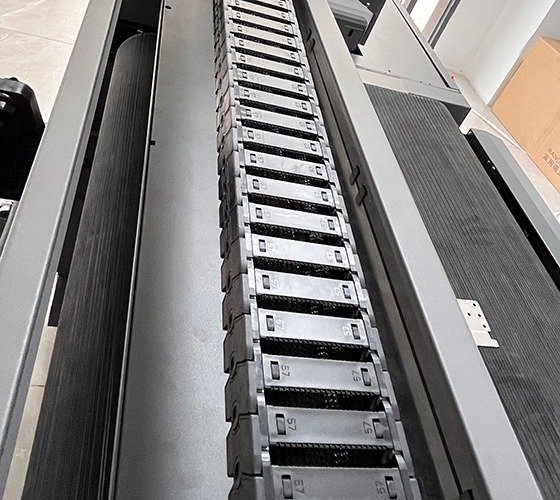

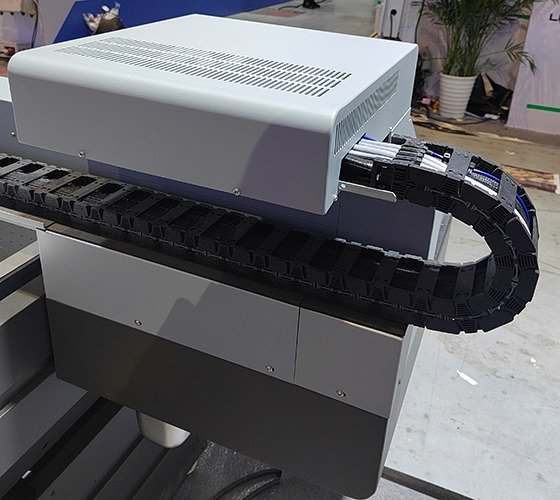

Low loss
Imported drag chain device reduces wire loss and production noise and longer service life.

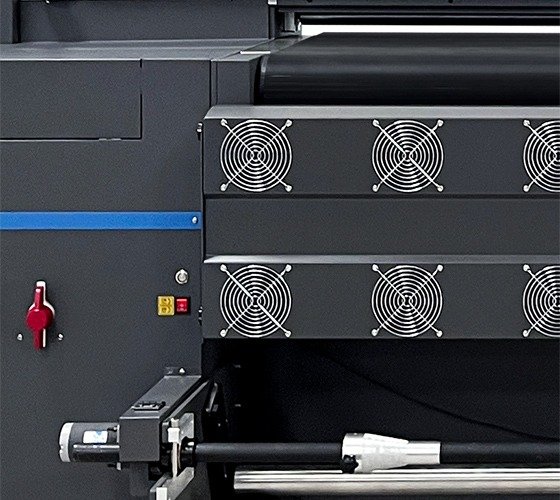

Efficient drying
Infrared ray and fan drying ensures rapid drying of printing and improves printing efficiency.
Dual-use of roll and sheet
It can print rolls and sheets, one machine can achieve multiple functions.

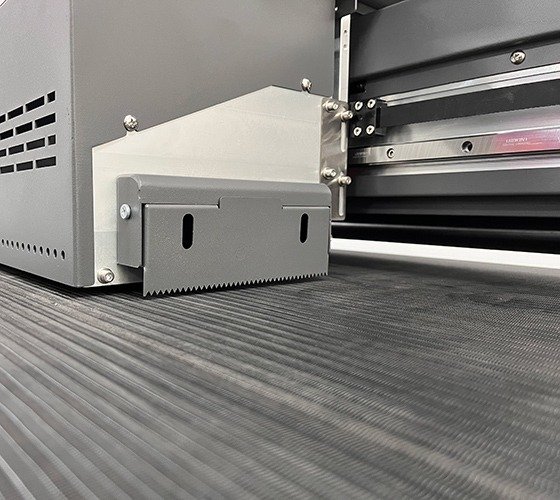

Double rail lifting trolley frame
Prevents the frame from collision as well as physically protect the printhead from damage.
Take up and feed up system
Equipped with an industrial grade strong take up and feed up system provide high-efficiency printing.
Elevating aluminum capping system
Automatic cleaning and moisturizing printhead as well as protecting the printhead from damage.

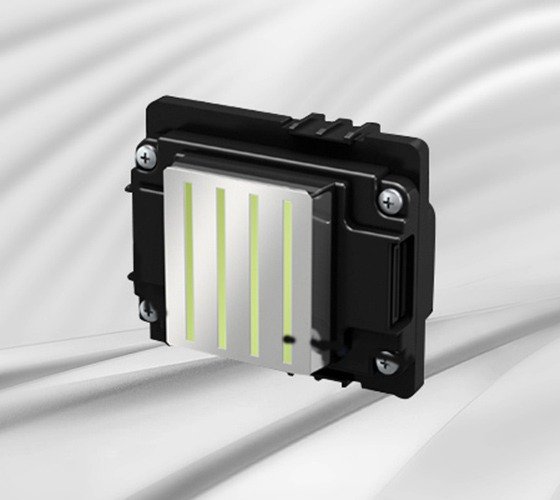

EPSON original printheads
6 EPSON original I3200 printheads, with high-precision and fast printing capabilities.

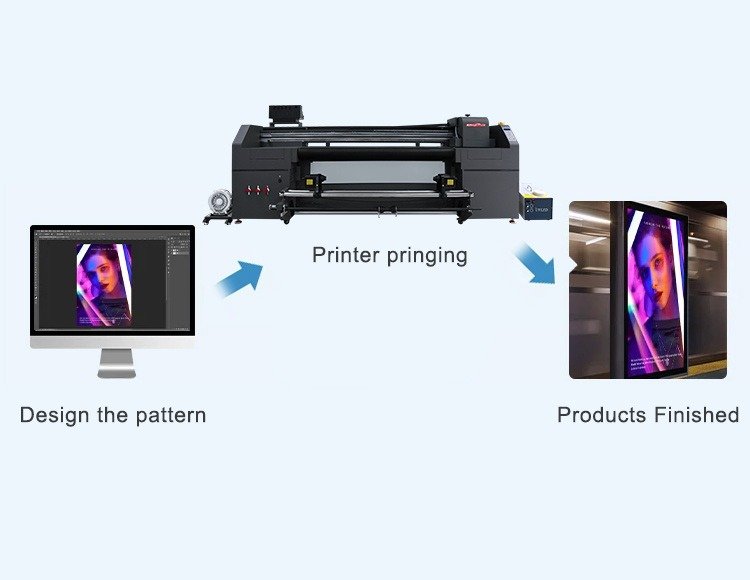

PI-1806D UV hybrid printer Printing process
Product Specification
| Product | UV Hybrid Printer |
|---|---|
| Model | PI-1806DUV |
| Printhead | 6 × EPSON I3200-U1 |
| Printing Speed | 15–54 m²/h |
| Max Media Width | 1850 mm |
| Max Print Width | 1800 mm |
| Platform Width | 500 mm |
| Printhead Height | Adjustable 2–30 mm Above Media |
| Ink Type | UV Ink |
| Color | CMYK / CMYK + W / CMYK + W + V |
| Media Type | Roll and sheet materials suitable for the leather industry, home decoration industry, and advertising industry, including leather, KT board, wallpaper, soft film, car stickers, PVC film, and more. |
| Curing System | UV LED Water-Cooling Curing System |
| Media Adsorption | Adjustable Suction Air |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| Optional Devices | Front & Rear Table, Positioning Pole, Auto Height Adjustment, Electrostatic Rod, Air Expansion Shaft |
| Feed & Take-up System | Industrial-Grade Heavy-Duty Take-up & Feed System |
| RIP Software | Maintop, Photoprint, ONYX (Optional) |
| Operating System | Windows XP / Windows 7 / Windows 10 |
| Working Environment | Temperature: 18–32°C | Humidity: 46–65% |
| Machine Size | 3540 × 1500 × 1600 mm, 750 kg |
| Packing Size | 3900 × 1150 × 1550 mm, 830 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
6 heads UV hybrid printer Applications
UV hybrid printers break through the limitations of traditional single printing processes and achieve fully compatible production of hard and flexible materials. The EPSON I3200 nozzle can achieve high-precision printing and delicate image quality on the surfaces of materials such as ceramics, metals, glass, wood, wallpaper, soft film, vinyl, PVC, PP/PE plastics, etc. It also supports UV texture painting printing solutions to add texture to murals and background walls, bringing unlimited possibilities to your printing business.
Glass
Ceramic tiles
Wood
Car sticker
Light box
Billboard
FAQ
The printhead used is EPSON I3200-U1 and all of our printhead is original and brand new.
The computer supports winXP, win7, and win10 systems.
Printer with one year guarantee, printheads and consumable parts without guarantee. If you need help, we can provide long-term after-sales service.
Firstly, we provide customers with one-to-one technical support and one-to-one after-sales service. such as, If you don’t know how to install the machine, or if you encounter some problems when printing, we will set up a WhatsApp group or WeChat group, then invite our professional technicians to the group, and they will guide you how to install the machine and give professional solutions to your problems in time.
Pictel PI-1806D UV hybrid printer is a combination of roll-to-roll advertising machine and UV flatbed machine. It can be used for both rolling and printing of leather, KT board, car stickers, PVC soft film, etc.
The maximum printing width is 1800mm.
Yes, the machine can stop working for a long time, but the printhead needs to be moisturized and cleaned according to the machine maintenance manual to prevent ink from clogging the printhead.
