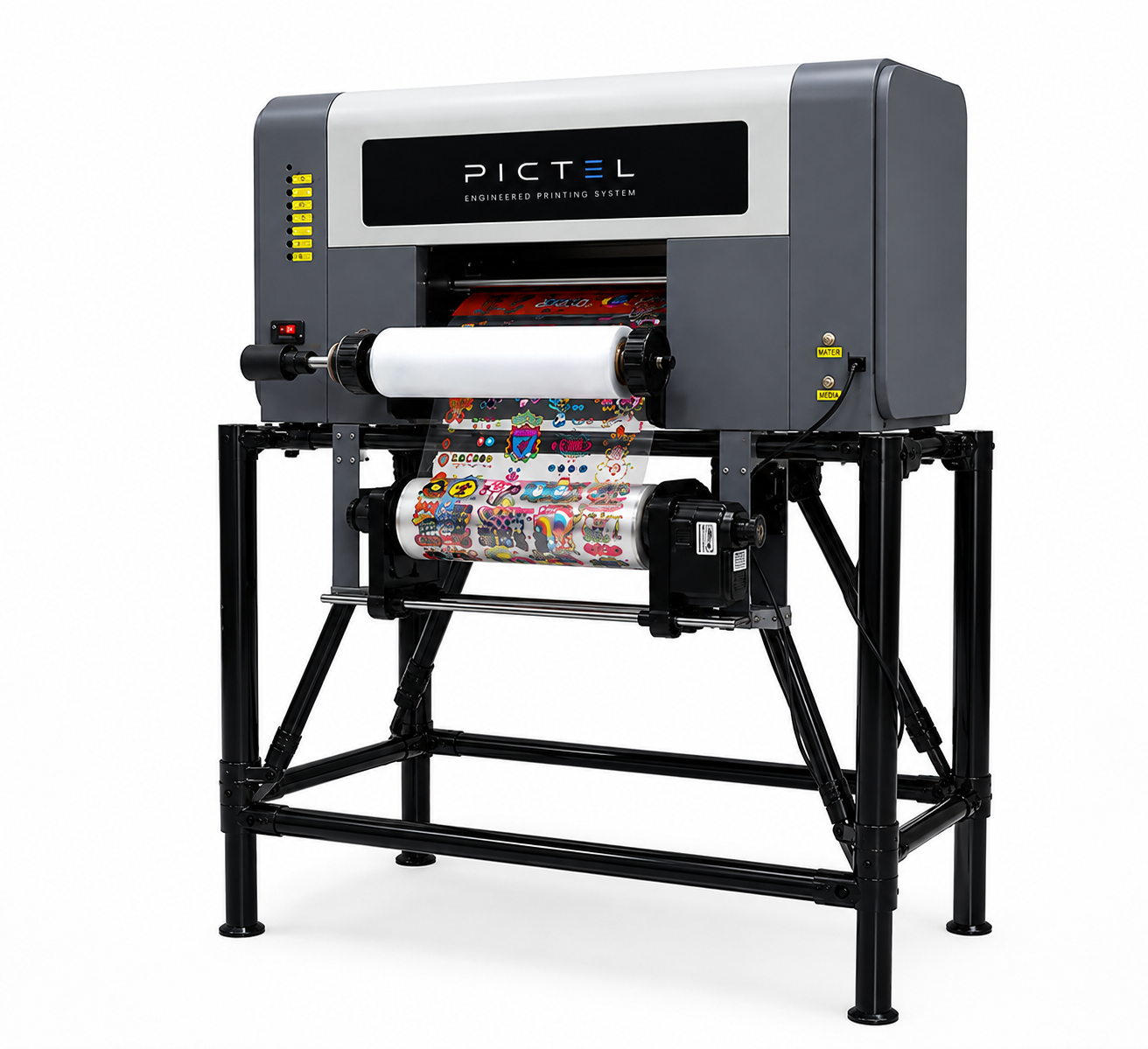

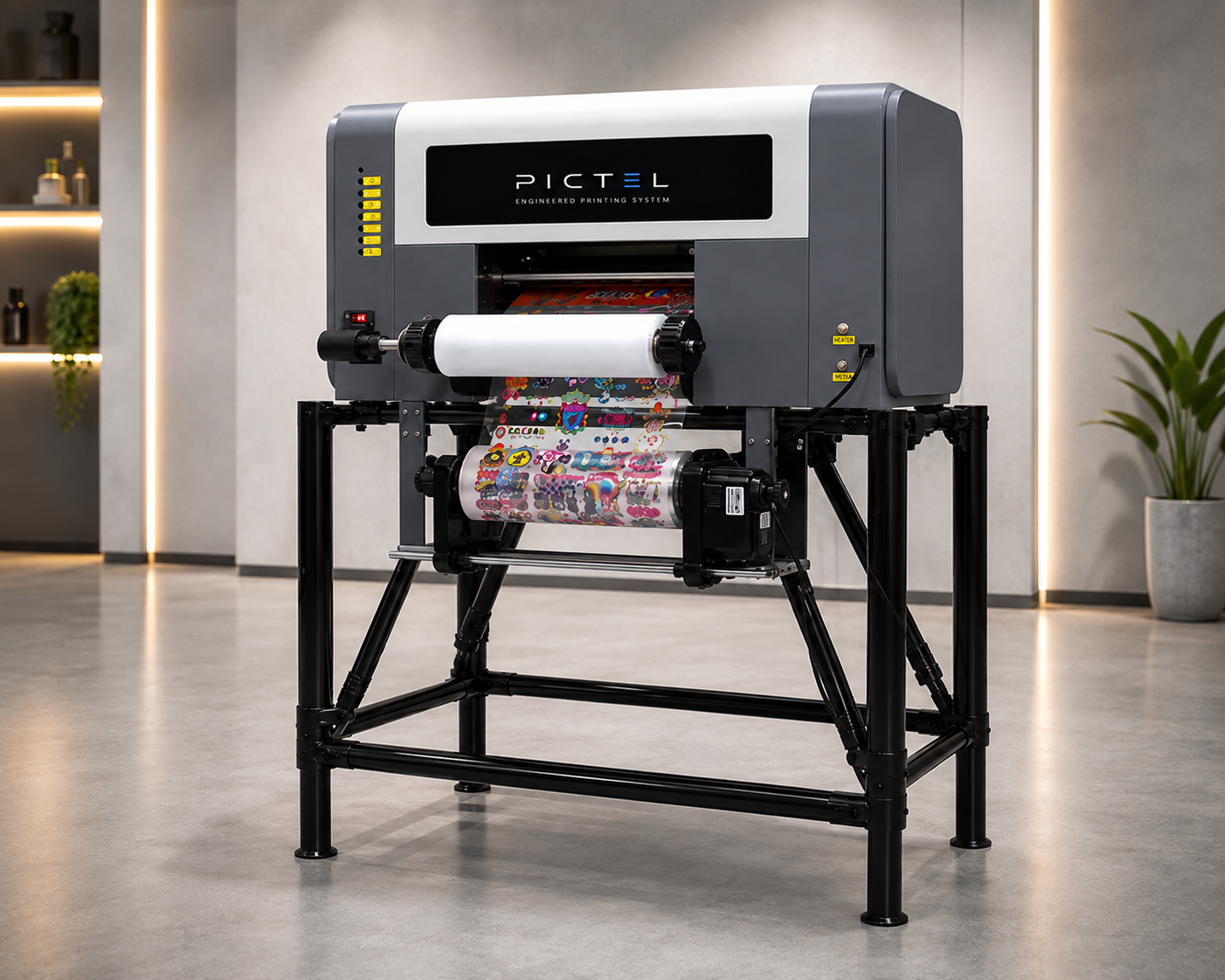

PI-300HD A3 UV DTF Printer
Entry-level desktop roll-to-roll A3 UV DTF printer, lightweight design, low initial investment cost, perfect for novice users or small business DIY use, widely used in ceramic mugs, glass, acrylic, leather, metal, plastic, gift packing boxes, and other materials.
Main Features:
- A3 size printing width
- 1 × EPSON I3200 U1 HD print head
- Colors: CMYKW + V
- High-resolution output UV sticker with high color saturation.
- Printing and laminating all in one, user-friendly.
- Compact desktop design, suitable for small custom gift shops with light production.
Technical Specifications:
- Print Head: 1*EPSON I3200-U1 HD
- Printing Width: 300mm (A3)
- Printing Resolution: 720*1800dpi, 720*1200dpi
- Color: CMYKWV, CMYKWCMYKV
- Software: Maintop, Photoprint, Printfactory (optional)
A3 UV DTF Printing. Vibrant Colors. Effortless Customization.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Small A3 UV DTF Printer features

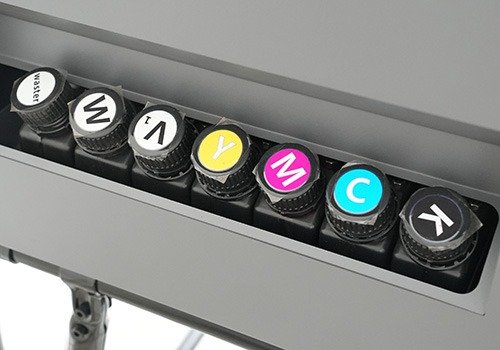

Multiple printing solutions
Supports white varnish, colors white varnish, and realizes double-sided display of color patterns on transparent materials.

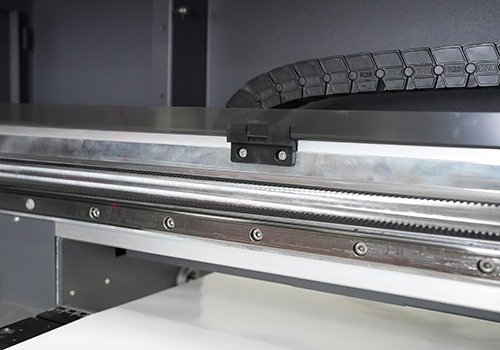

High-precision parts
Adopt high-precision parts to ensure long-term operation and maintain excellent stability and high output quality.

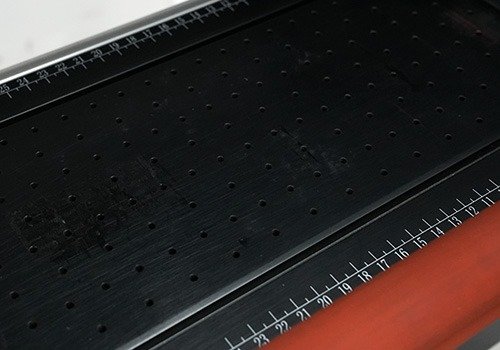

Suction platform
Ensures stable adsorption of the print film, reduces the possibility of slippage and deflection, and protects the printhead.

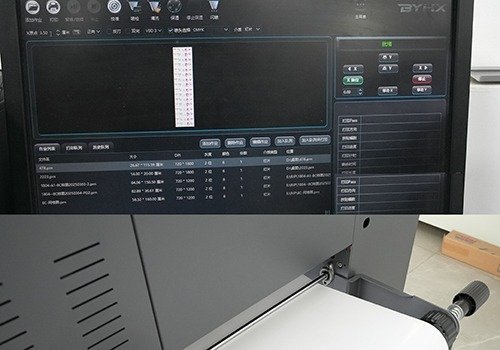

Highly automated
Adopt R&D software, the latest feeder, and an automatic adjustment rod to reduce loading and unloading time and facilitate operation.

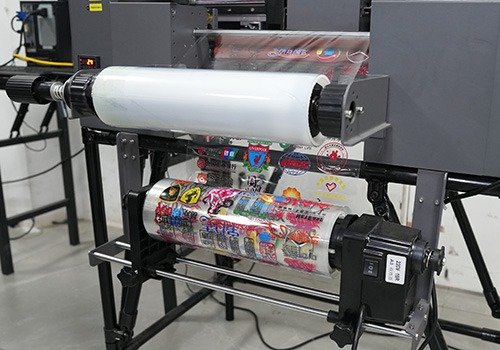

Printing and laminating all in one
It is easy to operate, printing and laminating all in one, has high production efficiency, and can achieve multi-level gradient effects.

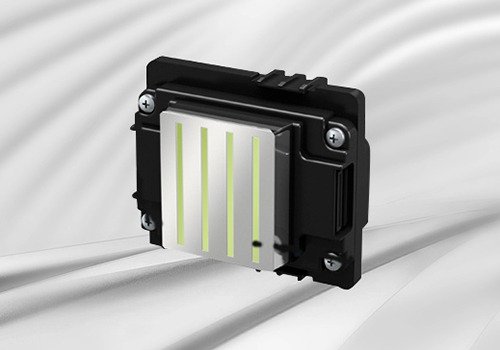

High-resolution EPSON print head
High-precision EPSON i3200 U1 HD new nozzle, high stability, precise stepping, and friendly to novices.

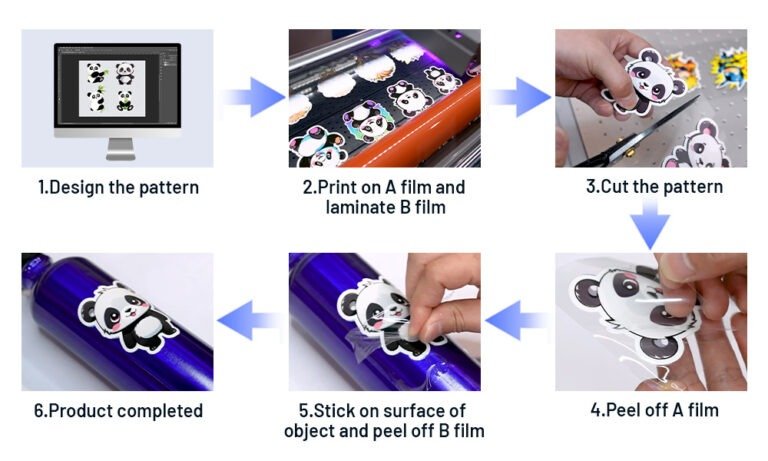

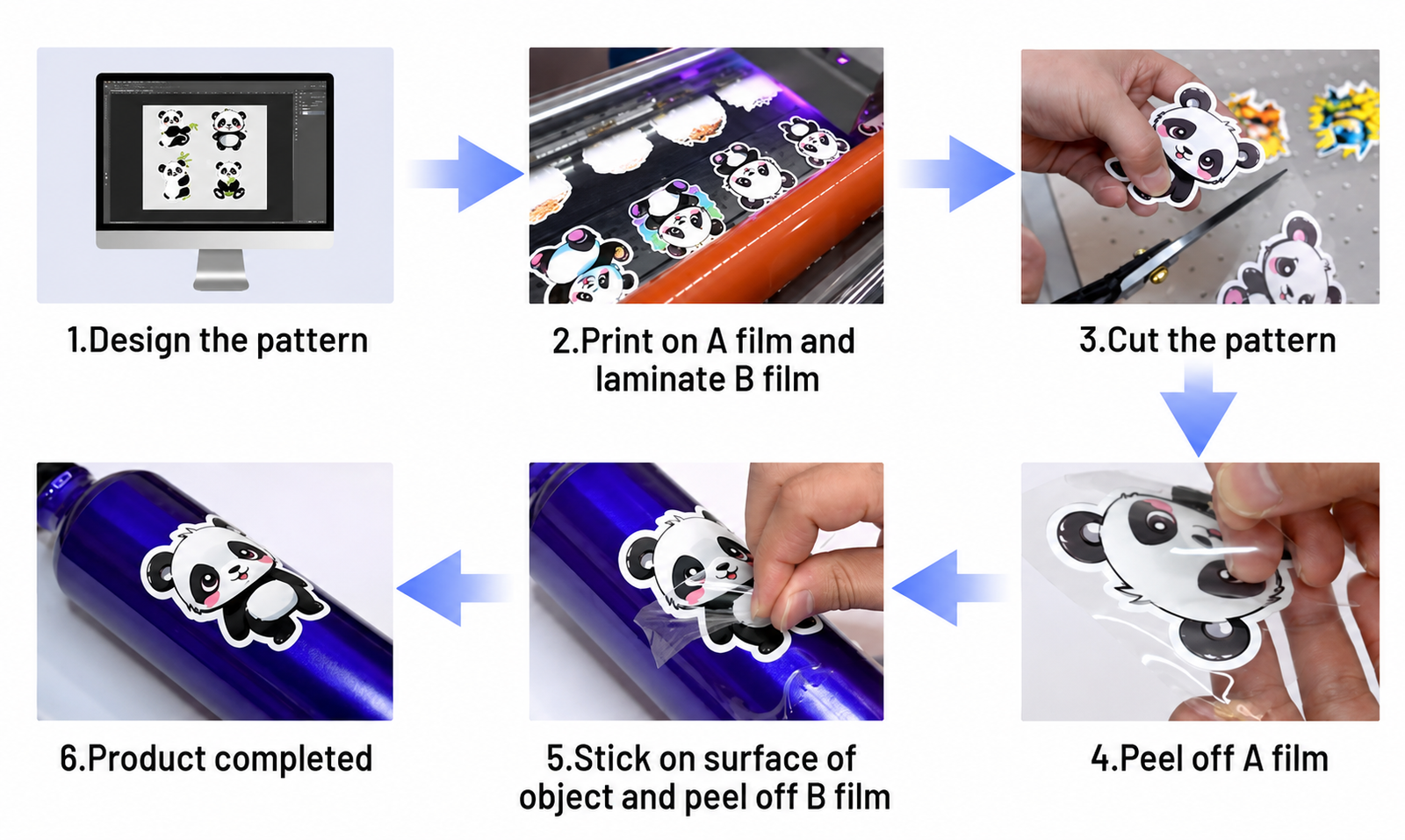

A3 UV DTF Printer Printing Process
Product Specification
| Product | A3 UV DTF Printer |
|---|---|
| Model | PI-300HD |
| Printhead | 1 × EPSON I3200 U1 HD |
| Printing Resolution | 720 × 1800 dpi, 720 × 1200 dpi |
| Printing Speed |
WCMYKV 720 × 1800 dpi: 1.52 m²/h 720 × 1200 dpi: 2.0 m²/h CMYKWCMYKV 720 × 1800 dpi: 1.2 m²/h 720 × 1200 dpi: 1.6 m²/h |
| Printing Width | 300 mm (A3) |
| Ink Color | WCMYK / WCMYKV / CMYKW / WCMYKVV |
| Media Type | AB Film, Label |
| Feeding Model | Roll to Roll |
| Software | Photoprint / PrintFactory / Maintop |
| Capping & Moisturizing | Auto-capping System & Moisturizing System |
| Image Format | TIFF, PSD, PDF |
| Environment | Temperature: 18–35?, Humidity: 50%–80% |
| Power Supply | 220V ±10%, 50/60Hz |
| Machine Size | L890 × W801 × H450 mm |
| Packing Size | L960 × W880 × H540 mm |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Desktop A3 UV DTF Machine Application
Desktop A3 UV DTF printer is a miniaturized printing device that combines UV curing technology and DTF (Direct to Film) technology, suitable for small batch, personalized custom production. Its core advantage is that it is compatible with various soft/hard materials (mobile phone cases, acrylic boards, metal signs, glass ornaments, wooden crafts, etc.), ready to use, and does not require plate making, greatly reducing the cost of customization.

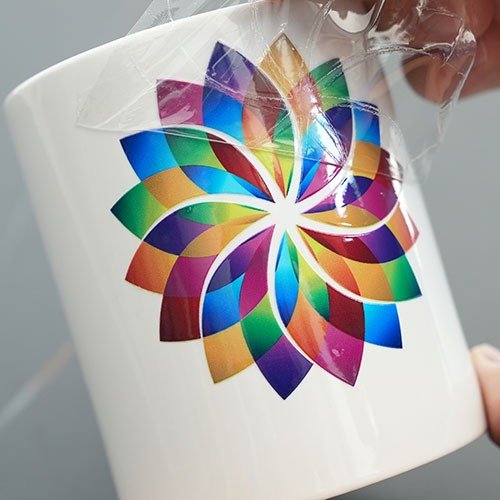

Ceramic mug

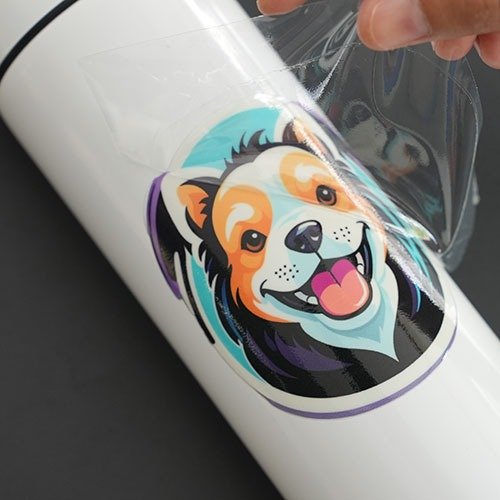

Thermos cup

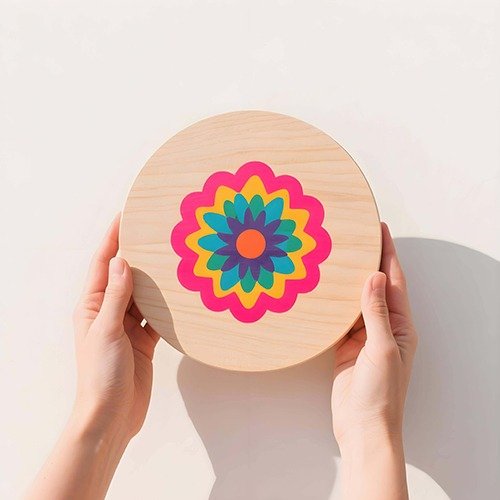

Wood
Plastic

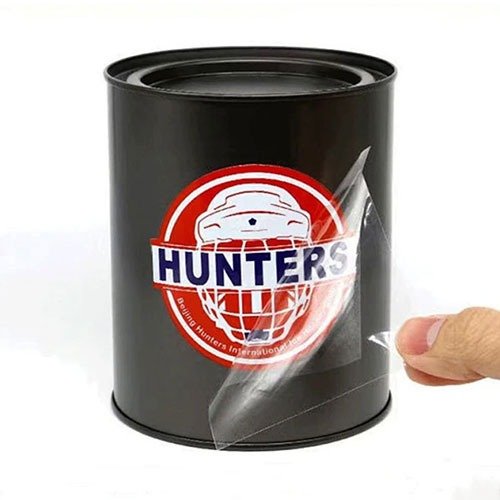

Metal

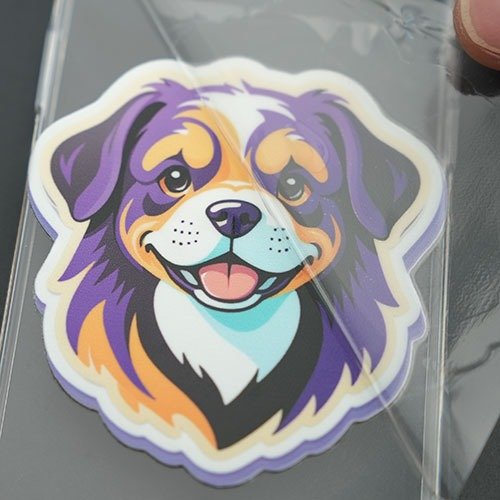

Phone cases
FAQ
No, because the UV DTF printer can quickly cure UV ink through the UV LED lights, making the pattern firmly attached to the surface of the object, scratch resistant and scratch resistant.
Desktop A3 UV DTF sticker printer can print on many different materials (both hard and soft), such as acrylic, metal, glass, wood, PVC, plastic, leather, etc., to meet customers’ diverse customization needs.
