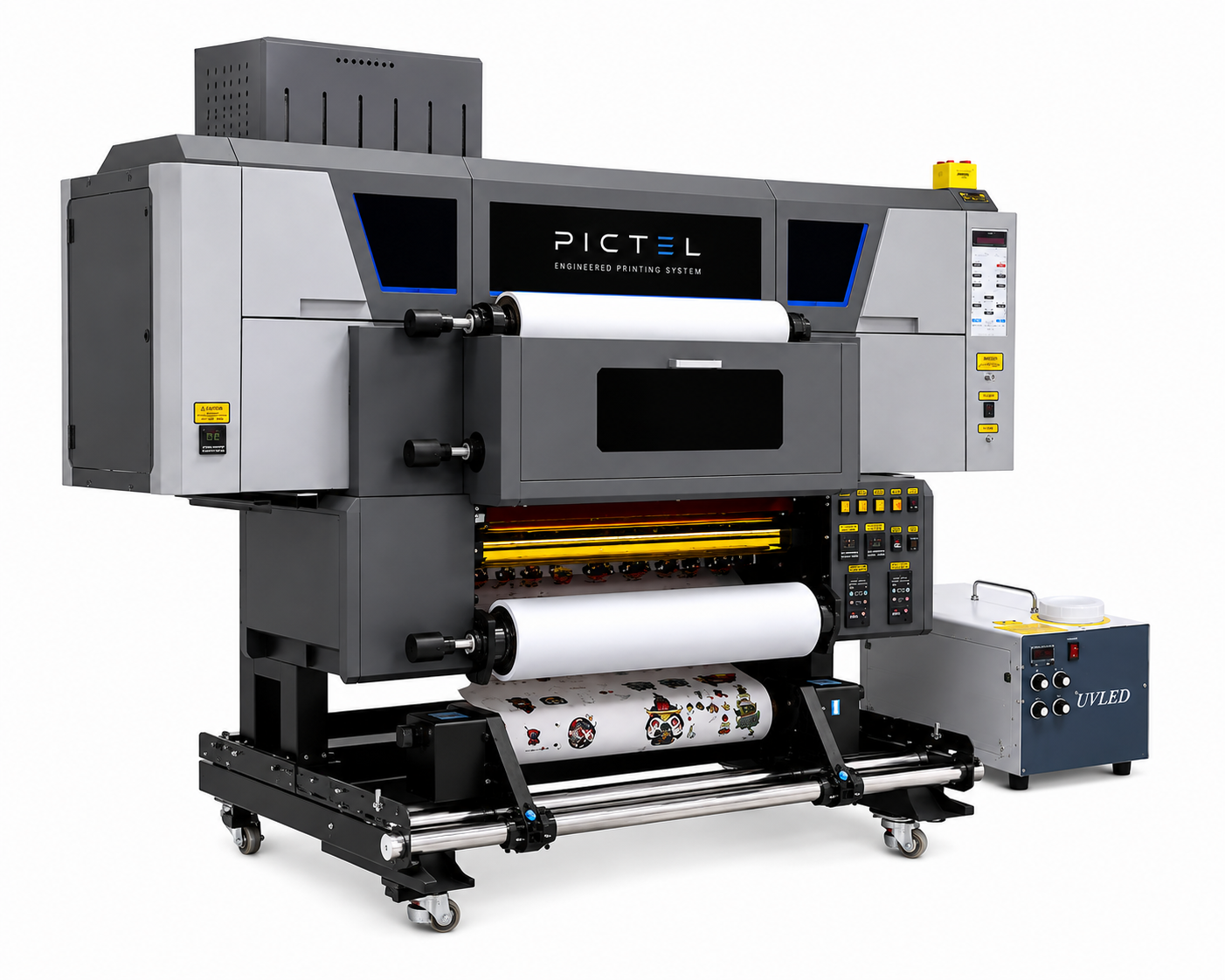

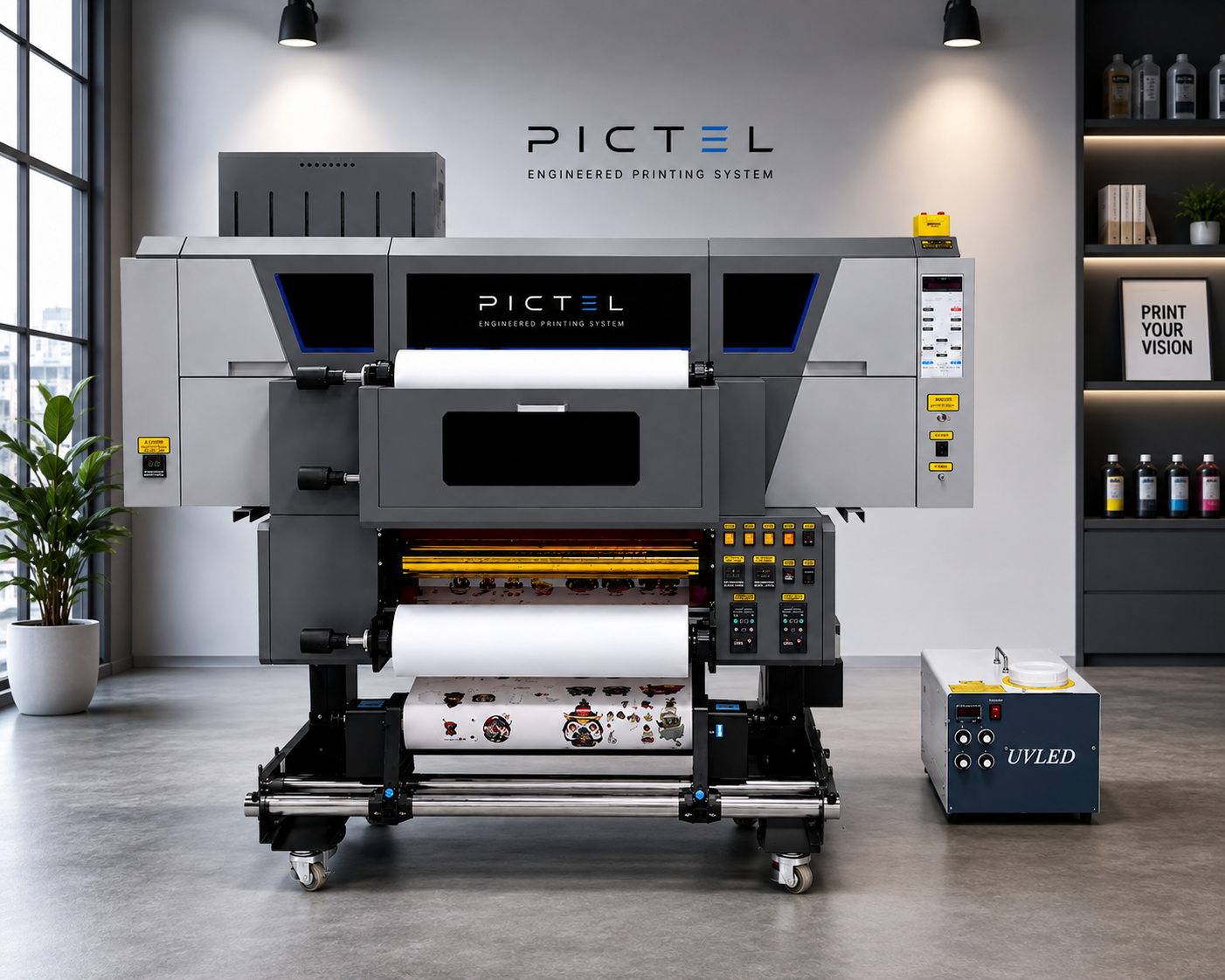

PI-604GUV 24-Inch Gold/Silver Foil UV Sticker Printer
Multifunctional, high-end gold stamping UV DTF Printer, personalized customization cost is lower, showing high gloss and 3D dimensional transfer effect.
Main Features:
- 24-inch printing width
- 4 × EPSON I3200 printheads
- 5 Colors (CMYK+W) + V + gilding varnish
- Low cost of personalized customization.
- All-in-one printing design saves labor and time.
- The special metal texture meets the needs of high-end gift boxes and luxury goods packaging.
Technical Specifications:
- Print head: 4*EPSON I3200-U1
- Printing Speed: 4sqm/h
- Max Print Width: 60cm/24-inch
- Color: CMYK+W+V+gilding varnish
- RIP Software: Maintop, Photoprint
Premium UV Foil Printing. Gold & Silver Brilliance. Built for High-End Packaging.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Silver/Gold foil UV DTF Sticker Printer Features
3D Dimensional visual effects
Four i3200 printheads, CMYK+W+V+gilding varnish printing, bright colors, showing bling-bling visual effects.

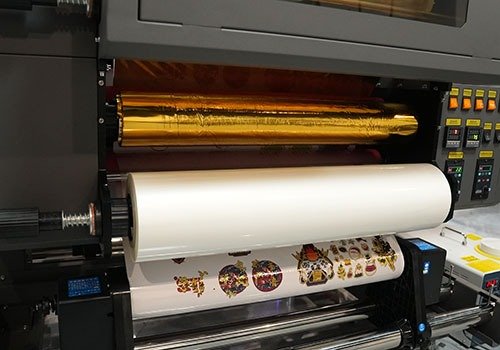

Automatic laminating and peeling
Fully automatic laminating and peeling off the waste film and gold foil, as well as removing glue, save time and labor.

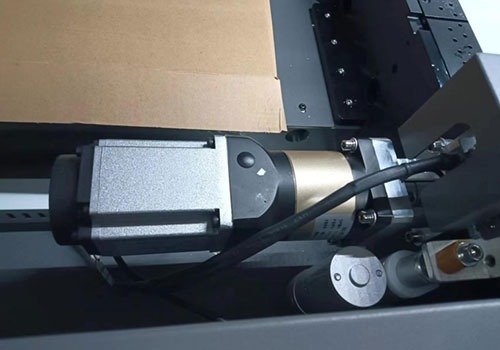

More stable printing
Equipped with a front stepper motor, double the power than ordinary printers, good pulling force, and more stable stepping.

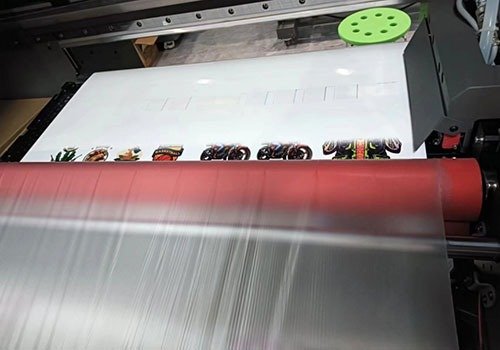

Uniform lamination
The heating rod heats evenly, making the product lamination uniform, and greatly improving the printing speed.

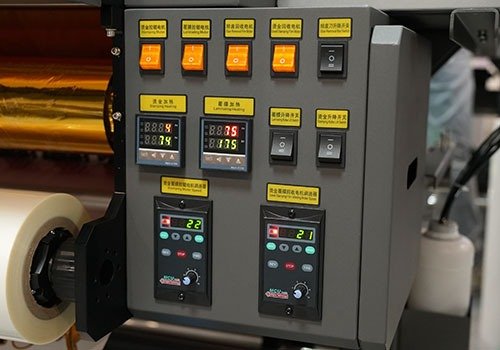

Convenient operation
The intuitive control panel and button logo for hot stamping and waste film discharge make operation easier.

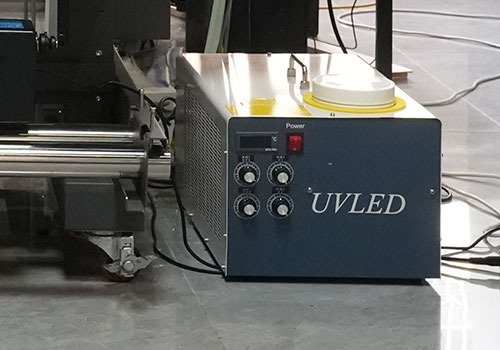

Efficient curing
It is equipped with UV lamp + UV water cooling system to achieve more efficient and high-quality curing.

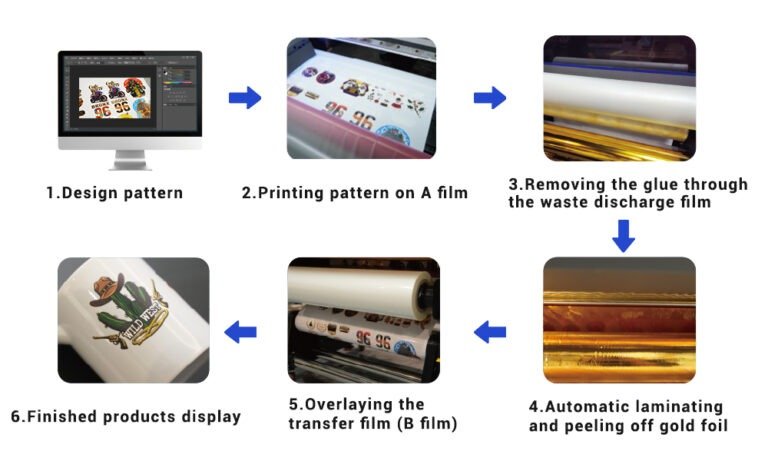

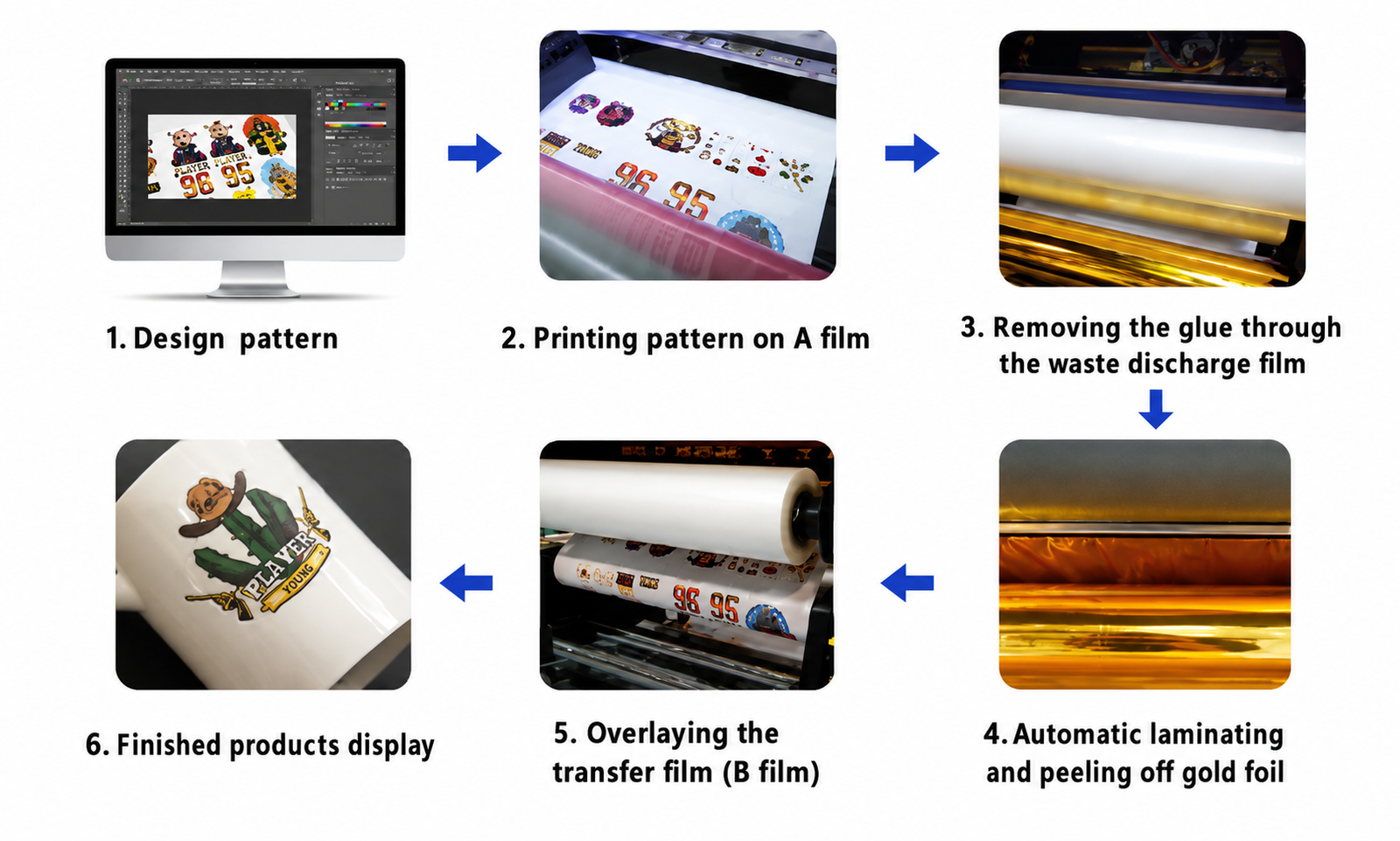

PI-604GUV gold stamping UV DTF Printer Printing process
Product Specification
| Product | PI-604GUV Gold Stamping UV DTF Printer |
|---|---|
| Model | PI-604GUV |
| Printhead | 4 × EPSON I3200-U1 |
| Printing Speed | 4 m²/h |
| Quality Mode | 2 m²/h |
| Max Print Width | 600 mm |
| Color | CMYK + W + V + Gilding Varnish |
| Ink Type | UV Ink |
| Ink Supply System | White Ink Stirring |
| Media Type | UV DTF AB Film, Waste Discharge Film, and Gold Foil |
| Curing System | UV LED Curing System |
| Lamination System | Integrated Gold Stamping, Waste Discharging, and Laminating System |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint |
| Input Power | AC 110V / 220V, 50Hz / 60Hz |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size | 1900 × 850 × 1420 mm, 360 kg |
| Machine Packing Size | 2140 × 1160 × 1620 mm, 400 kg, 4.294 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
PI-604GUV Gold foil UV DTF Printer Applications
PI-604GUV gold stamping UV DTF Printer can be transferred on various irregular surfaces, especially suitable for special personalized packaging product design, showing 3D dimensional visual effects, making the product more attractive, at the same time, scratch-resistant, the use of more durable. Widely used on glass, metal, acrylic, ceramics, plastics, wood, and other materials.

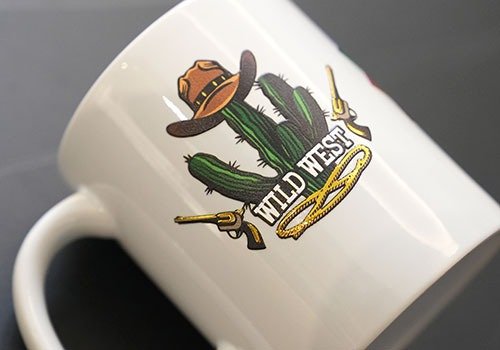

Ceramics

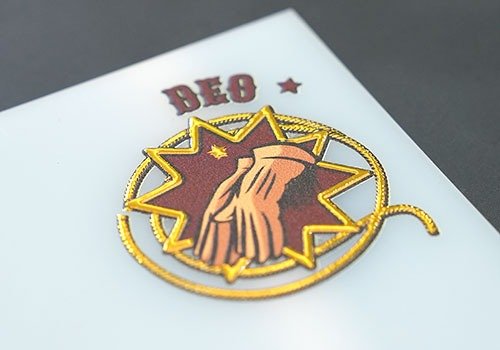

Acrylic

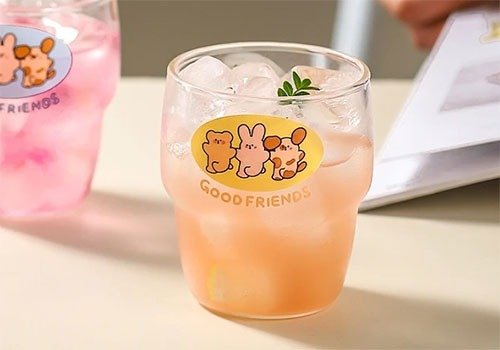

Glass
Plastic
Gift box

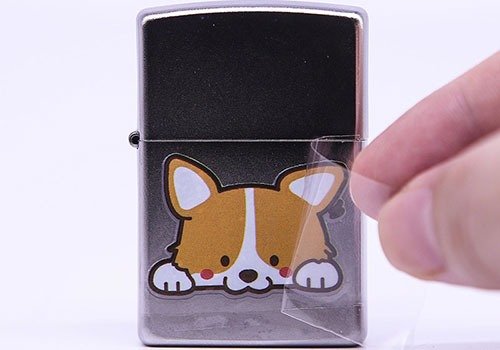

Metal
FAQ
The integrated foil stamping UV DTF sticker printer automatically laminates and peels off the waste film and gold foil during the printing process, without manual operation, saving time and effort.
In addition, after peeling off the waste film to remove the glue, the application range is wider and can meet various creative packaging designs.
For a more detailed product introduction, you can check out the article: What is an All-in-One Gold Stamping Foil UV Sticker Printer?
UV DTF printing is unsuitable for printing directly on fabrics such as T-shirts. Because the UV ink used in UV DTF printing does not adhere well to the fabric fibers, it may peel or crack over time.
If you need to print T-shirts, you can choose a professional T-shirt printer such as DTF printer or DTG printer, which KingJet provides.
UV DTF printers use special UV inks, and the printed patterns have good scratch resistance, light resistance, and water resistance, so the patterns can remain stable and durable for a long time.
UV DTF is more suitable for transfer printing on various hard surfaces, while DTF is good at printing on textile soft surfaces such as T-shirts and hoodies.
UV DTF printers mainly use UV ink and AB film, while DTF printers use DTF film, DTF powder, and DTF ink.
UV DTF printers rely on UV light and integrated lamination technology, while DTF printers require powder and oven drying.
For a more detailed product comparison, you can check out this article: DTF vs UV DTF printer.
