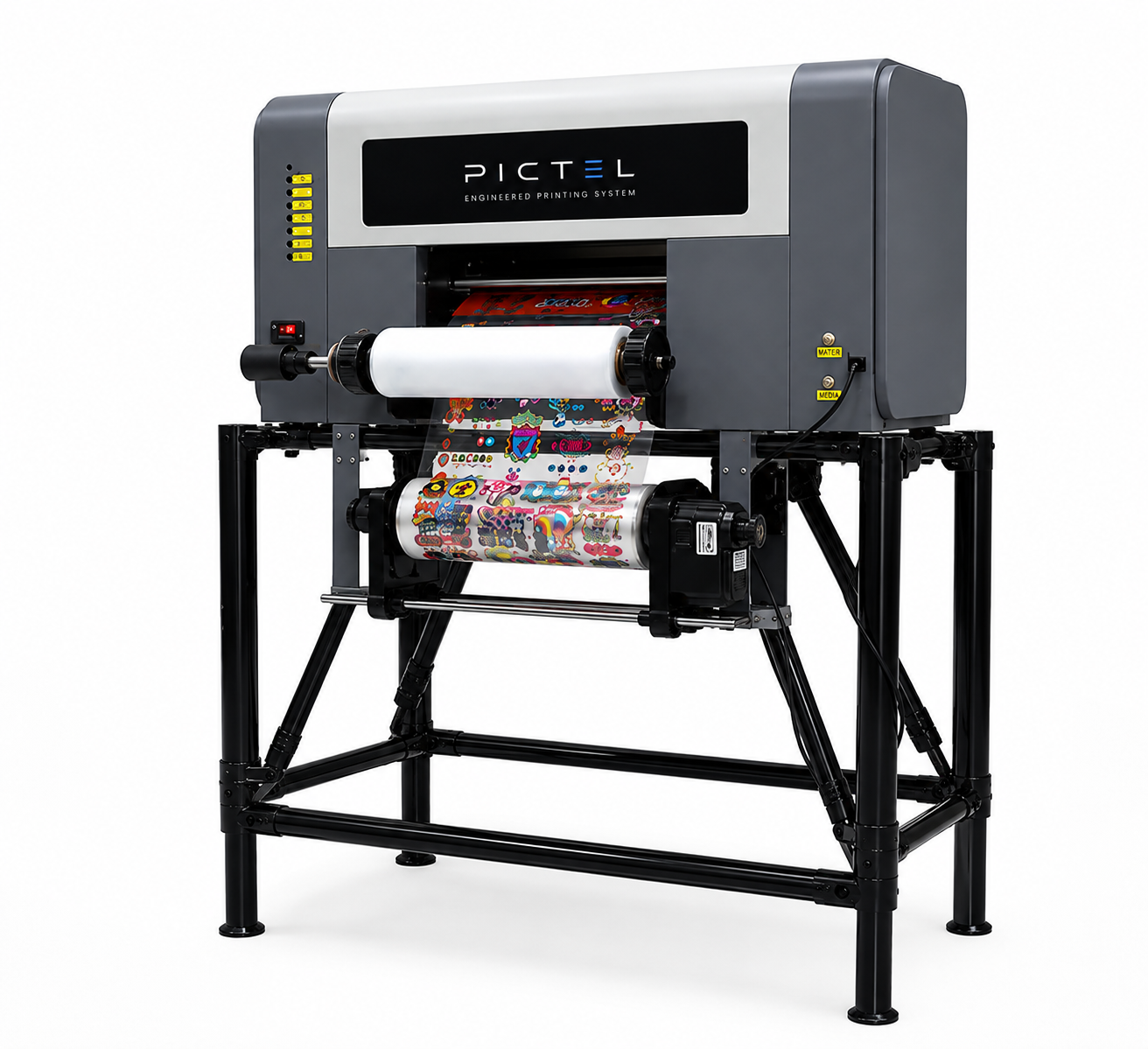

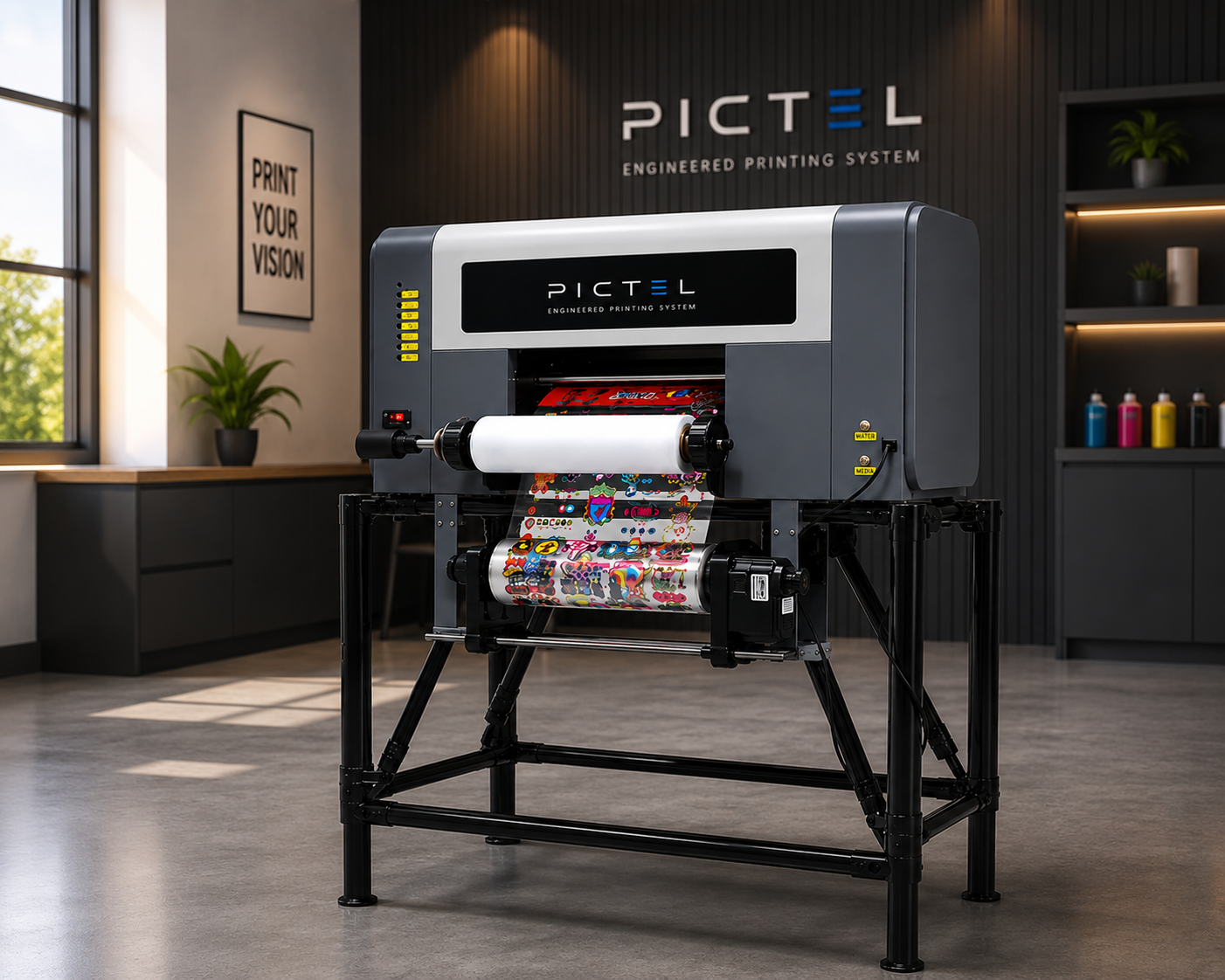

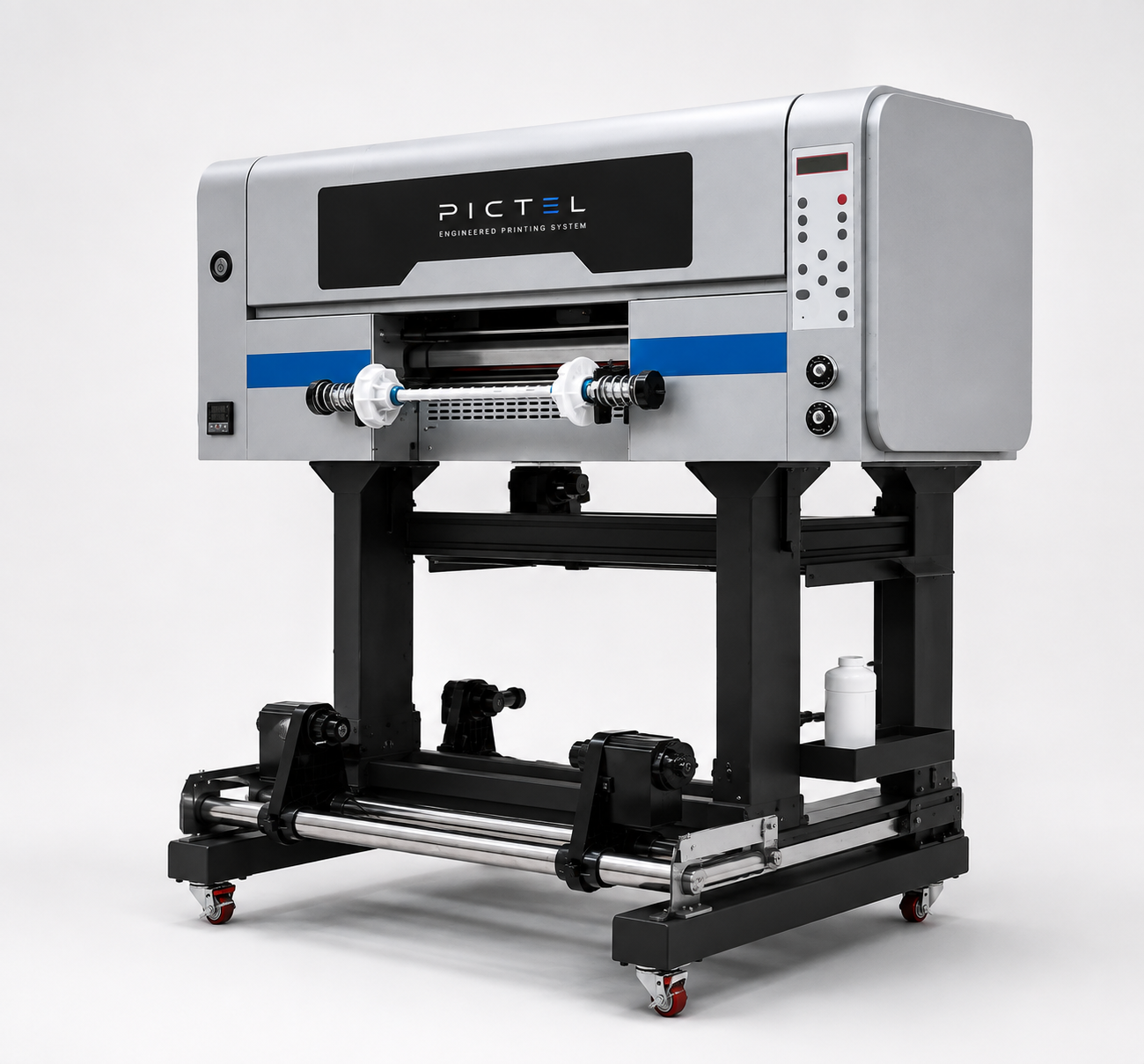

PI-300LUV 3D Embroidery UV Printer For Fabric
PI-300LUV A3 UV DTF Machine is an innovative textile faux embroidery printer, the printing effect is as good as traditional embroidery, bringing uniqueness and visual appeal to your various embroidered items.
Main Features:
- A3/30cm printing width
- 1 × EPSON DX7 Head / 2 × XP600 Head
- 5 Colors (CMYK+W)
- 3D embossed visual effect, good touch.
- Simple process and has low production cost compared to traditional embroidery.
- Flexible design, easy to imitate embroidery complex patterns.
Technical Specifications:
- Printhead: EPSON DX7/XP600
- Printhead QTY: 1*EPSON DX7 or 2*EPSON XP600
- DX7 Head Printing Speed: 8pass: 1.6 sqm/h; 16pass: 0.8 sqm/h
- XP600 Head Printing Speed: 1.3 sqm/h
- Max Printing Width: 300mm (A3 size)
- Color: CMYK+W
- RIP Software: Maintop, Photoprint
Innovative 3D UV Printing. Realistic Embroidery Effects. Unlimited Design Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-300LUV 3D Embroidery Machine Features
Exquisite imitation embroidery pattern
UV printing can achieve high-quality imitation embroidery patterns with realistic visual effects, a three-dimensional touch, and rich colors.

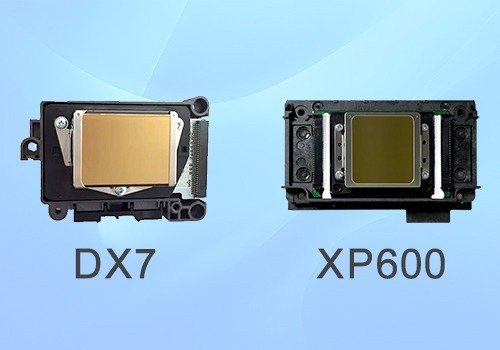

EPSON DX7 and XP600 printhead
Equipped with EPSON DX7 and XP600 print heads, cost-effective and suitable for start-ups.

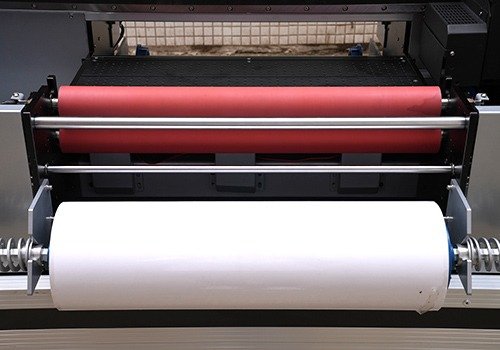

Fully automatic lamination system
Automatic lamination during the printing process, reducing manual operation, convenient and efficient printing.

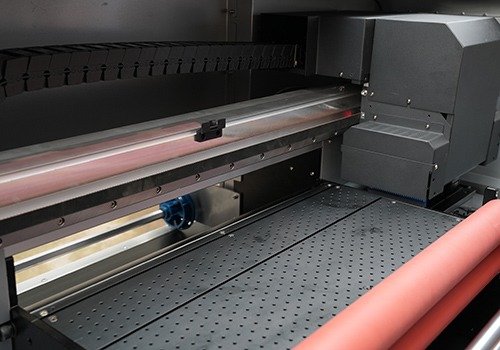

suction platform
Fix the material to ensure smooth printing and protect the nozzle from damage.

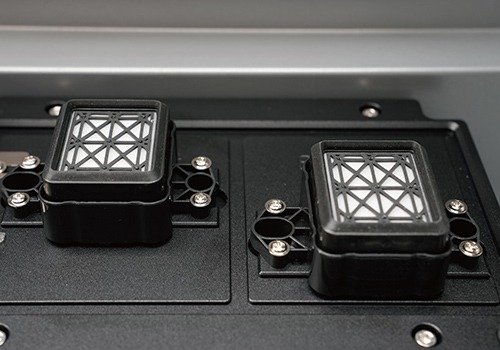

Automatic cleaning
Elevating the aluminum capping system can automatically clean the print head to prevent ink precipitation or clogging.

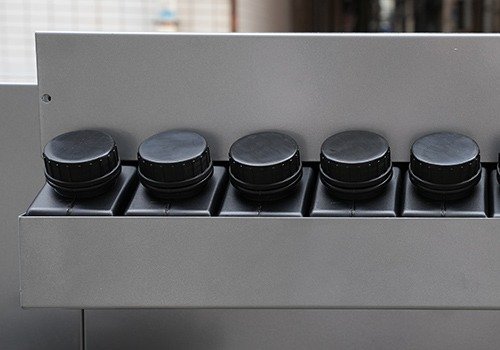

Continuous ink supply system
The white ink mixing system and ink shortage warning system can ensure a continuous ink supply, reducing nozzle clogging and maintenance.

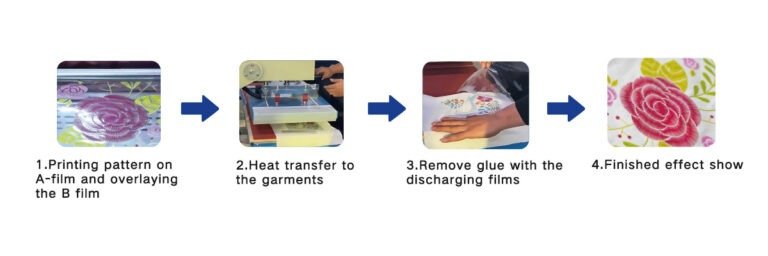

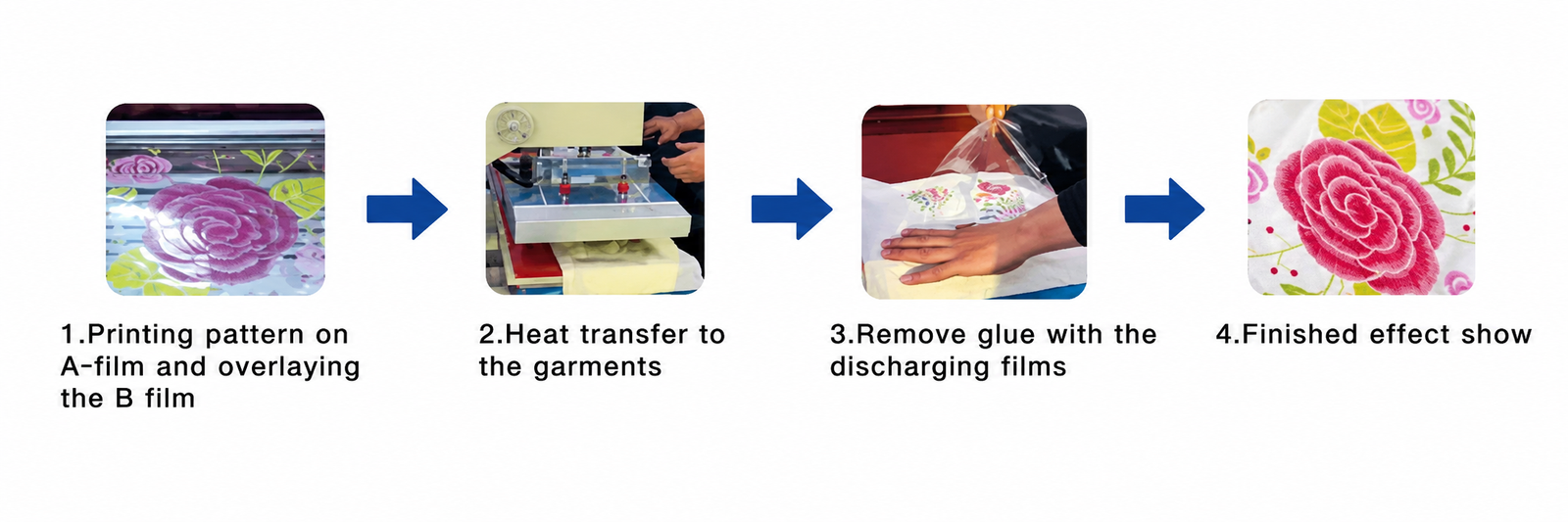

A3 UV DTF Machine Imitation embroidery Printing process
Product Specification
| Product | PI-300LUV 3D Effect UV Printer |
|---|---|
| Model | PI-300 LUV |
| Printhead | 1 × EPSON DX7 / 2 × EPSON XP600 |
| 1 × EPSON DX7 Printing Speed |
8 Pass: 1.6 m²/h 16 Pass: 0.8 m²/h |
| 2 × EPSON XP600 Printing Speed | 1.3 m²/h |
| Max Printing Width | 300 mm (A3 Size) |
| Color | CMYK + W |
| Ink Type | Special UV Ink |
| Ink Supply System | White Ink Stirring |
| Media Type | Special UV DTF AB Film, Waste Discharging Film |
| Application | All kinds of fabrics, leather, shoe materials, etc., can withstand high temperatures and adhere to sticky object surfaces. |
| Curing System | UV LED Curing System |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint |
| Input Power | AC 110V / 220V, 50Hz / 60Hz |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size | 1050 × 700 × 600 mm, 85 kg |
| Packing Size | 1220 × 750 × 650 mm, 115 kg, 0.6 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
A3 UV DTF Machine Imitation embroidery Applications
3D effect UV DTF printing machine has completely changed textile printing: 3D embroidery effect can be printed directly on fabrics. Compared with traditional printing methods such as screen printing, heat transfer, embroidery, etc., the UV DTF 3D sticker printing machine is faster, more accurate, and of better quality. It mainly uses a double-layer heat transfer machine to heat press the pattern twice. It can be applied to fabrics that do not need to be washed for a long time, such as flags, leather, scarves, shoes, etc., with bright colors, good imitation embroidery feel, and high-end texture of the pattern.
FAQ
1. Different configurations of the machine
The UV lamp is different, and the ink path is different, but the appearance of the machine is the same.
2. Different application range
UV DTF printer can be applied to various types of materials, such as glass, metal, acrylic, plastic, ceramic, etc.
textile faux embroidery UV printer is mainly applied to textile fabrics with less washing, such as flags, leather, etc. It is durable and long-lasting, and the embroidery pattern has a strong texture.
No, it is very simple. After the pattern is printed, you only need to use a double-layer heat press machine to heat press the pattern twice to complete the embroidery pattern.
It is not recommended because the printing principles and configurations of the two machines are different, which may cause machine failure.
