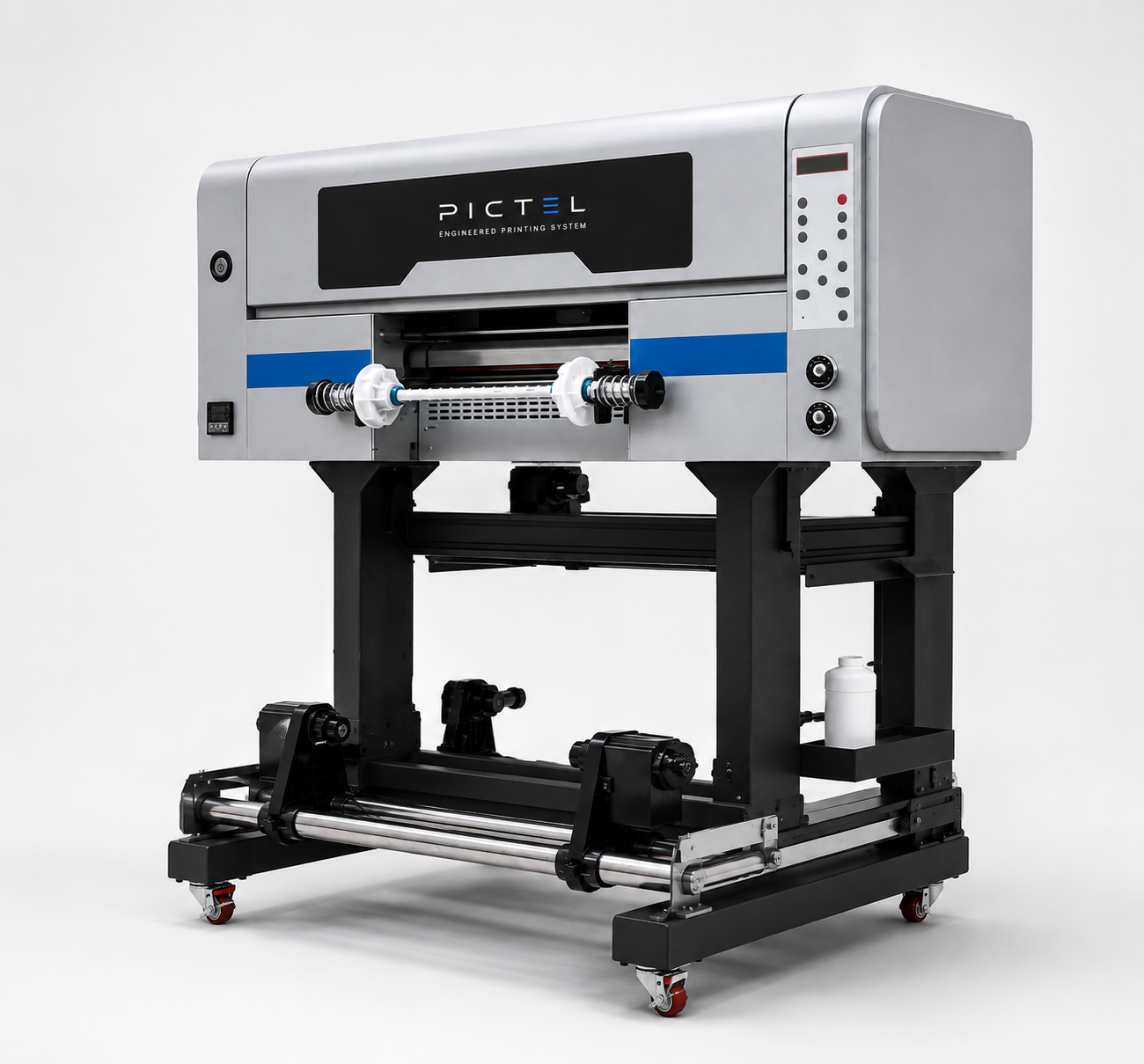

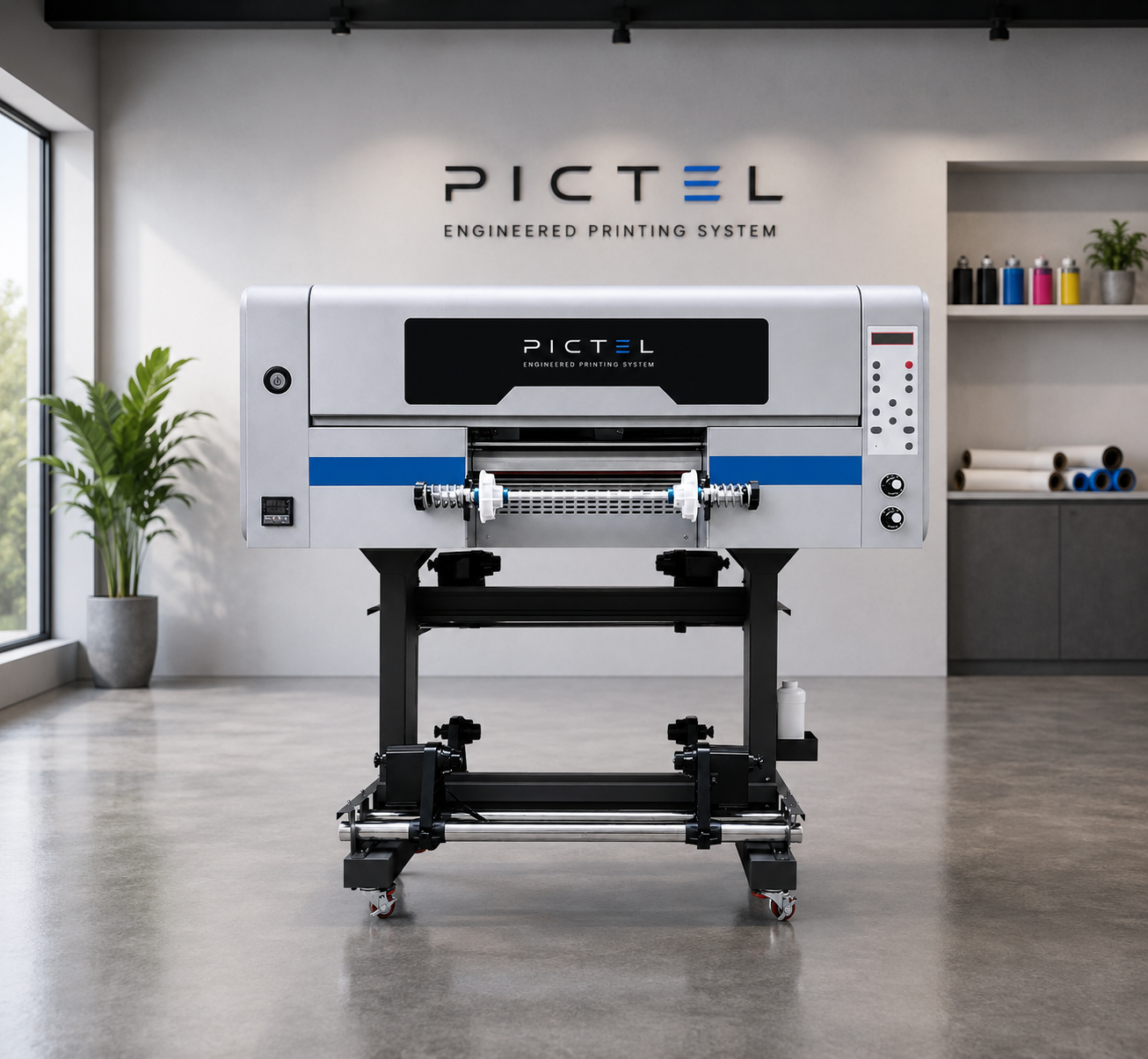

PI-300UV 12-Inch UV Sticker Printing Machine
12-inch UV DTF sticker printer perfectly transfers various patterns on flat, curved, or irregular objects and supports printing personalized products for more competitive production.
Main Features:
- 30cm/A2 printing width
- 2/3 × EPSON XP600/I1600 printheads.
- 5 Colors (CMYK+W) + varnish
- Fully automatic laminating system, easy to operate.
- Small body, space-saving, highly cost-effective.
- Suitable for start-ups to print gifts, mugs, phone cases, etc.
Technical Specifications:
- PI-300UV Print Width: 300mm (A3)
- PI-300UV Printhead: 2/3 * XP600 heads, 2*I1600-U1 heads optional
- PI-300UV Printing Speed: 2*XP600: 2.5sqm/h; 3*XP600: 3.5sqm/h; 2*I1600: 3sqm/h
- PI-400UV Print Width: 400mm (A2)
- PI-400UV Printhead: 2/3 * I1600-U1 heads optional
- PI-400UV Printing Speed: 2*I1600: 3sqm/h; 3*I1600: 4sqm/h
- Color: CMYK+W+V
- RIP Software: Maintop, Photoprint (optional)
PI-300UV 12-Inch UV Sticker Printer. Compact Design. Brilliant Transfers. Endless Creativity.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
UV DTF sticker printer Features

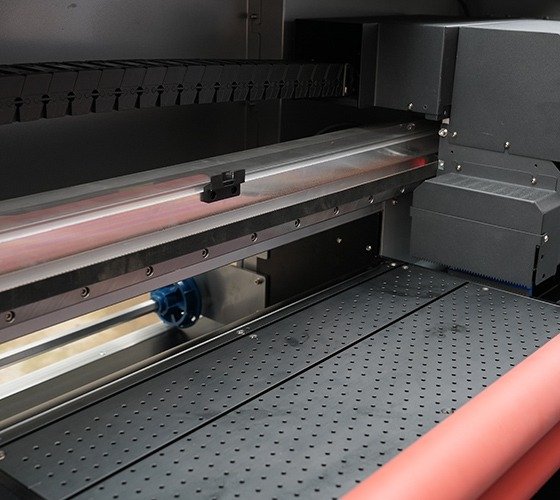

High Performance
The self-developed suction platform can fix the material during the printing process to ensure stable printing.

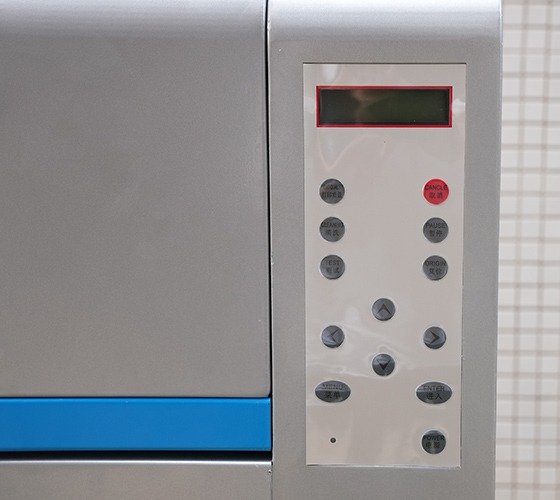

Intelligent operation
Clear operation page enables one-click operation of each printing process, making printing more convenient.

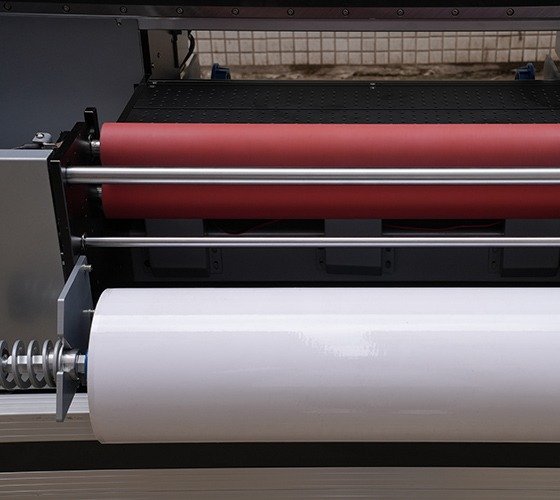

Integrated settings

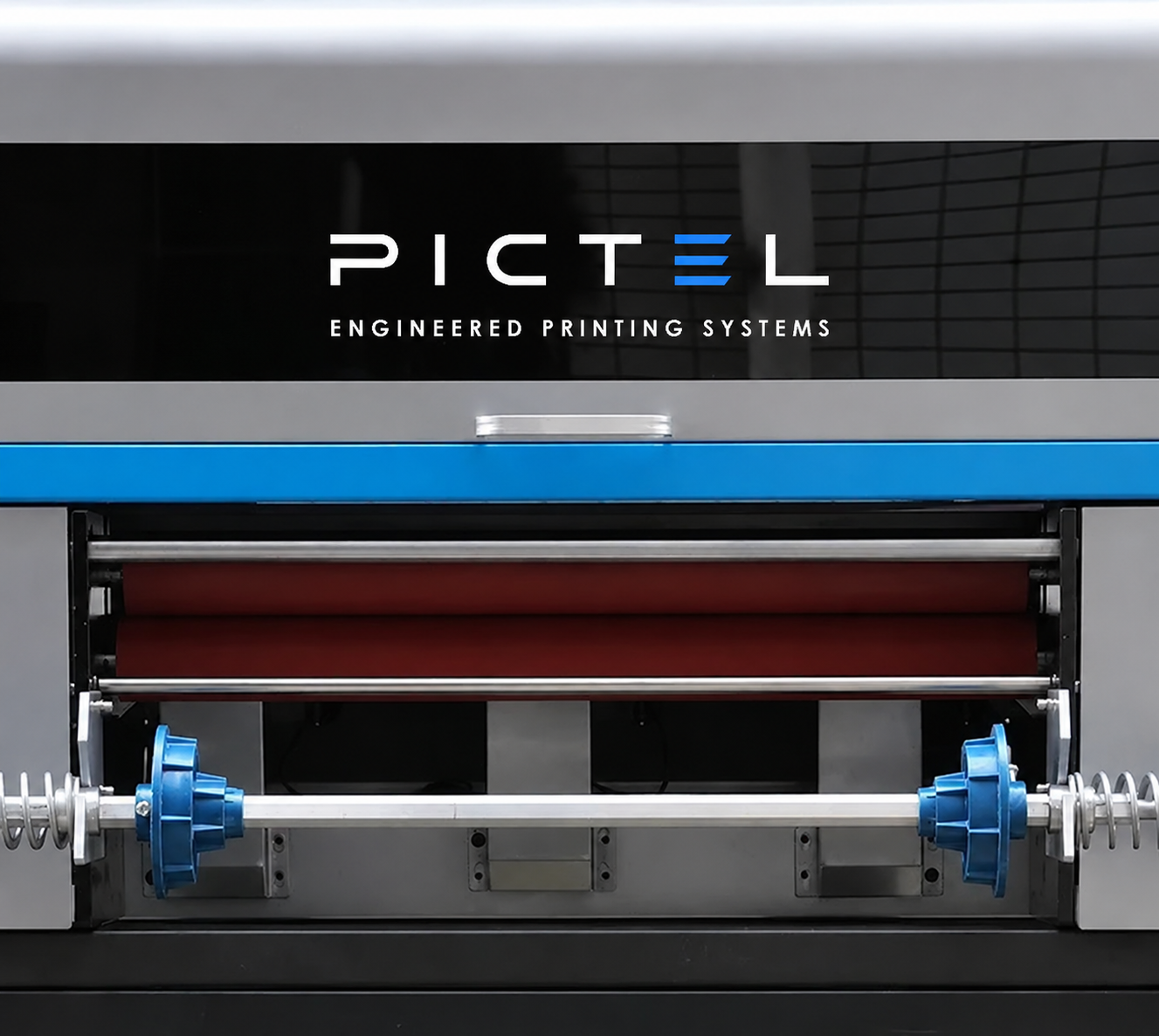

Equipped with an integrated film rolling, tearing and laminating system, it improves laminating speed and producting efficiency.

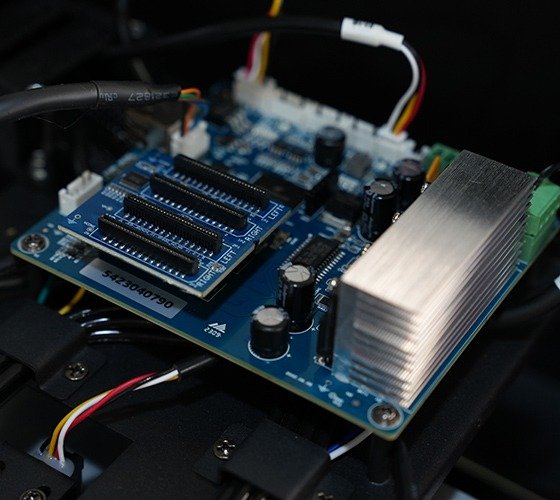

RIP software
Use RIP software for image processing and optimization, correcting and managing colors to ensure higher quality.

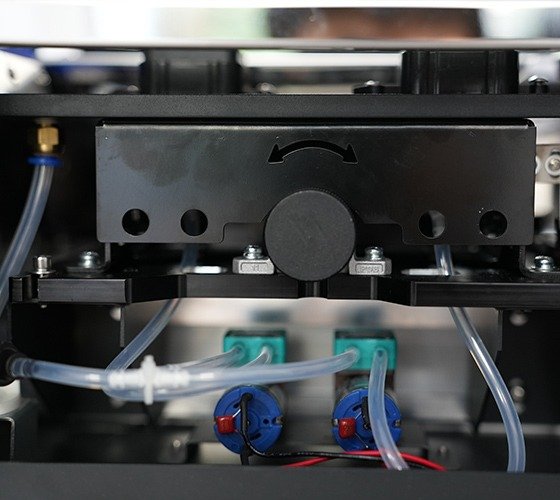

Automatic cleaning system
No manual cleaning is required, and ink residue and clogging problems are avoided.

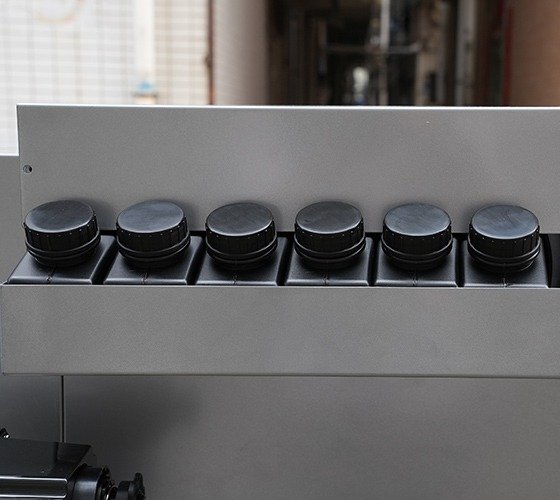

white Ink Supply System
The white ink is continuously circulated and stirred to avoid nozzle clogging.

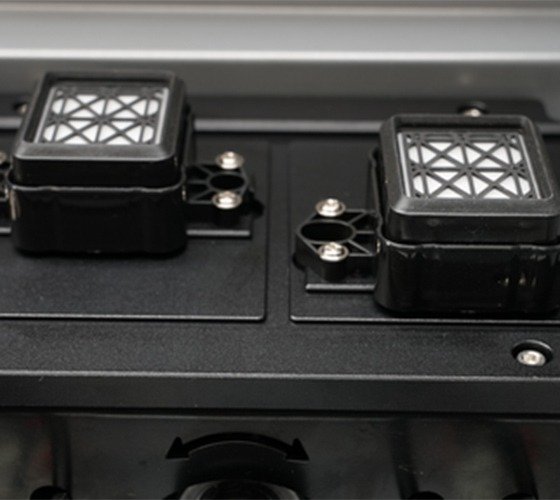

Elevating aluminum capping system
Precisely control the position of the nozzle to protect the nozzle from damage.

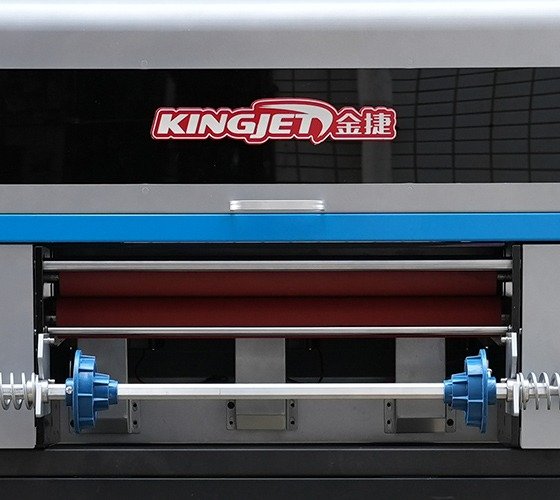

Drying System
Using LED-UV lamp curing, no preheating time is required, and it can be dried immediately.

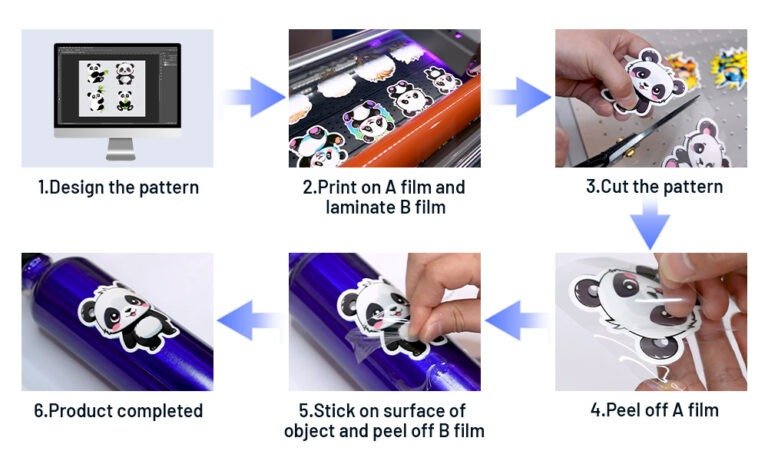

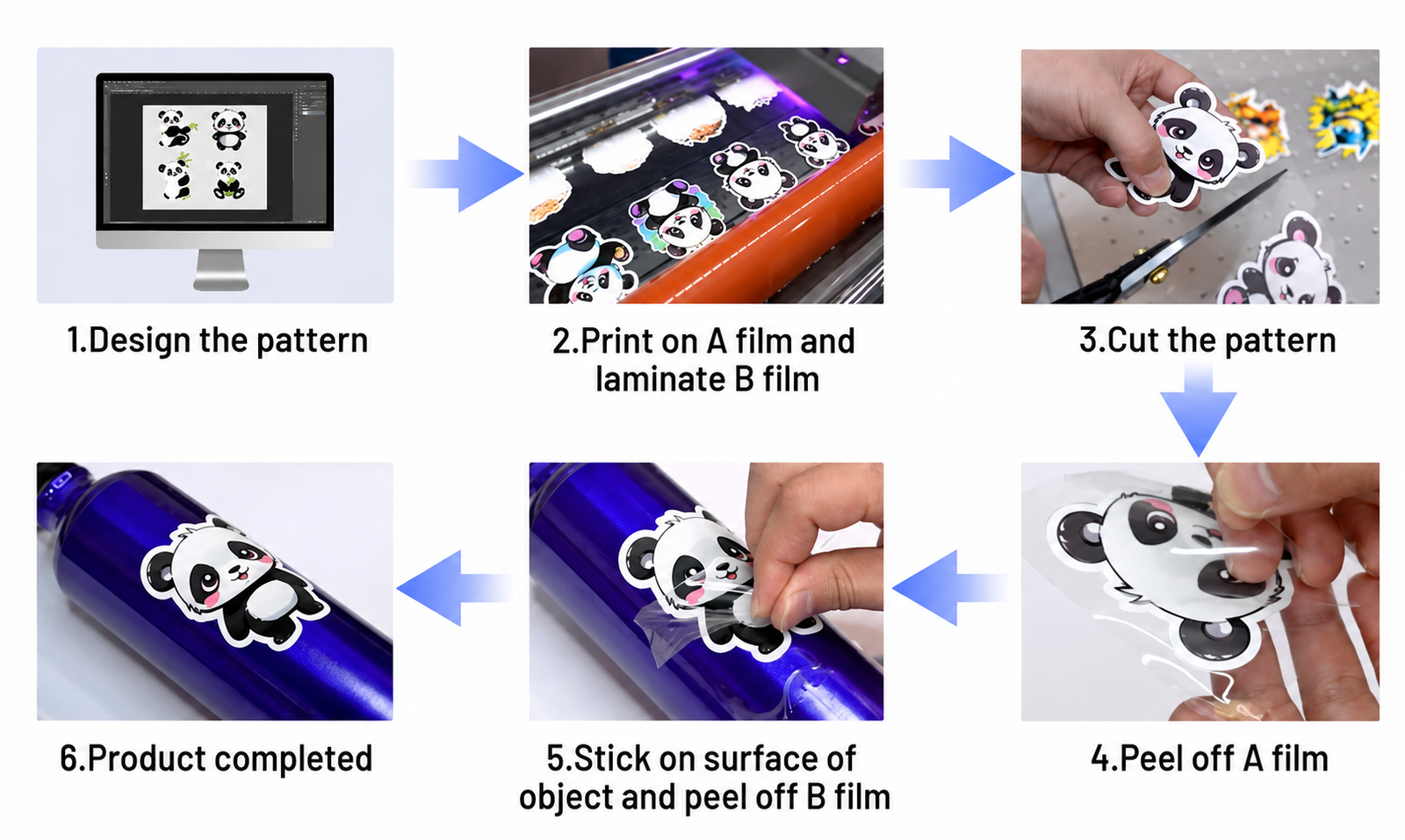

UV DTF sticker printer printing Process
Product Specification
| Product | UV DTF Printer / UV DTF Sticker Printer |
|---|---|
| Model | PI-300UV / PI-400UV |
| Printhead |
PI-300UV: XP600-2H, XP600-3H, I1600U1-2H PI-400UV: I1600U1-2H, I1600U1-3H |
| Printing Size |
PI-300UV: 300 mm (A3) PI-400UV: 400 mm (A2) |
| Speed Mode |
PI-300UV: 2.5 m²/h, 3.5 m²/h, 3 m²/h PI-400UV: 3 m²/h, 4 m²/h |
| Quality Mode |
PI-300UV: 1.5 m²/h, 2.5 m²/h, 2 m²/h PI-400UV: 2 m²/h, 3 m²/h |
| Media Type | UV DTF AB Film |
| Color | CMYK + W + V |
| Ink | UV Ink |
| Ink Supply System | White Ink Stirring |
| Lamination Way | Integrated Film Rolling, Tearing, and Laminating System (All-in-One) |
| Drying System | UV LED Curing System |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint (Optional) |
| Operation Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size |
PI-300UV: 1050 × 700 × 600 mm, 85 kg PI-400UV: 1150 × 700 × 600 mm, 120 kg |
| Packing Size |
PI-300UV: 1220 × 750 × 670 mm, 125 kg PI-400UV: 1480 × 1000 × 720 mm, 180 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
UV DTF sticker printer Applications
The UV DTF machine is an environmentally friendly and efficient crystal label UV sticker machine with a wide range of applications that continue to expand, especially in the field of printing on hard material surfaces, such as glass, metal, acrylic, ceramics, plastics, etc. The printing process does not require heat-pressing; you only need to press with your fingers to transfer the pattern to the object’s surface.
Ceramic
Metal
Thermos cup
Mobile phone case
Glass
Plastic box
FAQ
The market prospect of UV DTF is very huge for the following reasons:
Its application range is very broad, such as acrylic board, PVC board, KT board, steel plate, iron plate, aluminum plate, glass marble, various packaging boxes, etc.
The method of use is simple. All you need to do is paste it onto an object and peel off the surface film, and the text and pattern will be clearly visible.
The transfer effect is good, displaying a beautiful 3D three-dimensional effect under the illumination of light. And the whole is transparent and shiny with bright patterns, rich colors, good adhesion, strong three-dimensional effect, strong scratch resistance, no glue residue or glue spillage.
DTF printer is mainly for garment printing and the uv dtf printer is mainly for hard and irregular items, like cups, phone case, bottle, metal, plastic etc.
About $0.7-$0.8/sqm.
It has strong weather resistance and is hard to scratch.
Requires UV DTF printer, UV ink, and UV DTF AB film to be used together.
UV dtf printer is an all-in-one printer with integrated printing and lamination, and its printed uv dtf can be transferred to any hard flatbed items. The UV flatbed printers print directly on hard items without lamination. Although the size of items that can be printed by the uv flatbed printer is limited, its directly printing patterns are more durable.
It depends on the environment. In normal circumstances, it can be last a long time and it can be washable.
We supply ink and film too, which can be matched with our printer perfectly. It is recommended to buy with the machine.
