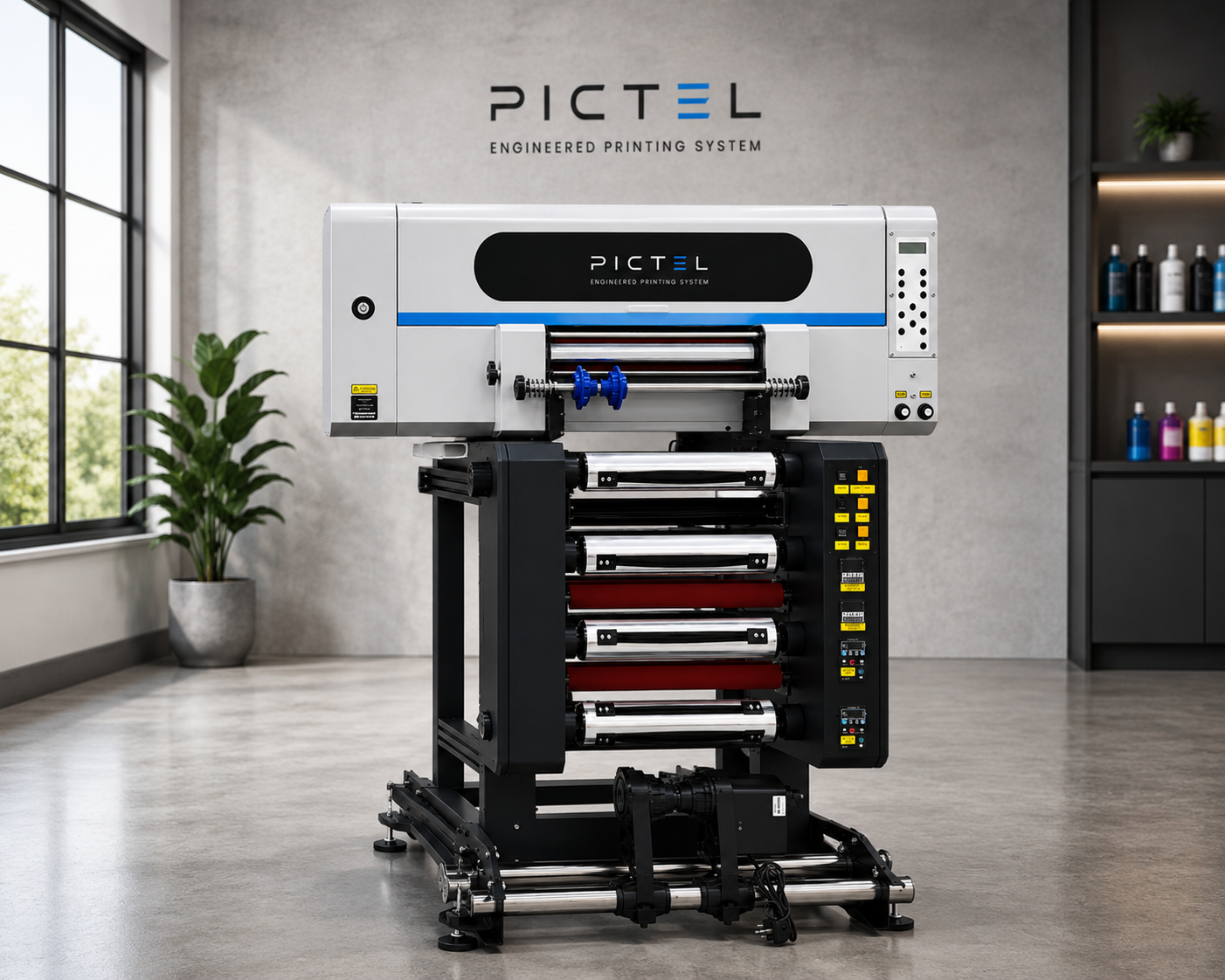

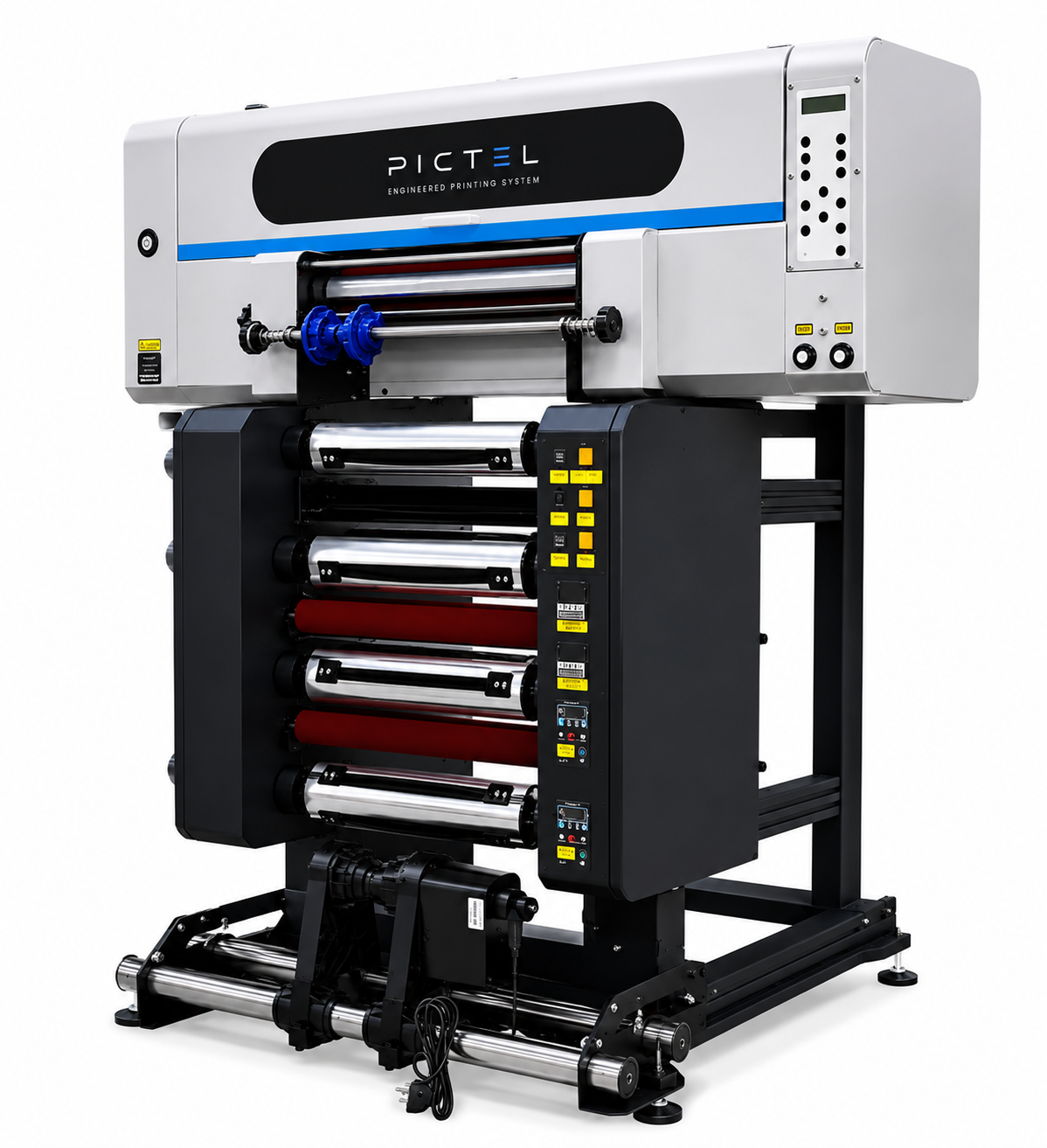

PI-400GUV Gold/Silver Stamping UV DTF Machine
The all-in-one gold foil UV DTF sticker printer is an integrated innovation of UV printing technology, which realizes automated, efficient, and low-cost printing of metal texture stickers with flexible customization and long-lasting durability, meeting the needs of “exquisite and practical”.
Main Features:
- 40cm/A2 printing width
- 4 × EPSON I1600/XP600 printheads
- 5 Colors (CMYK+W) + V + gilding varnish
- Full color, strong adhesion, and fade resistance.
- 3D luxury metal visual effects.
- Special metal/silver effect solution suitable for small batch customization and flexible printing for start-ups.
Technical Specifications:
- Print head: EPSON I1600-U1 / XP600 head is optional.
- Print head QTY: 4 pcs
- Max Print Width: 40cm/15.75″
- Color: CMYK+W+V+gilding varnish
- RIP Software: Maintop, photoprint
Metallic UV DTF Printing. Brilliant Colors. Elegant Gold & Silver Finishes.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Gold foil UV DTF sticker printer features

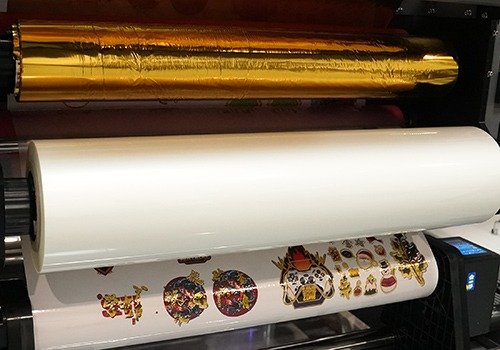

Integrated printing design
Waste discharge film – gold stamping laminating – take-up integrated design saves space and labor, and is easy to operate.

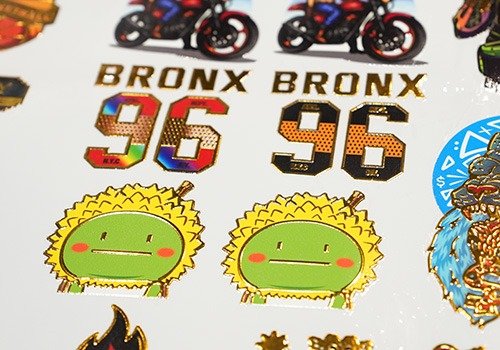

3D embossing effect
The printing effect has obvious layering, a clear 3D embossing effect, realistic texture, and high-end luxury.

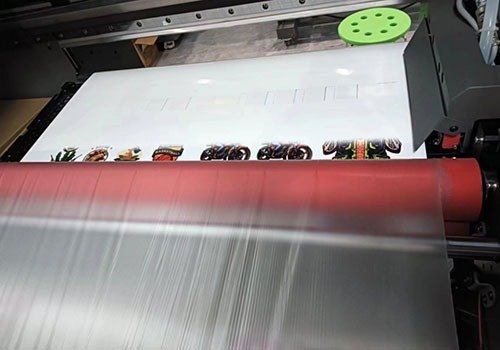

Uniform lamination
The high-temperature resistant silicone heating rod makes the product lamination uniform, and the printing is more stable and efficient.

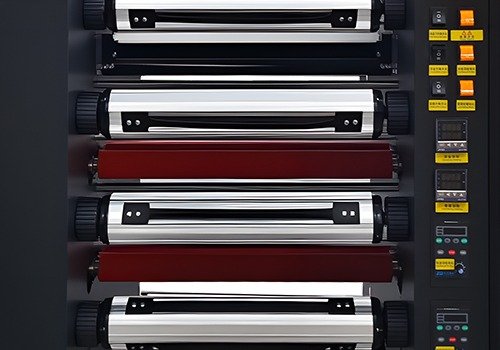

Convenient operation panel
The integrated control panel and button identifier for waste discharge film and gold foil stamping are user-friendly and easy to operate.

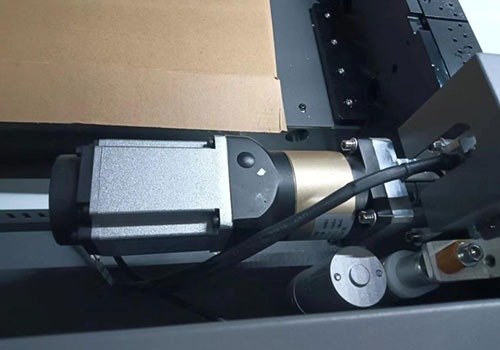

High-performance motor
The front stepper motor has twice the power of ordinary printer motors, good pulling force, and more stable stepping.

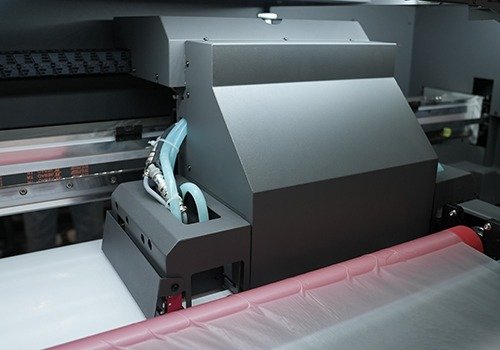

Anti-collision device
When the trolley is subjected to external forces on the left and right, it will stop working to protect the trolley and the nozzle.

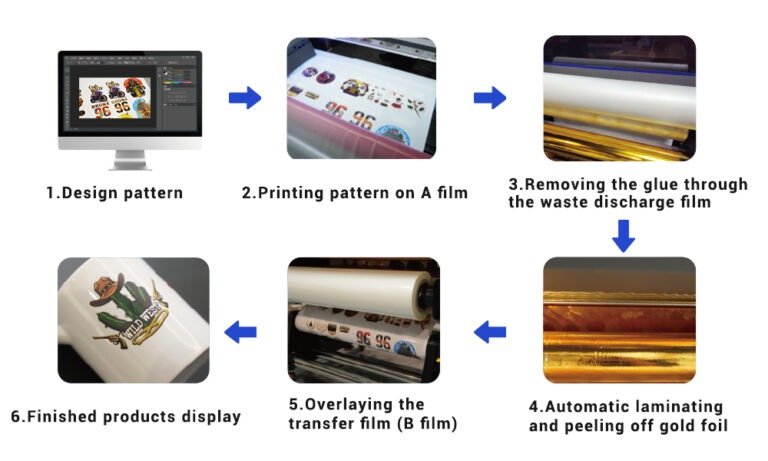

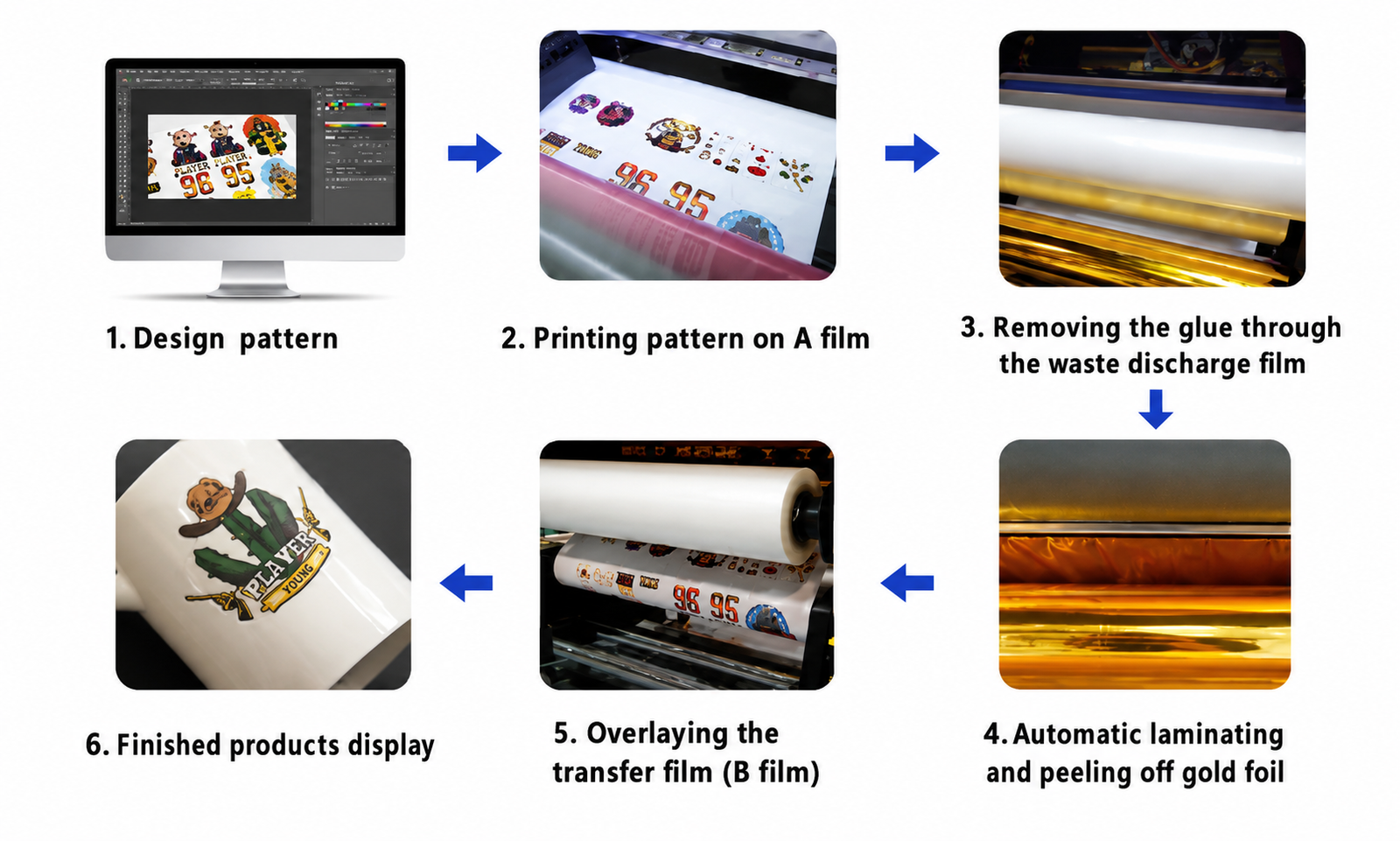

Gold foil UV DTF sticker printer Printing process
Product Specification
| Product | PI-400GUV Gold Foil UV DTF Sticker Printer |
|---|---|
| Model | PI-400GUV |
| Printhead | 4 × EPSON I1600-U1 / 4 × XP600 (Optional) |
| I1600 Head Printing Speed | 4 m²/h |
| I1600 Head Quality Mode | 3 m²/h |
| XP600 Head Printing Speed | 3.5 m²/h |
| XP600 Head Quality Mode | 2 m²/h |
| Max Print Width | 400 mm |
| Color | CMYK + W + V + Gilding Varnish |
| Ink Type | UV Ink |
| Ink Supply System | White Ink Stirring |
| Media Type | Specialized A Film, Transfer Film, Waste Discharge Film, and Gold Foil |
| Curing System | UV LED Curing System |
| Lamination System | Integrated Gold Stamping, Waste Discharging, and Laminating System |
| Capping & Moisturizing | Auto-Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint |
| Input Power | AC 110V / 220V, 50Hz / 60Hz |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size | 1430 × 920 × 1460 mm |
| Machine Packing Size | 1580 × 1070 × 1610 mm |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Gold metallic foil sticker printer Applications
The gold metallic foil sticker printer is widely used, not limited to light or dark colors, flat or non-flat surfaces, and various products. Even on curved or round surfaces, the stickers can still maintain good adhesion and are not easy to fall off. It is suitable for various industries, including the packaging industry, the invitation industry, the advertising industry, and the commercial industry, such as gift packaging, cosmetics packaging, wine packaging, wedding invitations, party invitations, brochures, product catalogs, business cards, etc., making the product packaging look luxurious.

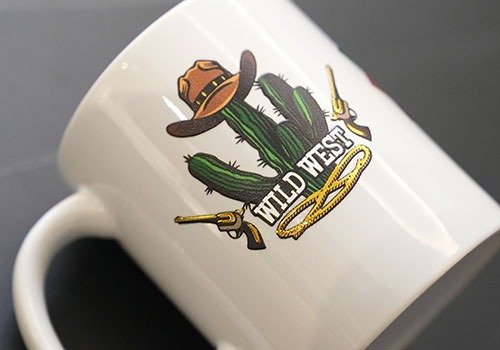

Ceramics

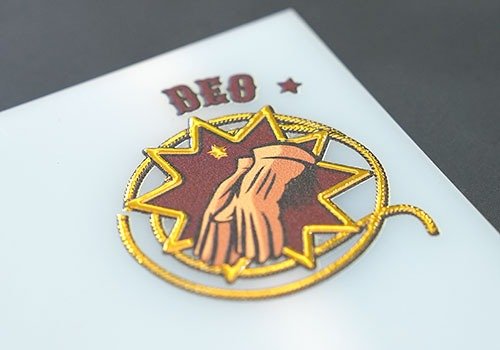

Acrylic

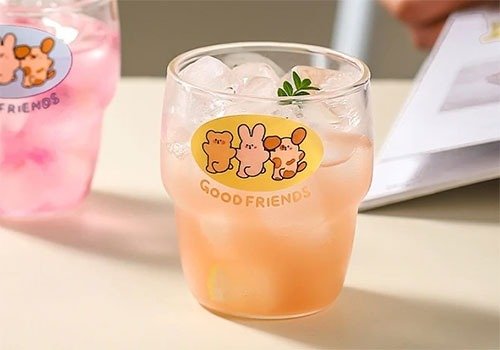

Glass

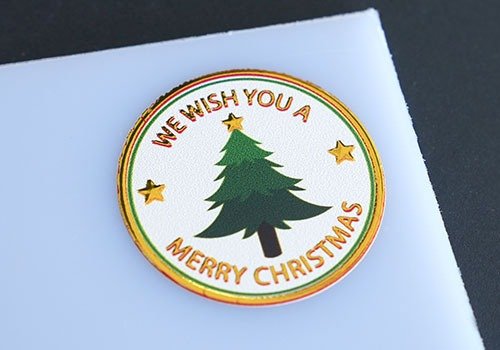

Plastic

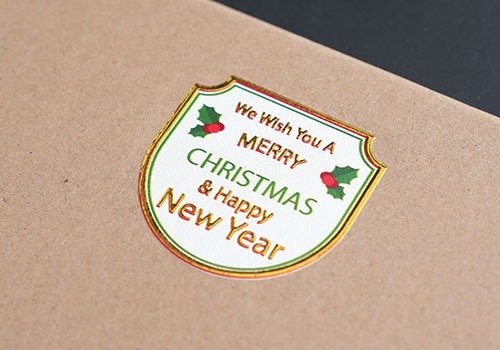

Gift box

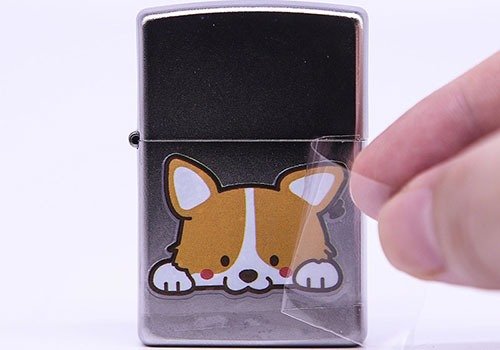

Metal
FAQ
The integrated gold foil UV DTF sticker printer automatically laminates a layer of gold foil on the basis of the ordinary UV DTF sticker machine, making the transferred product more metallic and high-gloss visual effect, with lower customization cost and flexible small batch printing. For more information about the gold foil UV DTF sticker printer, you can check this article: integrated gold stamping UV DTF printer.
Yes, the gold foil UV DTF sticker printer is powerful and can print on a variety of materials, including ceramics, plastics, wood, metal, leather, acrylic, glass, PVC, etc.
No, the gold foil UV DTF sticker printer is a special form of DTF (direct to film) printer, designed for hard surfaces of flat and curved surfaces, and the transfer is very flexible and convenient. It uses UV ink that can be cured without heating, so the UV sticker does not need to use an oven or a heat press machine during the transfer process.
The gold foil UV DTF sticker printer uses UV curing ink, which is a special UV printer ink that cures immediately under ultraviolet light, making the print fast and efficient to transfer on a variety of hard materials.
