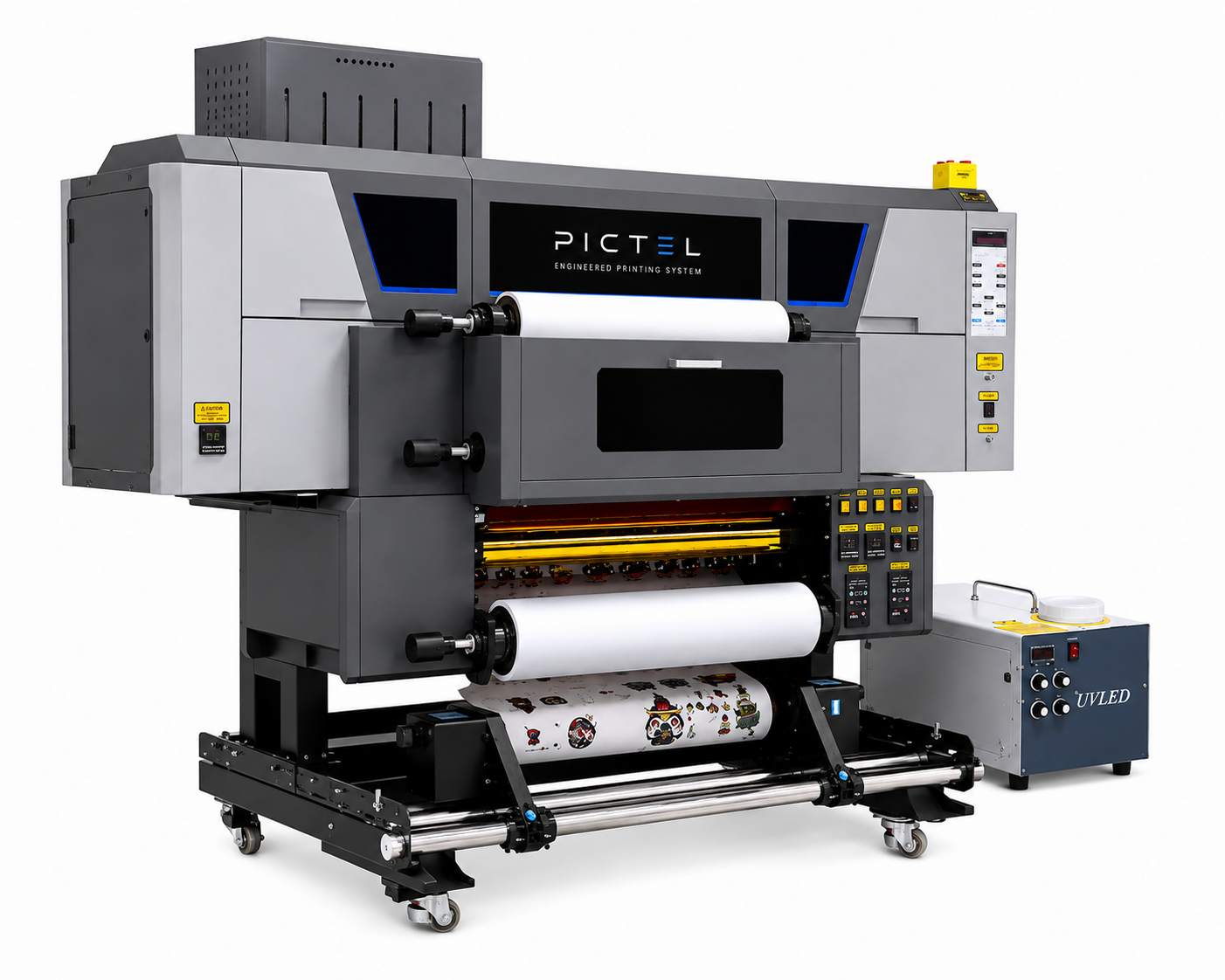

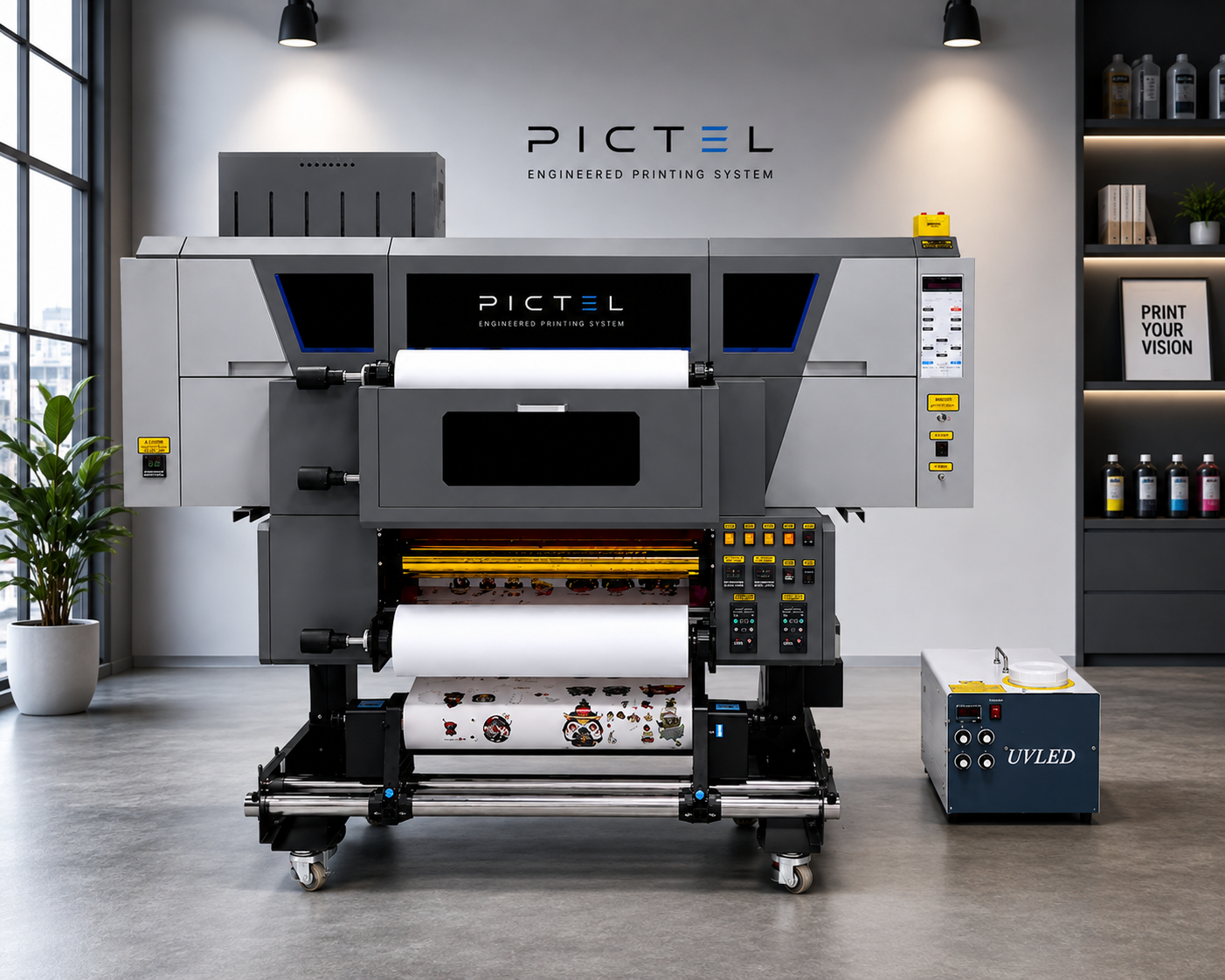

PI-604UV 24" UV DTF Sticker Printer
The new generation of 24-inch UV DTF printers realizes fully automatic integrated lamination and perfect reproduction of crystal sticker patterns with vibrant colors, which can be transferred on virtually any smooth, hard, cylindrical, or curved object.
Main Features:
- 24-inch printing width
- 3/4 × EPSON I3200 printheads
- 5 Colors (CMYK+W) + varnish
- High productivity, balancing speed and precision.
- Automatic lamination, efficient printing of personalized gifts, vivid colors.
- Strong adhesion, scratch-resistant, washable.
Technical Specifications:
- Printhead: 3pcs or 4pcs*EPSON I3200 U1
- Printing Speed: 4 sqm/h
- Max Print Width: 600mm/24-inch
- Color: CMYK+W+V, CMYK+W+CMYK+V
- RIP Software: maintop, photoprint
PI-604UV 24" UV DTF Sticker Printer. Crystal-Clear Transfers. Industrial Speed. Unlimited Applications.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-604 UV DTF printer Features

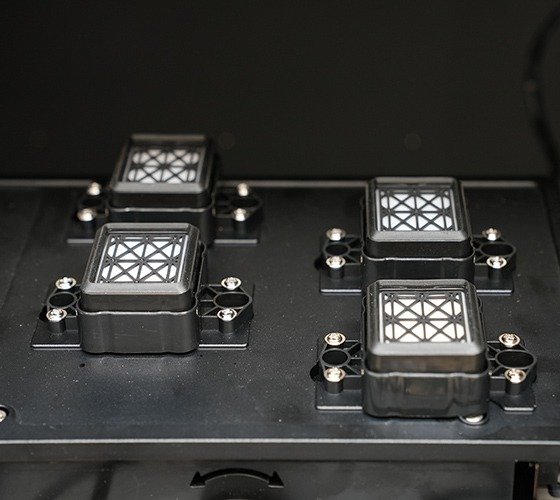

Humanized configuration
The Elevating aluminum capping system protects the nozzle and prevents clogging caused by ink condensation on the nozzle surface.

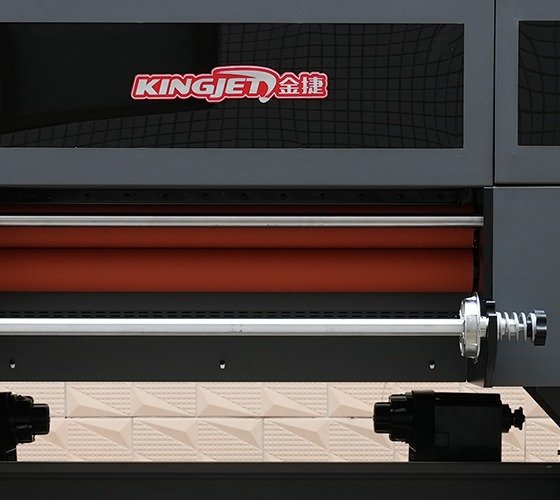

Automation device

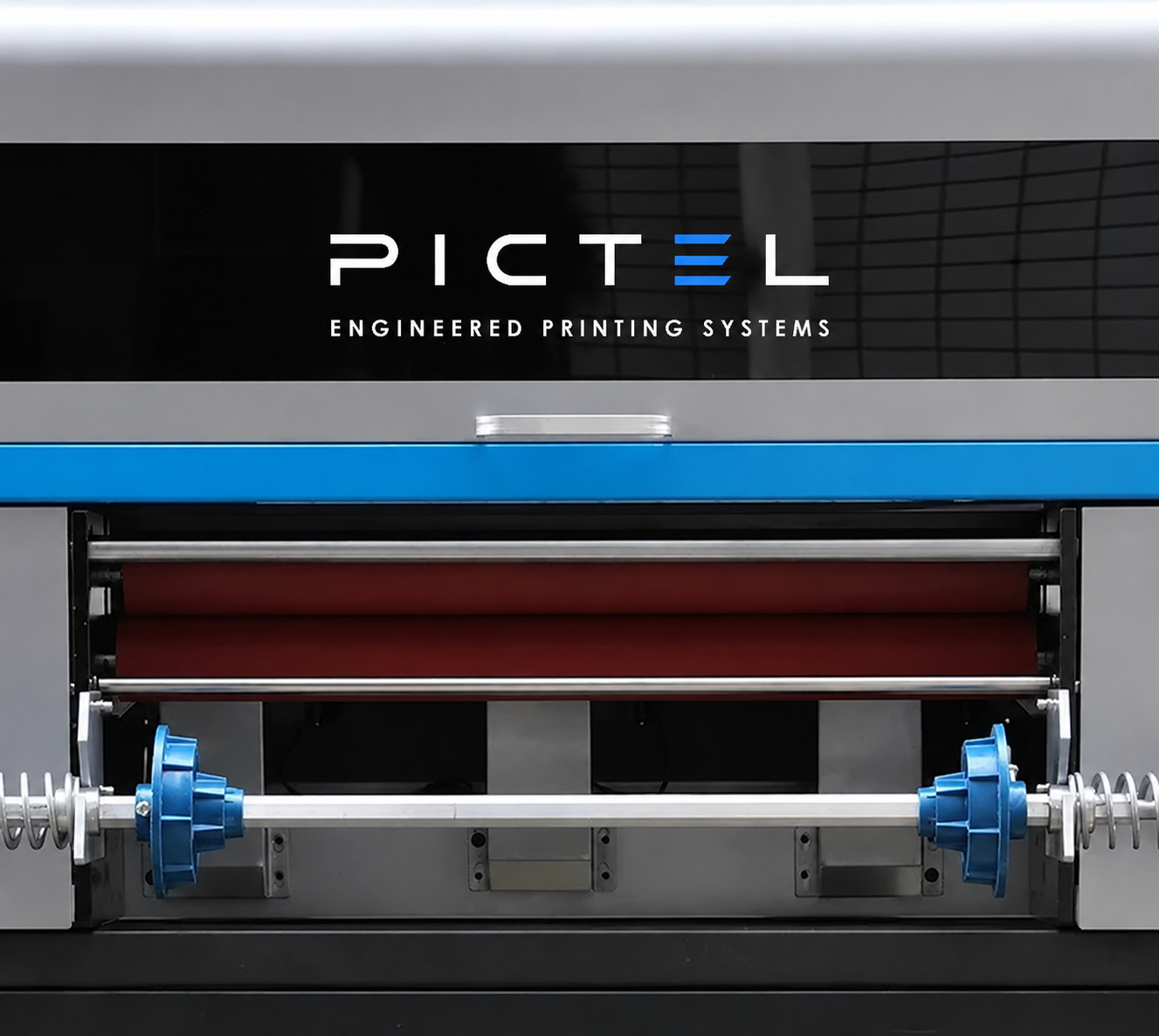

Fully automatic integrated lamination reduces manual operations, making the entire printing process more efficient and convenient.
RIP software
Professional color management software "Maintop, Photoprint" can easily change patterns and is simple to operate.

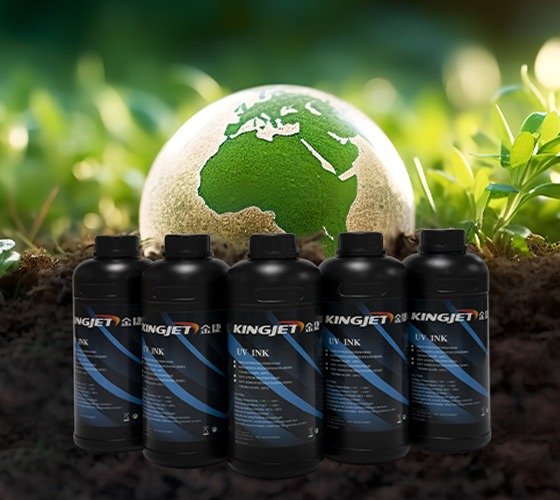

Environmentally friendly ink
Providing sustainable printing solutions while focusing on reducing environmental impact.

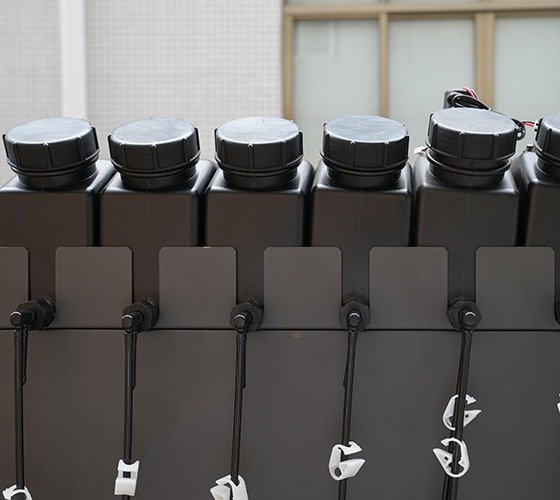

Ink supply system
Ensure the continuous supply of ink and continuous circulation to avoid precipitation and reduce clogging of the nozzle.

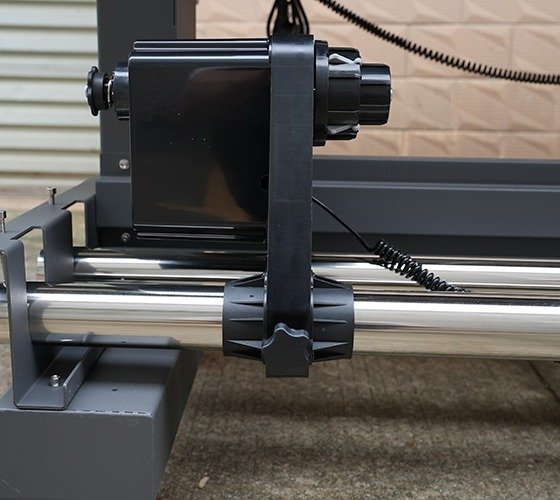

Automatic take-up system
No manual operation is required, improving production efficiency and operational convenience.

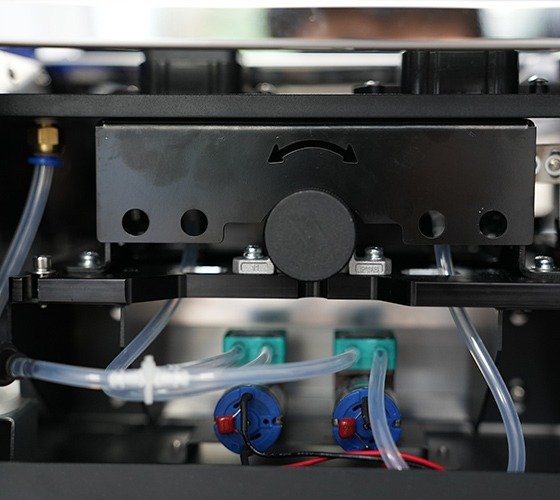

Clean and moisturize
Automatic cleaning and long-lasting moisturizing functions ensure that the nozzle is not clogged and improves printing quality.

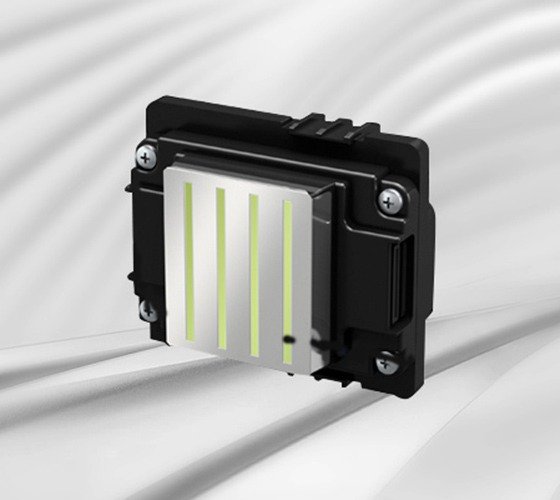

EPSON original printhead
Effectively control the size and jetting mode of ink droplets with high precision and fast speed.

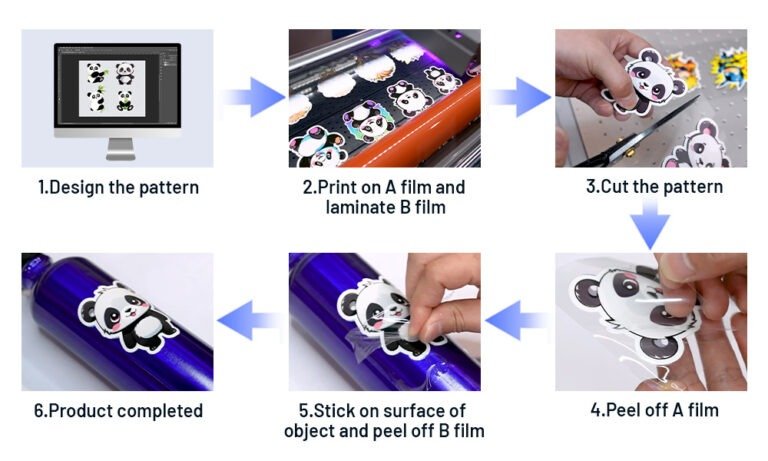

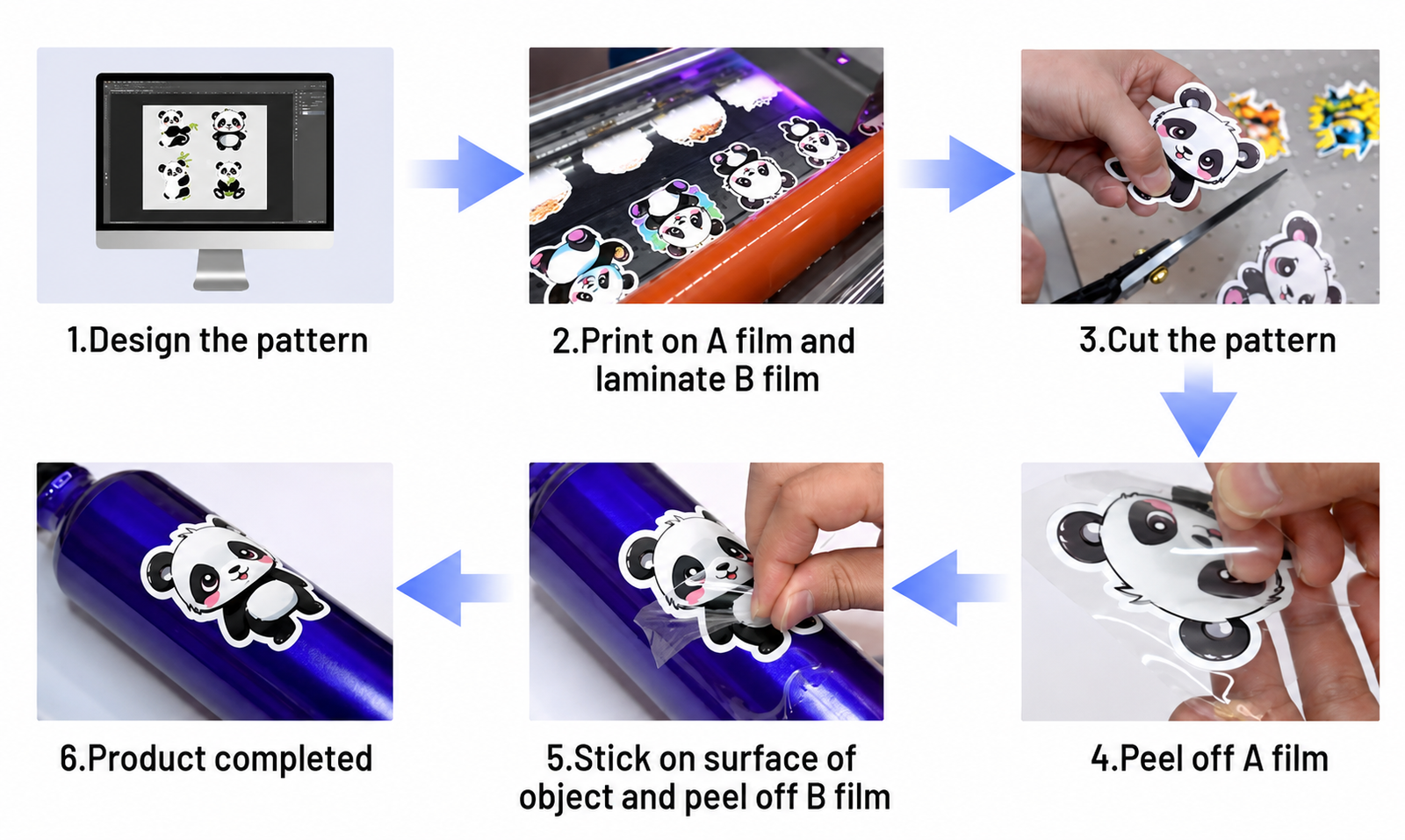

PI-604 UV DTF printer printing Process
Product Specification
| Product | UV DTF Printer |
|---|---|
| Model | PI-604UV |
| Printhead | 3 or 4 × EPSON I3200-U1 |
| Speed Mode | 4 m²/h |
| Quality Mode | 2 m²/h |
| Color Configuration | CMYK + W + V / CMYK + W + CMYK + V |
| Ink Type | UV Ink |
| Ink Supply System | White Ink Stirring System |
| Max Print Width | 600 mm |
| Media Type | UV DTF AB Film |
| Lamination System | Integrated Film Rolling, Tearing & Laminating System (All-in-One) |
| Drying System | UV LED Curing System |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint (Optional) |
| Operating Environment | Temperature: 18–32°C | Humidity: 46–65% |
| Machine Size | Printer: 1900 × 850 × 1420 mm, 240 kg |
| Packing Size | Printer: 2450 × 1020 × 860 mm, 322 kg, 2.100 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
UV DTF printer Applications
UV DTF (Direct to Film) printers completely break the material limitations of traditional printing by the fast curing and strong adhesion of UV inks, as well as the flexibility of the transfer film. Whether it is flat material, curved shape, or hard surface, it can achieve high-precision and durable pattern transfer.

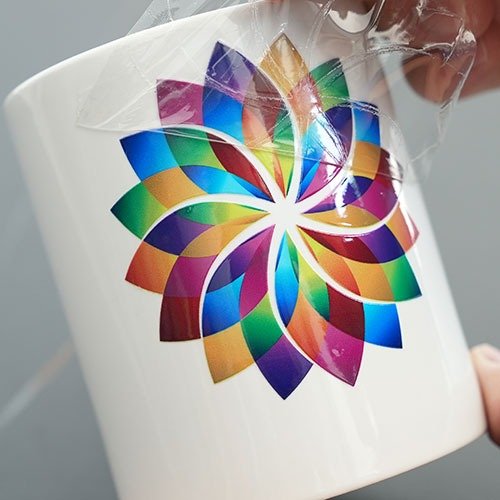

Ceramic

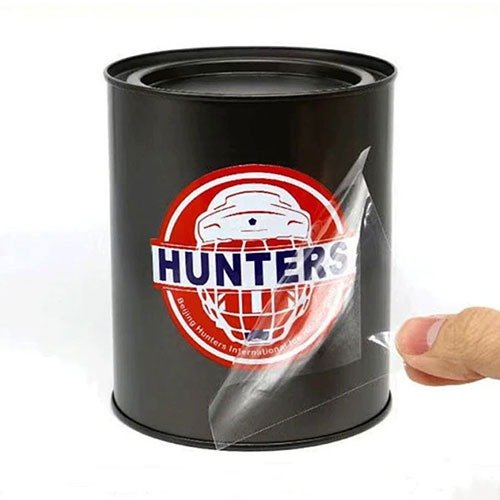

Metal

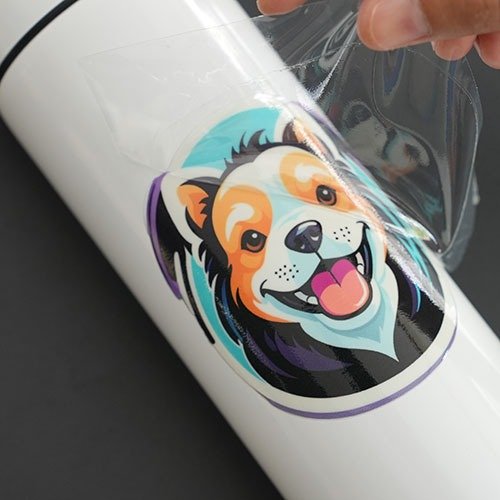

Thermos cup

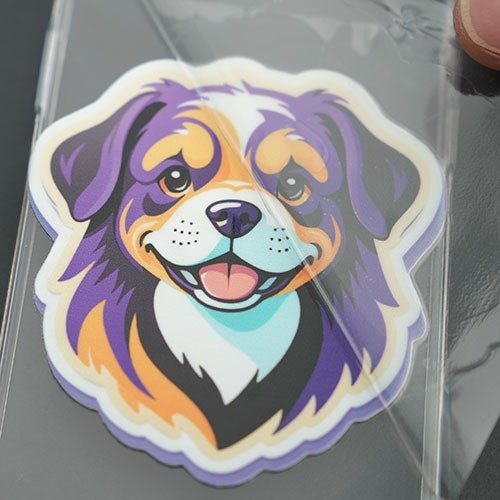

Mobile phone case

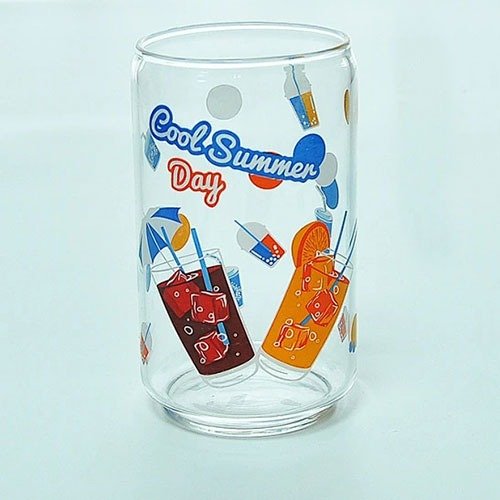

Glass

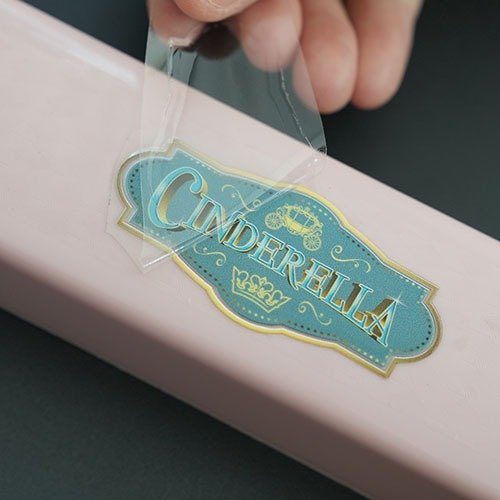

Plastic box
FAQ
The market prospect of UV DTF is very huge for the following reasons:
Its application range is very broad, such as acrylic board, PVC board, KT board, steel plate, iron plate, aluminum plate, glass marble, various packaging boxes, etc.
The method of use is simple. All you need to do is paste it onto an object and peel off the surface film, and the text and pattern will be clearly visible.
The transfer effect is good, displaying a beautiful 3D three-dimensional effect under the illumination of light. And the whole is transparent and shiny with bright patterns, rich colors, good adhesion, strong three-dimensional effect, strong scratch resistance, no glue residue or glue spillage.
DTF printer is mainly for garment printing and the uv dtf printer is mainly for hard and irregular items, like cups, phone case, bottle, metal, plastic etc.
About $0.7-$0.8/sqm.
It has strong weather resistance and is hard to scratch.
Requires UV DTF printer, UV ink, and UV DTF AB film to be used together.
UV dtf printer is an all-in-one printer with integrated printing and lamination, and its printed uv dtf can be transferred to any hard flatbed items. The UV flatbed printers print directly on hard items without lamination. Although the size of items that can be printed by the uv flatbed printer is limited, its directly printing patterns are more durable.
It depends on the environment. In normal circumstances, it can be last a long time and it can be washable.

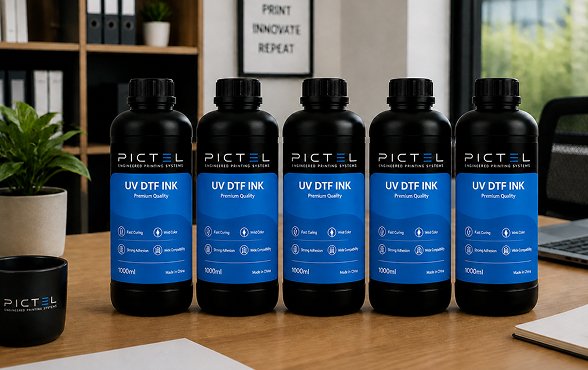

We supply ink and film too, which can be matched with our printer perfectly. It is recommended to buy with the machine.
