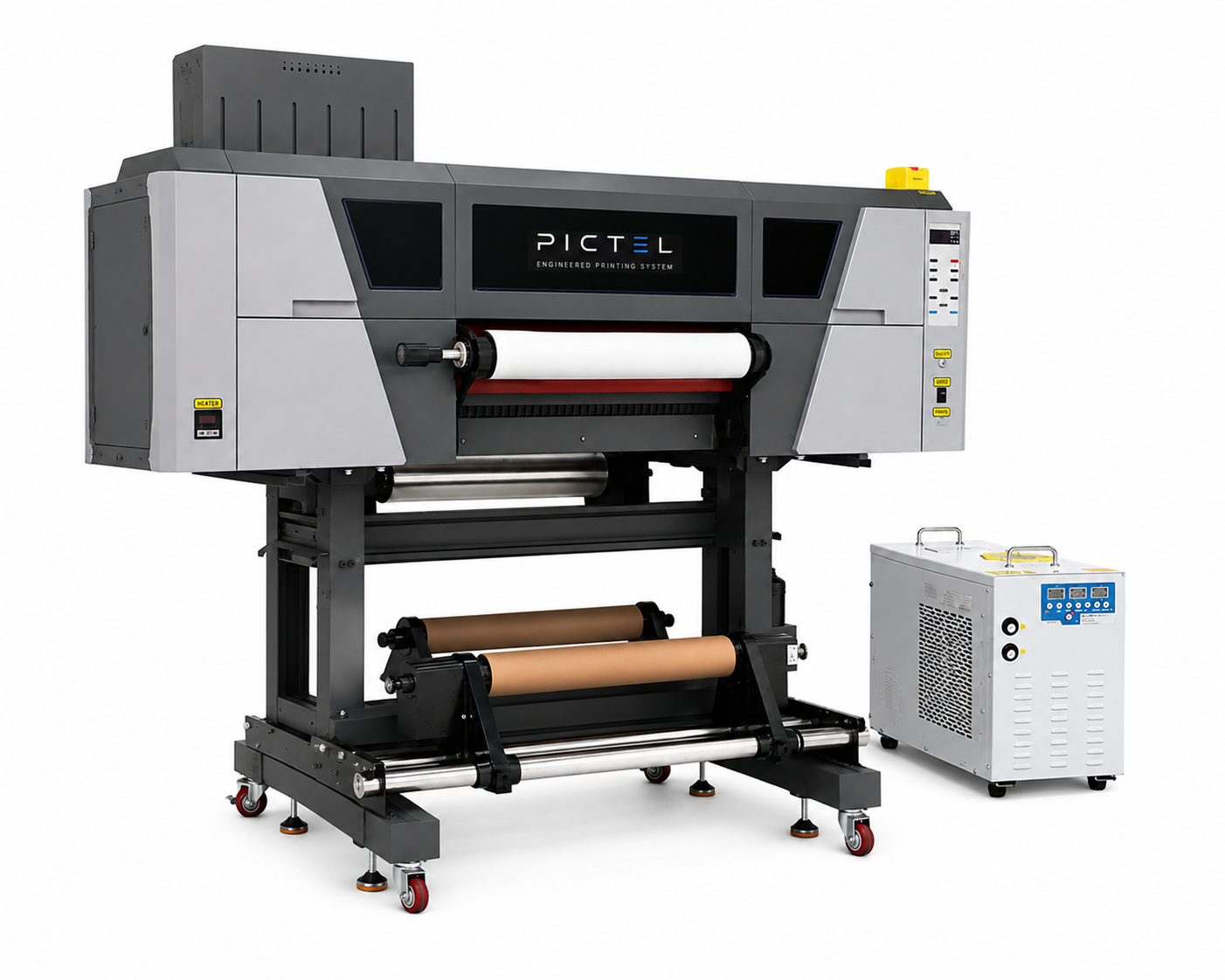

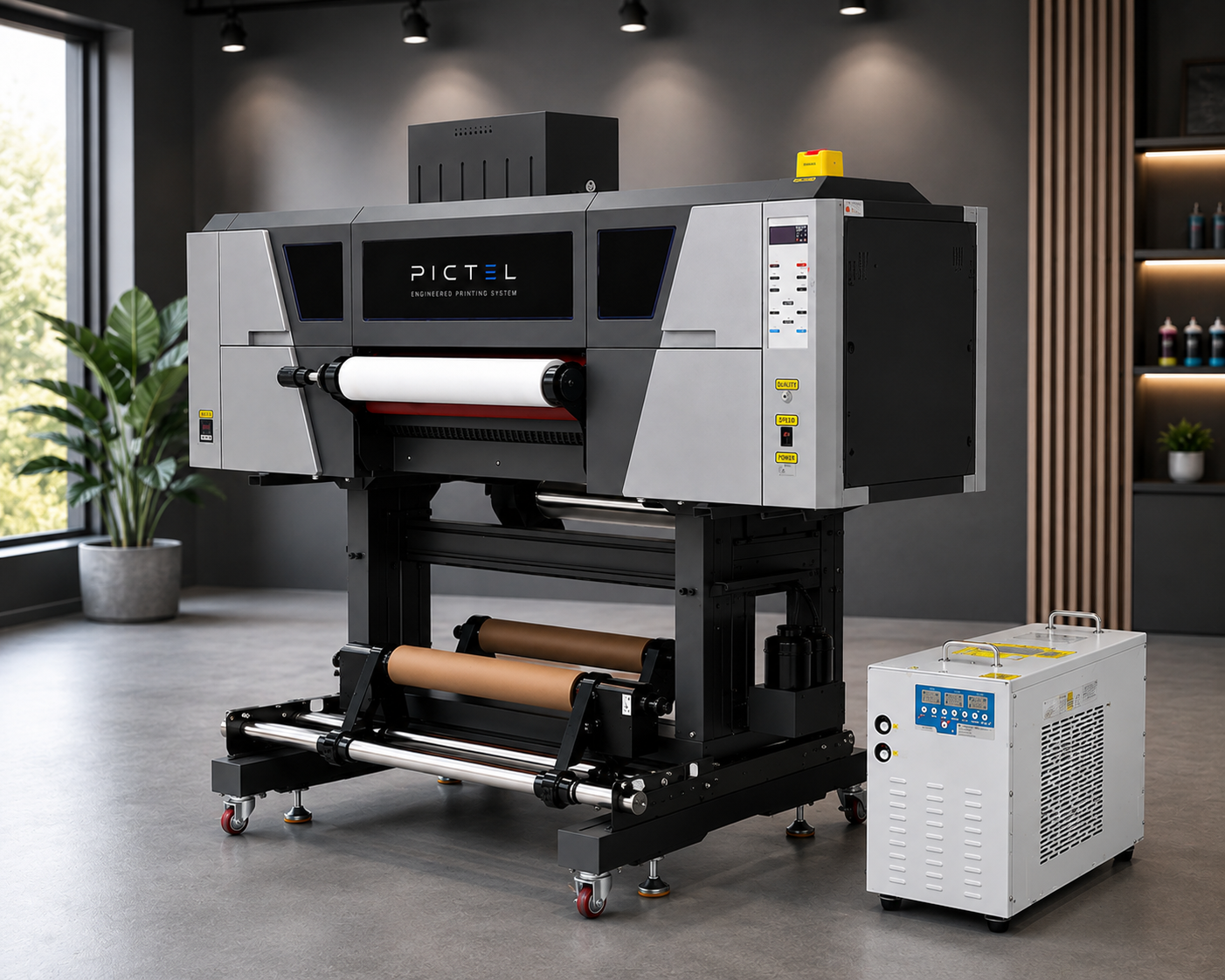

PI-603LUV 24" UV DTF Embroidery Machine
The innovative 3D Effect UV Printer can perfectly print embroidery patterns, completely changing the limitations of UV printing textile fabrics and exploring more possibilities for your business.
Main Features:
- 60cm printing width
- 3 × EPSON i3200 U1 print heads
- 5 Colors (CMYK+W)
- Exquisite embroidery patterns, durable and colorful.
- Breaking the limitations of UV printing can be applied to textile fabrics.
- High embroidery efficiency, suitable for large-scale production.
Technical Specifications:
- Printhead: 3*EPSON I3200 U1
- Printing Speed: 6 pass: 2.5 sqm/h
- Max Printing Width: 600mm
- Color: CMYK+W
- RIP Software: Maintop, Photoprint
24" UV DTF Embroidery Printing. Realistic Texture. Professional Results.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-603LUV Product Features
3D imitation embroidery effect
You can print 3D imitation embroidery patterns with bright colors, durability, and perfect details on specific fabrics, breaking the limitations of UV printing.

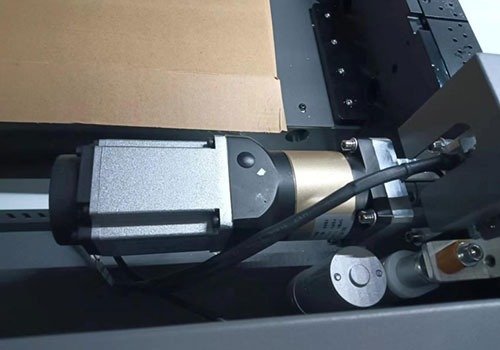

High performance
The front stepper motor has greater power, stable stepping, and smooth print output.

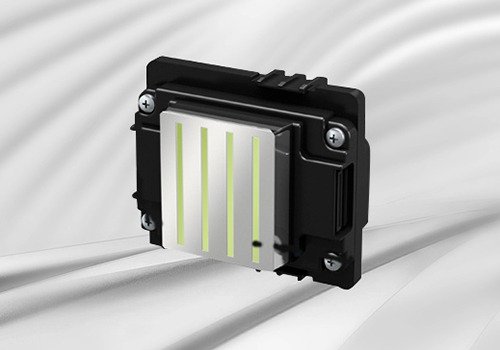

EPSON original printhead
3*EPSON I3200 U1 original printheads for high-precision and fast printing.

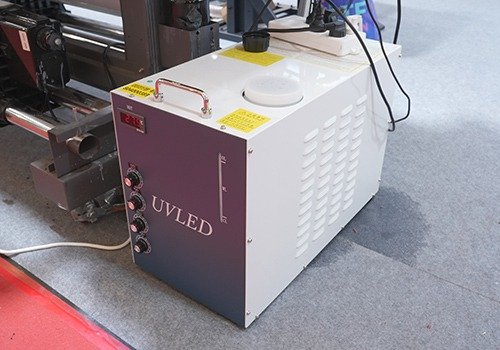

UV water cooling system
Used with a UV lamp, it can speed up ink drying and further improve production efficiency.

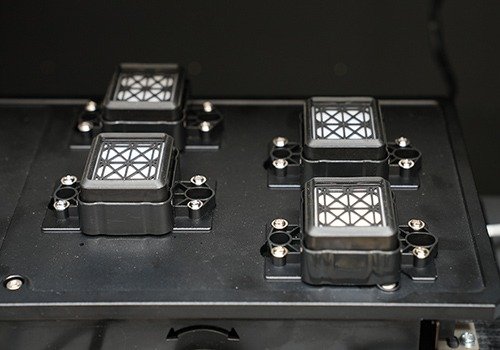

Automatic nozzle cleaning
Elevating aluminum capping system, automatic cleaning, saving manual maintenance time and energy.

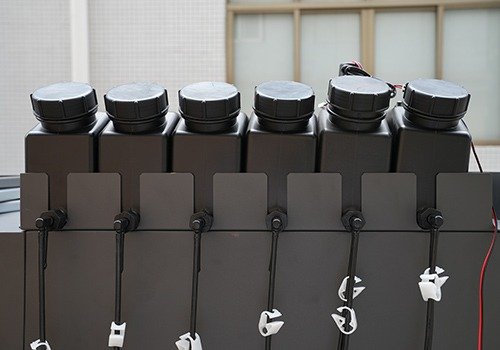

White ink mixing system
It can reduce nozzle blockage, protect the nozzle, and extend service life.

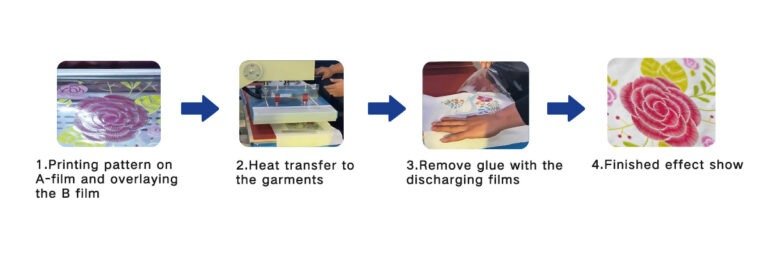

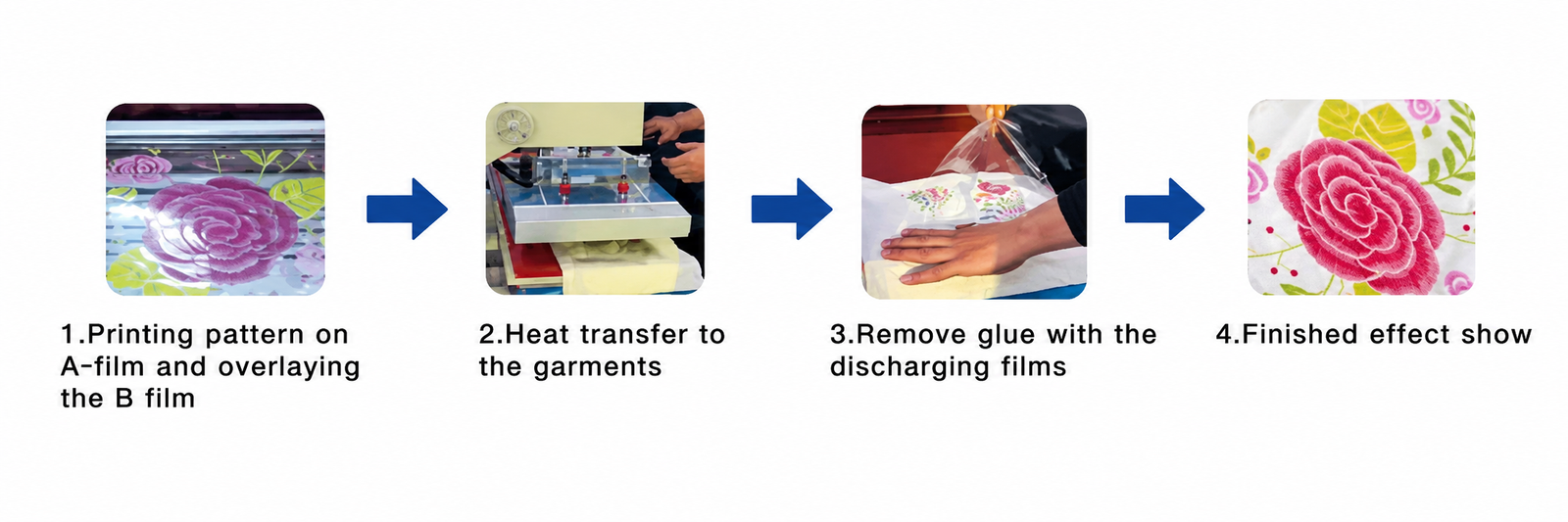

3D Effect UV Printer Imitation embroidery Printing process
Product Specification
| Product | PI-603 LUV 3D Effect UV Printer |
|---|---|
| Model | PI-603 LUV |
| Printhead | 3 × EPSON I3200 U1 |
| Printing Speed | 6 Pass: 2.5 m²/h |
| Max Printing Width | 600 mm |
| Color | CMYK + W |
| Ink Type | Special UV Ink |
| Ink Supply System | White Ink Stirring |
| Media Type | Special UV DTF AB Film, Waste Discharging Film |
| Application | All kinds of fabrics, leather, shoe materials, etc., can withstand high temperatures and adhere to sticky object surfaces. |
| Curing System | UV LED Curing System |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint |
| Input Power | AC 110V / 220V, 50Hz / 60Hz |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size | 1900 × 850 × 1420 mm, 240 kg |
| Water Tank Size |
110V: 420 × 355 × 220 mm, 11.5 kg 220V: 360 × 300 × 220 mm, 10.5 kg |
| Machine Packing Size | 2440 × 1000 × 860 mm, 330 kg, 2.100 CBM |
| Water Tank Packing Size |
110V: 530 × 430 × 440 mm, 13 kg 220V: 450 × 390 × 350 mm, 12 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
3D Effect UV Printer Imitation Embroidery Applications
3D effect UV DTF fabric printing machine is a new type of textile printing solution that revolutionizes the limitations of traditional textile printing. The main innovation is the use of ultraviolet (UV) curing ink combined with UV AB film, and finally, the printed pattern is heat transferred onto the fabric, resulting in a faux-embroidery, vibrant, and long-lasting printing effect, which is highly environmentally friendly and durable.
FAQ
1. Different configurations of the machine
The UV lamp is different, and the ink path is different, but the appearance of the machine is the same.
2. Different application range
UV DTF printer can be applied to various types of materials, such as glass, metal, acrylic, plastic, ceramic, etc.
3D effect UV printer is mainly applied to textile fabrics with less washing, such as flags, leather, etc. It is durable and long-lasting, and the embroidery pattern has a strong texture.
No, it is very simple. After the pattern is printed, you only need to use a double-layer heat press machine to heat press the pattern twice to complete the embroidery pattern.
It is not recommended because the printing principles and configurations of the two machines are different, which may cause machine failure.
