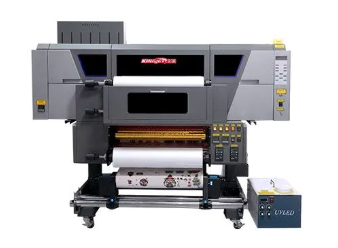

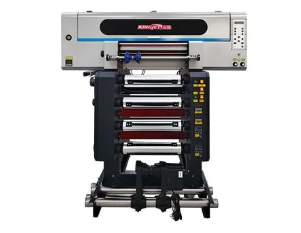

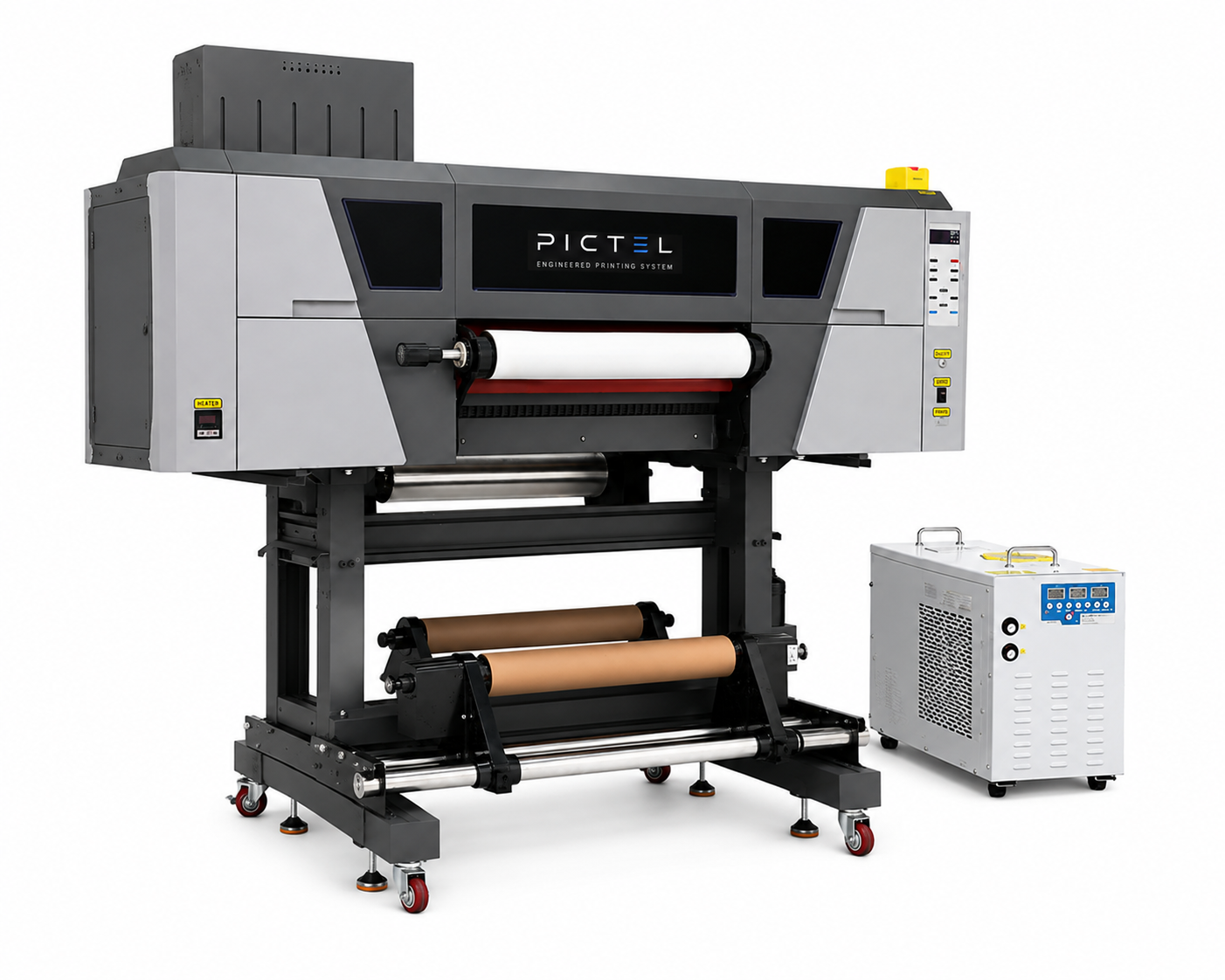

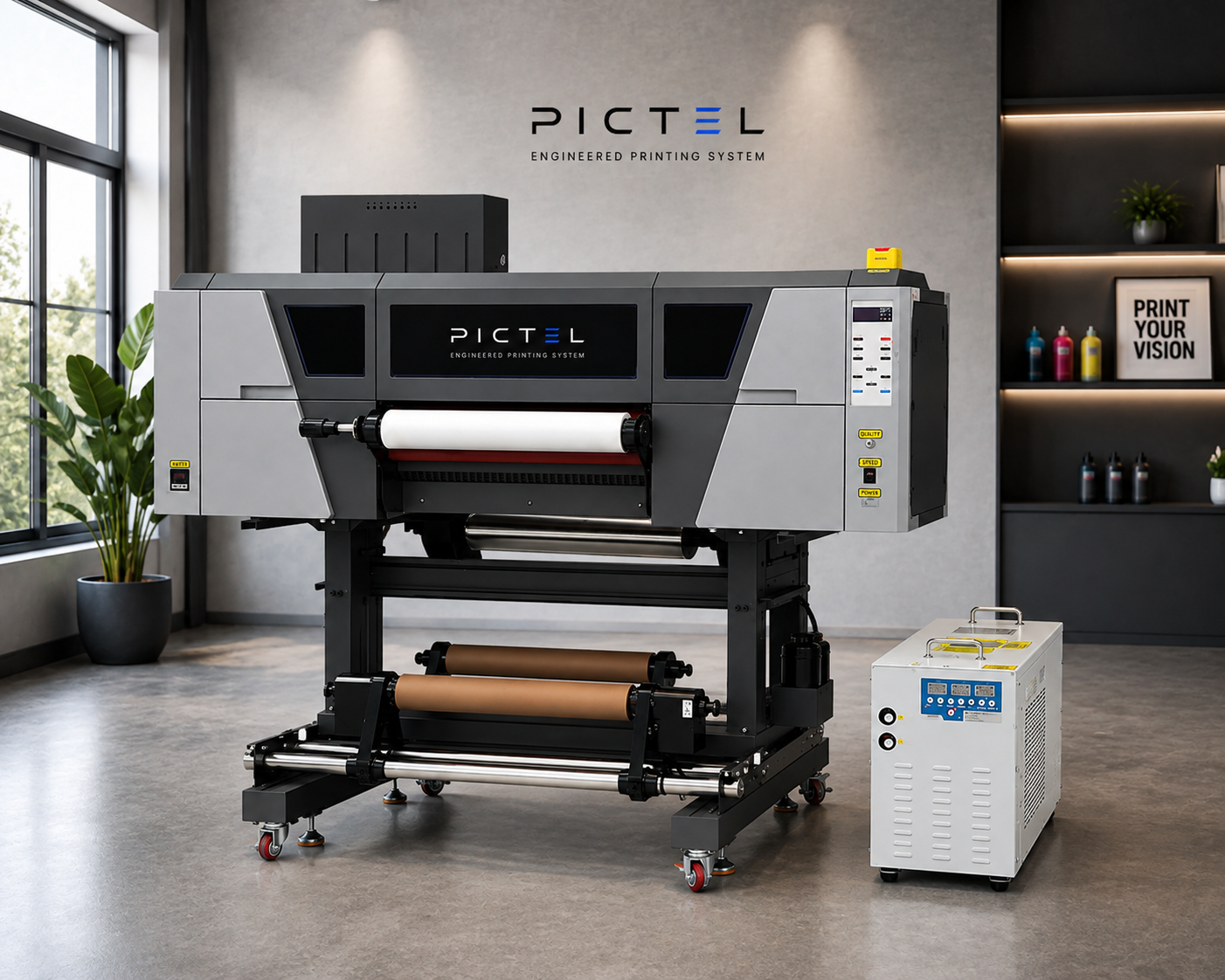

PI-604LUV 3D Embroidery & TPU Apparel Logo UV Printer
The multifunctional 3D embroidery & TPU patch UV DTF printer breaks through the limitations of traditional UV technology, allowing you to easily print 3D relief and embroidery effects on textiles, offering greater flexibility and creativity.
Main Features:
- 24-inch / 60cm printing width
- 4 × EPSON I3200 printheads
- Color : CMYK+W+V
- Dual-purpose machine, 3D imitation embroidery & TPU apparel logo printing.
- High adhesion & washability.
- 3D embossed effect, strong touch and improved brand texture.
Technical Specifications:
- Print Head: 4*EPSON I3200 U1
- Printing Width: 24-inch/60cm
- Printing Speed: 6pass: 2-4 sqm/h
- Print Accuracy: 720*1800dpi – 6pass 2W+CMYK+V
- Color: CMYKWV
- Ink Type: Super soft UV ink
- RIP Software: Maintop, Photoprint
3D Embroidery & TPU Logo Printing. Professional Results. Superior Durability.
Reliable Quality
Professional R&D team control, strict factory testing, and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
3D Embroidery & TPU Patch UV DTF Printer features
TPU Apparel Logo
TPU patches printed via UV DTF technology exhibit excellent flexibility and wear resistance, and stunning 3D embossed effects.
3D Embroidery-Like Effects
Advanced 3D ink overlay technology creates realistic embroidery textures, providing a cost-effective alternative to traditional embroidery.

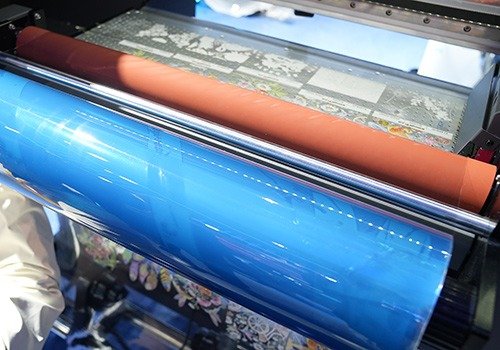

Automatic AB laminating system
Servo motor-driven laminating rollers ensure precise AB film alignment and automatic pressing, eliminating manual lamination for enhanced convenience and efficiency.

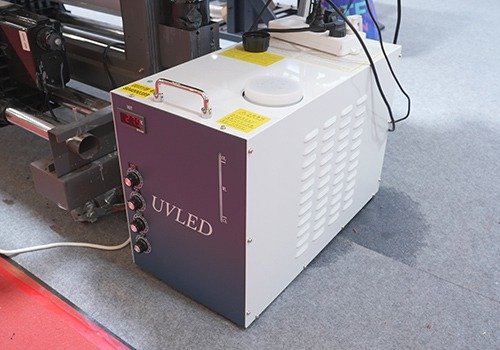

High-Efficiency UV Curing System
UV lamps combined with UV water cooling circulation deliver efficient curing, high adhesion, and extended equipment lifespan.

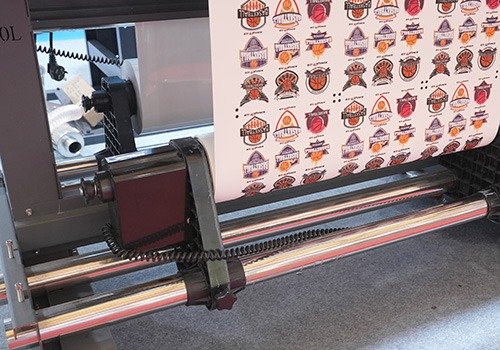

Innovative Take-Up System
Added waste film recovery guides and tear-off angle guides to reduce A-film material waste and improve tear-off efficiency.

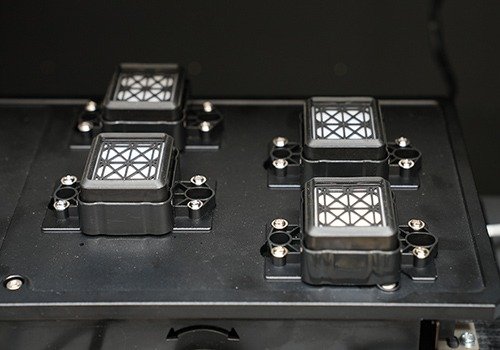

Integrated Lifting Ink Stack
The upgraded all-aluminum ink stack features integrated automatic cleaning and moisturizing functions, reducing nozzle clogging risks.
Product Specification
| Product | 3D Embroidery & TPU Patch UV DTF Printer |
|---|---|
| Model | PI-604 LUV |
| Printhead Type | 4 × EPSON I3200 U1 |
| Print Accuracy | 720 × 1800 dpi – 6 Pass: 2W + CMYK + V |
| Print Speed | 6 Pass: 2–4 m²/h |
| Stack Height |
W400%: 0.36 mm W600%: 0.50 mm W1000%: 0.86 mm |
| Ink Configuration | CMYKWV |
| Ink Type | Super Soft UV Ink |
| UV Curing System | UV-LED Water-Cooled Light Source |
| Max Printing Width | 60 cm / 24-inch |
| Ink Supply | White Ink Stirring |
| Application | All kinds of fabrics, leather, shoe materials, etc., can withstand high temperatures and adhere to sticky object surfaces. |
| Capping & Moisturizing | Auto Capping System & Moisturizing System |
| RIP Software | Maintop, Photoprint |
| Input Power | AC 110V / 220V, 50Hz / 60Hz |
| Working Environment | Temperature: 18–32?, Humidity: 46–65% |
| Machine Size | 1900 × 850 × 1420 mm, 240 kg |
| Machine Packing Size | 2440 × 1000 × 860 mm, 330 kg, 2.100 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Start Your Innovative Textile Printing with 3D Embroidery & TPU Patch UV DTF Printer
The innovative 2-in-1 UV DTF printer redefines versatility, broadening market applications and efficiently meeting the textile customization needs of multiple industries.
Applications include 3D imitation embroidery: by using white ink stacking technology, embroidery-like textures can be created on fabrics like flags, polyester, and leather, which results in significantly lower costs and labor hours than traditional embroidery, meeting the needs of complex patterns and small batch orders.
Flexible TPU patch applications for apparel logos: TPU logos offer excellent stretchability and durability, perfectly adhering to stretchy fabrics. They are ideal for brand logos and functional logos on sportswear, yoga wear, and outdoor apparel brands. Their flexibility ensures the design remains intact and firmly attached even after multiple washes.
TPU logo patch for jersey
TPU logo for sportswear
TPU logos for jacket
TPU logos for jacket

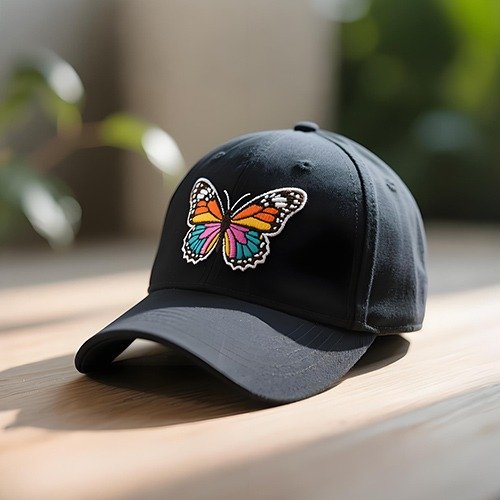

3D embroidery UV DTF printing hat
3D embroidery UV DTF printing flag
FAQ
Our 3D imitation embroidery technology uses multiple layers of white ink to create a three-dimensional relief pattern on the fabric surface, visually simulating the texture of embroidery.
Compared to traditional embroidery, its core advantages lie in economic efficiency and production flexibility.
Efficiency: One-click printing eliminates the tedious process of traditional embroidery plate making and thread changes, while perfectly compatible with digital design, achieving customizable embroidery effects.
Cost: Eliminating the need for embroidery machines, thread, and labor, it enables the production of complex patterns and small batches at a lower cost and faster speed.
Design Freedom: It can print gradients and complex patterns that are difficult to achieve with traditional embroidery.
Yes, durability is one of the main characteristics of TPU materials. TPU patches made through UV DTF technology have good elasticity, tensile strength, and wear resistance. After combining its UV ink with TPU film, it is thoroughly cured by a UV curing system to ensure excellent adhesion of the pattern.
It can withstand multiple water washes without cracking or curling, and can maintain the vibrant colors and three-dimensional effect of the pattern for a long time, fully meeting the quality requirements of the brand’s clothing.
This machine can print on TPU and various textile fabrics, such as canvas bags, denim, jackets, jerseys, hats, shoes, sportswear, flags, etc. It offers strong adhesion, scratch resistance, and fade resistance. Furthermore, no pre-treatment or plate making is required, making it user-friendly and convenient.
