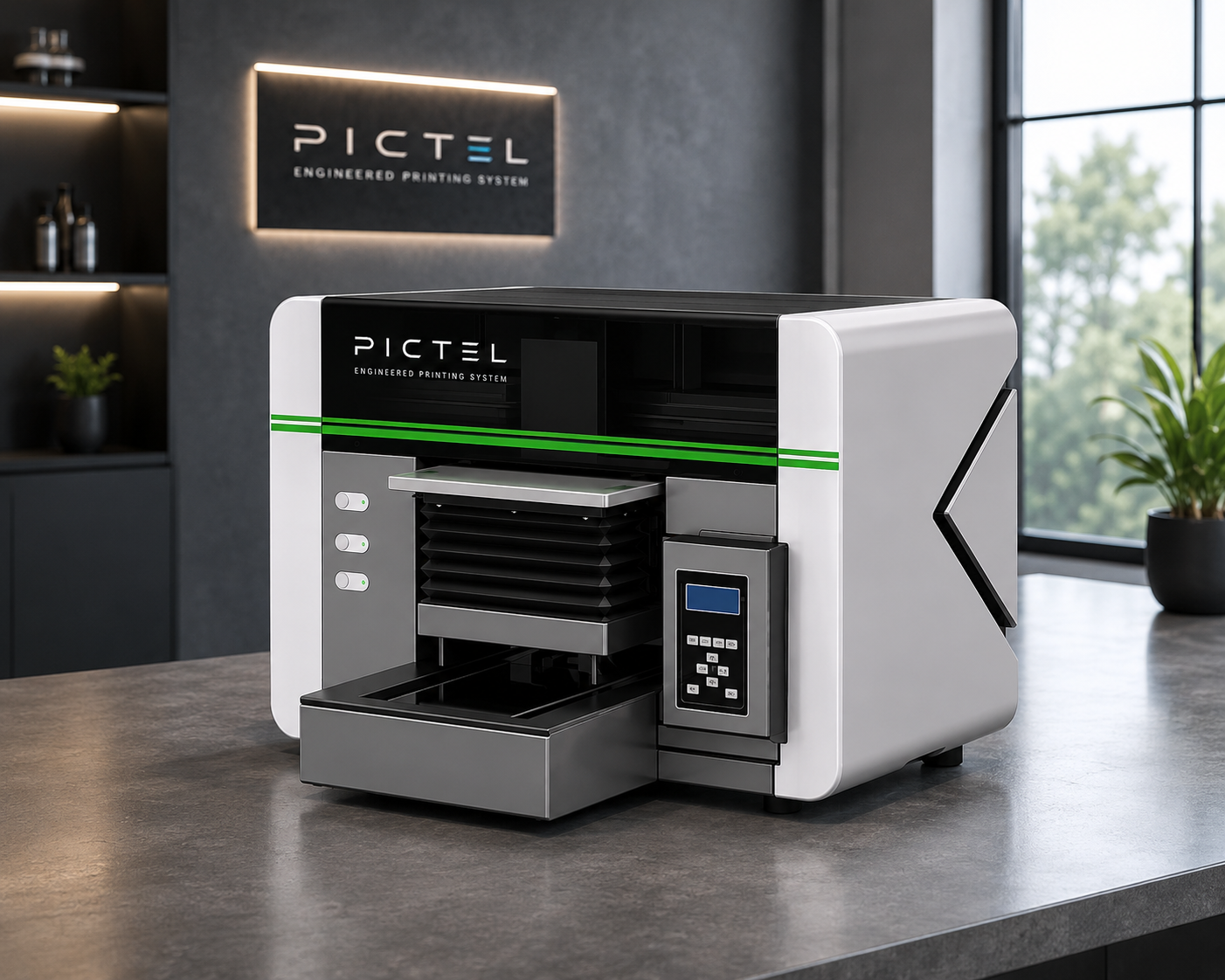

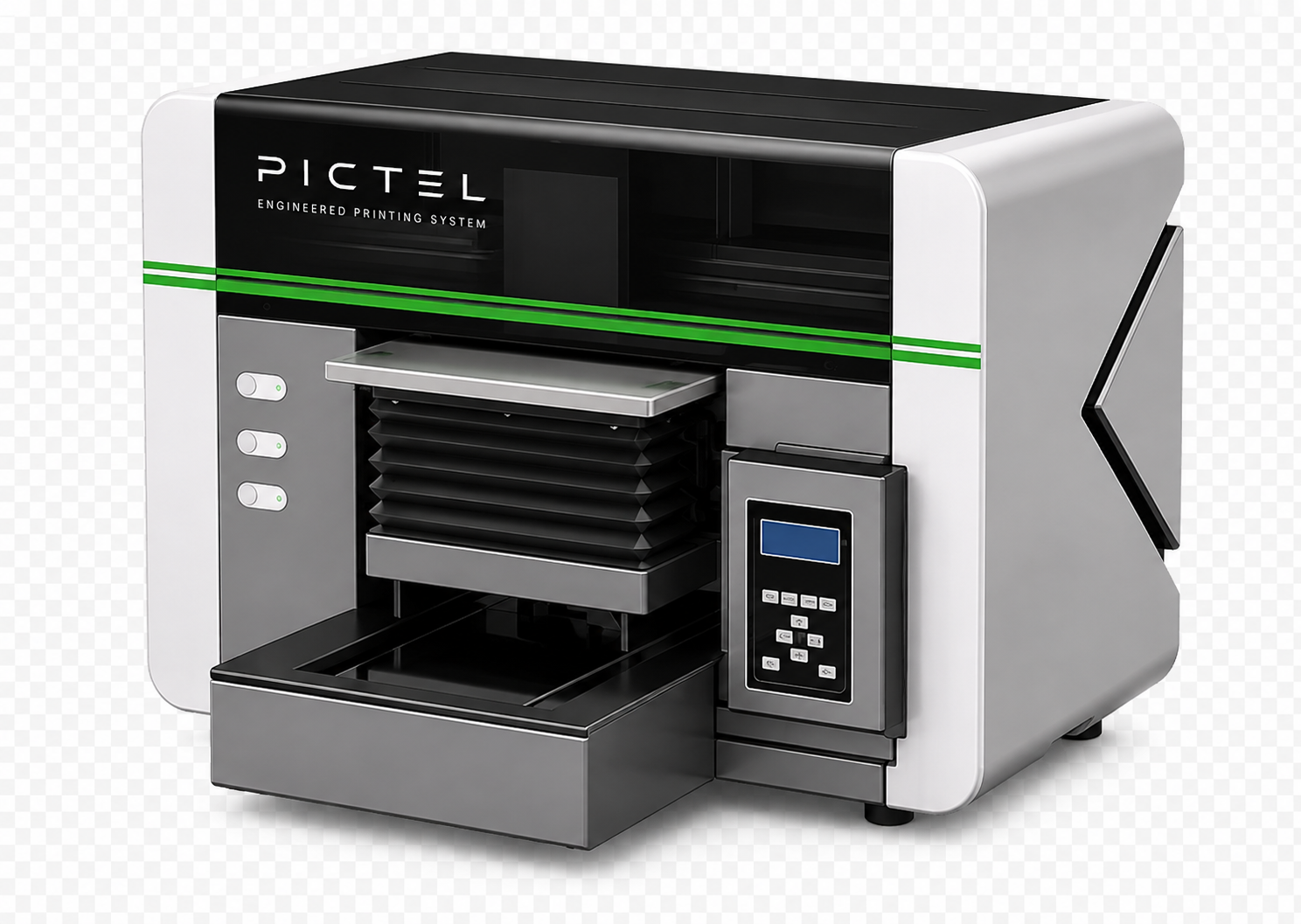

A3 UV PRINTER ( 30*42)
Compact Industrial UV Printing for High-Precision Customization
Say goodbye to tedious operations and easily achieve efficient customization; no professional skills required, even beginners can quickly get started.
Main Features:
- Multi-Material Printing - Print directly on acrylic, wood, glass, metal, PVC, leather, ceramic, plastic, phone cases, promotional products, and many other rigid materials up to 90mm thickness.
- High-Resolution UV Printing - Produce stunning graphics with resolutions up to 2880 DPI, delivering sharp details, smooth gradients, vibrant colors, and professional-quality output.
- White Ink & Varnish Support - Supports CMYK + White + Varnish printing, enabling textured effects, spot UV, glossy finishes, transparent media printing, and premium product decoration.
- Intelligent Automatic Maintenance - Equipped with automatic printhead cleaning, ink circulation, nozzle protection, and low ink detection to ensure consistent performance and minimize maintenance.
Technical Specifications:
- Printing Technology: UV LED Flatbed Digital Printing
- Maximum Print Area: 300 × 420 mm (A3 Size)
- Print Resolution: Up to 2880 DPI
- Printhead Options: XP600 / I3200HD / DX7
- Ink Configuration: CMYK + White + Varnish
- Supported Material Thickness: Up to 90 mm
- Printing Modes: Flatbed, Cylindrical & Roll Printing
- Machine Dimensions: 782 × 805 × 575 mm
A3 UV Printer Compact Size. Industrial Precision. Unlimited Creative Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Key Features of All in One Roll Printing Solutions
.jpeg)

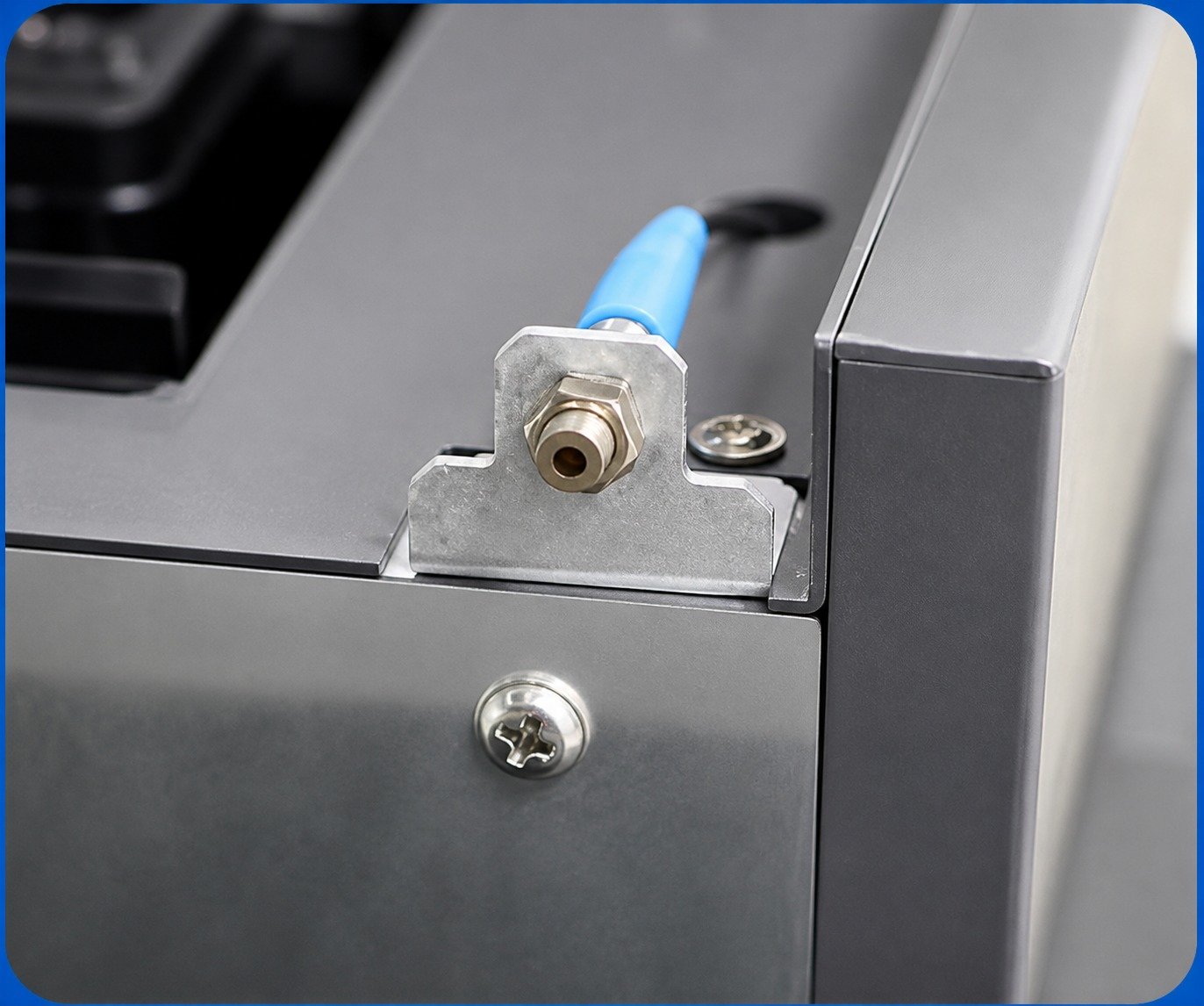

Infrared automatic altitude detection system
Automatically detect the safe distance between the product and the nozzle, and protect the nozzle and the product from being affected.

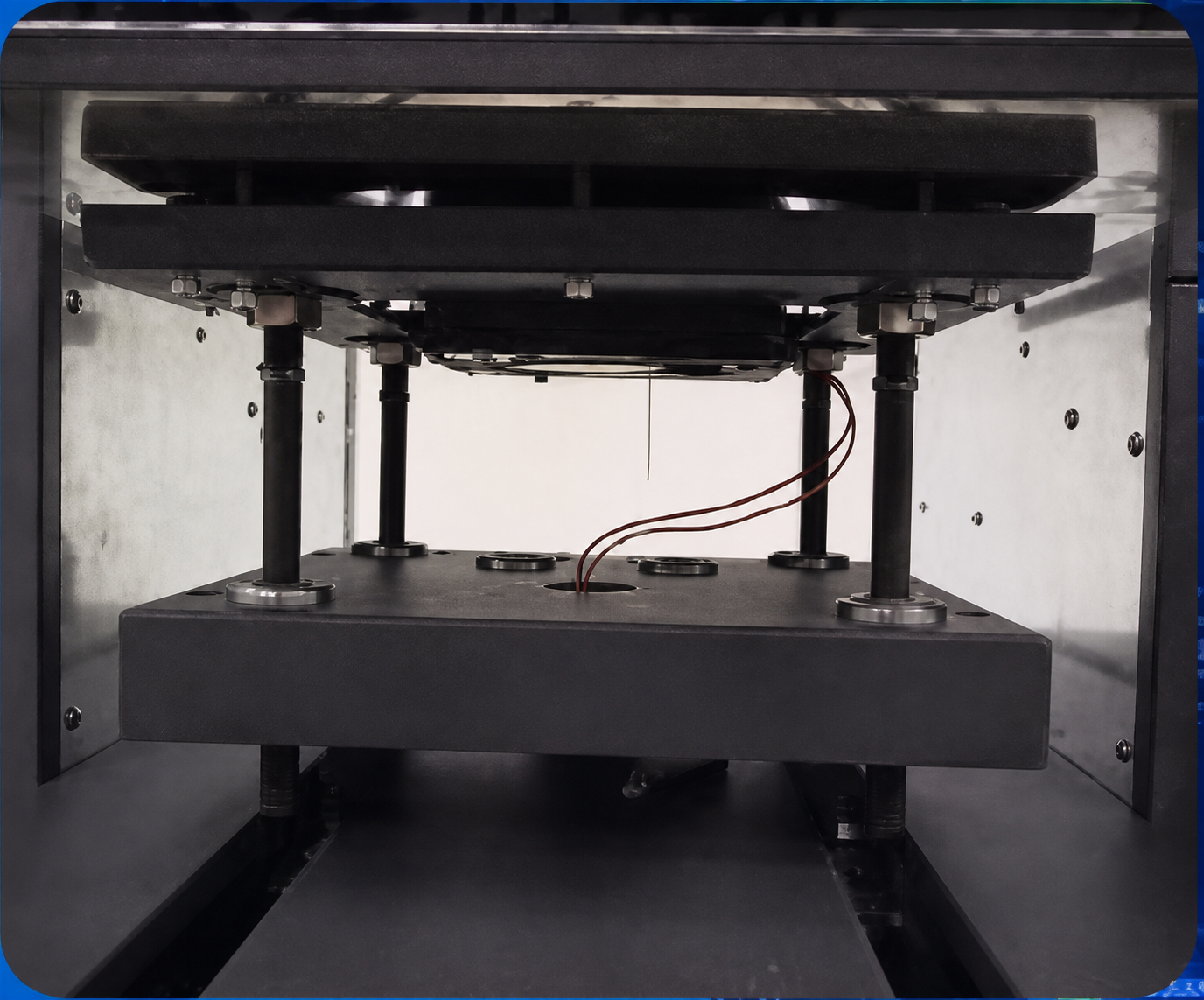

High drop lifting platform
Automatically raises and lowers the height of the platform for smoother printing.

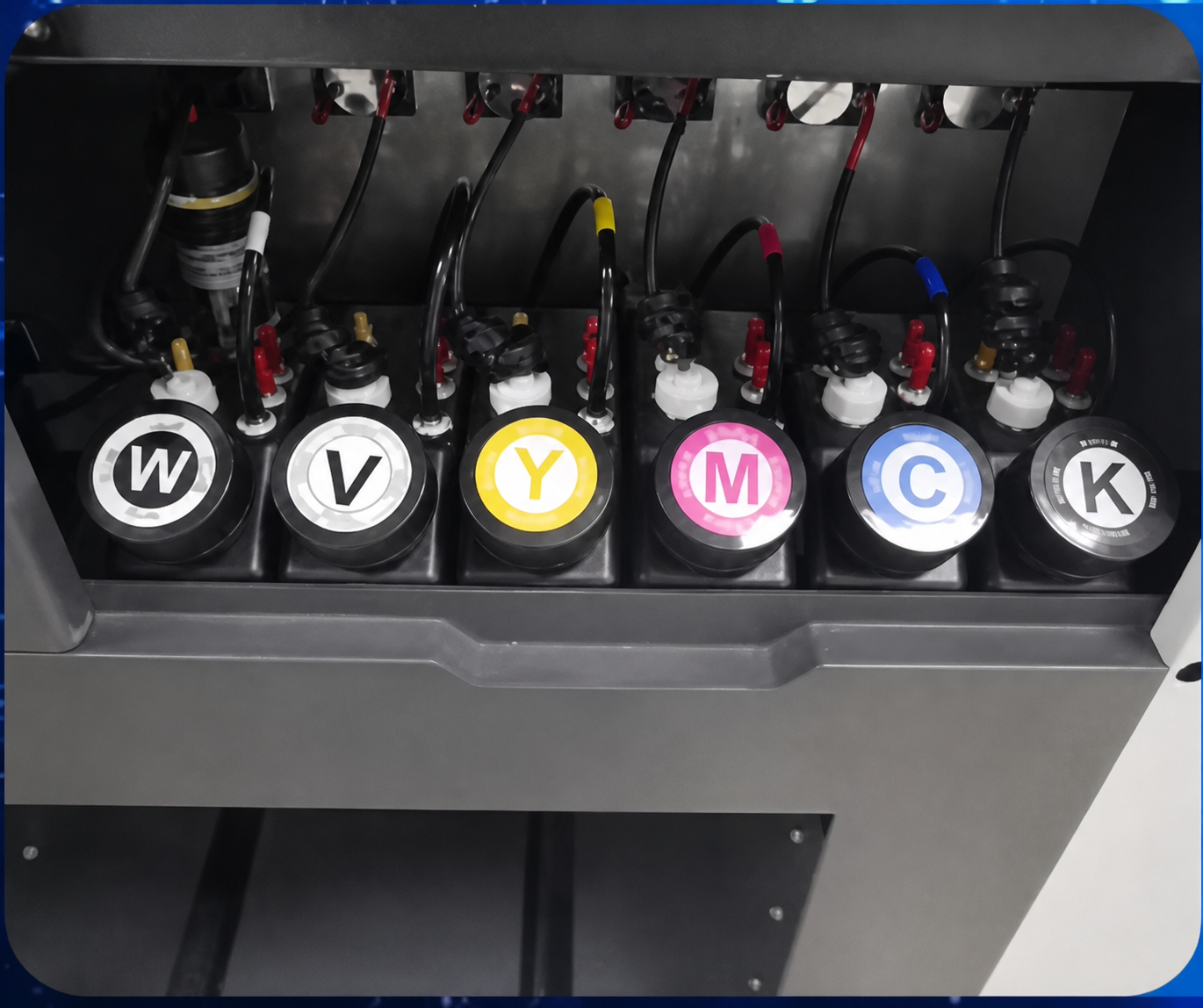

Original ink cartridge
Four color ink cartridge + white + varnish

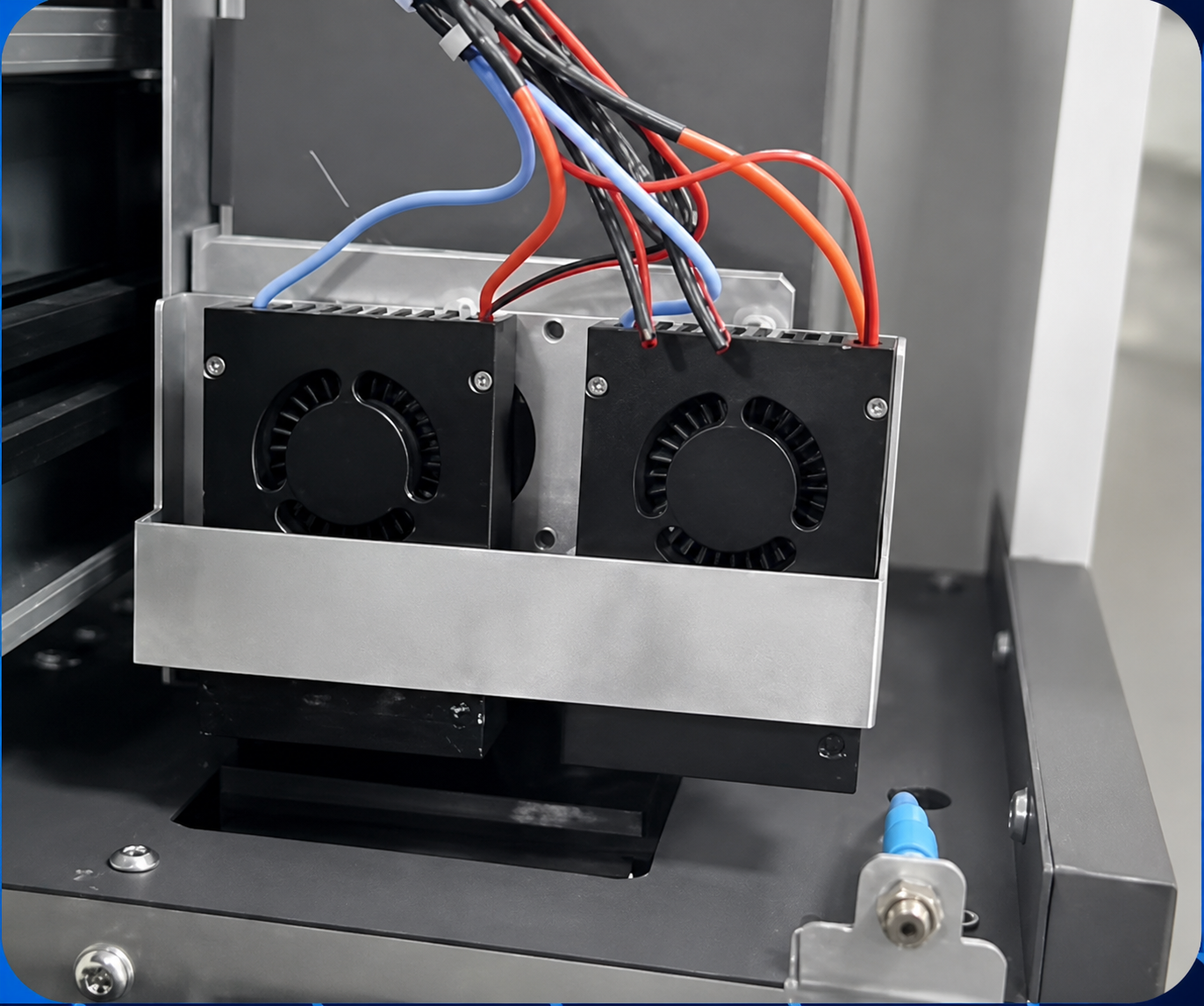

Intelligent air cooling system
Intelligent air cooling, quickly dry after printing, printing more silky smooth ink

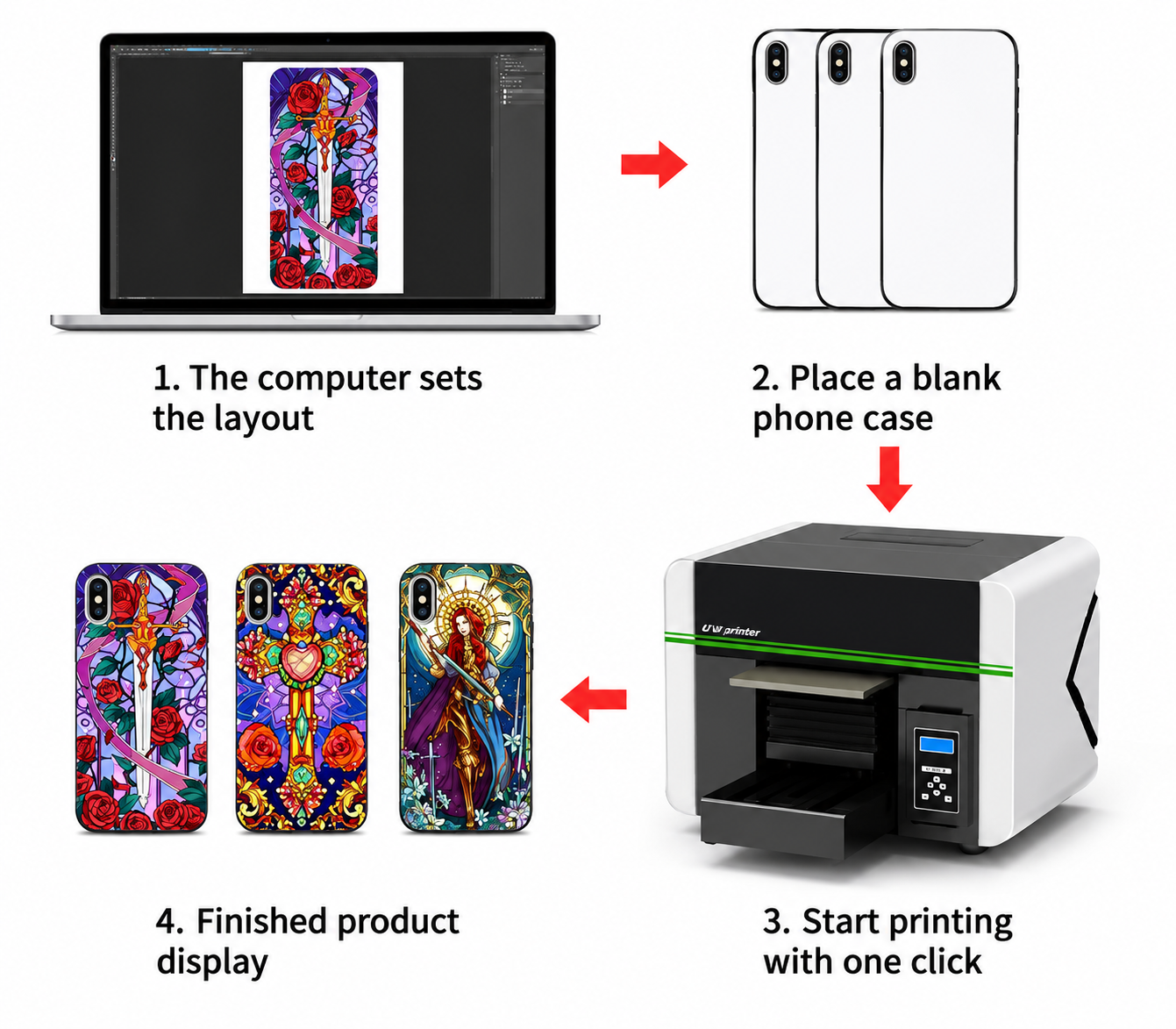

Easy to operate one click printing
Product Specification
| Product Model | A3 UV Printer |
| Print Head | XP600 / I3200HD / DX7 |
| Main Board | Independently Developed with Stable Performance |
| Print Size | 30 × 42 CM |
| Print Height | 0–90 CM |
| Output Color | CMYK + W / CMYK + W + V (Different Prices) |
| Print Quality | Printable Resolution: 720 / 1440 / 2880 dpi |
| Lifting Function | Platform Lifting |
| Number of Printheads | 1 |
| Inkjet Technology | Smart Variable Droplet |
| Printing Software | Ruiyin |
| Print Head Heating | Support |
| Positioning System | Visual Positioning (Optional) |
| Print Head Maintenance | Automatic Cleaning |
| Nozzle Clog Prevention | Automatic Agitation / Ink Spray |
| Print Mode | Unidirectional / Bidirectional |
| Printing Platform | Suction Platform |
| Ink Supply System | Automatic Ink Supply |
| Transmission System | Silent Guide Rail + High-Precision Lead Screw |
| Ink Level Monitoring | Ink Low Alarm |
| Ink Path System | Lifting Ink Stack / Mold Opening Ink Cartridge |
| Height Measurement | Automatic Height Measurement |
| Curing System | LED UV Lamp Curing |
| Power Requirements | AC 220V / 110V, 50Hz–60Hz |
| Language System | Supports Multiple Languages |
| Output Software | Professional Software |
| File Formats | TIF, BMP, PDF, EPS, JPG, PNG, etc. |
| Special Effects | 2.5D / Embossment |
| Operating System | Win7 / Win8 / Win10 |
| Interface Method | Gigabit Fiber |
| Working Environment | Temperature: 15–35°C; Humidity: 20–30% |
| Machine Dimensions | 78.2 × 80.5 × 57.5 CM |
| Printing Mode | Supports 3 Modes: Flat, Cylindrical and Crystal Label Roll |
| Bare Machine Weight | Approximately 75 KG |
| AI Expansion | Support AI Image Generation and Transformation Software |
| Packing Weight | 115 KG |
| Packaging Size | 102 × 90 × 87 CM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
A3 UV Printer Application
Our Multi-Function Printer is designed for versatile printing across a wide range of materials and products. From business cards, cartons, wine bottles, glass, leather, mugs, pens, phone cases, plastics, tiles, acrylic, wood, and bottles to golf balls, the printer delivers high-quality, durable, and precise results. With one machine supporting multiple applications, it helps businesses expand product offerings, reduce equipment costs, and unlock new customization and printing opportunities.
Business Cards
Carton
Wine Bottle
Glass
KT Board
Leather
Mugs
Pens
.png)
Phone Case
Plastic
Kneepad
Tiles
Acrylic
Wood
Bottles
Golf Ball
FAQ
The A3 UV Printer supports a wide range of flat, roll, and cylindrical materials. It can be used for applications such as acrylic, wood, glass, plastic, leather, bottles, mugs, phone cases, crystal labels, and other customized products.
The printer offers a 30 × 42 cm print area with a print height of up to 90 cm. Its automatic height measurement and platform lifting functions make it easier to print on materials with different thicknesses and dimensions.
The printer supports resolutions of 720, 1440, and 2880 dpi and uses Smart Variable Droplet inkjet technology for deta…
