PI 6090P Multifunctional 6090 flatbed UV Printer
The multifunctional, high-precision 6090 flatbed UV printer is designed for personalized customization and small-batch production. It is compatible with almost all materials, and prints on irregularly shaped objects with ease. The I3200 head provides high-precision output with vibrant colors, making it a flexible, reliable, and efficient choice for enterprises to print high-end promotional items and various substrates.
Main Features:
- Versatile functionality: supports UV direct printing, UV DTF sticker printing, cylinder printing, mug printing, golf ball printing, pen printing, and other personalized gift printing.
- Optional 600dpi / 1200dpi visual positioning system for more precise printing.
- High-resolution print output, up to 720×2400 dpi, meeting both high quality and efficiency requirements.
- White + color + varnish printing delivers vibrant colors, high gloss, and excellent 3D embossing effects, and strong wear resistance.
- Highly intelligent, user-friendly for beginners, low maintenance costs, and high production efficiency.
Technical Specifications:
- Print Head: 3/4 * I3200 U1 / I1600 U1 / XP600
- Printing Size: flatbed mode: 600*900mm; roll to roll mode: 600mm
- I3200 Head Printing Resolution (6pass): : 720*1800dpi
- I3200 Head Printing Speed: 6pass: 4.64m²h, 8pass: 3.63m²h
- Color: CMYKWV (supports expansion to 8 colors: LcLmLkLLk/neon colors)
6090 Multifunctional UV Printer. Industrial Power. Precision Printing. Unlimited Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Features of 6090P Flatbed UV Printer

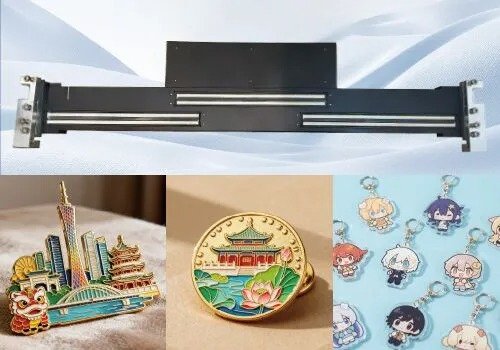

Visual Positioning System
Optional high-precision 600dpi / 1200dpi visual positioning system, a high-definition camera automatically identifies irregular objects to ensure precise printing.

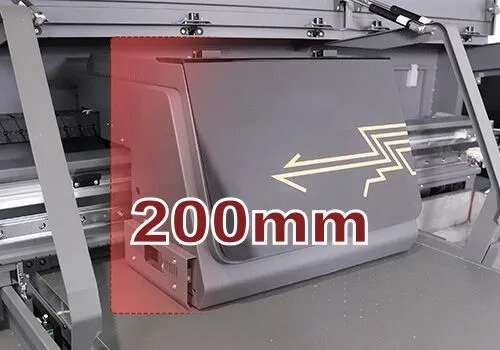

0–200 mm Liftable Trolley Crossbeam
The trolley crossbeam can be raised up to 200 mm based on infrared detection of the print object, easily handling various irregularly shaped and thick materials.

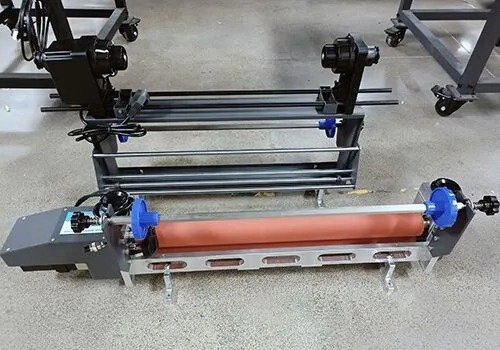

Supports Various Fixtures
Supports mounting phone case fixtures, cylindrical fixtures, UV DTF sticker roll fixtures, pen fixtures, and mug fixtures, achieving multi-functionality.

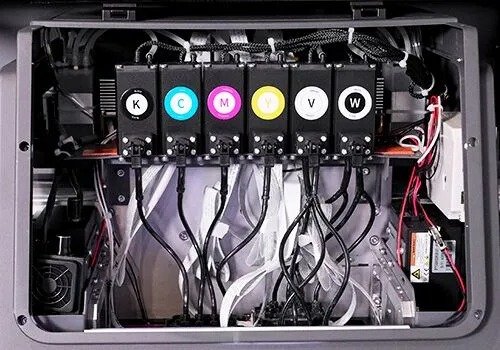

Intelligent Negative Pressure Ink Supply System
The intelligent ink supply system, combined with a high-efficiency ink suction device, it ensures a clean operating environment and flawless printing.
High-Precision Vacuum Suction Platform
The suction platform uses high-strength aluminum alloy plates; a turbine fan below the platform draws in air through holes to fix the material.

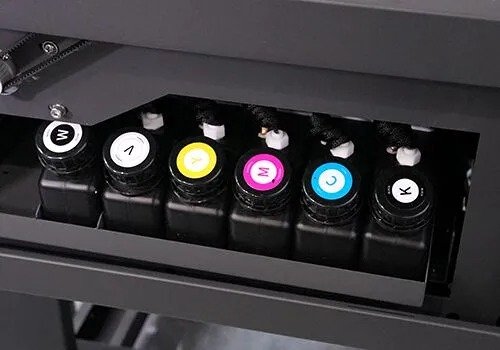

Expandable to 8 Colors
Supports CMYKWV configuration and can be expanded to 8 colors (LcLmLkLLk for light or fluorescent colors), meeting high-end multi-color printing needs.

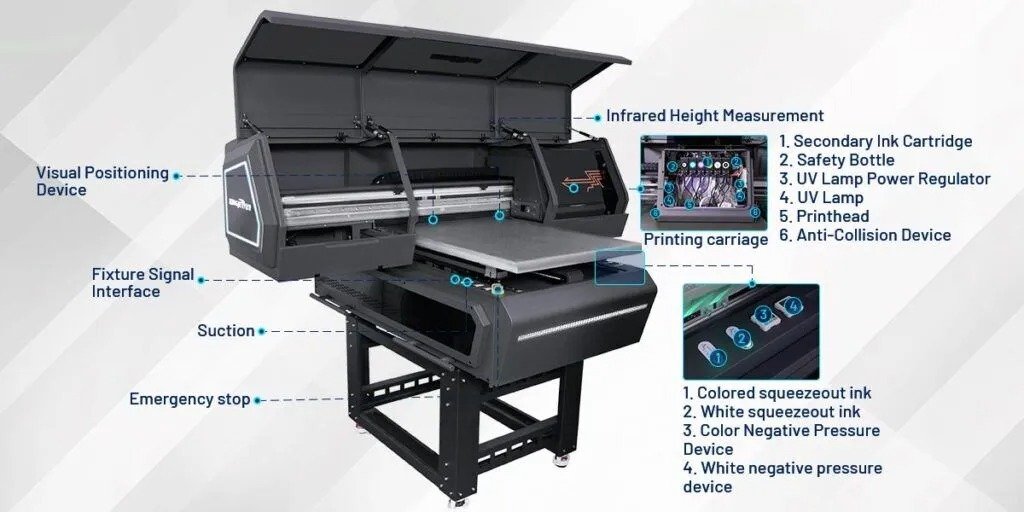

6090P flatbed UV printer detailed configuration
Product Specification
| Model | PI-6090P UV Flatbed Printer |
| Printhead Number | 3–4 pcs |
| Printhead Type | I3200 U1 / I1600 U1 / XP600 |
| Print Resolution (6 Pass) | 720 × 1800 dpi |
| Printing Speed – 6 Pass | 4.64 m²/h (Production Mode) |
| Printing Speed – 8 Pass | 3.63 m²/h (Quality Mode) |
| Printing Size | Flatbed Mode: 600 × 900 mm Roll-to-Roll Mode: 600 mm |
| Ink Configuration | CMYKWV, expandable up to 8 colors: Lc, Lm, Lk, LLk / Neon Colors |
| Ink Type | Environmental UV Ink |
| UV Curing System | UV-LED Water-Cooled Curing |
| Ink Supply | Negative Ink Supply with White Ink Stirring |
| Application | Ceramic, Wood, Glass, Metal, Acrylic, KT Board, Crystal, Leather, PVC, ABS, etc. |
| Optional Fixtures | Supports Phone-Case Fixture, Cylindrical Fixture, UV DTF Fixture, Pen Fixture and Mug Fixture |
| Optional Visual Positioning System | 600 dpi and 1200 dpi |
| RIP Software | RIIN / Flexi |
| Input Power | AC 220V / 110V, 50–60Hz |
| Operation Environment | Temperature: 15–35°C, Humidity: 20–60% |
| Machine Size | 1780 × 1400 × 850 mm |
| Machine Weight | 250 kg |
| Package Size | 1900 × 1550 × 1060 mm |
| Package Weight | 332 kg |
| Package Volume | 3.12 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Applications of 6090 UV Flatbed Printing Machine
The 6090P flatbed UV printer is a flexible substrate printing solution that can print directly onto rigid substrates and flexible films, such as ceramics, wood, glass, metal, acrylic, leather, PVC, ABS, and KT board. With optional fixtures, it can accurately print irregularly shaped products and roll materials such as toys, UV DTF stickers, phone cases, cylinders, pens, mugs, and golf balls. Furthermore, this equipment uses environmentally friendly UV ink and a UV-LED water-cooled curing system, balancing high precision and stability. It is ideal for printing high-quality outdoor signage, advertising banners, customized craft gifts, 3C digital products, cosmetic packaging materials, promotional items, and other applications.
Ceramic
Wood
Crystal Medal
Golf Ball
KT Board
Glass
Phone Case
Metal
Acrylic
FAQ
Sure, the main principle is to directly print patterns on TPU patches and heat press transfer them onto textile fabrics, such as jerseys, T-shirts, etc., which are durable, long-lasting, and not easy to fall off. You can also view: applications of TPU patches in textile.
Flatbed UV printer can print on items such as phone cases, badges, wood, ceramics, acrylic, medals, packaging boxes, leather, and promotional items. Additionally, some UV printer models come equipped with fixtures that support printing on cylindrical objects and mugs. They require no plates, dry instantly, and produce high-precision, durable designs. Widely used in advertising signage, home decor, industrial customization, and artistic creation, they offer both environmental benefits and flexibility.
The cost of UV printing is influenced by factors such as equipment investment, ink type, and embossed effects, etc., and are generally higher than other printing methods. However, UV printing offers high production efficiency, durability, and significant 3D effects, making it particularly suitable for personalized customization, multi-material production, and rapid printing applications.
Flatbed UV printer offers unparalleled material compatibility and can print on almost any material (printing on textiles requires a transfer process), including acrylic, glass, wood, plastic, ceramics, metal, leather, PET, etc.
