PI 4060 ALL IN ONE ROLL FLAT PRINTER
Personalized printing on stickers backpacks water bottles turns creative ideas real easily
Main Features:
- Automated all-in-one printing, convenient laminating, and no need for manual operation.
- White + color + varnish printing at the same time, high gloss, vibrant colors, and wear-resistant.
- Freely customize patterns and excellent transfer on different materials such as wood, plastic, metal, ceramics, glass, paper, and so on.
- Entry-level UV sticker printer, low-cost investment, suitable for home, beginner, and small businesses.
Technical Specifications:
- Epson Print Head – Industrial-grade precision printing.
- High Resolution – Up to 2880 × 5670 dpi output.
- 3.5 pl Ink Droplets – Sharp, detailed print quality.
- CMYK + White Ink – Vibrant, full-colour printing.
- Auto Ink Supply – Continuous, uninterrupted printing.
- LED UV Curing – Instant drying with low power use.
- Bi-Directional Printing – Faster production speeds.
- 180 mm Print Height – Prints on thick materials.
- Servo Motor Drive – Smooth and precise operation.
- Multi-Material Support – Prints on roll and rigid media.
4060 All-in-One Roll Flat Printer. One Machine. Unlimited Printing Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.

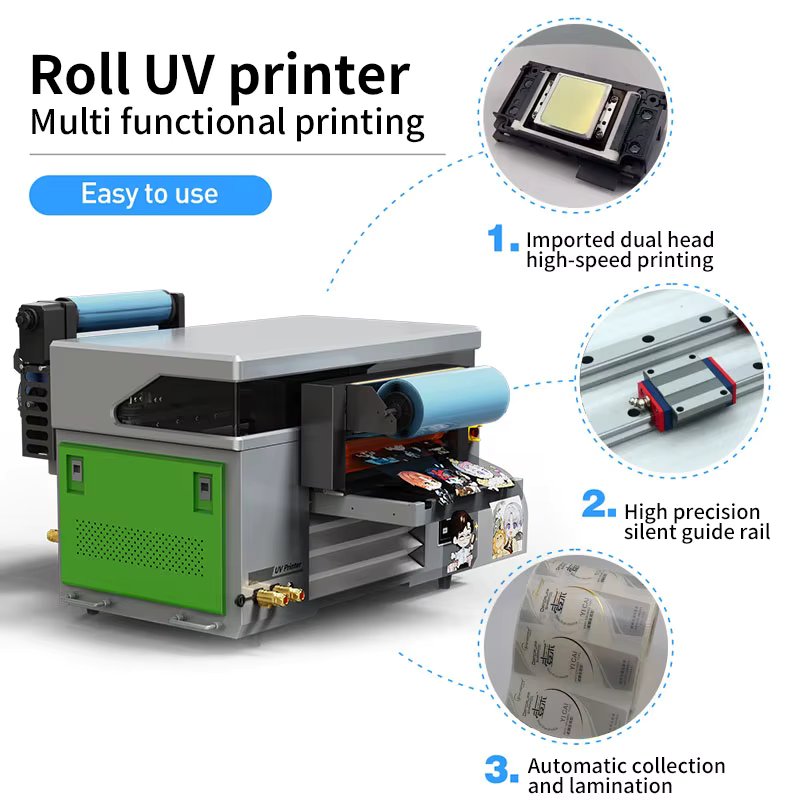

Key Features of All in One Roll Printing Solutions
Removable Dual-Use Design
Switch seamlessly between roll media and flatbed printing with a removable module. One versatile machine delivers greater flexibility while saving space and investment costs.
.png)
High-Speed Dual Print Heads
Equipped with imported dual print heads for fast, accurate, and consistent printing. Achieve vibrant colours and sharp image quality with enhanced productivity.
.png)
Precision Motion System
Built with high-precision silent guide rails for smooth and stable carriage movement. This ensures superior print accuracy, reduced vibration, and reliable long-term performance.
.png)

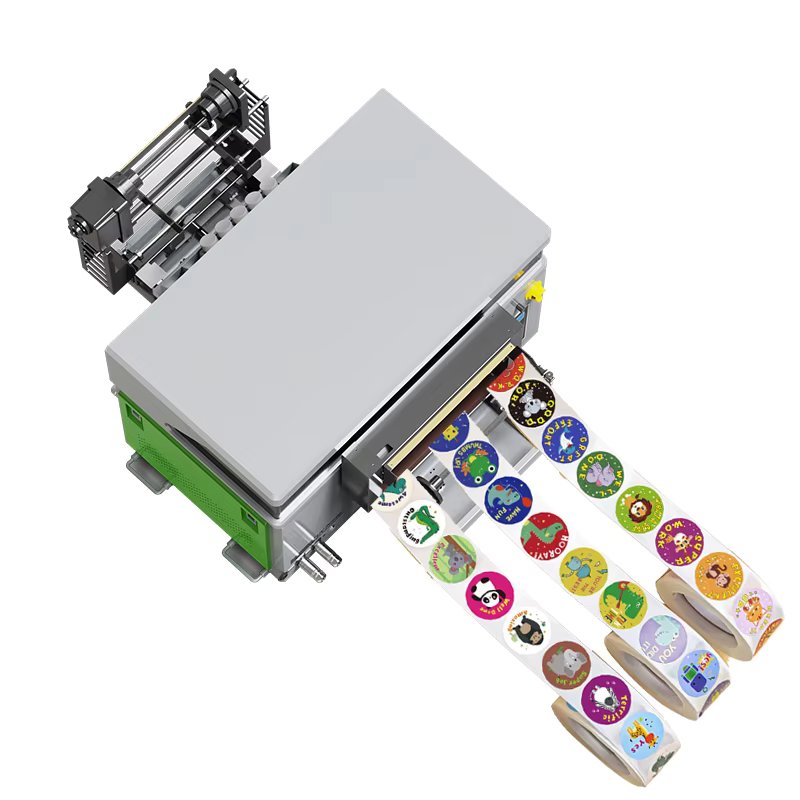

Automatic Roll Feeding & Collection
Features an integrated automatic media feeding and collection system with lamination support. It enables continuous printing, minimises manual handling, and improves production efficiency.
Product Specification
| Product Parameter | Roll and Flatbed All-in-One Printer |
| Model | 4060 |
| Control Board | Hoson Control Board |
| Print Size | 40 × 60 CM / 30 × 100 M Material Length |
| Print Height | 0–150 mm |
| Output Color | CMYK + W + V |
| Print Quality | Resolution: 720 / 1440 / 2880 dpi |
| Nozzle Configuration | F1080 / i1600 / i3200HD |
| Printhead Number | 2–3 (Optional) |
| Inkjet Technology | Micro Piezo Inkjet |
| Printing Software | RIIN |
| Nozzle Heating | Optionally Available |
| Print Head | Epson Pro Print Head |
| Print Head Maintenance | Automatic |
| Anti-Clog Printhead | Spray in Idle / Auto Agitation |
| Print Mode | One-way / Two-way |
| Nozzle Maintenance Platform | High-Load Suction Platform |
| Ink Supply System | Full-Automatic Ink Supply System |
| Transmission System | Imported Linear Guide + High-Precision Servo Motor |
| Ink Level Monitoring | Multi-channel Real-time Out-of-ink Alarm |
| Inking System | Ink Station / Custom-Molded Ink Cartridge |
| Lifting Function | Platform Lifting |
| Curing System | UV, Curing, Instant Dry, LED UV |
| Power Requirements | AC 220V / 110V, 50Hz–60Hz |
| Language System | Chinese–English (Customizable) |
| Output Software | Professional Software |
| File Format | JPG, PNG, PDF, TIF, EPS |
| AI Expansion | Support AI image generation and transformation software |
| Special Effects | Relief / Varnish |
| Data Transmission | Gigabit Optical Fiber |
| Operating Environment | Temperature: 15–35°C; Humidity: 20%–30% RH |
| Print Modes | Supports 3 Modes: Flat / Cylindrical / Crystal Label |
| Packed Weight | Approx. 147 KG |
| Bare Machine Weight | Approx. 85.5 KG |
| Operating System | Win7 / Win8 / Win10 |
| Package Size | 120 × 95 × 86.5 CM |
| Machine Size | 101 × 80 × 58 CM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise

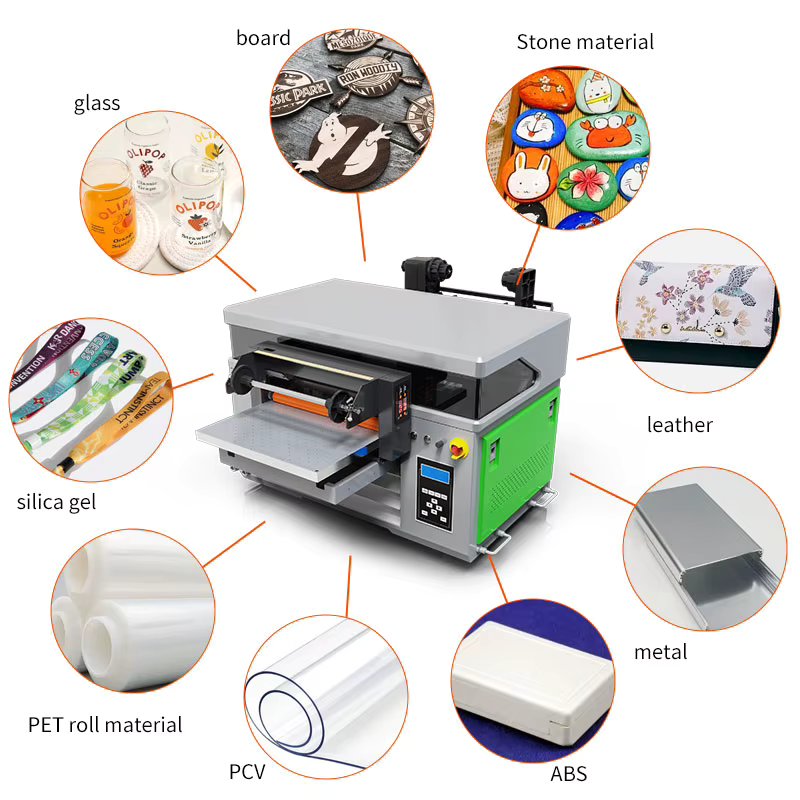

UV DTF Printer Application
The PI 4060 All-in-One Roll-Flat Machine supports direct printing on both roll and flat materials, including coil crystal labels, PET film, tin foil paper, wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, fabric, and many other substrates. Its versatile compatibility makes it suitable for a wide range of commercial and industrial printing applications.
Ceramic
Metal
Thermos Cup
Mobile Phone Case
Glass
Plastic Box
FAQ
The UV DTF market is growing rapidly due to increasing demand for customized products, premium branding, and small-batch printing.
DTF is mainly for fabrics, while UV DTF is designed for hard surfaces like glass, metal, plastic, wood, acrylic, ceramic, and leather.
The printing cost per square meter depends on ink usage, film, and design coverage, but UV DTF offers a highly cost-effective solution.
UV DTF prints are highly durable, waterproof, scratch-resistant, and fade-resistant when applied correctly.
You need a UV DTF printer, UV inks, A/B film, RIP software, and the desired artwork to start printing.
A UV Flatbed printer prints directly on the object, while UV DTF prints on transfer film that can be applied to various hard surfaces.
Properly applied UV DTF transfers can last for years and are waterproof, washable, and resistant to daily wear.
You can purchase genuine UV DTF films, inks, and consumables directly from PICTEL or through our authorized distributors.
