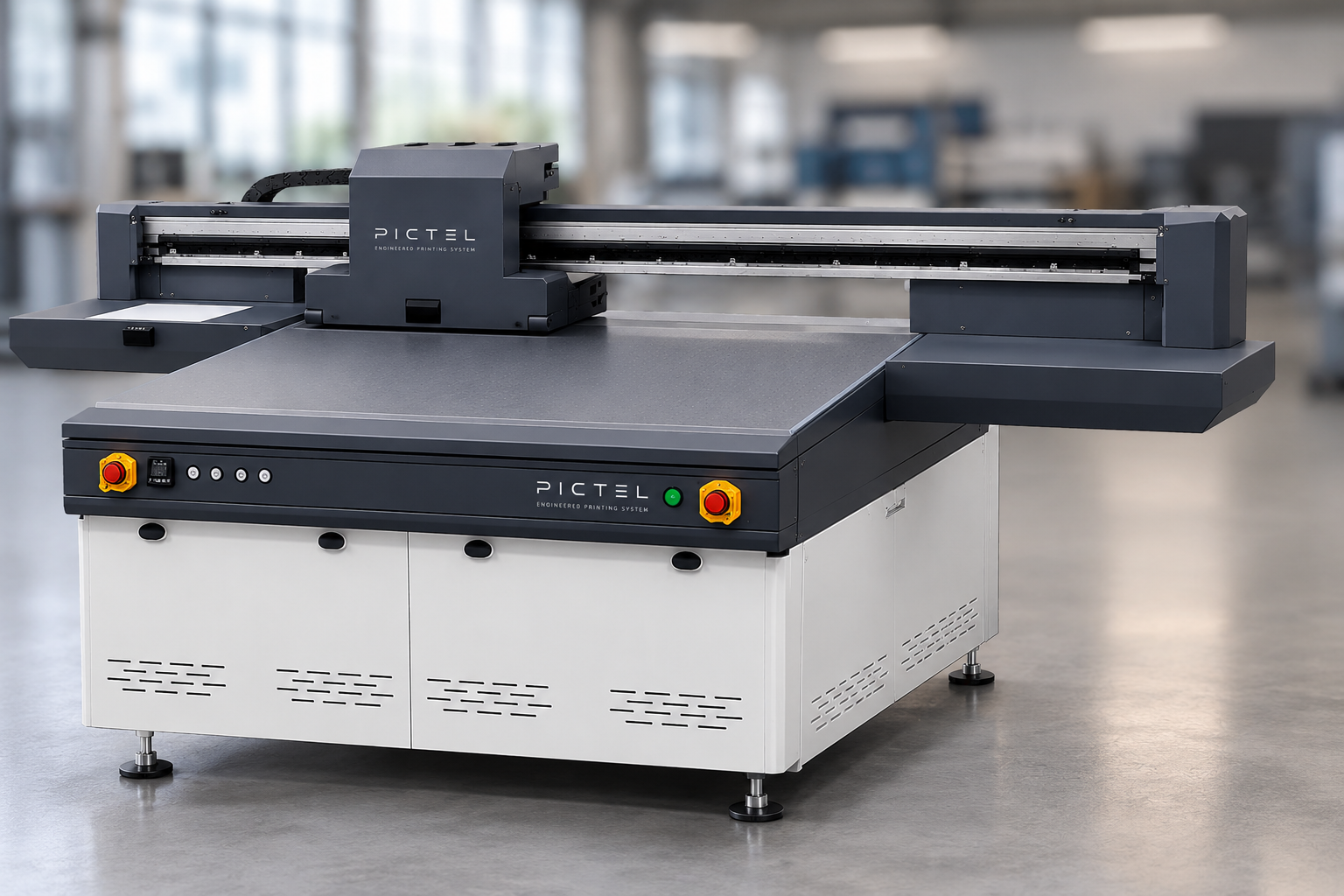

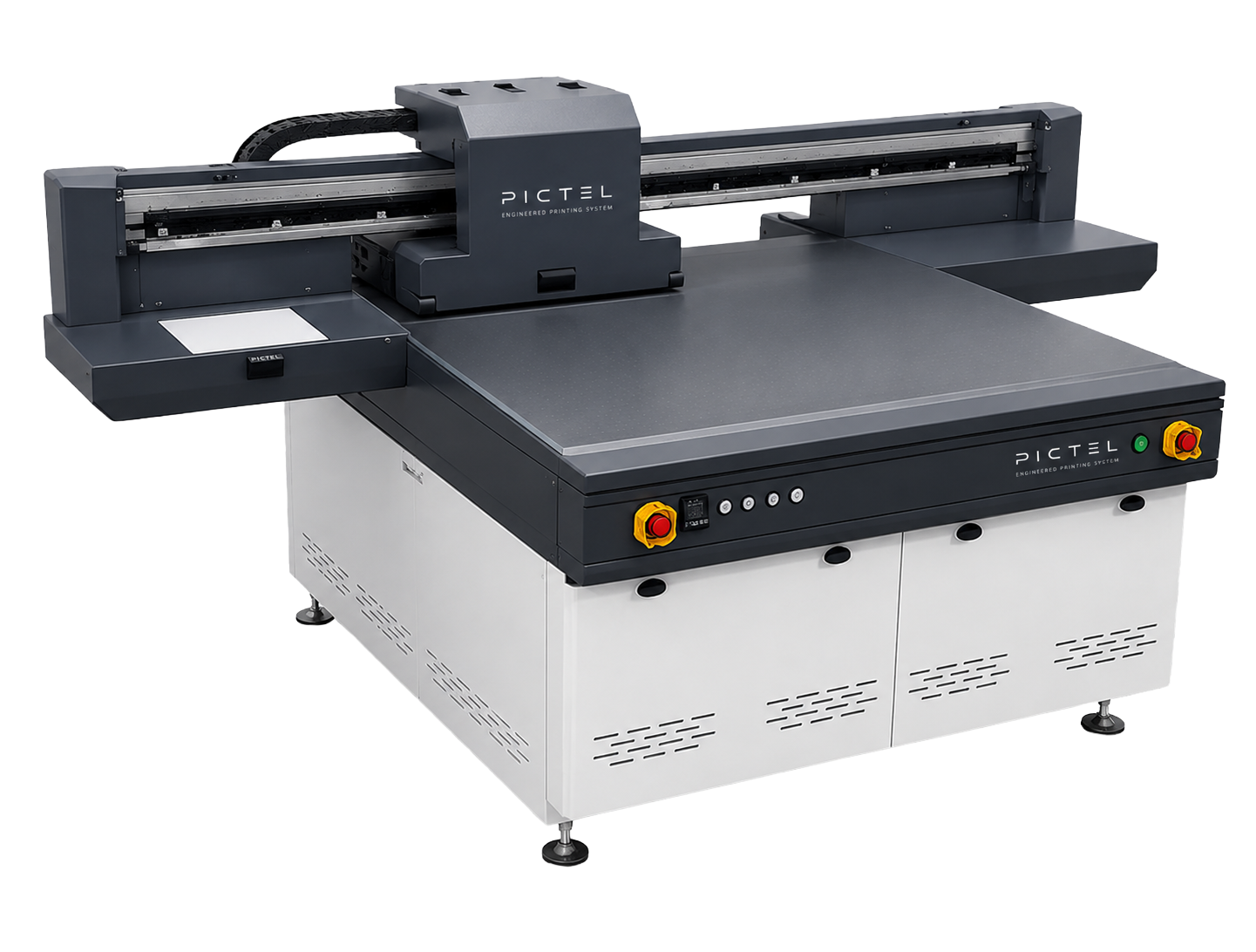

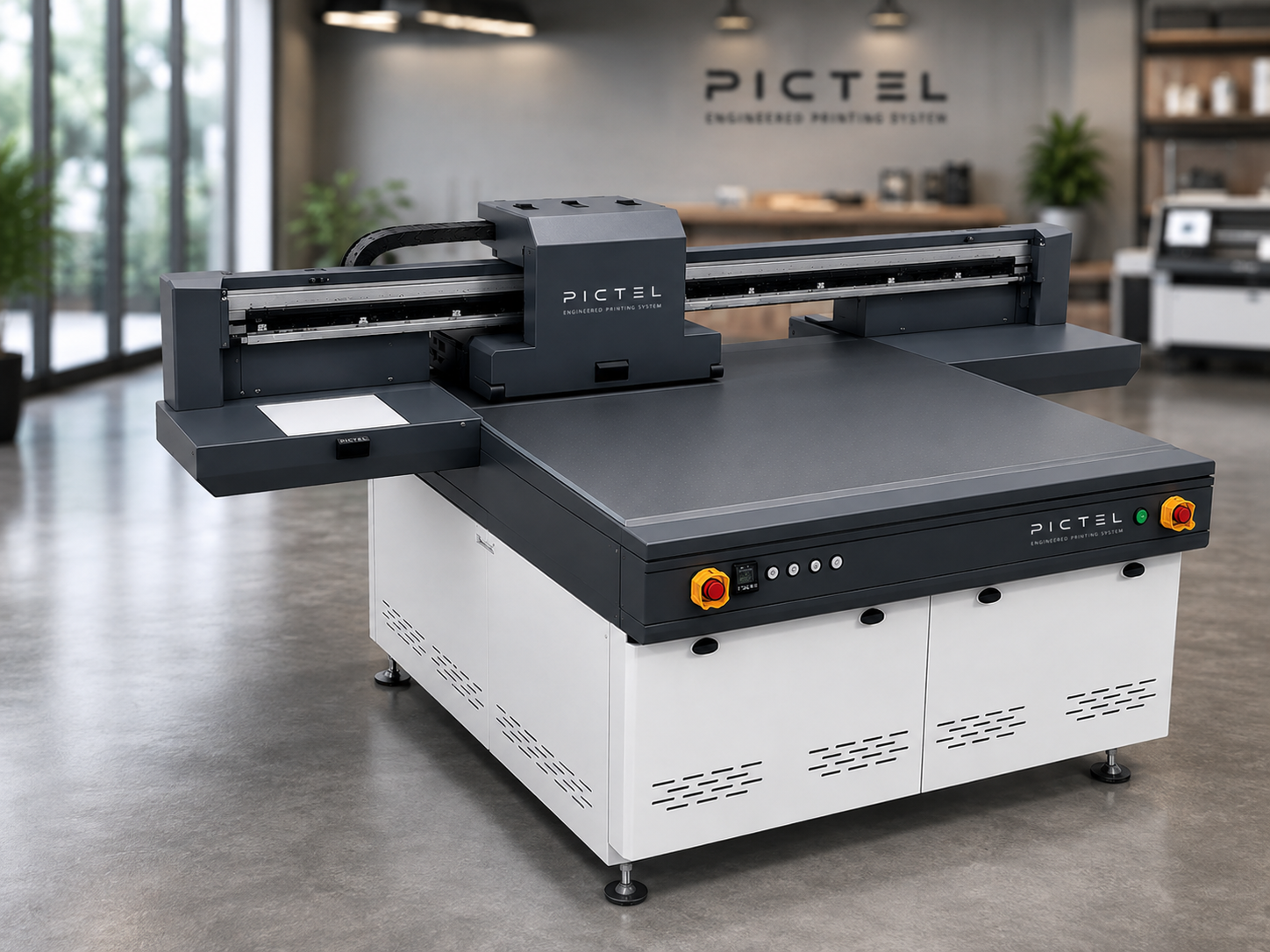

PI 1612 UV DIRECT TO SUBSTRATE UV PRINTER FOR ANY SURFACE

The new direct-to-substrate UV printer is designed for industrial signage, advertising customization, and other applications. It features intelligent operation and industrial-grade printheads to ensure stable output, vivid colors, and excellent performance, making it highly compatible with the printing needs of small and medium-sized enterprises on a variety of materials.

Main Features:

Using grayscale printing technology, the size of ink droplets is automatically controlled, saving up to 30-50% in ink consumption.
Color + white + varnish are output simultaneously, and the printing pattern is completed in one go.
Multiple colors can be freely combined, producing rich colors and natural transitions.
Widely used on acrylic, wood, glass, tiles, metal, leather, PVC, etc.

Technical Specifications:

Printhead: 2-6 Ricoh G6 print heads
Print Size: 1.6m*1.3m
Thickness: 0-15cm
DPI: 1200 dpi
Color: CMYK, W, V (LC, LM optional)
RIP Software: photoprint, and onyx optional.

High-Speed UV Printing. Superior Accuracy. Exceptional Material Compatibility.

Reliable Quality

Professional R&D team control, strict factory testing and excellent machine quality.

Source Factory

Factory direct sales, competitive pricing and flexible customization.

Fast Shipping

Multiple overseas warehouses and fast worldwide delivery support.

Complete Service System

Professional pre-sales, installation, training and after-sales support.

Direct-to-Substrate UV Printer features

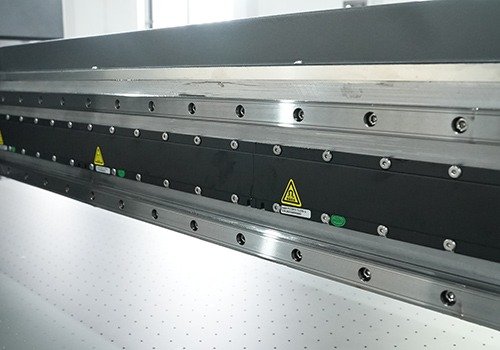

Dual Linear Guides

Equipped with dual linear guides and reinforced guide rails to ensure smooth movement, precise ink droplet placement, and calibration errors within 0.02-0.05mm.

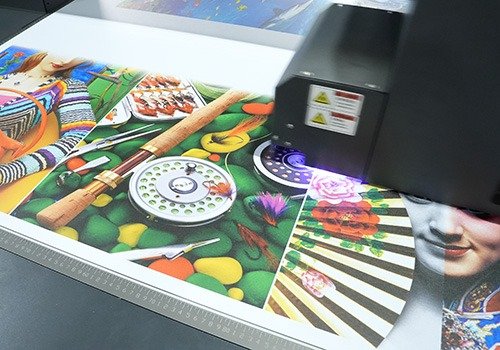

Automatic Height Measurement

Automatically detects the surface height of the material and precisely adjusts the printhead distance, suitable for printing on various materials.

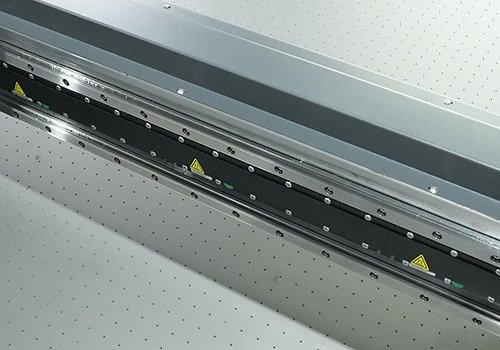

Metal Grating Scale

A high-resolution metal ruler ensures precise ink placement in any environment, enhancing platform durability for a longer service life.

Suction Platform

Suction and blowing functions can be freely selected to meet the different material printing requirements, and a high-definition scale is included to enhance user experience.

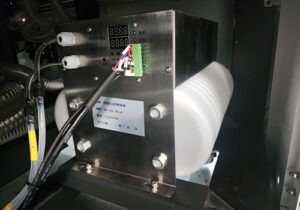

Color-White Dual Negative Pressure System

Independent dual negative pressure ink supply systems for color and white ink ensure stable ink output, smoother printing, and prevent ink interruptions and color discrepancies.

Low Ink Alert System

The ink tank is equipped with a built-in liquid level detection system that automatically alerts users when the ink levels are low, prompting them to refill. The white ink tank also includes a stirring motor to prevent ink sedimentation.

Product Specification

Product	Direct-to-substrate UV Printer
Model	PI-1612
Print head	2-6 Ricoh G6 print heads
High Speed Mode	25-70m²/h
Production Mode	18-45m²/h
Quality Mode	14-36m²/h
Print Size	1600*1300mm
Printing Method	Piezojet greyscale printing technology
DPI	1200dpi
Ink Type	UV ink
Color	CMYK,W, V (LC, LM optional)
RIP Software	Photoprint, Onyx (optional)
Ink Cartridge Size	1.5L
Color Management	ICC color curve offered, adjustable by the user
Thickness	0-15cm
Ink Supply System	Dual negative pressure system in color and white
Solidification System	Solidification with UV LED light
Operational Environment	Temperature: 20-30℃, relative humidity: 35%-65%, non-condensing
Operating System	Windows 10, 64-bit, USB2.0/3.0, HDD 500G+
File Format	Tiff, Jpeg, Postscript, EPS, PDF, etc.
Power	4500W, 32A
Input Voltage	200-240V AC, 50Hz
Machine Size	L3320W2000H1500mm, 1000KG
Packing Size	L3600W2200H1850mm, 1300KG

Partner with PICTEL. Grow Faster. Earn More.

Your Success is Our Business.

We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.

Higher Profit Potential
Fast Service & Spare Parts
Complete Business Support
Long-Term Growth Partnership
Trusted Engineering Expertise

Start Growing with PICTEL →

Direct-to-Substrate UV Printer Applications

The 1.6m UV direct-to-substrate printer is designed for high-stability industrial production and is suitable for advertising signage, packaging signage, personalized customization, and home decoration. The machine uses high-precision printheads and a UV curing system to achieve millimeter-level detail reproduction. It supports direct printing on hard materials such as glass, metal, plastic, and wood, as well as flexible media such as leather and PP sheets. It dries immediately after printing, eliminating the need for plate making or lamination, greatly improving production efficiency.

UV printing on acrylic

UV printing on glass

UV printing on Ceramic tiles

UV printing on wood

UV printing on Phone Case

UV printing on pens

FAQ

The direct-to-substrate uv printer, also known as a UV flatbed printer, uses UV curing technology to print directly onto the surface of materials.

Compared with traditional printing methods, it does not require plate making or heat transfer, enabling direct printing on various materials such as acrylic, metal, glass, leather, and wood. It offers high production efficiency, durability, vibrant colors, and is widely used in advertising signs, home decoration, industrial parts identification, personalized gift customization and other fields.

Direct-to-substrate UV printer offer exceptional flexibility, enabling high-precision printing on a variety of rigid and flexible surfaces, including signage, home decor, electronics, cultural and creative gifts, and construction materials.

Rigid Substrates:
Acrylic, glass, metal sheets, aluminum sheets, ceramic tiles, wood, PVC boards, etc.

Soft Materials:
Leather, textiles (TPU UV printing), soft films, etc.

Yes, a UV flatbed printer can print directly on leather surfaces with high precision. This is because UV ink blends well with the texture of leather, making the printed objects very durable and visually appealing, making it a great choice for leather printing.
