PI 6090 UV LED 6090 flatbed UV Printer
High-quality UV led printer 6090, can customize the printing height to 30 cm, and the visual positioning function can accurately print various hard substrates(metal, aluminum), creating more printing opportunities for you.
Main Features:
- The visual positioning function automatically identifies and calibrates the position and angle of the printing material to achieve accurate printing.
- Stable printing performance, durable pattern, no color loss, and no fading.
- White, color, and varnish printing, the pattern can achieve 3D visual effects, and the product has higher added value.
- Wide range of applications, capable of high-resolution printing on almost flat and curved materials, such as acrylic, wood, ceramics, golf balls, cups, pendants, toys, promotional items, etc.
Technical Specifications:
- Print Head : 2-3* Ricoh G5i / 3*EPSON I3200-U1 heads optional.
- 2-3*Ricoh G5i Printing Speed : 4-6 sqm/hr
- 3*EPSON I3200 Printing Speed : 4-5 sqm/hr
- Print Size: 600*900mm
- Color : C, M, Y, K, W, V
- RIP Software : RIPrint, ONYX (optional)
6090 UV Flatbed Printer. Industrial Precision. Versatile Printing. Unlimited Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
UV LED printer 6090 Features
Visual Positioning
Automatically identify and calibrate the position and angle of printing materials to achieve precise printing.

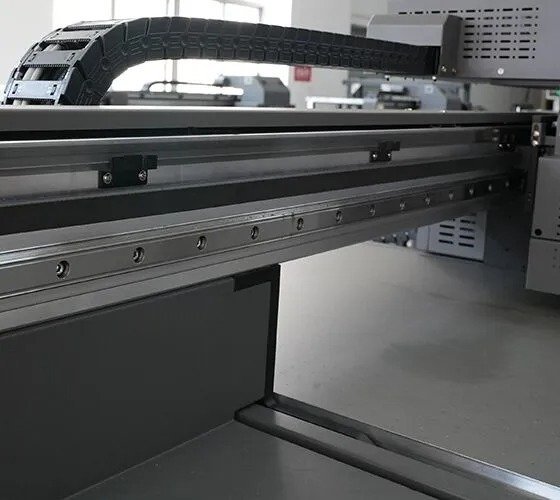

Equipment upgrade
Imported double linear guide rails and drag chains have high wear resistance and operational stability, ensuring high-quality printing.

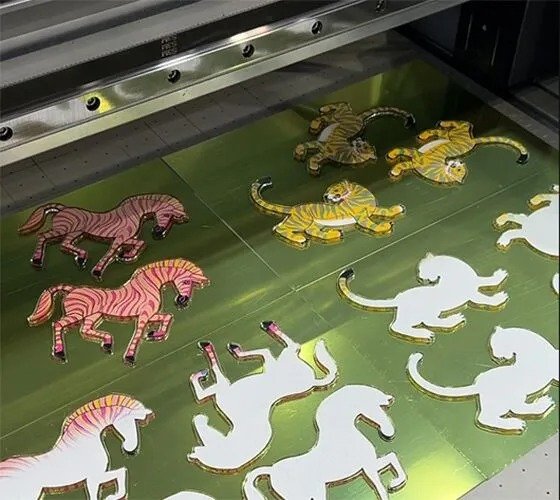

3D visual effects
Print varnish color to maintain the adhesion of the product pattern, giving the product 3D relief effect and a better pattern vision.

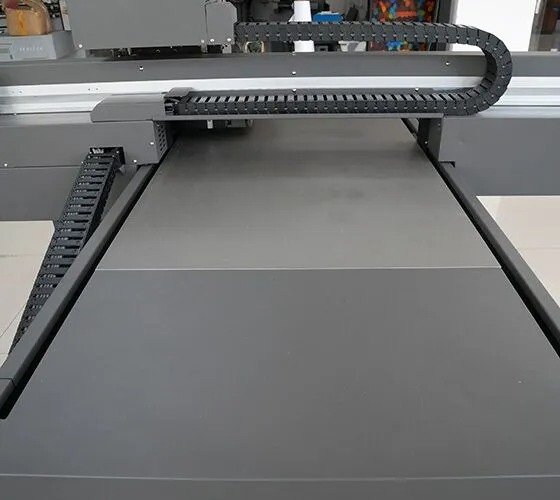

Good stability
Strong oxidation adsorption platform can prevent printing materials from shifting and ensure stable and fast printing products.

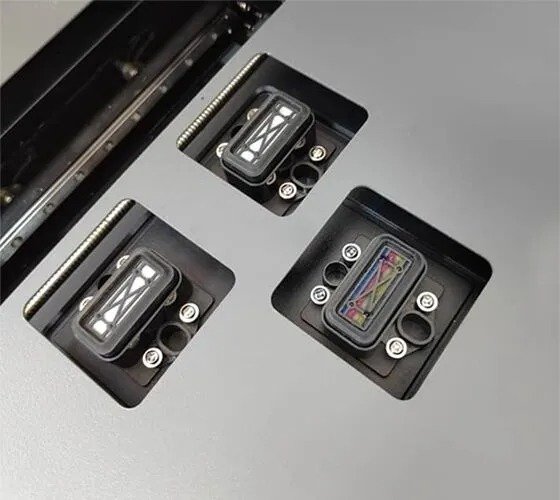

Printhead control
Use software to monitor the temperature and voltage environment of the nozzle, reducing manual operations and improving work efficiency.

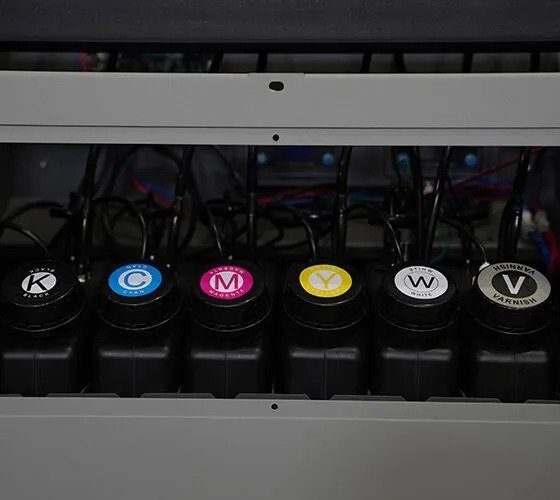

Ink circulation detection
Intelligent ink detection and white ink circulation systems monitor ink usage and circulation to achieve worry-free production.

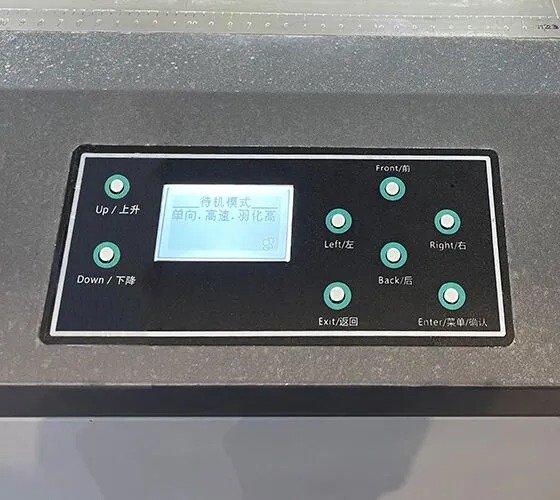

Integrated operation panel
Provides intuitive and simple operation buttons to easily control the printing process and make printing more efficient.
Wide applicability
Not only can it be printed on phone cases, ceramics, glass, leather, PVC and other materials, you can also choose to printed on cylindrical objects.

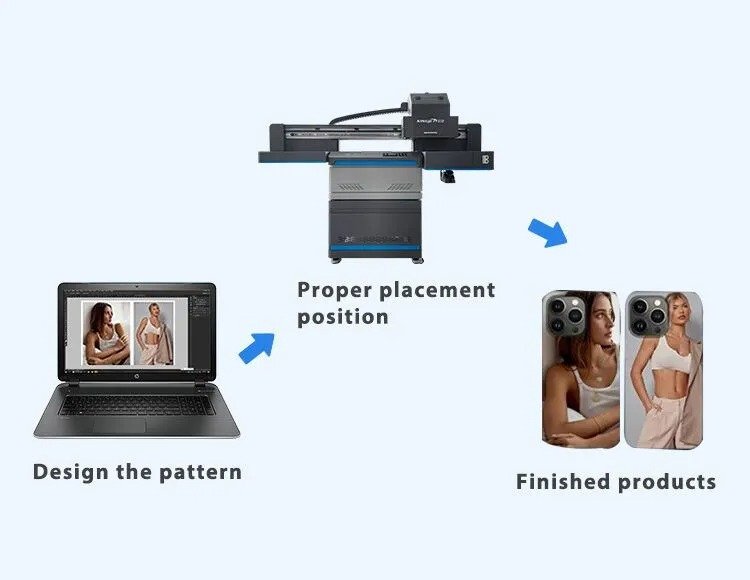

UV led printer 6090 printing process
Product Specification
| Product | PI-6090 UV Flatbed Printer |
| Model | PI-6090 |
| Printhead | 2–3 × Ricoh G5i / 3 × EPSON I3200-U1 Heads Optional |
| 2–3 × Ricoh G5i Printing Speed | 4–6 m²/hr |
| 3 × EPSON I3200 Printing Speed | 4–5 m²/hr |
| Print Size | 600 × 900 mm |
| Print Height | 1–100 mm (Can be Customized to 300 mm) |
| Print Color | C, M, Y, K, W, V |
| Ink Type | UV LED Ink |
| Media Type | Ceramic, Acrylic, Wood, Glass, Metal, Crystal, Leather, PVC, ABS, etc. |
| Cylinder Printing | Integrated Cylinder Printing Device Optional; Embedded Integrated Cylinder Printing Device Optional |
| Ink Cartridge | Intelligent Cycle Connection System for Sub-Cartridge |
| Printhead Control | Software Adjusts the Nozzle Temperature and Voltage |
| Curing System | UV LED Lamp |
| Image Format | TIFF, JPEG, PostScript 3, EPS, PDF |
| Power | 50Hz / 60Hz, 110V / 220V |
| RIP Software | RIPrint, ONYX (Optional) |
| Machine Dimension | 1806 × 1505 × 1295 mm |
| Machine Weight | 330 kg |
| Packing Dimension | 1940 × 1600 × 1550 mm |
| Packing Weight | 350 kg |
| Packing Volume | 4.810 CBM |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
UV led printer 6090 Machine Applications
UV flatbed printers, also known as universal printers, can print on almost any hard flat material, such as cell phone cases, wood, ceramics, badges, boxes, metal, leather, promotional items, PVC, and so on. Also with the fixture, you can print on curved materials, such as insulation cups, golf balls, glass cups, and so on.
Phone Case
Pens
Badge
UV flatbed printing acrylic
Golf Ball
Cups
FAQ
The printhead used are Richo G5i, Toshiba, all our printheads are original and brand new.
Acrylic, glass, ceramics, mobile phone cases, wood, handicrafts, leather, PVC, etc.
No, it does not harmful to human. It uses uv ink, which is friendly to the environment.
1 Year
The UV flatbed printers print directly on hard items without lamination, its directly printing patterns are more durable. The UV dtf printer is an all-in-one printer with integrated printing and lamination, and its printed uv dtf can be transferred to any hard flatbed items.
The printing size is 600*900mm
Yes, our technicians provide professionally and patiently online or on-site technical training, and one-on-one technical guidance.
Yes, the machine can stop working for a long time, but the printhead needs to be moisturized and cleaned according to the machine maintenance manual to prevent ink from clogging the printhead.
