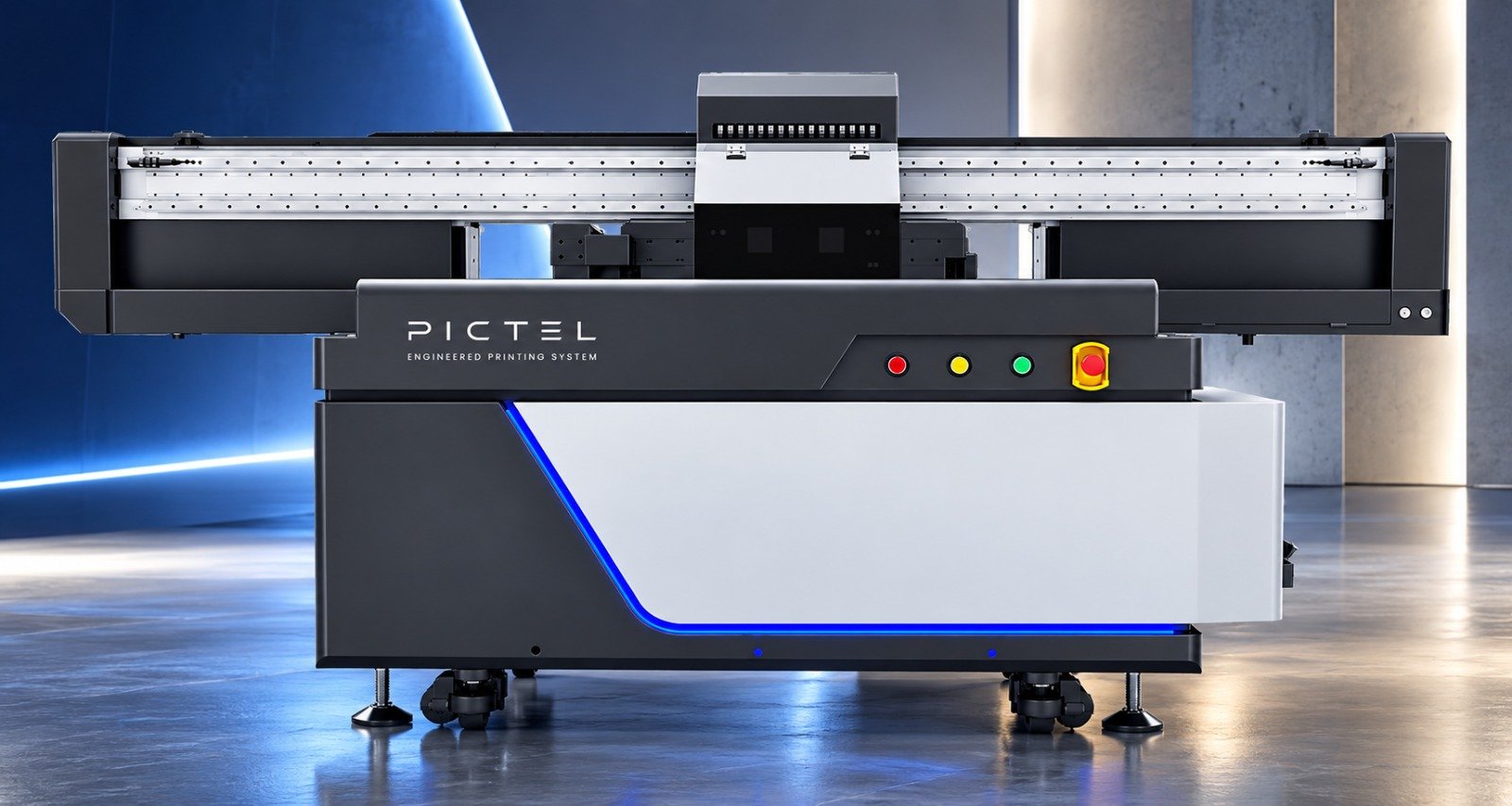

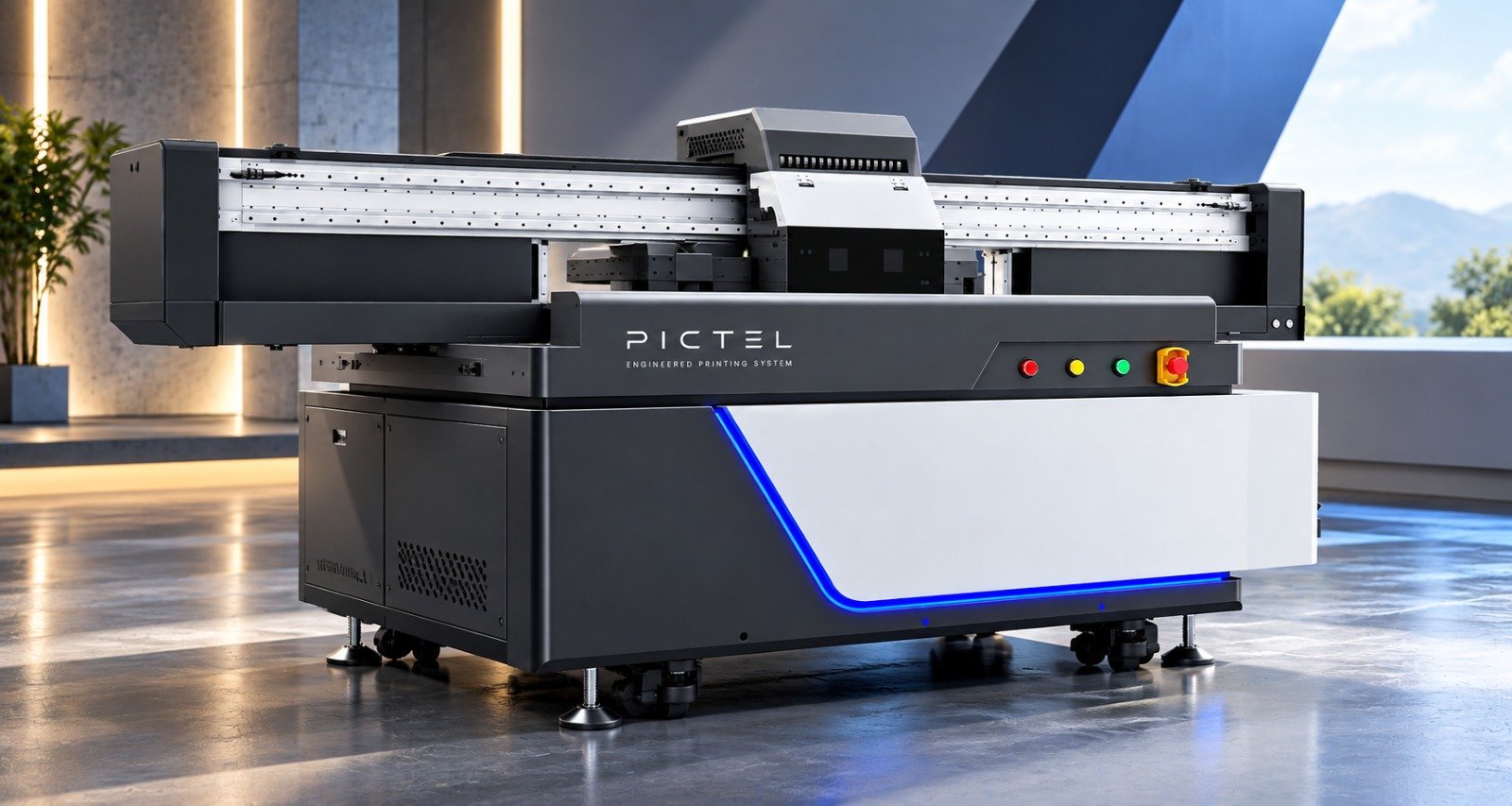

PI 1210 large format uv printer for glass, metal, acrylic, oil painting, small products, toys
Powered by advanced UV instant-curing technology, the printer is compatible with a wide range of materials, including metal, glass, stone, acrylic, soft film, and more. Whether producing durable outdoor graphics or delicate indoor color gradients, it accurately reproduces design details. The printer delivers rich, long-lasting colors, strong adhesion, and excellent abrasion resistance, making it resistant to outdoor weathering and high-frequency use while balancing aesthetics and durability.
Main Features:
- Imported Dual Printheads – High-speed printing with rich color output and efficient ink delivery.
- Alloy Adsorption Platform – Stable and uniform media holding for precise printing.
- Ink Shortage Warning – Real-time ink monitoring with low-ink alerts to prevent interruptions.
- White Ink Anti-Clogging System – Continuous white-ink mixing helps reduce sedimentation and nozzle clogging.
- Stable Independent Power Supply – Dedicated power system for reliable and consistent machine operation.
- Imported Precision Guide Rail – Low-noise linear guide rail system for smooth and accurate printhead movement.
- High-Precision Servo Motor – Provides accurate positioning, stable movement, and consistent printing performance.
Technical Specifications:
- UV instant-curing technology
- Supports metal, glass, stone, acrylic, soft film, and other materials
- High-precision visual positioning
- 720 / 1440 / 2880 dpi resolution
- 3–6 optional printheads
- Intelligent variable droplet technology
- Automatic printhead cleaning
- Negative-pressure ink supply
- Alloy air-suction printing platform
- Magnetic levitation guide rail + high-precision ball screw
- LED UV lamp curing
- Relief and varnish effects
- Flatbed, cylindrical, and crystal-label-roll printing modes
- Optional cylindrical fixture
- Unidirectional and bidirectional printing
- CMYK + White + Varnish output configuration
Industrial UV Flatbed Printer Redefining Printing Possibilities Across Multiple Materials
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
.jpeg)

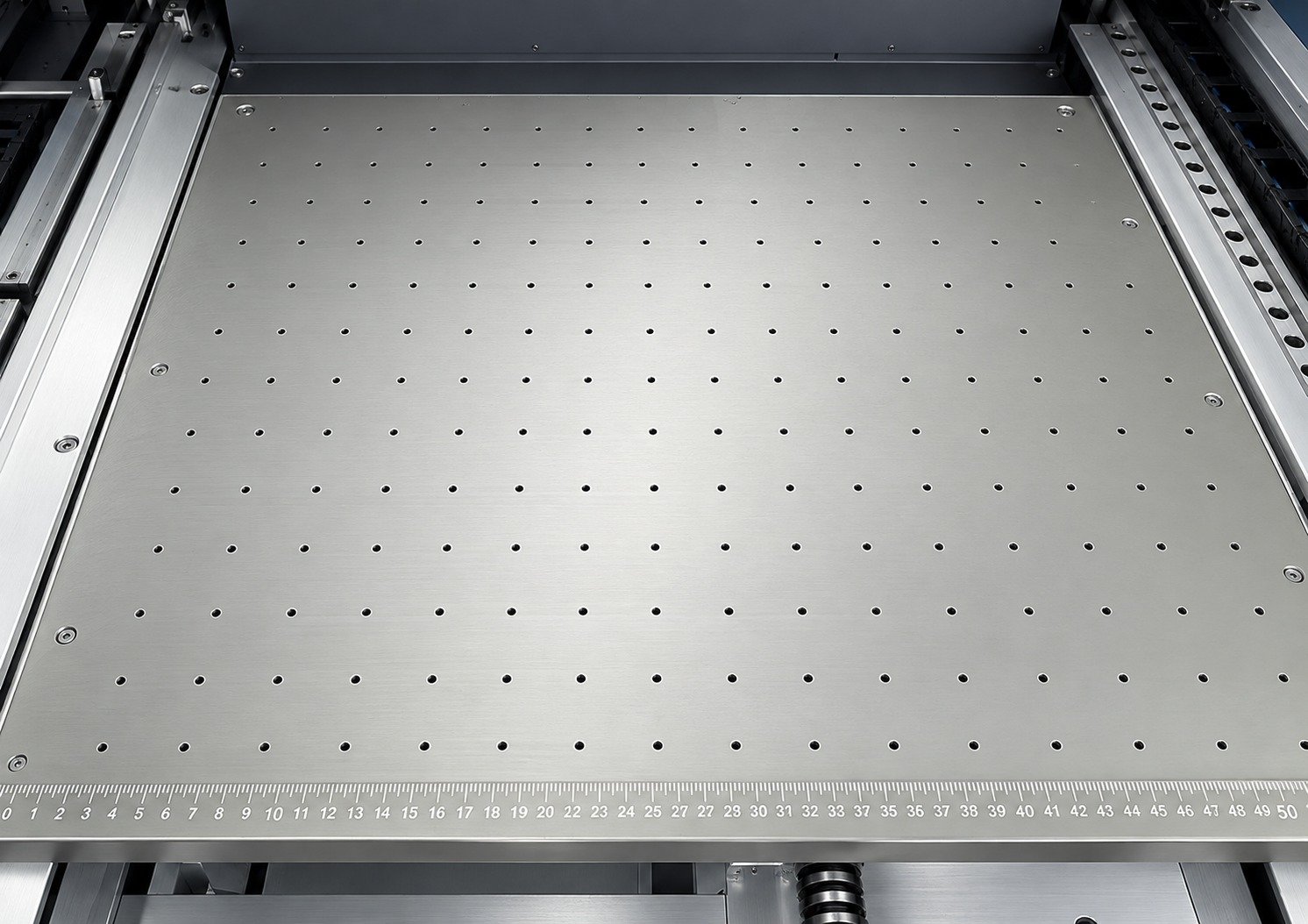

Alloy adsorption platform
.jpeg)

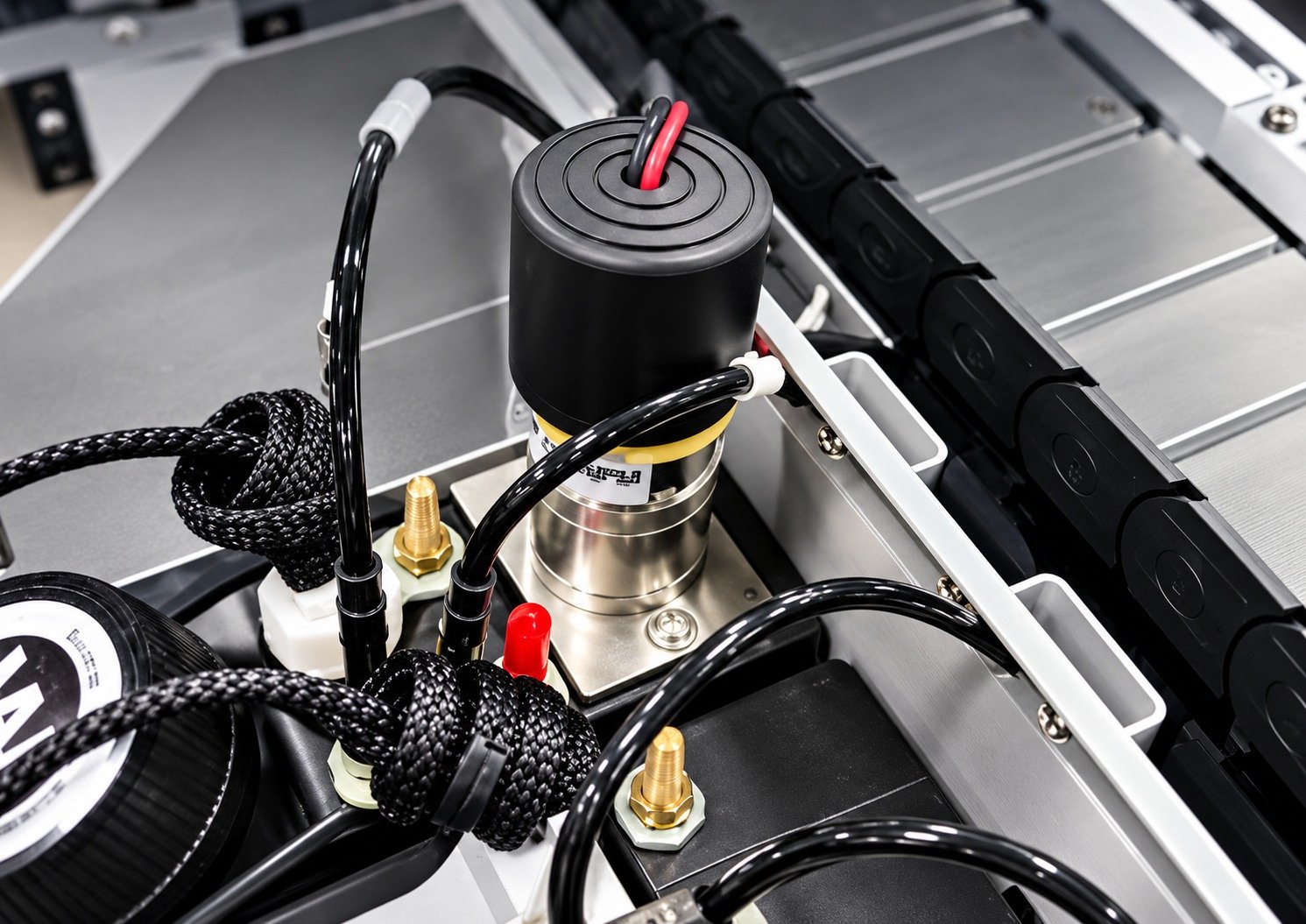

Ink shortage warning
.jpeg)

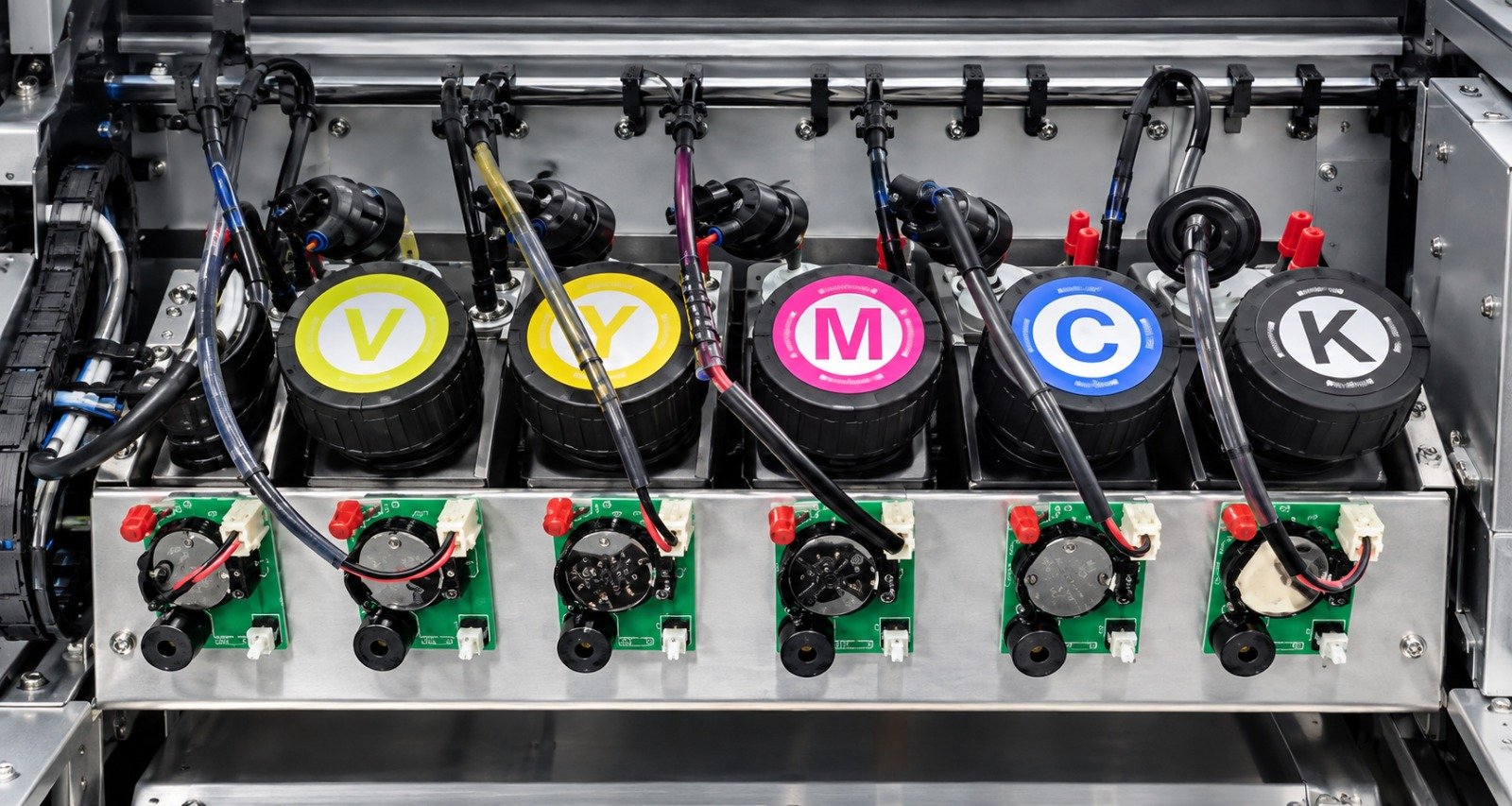

White ink mixing for anti clogging

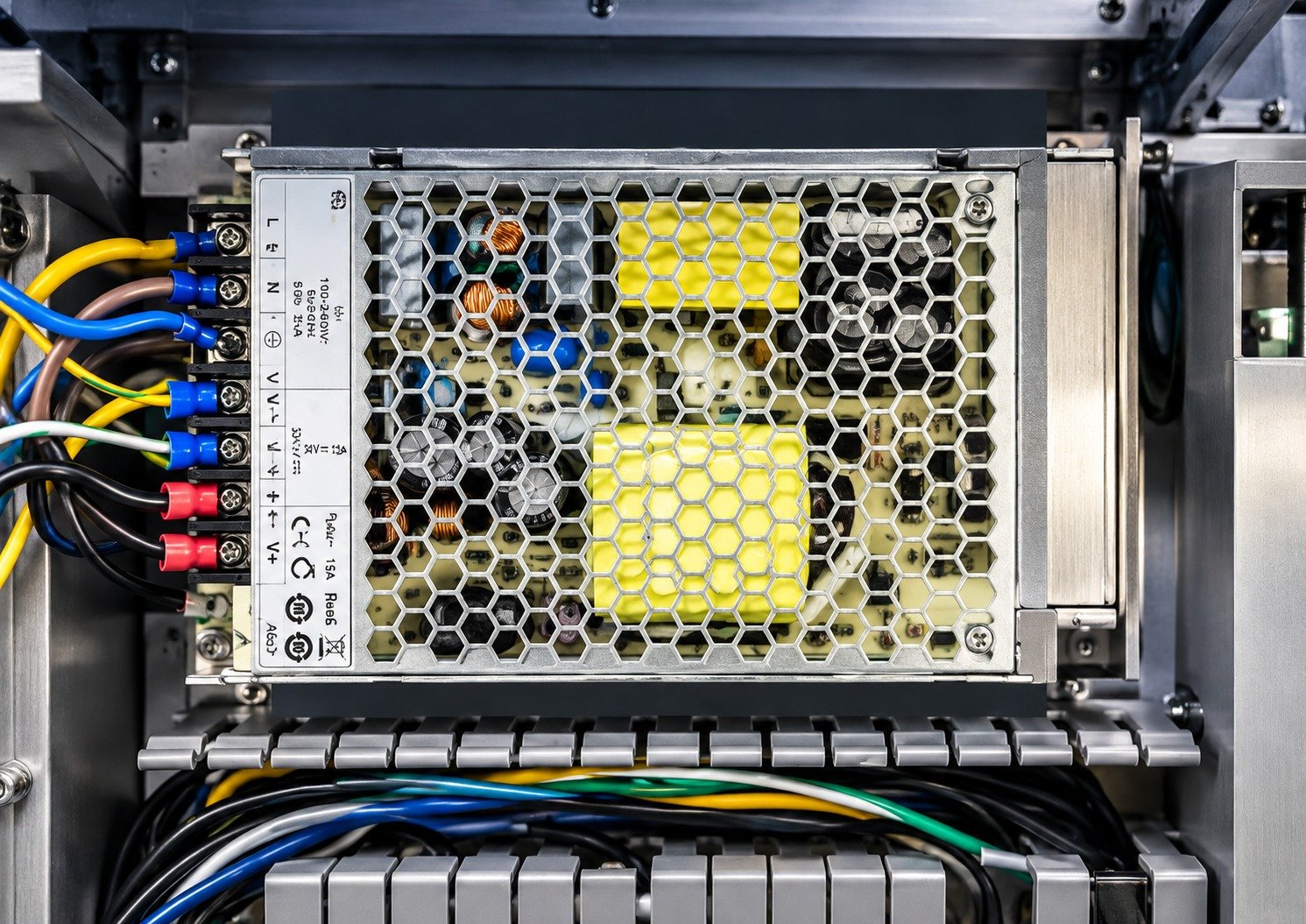

Stable independent power supply
.jpeg)

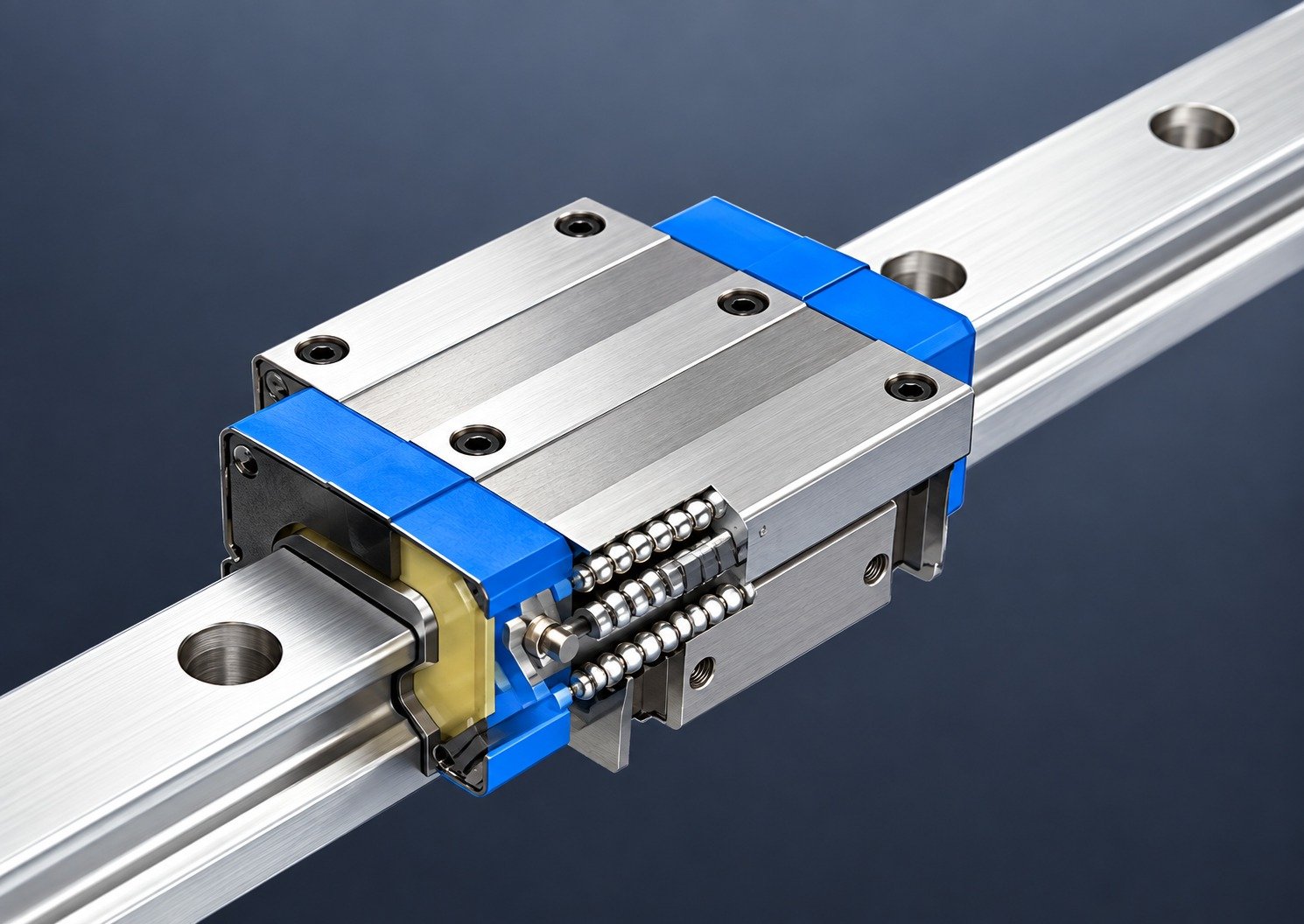

Imported guide rail with precise noise reduction

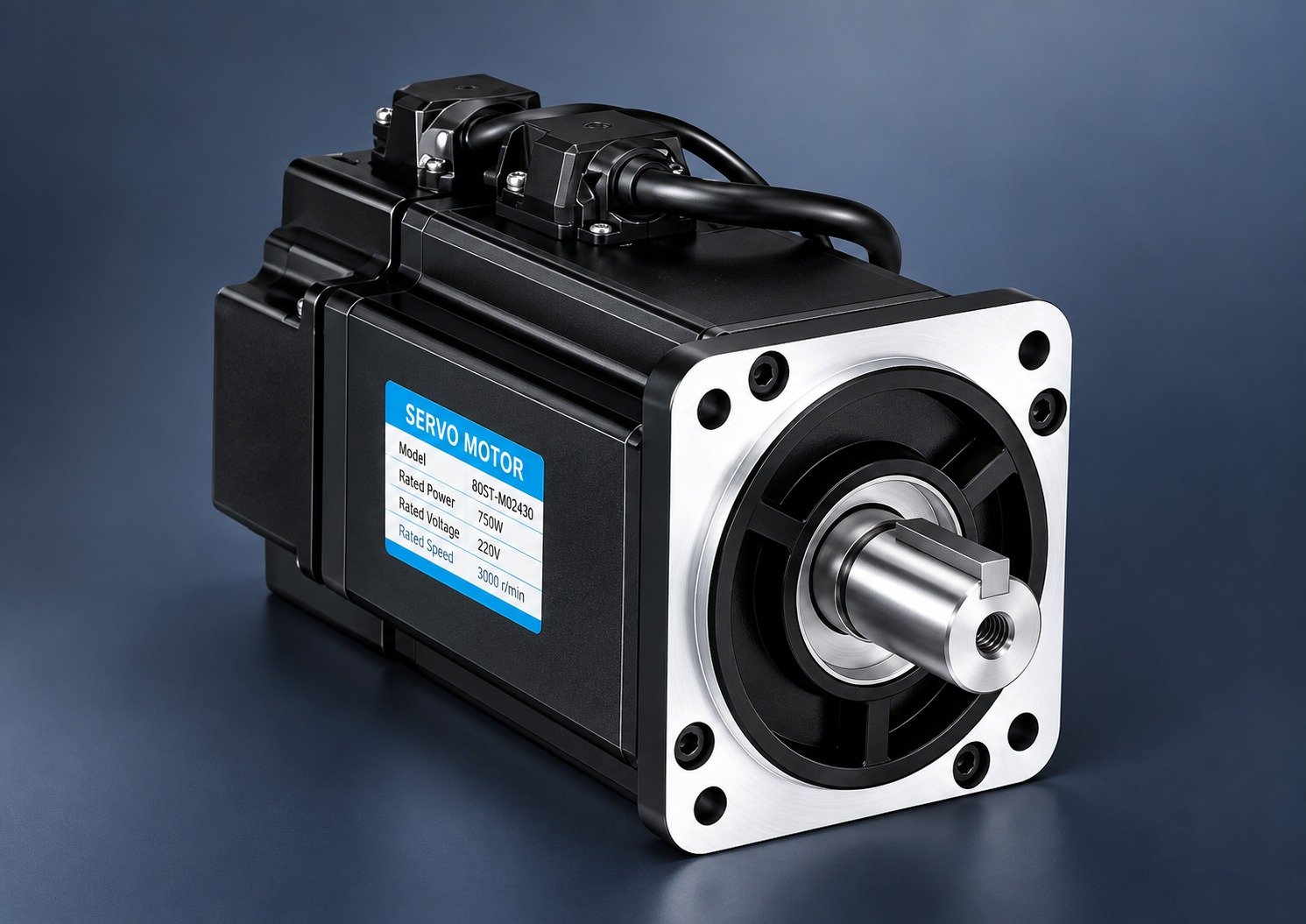

High precision servo motor
Product Specification
| Product Model | 1210 High-Precision Visual Positioning UV Printer |
| Print Head | G6 / I3200 / I1600 |
| Main Board | Independent R&D Board Card |
| Print Size | 1.2 × 1 m |
| Print Height | 150 mm |
| Output Color | CMYK + W + V |
| Print Quality | Printable Resolution: 720 / 1440 / 2880 dpi |
| Lifting Function | Headstock Lifting |
| Number of Printheads | 3–6 Heads (Optional) |
| Inkjet Technology | Intelligent Variable Droplet Technology |
| Printing Software | Rayprint |
| Print Head Maintenance | Automatic Cleaning |
| Positioning System | Optional High-Precision Visual Positioning |
| Print Mode | Unidirectional / Bidirectional |
| Nozzle Clog Prevention | Automatic Stirring / Flash Spraying |
| Ink Supply System | Negative Pressure Ink Supply |
| Printing Platform | Alloy Air Suction Platform |
| Ink Level Monitoring | Ink Low Alarm |
| Transmission System | Magnetic Levitation Guide Rail + High-Precision Ball Screw |
| Power Requirements | AC 220V / 110V, 50–60Hz |
| Servo Motor | High-Precision Servo Motor |
| Output Software | Professional Software |
| Curing System | LED UV Lamp Curing |
| Special Effects | Relief / Varnish |
| File Formats | TIF, BMP, PDF, EPS, JPG, etc. |
| Working Environment | Temperature: 15–35°C; Humidity: 20–30% |
| Operating System | Win7 / Win8 / Win10 |
| Machine Dimensions | 2.93 × 1.73 × 1.32 m |
| Cylindrical Fixture | Purchase / Selection |
| Bare Machine Weight | Approximately 470 kg |
| Printing Mode | Supports Three Modes: Flat Plate, Cylinder and Crystal Label Roll |
| Packaging Size | 3.06 × 1.89 × 1.79 m |
| Packaging Weight | Approximately 750 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
1210 Large Format UV Printer Applications
The PICTEL 1210 Large Format UV Printer is engineered for precision printing on oversized rigid materials. It delivers vibrant, durable prints on glass, acrylic, metal, wood, crystal labels, and decorative panels, making it ideal for industrial manufacturing, signage, interior décor, and customized production.
Glass Decorative Panels
Acrylic Signage
Metal Nameplates
Wooden Furniture & Décor
Crystal Labels
Ceramic Tiles
FAQ
It prints directly on glass, acrylic, metal, wood, plastic, PVC, crystal labels, ceramic tiles, leather, MDF, and many other rigid materials.
Yes. The printer supports CMYK + White, with optional Varnish for glossy and textured printing effects.
The printer offers a 1200 × 1000 mm large-format printing area for industrial production.
Yes. It is designed to print on a wide range of rigid materials with high precision, depending on the configured print height.
Yes. UV-cured prints are highly durable, waterproof, fade-resistant, and scratch-resistant, making them suitable for indoor and outdoor applications.
It is widely used in signage, interior decoration, promotional products, packaging, industrial labeling, furniture manufacturing, and customized gift production.
