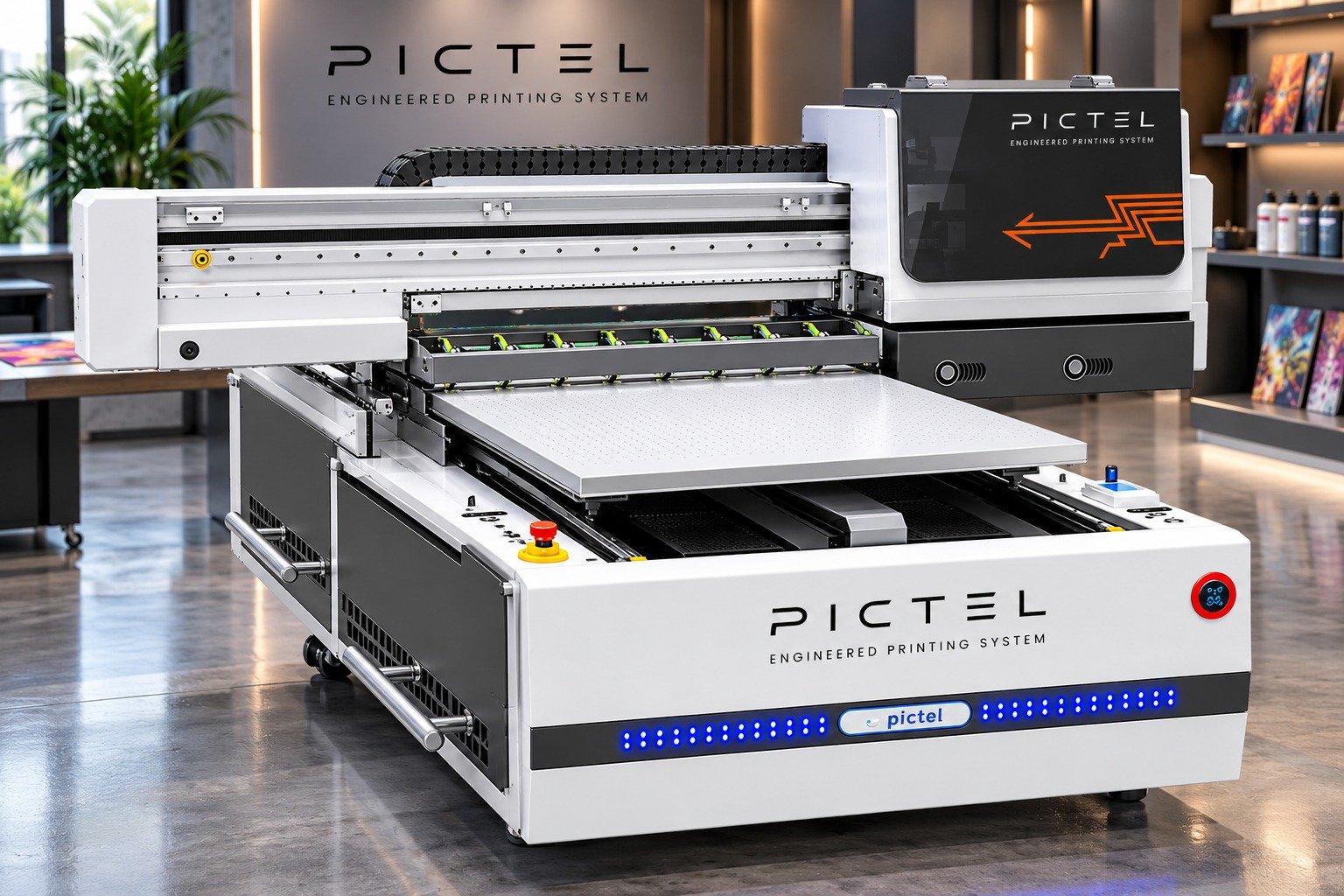

PI 6090 High End Version UV Printer

The 6090 High-End Version offers multiple printhead configurations, including F1080 / I1600 / I3200 / G5I / G6 / CE4, supporting 4-color, 6-color, 8-color, and even mixed configurations. The negative pressure function makes inkjet printing easier. It supports multiple printing modes, including flatbed, roll, and label printing, greatly improving printing efficiency. It also supports visual positioning, allowing for more accurate integration of images and machines. Equipped with an automatic cleaning function, the printhead has a longer service life, while the printing speed can be adjusted as needed, allowing users to set the printing speed within the recommended range. During the printing process, the machine can pause and resume printing, avoiding material waste. The original "inkjet function" ensures that, when no task is being performed, the equipment automatically maintains the printhead.

Main Features:

Premium 6090 UV Printing – High-end UV printer for professional applications.
Flexible Print Height – Adjustable printing height up to 200 mm.
High-Resolution Output – Supports 720 / 1440 / 2880 dpi printing.
Advanced Printheads – Supports 2–5 optional printheads with intelligent variable droplet technology.
Multilayer Effects – Supports Relief & Varnish for premium textured finishes.
Visual Positioning – Optional visual positioning system for accurate printing.
Intelligent Ink System – Intelligent dual-route negative-pressure ink supply with automatic cleaning.

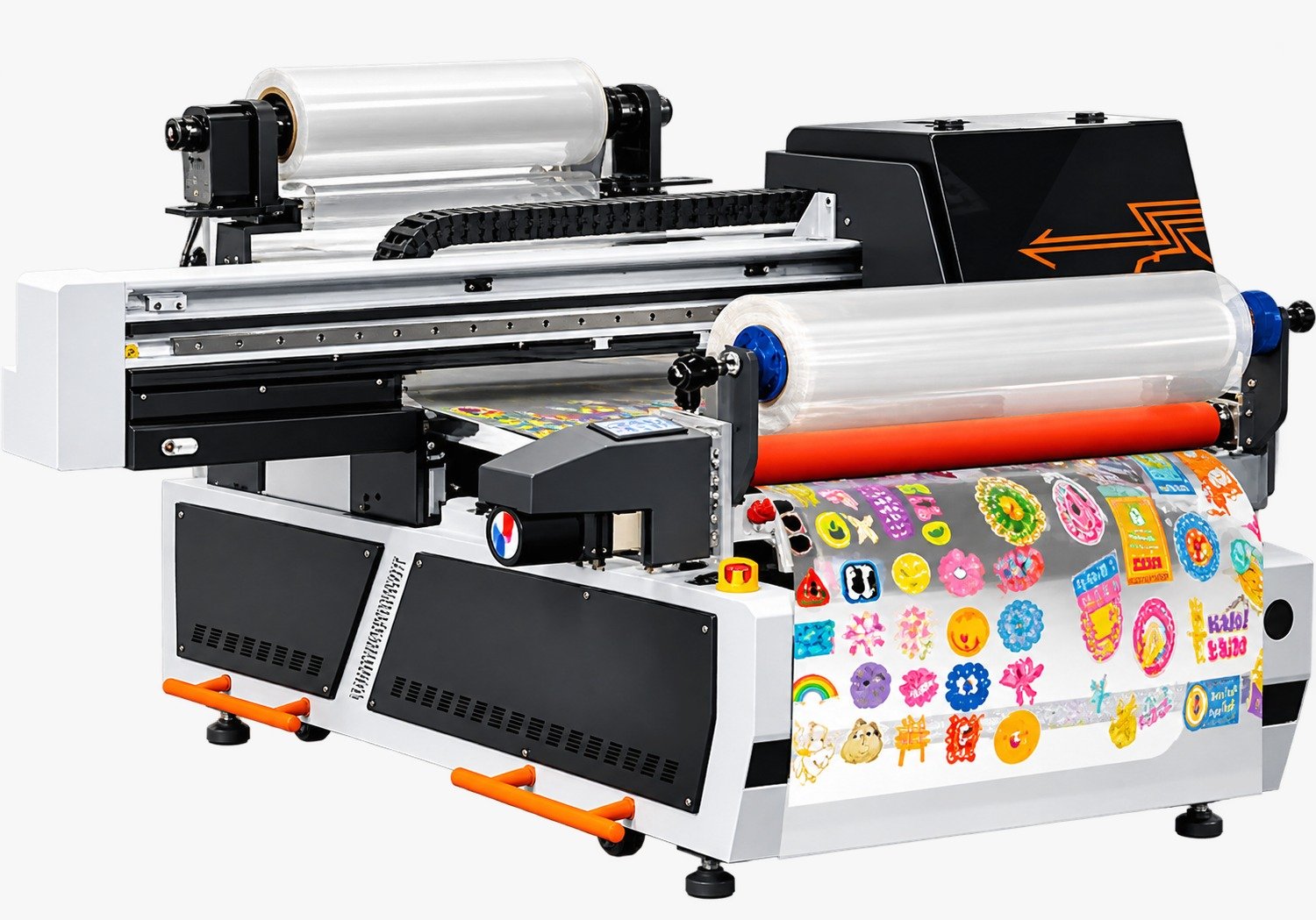

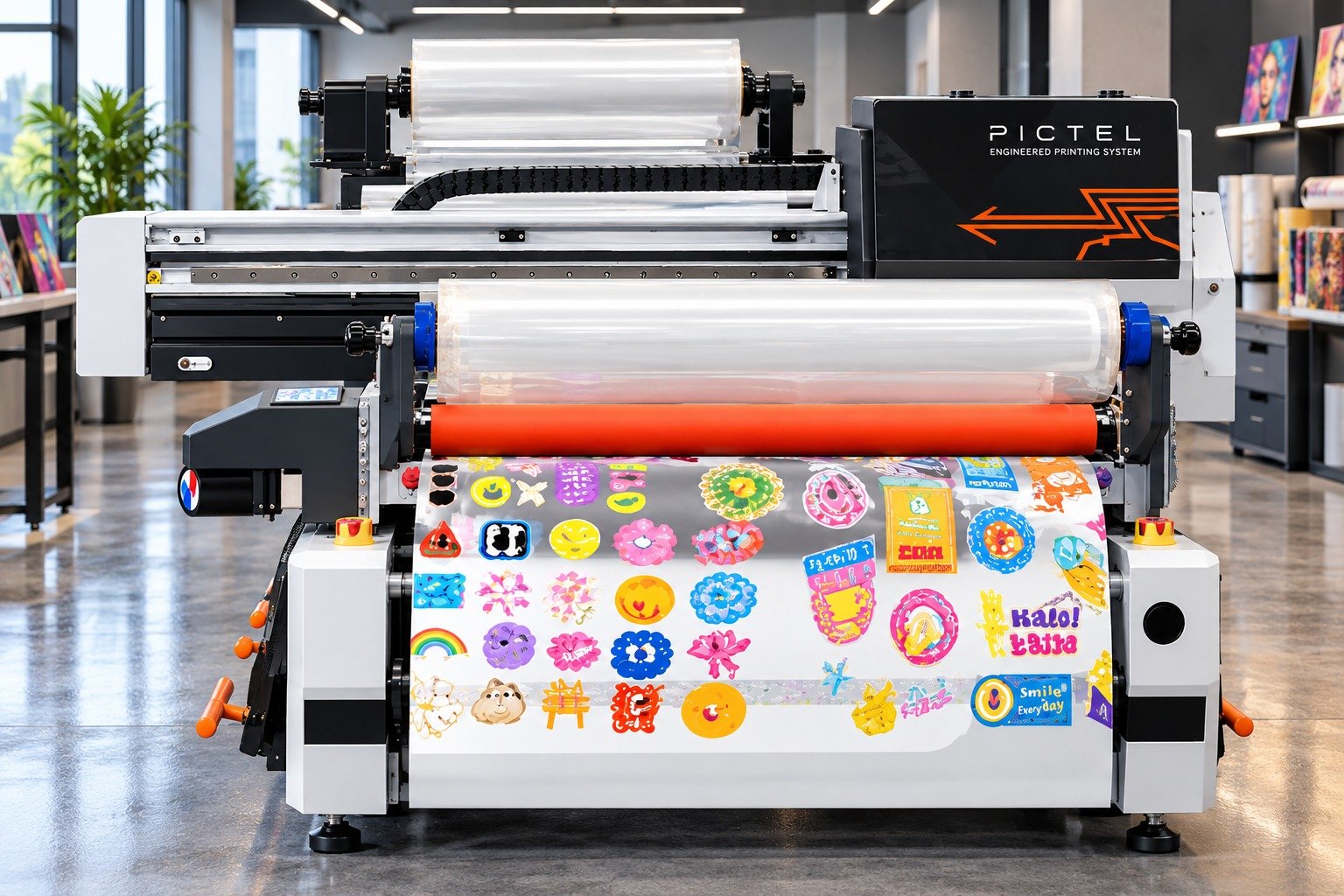

Versatile Applications – Supports flat, cylindrical, crystal-label, and roll materials.

Technical Specifications:

Print Size: 600 × 900 mm
Print Height: 0–200 mm, customizable
Printhead: XP600 / DX7 / I1600 / 3200HD / G6
Print Colors: CMYK + W + V
Ink Droplet: 3.5 PL
Print Resolution: 720 / 1440 / 2880 dpi
Ink System: Intelligent Dual-Route Negative Pressure
Interface: Gigabit Fiber
Machine Size: 170 × 137 × 75 cm
Machine Weight: Approx. 190 kg
Packing Size: 180 × 150 × 94 cm
Packing Weight: Approx. 295 kg

Built for Thick Materials. Engineered for Precision. Designed for Industrial Production.

Reliable Quality

Professional R&D team control, strict factory testing and excellent machine quality.

Source Factory

Factory direct sales, competitive pricing and flexible customization.

Fast Shipping

Multiple overseas warehouses and fast worldwide delivery support.

Complete Service System

Professional pre-sales, installation, training and after-sales support.

Key Feature of PI 6090 UV PRINTER - HIGH-END VERSION

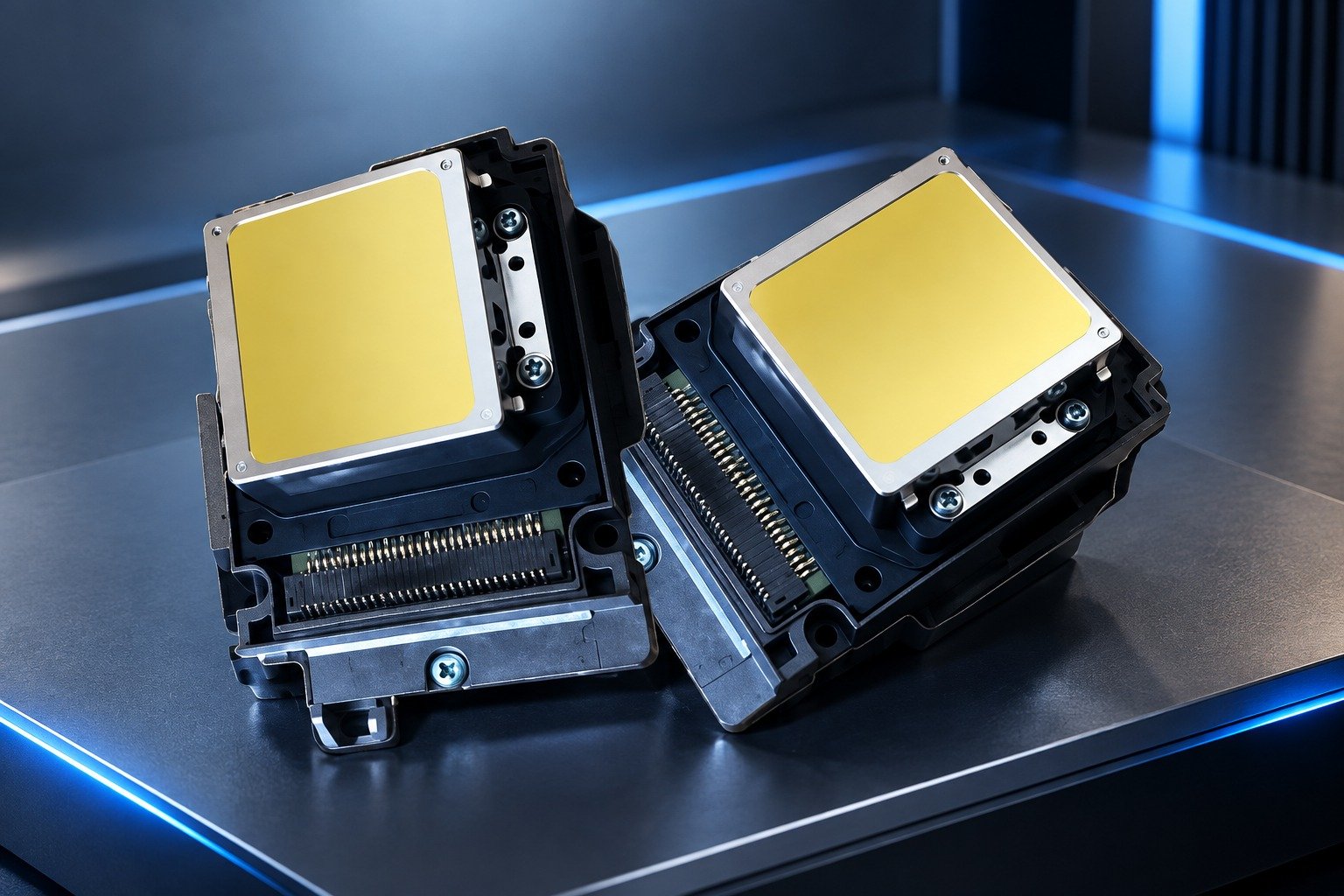

Imported High-Performance Printheads

Double printhead configuration delivers delicate ink output, rich colors, and fast printing speeds. Designed for consistent, high-quality printing performance.

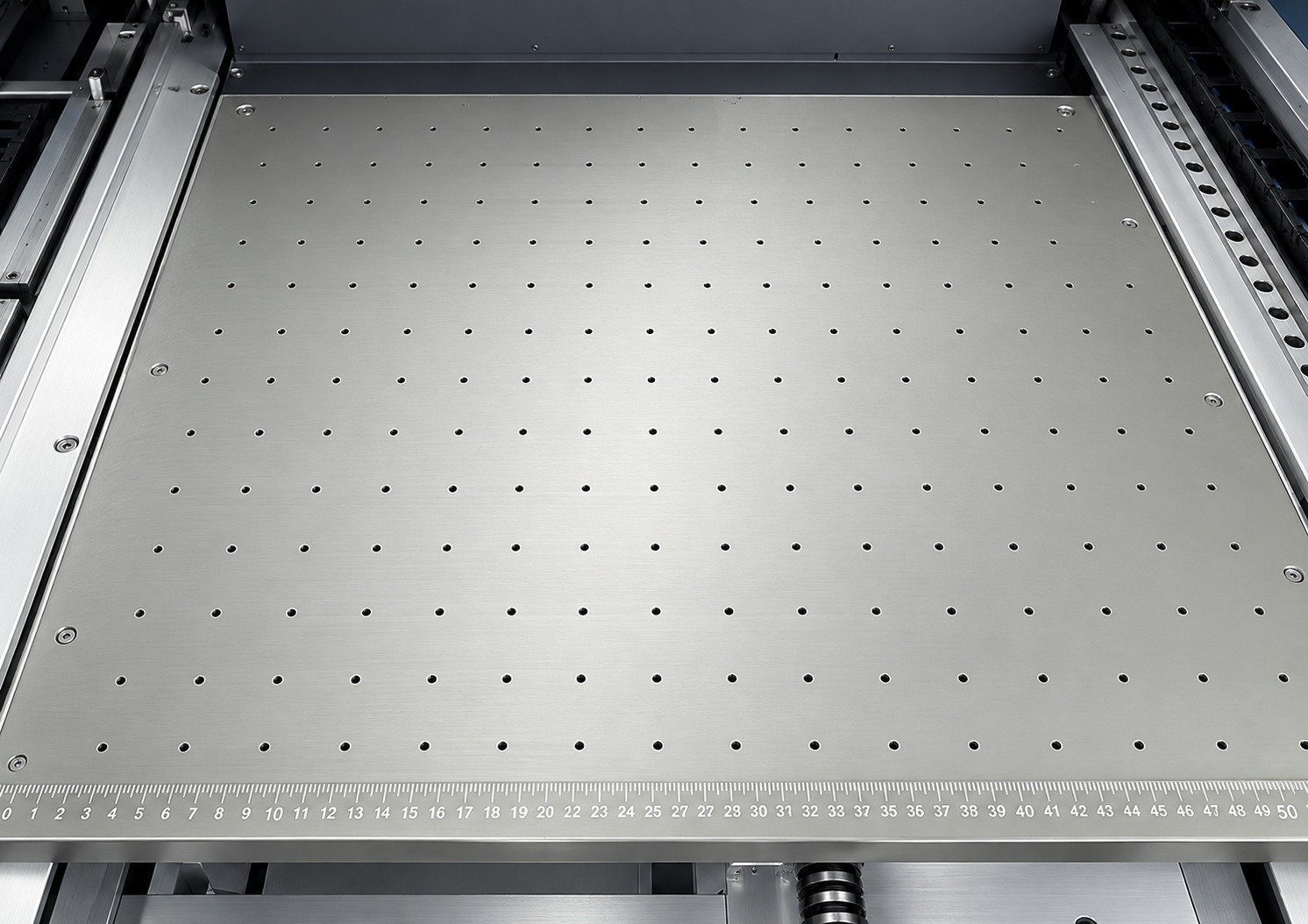

Precision Alloy Adsorption Platform

The alloy adsorption platform provides stable and even media support during printing. Helps maintain accurate positioning and smooth printing results.

Intelligent Ink Shortage Warning

Real-time ink monitoring helps detect low ink levels during operation. The warning system supports timely ink replenishment and uninterrupted production.

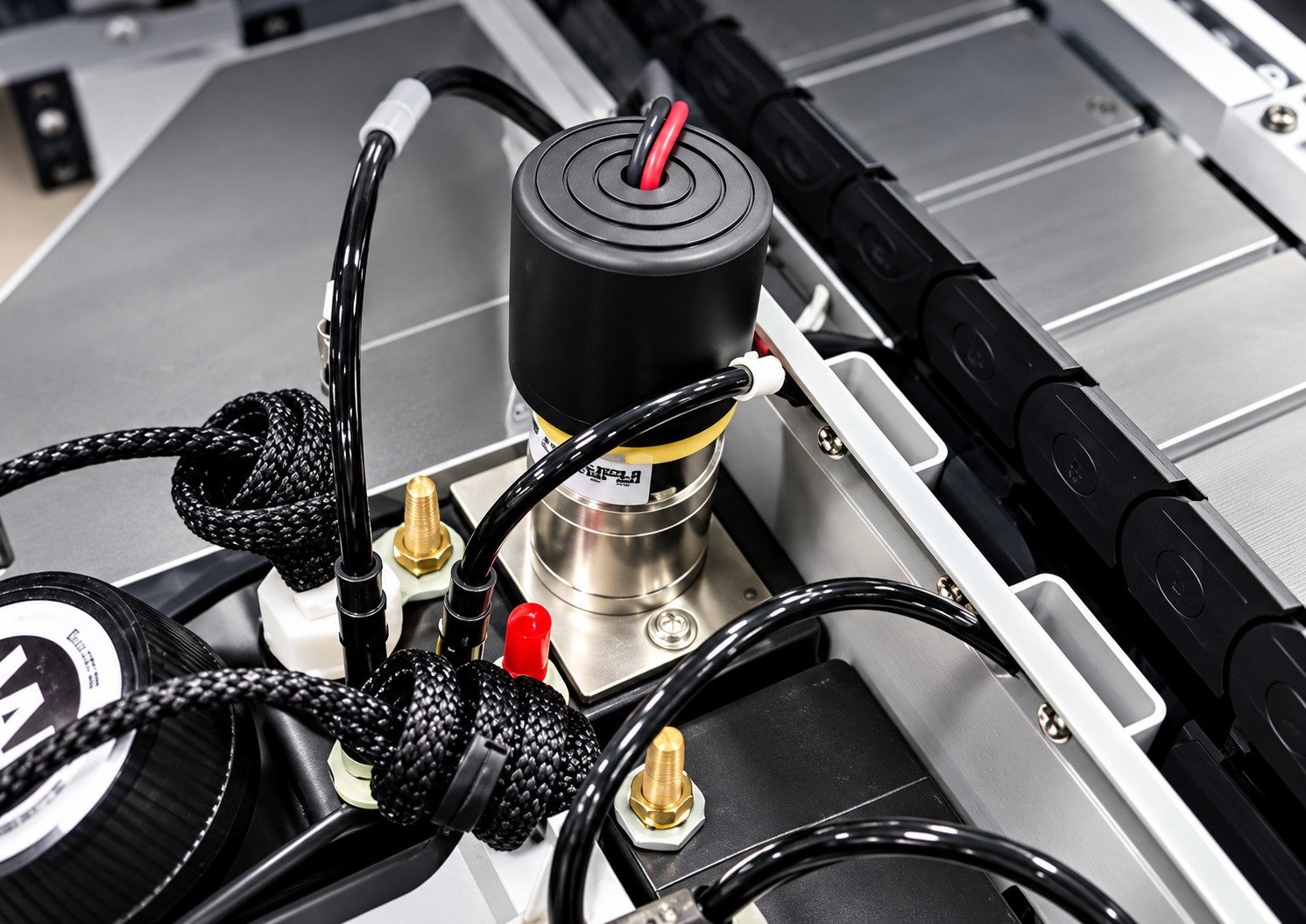

White Ink Mixing System

Continuous white ink mixing helps prevent ink settling and clogging. Ensures smoother ink flow and more consistent white ink printing.

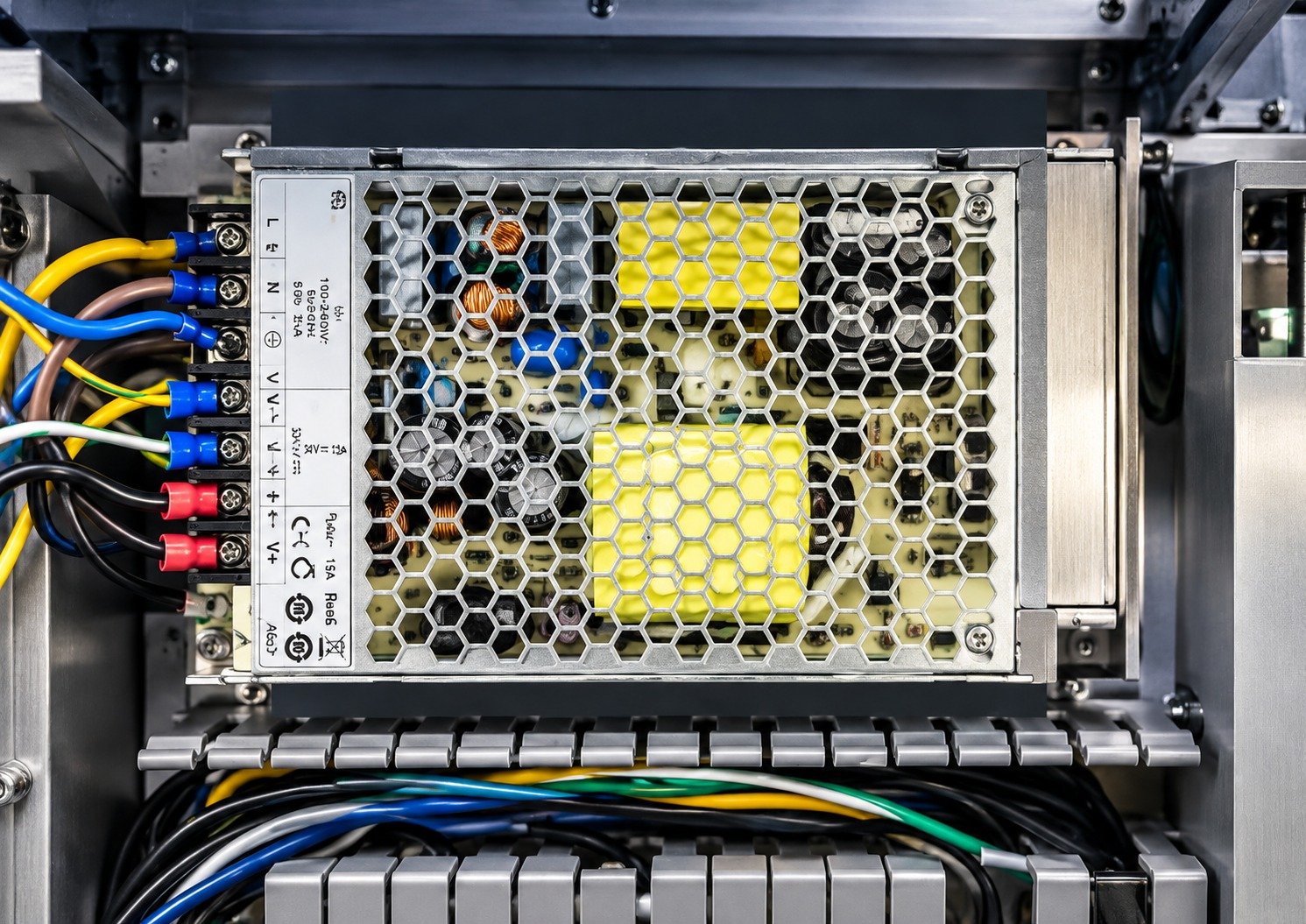

Stable Independent Power Supply

An independent power supply system provides stable electrical performance to the printer. Helps maintain reliable operation during continuous printing.

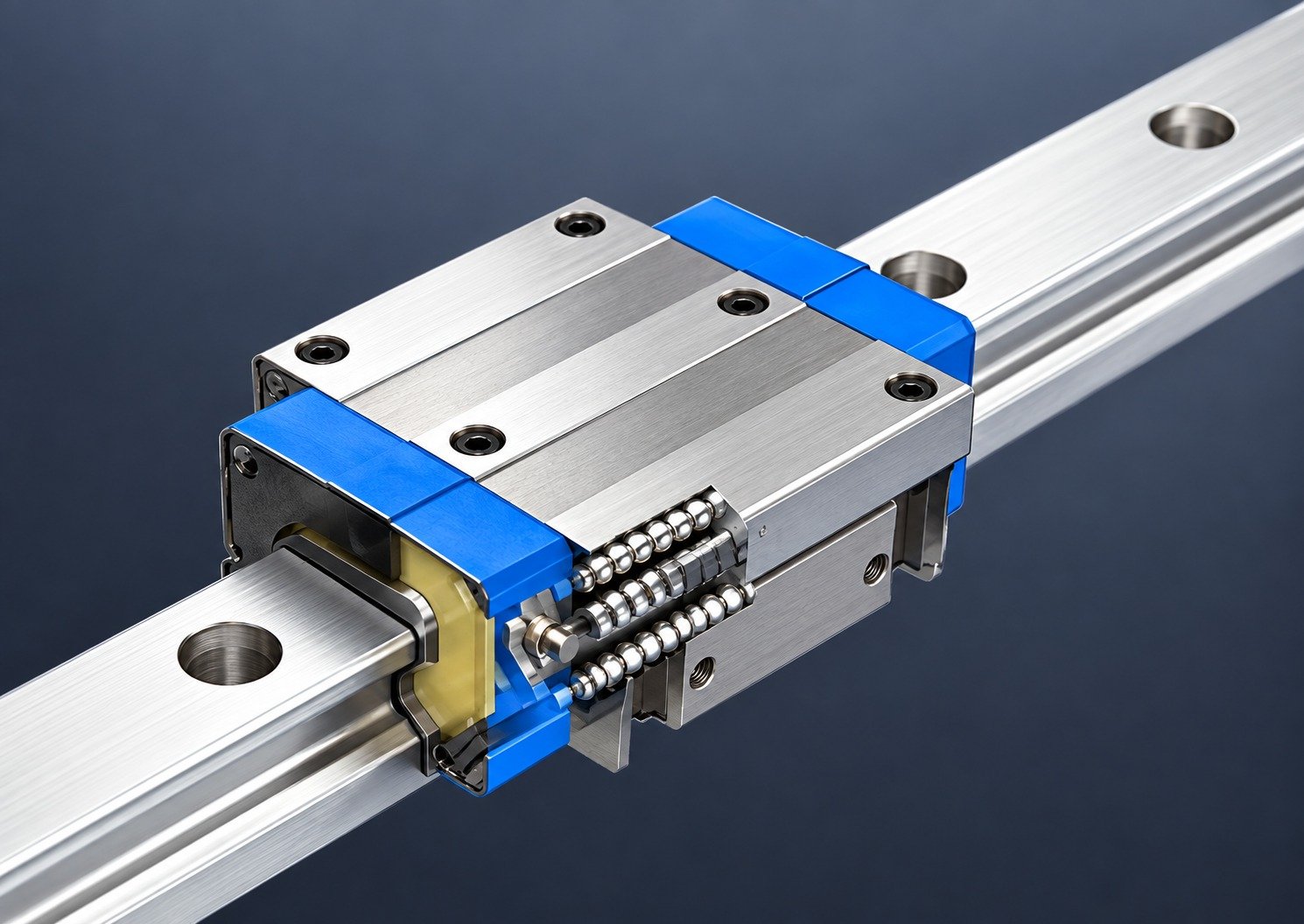

Imported Precision Guide Rail

High-quality imported guide rails ensure smooth and precise printhead movement. The low-noise design supports stable and accurate operation.

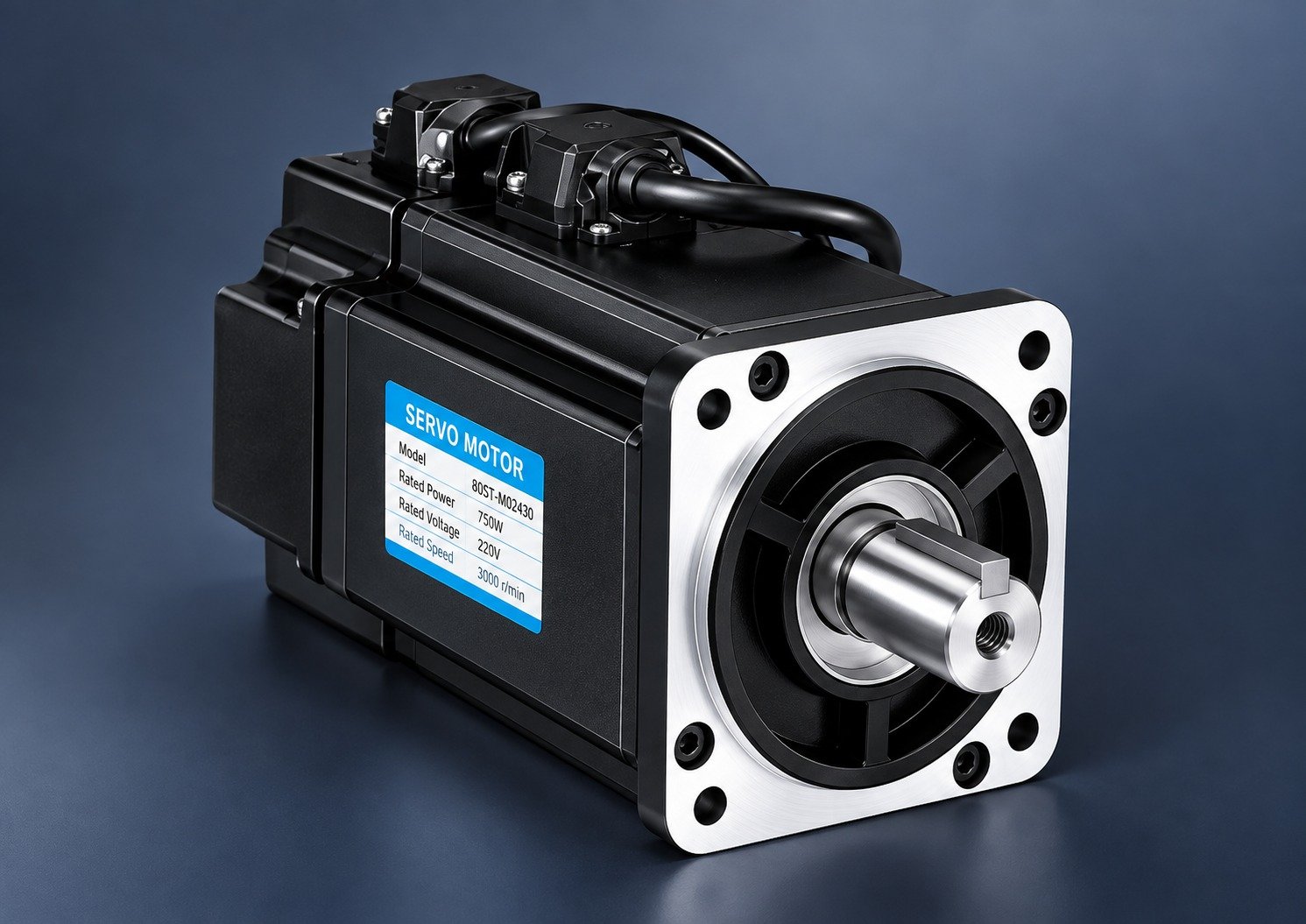

High-Precision Servo Motor

High-precision servo motor technology provides accurate motion control and positioning. Delivers smooth, responsive movement for consistent printing performance.

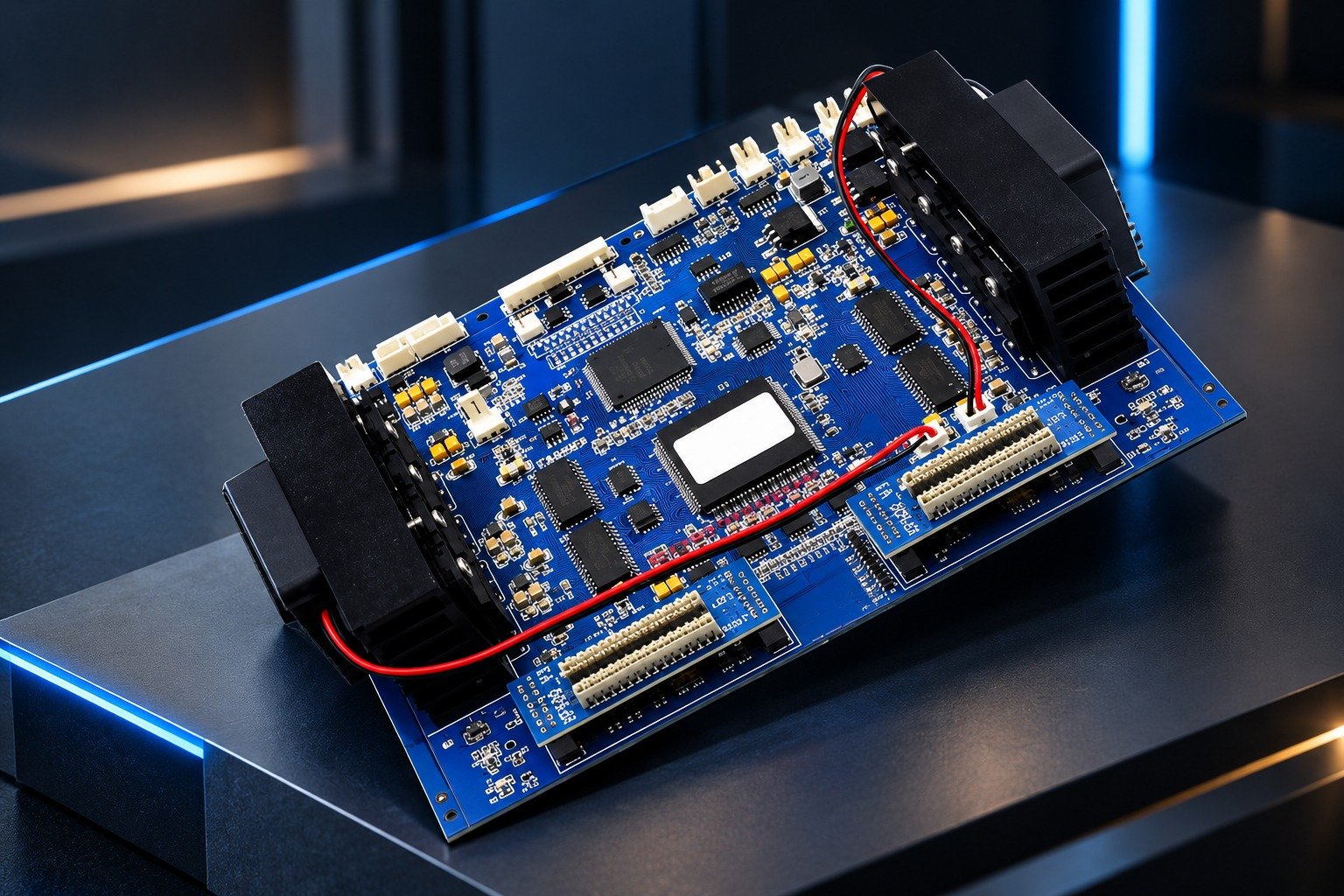

Independently Developed Control Board

The independently developed control board provides stable performance and sensitive response. Supports high-speed data transmission, accurate ink output control, and coordinated machine operation.

Product Specification

Product Model	6090 Premium Edition UV Printer
Print Head	XP600 / DX7 / I1600 / 3200HD / G6
Main Board	Hansen Board Card
Print Size	60 × 90 CM
Print Height	0–200 mm (Customizable)
Output Color	CMYK + W + V
Print Quality	Printable Resolution: 720 / 1440 / 2880 dpi
Lifting Function	Beam Lifting / Lowering
Number of Printheads	2–5 Heads (Optional)
Inkjet Technology	Intelligent Variable Droplet Technology, as small as 3.5 PL
Printing Software	Ruijin / JingFeng
Print Head Heating	Automatic Heating
Positioning System	Visual Positioning System (Optional)
Print Head Maintenance	Automatic Cleaning
Nozzle Clog Prevention	Original Ink Cartridge System with Automatic Stirring / Flash Spraying
Print Mode	Unidirectional / Bidirectional
Printing Platform	Yinmei Air Suction Platform
Ink Supply System	Intelligent Dual-Route Negative Pressure
Transmission System	X-axis: Silent Guide Rail + Motor; Y-axis: Dual Guide Rails + Motor
Nozzle Protection	Automatic Collision Detection & Prevention
Servo Motor	Leadshine Low-Voltage Servo Motor
Height Measurement	Manual Measurement (Optional Automatic Measurement)
Curing System	LED UV Lamp – Instant Drying After Printing
Power Requirements	AC 220V / 110V, 50Hz–60Hz
File Formats	TIF, BMP, PDF, EPS, JPG, etc.
Output Software	Professional Software
Operating System	Win7 / Win8 / Win10
Special Effects	Relief / Varnish
Working Environment	Temperature: 15–35°C, Humidity: 20–30%
Interface Method	Gigabit Fiber
Cylinder / Roll Material Fixture	Purchase / Selection
Machine Dimensions	170 × 137 × 75 CM
Printing Mode	Supports Flat, Cylinder and Crystal Label Roll
Bare Machine Weight	Approximately 190 KG
AI Expansion	Support AI Image Generation and Transformation Software
Packaging Size	180 × 150 × 94 CM
Packing Weight	Approximately 295 KG

Partner with PICTEL. Grow Faster. Earn More.

Your Success is Our Business.

We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.

Higher Profit Potential
Fast Service & Spare Parts
Complete Business Support
Long-Term Growth Partnership
Trusted Engineering Expertise

Start Growing with PICTEL →

PI 6090 High-End Version UV Printer Application

The PI 6090 High-End Version UV Printer delivers exceptional print quality across a wide range of industrial and commercial materials. From signage and décor to promotional products and customized gifts, it produces vibrant, durable prints with outstanding precision on both flat and optional cylindrical objects.
