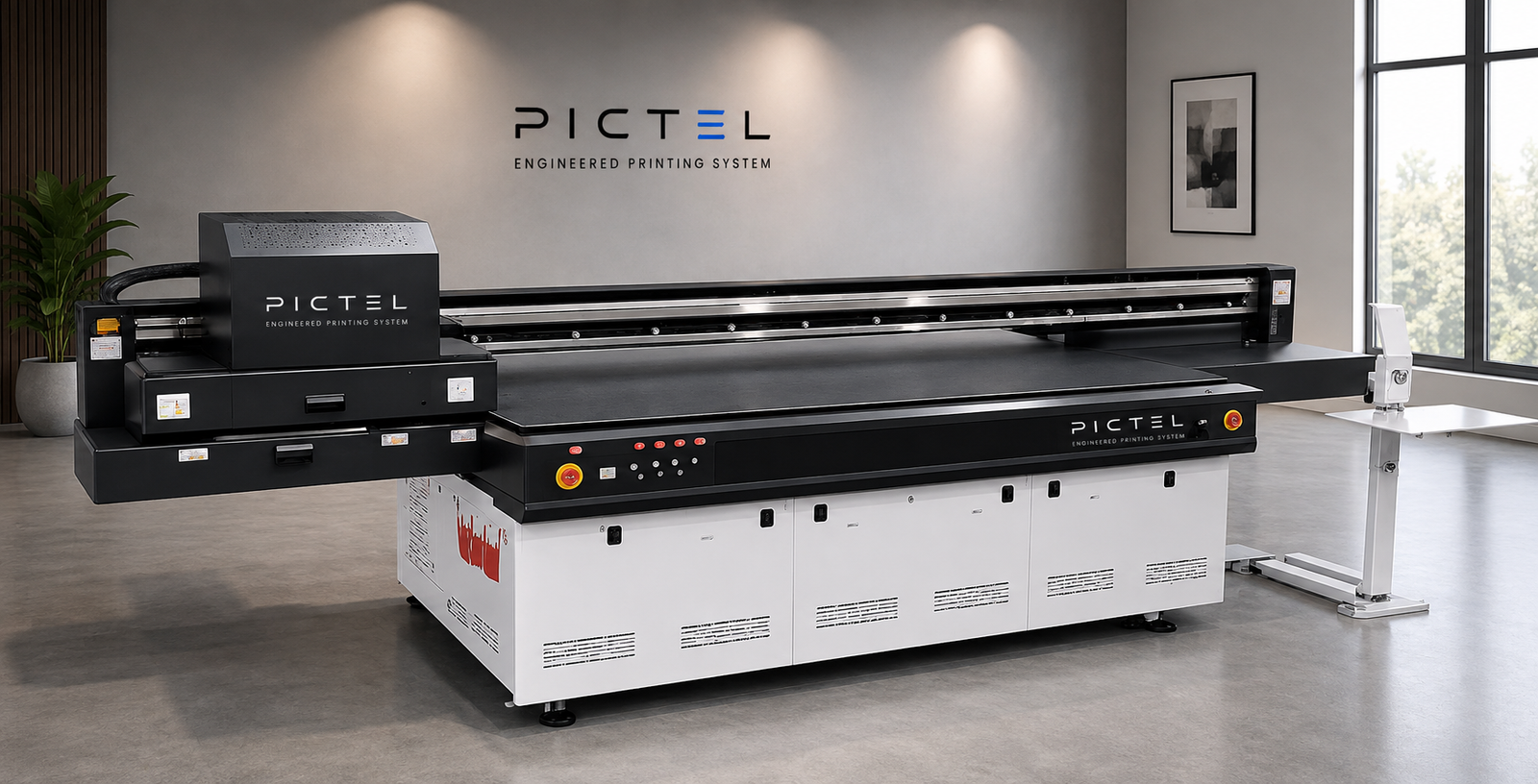

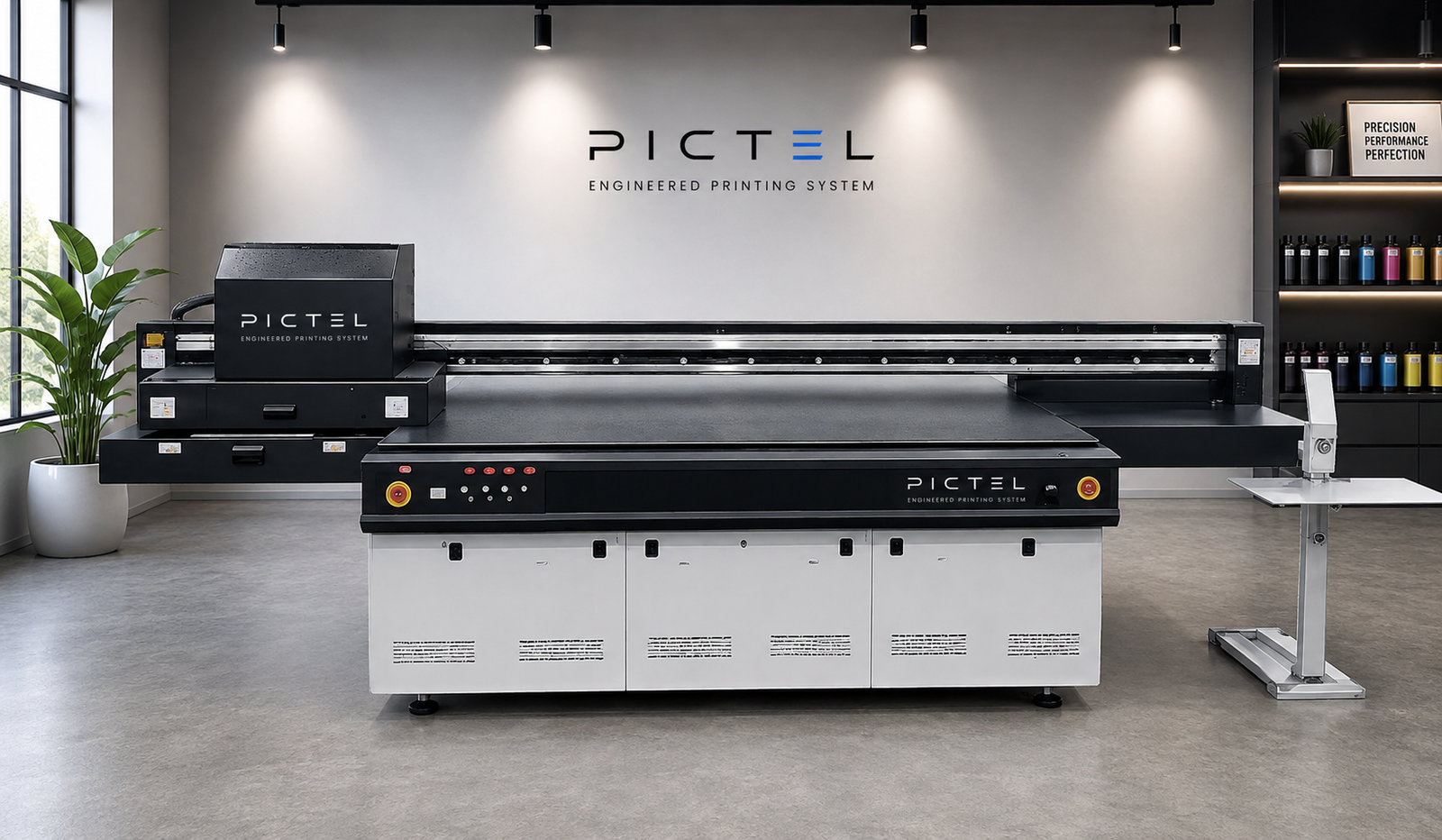

PI 3220UV Maglev UV Flatbed Printing Machine For Sign/Corrugated Plastic

The innovative Maglev UV flatbed printer efficiently and stably supports customized solutions for multiple nozzles with high precision and flexibility. It is suitable for printing ceramics, wood, stone building materials, cabinet wood, etc.

Main Features:

Japan THK mute guide rails, high performance, stable printing.
Automatic media height detection system, worry-free and labor-saving.
Leading magnetic levitation motor, faster speed and more stable operation.
6 vacuum adsorption platforms, high flexibility, and reduced power consumption.

Technical Specifications:

Print Head: 4-9 Ricoh G5/G6 industry print heads
Print Size: 3.2m*2m
Thickness: 0-10cm
DPI: 1200 dpi
Color: CMYK, W, V, (LC, LM optional)
RIP Software: photoprint, and onyx optional.

PI-3220UV Maglev UV Flatbed Printer. Maximum Print Area. Magnetic Precision. Industrial Performance.

Reliable Quality

Professional R&D team control, strict factory testing and excellent machine quality.

Source Factory

Factory direct sales, competitive pricing and flexible customization.

Fast Shipping

Multiple overseas warehouses and fast worldwide delivery support.

Complete Service System

Professional pre-sales, installation, training and after-sales support.

Maglev UV Flatbed Printing Machine features

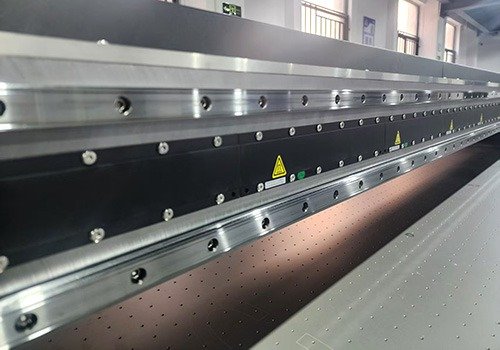

Dual linear guides

Dual linear guides and reinforced guide beams ensure smooth movement, while the ink drop point is accurate, with an error of no more than 0.02~0.05mm.

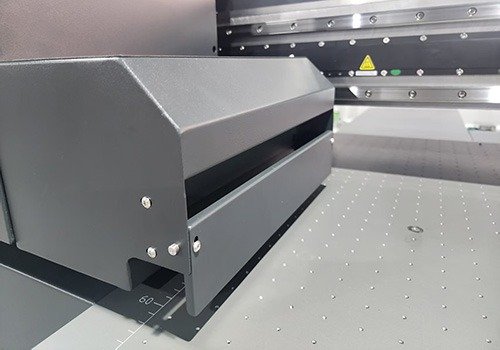

Humanized Anti-Collision device

There is an anti-collision device on each side of the trolley. When it hits a hard object, the trolley will automatically stop to avoid being scratched by the hard object.

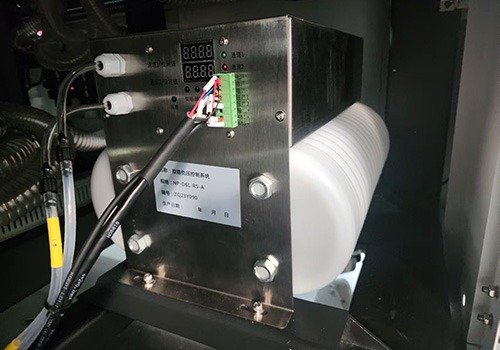

Color and white double negative pressure system

Due to the different viscosities of color and white inks, two sets of negative pressure devices with different pressures are required to maintain the smoothness of white and color working at the same time.

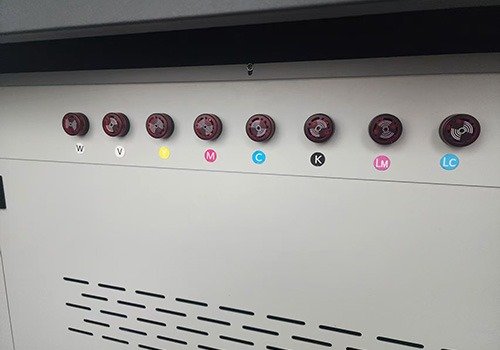

Ink alarm system

Built-in liquid level detection system, automatic alarm prompts ink level when low ink volume. At the same time, the white ink barrel is equipped with a stirring motor to prevent white ink precipitation.

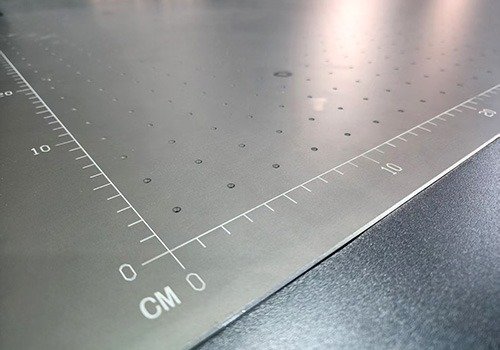

Automatic point-seeking and positioning function

The suction holes on the printing platform are excellent positioning functions, making the printed item patterns more accurate.

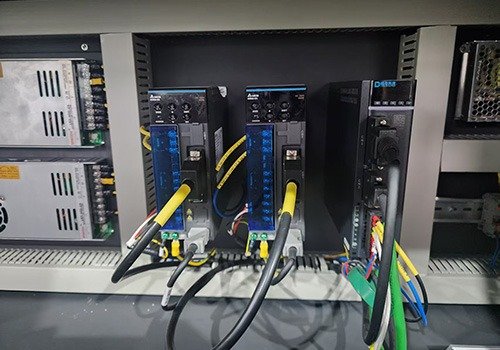

High-performance motor

The Y-axis dual motor provides greater power, faster printing speed, and more stable quality, and it is suitable for large-scale printing.

Product Specification

Product	Magnetic Levitation UV Flatbed Printer
Model	PI-3220
Printhead	4–9 Ricoh G5/G6 Industrial Printheads
High Speed Mode	35 m²/h, 54 m²/h, 72 m²/h
Production Mode	23 m²/h, 36 m²/h, 48 m²/h
Quality Mode	16 m²/h, 26 m²/h, 38 m²/h
Print Size	3200 × 2000 mm
Printing Method	Piezojet Greyscale Printing Technology
DPI	1200 dpi
Ink Type	UV Ink
Color	CMYK, W, V (LC, LM Optional)
RIP Software	Photoprint, Onyx (Optional)
Ink Cartridge Size	1.5 L
Color Management	ICC Color Curve Offered, Adjustable by User
Thickness	0–10 cm
Platform Type	6 Zones, Freely Switchable, Suction and Blowing Air Can Be Selected According to Demand
Material	Acrylic, Wood, Glass, Ceramic Tile, Metal, PVC, Industrial Film, etc.
Ink Supply System	Dual Negative Pressure System in Color and White
Solidification System	Solidification with UV LED Light
Operational Environment	Temperature: 20–30°C, Relative Humidity: 35%–65%, Non-Condensing
Operating System	Windows 10 (64-bit), USB 2.0 / USB 3.0, HDD 500 GB+
File Format	TIFF, JPEG, PostScript, EPS, PDF, etc.
Power	6000 W, 28 A
Input Voltage	200–240 V AC, 50 Hz
Machine Size	L5480 × W2760 × H1530 mm, 1500 KG
Packing Size	L5700 × W2000 × H1890 mm, 2000 KG

Partner with PICTEL. Grow Faster. Earn More.

Your Success is Our Business.

We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.

Higher Profit Potential
Fast Service & Spare Parts
Complete Business Support
Long-Term Growth Partnership
Trusted Engineering Expertise

Start Growing with PICTEL →

Maglev UV Flatbed Printing Machine Applications

The leading maglev technology UV flatbed printing machine subverts the traditional printing method. The non-contact movement eliminates mechanical wear and reduces maintenance costs. At the same time, it is equipped with a 6-stage vacuum adsorption platform, which makes printing ceramics, wood, glass, acrylic, steel, aluminium, rock slabs, furniture panels, signs, and other materials more stable and reliable with satisfactory image quality.

Background wall

Slate stone dining table

Ceramic tiles

Furniture panels

UV printing on Glass

UV printing on Wood

FAQ

Magnetic levitation UV flatbed printer is an industrial-grade printing equipment with magnetic levitation drive technology, designed for large format, high precision hard material printing.

By replacing the traditional belt/gear drive with a non-contact magnetic levitation guide, combined with UV curing ink technology, it can achieve non-splicing, high weather-resistant pattern printing on the surfaces of ceramics, stone, metal, wood, glass, etc., which is especially suitable for large-scale production in the building materials, home decoration, and advertising sign industries.

Supports almost all flat materials, such as hard materials: glass, metal, tiles, wood boards, acrylic, PVC boards; soft materials: leather, TPU mobile phone cases, etc.

Specific application scenarios: advertising light boxes, home decoration background walls, cabinet wood boards, mobile phone case customization, furniture panel printing, etc.

1. Magnetic levitation technology reduces mechanical wear and improves printing speed and efficiency.

2. Contactless printing, suitable for a variety of materials and colors, with higher printing quality.

3. Environmentally friendly, low noise, more comfortable to use.

No. Maglev flatbed UV printers are mainly used to print large format flat objects, focusing on high speed, high precision and mass production.

Compared with traditional printers, the maintenance cost of magnetic levitation UV flatbed printing machine may be higher, because its technology is more advanced and its components are more precise. However, in the long run, it is more cost-effective as its printing is efficient and durable.
