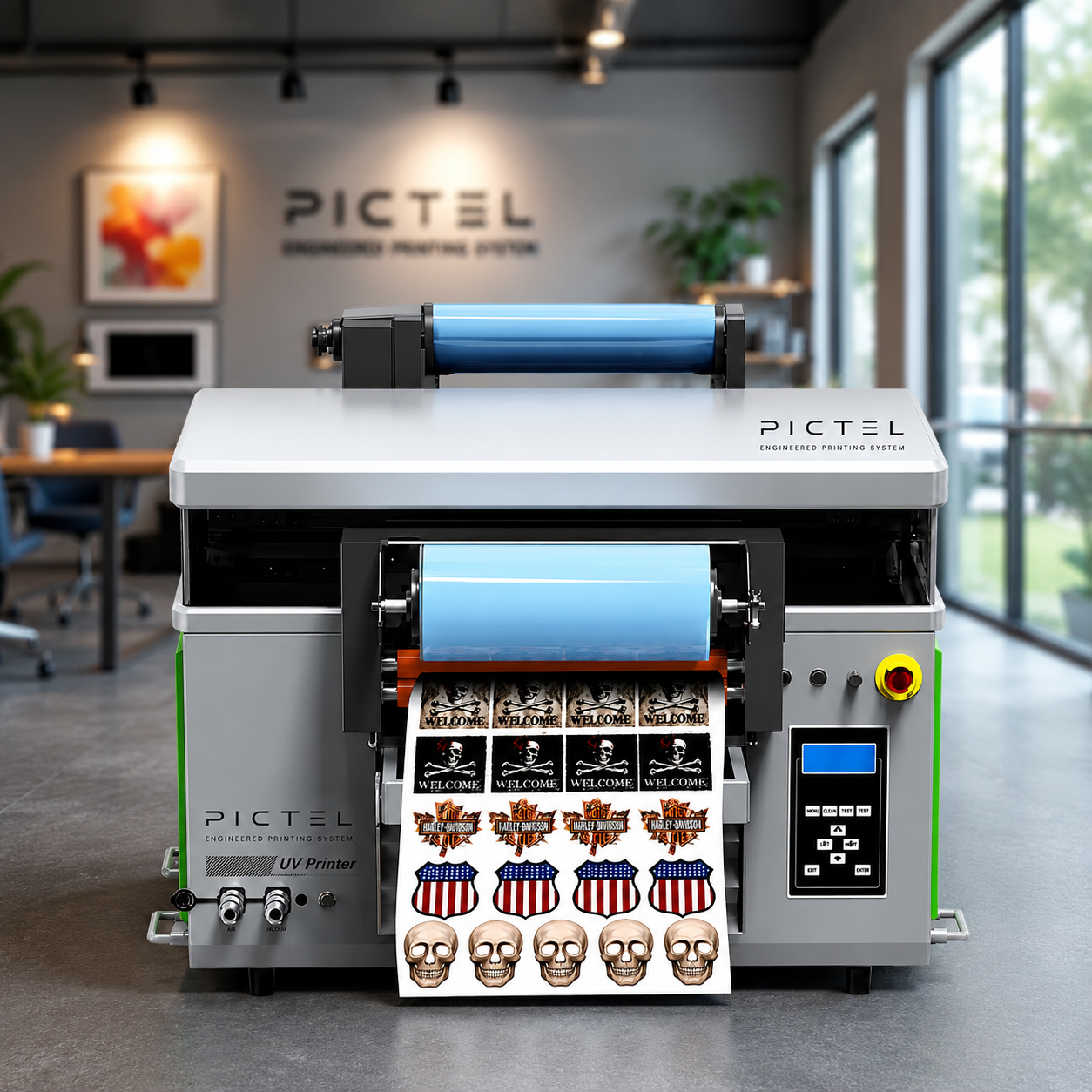

4060 - ALL - IN - ONE ROLL - FLAT PRINTER

Personalized printing on stickers backpacks water bottles turns creative ideas real easily

Main Features:

38cm coil-fed UV printing width
Epson dedicated print head with fully automatic ink supply
Supports gold & silver stamping crystal stickers
Automatic film covering and film tearing system
18cm maximum printing height with cylinder printing support
Micro-voltage on-demand inkjet technology with 3.5pl ink droplets for high-precision output
White ink circulation, automatic ink monitoring, and timed nozzle flash cleaning
Compatible with PET film, crystal labels, glass, acrylic, PVC, ABS, wood, leather, metal, stone, and many other materials

Technical Specifications:

Epson Print Head – Industrial-grade precision printing.
High Resolution – Up to 2880 × 5670 dpi output.
3.5 pl Ink Droplets – Sharp, detailed print quality.
CMYK + White Ink – Vibrant, full-colour printing.
Auto Ink Supply – Continuous, uninterrupted printing.
LED UV Curing – Instant drying with low power use.
Bi-Directional Printing – Faster production speeds.
180 mm Print Height – Prints on thick materials.
Servo Motor Drive – Smooth and precise operation.
Multi-Material Support – Prints on roll and rigid media.

4060 All-in-One Roll Flat Printer. One Machine. Unlimited Printing Possibilities.

Reliable Quality

Professional R&D team control, strict factory testing and excellent machine quality.

Source Factory

Factory direct sales, competitive pricing and flexible customization.

Fast Shipping

Multiple overseas warehouses and fast worldwide delivery support.

Complete Service System

Professional pre-sales, installation, training and after-sales support.

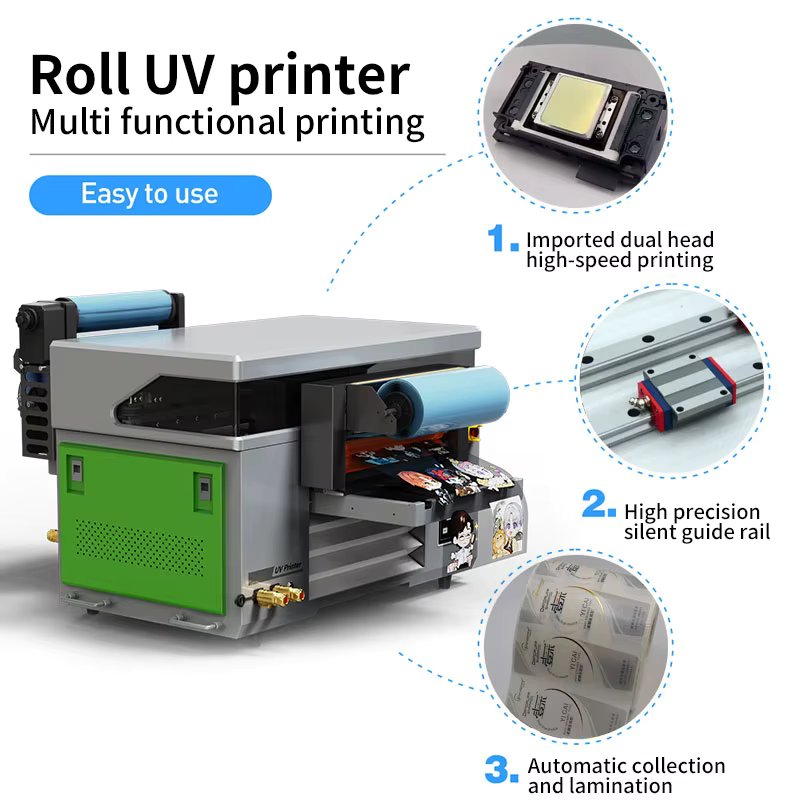

Key Features of All in One Roll Printing Solutions

Removable Dual-Use Design

Switch seamlessly between roll media and flatbed printing with a removable module. One versatile machine delivers greater flexibility while saving space and investment costs.

High-Speed Dual Print Heads

Equipped with imported dual print heads for fast, accurate, and consistent printing. Achieve vibrant colours and sharp image quality with enhanced productivity.

Precision Motion System

Built with high-precision silent guide rails for smooth and stable carriage movement. This ensures superior print accuracy, reduced vibration, and reliable long-term performance.

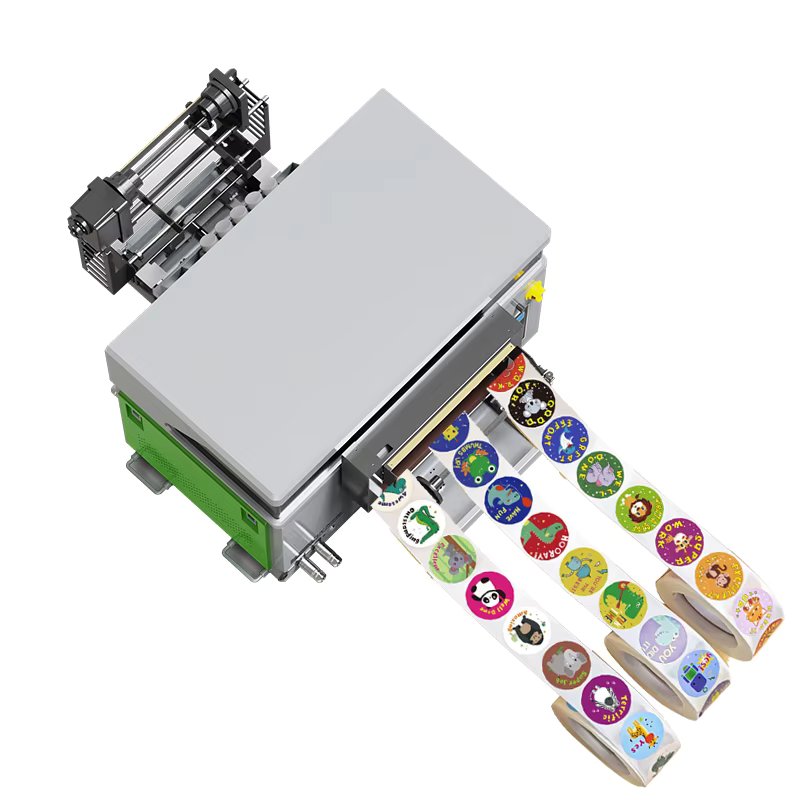

Automatic Roll Feeding & Collection

Features an integrated automatic media feeding and collection system with lamination support. It enables continuous printing, minimises manual handling, and improves production efficiency.

Product Specification

Brand	PICTEL
Method	Fully automatic ink supply
Model	4060 Coil Flat UV Integrated Machine
Print Head	Epson Dedicated Print Head
Curing System	Long-life LED UV Lamp
Scraping Method	Lift Type, More Stable
Control Motherboard	Independently Developed Board
Software	Professional Output Software
Printing Height	180 mm
Cylinder System	Supports Cylinder Printing
Ink Stack Unit	Aluminum Alloy CNC Precision Machining
Weight	Approx. 90 kg
Ink Level Monitoring	Automatic Monitoring, Alarm & Non-stop Inking
Printing Task	Supports Pause, Resume & Queue Printing Tasks
Image Format	JPG, PNG, PSD, EPS, PDF, etc.
Ink Heating	Optional
Ink Cartridge	Original Secondary Ink Cartridge System
Printing Direction	Bidirectional Printing
Feature Design	Automatic Film Covering & Film Tearing
Gold & Silver Stamping	Crystal Sticker Support
Power System	Servo Motor
Printing Size	380 mm × Depends on Coil Length
Spray Head Protection	White Ink Circulation Mixing + Timed Flash Spraying
Printing Accuracy	720 / 1280 / 2880 / 5670 dpi
Printing Colour	Cyan (C), Magenta (M), Yellow (Y), Black (K), White (W)
Printing Technology	Micro-voltage On-demand Inkjet with Ink Droplets as Small as 3.5 pl
Environment	Temperature: 10–35°C, Humidity: 20–80%
Power Supply	AC 110V / 220V, 50/60Hz
Printing Speed	8 Pass, Up to 1/3 Faster Than Comparable Models (Depending on Colour, Format & Precision)
Equipment Accessories	Ink Set, Printing Software, Typesetting Software, Drawing Software, Encryption Power Cord, Data Cable, Spare Ink Bag, Spare Screws, Cleaning Syringe, Waste Ink Bottle and Electronic User Manual.
Applicable Materials	Coil Crystal Label, Tin Foil Paper, PET Film, Wooden Board, Glass, Crystal, PVC, ABS, Acrylic, Metal, Plastic, Stone, Leather, Cloth and Other Compatible Materials.

Partner with PICTEL. Grow Faster. Earn More.

Your Success is Our Business.

We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.

Higher Profit Potential
Fast Service & Spare Parts
Complete Business Support
Long-Term Growth Partnership
Trusted Engineering Expertise

Start Growing with PICTEL →

UV DTF Printer Application

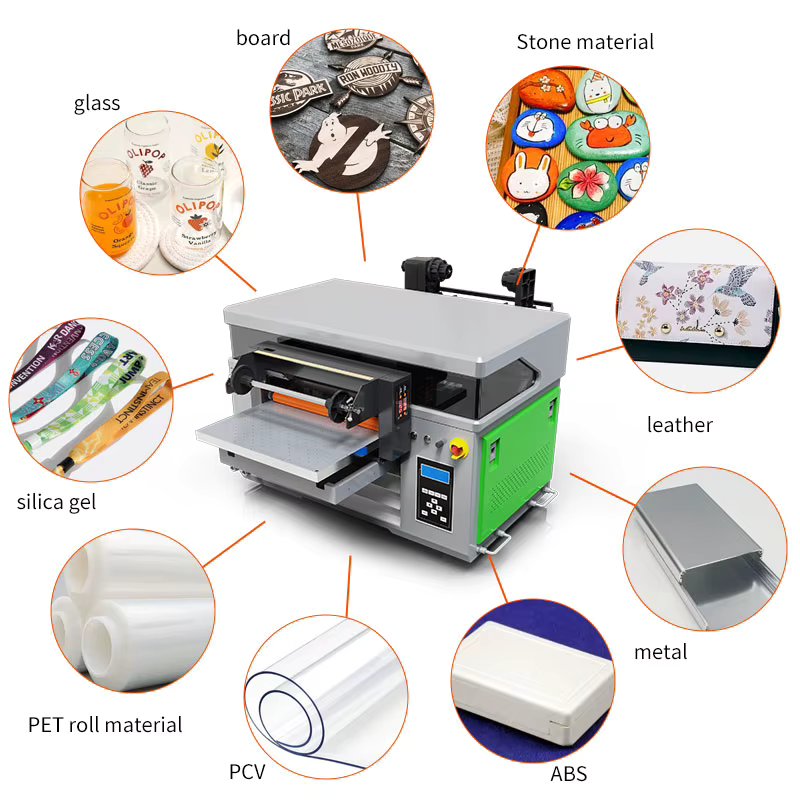

The PI 4060 All-in-One Roll-Flat Machine supports direct printing on both roll and flat materials, including coil crystal labels, PET film, tin foil paper, wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, fabric, and many other substrates. Its versatile compatibility makes it suitable for a wide range of commercial and industrial printing applications.
