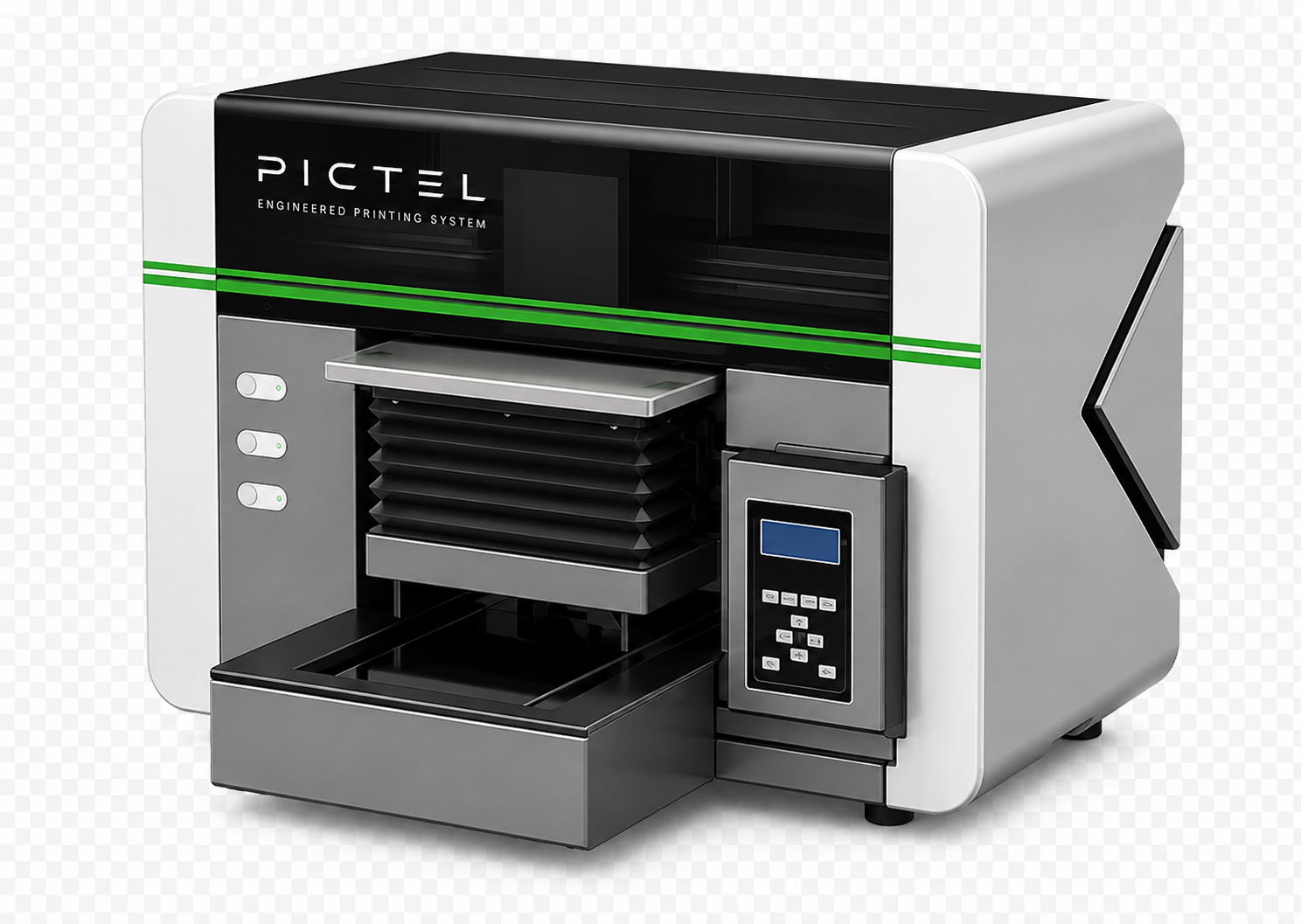

A3 UV PRINTER ( 30*42)

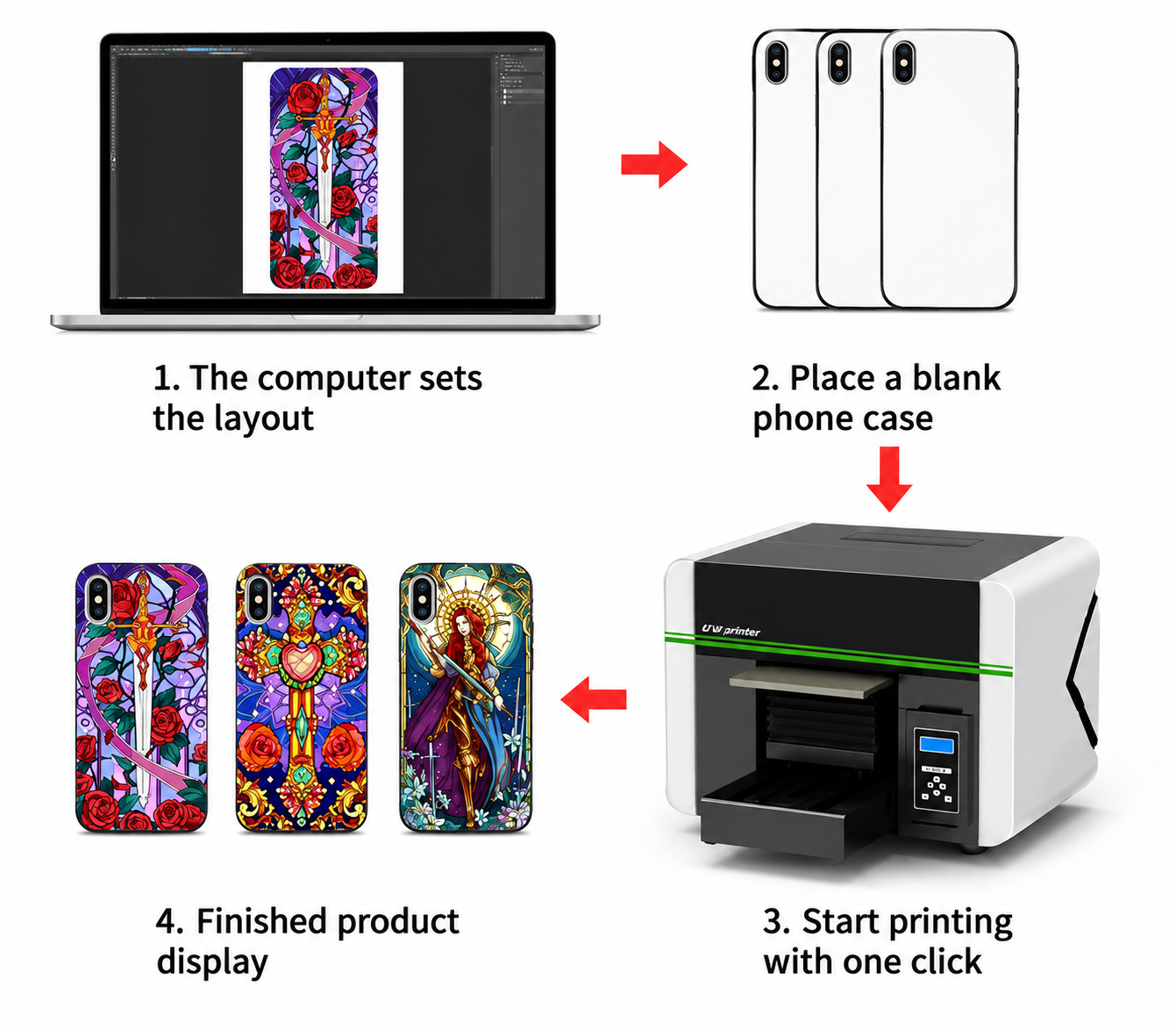

Compact Industrial UV Printing for High-Precision Customization Say goodbye to tedious operations and easily achieve efficient customization; no professional skills required, even beginners can quickly get started.
Main Features:
- High-Precision A3 Printing
- Automatic Height Detection
- Variable Droplet Ink Technology
- Automatic White Ink Circulation
- LED UV Instant Curing
- Multi-Material Printing
Technical Specifications:
- Printing Technology: UV LED Flatbed Digital Printing
- Maximum Print Area: 300 × 420 mm (A3 Size)
- Print Resolution: Up to 2880 DPI
- Printhead Options: XP600 / I3200HD / DX7
- Ink Configuration: CMYK + White + Varnish
- Supported Material Thickness: Up to 90 mm
- Printing Modes: Flatbed, Cylindrical & Roll Printing
- Machine Dimensions: 782 × 805 × 575 mm

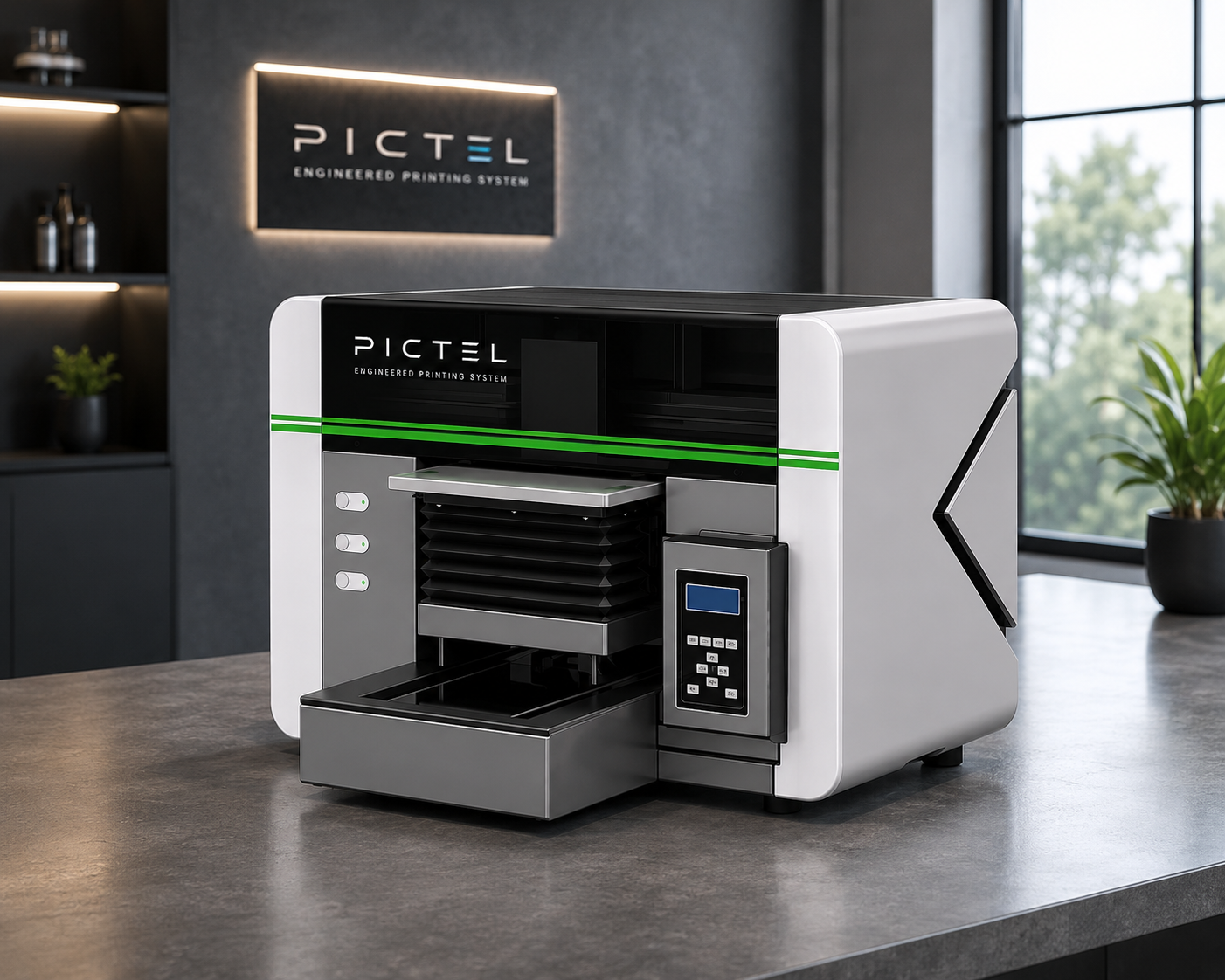

A3 UV Printer Compact Size. Industrial Precision. Unlimited Creative Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Key Features of All in One Roll Printing Solutions
.jpg)
Print on Almost Any Material
Expand your product offerings by printing directly on a wide range of rigid and specialty materials with exceptional adhesion and vibrant UV output.
.jpg)
Ultra-HD Print Quality
Achieve crisp text, vivid colors, and sharp graphics with printing resolutions up to 2880 DPI for premium-quality production.
.jpg)
White Ink & Spot UV Effects
Create eye-catching textures, premium finishes, transparent media prints, and raised spot UV effects using White Ink and Varnish.
.jpg)
Smart Automatic Maintenance
Reduce downtime with intelligent automation including automatic printhead cleaning, ink monitoring, and reliable nozzle protection.
.jpg)
Multiple Printing Modes
Print on flat surfaces, cylindrical objects, and roll materials using one versatile machine designed for diverse production needs.
.jpg)
Compact Yet Production Ready
Its compact footprint saves valuable workspace while delivering industrial-grade performance for startups, print shops, and commercial businesses.
Product Specification
| Product | A3 UV Printer |
| Model | A3 UV Printer |
| Main Board | Independently Developed with Stable Performance |
| Print Height | 0–90 cm |
| Print Quality | Printable Resolution: 720 / 1440 / 2880 dpi |
| Number of Print Heads | 1 |
| Print Head | XP600 / I3200HD / DX7 |
| Printing Software | Ruiyin |
| Output Software | Professional Software |
| Positioning System | Visual Positioning (Optional) |
| Nozzle Clog Prevention | Automatic Cleaning / QR Code Printer |
| Printing Platform | Suction Platform |
| Transmission System | Silent Guide Rail + High-Precision Lead Screw |

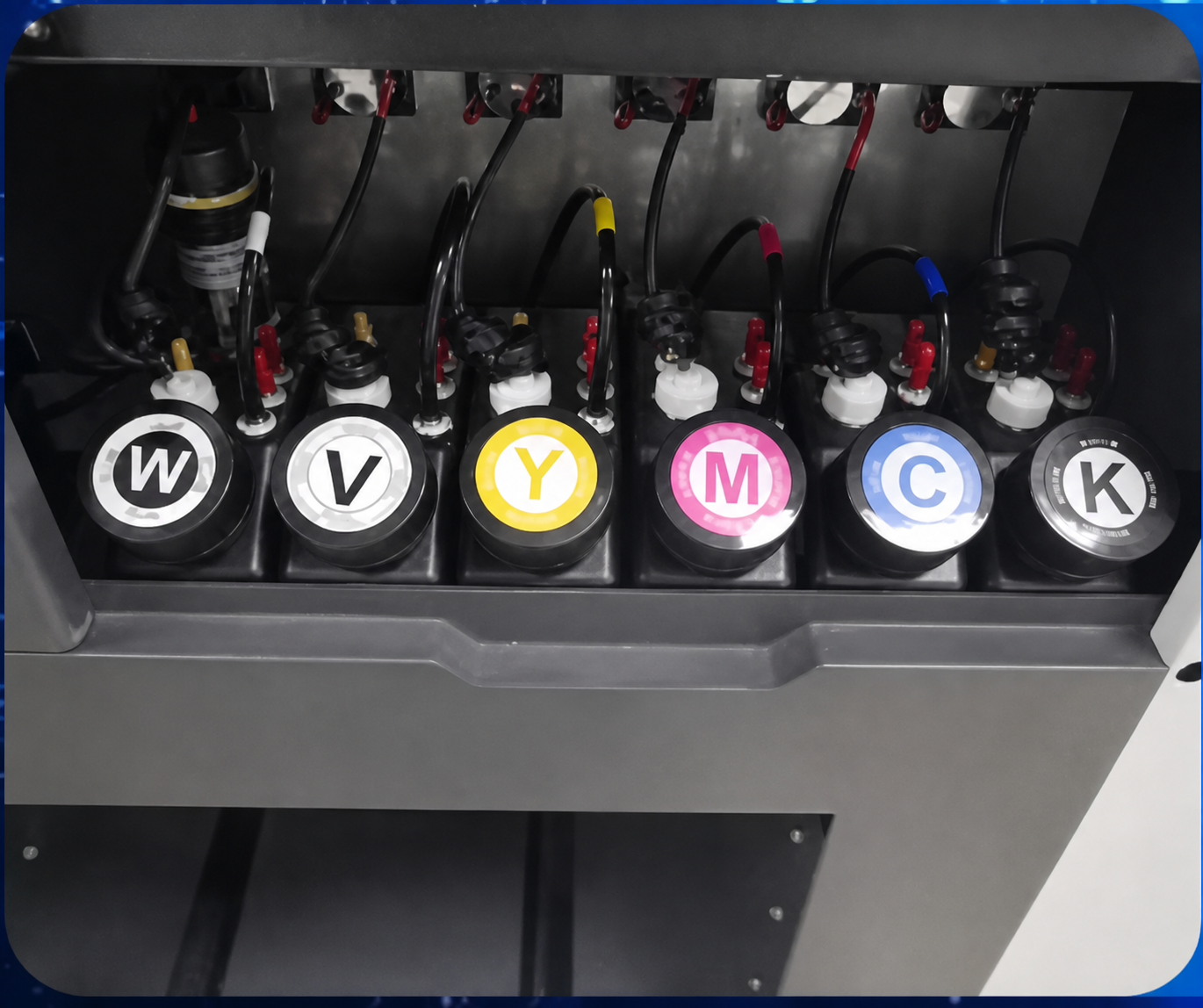

| Ink Path System | Lift Ink Stack / Ink Cartridge Opening System |
| Curing System | LED UV Lamp Curing |
| Language Support | Supports Multiple Languages |
| Supported File Formats | TIFF, BMP, PDF, EPS, JPG, PNG |
| Operating System | Windows 7 / Windows 8 / Windows 10 |
| Working Environment | Temperature: 15–35°C | Humidity: 20–30% |
| Printing Modes | Flatbed, Roll Material, Cylinder, Crystal Label Roll |
| AI Expansion | Supports AI Image Generation & Transformation Software |
| Print Size | 30 × 42 cm |
| Output Colors | CMYK + White + Varnish (Different Configurations) |

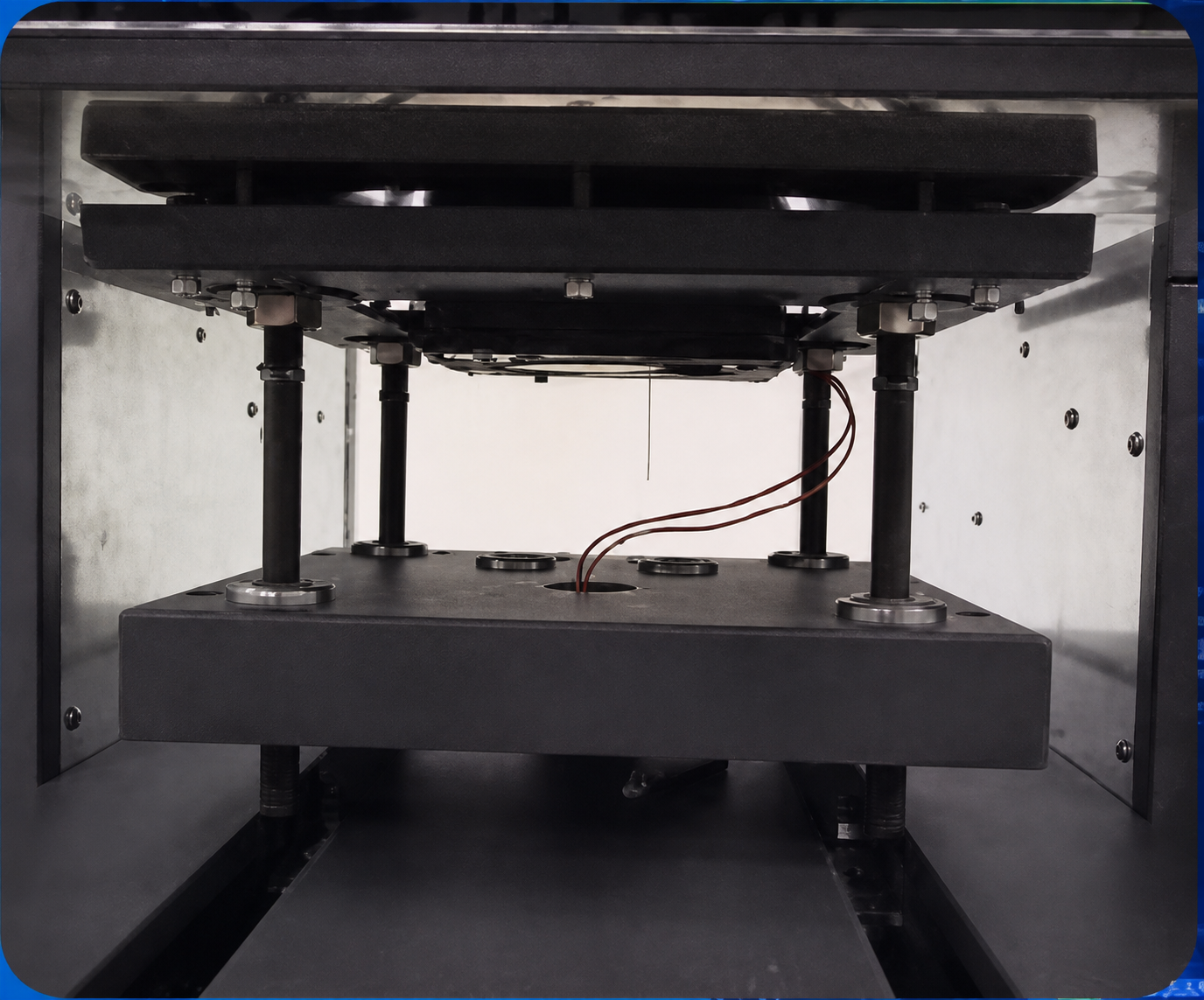

| Lifting Function | Platform Lifting |
| Inkjet Technology | Smart Variable Droplet |
| Print Head Heating | Supported |
| Print Head Maintenance | Automatic Cleaning |
| Print Mode | Unidirectional / Bidirectional |
| Ink Supply System | Automatic Ink Supply |
| Ink Level Monitoring | Ink Low Alarm |

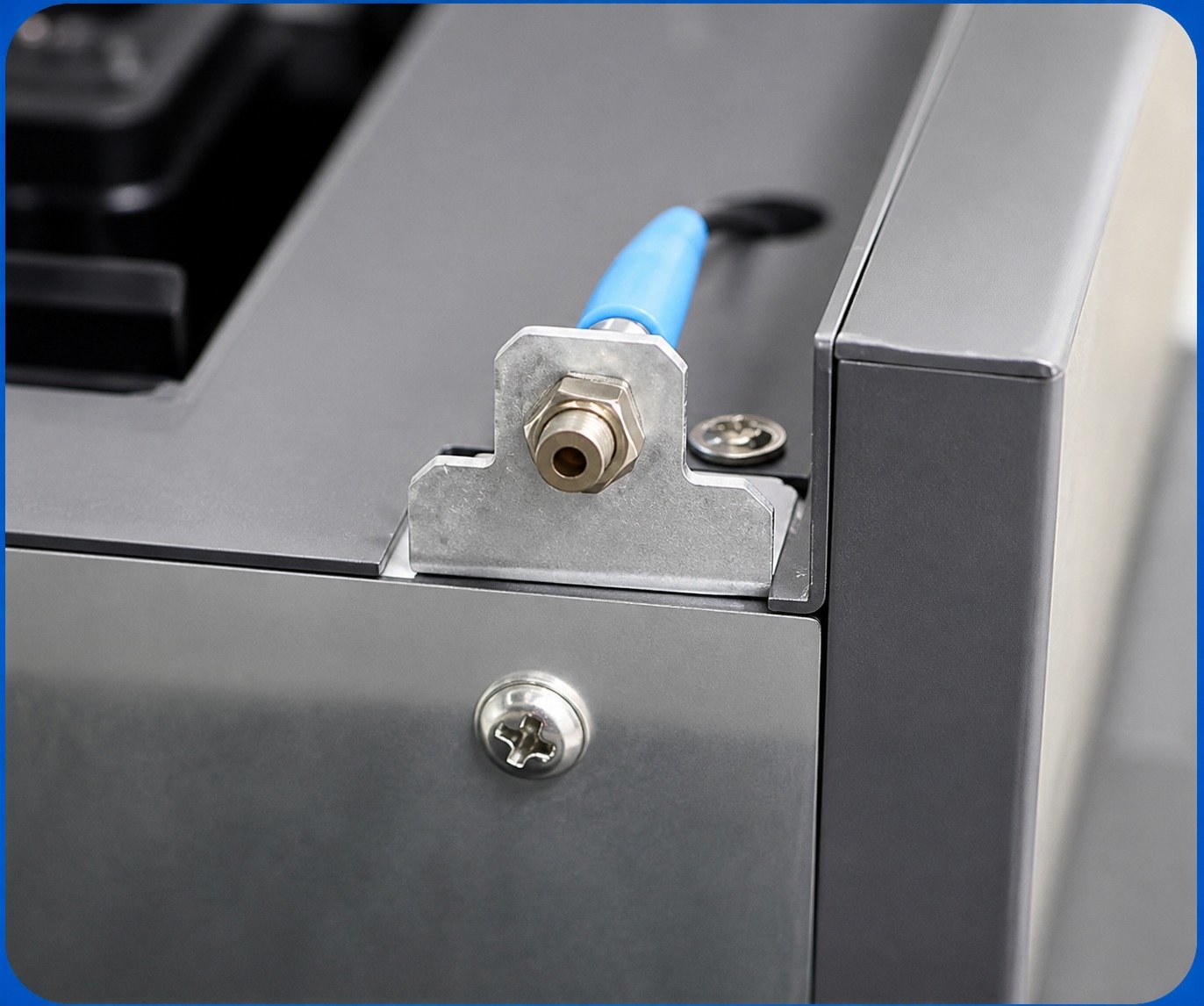

| Height Measurement | Automatic Height Measurement |
| Power Requirement | AC 220V / 110V, 50–60 Hz |
| Special Effects | 2.5D / Embossment |
| Interface Method | Gigabit Fiber |
| Machine Dimensions | 78.2 × 80.5 × 57.5 cm |
| Bare Machine Weight | Approximately 75 kg |
| Packing Weight | 115 kg |
| Packing Size | 102 × 90 × 87 cm |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
UV DTF Printer Application
The PI 4060 All-in-One Roll-Flat Machine supports direct printing on both roll and flat materials, including coil crystal labels, PET film, tin foil paper, wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone, leather, fabric, and many other substrates. Its versatile compatibility makes it suitable for a wide range of commercial and industrial printing applications.
Ceramic
Metal
Thermos Cup
Mobile Phone Case
Glass
Plastic Box
FAQ
It prints directly onto flat and cylindrical materials using UV-curable ink that dries instantly under LED UV lamps.
It supports acrylic, glass, wood, metal, PVC, leather, plastic, ceramic, phone cases, crystal labels, and many other rigid materials.
The printer offers a maximum print area of 300 × 420 mm (A3 size) for high-quality custom printing.
Yes. UV-cured prints are durable, water-resistant, scratch-resistant, and designed for long-lasting performance.
Yes. It supports CMYK + White + Varnish, allowing vivid colors, textured effects, and premium finishes.
Yes. With the optional rotary attachment, it can print on bottles, tumblers, mugs, and other cylindrical items.
The printer supports TIFF, BMP, PDF, EPS, JPG, and PNG for professional printing workflows.
Yes. It features automatic printhead cleaning, ink monitoring, and nozzle protection for reliable operation.
