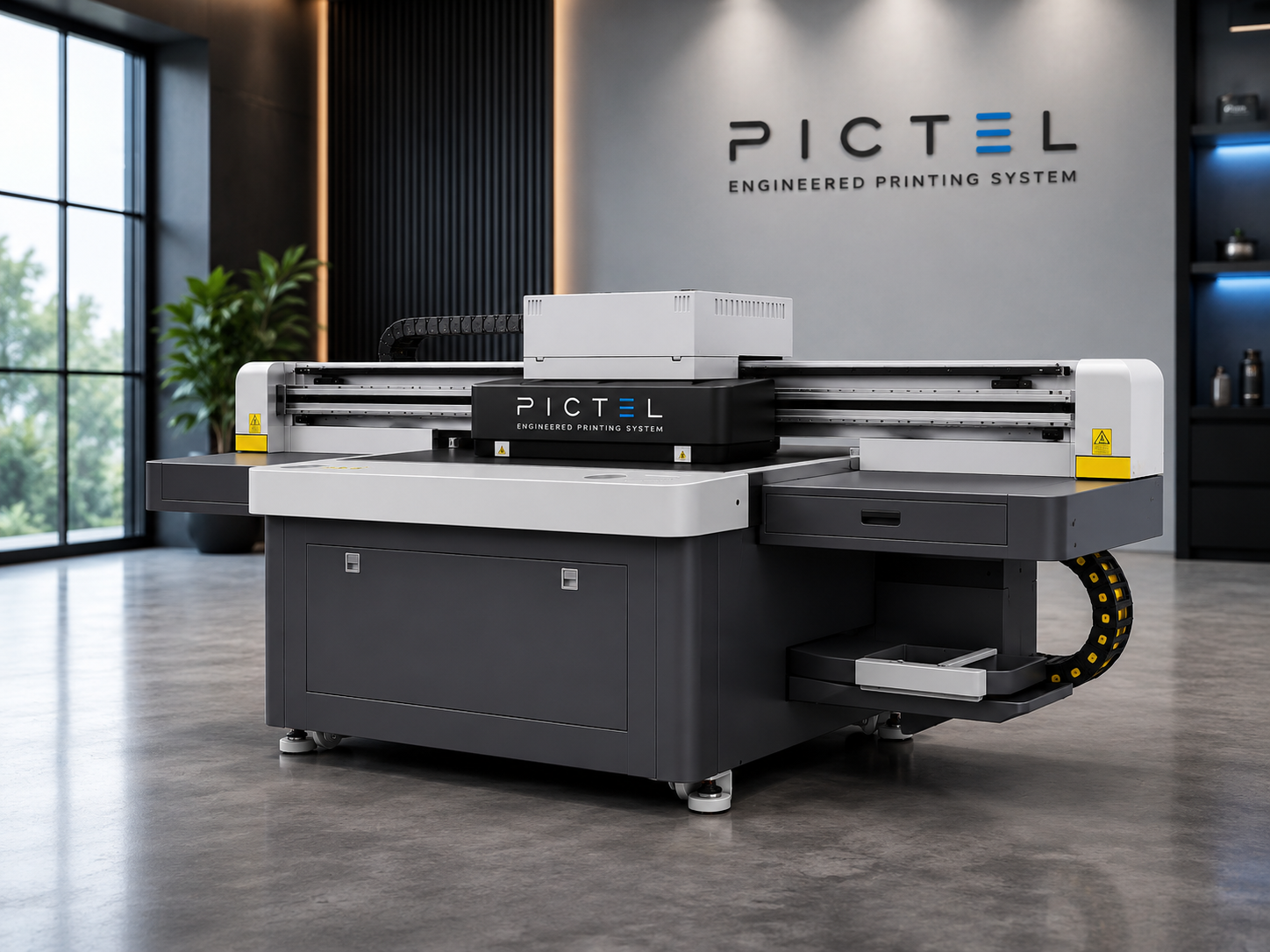

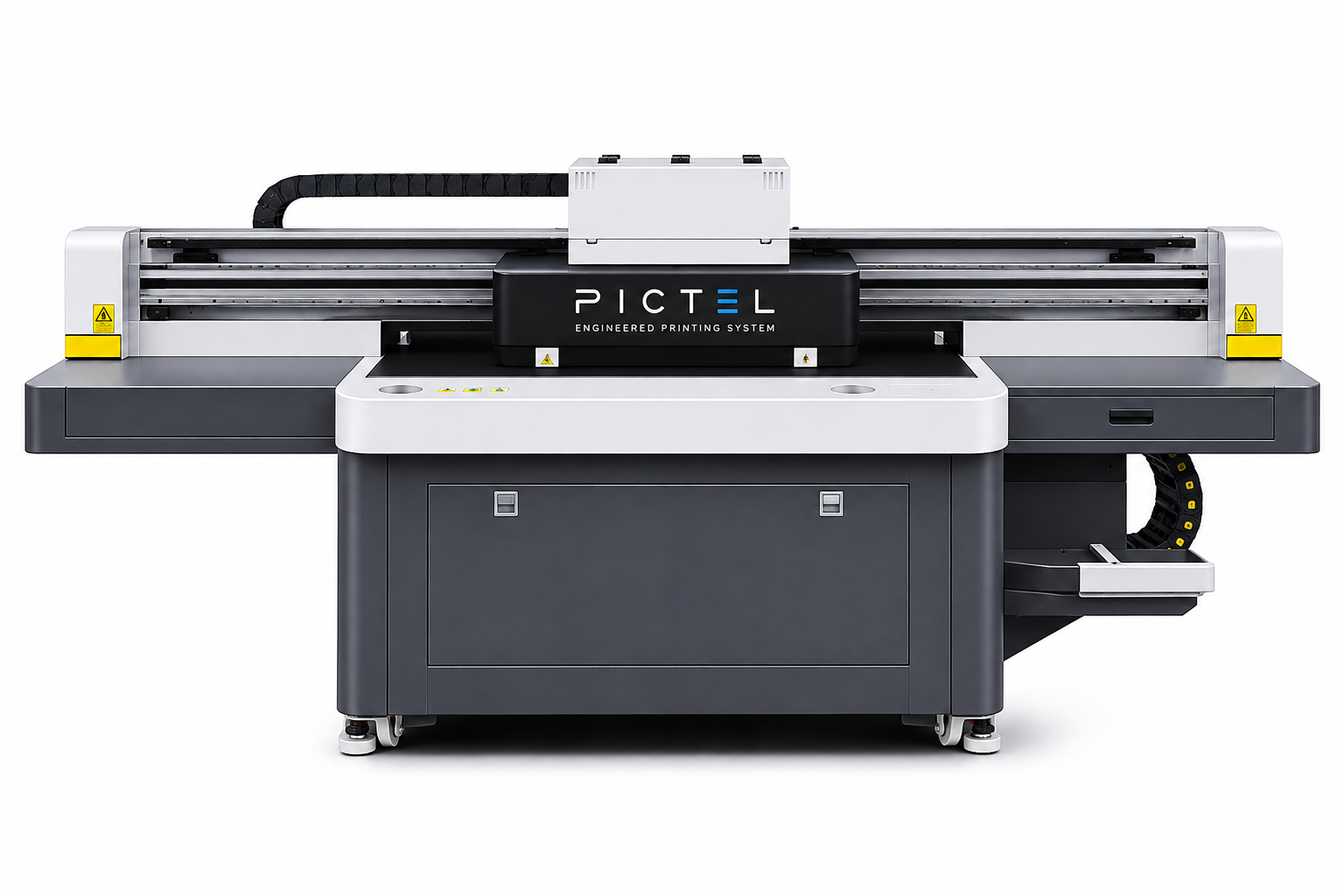

9060 UV PRINTER
Professional UV Printing for Flat, Roll & Cylindrical Applications
The PICTEL 6090 Premium Edition UV Printer is a high-performance industrial UV printer built for precision, speed, and versatility. Supporting flatbed, roll media, and cylindrical printing, it delivers vibrant colors, premium finishes, and reliable production for signage, packaging, promotional products, and industrial applications.
Main Features:
- Large 900 × 600 mm print area
- Industrial servo motor drive system
- Automatic media height sensing
- Intelligent white ink maintenance system
- High-resolution photo-quality output
- Scratch & water-resistant UV prints
- Energy-efficient LED curing module
- Multi-material direct printing capability
- Stable 24/7 production performance
- User-friendly touchscreen control panel
Technical Specifications:
- Printing Technology: UV LED Digital Printing
- Maximum Print Area: 600 × 900 mm
- Maximum Material Thickness: Up to 200 mm
- Print Resolution: Up to 2880 DPI
- Printhead Options: XP600 / DX7 / I1600 / I3200 / G5 / G6 / CE4
- Ink Configuration: CMYK + White + Varnish
- Printing Modes: Flatbed, Roll-to-Roll & Cylindrical Printing
- Ink Supply System: Intelligent Dual-Negative Pressure System
- Automatic Functions: Auto Cleaning, Flash Spray & Optional Height Measurement
- Supported File Formats: TIFF, BMP, JPG, PNG, PDF, EPS
- Power Supply: AC 220V / 110V, 50–60 Hz
- Machine Weight: Approximately 190 kg
Precision Printing. Intelligent Performance. Unlimited Production Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Key Feature of 9060 UV PRINTER
Flat, Roll & Cylindrical Printing
Expand your business with one machine capable of handling multiple printing applications across rigid, flexible, and cylindrical materials.
Professional UV Print Quality
Deliver exceptional color accuracy, fine details, and durable UV prints with resolutions up to 2880 DPI.
Intelligent Ink Management
The advanced ink supply system ensures smooth ink circulation, stable performance, and reduced maintenance for long production runs.
Automated Production Workflow
Integrated automation improves productivity through automatic cleaning, nozzle maintenance, flash spraying, and optional height detection.
Premium White Ink & Varnish Effects
Create premium-value products with CMYK, White, and Varnish inks for glossy textures, raised effects, and vibrant finishes.
Industrial Reliability
Engineered with precision guide rails, servo motors, and a robust industrial frame to ensure stable, reliable, and continuous operation.
Product Specification
| Product Model | 6090 Premium Edition UV Printer |
| Main Board | Hansen Board Card |
| Print Head Options | XP600 / DX7 / I1600 / I3200 / G5 / G6 |
| Print Size | 600 × 900 mm |
| Print Height | 0–200 mm (Customizable) |
| Print Resolution | 720 / 1440 / 2880 DPI |
| Number of Printheads | 2–5 (Optional) |
| Output Colors | CMYK + White + Varnish |
| Printing Software | RayPrint / JingFeng |
| Positioning System | Visual Positioning (Optional) |
| Lifting Function | Beam Lifting / Lowering |
| Inkjet Technology | Smart Variable Droplet Technology (Minimum 3.5 pL) |
| Nozzle Clog Prevention | Original Ink Supply System with Automatic Stirring & Flash Spraying |
| Print Head Heating | Automatic Heating |
| Printing Platform | Yimai Air Suction Platform |
| Print Head Maintenance | Automatic Cleaning |
| Transmission System | X-Axis Precision Guide Rail + Motor / Y-Axis Dual Guide Rails + Motor |
| Print Mode | Unidirectional / Bidirectional |
| Servo Motor | Leadshine Low-Voltage Servo Motor |
| Ink Supply System | Intelligent Dual-Negative Pressure Ink Supply |
| Curing System | LED UV Lamp with Post-Print Drying |
| Nozzle Protection | Automatic Idle Maintenance |
| Supported File Formats | TIFF, BMP, PDF, EPS, JPG |
| Height Measurement | Manual (Optional Automatic Measurement) |
| Operating System | Windows 7 / 8 / 10 |
| Power Requirements | AC 220V / 110V, 50–60 Hz |
| Working Environment | Temperature: 15–35°C, Humidity: 20–30% RH |
| Output Software | Professional Software |
| Cylinder / Roll Fixture | Optional |
| Special Effects | Relief / Varnish |
| Printing Modes | Flatbed, Cylindrical & Roll Printing |
| Interface | Gigabit Fiber |
| AI Expansion | Supports AI Image Generation & Transformation Software |
| Machine Dimensions | 1700 × 1370 × 750 mm |
| Bare Machine Weight | Approximately 190 kg |
| Packaging Size | 1800 × 1500 × 940 mm |
| Packing Weight | Approximately 295 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
9060 UV Printer Applications
The PICTEL 9060 UV Printer is designed for professional flatbed, roll, and cylindrical printing. It delivers vibrant, durable UV prints across a wide range of materials, making it ideal for commercial, industrial, and customized production.
Acrylic Awards & Trophies
Custom Phone Cases
Furniture & Cabinet Panels
PVC Display Boards
Cosmetic & Luxury Packaging
Luxury Gift Boxes
FAQ
The printer supports a wide range of materials, including acrylic, glass, wood, PVC, leather, metal, ceramic, packaging materials, promotional products, and other compatible rigid or flexible media.
The printer offers a 600 × 900 mm print area and supports materials up to 200 mm thick, making it suitable for both standard and larger custom printing applications.
It supports flatbed, roll media, and cylindrical printing, allowing businesses to handle multiple applications with a single versatile printing system.
The printer supports multiple printhead options, including XP600, DX7, I1600, I3200, G5, and G6, with configurations of 2–5 printheads depending on production requirements.
Yes. It supports CMYK + White + Varnish, enabling vibrant full-color printing, opaque white layers, glossy finishes, spot UV, and raised or embossed effects.
The printer supports 720, 1440, and up to 2880 DPI, delivering sharp text, fine details, smooth gradients, and professional-quality graphics.

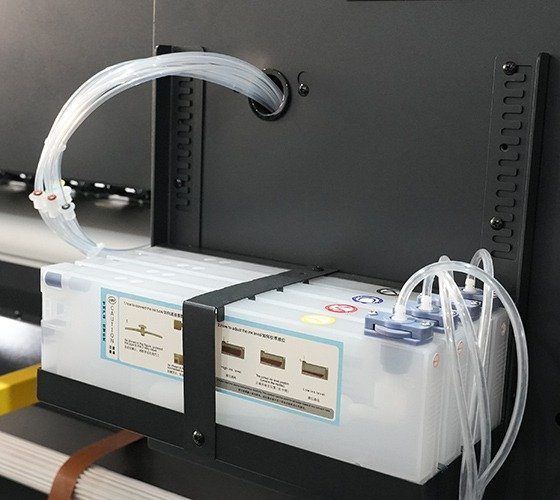

The dual-negative pressure ink supply system maintains stable ink flow during long production runs, helping improve print consistency while reducing nozzle clogging and maintenance requirements.
The printer features automatic printhead cleaning, automatic ink stirring, flash spraying, nozzle protection, automatic heating, and idle maintenance. Optional automatic height measurement is also available for easier operation.
