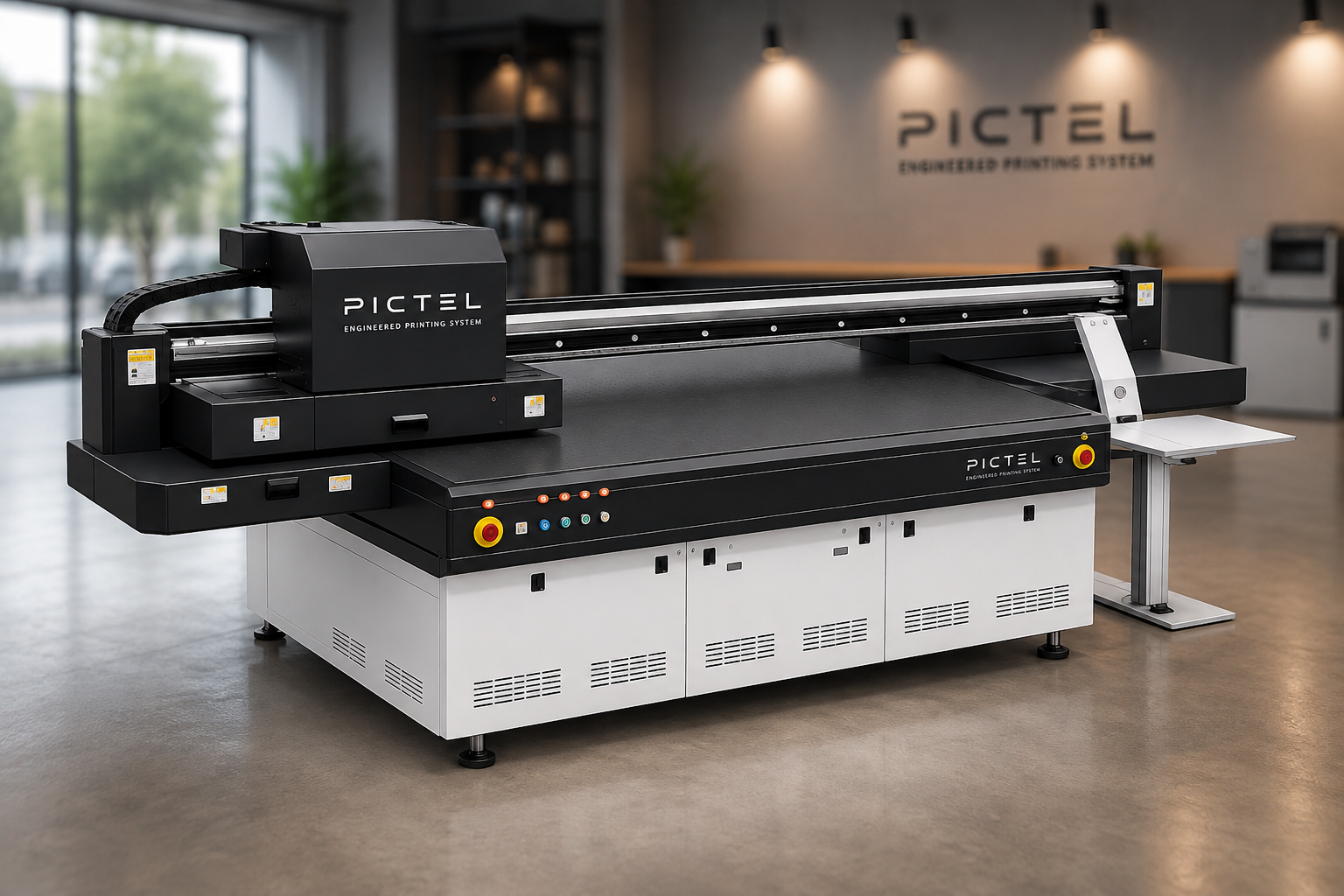

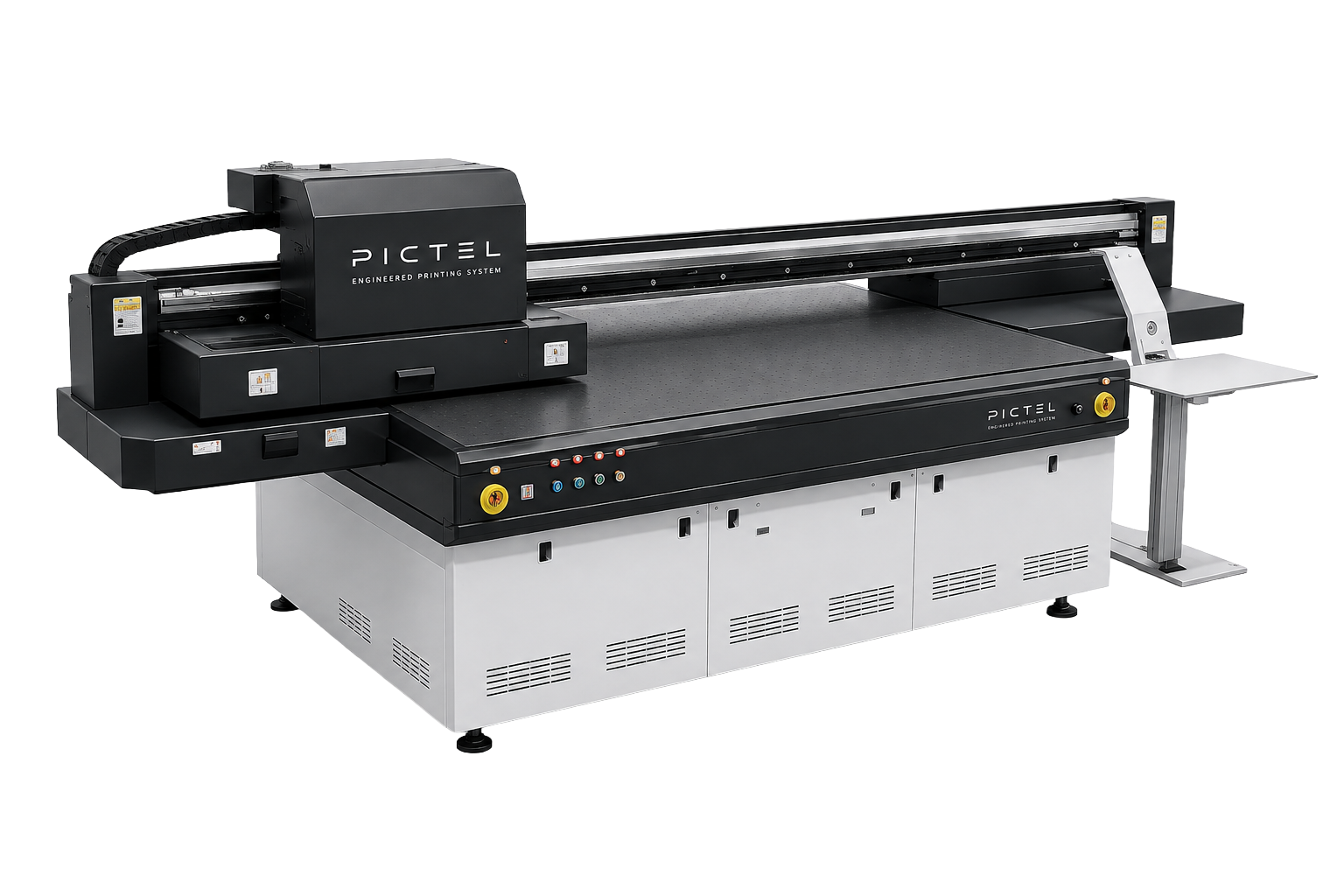

PI-3240UV Large Format Maglev Flatbed Printer For Aluminum Plate/Tiles
The industrial large format flatbed UV printer uses innovative magnetic levitation technology, which has unparalleled printing accuracy and excellent stability compared to traditional printers, bringing strong competitiveness to the mass production of furniture table boards, decoration building materials, cabinet wood materials, etc.
Main Features:
- 3.2 × 4m print width
- 4–9 industrial print heads
- Color: CMYK, W, V (LC, LM optional)
- 5PL variable ink droplets for high-resolution printing.
- Perfect balance of precision, speed, and productivity.
- Ideal for large-scale customization of stone, wood, aluminum panels, other building materials.
Technical Specifications:
- Print Head: 4-9 Ricoh G5/G6 industry print heads
- Print Size: 3.2m*4m
- Thickness: 0-10cm
- DPI: 1200 dpi
- Color: CMYK, W, V, (LC, LM optional)
- RIP Software: photoprint, and onyx optional.
Magnetic Levitation Technology. Superior Stability. Exceptional Print Quality.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Maglev Large Format Flatbed UV Printer features

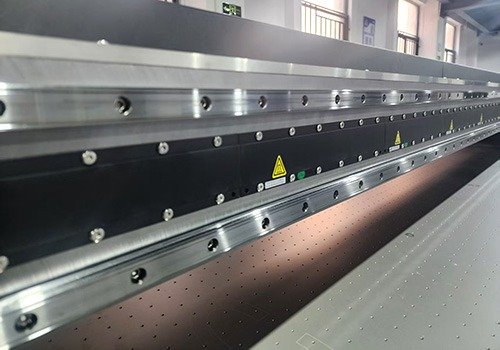

Magnetic levitation configuration
Compared with traditional transmission methods, magnetic levitation can carry higher movement speed, higher printing accuracy, lower noise, and reduced component wear problems.

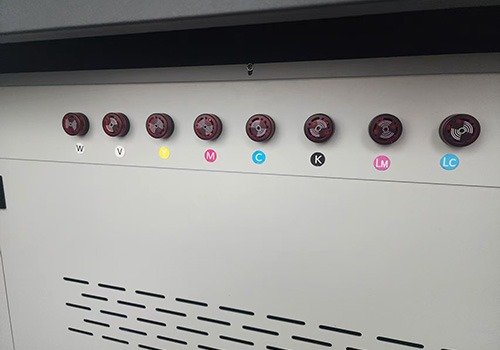

Free combination of printing solutions
In addition to CMYK+LC+LM, white channel and varnish channel are also provided to show high visual artistic effects and unique embossed three-dimensional effects.

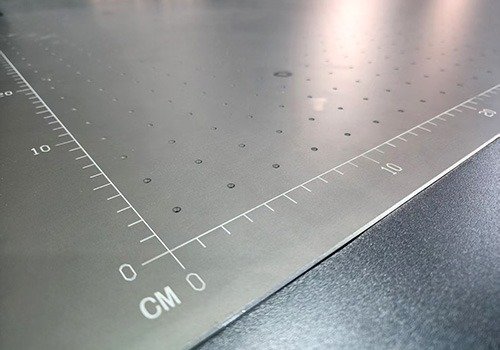

Automatic point-seeking and positioning function
The air suction hole on the printing platform is a good positioning function, making the printed object pattern more accurate.

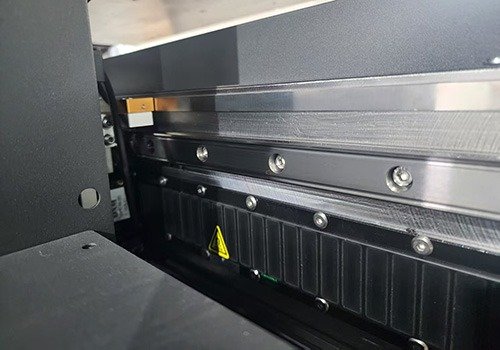

Automatic height measurement
Built-in height measurement probe. When the thickness of the medium exceeds the bottom of the head, the height measurement probe will be automatically triggered, and the head will automatically rise and fall to the appropriate printing height.

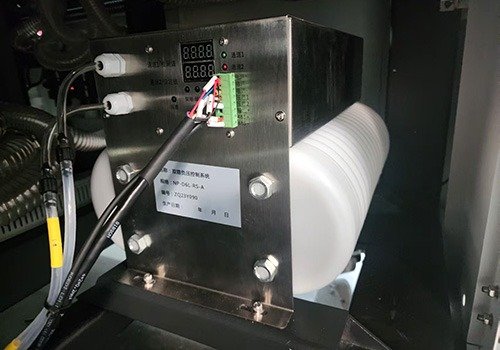

Color and white double negative pressure system
Ensures the uniform distribution of different color inks, without ink leakage or insufficient ink supply, greatly improving printing quality and efficiency.

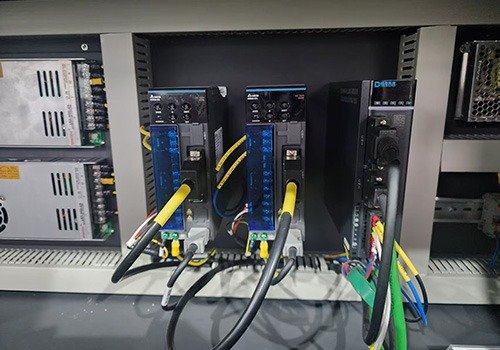

Y-axis dual motor
Provides greater power, high-precision and high-speed printing, stable and reliable, especially suitable for large-size printing tasks.
Product Specification
| Product | Maglev Large Format Flatbed UV Printer |
|---|---|
| Model | PI-3240 |
| Printhead | 4-9 Ricoh G5/G6 industry printheads |
| High Speed Mode | 35m²/h, 54m²/h, 72m²/h |
| Production Mode | 23m²/h, 36m²/h, 48m²/h |
| Quality Mode | 16m²/h, 26m²/h, 38m²/h |
| Print Size | 3200 × 4000 mm |
| Printing Method | Piezojet greyscale printing technology |
| DPI | 1200 dpi |
| Ink Type | UV ink |
| Color | CMYK, W, V (LC, LM optional) |
| RIP Software | Photoprint, Onyx (optional) |
| Ink Cartridge Size | 1.5 L |
| Color Management | ICC color curve offered, adjustable by user |
| Thickness | 0–10 cm |
| Platform Type | 6 zones, freely switchable; suction and blowing air can be selected according to demand |
| Material | Acrylic, wood, glass, ceramic tile, metal, PVC, industrial film, etc. |
| Ink Supply System | Dual negative pressure system in color and white |
| Solidification System | Solidification with UV LED light |
| Operational Environment | Temperature: 20–30?, Relative Humidity: 35%–65%, Non-condensing |
| Operating System | Windows 10 (64-bit), USB 2.0/3.0, HDD 500G+ |
| File Format | TIFF, JPEG, PostScript, EPS, PDF, etc. |
| Power | 6000W, 28A |
| Input Voltage | 200–240V AC, 50Hz |
| Machine Size | L5480 × W4760 × H1530 mm, 3200 kg |
| Packing Size | L5800 × W2300 × H1920 mm / L3800 × W2300 × H1450 mm, 3600 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Maglev Large Format Flatbed UV Printer Applications
3.2x4m industrial large format flatbed UV printer redefines high efficiency and productivity, equipped with magnetic levitation system, truly non-contact, high-speed output of 1200dpi resolution, whether it is stone building materials, cabinets, wood panels, metal panels, or advertising signage, home decoration, backdrops, can present delicate colours and high-definition details, to achieve multi-purpose machine, high efficiency and omnipotence.
Background wall
Slate stone dining table
Ceramic tiles
UV flatbed printer for Wood
Glass
Maglev flatbed printer for billboard
FAQ
The working principle of magnetic levitation technology is to use electromagnetic technology, combined with the position signal of the sensor to generate a control current, so that the electromagnet generates electromagnetic force on the suspended object, thereby driving the suspended object to move.
Therefore, adding magnetic levitation technology to the UV flatbed printer can achieve high-speed, high-precision, and high-stability printing, and at the same time solve the problem of component wear caused by the traditional belt drive form, which is an innovative breakthrough in UV printing technology.
Supports almost all flat materials, such as hard materials: glass, metal, tiles, wood boards, acrylic, PVC boards; soft materials: leather, TPU mobile phone cases, etc.
Specific application scenarios: advertising light boxes, home decoration background walls, cabinet wood boards, mobile phone case customization, furniture panel printing, etc.
1. Magnetic levitation technology reduces mechanical wear and improves printing speed and efficiency.
2. Contactless printing, suitable for a variety of materials and colors, with higher printing quality.
3. Environmentally friendly, low noise, more comfortable to use.
No. Maglev flatbed UV printers are mainly used to print large format flat objects, focusing on high speed, high precision and mass production.
Compared with traditional printers, the maintenance cost of magnetic levitation flatbed UV printers may be higher, because its technology is more advanced and its components are more precise. However, in the long run, it is more cost-effective as its printing is efficient and durable.
