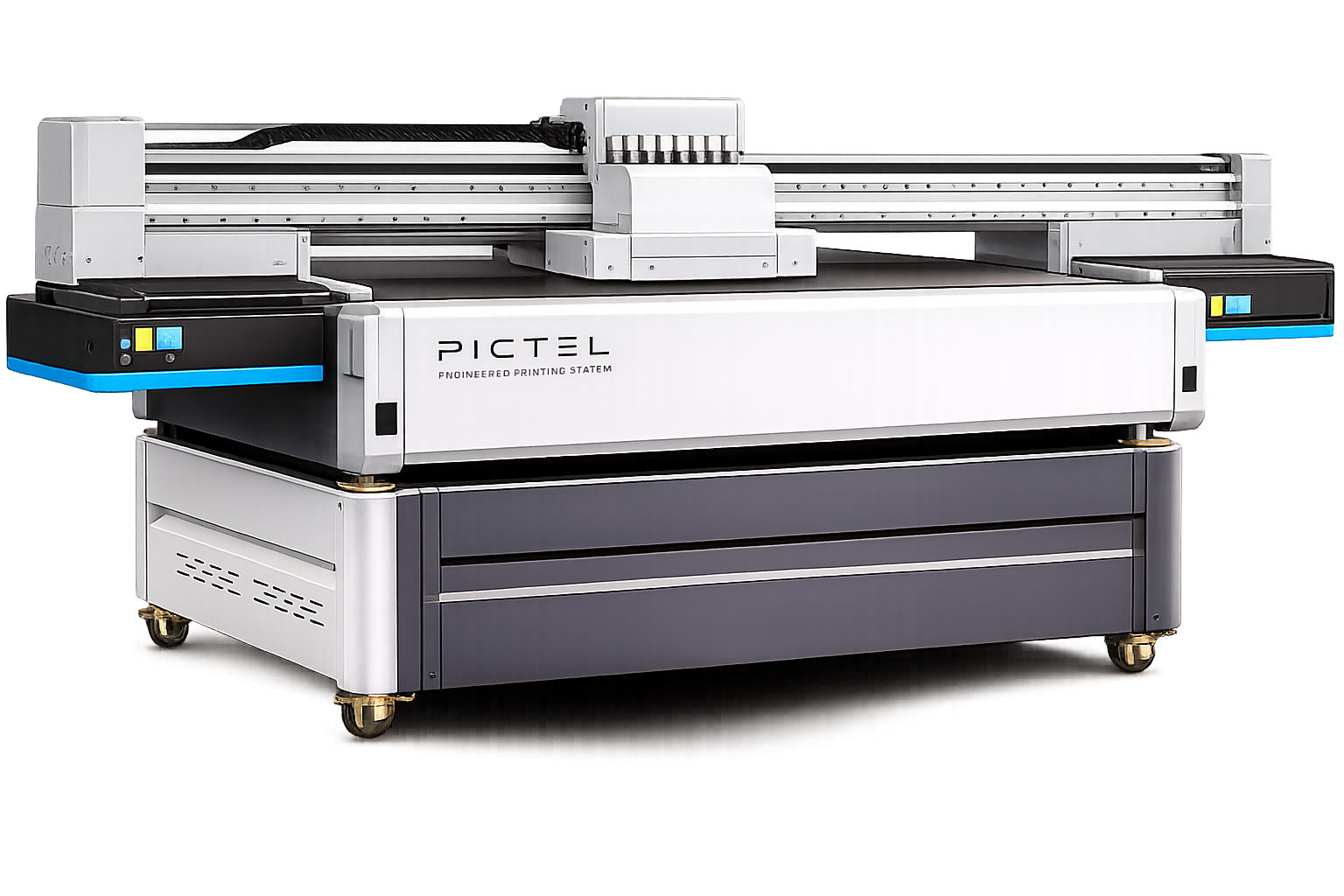

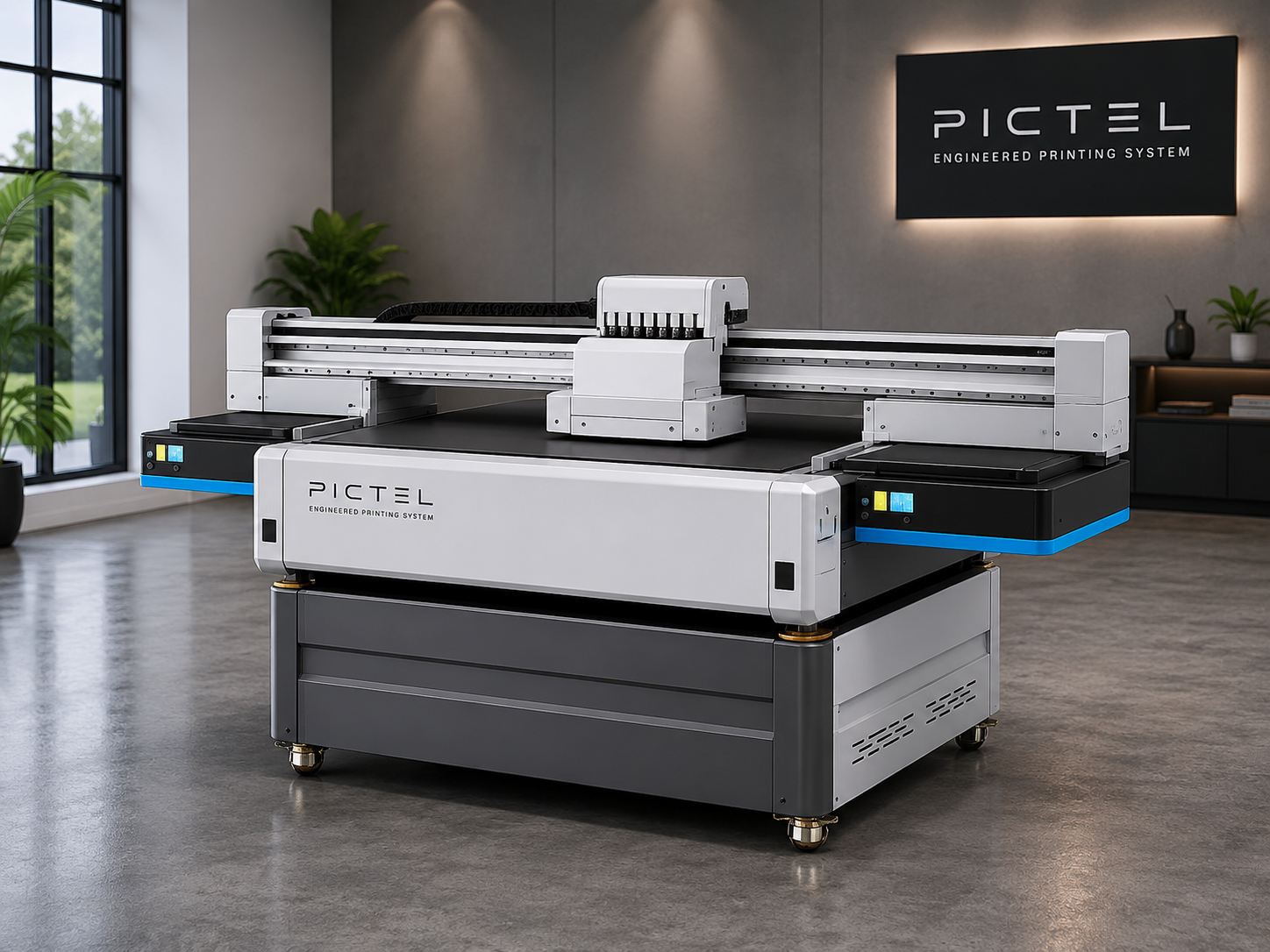

PI-1212 HIGH-DROP FLATBED UV PRINTER
The KJ-1212 multifunctional flatbed UV printer (optional high drop printing solution) is equipped with a visual positioning function, which allows it to scan and print at the same time, with efficient output. In addition, roll and cylindrical fixtures are installed to meet the needs of personalized gifts, promotional items, and cups.
Main Features:
- 1.2×1.2m printing width
- 3-7*Toshiba CE4-M / 5Toshiba CF3R heads optional.
- 8 Colors
- Support roll/flat/cylinder/mug printing.
- CCD visual positioning function and Automatic height measurement function.
- High-precision printing, matte/gloss/foil stamping/embossing effects.
Technical Specifications:
- Print Head (option 1): 3-7*Toshiba CE4-M
- Print Height: 0-800mm
- Print Head (option 2): 5*Toshiba CF3R (High-Drop Solution)
- High-Drop Height: 1-25mm
- RIP Software: RIIN, photoprint
- Print Size: 1.2×1.2m
- Print Accuracy: 600×1800(dpi)
- Color: CMYK, LC, LM, W, V
Print Beyond Flat. High-Drop Technology. Exceptional Creative Freedom.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Multifunctional Flatbed UV Printer Features

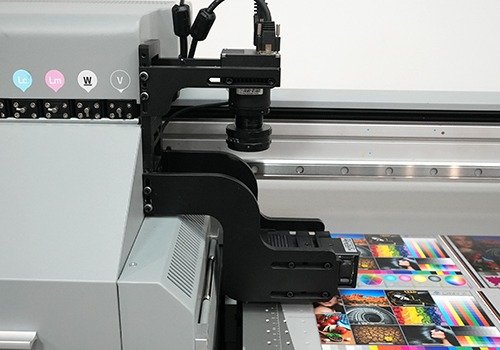

CCD Intelligent Visual Positioning
CCD visual scanning configuration industrial camera, 600x1800dpi ultra-high resolution, matching accuracy up to 0.01mm.

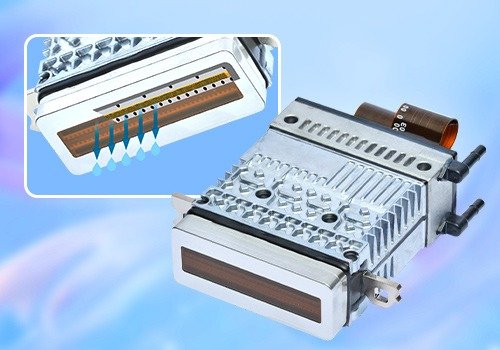

High-Drop CF3R Printhead
The Toshiba CF3R internal circulation printhead achieves printing with a drop height of up to 25 mm, with no ink drift, ensuring stable printing, and brighter image quality.

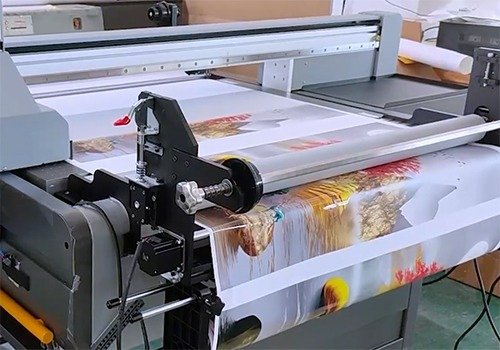

Support Roll And Sheet Printing
Optional roll and sheet molds can print rolls and sheets with a width of less than 1270mm, including soft film, crystal, gold stamping, KT board, and acrylic.

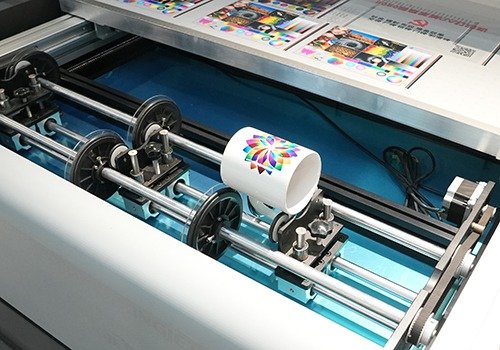

Cylinder And Mug Printing
Cylinder molds can print cylindrical objects of Φ25-200mm and Φ8-100mm respectively, and mug molds can print three mugs or cones of Φ40-200mm at the same time.

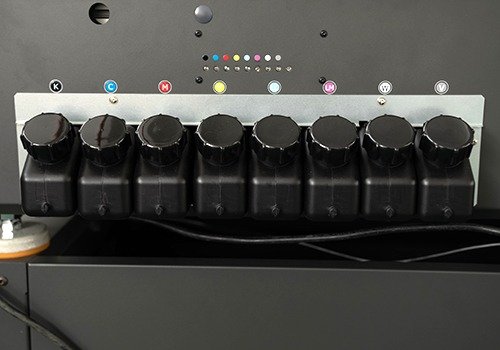

8-Color Printing Solution
8-color professional printing solution, richer color levels, more stunning details, suitable for high-end design.
3.5pl Variable Ink Drop Printing
3.5pl printing finer, clearer details, uniform colour transition, while consuming less ink.
Product Specification
| Product | PI-1212 Multifunctional UV Flatbed Printer |
| Model | PI-1212UV |
| Printhead (Option 1) | 3–7 × Toshiba CE4-M |
| Print Height | 0–800 mm |
| Printhead (Option 2) | 5 × Toshiba CF3R (High-Drop Solution) |
| High-Drop Height | 1–25 mm |
| RIP Software | RIIN, Photoprint |
| Print Range | 1200 × 1200 mm |
| Print Accuracy | 600 × 1800 dpi |
| Printing Speed | Output (sq.m/h) |
| High Speed | 600×900 dpi – 6 pass: 19.5 m²/h; 600×1200 dpi – 8 pass: 12.5 m²/h; 600×1800 dpi – 12 pass: 10.1 m²/h |
| Medium Speed | 600×900 dpi – 8 pass: 15.2 m²/h; 600×1200 dpi – 8 pass: 12.05 m²/h; 600×1800 dpi – 12 pass: 9.05 m²/h |
| Low Speed | 600×900 dpi – 6 pass: 12.7 m²/h; 600×1200 dpi – 8 pass: 9.8 m²/h; 600×1800 dpi – 12 pass: 7.05 m²/h |
| Ink Type | UV Ink |
| Ink Color | C, M, Y, K, LC, LM, W, V |
| Curing | Dual UV LED Lamps with Water Cooling |
| Image Format | TIFF / JPEG / PNG / PDF / EPS |
| Computer System | Windows 7 / Windows 8 / Windows 10 |
| Input Voltage | AC 220V (±10%), 50/60Hz, ?16A |
| UV Lamp | Imported UV-LED |
| Servo Motor | Fuji Servo Motor (Japan) |
| Linear Guide | Japan THK Mute Guide Rail |
| Screw | Taiwan Silver Wire Rod |
| Drag Chain | Igus Tow Chain |
| Switch | Delixi / Chint |
| Platform Type | Rigid Vacuum Adsorption Platform |
| Platform Partition | Rear Area Adsorption |
| Environment | Clean and dust-free, no direct sunlight, well-ventilated environment, temperature 15–30°C, humidity 30–70% |
| Operating Power | <3250W |
| Weight | ?528 KG |
| Machine Size | 2300 × 1750 × 1100 mm |
| Package Size | 2400 × 1950 × 1000 mm |
| Miscellaneous Function | Automatic height measurement, automatic anti-collision, automatic electrostatic removal, negative pressure ink supply, secondary ink cartridge preheating. |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Multifunctional Flatbed UV Printer Applications
A high-quality visual positioning UV flatbed printer can truly realize the free placement of materials, automatic scanning and printing, faster production efficiency, and meet the production needs of various types of badges, medals, acrylic crafts, wood, toys, ball art, 3C digital signs, and other special-shaped products. In addition, the installation of a rotary attachment can flexibly print various cylindrical gifts and promotional items such as glass cups, travel cups, golf balls, etc.

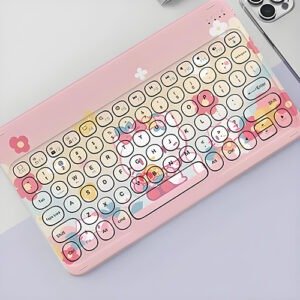

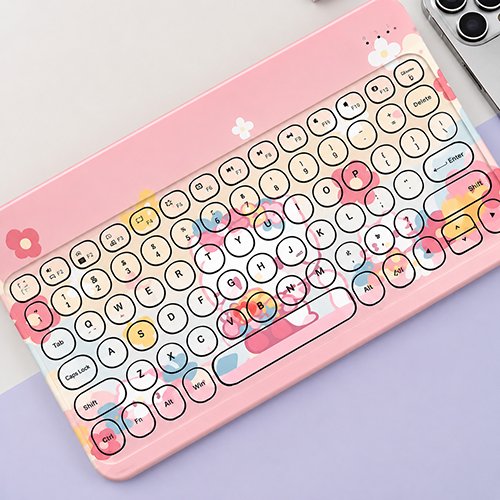

High-Drop UV Printing Keyboard
High-Drop UV Printing Toys

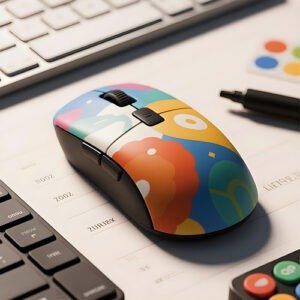

High-Drop UV Printing Mouse
Wood
Phone Cases

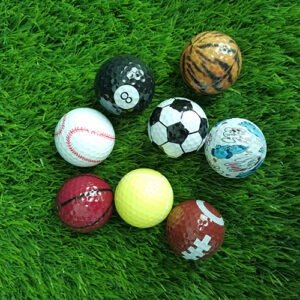

Golf Ball

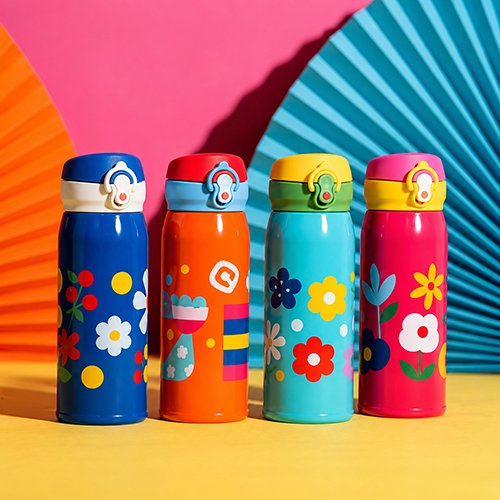

Cylindrical Item

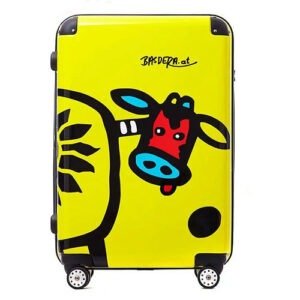

Suitcase

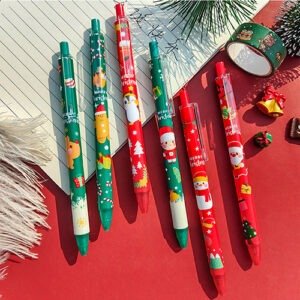

Pens
FAQ
UV flatbed printing is also known as "UV direct to substrate printing". It achieves "drying immediately after printing" by directly spraying UV curing ink on the surface of the material. It is more durable and has a 3D embossed visual effect, which is widely used in personalized gifts, home decoration, industrial customization, advertising signs, etc. It is a digital upgrade solution for traditional printing processes.
UV flatbed printer is called "universal printer". It can print most hard substrates (such as acrylic, metal, glass, wood, etc.) and flexible rolls (such as PVC, leather, cloth, wallpaper, etc.). Select rotary attachments or molds, and also support printing of special-shaped objects such as cylinders and mugs. In addition, some smooth or special materials (such as uncoated metal and glass) need to be coated first to improve adhesion.
It is not recommended to print fabrics. If you need to print textile fabrics, you can choose a DTF printer or DTG printer to print T-shirts or other clothes specifically, which is more resistant to washing.
