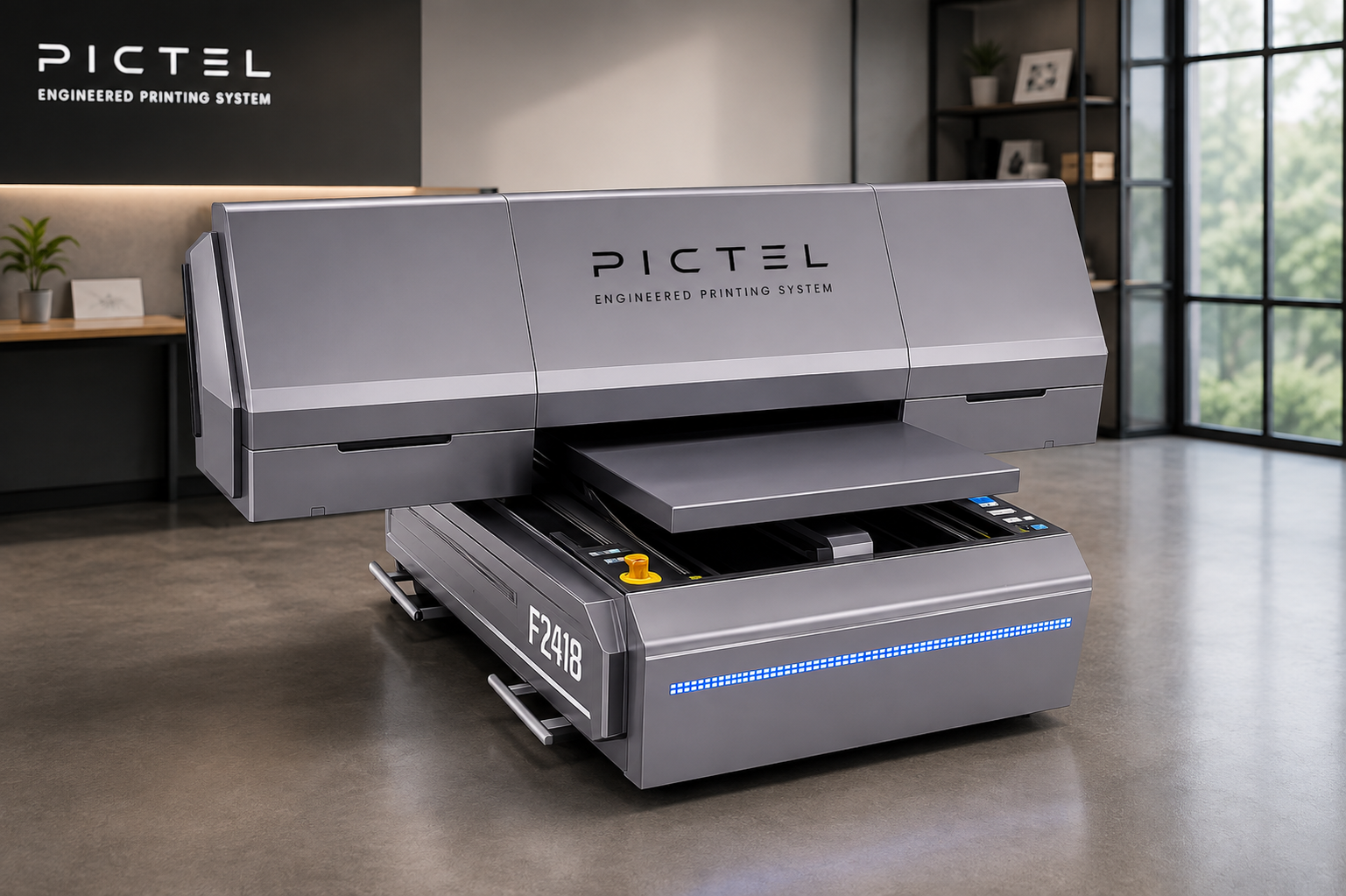

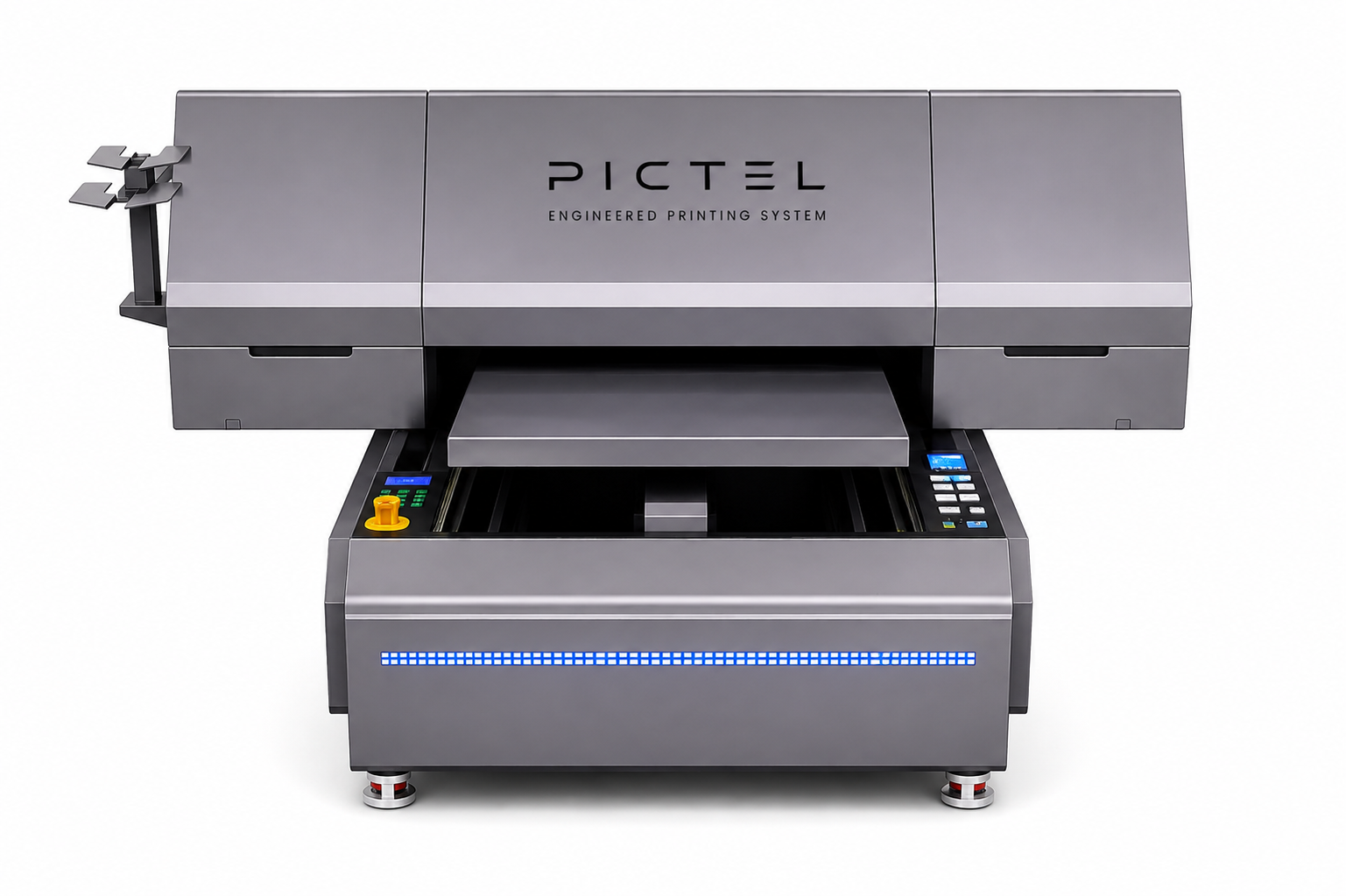

6090 MAX UV PRINTER
Industrial Large-Format UV Printing for High-Speed, High-Precision Production
The PICTEL 6090 MAX UV Printer is a powerful industrial printing solution designed for high-volume production and superior print quality. Featuring a 600 × 900 mm print area, industrial-grade printheads, and advanced UV LED technology, it delivers vibrant colors, exceptional precision, and reliable performance across a wide range of rigid materials.
Main Features:
- Large 600 × 900 mm industrial printing area
- High-precision Epson i3200 / XP600 printhead options
- Supports CMYK + White + Varnish printing
- Automatic White Ink Circulation system
- Intelligent Auto Height Detection for different material thicknesses
- UV LED Instant Curing technology
- Prints on Acrylic, Glass, Wood, Metal, PVC, Leather & Ceramic
- High-speed printing with stable industrial performance
- Vacuum adsorption platform for accurate media positioning
- Supports materials up to 200 mm thickness (depending on configuration)
Technical Specifications:
- Printing Technology: UV LED Flatbed Digital Printing
- Maximum Print Area: 600 × 900 mm
- Maximum Print Height: 200 mm
- Print Resolution: Up to 2880 DPI
- Printhead Options: Industrial I3200 / I1600 / Ricoh Gen6
- Ink Configuration: CMYK + White + Varnish
- Printing Platform: Mirror Aluminum Vacuum Suction Bed

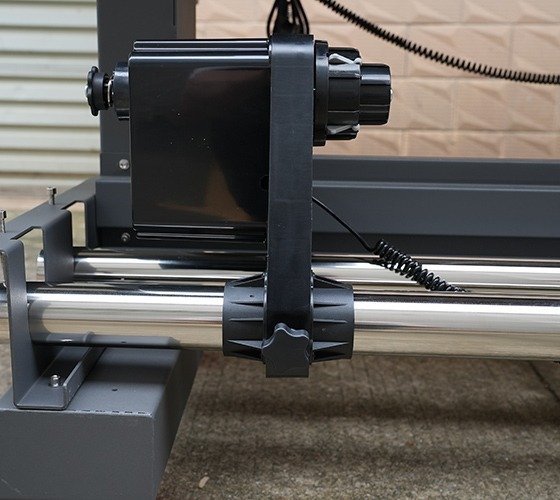

- Printing Modes: Flatbed, Cylindrical & Crystal Label Printing
- Automatic Functions: Auto Cleaning, Auto Ink Supply & Ink Monitoring
Maximum Printing Area. Industrial Performance. Premium UV Results.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Key Feature of 6090 MAX UV PRINTER
Large 600 × 900 mm Print Bed
Handle larger jobs with ease using the spacious printing platform, reducing production time while increasing output capacity.
Industrial Printhead Technology
Powered by industrial-grade printheads capable of delivering high-speed production with exceptional color accuracy and ultra-fine details.
Premium UV Ink Effects
Produce high-value applications using CMYK + White + Varnish inks for stunning colors, raised effects, and premium surface finishes.
Smart Automated Printing
Advanced automation minimizes maintenance, improves print consistency, and maximizes productivity during continuous operation.
Industrial Motion Control System
Precision-engineered motion components provide smooth movement, vibration-free printing, and consistent results at high production speeds.
Print on Multiple Materials
Expand your business with direct UV printing on a wide variety of rigid materials, ideal for signage, décor, branding, packaging, and industrial manufacturing.
Product Specification
| Product Model | 6090 MAX UV Flatbed Printer |
| Main Board | Hansen Control Board |
| Maximum Print Size | 600 × 900 mm |
| Maximum Print Height | 200 mm |
| Print Resolution | 720 / 1440 / 2880 DPI |
| Printhead Configuration | 2–5 Industrial Printheads (Optional) |
| Supported Printheads | Industrial I3200 / I1600 / Ricoh Gen6 |
| Printing Software | RuiPrint |
| Positioning System | Vision Positioning (Optional) |

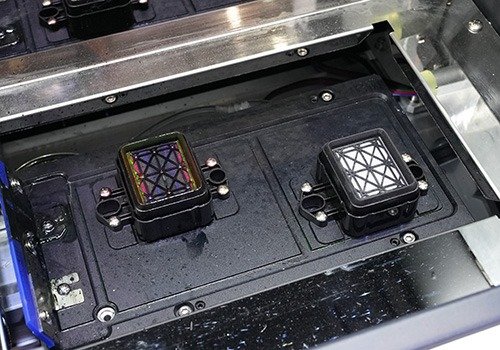

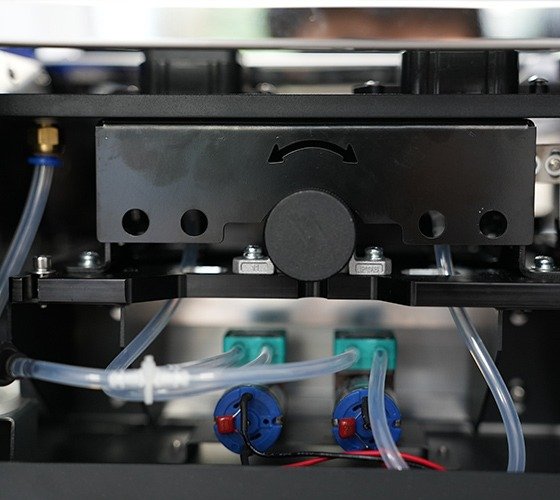

| Nozzle Protection | Automatic Cleaning & Flash Spray System |
| Printing Platform | Mirror Aluminum Vacuum Suction Platform |
| Transmission System | Dual Linear Guide Rails + Motor |
| Servo Motor | High-Precision Servo Motor |

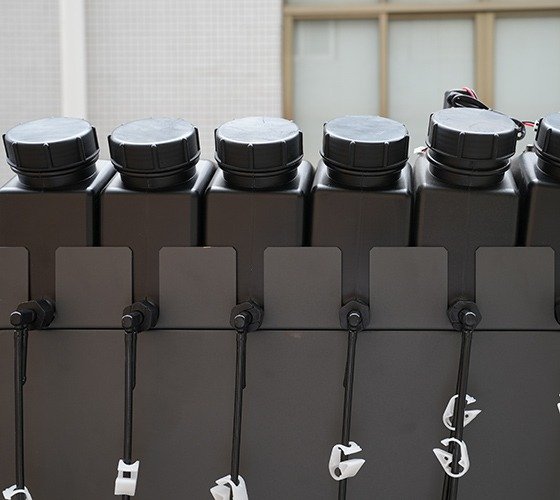

| Ink Supply System | Automatic Ink Supply |
| Ink Monitoring | Low Ink Alarm & Real-Time Notification |
| Height Detection | Manual (Optional Automatic Height Measurement) |
| UV Curing System | LED UV Lamp |
| Heating Function | Nozzle Heating |
| Ink Configuration | CMYK + White + Varnish |
| Inkjet Technology | Intelligent Variable Droplet Technology (Minimum 3.5 pL) |
| Printing Modes | Unidirectional / Bidirectional |
| Special Effects | Relief (Emboss) / Varnish |
| Supported File Formats | TIFF, BMP, PDF, EPS, JPG, PNG |
| Operating System | Windows 7 / 8 / 10 |
| Working Environment | Temperature: 15–35°C, Humidity: 20–30% RH |
| Power Requirement | AC 220V / 110V, 50–60 Hz |
| Communication Interface | Gigabit Ethernet |
| Machine Dimensions | 177 × 139 × 83.6 cm |
| Machine Weight | Approximately 200 kg |
| Packing Size | 190 × 155 × 106 cm |
| Packing Weight | Approximately 337 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
6090 MAX UV Printer Applications
The PICTEL 6090 MAX UV Printer is built for high-speed industrial production, delivering exceptional print quality on a wide range of rigid materials. Its large print area, advanced UV technology, and support for White Ink and Varnish make it ideal for signage, décor, promotional products, packaging, and customized manufacturing.
Acrylic Signage
Glass Decorative Panels
Wood & Furniture
Metal Nameplates
Leather Products
Ceramic Tiles
FAQ
The 6090 MAX can print directly on acrylic, glass, wood, metal, PVC, leather, ceramic, MDF, crystal labels, and promotional products, making it suitable for a wide range of commercial and industrial applications.
The printer features a large 600 × 900 mm print area and supports materials up to 200 mm in height, providing flexibility for larger and thicker products.
The printer supports Industrial I3200, I1600, and Ricoh Gen6 printheads, with configurations of 2–5 printheads, depending on production requirements.
Yes. It supports CMYK + White + Varnish, allowing you to create vibrant full-color graphics, opaque white layers, spot UV finishes, glossy effects, and embossed textures.
The 6090 MAX supports resolutions of 720, 1440, and up to 2880 DPI, delivering sharp details, accurate colors, smooth gradients, and professional-quality output.
The printer includes automatic printhead cleaning, automatic ink supply, low-ink monitoring, flash spraying, and nozzle heating, with optional automatic height measurement for easier and more reliable production.
