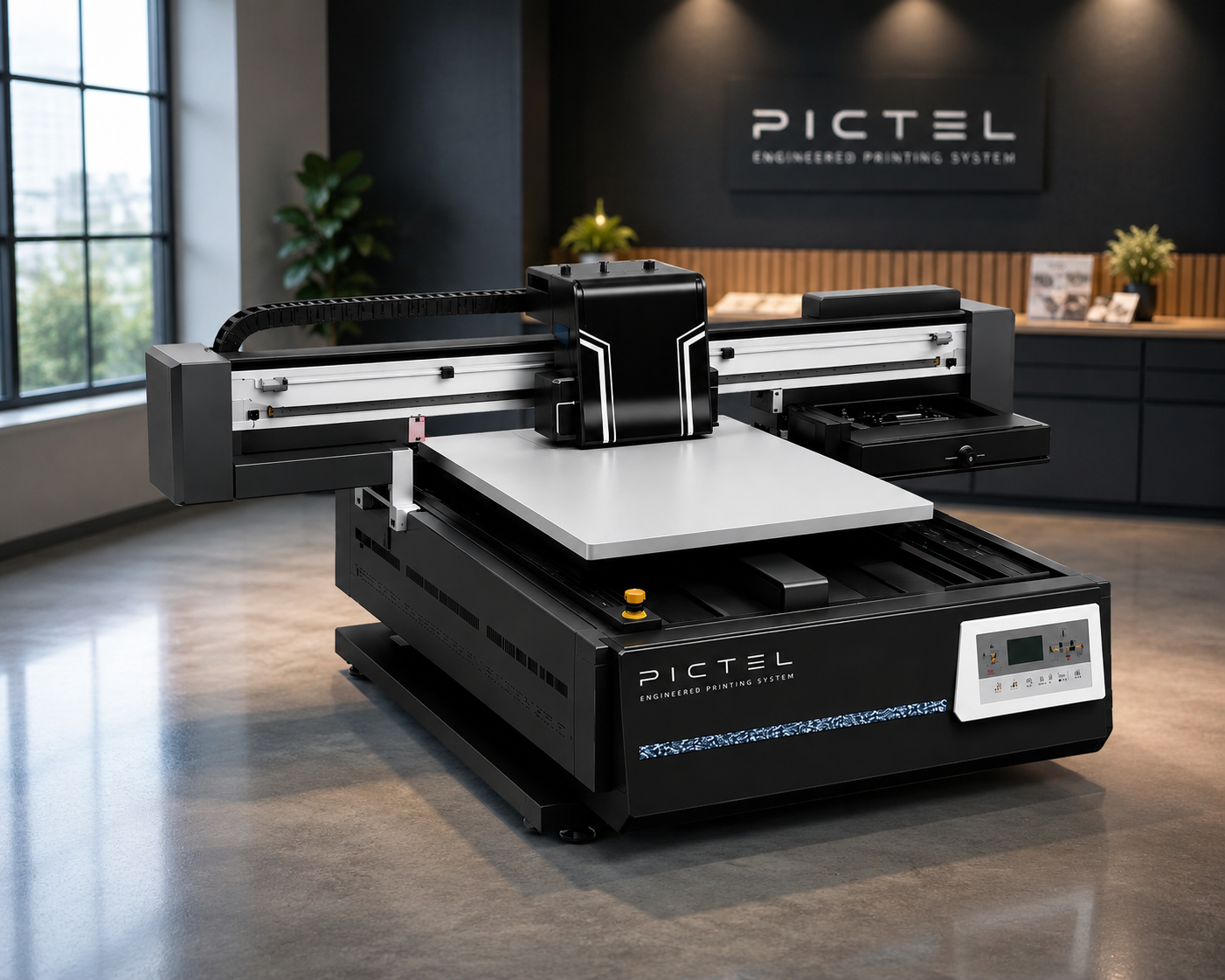

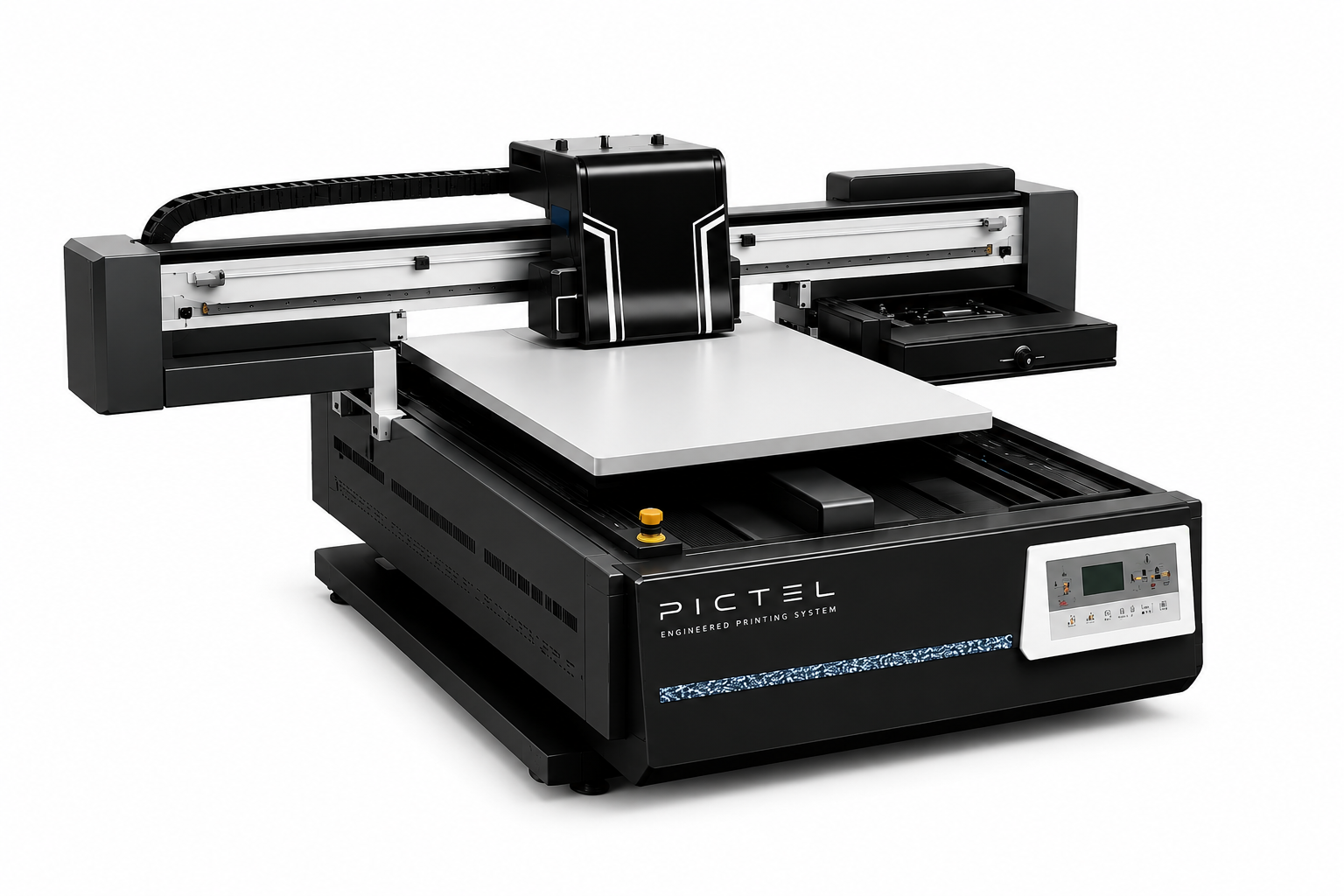

6090 UV PRINTER - HIGH-END VERSION
Industrial Large-Format UV Printing with High Clearance & Precision Performance
The PICTEL 9060 High-End UV Printer is a powerful industrial flatbed printer designed for high-clearance printing on oversized, thick materials. Featuring advanced UV technology, intelligent automation, and support for White Ink and Varnish, it delivers precise, high-quality results across a wide range of industrial and commercial applications.
Main Features:
- 60×90cm printing width
- Epson I3200 / Ricoh G5i / G5 printheads optional
- CMYK + White + Varnish printing
- High-precision visual positioning system
- Automatic height measurement function
- Magnetic linear motor for stable movement
- Anti-collision printhead protection
- Automatic white ink circulation system
- Vacuum suction printing platform
- Supports flat, cylindrical and curved materials (optional rotary device)
Technical Specifications:
- Printing Technology: UV LED Flatbed Digital Printing
- Maximum Print Area: 900 × 600 mm
- Maximum Material Height: Up to 500 mm (Customizable)
- Print Resolution: Up to 2880 DPI
- Printhead Options: Ricoh G5 / G6 / GH2220 / CE4
- Automatic Features: Auto Cleaning, Auto Repeat Printing, Ink Monitoring
Built for Thick Materials. Engineered for Precision. Designed for Industrial Production.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Key Feature of 6090 UV PRINTER - HIGH-END VERSION
500 mm High-Drop Printing Capability
The high-clearance platform allows direct printing on oversized and thick materials without compromising print quality or precision.
Large Industrial Print Area
The 900 × 600 mm print platform provides ample space for producing large-format graphics and industrial applications efficiently.
Industrial UV Print Technology
Advanced variable droplet technology produces exceptional detail, vivid colors, and durable UV prints with resolutions up to 2880 DPI.
Smart Automated Maintenance
Automatic cleaning, intelligent ink monitoring, nozzle heating, and repeat-print functions help reduce maintenance while maximizing productivity.
Premium White Ink & Spot UV Effects
Create premium-value products using CMYK, White, and Varnish inks for textured, glossy, transparent, and high-end decorative printing.
Expandable Industrial Printing Platform
Optional accessories expand production capabilities, allowing businesses to print on flat materials, cylindrical objects, and roll media from a single platform.
Product Specification
| Product Model | 9060 High Drop UV Printer |
| Control Board | Xiteng Control Board |
| Print Size | 900 × 600 mm |
| Print Height | 500 mm (Customizable) |
| Ink Capacity | 3–5 Liters |
| Print Resolution | 720 / 1440 / 2880 DPI |
| Output Colors | CMYK + White + Varnish (CMYK + W + V) |
| Number of Printheads | 2–6 (Optional) |
| Nozzle Configuration | I1600 / I3200 / G6 / GH2220 / CE4 |
| Printing Software | Ruiyin (RIP Software) |
| Auto Printing Function | Automatic Repeat Printing with Adjustable Passes |
| Printhead Type | Installed Separately |
| Nozzle Heating | Built-in Nozzle Heating |
| Nozzle Clog Prevention | Original Ink Supply with Anti-Clog Stirring & Idle Auto Agitation |
| Printhead Maintenance | Automatic Cleaning |
| Printing Platform | Honeycomb Air Suction Platform |
| Print Modes | One-Way / Two-Way |
| Transmission System | Imported Linear Guide Rail + High-Precision Servo Motor |

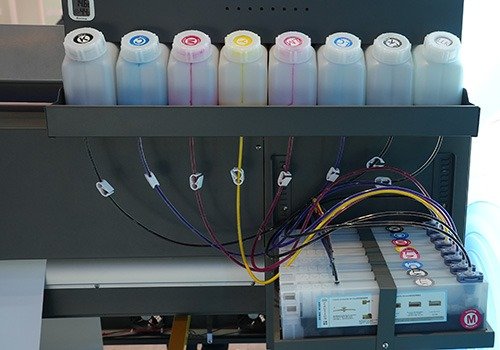

| Ink Supply System | Full Automatic Ink Supply System |
| Ink Level Monitoring | Multi-Channel Real-Time Low Ink Alarm |
| Ink Configuration (Optional) | UV Ink / Color Ink / Textile Ink |
| Lifting Function | Platform Lifting |
| Curing System | Imported UV LED Curing |
| Power Requirements | AC 220V / 110V, 50–60 Hz |
| Language Support | Chinese / English (Customizable) |
| Operating System | Windows 7 / Windows 8 / Windows 10 |
| Working Environment | Temperature: 15–35°C, Humidity: 20–30% RH |
| Supported File Formats | JPG, PNG, PDF, TIFF, EPS |
| Round Fixture | Optional |
| Output Software | Professional RIP Software |
| Special Effects | Relief / Varnish |
| Machine Dimensions | 2311 × 1010 × 1350 mm |
| Interface | Gigabit Optical Fiber |
| Bare Machine Weight | Approximately 300 kg |
| Packaging Dimensions | 2481 × 1270 × 1700 mm |
| Packing Weight | Approximately 400 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
6090 UV Printer Applications
The PICTEL 6090 High-End UV Printer delivers exceptional print quality across a wide range of industrial and commercial materials. From signage and décor to promotional products and customized gifts, it produces vibrant, durable prints with outstanding precision on both flat and optional cylindrical objects.
Large Acrylic Signage
Ceramic Tiles
Glass Panels

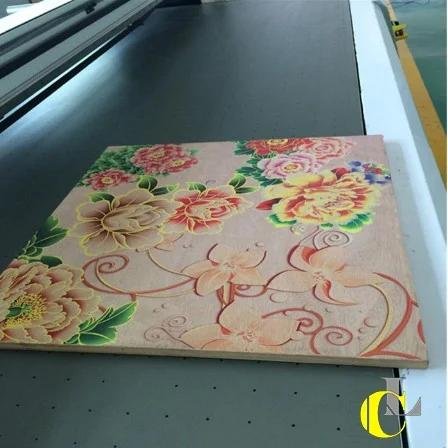

Wood & Furniture Panels

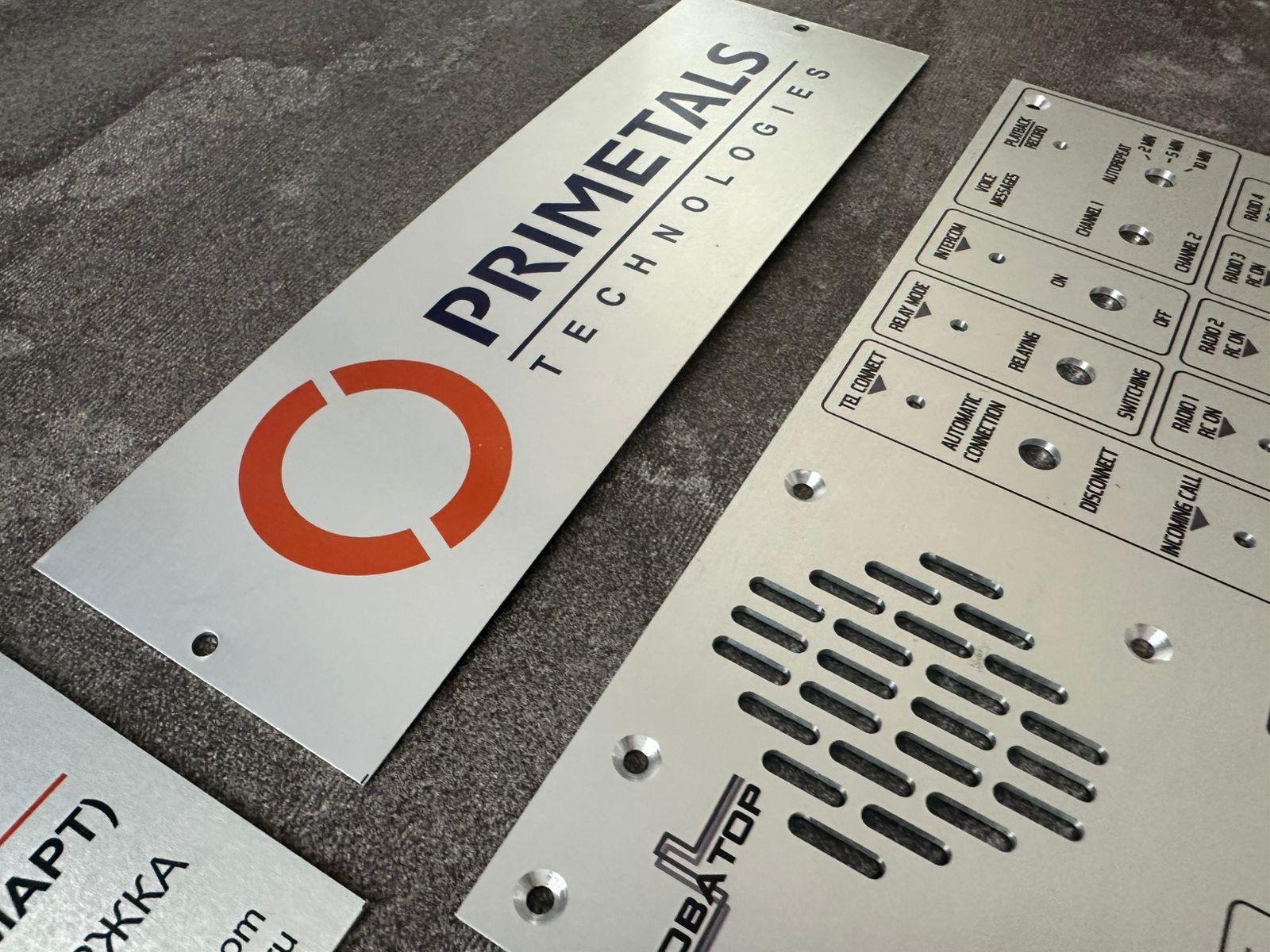

Metal Nameplates & Industrial Panels
Packaging & Promotional Products
FAQ
The printer can print directly on a wide range of materials, including acrylic, glass, wood, metal, PVC, ceramic, leather, packaging materials, decorative panels, and industrial components.
The 9060 provides a large 900 × 600 mm print area and supports materials up to 500 mm in height, making it ideal for oversized and thick products.
It supports resolutions of 720, 1440, and up to 2880 DPI, delivering sharp details, vibrant colors, smooth gradients, and professional-quality results.
The 9060 supports multiple industrial printhead configurations, including I1600, I3200, G6, GH2220, and CE4, with optional configurations of 2–6 printheads.
Yes. It supports CMYK + White + Varnish, allowing you to produce opaque white layers, glossy finishes, spot UV effects, raised textures, and premium decorative prints.
Yes. The printer can be expanded with optional cylindrical fixtures and roll media accessories, allowing businesses to handle additional printing applications beyond standard flatbed printing.
The printer features automatic printhead cleaning, automatic ink supply, anti-clog ink agitation, nozzle heating, real-time low-ink monitoring, and automatic repeat printing for reliable continuous production.
Yes. Its heavy-duty construction, high-precision servo motor, imported linear guide rail, UV LED curing system, and automated ink management make it suitable for demanding commercial and industrial production environments.
