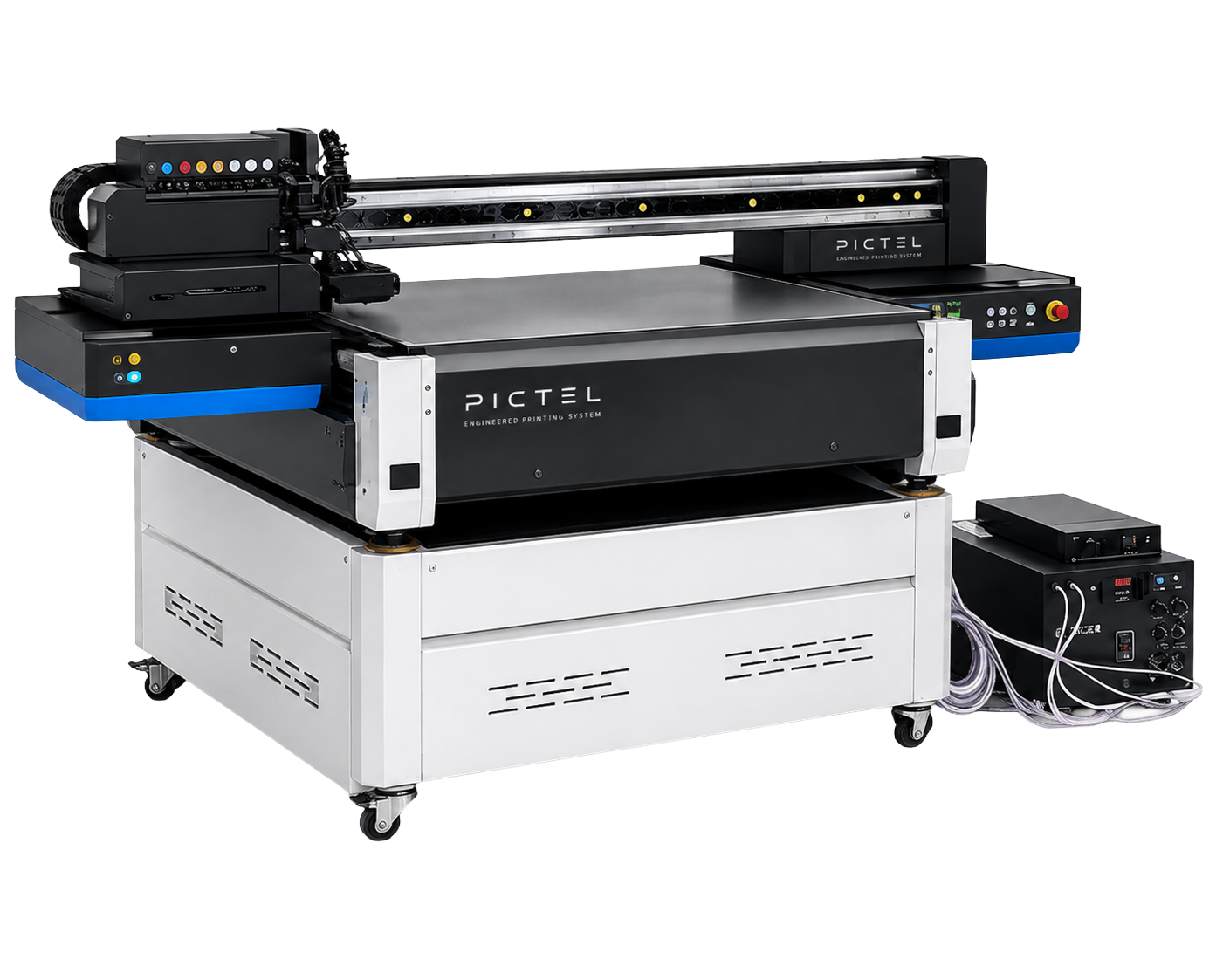

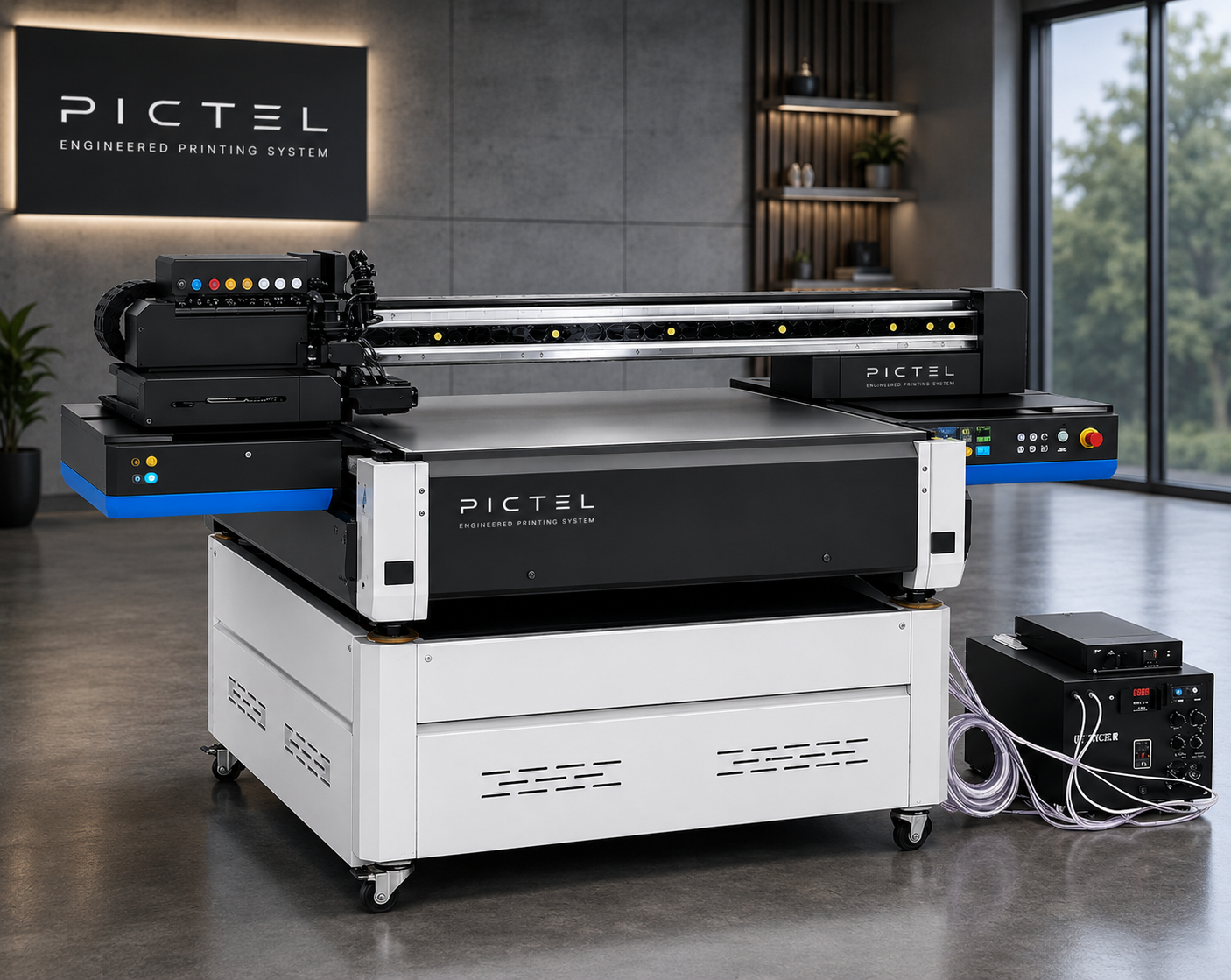

PI-1060 VISUAL POSITIONING FLATBED PRINTER
High-end and multi-functional UV flatbed printer provides strong competitiveness for your gift packaging, personalized customization, and home decoration design.
Main Features:
- 100×60cm printing width
- 2-4 * EPSON I3200 printheads optional.
- Colors: 10 Colors
- Visual positioning, precise printing.
- Multi-color printing, ultimate color performance, rich details.
- Suitable for users with high-end and high-quality needs.
Technical Specifications:
- Printhead: 2-4 * EPSON I3200-U1 optional
- Max Print Width: 1000x600mm
- Print Accuracy: 720*2400 dpi
- Print Height: 0-800mm
- High-Speed Printing: 4pass-19m²/h ; 6pass-12m²/h ; 8pass-8.75m²/h
- Color: 10 colors (C, M, Y, K, LC, LM, LK, LKK, W, V)
- Software: Ultraprint, Photoprint, GMG
Visual Positioning. Perfect Accuracy. Professional UV Printing Without Limits.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
PI-1060 Printer Feature

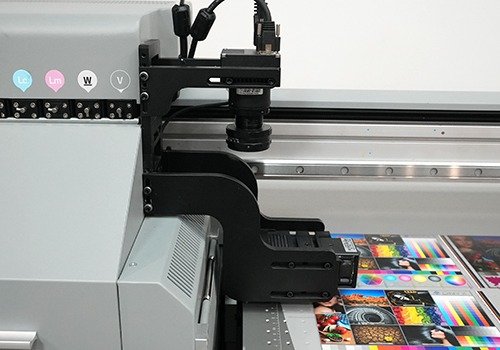

CCD Intelligent Visual Positioning
Automatically calibrate the printing position, reduce manual operation, and have an ultra-high resolution of 720*2400dpi.

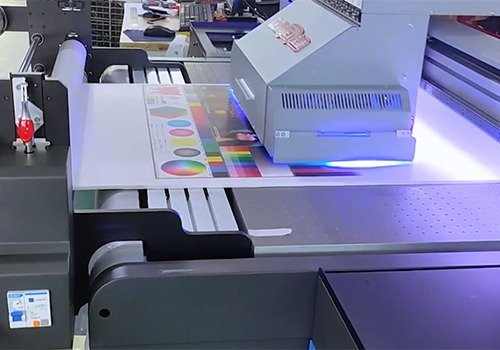

Flexible Printing Height 0-80cm
Equipped with three height platforms, it can meet various printing needs such as flat surfaces, cylindrical bottles and high-drop objects.

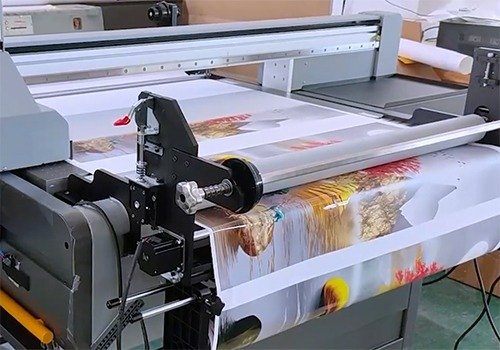

Support Roll And Sheet Printing
Optional roll and sheet molds can print rolls and sheets with a width of less than 914mm, including car stickers, vinyl, KT boards, and acrylic.

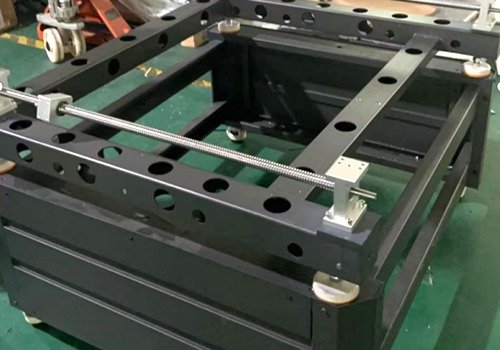

Perfect Noise Reduction
It is the first in China to design small holes to reduce the resonance size by observing the conch effect to achieve perfect noise reduction.

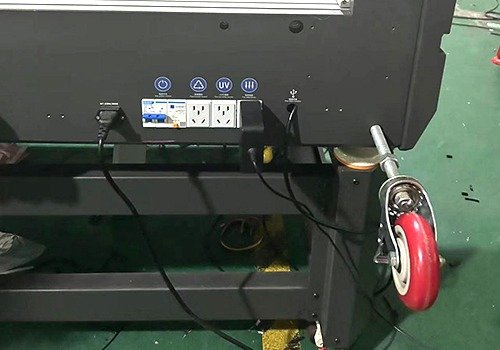

Humanized Settings
A handling device for reducing the difficulty of handling and narrow door problems, the smallest 70cm door can be entered.

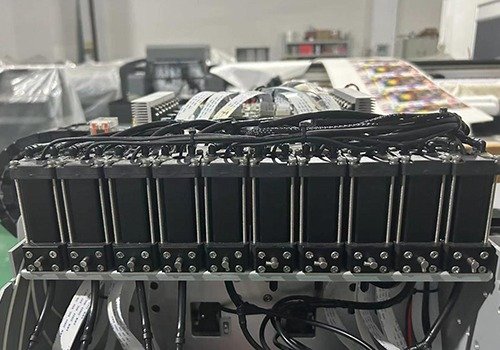

10-Color Solution
Customized design of secondary ink cartridges can achieve 10-color solutions, and the pattern colors are more vivid.

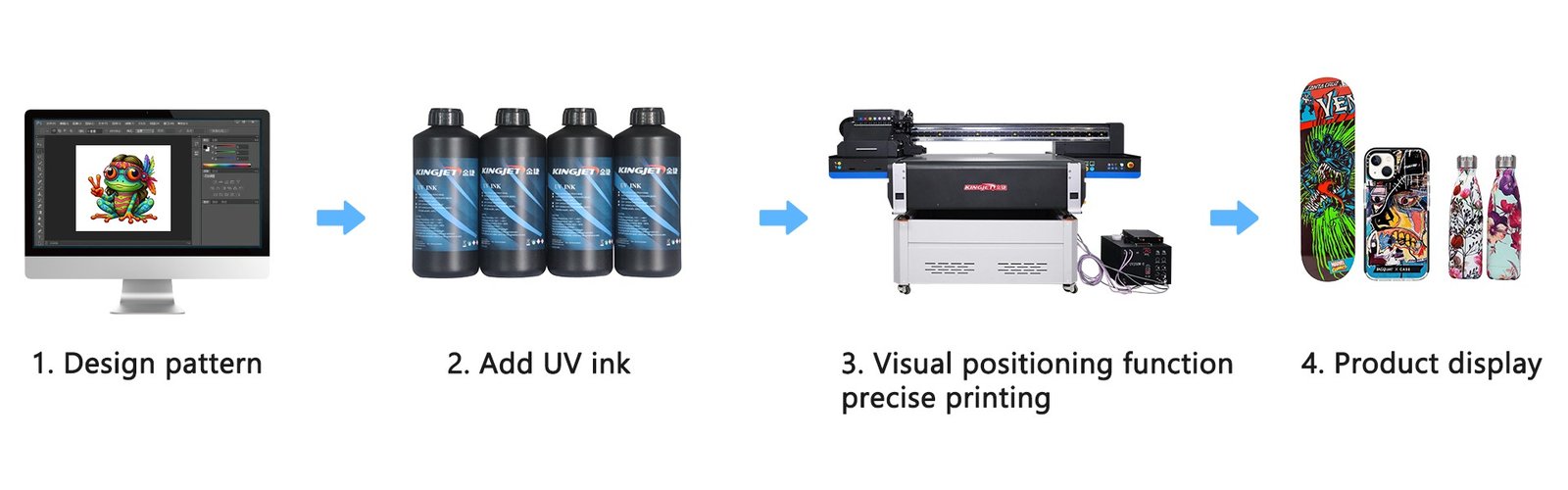

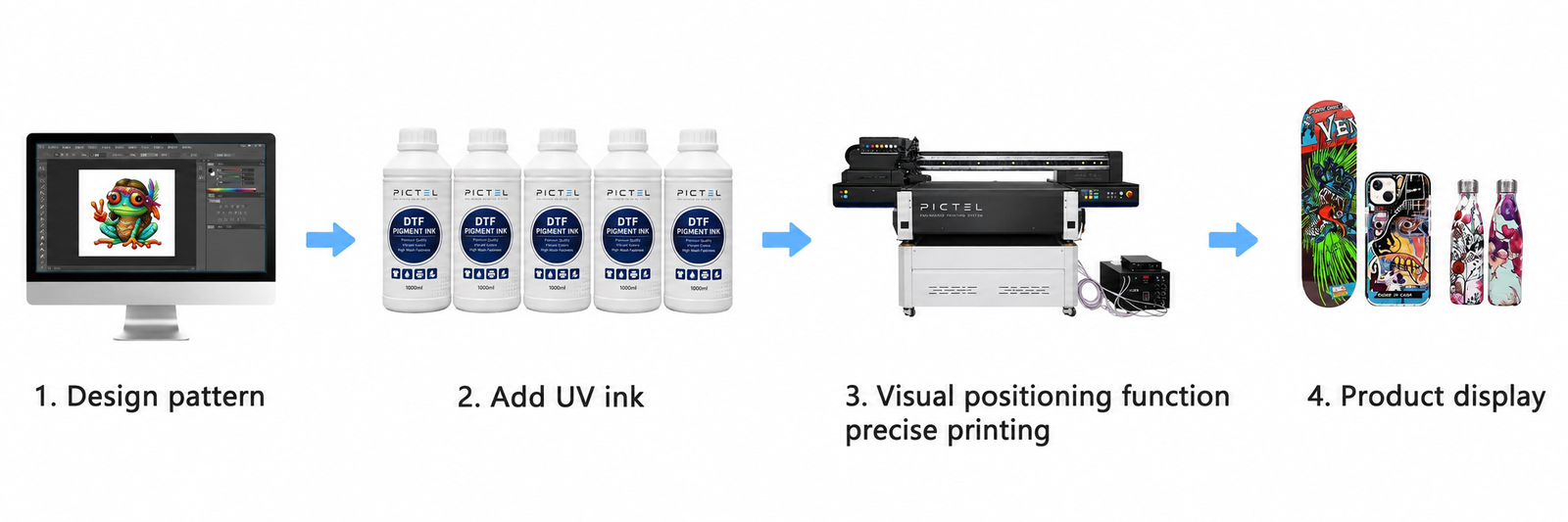

PI-1060 Printer Printing Process
Product Specification
| Product | PI-1060 UV Flatbed Printer |
| Model | PI-1060UV |
| Print Head | EPSON I3200-U1 |
| Print Head QTY | 2-4 pcs optional |
| Print Range | 1000x600mm |
| Print Accuracy | 720*2400 (dpi) |
| Print Height | 0-800mm |
| Printing Speed | Output (sqm/h) |
| High Speed | 720*1200 dpi-4pass 19m²/h ; 720*1800 dpi-6pass 12m²/h ; 720*2400 dpi-8pass 8.75m²/h |
| Medium Speed | 720*1200 dpi-4pass 12.96m²/h ; 720*1800 dpi-6pass 8.5m²/h ; 720*2400 dpi-8pass 6.35m²/h |
| Low Speed | 720*1200 dpi-4pass 9.25m²/h ; 720*1800 dpi-6pass 6m²/h ; 720*2400 dpi-8pass 4.5m²/h |
| Ink Type | UV LED ink |
| Ink Color | C, M, Y, K, LC, LM, LK, LKK, W, V |
| Software | Ultraprint/Photoprint/GMG |
| Transport Interface | USB-2.0/3.0 |
| Image Format | TIFF/JPG/PNG/PDF/EPS |
| Computer System | Win7/Win8/Win10 |
| Input Voltage | AC-220V (±10%) , 50HZ , ?16A |
| Operating Powder | <530W |
| Machine Size | 2155*1110*1160 (mm), 330 KG |
| Package Size | 2250*1300*1000 (mm), 380 KG |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Multifunctional Flatbed UV Printer Applications
UV printer/UV flatbed printer offer high precision, multi-material adaptability, rapid curing, and rich color reproduction, making them highly versatile across numerous fields, including apparel and textiles, personalized customization, gift packaging, home decor, cylindrical objects, advertising and signage, and artistic creation. They can print on a wide range of materials, including textiles, plastics, metals, glass, ceramics, and wood panels, as well as other materials.
UV printing TPU patch logo
UV printing badge
UV printing signage
UV printing on cylindrical objects
UV printing suitcase
UV printing golf ball
FAQ
The UV flatbed printers print directly on hard items without lamination, its direct printing patterns are more durable. UV DTF printer is an all-in-one printer with integrated printing and lamination, and its printed UV DTF can be transferred to any hard flatbed items.
The printhead used in our KingJet UV flatbed printer are EPSON I3200-U1 and all of our printhead is original and brand new.
Yes, our technicians provide professional and patient online or on-site technical training, and one-on-one technical guidance.
1 Year.
