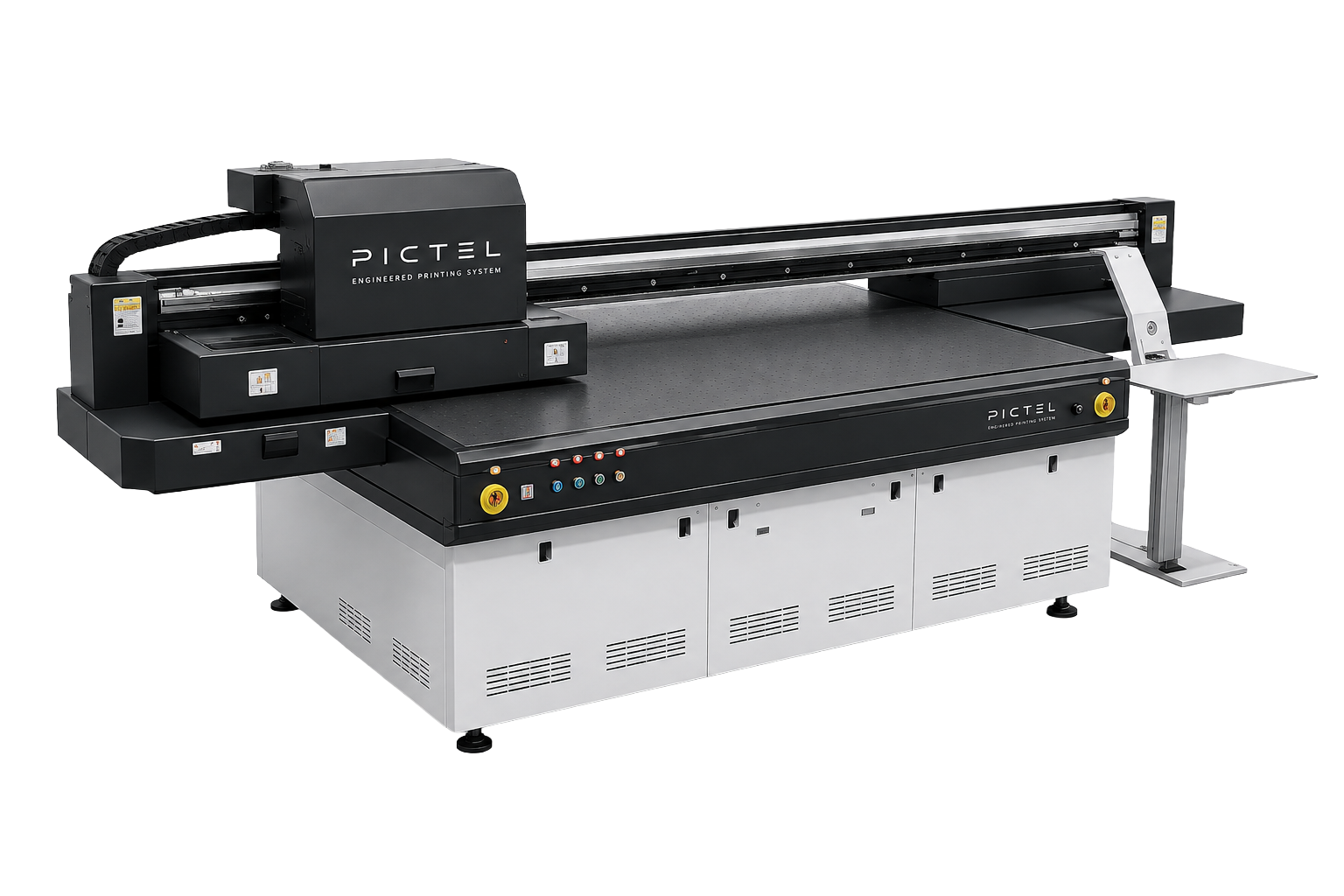

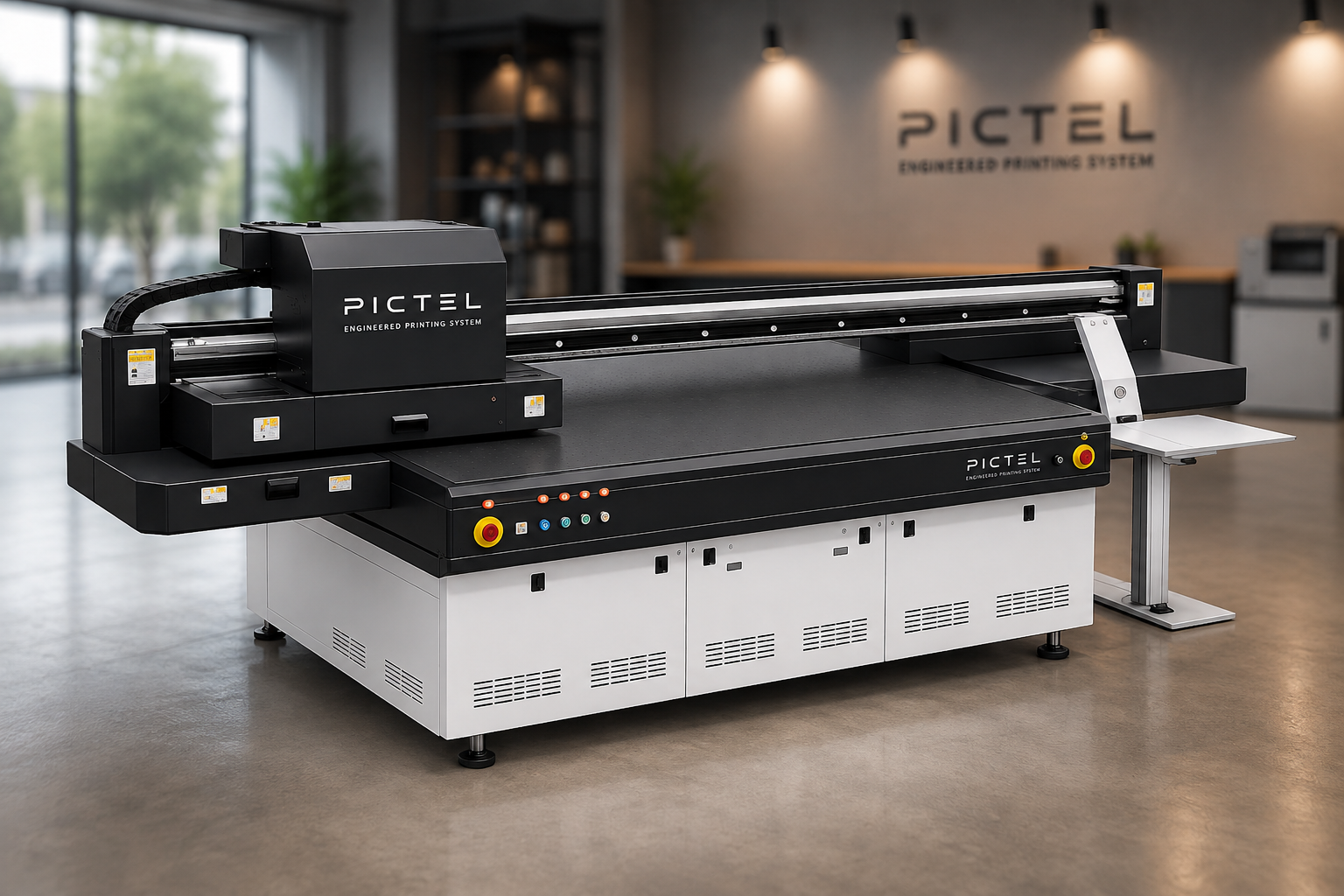

PI-2513UV Magnetic Levitation Flatbed Digital Printer For Stone/Wood
The magnetic levitation UV flatbed printer has the characteristics of powerful functions, industrial-grade production capacity, and adaptability to a variety of materials. It is an efficient production solution in the field of building materials and decoration.
Main Features:
- 2.5 × 1.3m print width
- 4–9 industrial print heads
- Color: CMYK, W, V (LC, LM optional)
- Balances speed and precision for stable output and superior quality.
- Direct printing of color + white + varnish for saturated colors and realistic texture reproduction.
- High flexibility, suitable for multi-material printing needs.
Technical Specifications:
- Printhead: 4-9 Ricoh G5/G6 industry printheads
- Print Size: 2.5m*1.3m
- Thickness: 0-10cm
- DPI: 1200 dpi
- Color: CMYK, W, V, (LC, LM optional)
- RIP Software: photoprint, onyx (optional)
PI-2513UV Magnetic Levitation Flatbed Printer. Magnetic Precision. Industrial Power. Unlimited Performance.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Magnetic Levitation UV Flatbed Printer features

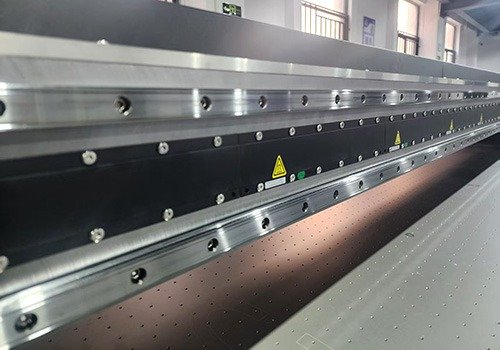

High-performance configuration
Dual linear guides and reinforced guide beams ensure linearity and stability of movement and smooth printing.

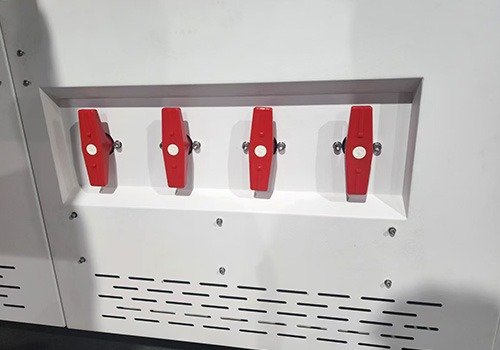

Zoned suction platform
The suction holes of the printing platform have four switches, which control four areas respectively to ensure the precise positioning of objects and provide strong stability for product printing.

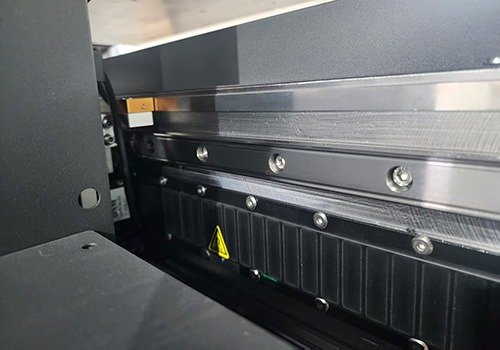

Automatic height measurement function
Automatically detects the distance between the print head and the material surface to ensure printing quality and adapt to printing materials of different thicknesses.

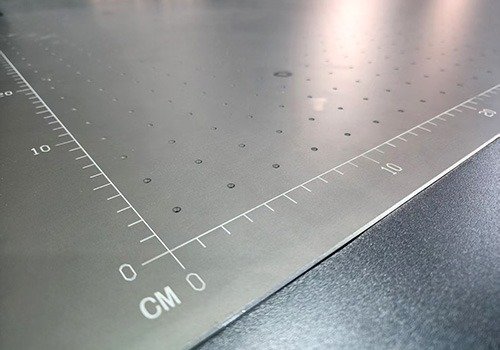

Flexible material printing
Freely select the suction platform to meet the printing needs of materials with different characteristics and configure a high-definition scale to enhance user experience.

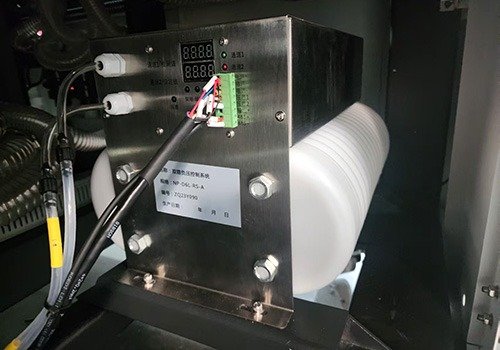

White color double negative pressure system
Controls the fluidity of ink, ensures printing quality, and reduces blockage. Makes negative pressure more stable and ink printing smoother.

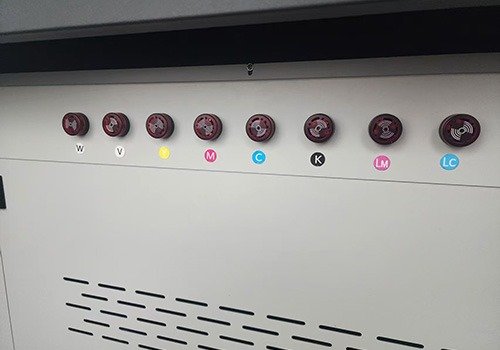

Intelligent low ink detection system
Intelligent monitoring, when the ink is insufficient, early warning, avoid interruption of printing, and improve production efficiency.
Product Specification
| Product | Magnetic Levitation UV Flatbed Printer |
Model
| PI-2513UV |
|
| Printhead | 4–9 Ricoh G5/G6 Industrial Printheads |
| Print Speed | sqm/h |
| CMYKLCLM + W + V |
4 Pass: 22 m²/h 6 Pass: 18 m²/h 8 Pass: 14 m²/h |
| 2 × CMYKLCLM + 2 × W |
4 Pass: 42 m²/h 6 Pass: 34 m²/h 8 Pass: 26 m²/h |
| 3 × CMYK (LC, LM) |
4 Pass: 62 m²/h 6 Pass: 50 m²/h 8 Pass: 34 m²/h |
| 4 × CMYK |
4 Pass: 84 m²/h 6 Pass: 68 m²/h 8 Pass: 52 m²/h |
| Print Size | 2500 × 1300 mm |
| Printing Method | Piezojet Greyscale Printing Technology |
| DPI | 1200 dpi |
| Ink Type | UV Ink |
| Color | CMYK, W, V (LC & LM Optional) |
| RIP Software | Photoprint, Onyx (Optional) |
| Ink Cartridge Size | 1.5 L |
| Color Management | ICC Color Curve Offered, Adjustable by User |
| Thickness | 0–10 cm |
| Platform Type | 4 Zones, Freely Switchable, Suction and Blowing Air Can Be Selected According to Demand |
| Material | Acrylic, Wood, Glass, Ceramic Tile, Metal, PVC, Industrial Film, etc. |
| Ink Supply System | Dual Negative Pressure System in Color and White |
| Solidification System | Solidification with UV LED Light |
| Operational Environment | Temperature: 20–30°C, Relative Humidity: 35%–65%, Non-Condensing |
| Operating System | Windows 10 (64-bit), USB 2.0 / USB 3.0, HDD 500GB+ |
| File Format | TIFF, JPEG, PostScript, EPS, PDF, etc. |
| Power | 6000 W, 28 A |
| Input Voltage | 200–240V AC, 50Hz |
| Machine Size | L4780 × W2060 × H1530 mm, 1300 KG |
| Packing Size | L5200 × W2300 × H1690 mm, 1600 KG |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
Magnetic Levitation UV Flatbed Printer Applications
The large-format magnetic levitation UV flatbed printer is an efficient and stable batch production solution for the building materials industry that supports multi-nozzle customization. It is mainly used in tiles, rock slabs, stone dining tables, furniture panels, technology board wood grain, glass, metal aluminum veneer, etc.
UV printing on Glass
Slate stone dining table
Ceramic tiles
Maglev flatbed printer for wood
Background wall
Maglev UV printer for billboard
FAQ
The working principle of magnetic levitation technology is to use electromagnetic technology, combined with the position signal of the sensor to generate a control current, so that the electromagnet generates electromagnetic force on the suspended object, thereby driving the suspended object to move.
Therefore, adding magnetic levitation technology to the UV flatbed printer can achieve high-speed, high-precision and high-stability printing, and at the same time solve the problem of component wear caused by the traditional belt drive form, which is an innovative breakthrough in UV printing technology.
Supports almost all flat materials, such as hard materials: glass, metal, tiles, wood boards, acrylic, PVC boards; soft materials: leather, TPU mobile phone cases, etc.
Specific application scenarios: advertising light boxes, home decoration background walls, cabinet wood boards, mobile phone case customization, furniture panel printing, etc.
1. Magnetic levitation technology reduces mechanical wear and improves printing speed and efficiency.
2. Contactless printing, suitable for a variety of materials and colors, with higher printing quality.
3. Environmentally friendly, low noise, more comfortable to use.
No. Maglev flatbed UV printer is mainly used to print large format flat objects, focusing on high speed, high precision and mass production.
Compared with traditional printers, the maintenance cost of magnetic levitation flatbed UV printers may be higher, because its technology is more advanced and its components are more precise. However, in the long run, it is more cost-effective as its printing is efficient and durable.
