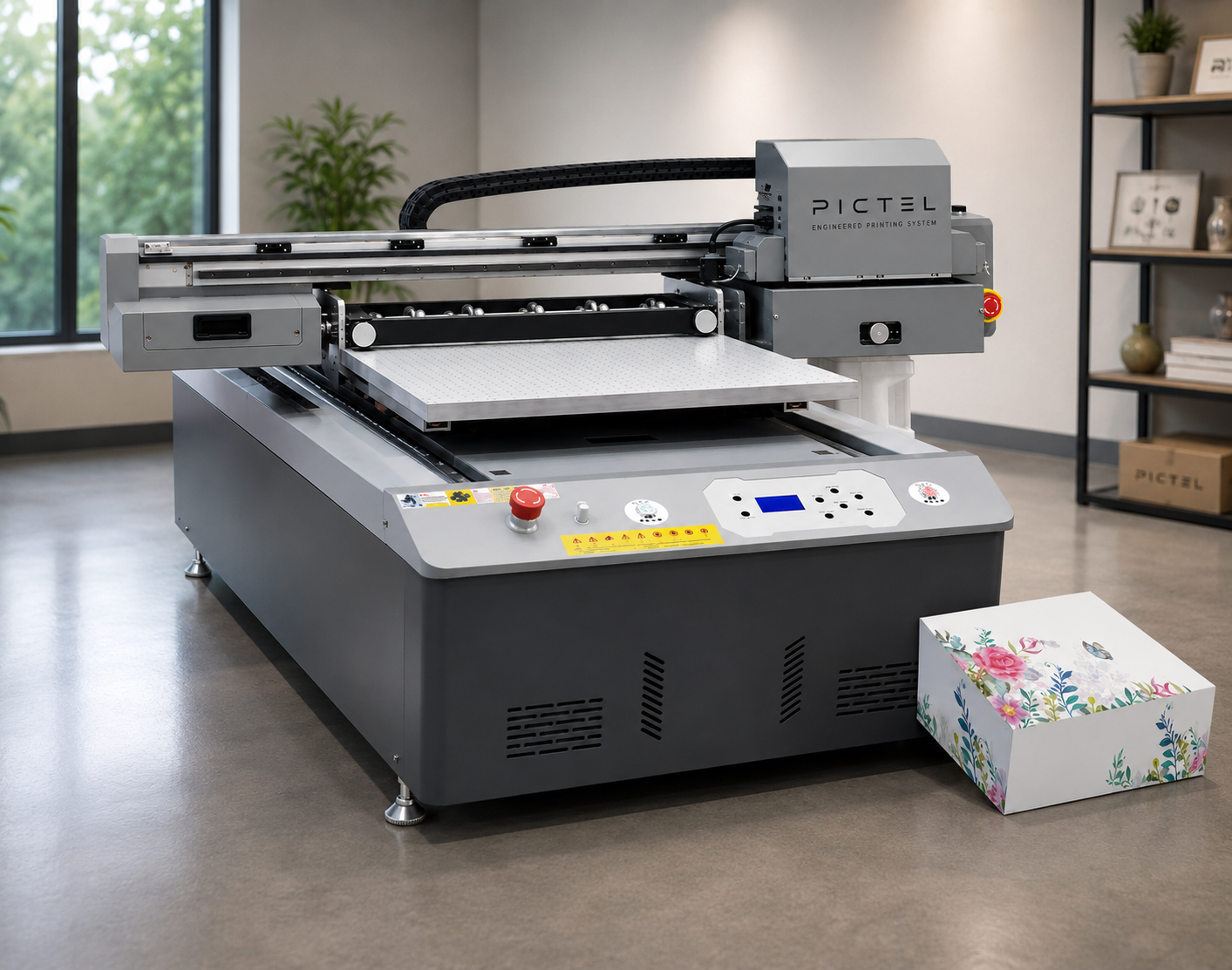

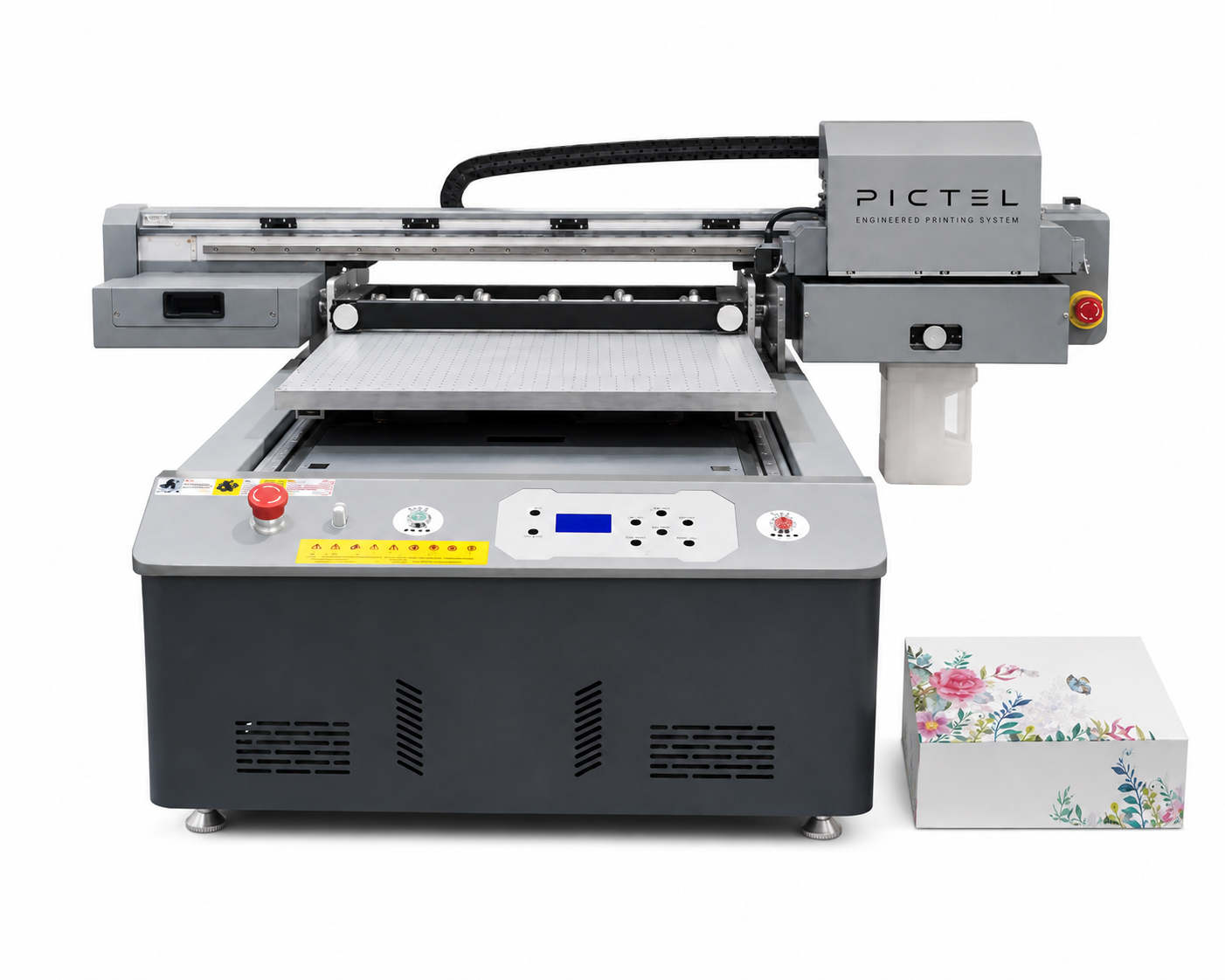

6090 PIONEER UV PRINTER
Industrial Multi-Function UV Printer for Flat, Roll & Cylindrical Printing
The PICTEL 6090 Pioneer Roll-to-Flat UV Printer is a next-generation industrial printing solution designed to deliver exceptional versatility, precision, and productivity. Combining flatbed, roll-to-roll, and cylindrical printing capabilities into a single machine, it helps businesses expand their product offerings while reducing equipment costs.
Main Features:
- 600 × 900 mm large-format printing area
- High-performance Epson i3200 / XP600 printhead options
- Supports CMYK + White + Varnish printing
- Intelligent Auto Height Detection system

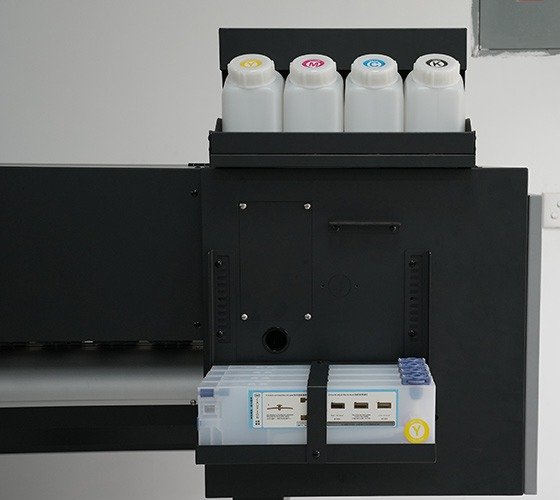

- Automatic White Ink Circulation & stirring technology
- UV LED Instant Curing for vibrant, durable prints

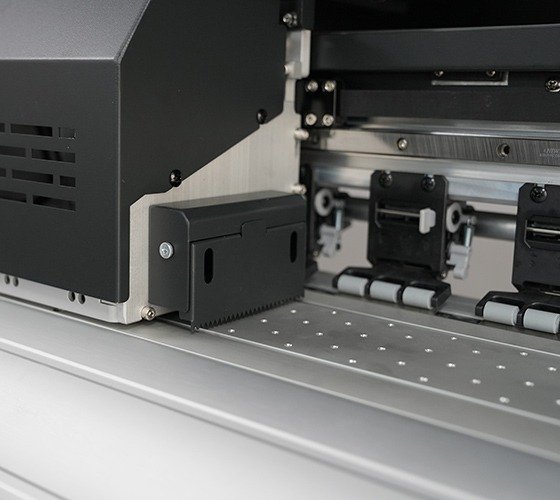

- Vacuum suction platform for stable material positioning
- Prints on Acrylic, Glass, Wood, Metal, PVC, Leather & Ceramic
- Supports media thickness up to 200 mm (configuration dependent)
- Built for high-speed, precision, and continuous industrial production
Technical Specifications:
- Printing Technology: UV LED Roll-to-Flat Digital Printing
- Maximum Print Area: 600 × 900 mm
- Maximum Material Thickness: Up to 150 mm
- Print Resolution: Up to 2880 DPI
- Printhead Options: XP600 / DX7 / I1600
- Ink Configuration: CMYK + White + Varnish
- Printing Modes: Flatbed, Roll-to-Roll & Cylindrical Printing
- Positioning System: Visual Positioning (Optional)
- Automatic Features: Auto Cleaning, Flash Spray, Ink Monitoring & Optional Height Measurement
- Supported File Formats: TIFF, JPG, PNG, BMP, PDF & EPS
- Power Supply: AC 220V / 110V, 50–60 Hz
- Machine Weight: Approximately 195 kg
One Industrial Printer. Three Printing Modes. Endless Production Possibilities.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Key Features of 6090 PIONEER UV PRINTER
Three Printing Modes in One Machine
Expand your production capabilities with one machine that prints on rigid materials, flexible rolls, and cylindrical products without changing equipment.
Large Industrial Printing Area
The spacious 600 × 900 mm print platform enables efficient production of large-format applications while maintaining exceptional print accuracy.
Ultra-HD UV Print Quality
Powered by advanced printheads and variable droplet technology, the printer delivers high-resolution prints up to 2880 DPI with stunning detail.
Intelligent Automated Workflow
Built-in automation minimizes maintenance and improves productivity through automatic cleaning, ink monitoring, flash spraying, and precision control.
Premium White Ink & Spot UV Printing
Create premium products using CMYK, White, and Varnish inks for raised textures, glossy finishes, transparent printing, and eye-catching visual effects.
Engineered for Continuous Production

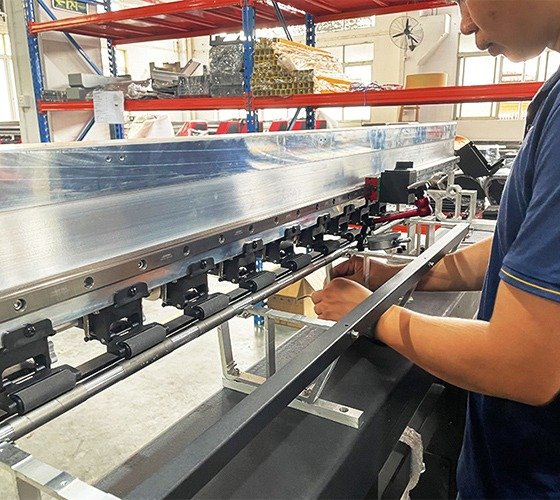

Its robust industrial frame, precision guide rails, and servo-driven motion system provide stable, high-speed performance for demanding commercial environments.
Product Specification
| Product Model | 6090 Pioneer Roll-to-Flat UV Printer |
| Main Board | Hansen Board Card |
| Print Head | XP600 / DX7 / I1600 |
| Print Size | 600 × 900 mm |
| Print Height | 0–150 mm (Customizable) |
| Print Resolution | 720 / 1440 / 2880 DPI |
| Number of Printheads | 2–3 (Optional) |
| Output Color | CMYK + White + Varnish |
| Printing Software | RayPrint |
| Positioning System | Visual Positioning (Optional) |
| Lifting Function | Platform Lifting / Lowering |
| Inkjet Technology | Variable Droplet Inkjet |
| Nozzle Clog Prevention | Original Ink Cartridge with Automatic Stirring & Flash Spraying |

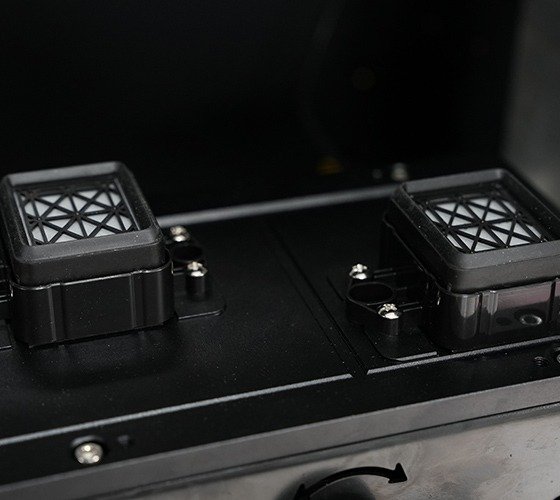

| Print Head Maintenance | Automatic Cleaning |
| Printing Platform | Alloy Air Suction Platform (Optional) |
| Print Mode | Unidirectional / Bidirectional |
| Transmission System | X-Axis Guide Rail + Motor |
| Ink Supply System | Siphon Ink Supply System |
| Power Motor | Stepper Motor |
| Ink Level Monitoring | Low Ink Alarm & Real-Time Notification |

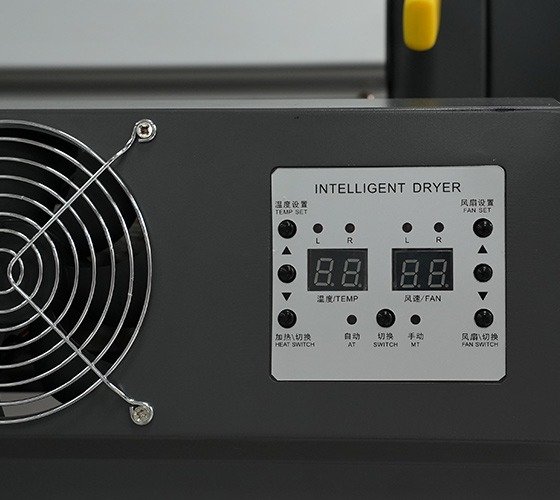

| Curing System | LED UV Lamp with Post-Print Drying |
| Height Measurement | Manual (Optional Automatic Measurement) |
| Supported File Formats | TIFF, BMP, PDF, EPS, JPG |
| Power Requirements | AC 220V / 110V, 50–60 Hz |
| Operating System | Windows 7 / 8 / 10 |
| Output Software | Professional Software |
| Working Environment | 15–35°C, 20–30% RH |
| Special Effects | Relief / Varnish |
| Cylindrical Fixture | Purchase Required |
| Interface | Gigabit Fiber |
| Printing Modes | Flatbed, Roll Media & Cylindrical Printing |
| Machine Dimensions | 1.4 × 1.56 × 0.76 m |
| AI Expansion | Supports AI Image Generation & Transformation Software |
| Machine Weight | Approximately 195 kg |
| Packaging Size | 1.81 × 1.50 × 0.94 m |
| Packing Weight | Approximately 250 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
6090 Pioneer UV Printer Applications
The PICTEL 6090 Pioneer UV Printer combines flatbed, roll-to-roll, and cylindrical printing in one industrial solution. Designed for high-speed production and outstanding versatility, it prints vibrant, durable graphics on rigid, flexible, and cylindrical materials, making it ideal for signage, packaging, décor, promotional products, and customized manufacturing.

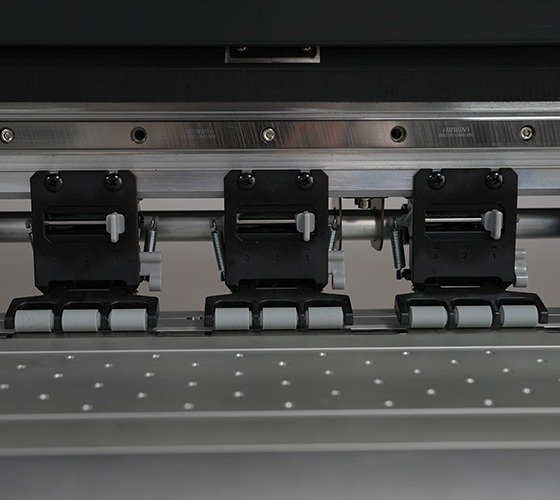

Roll Media Printing
Acrylic Signage
Cylindrical Products
Glass Decorative Panels
Leather Products
Labels & Promotional Products
FAQ
The printer supports flat materials, flexible roll media, and cylindrical objects, making it suitable for acrylic, glass, wood, PVC, metal, leather, labels, bottles, promotional products, and more.
The 6090 Pioneer offers a large 600 × 900 mm print area and supports materials up to 150 mm thick, making it suitable for both standard and larger-format applications.
The printer supports XP600, DX7, and I1600 printheads, with optional configurations of 2–3 printheads to meet different quality and production requirements.
Yes. It supports CMYK + White + Varnish, allowing you to create vibrant graphics, opaque white layers, glossy finishes, spot UV effects, and raised or embossed textures.
Yes. Its versatile design supports flatbed, roll media, and cylindrical printing. A compatible cylindrical fixture is required for printing on round objects.
The printer includes automatic printhead cleaning, ink stirring, flash spraying, low-ink monitoring, and real-time notifications. Optional automatic height measurement is also available for easier operation.
