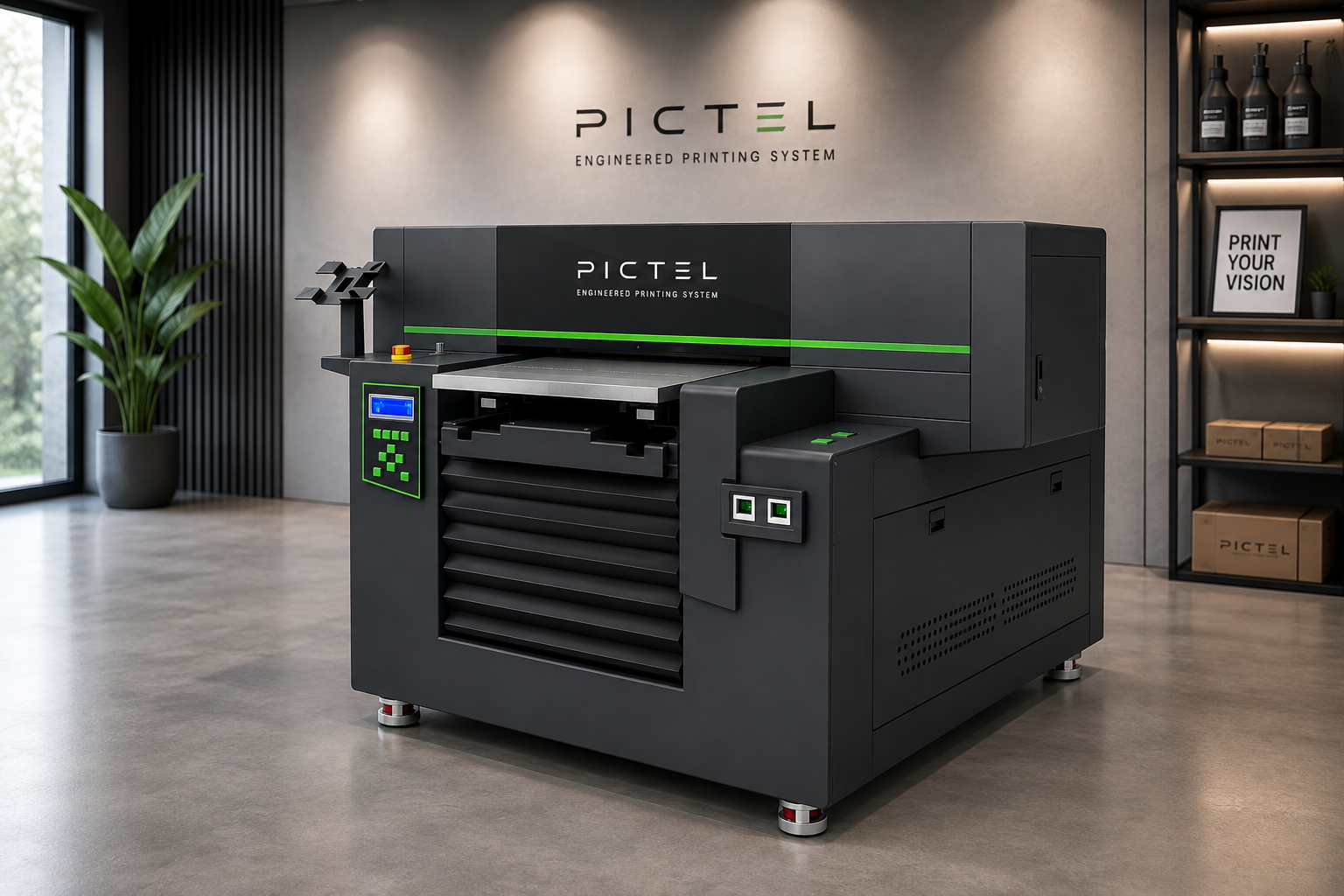

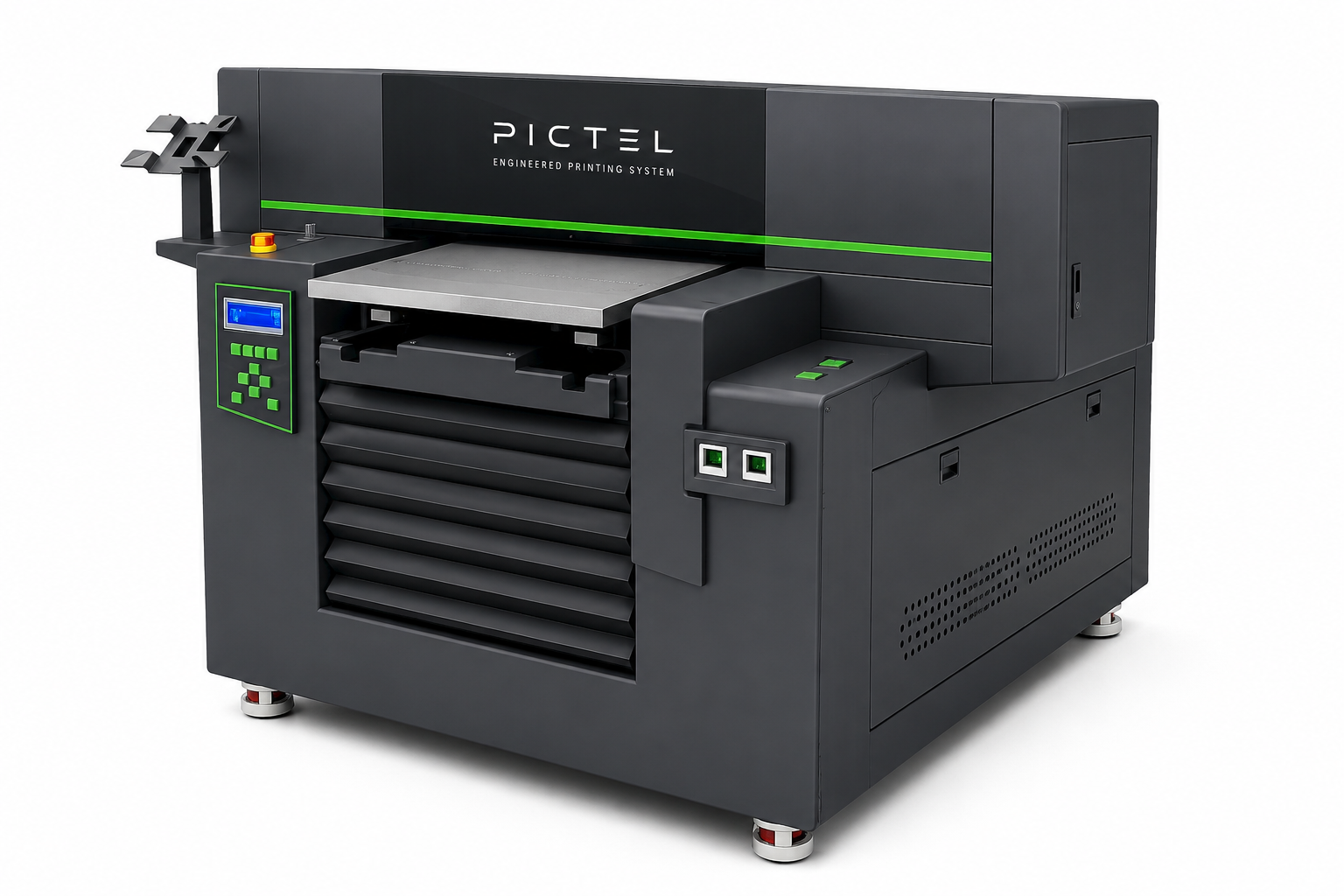

4062 UV PRINTER
Industrial-Grade UV Printing for Large, High-Precision Applications
The PICTEL 4062 UV Flatbed Printer is a high-performance industrial printer designed for precision, speed, and versatility. With a 400 × 620 mm print area and support for materials up to 400 mm thick, it prints directly on a wide range of substrates. Advanced UV LED technology and intelligent automation ensure vibrant colors, sharp details, and reliable performance for commercial printing applications.
Main Features:
- 400 × 600 mm high-precision printing area
- Supports CMYK + White + Varnish UV printing
- Automatic white ink circulation system
- Prints on acrylic, glass, wood, metal & PVC
- Maximum media thickness up to 150 mm
- Industrial UV LED instant curing technology
Technical Specifications:
- Printing Technology: UV LED Flatbed Digital Printing
- Maximum Print Area: 400 × 620 mm
- Maximum Material Thickness: Up to 400 mm
- Print Resolution: Up to 2880 DPI
- Printhead Configuration: Dual Epson I1600 Printheads
- Ink Configuration: CMYK + White + Varnish
- Printing Platform: Aluminum Vacuum Suction Bed
- Printing Modes: Flatbed, Cylindrical & Crystal Label Printing
- Automatic Features: Auto Cleaning, Ink Circulation, Platform Lifting & Nozzle Heating
- Supported File Formats: TIFF, BMP, JPG, PNG, PDF, EPS
- Operating System: Windows 7 / 8 / 10
- Power Supply: AC 220V / 110V, 50–60 Hz
Built for Precision. Engineered for Performance. Ready for Industrial Production.
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Key Feature of 4062 UV PRINTER
Large Print Area for Bigger Opportunities
The spacious 400 × 620 mm print area allows you to produce larger products while maintaining exceptional precision and print quality.
Print on Thick & Rigid Materials
Support for materials up to 400 mm thick enables printing on heavy, rigid, and specialty substrates for diverse industrial applications.
Exceptional UV Print Quality
Deliver professional-quality prints with resolutions up to 2880 DPI, producing vivid colors, crisp details, and long-lasting durability.
Smart Automated Operation

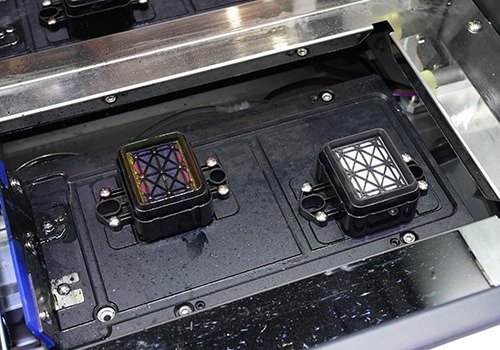

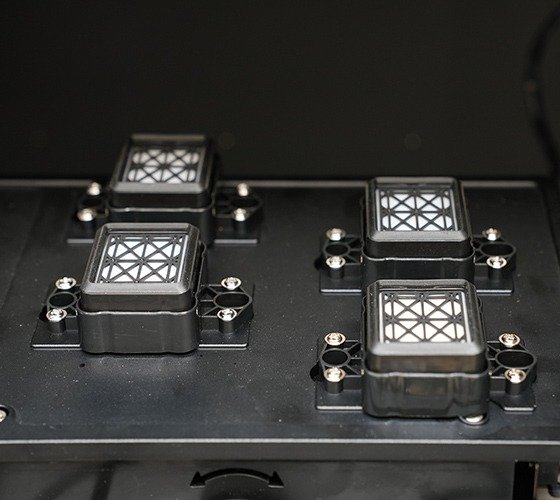

Advanced automation reduces maintenance while ensuring stable performance through automatic cleaning, ink management, and intelligent printhead protection.
Premium White Ink & Varnish Effects
Create premium finishes with CMYK + White + Varnish, including spot UV, raised textures, transparent media printing, and high-end decorative applications.
Designed for Continuous Industrial Production
A rigid industrial frame, precision motion system, and aluminum vacuum platform provide reliable, high-speed production for commercial printing businesses.
Product Specification
| Product Model | 4062 UV Printer |
| Print Head | I1600 |
| Print Height | 40 cm Height Difference (Customizable) |
| Print Size | 40 × 62 cm |
| Number of Print Heads | 2 |
| Lifting Function | Platform Lifting |
| Printing Software | SharpPrint |
| Inkjet Technology | Variable Droplet Inkjet |
| Print Resolution | Printable Resolution: 720 / 1440 / 2880 dpi |
| Output Color | CMYK + White + Varnish (CMYK + W + V) |
| Printing Platform | Alloy Air Suction Platform |
| Print Head Maintenance | Automatic Cleaning / Manual Cleaning |
| Nozzle Clog Prevention | Original Ink Cartridge System with Automatic Stirring |
| Heating System | Nozzle Heating |
| Curing System | LED UV Lamp Curing |
| Ink Supply System | Negative Pressure Ink Supply System (Optional) |
| Operating System | Windows 7 / Windows 8 / Windows 10 |
| Output Software | Professional Software |
| Supported File Formats | TIFF, BMP, PDF, EPS, JPG, etc. |
| Power Requirements | AC 220V / 110V, 50–60 Hz |
| Transmission System | X-Axis: Single Guide Rail + Motor; Y-Axis: Dual Guide Rails + Motor |
| Print Mode | Unidirectional / Bidirectional |
| Working Environment | Temperature: 15–35°C; Humidity: 20–30% |
| Special Effects | Relief / Varnish |
| Cylindrical Fixture | Purchase / Selection |
| Interface Method | Gigabit Fiber |
| Printing Modes | Flat Plate, Cylindrical & Crystal Label Roll Printing |
| Machine Dimensions | 130 × 102 × 104 cm |
| AI Expansion | Supports AI Image Generation and Transformation Software |
| Bare Machine Weight | Approximately 195 kg |
| Packing Size | 145 × 115 × 135 cm |
| Packing Weight | Approximately 250 kg |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
4062 UV Flatbed Printer Applications
Industrial UV Printing for Unlimited Possibilities
The PICTEL 4062 UV Flatbed Printer is engineered to print directly on rigid and flexible materials with exceptional precision. It is ideal for industrial manufacturing, advertising, promotional products, interior decoration, personalized gifts, and commercial production. With support for white ink and varnish, it produces vibrant, durable, scratch-resistant prints on a wide range of substrates.

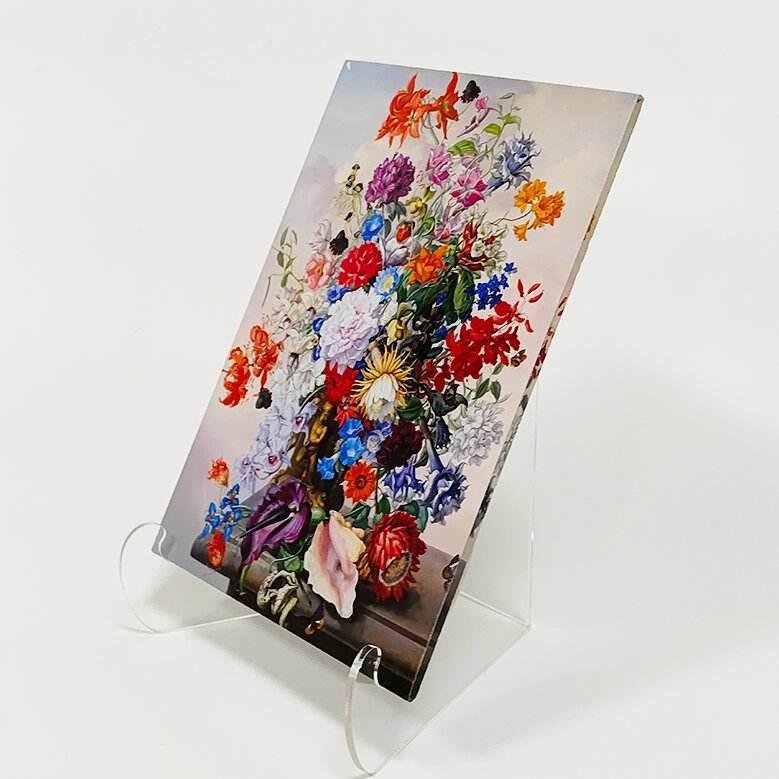

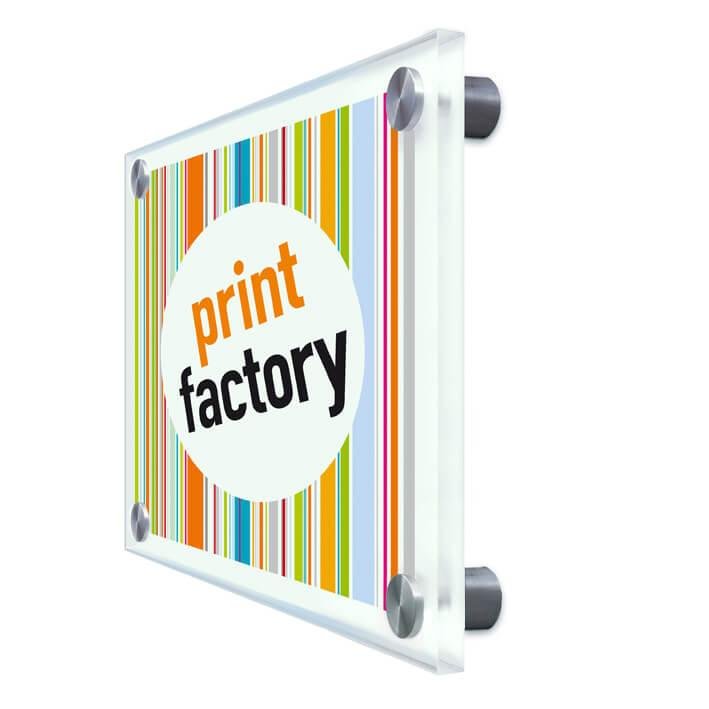

Acrylic Signage

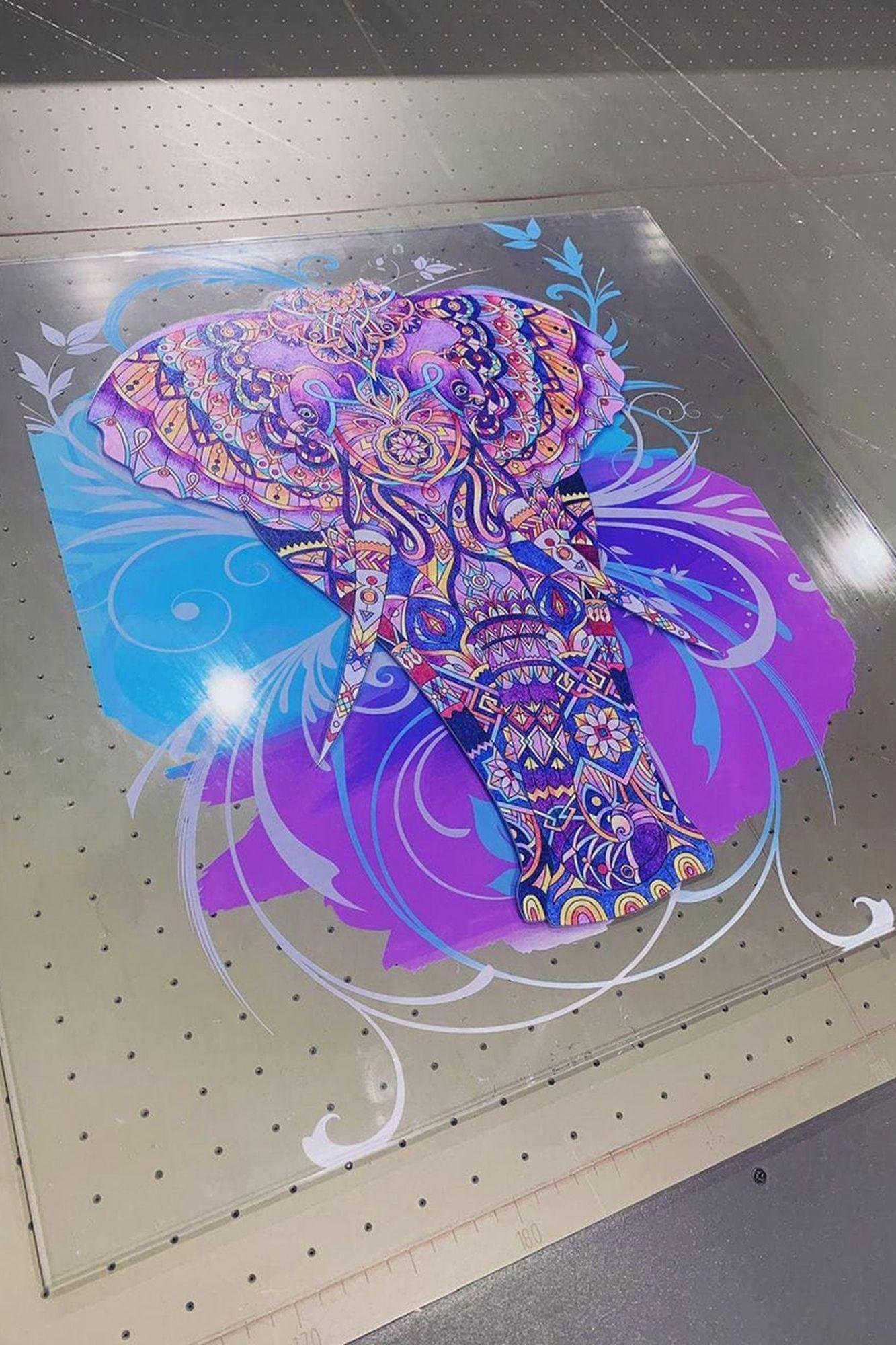

Glass Printing

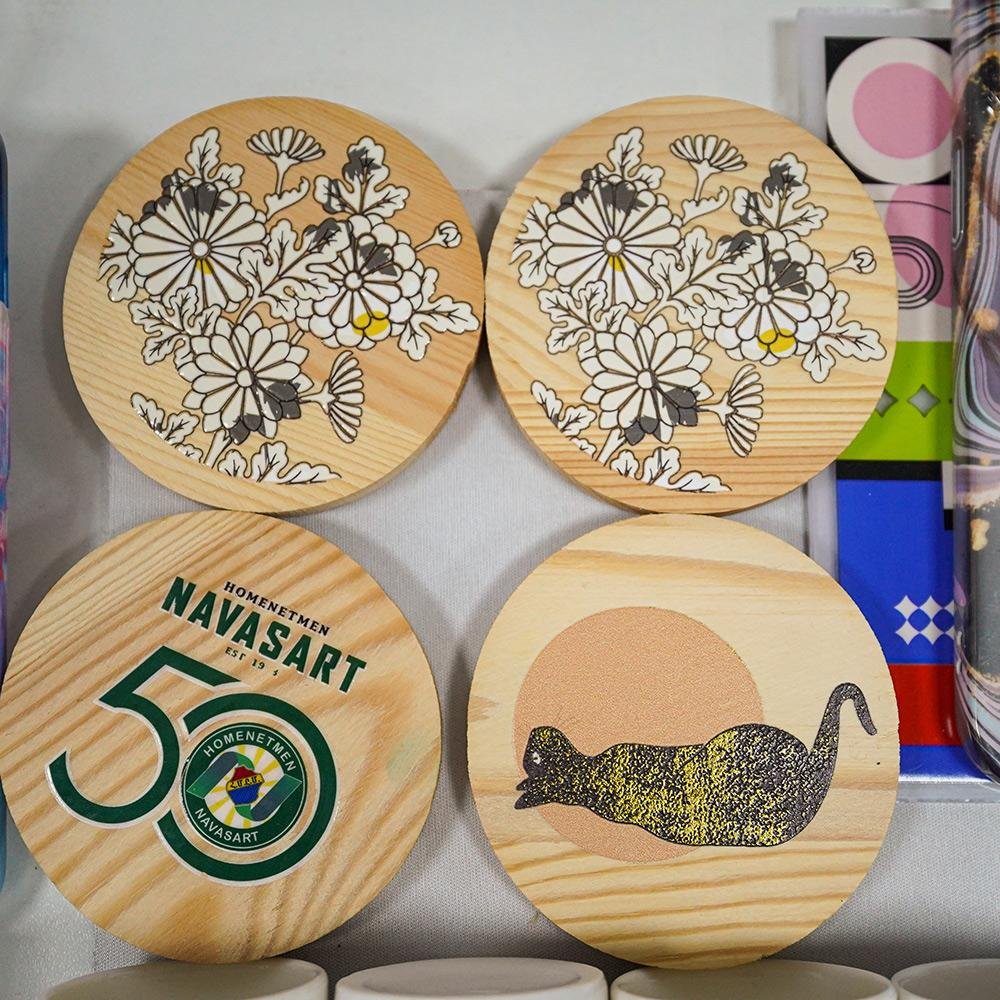

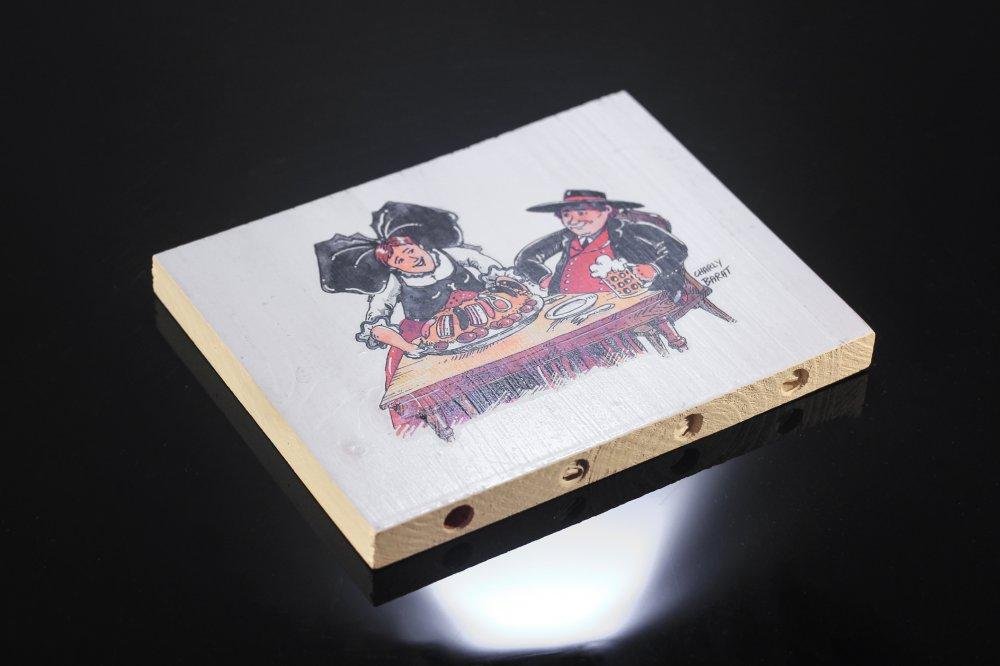

Wood & MDF Products

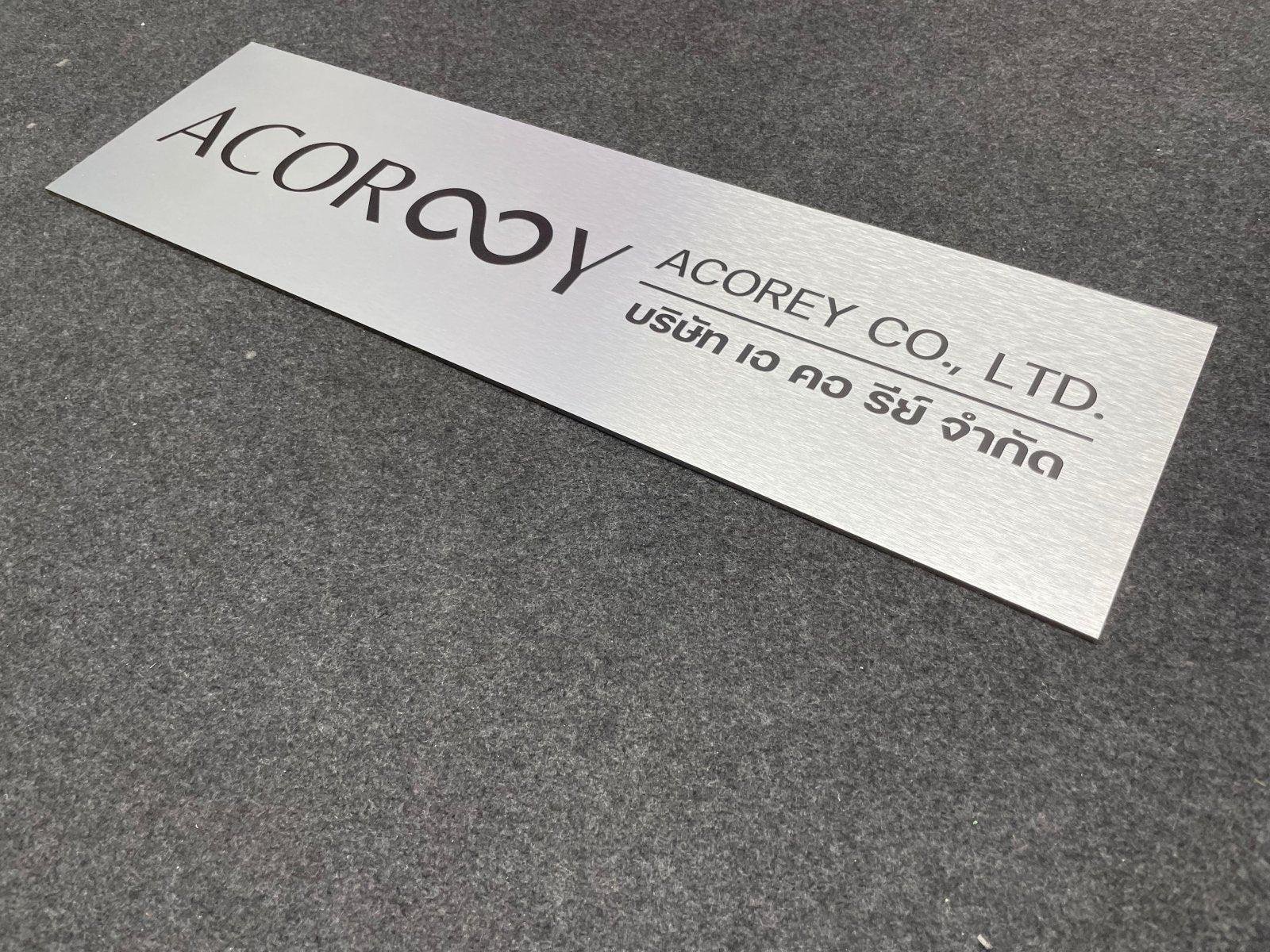

Metal Printing
Mobile Phone Cases
PVC & Plastic Products
FAQ
The 4062 UV Printer can print directly on a wide range of rigid materials, including acrylic, glass, wood, metal, ceramic, PVC, leather, stone, and promotional products.
The printer offers a 400 × 620 mm print area and supports materials up to 400 mm thick, making it suitable for both standard and bulky products.
It supports resolutions of 720, 1440, and up to 2880 DPI, delivering sharp text, fine details, smooth gradients, and vibrant professional-quality graphics.
Yes. The printer supports CMYK + White + Varnish, allowing you to create opaque white layers, glossy finishes, spot UV effects, and raised or embossed textures.
Yes. In addition to flatbed printing, the machine supports cylindrical printing with an optional fixture, making it suitable for bottles, tubes, and other compatible round objects.

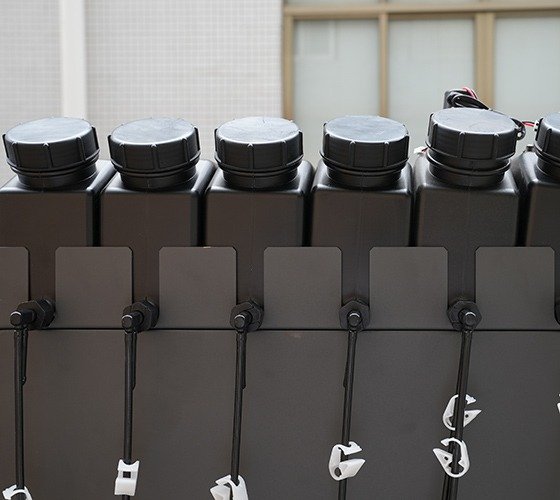

The printer includes automatic printhead cleaning, ink circulation, nozzle heating, platform lifting, and ink management features, helping reduce manual maintenance and maintain consistent print performance.
