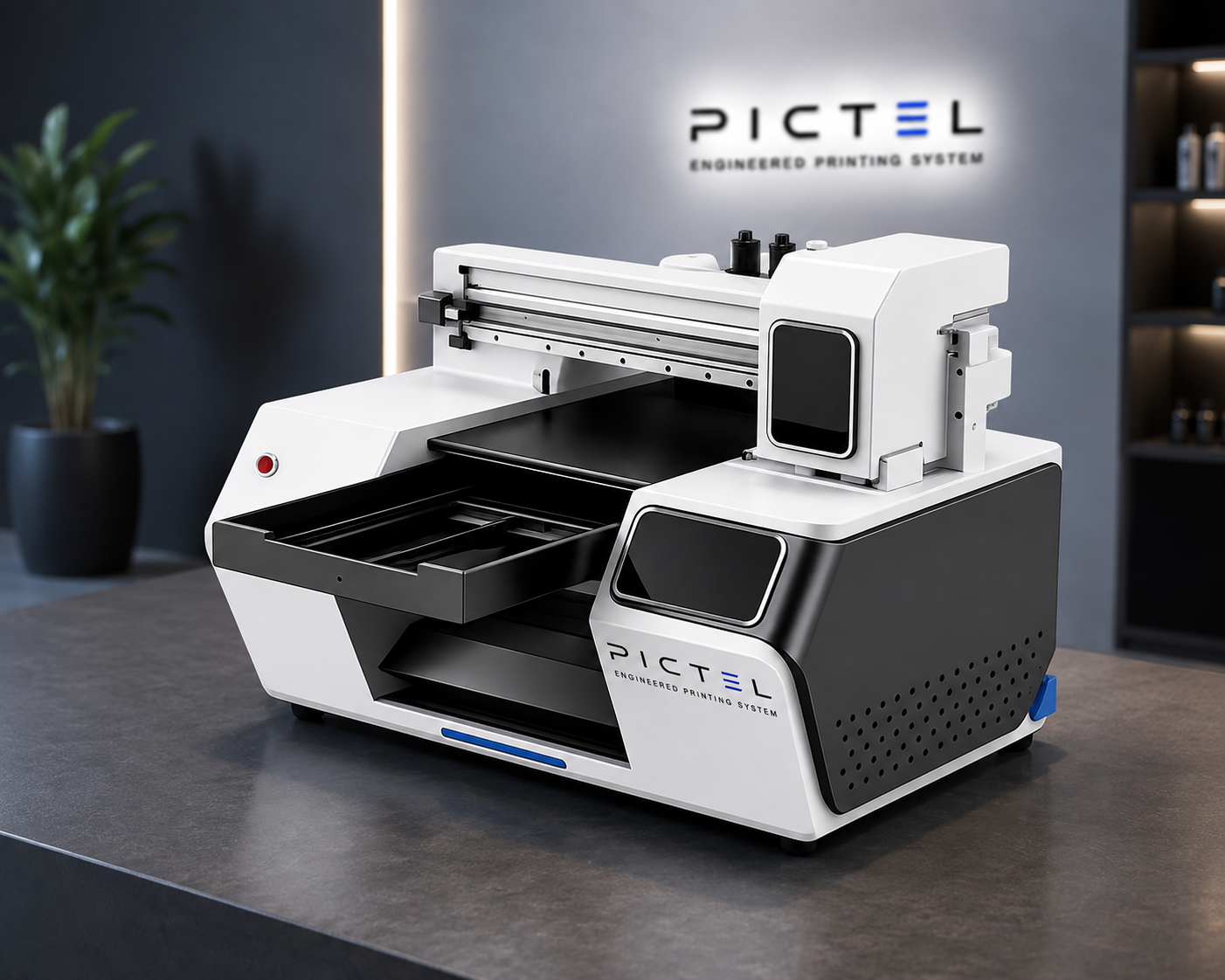

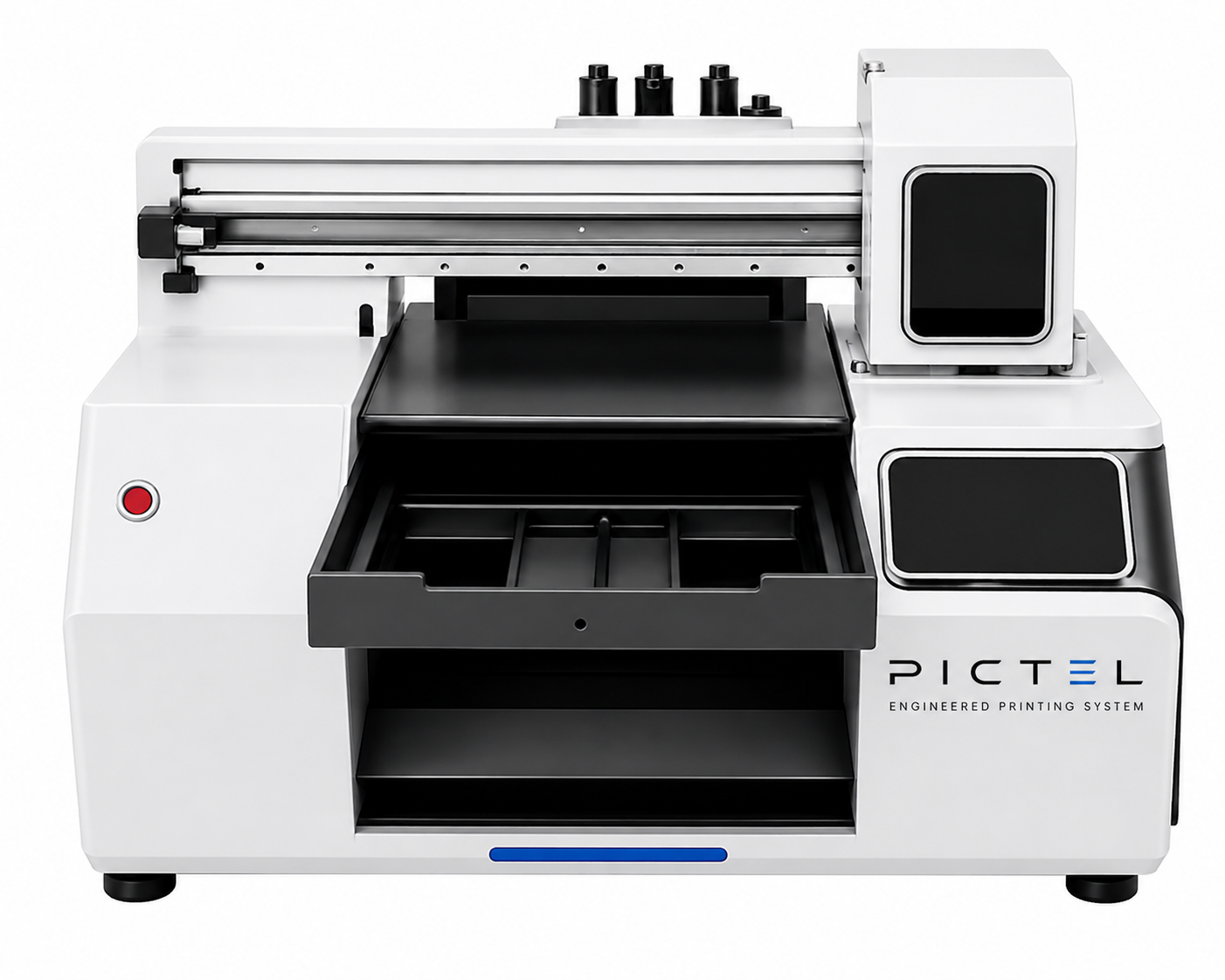

A3 Pioneer UV Printer
The PICTEL A3 Pioneer UV Printer is a compact desktop UV printing solution designed for startups, print shops, and customization businesses. Delivering high-resolution prints with White Ink support and intelligent automation, it prints directly on a wide range of materials. Its space-saving design makes it perfect for personalized products and small-batch production.
Main Features:
- A space-efficient UV printer that fits easily into offices, studios, and small production spaces without compromising performance.
- Produces vibrant, sharp, and durable prints with resolutions up to 2880 DPI for professional-quality output.
- Print directly on acrylic, wood, glass, leather, PVC, metal, ceramic, phone cases, gifts, and more.
- Automatic printhead cleaning, ink supply, height sensing, and low-ink monitoring ensure stable, hassle-free production.
- Supports CMYK + White Ink to create premium embossed textures and eye-catching print finishes.
- Supports flatbed, cylindrical, and crystal label printing, making it suitable for a wide range of applications.
Technical Specifications:
- Printing Technology: UV LED Flatbed Printing
- Maximum Print Area: 300 × 420 mm (A3 Size)
- Maximum Print Height: 160 mm
- Print Resolution: Up to 2880 DPI
- Print Head: Epson
- Ink Configuration: CMYK + White
- Printing Modes: Flatbed, Cylindrical & Crystal Label Printing
- Printing Platform: Vacuum Suction Platform
- Automatic Functions: Auto Cleaning, Auto Ink Supply & Height Detection
- Supported File Formats: TIFF, BMP, JPG, PNG, PDF & EPS
- Operating System: Windows 7 / 8 / 10
- Power Supply: AC 220V / 110V, 50–60 Hz
Compact Desktop UV Printer for Professional Custom Printing
Reliable Quality
Professional R&D team control, strict factory testing and excellent machine quality.
Source Factory
Factory direct sales, competitive pricing and flexible customization.
Fast Shipping
Multiple overseas warehouses and fast worldwide delivery support.
Complete Service System
Professional pre-sales, installation, training and after-sales support.
Compact Desktop Design
Designed to fit small workspaces while delivering industrial-grade UV printing performance for everyday production.
High-Resolution UV Printing
Produce sharp details, vivid colors, and durable prints with resolutions up to 2880 DPI.
Print on Multiple Materials
Expand your business by printing directly on a wide variety of rigid materials with exceptional print quality.
Smart Automatic Maintenance
Built-in automation reduces maintenance while ensuring consistent print quality and maximum uptime.
White Ink & Emboss Printing
Create premium products with White Ink and embossed printing effects for added depth and visual impact.
Ideal for Personalized Products
Perfect for businesses producing customized gifts, promotional products, branding materials, and short-run orders.
Product Specification
| Product Model | A3 Pioneer UV Printer |
| Main Board | Autonomous Board Card |
| Print Head | Epson |
| Print Size | 300 × 420 mm |
| Print Height | 160 mm |
| Print Resolution | 720 / 1440 / 2880 DPI |
| Number of Printheads | 1 |
| Output Colors | CMYK + White |
| Positioning System | Visual Positioning (Optional) |
| Lifting Function | Platform Lifting |
| Inkjet Technology | Smart Variable Droplet |
| Nozzle Clog Prevention | Automatic Stirring / Flash Spraying |

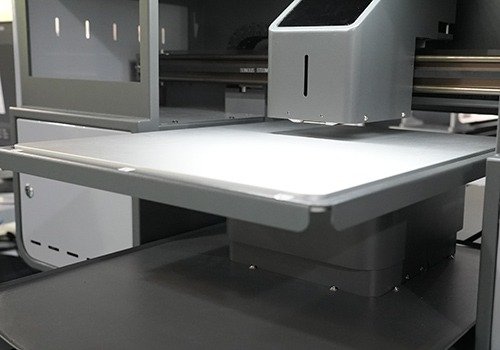

| Printing Platform | Vacuum Suction Platform |
| Print Head Heating | Carriage Heating (Optional) |

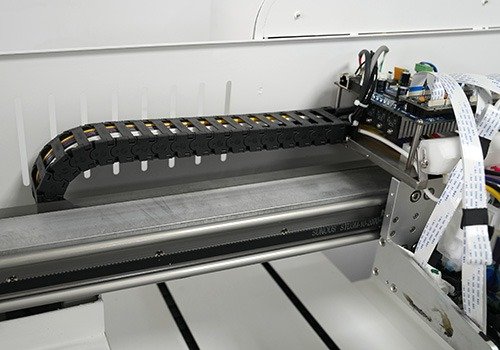

| Transmission System | Silent Linear Guide Rail + High-Precision Lead Screw |

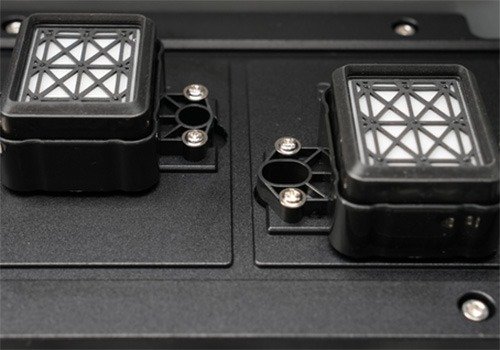

| Print Head Maintenance | Automatic Cleaning |

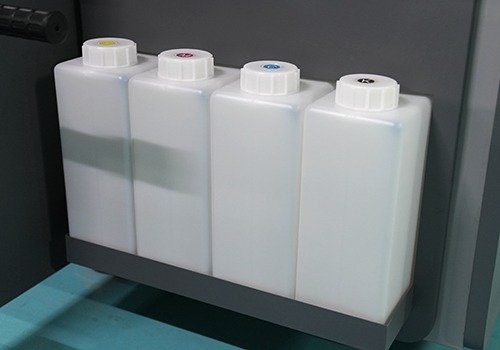

| Ink Supply System | Automatic Ink Supply |
| Print Mode | Unidirectional / Bidirectional |
| Curing System | LED UV Lamp Curing |
| Ink Level Monitoring | Low Ink Alarm |
| Height Measurement | Automatic Height Sensing |
| Language Support | Supports Multiple Languages |
| Supported File Formats | TIFF, BMP, PDF, EPS, JPG |
| Operating System | Windows 7 / 8 / 10 |
| Power Requirements | AC 220V / 110V, 50–60 Hz |
| Working Environment | Temperature: 15–35°C, Humidity: 20–30% RH |
| Output Software | Professional Software |
| Special Effects | Embossment |
| Interface | Gigabit Fiber |
| Printing Modes | Flatbed, Cylindrical & Crystal Label Printing |
| Machine Dimensions | 750 × 750 × 568 mm |
| Bare Machine Weight | Approximately 55 kg |
| Packaging Size | 910 × 810 × 750 mm |
| Packaging Weight | Approximately 85 kg |
| AI Expansion | Supports AI Image Generation & Transformation Software |
Partner with PICTEL. Grow Faster. Earn More.
Your Success is Our Business.
We don't just supply machines we help you build a profitable printing business with the right products, expert guidance, marketing support, and dependable after-sales service.
- Higher Profit Potential
- Fast Service & Spare Parts
- Complete Business Support
- Long-Term Growth Partnership
- Trusted Engineering Expertise
A3 Pioneer UV Printer Applications
The PICTEL A3 Pioneer UV Printer is a compact, high-performance desktop UV printer designed for personalized printing and small-batch production. It delivers vibrant, high-resolution prints on a wide range of materials, making it ideal for custom gifts, promotional products, phone accessories, and creative businesses.
Custom Phone Cases
Acrylic Keychains
Promotional Pens
Golf Balls
Personalized Mugs & Cups
Crystal Labels & Stickers
FAQ
The printer supports a wide range of materials, including acrylic, glass, wood, PVC, leather, ceramic, metal, plastic, phone cases, promotional items, and many other rigid substrates.
Yes. The A3 Pioneer UV Printer supports CMYK + White Ink, making it suitable for transparent, colored, and dark materials while producing vibrant, high-contrast prints.
The printer delivers high-quality output with resolutions of up to 2880 DPI, ensuring sharp text, vivid colors, and fine image details.
Yes. With the optional rotary attachment, the printer can print on bottles, tumblers, mugs, tubes, and other cylindrical products.
The printer supports materials up to 160 mm in height, allowing direct printing on a variety of thick and rigid products.
Yes. It features automatic printhead cleaning, automatic ink supply, low-ink monitoring, and height detection to reduce maintenance and ensure stable performance.
The printer accepts commonly used formats, including TIFF, BMP, JPG, PNG, PDF, and EPS, making it compatible with most graphic design software.
The A3 Pioneer UV Printer is ideal for signage manufacturers, gift shops, promotional product businesses, printing companies, advertising agencies, photo studios, personalization businesses, and startups looking for compact, high-quality UV printing solutions.
